Laparoscopic Instruments - Complete Guide with Images
Laparoscopic (minimally invasive) surgery uses a set of specialized instruments inserted through small abdominal incisions (ports). They fall into several broad categories:
1. Access & Insufflation Instruments
Veress Needle
A spring-loaded, blunt-tipped needle used to create pneumoperitoneum by insufflating CO₂ gas before trocar insertion. The spring mechanism retracts the sharp outer needle once it penetrates the peritoneum, protecting viscera.
- Confirmation of correct placement: hanging drop test, free saline flow, pressure reading < 10 mmHg
- Target intra-abdominal pressure: 12-15 mmHg
The diagram below shows the Veress needle, its pressure gauge connection, and the three stages of peritoneal entry:
Trocars / Cannulas
Trocars create the ports through which all laparoscopic instruments pass. The term now refers to both the initial entry device and the hollow cannula left in place.
Types:
| Type | Description |
|---|---|
| Disposable (bladed) | Sharp tip, single-use |
| Reusable (pyramidal/conical) | Metal, sterilizable |
| Optical (visualizing) | Clear plastic tip allows camera-guided entry |
| Hasson (open/blunt) | Used for open-entry technique; safer in re-operated abdomens |
| Tennermian / Threaded | Screw-thread design anchors to abdominal wall |
Common sizes: 5 mm, 10/12 mm (for specimen extraction, staplers, clip appliers)
Key trocar placement rules (Bailey & Love's, p. 124):
- All secondary trocars inserted under direct vision
- Always inserted perpendicular to the abdominal wall
- Non-midline trocars placed lateral to rectus sheath (mid-clavicular line) to avoid epigastric vessels
- Port sites > 5 mm require fascial closure to prevent hernia
2. Optical Instruments
Laparoscope (Telescope)
A rigid rod-lens system with a camera head attached. The image is displayed on a monitor.
| Specification | Options |
|---|---|
| Diameter | 5 mm or 10 mm (10 mm gives brighter image) |
| Viewing angle | 0° (straight) or 30° (most common - allows angled viewing) |
| Light source | Xenon or LED via fibre-optic cable |
The 30° scope is the standard choice for most procedures as it allows the surgeon to look "around corners" by rotating the scope.
Camera System
- HD or 4K chip-on-tip camera head attaches to the laparoscope eyepiece
- Image transmitted to a monitor (typically 26-32 inch, positioned directly in the surgeon's line of sight)
- 3D laparoscopes are now available to improve depth perception
3. Grasping & Dissecting Instruments
All hand instruments share a common design: long shaft (33 cm or 43 cm), handle with ring grip or pistol grip, and a jaw tip. They are 5 mm or 10 mm in diameter.
Key Graspers:
| Instrument | Jaw Type | Primary Use |
|---|---|---|
| Babcock forceps | Atraumatic, broad | Bowel, fallopian tube, appendix - gentle tissue handling |
| Atraumatic grasper | Smooth jaws | General tissue retraction without serosal injury |
| Claw / Toothed grasper | Rat-tooth / claw jaws | Firm grip on gallbladder, peritoneum |
| Allis forceps | Interlocking serrated | Grasping tougher tissues |
| Maryland dissector | Curved angled jaw | Dissection around vessels and ducts |
| Bowel grasper | Large flat atraumatic | Large bowel mobilization |
| Fundus grasper | Fixed flat jaw | Uterine fundus manipulation |
| Biopsy forceps | Cup jaw | Taking tissue specimens |
Scissors:
| Type | Use |
|---|---|
| Hook scissors (curved) | Most versatile; can also cauterize with monopolar current |
| Straight scissors | Cutting sutures, fine dissection |
| Metzenbaum scissors | Blunt dissection around structures |
4. Energy Devices
Energy devices perform cutting AND hemostasis simultaneously - replacing the need for separate clipping and cutting.
Monopolar Electrosurgery
- Hook electrode: Most common; used for dissection and cutting
- Ball electrode: Coagulation of oozing surfaces
- L-shaped (spatula) electrode: Blunt dissection
- Current passes through patient to a return pad; risk of capacitive coupling and inadvertent burns
Bipolar Electrosurgery
- Current flows only between the two jaws - no current through patient's body
- Safer than monopolar near bowel/vessels
- Bipolar Maryland forceps: Vessel sealing up to 3 mm

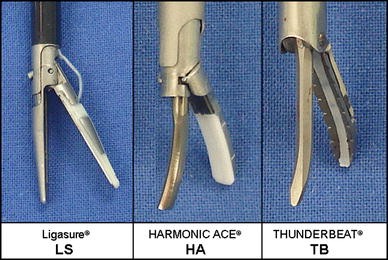

Advanced Bipolar / Vessel Sealers
LigaSure (Medtronic/Valleylab):
- Combines pressure + bipolar thermal energy
- Seals vessels up to 7 mm diameter reliably
- Fuses collagen and elastin in vessel wall
- Minimal lateral thermal spread (~1.5 mm)
- Source: Maingot's Abdominal Operations
Ultrasonic Devices
Harmonic Scalpel (Ethicon/Johnson & Johnson):
- Uses ultrasonic vibrations at 55,500 Hz to simultaneously cut and coagulate
- Blade vibrates at 80 µm amplitude; generates heat by friction (50-100°C)
- No electrical current through patient
- Cuts and seals vessels up to 5 mm
- Advantage: less smoke, less lateral heat than electrocautery
Thunderbeat (Olympus):
- Combines bipolar energy + ultrasonic energy in a single instrument
- Fastest vessel sealing among the three
- Seals vessels up to 7 mm
5. Clip Appliers & Stapling Devices
| Instrument | Use |
|---|---|
| Automatic clip applier (titanium/absorbable) | Clip vessels and ducts (cystic duct in cholecystectomy, vas deferens, appendiceal base) |
| Laparoscopic linear stapler (Endo-GIA) | Simultaneous staple + cut; used for bowel resection, vascular pedicles, lung resection. Fires 2-3 rows of staples on each side |
| Circular stapler (EEA/CDH) | Colorectal anastomosis - introduced transanally or through a port |
6. Suturing Instruments
(Fischer's Mastery of Surgery, p. 570-571)
| Instrument | Description |
|---|---|
| Laparoscopic needle holder | Straight or curved head; straight or ergonomic curved handle - reduces wrist angulation |
| Knot pusher | Allows extracorporeal knot tying - knot tied outside body, pushed down the suture |
| Endo Stitch (Medtronic) | Self-loading needle device; passes needle back and forth between jaws for reliable bites |
| Loop ligature (Endoloop) | Pre-tied loop for ligating vessels/ducts with one hand |
| Articulating needle holders | Allow extra degrees of freedom; useful in single-port (SILS) surgery |
7. Suction/Irrigation
- Suction-irrigation cannula: 5 mm shaft with dual lumen; washes operative field and aspirates blood/fluid
- CO₂ insufflated cavity means suction must be used judiciously to maintain pneumoperitoneum
8. Specimen Retrieval
| Device | Use |
|---|---|
| Endobag (specimen retrieval bag) | Placed around specimen laparoscopically; bag closed and extracted through an enlarged port site - prevents port site tumor implantation in oncological cases |
| Morcellator | Mechanical fragmentation of large specimens (fibroid tissue) - use now restricted due to concerns about spreading occult malignancy |
Summary: Commonly Used Laparoscopic Instrument Set
Based on Maingot's Abdominal Operations (Table 37-4):
- Video camera unit
- Light source (Xenon/LED)
- CO₂ insufflator
- 30° laparoscope (5 or 10 mm)
- Suction/irrigator
- Cannulas (Hasson and 10/12 mm + 5 mm)
- Scissors with cautery attachment
- Babcock graspers
- Intracorporeal vascular ligation device
- Clip applier
- LigaSure or Harmonic scalpel
- Linear stapler (for bowel/vascular procedures)
- Circular stapler (for pelvic/colorectal cases)
- Needle holder + knot pusher (for suturing)
Instrument Sizes at a Glance
| Size | Instruments |
|---|---|
| 3.5-5 mm | Graspers, scissors, dissectors, hook electrode, clip applier (small) |
| 10-12 mm | Laparoscope (10 mm), clip applier (large), linear stapler, specimen retrieval bag |
| 15-30 mm | Enlarged extraction port |
| Length | Standard 33 cm; bariatric/long instruments 38-43 cm for obese patients |
Sources: Maingot's Abdominal Operations | Fischer's Mastery of Surgery (8th ed., p. 570) | Bailey & Love's Short Practice of Surgery (28th ed., p. 124) | Campbell-Walsh Urology
