🩸 Thalassemia in Pediatrics - Complete Easy-Memorization Guide

Sources: Robbins & Kumar Pathologic Basis of Disease; Goldman-Cecil Medicine; Lippincott Biochemistry; Robbins Basic Pathology

🧠 The One-Line Hook to Remember Everything

"THALASSA = SEA (Greek) → Mediterranean Sea → Anemia from missing globin chains → Unpaired chains precipitate → Destroy red cells from inside"

📌 Part 1: Basics - The Foundation

What Is Thalassemia?

Inherited disorder of reduced globin chain synthesis (not abnormal chains like sickle cell - the chain is normal, just made in too small a quantity).

Two players, one result:

	β-Thalassemia	α-Thalassemia
Gene location	Chromosome 11 (1 gene)	Chromosome 16 (2 genes = 4 alleles total)
Mutation type	Mainly point mutations	Mainly deletions
Unpaired chain	Excess α chains precipitate	Excess β/γ chains precipitate
Result	HbA2 ↑, HbF ↑	HbH (β4) or Hb Bart (γ4)

Memory Trick: "16 has 4, 11 has 1"

Chromosome 16 = α globin = 4 alleles (2 per chromosome)
Chromosome 11 = β globin = 1 gene per chromosome (2 alleles total)

📌 Part 2: β-Thalassemia Spectrum

The Three Flavors (Remember: "MINOR → MEDIA → MAJOR = More trouble each step")

	β-Thal Minor	β-Thal Intermedia	β-Thal Major (Cooley Anemia)
Genotype	β⁺/β OR β⁰/β (heterozygous)	β⁺/β⁺ or β⁰/β⁺ (variable)	β⁰/β⁰ or β⁺/β⁰ (homozygous)
Hb level	~10-12 g/dL (mild ↓)	7-10 g/dL	<7 g/dL
Presentation	Usually asymptomatic	Age 2-6 years	<2 years of life
Transfusion	Not needed	Usually not needed	Required regularly
HbA2	↑ (>3.5%)	Variable	>3.5%
HbF	Mildly ↑	10-50%	>50%

Molecular Mutations (3 types - mnemonic: "SPC")

Splicing mutations - most common β⁺ cause; create ectopic splice sites
Promoter region mutations - reduce transcription 75-80%, always β⁺
Chain terminator mutations - most common β⁰ cause; nonsense/frameshift → no β-globin at all

📌 Part 3: The Pathophysiology Chain Reaction

Memory Story: "The Domino Effect"

↓ β-globin synthesis
        ↓
Excess α-chains accumulate (they have nothing to pair with)
        ↓
α-chains precipitate inside RBC precursors → form INCLUSIONS
        ↓
Membrane damage → APOPTOSIS of 70-85% of erythroid precursors
        ↓
INEFFECTIVE ERYTHROPOIESIS (biggest culprit in β-thal major)
        ↓                              ↓
   SEVERE ANEMIA            Erythroid hyperplasia
        ↓                              ↓
  Tissue hypoxia           Massive marrow expansion
                                       ↓
                          ┌────────────┴────────────┐
                          ↓                         ↓
               Bone erosion/deformities    Extramedullary hematopoiesis
               (frontal bossing,           (liver, spleen, lymph nodes)
                "chipmunk face")                    ↓
                                            Hepatosplenomegaly

The Iron Overload Problem (Major Complication)

Erythroferrone (from erythroid precursors) → inhibits hepcidin → ↑ gut iron absorption
Add repeated blood transfusions → iron accumulates in:
- Heart → cardiomyopathy → #1 cause of death
- Liver → hepatic fibrosis/cirrhosis
- Endocrine glands → DM, hypogonadism, hypothyroidism

📌 Part 4: Clinical Features in Children

The Classic Pediatric Picture of β-Thalassemia Major

Age of presentation: First year of life (when HbF switches off to HbA, but β-chains can't be made)

Mnemonic: "FACE-BONE-SPLEEN-HEART"

Feature	What you see	Why
Face	Frontal bossing, prominent cheekbones, "chipmunk face", protrusion of jaws	Marrow expansion erodes facial bones
Anemia	Pallor, fatigue, Hb <7 g/dL, microcytic hypochromic	↓ HbA synthesis
Cardiac	Cardiomegaly, heart failure	Chronic anemia + iron overload in myocardium
Enlarged liver & spleen	Massive hepatosplenomegaly	Extramedullary hematopoiesis
Bone	Pathological fractures, osteoporosis	Cortical thinning from marrow expansion
Overload of iron	Bronze skin, diabetes, hypogonadism	Secondary hemochromatosis
Nutritional wasting	Growth retardation, cachexia	Erythroid progenitors "steal" nutrients
Endocrine**	Short stature, delayed puberty	Iron deposits in pituitary, gonads

Classic X-ray finding: "Hair-on-end" skull - vertical striations from marrow hyperplasia expanding the diploë

📌 Part 5: α-Thalassemia - The 4-Gene Story

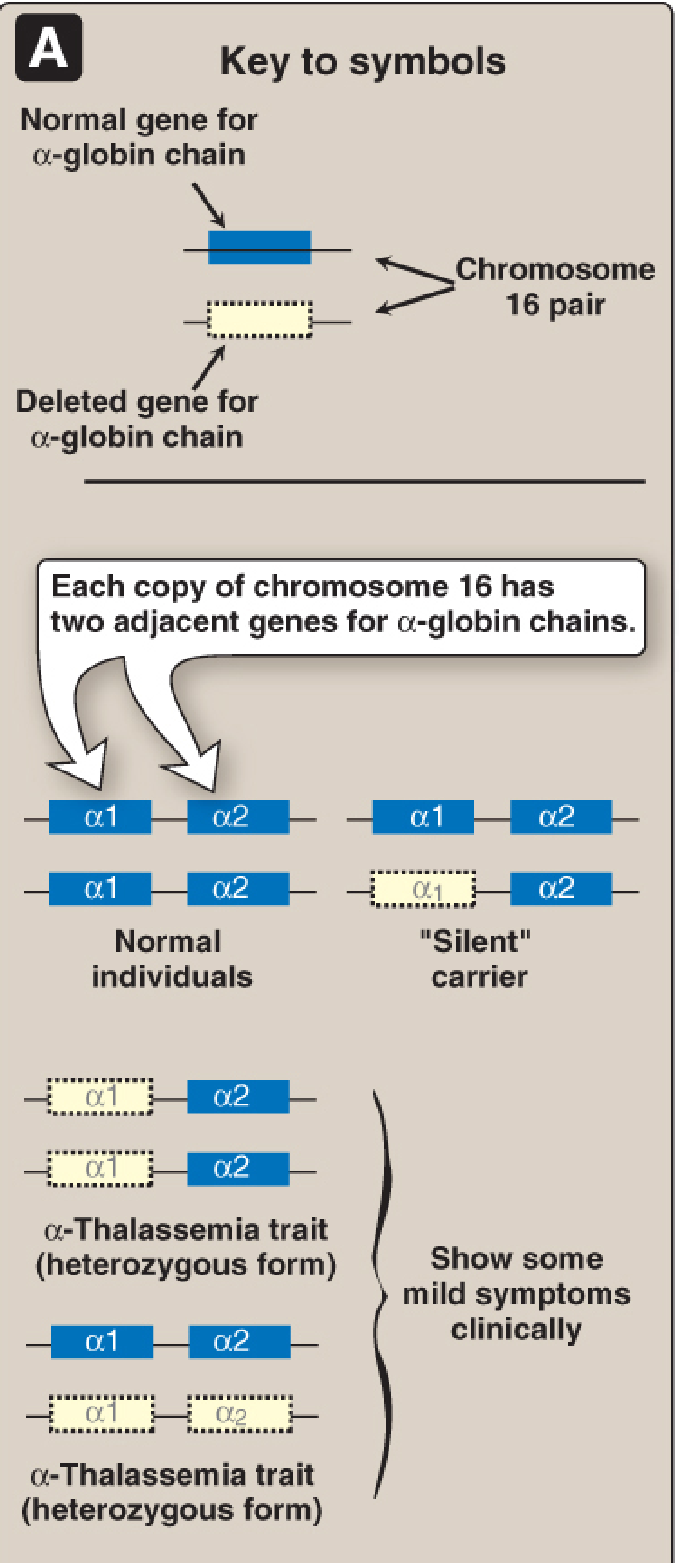

The images above (from Lippincott Biochemistry) show this perfectly. Each person has 4 α-globin genes (2 on each chromosome 16).

The Spectrum by Number of Deleted Genes

Deleted Genes	Name	Clinical Result	Hemoglobin Formed
1 of 4	Silent carrier	Completely normal	Normal HbA
2 of 4	α-Thalassemia trait	Mild microcytic anemia only	Near-normal
3 of 4	Hemoglobin H disease	Moderate-severe hemolytic anemia	HbH (β₄) - precipitates = Heinz bodies
4 of 4	Hb Bart's hydrops fetalis	Fetal death / stillbirth	Hb Bart (γ₄) - useless for O₂ delivery

Why Hb Bart is lethal:

γ4 has such high O₂ affinity it won't release O₂ to tissues → severe intrauterine hypoxia → generalized edema (hydrops) → fetal death or death at birth.

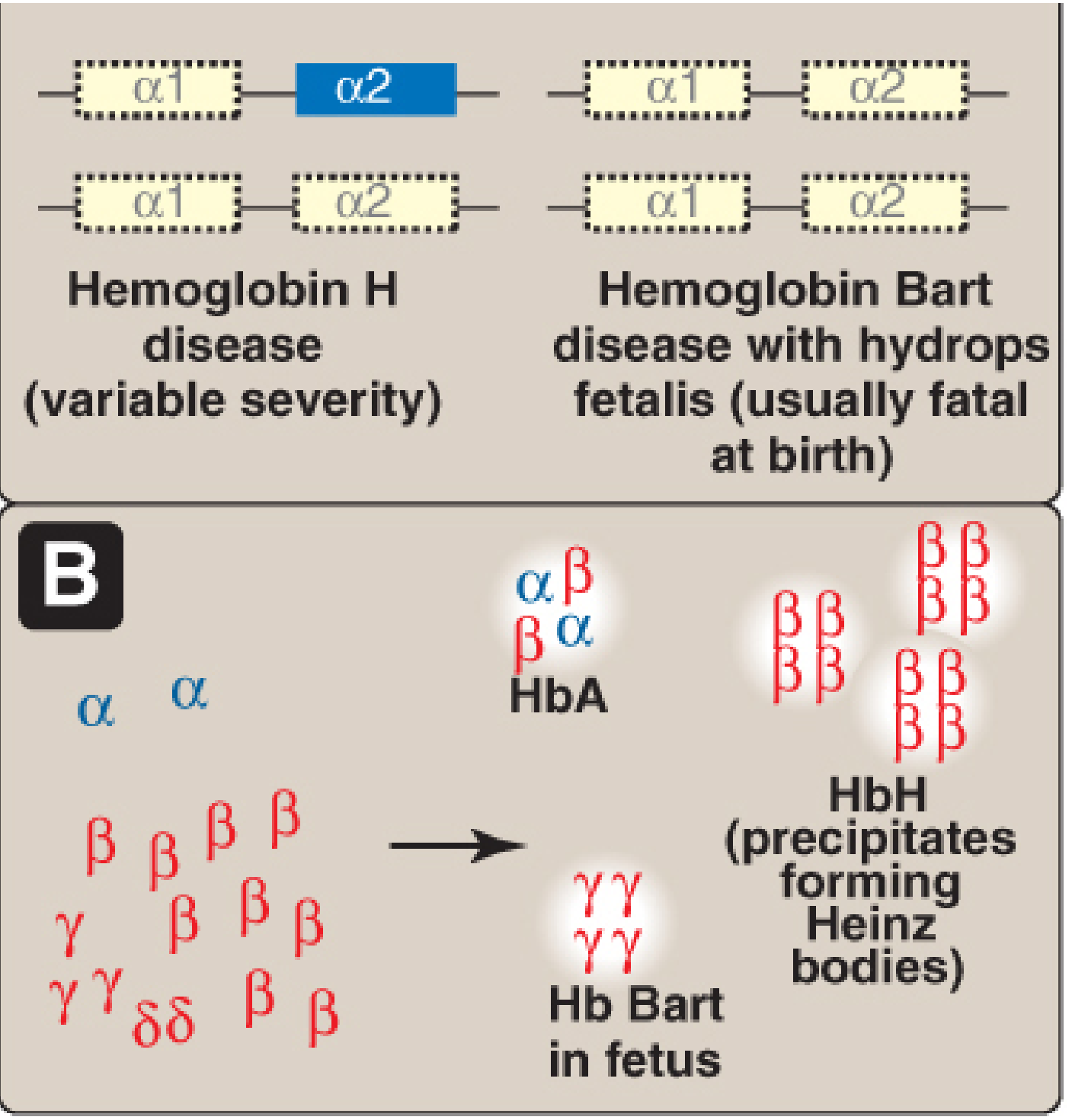

Hemoglobin H and Hb Bart formation diagram

📌 Part 6: Diagnosis - Lab Work

Blood Film Findings (mnemonic: "HINT")

Hypochromic microcytic RBCs
Inclusion bodies (precipitated globin chains - Heinz bodies in HbH)
Nucleated RBCs (released from expanded marrow)
Target cells (codocytes)

Key Lab Values for β-Thalassemia

Test	β-Thal Minor	β-Thal Major
Hb	10-12 g/dL	<7 g/dL
MCV	Low (<70 fL)	Very low
HbA2 (HPLC)	>3.5% (KEY finding!)	>3.5%
HbF	Slightly ↑	>50%
Serum iron	Normal or ↑	↑↑ (iron overload)
Ferritin	Normal	↑↑↑
Reticulocytes	Mildly ↑	↑↑

The diagnostic gold standard: Hemoglobin electrophoresis (HPLC)

HbA2 > 3.5% = β-thalassemia trait/major
Hb Bart (γ4) on newborn screen = α-thalassemia

📌 Part 7: Management

Mnemonic: "ITCH-G" for β-Thalassemia Major management

Letter	Treatment	Details
Iron chelation	Deferoxamine (IV/SC), Deferasirox (oral), Deferiprone (oral)	Start when ferritin >1000 μg/L or after ~10-20 transfusions
Transfusion	Regular every 2-5 weeks	Maintain pre-transfusion Hb >9-10 g/dL to suppress endogenous (ineffective) erythropoiesis
Cure	HSCT (Bone marrow transplant)	Best results in pediatric patients with HLA-identical sibling donors; adults have worse outcomes due to advanced iron overload
Hydroxyurea	Increases HbF; helps some patients	More effective in sickle cell but used in some thalassemia intermedia cases
Gene therapy	Luspatercept, CRISPR/Cas9, lentiviral vectors	Luspatercept approved for adults; CRISPR gene editing now available for β-thalassemia and sickle cell disease (2025)

Iron Chelation Quick Reference

Deferoxamine - subcutaneous infusion over 8-12 hours, 5-7 nights/week; old but effective
Deferasirox (Exjade) - oral, once daily; now first-line in many centers
Deferiprone - oral, 3x/day; best for cardiac iron removal; monitor for agranulocytosis
Start chelation when serum ferritin >1000 μg/L or after ~20 transfusion episodes

Monitoring Iron Overload

Serum ferritin (routine; high >2500 μg/L = danger zone)
Liver biopsy or MRI-R2* (gold standard for liver iron concentration)
MRI T2* - for cardiac iron (most important; cardiac death is #1 cause of mortality)

📌 Part 8: Complications in Pediatric Patients

Quick Visual Summary

β-THALASSEMIA MAJOR COMPLICATIONS
          |
     ┌────┴────────────────────────────┐
     ↓                                 ↓
 FROM ANEMIA                    FROM IRON OVERLOAD
     |                                 |
  ├ Cardiac failure              ├ Cardiomyopathy (arrhythmia, failure)
  ├ Growth retardation           ├ Hepatic fibrosis → cirrhosis
  ├ Skeletal deformities         ├ Diabetes mellitus
  ├ Recurrent infections         ├ Hypogonadism (delayed puberty)
  ├ Extramedullary masses        ├ Hypothyroidism/hypoparathyroidism
  └ Gallstones (bilirubin)       └ Osteoporosis

📌 Part 9: Genetics & Inheritance (For Exams)

Pattern: Autosomal Codominant

Parents	Offspring risk
Both β-thal trait (carriers)	25% normal, 50% trait, 25% major
One β-thal major + one normal	50% trait
Both α-thal trait (cis/trans)	Variable - depends on cis (--/αα) vs trans (-α/-α)

Key point: α-thal trait cis (--/αα) is more dangerous for offspring than trans (-α/-α), because two cis carriers can produce a child with 4 deleted genes (Hb Bart's)

Prenatal Diagnosis

Chorionic villus sampling (CVS) at 10-12 weeks
Amniocentesis at 16-18 weeks
Goal: prevent homozygous β-thalassemia major and Hb Bart's hydrops

📌 Part 10: High-Yield Exam Mnemonics Summary

"THALASSEMIA" Mnemonic for Features of β-Thal Major:

Transfusion needed regularly
Hepato-splenomegaly
Anemia (severe, Hb <7)
Low MCV (microcytic)
Abnormal facies (chipmunk face, frontal bossing)
Skeletal changes (hair-on-end skull, pathological fractures)
Secondary hemochromatosis (iron overload)
Endocrine problems (diabetes, hypogonadism)
Marrow expansion (ineffective erythropoiesis)
Iron chelation required (deferoxamine/deferasirox)
Autosomal codominant inheritance

Quick Comparison Card: α vs β Thalassemia

Feature	α-Thalassemia	β-Thalassemia
Chromosome	16	11
Mechanism	Deletion	Point mutation
No. of alleles	4	2
Worst form	Hb Bart's (hydrops, fatal)	Thal major (Cooley anemia)
Abnormal Hb	HbH (β4), Hb Bart (γ4)	↑HbA2, ↑HbF
Onset	Fetal/neonatal (worst form)	6-24 months (when HbF → HbA switch)
Common region	SE Asia, Africa	Mediterranean, Middle East, India

Why Onset at 6-24 Months? (Classic Exam Q)

At birth, infants have HbF (α2γ2) which works fine. Around 6 months, the γ→β switch occurs. In β-thalassemia major, the child can't make β-chains, so HbA (α2β2) cannot form → severe anemia becomes apparent after the switch is complete (6-24 months of age).

Key Numbers to Remember

Parameter	Value
HbA2 threshold for β-thal trait	>3.5%
Hb level to start transfusions	<7 g/dL (or symptomatic)
Target pre-transfusion Hb	9-10 g/dL
Transfusion frequency	Every 2-5 weeks
Start chelation when ferritin	>1000 μg/L
Danger ferritin level	>2500 μg/L
HSCT best in	Pediatric patients with HLA-matched sibling
Chromosome for β-globin	11
Chromosome for α-globin	16
α-globin alleles total	4

Sources: Robbins, Cotran & Kumar Pathologic Basis of Disease (9780443264528); Goldman-Cecil Medicine (9780323930345); Lippincott Illustrated Reviews Biochemistry (9781975155063); Robbins & Kumar Basic Pathology (9780323790185)
