WALDEYER'S RING: SURGICAL ANATOMY AND IMMUNOLOGICAL FUNCTION

[RGUHS 20-Mark Long Essay | ENT/Otolaryngology]

INTRODUCTION

PART A: SURGICAL ANATOMY

I. COMPONENTS

A. INNER RING (Tonsillar Ring)

B. OUTER RING (Lymph Node Ring)

II. DIAGRAM: WALDEYER'S RING

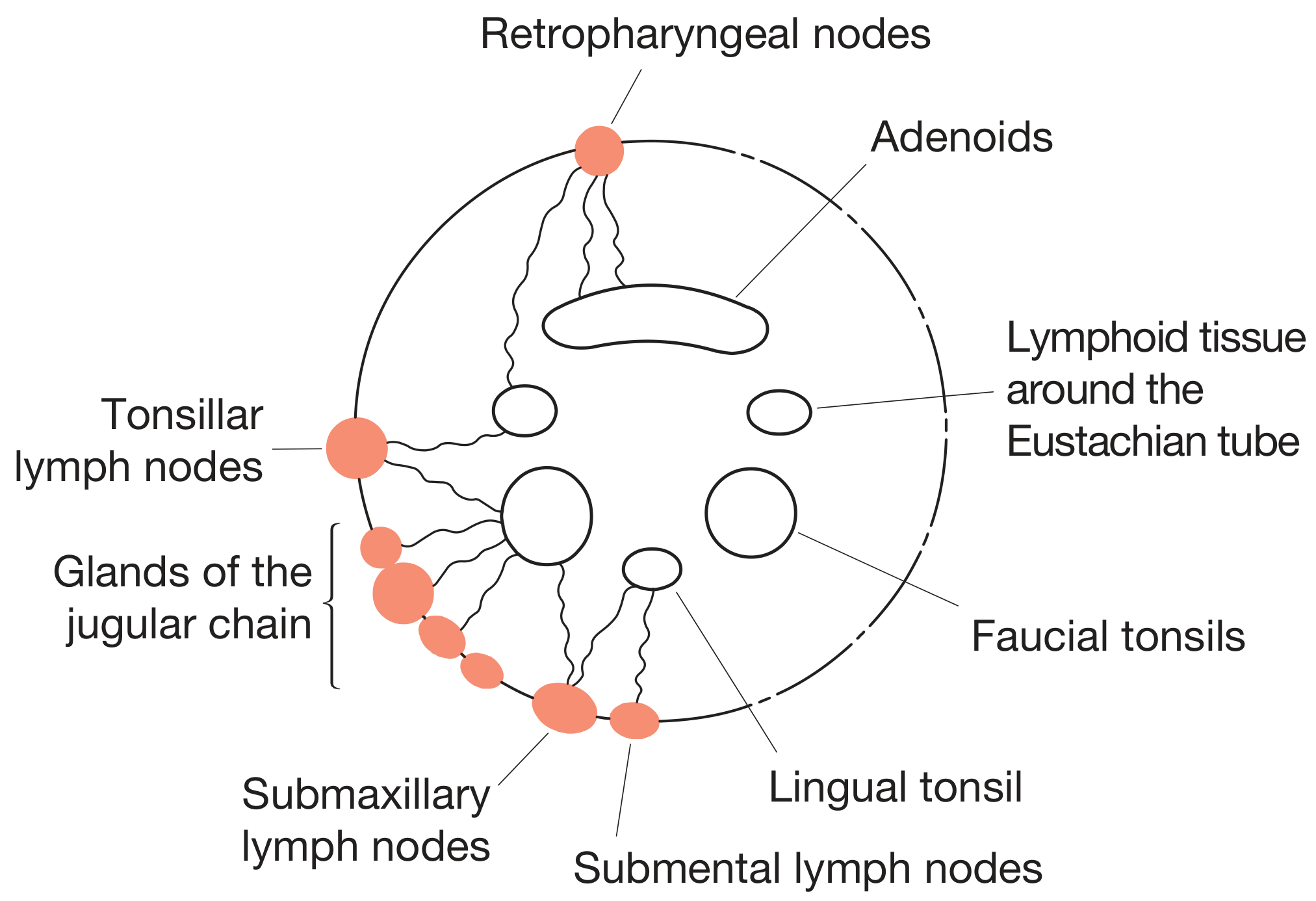

Fig. 52.2 - Waldeyer's Ring (Bailey & Love's Short Practice of Surgery, 28th Edition)

III. NASOPHARYNGEAL TONSIL (ADENOID)

• Position: Roof and posterior wall of nasopharynx (first immunological contact for inhaled antigens in childhood)
• Surface: Longitudinal furrows (not crypts) - maximise antigen-trapping surface area
• Development: Identifiable at 4-6 weeks gestation; maximal size relative to nasopharynx at age 7 years; regression after age 15
• Blood supply: Ascending pharyngeal artery; branches of facial and maxillary arteries; thyrocervical trunk
• Venous drainage: Internal jugular and facial veins
• Lymphatic drainage: Retropharyngeal nodes → Upper deep cervical nodes → Posterior triangle
• Nerve supply: Glossopharyngeal (IX) and Vagus (X) - sensory branches (Scott-Brown's Vol 2)

IV. PALATINE TONSIL (KEY SURGICAL STRUCTURE)

• Medial surface: Pitted with 10-20 crypts (blind-ending, deeply branching, extend full thickness) - maximise antigen sampling
• Intratonsillar cleft: Remnant of 2nd pharyngeal pouch entering upper pole
• Lateral surface: Covered by tonsillar hemicapsule (condensation of pharyngobasilar fascia) - separated from superior constrictor by loose areolar tissue = surgical cleavage plane
• Uniquely encapsulated among all Waldeyer's ring components - enables tonsillectomy dissection plane (Scott-Brown's)
• Floor of tonsillar bed: Superior constrictor muscle
• Parapharyngeal space lies beyond buccopharyngeal fascia - contains internal carotid artery (1.5-2.5 cm away) - critical surgical danger zone

V. BLOOD SUPPLY OF PALATINE TONSIL (5 Arteries)

         ARTERIAL SUPPLY (KJ Lee's / Scott-Brown's)

         External Carotid Artery
                  │
    ┌─────────────┼───────────────────┐
  Facial A.   Ascending          Maxillary A.
    │          Pharyngeal A.          │
  ┌─┴──┐                        Descending Palatine A.
Tonsillar  Ascending                  │
 Branch    Palatine A.          Lesser Palatine A.
 (CHIEF)
  + Dorsal Lingual A. (from Lingual A.)

All 5 arteries → TONSIL

• Pharyngeal venous plexus (deep to tonsil)
• External palatine vein (paratonsillar vein) - descends from soft palate lateral to hemicapsule - most commonly divided in tonsillectomy; commonest cause of post-tonsillectomy haemorrhage (Scott-Brown's)

• Maxillary nerve (V2) → Lesser palatine nerves (via pterygopalatine ganglion, without synapse)
• Glossopharyngeal nerve (IX)
• Clinical significance: Tympanic branch of IX → tympanic plexus → referred otalgia from tonsillar pathology (Scott-Brown's)

VI. LINGUAL TONSIL

• Base of tongue (posterior 1/3), below circumvallate papillae; not encapsulated; multiple crypts
• Blood supply: Dorsal lingual artery; Lymphatics: Deep cervical nodes
• Often hypertrophies compensatorily after tonsillectomy

PART B: IMMUNOLOGICAL FUNCTION

I. OVERVIEW

II. STRUCTURAL BASIS OF IMMUNITY

TONSIL HISTOLOGICAL ZONES
│
├── Reticular Epithelium (crypt surface)
│   └── M-cells (microfold cells) → antigen transcytosis
│
├── Subepithelial Zone
│   └── Dendritic cells + Macrophages (APCs)
│
├── Extrafollicular Region
│   └── T-cells (CD4+ helper, CD8+ cytotoxic, Treg)
│   └── High endothelial venules (HEVs) → lymphocyte homing
│
└── Lymphoid Follicles
    ├── Mantle zone (naïve B-cells)
    └── Germinal centers
        ├── Centroblasts → Centrocytes → Memory B-cells
        ├── Follicular dendritic cells
        ├── T follicular helper cells (Tfh)
        └── Affinity maturation + class switching

III. IMMUNOLOGICAL RESPONSE - FLOWCHART

    ANTIGEN ENTERS VIA AIRWAY OR FOOD PASSAGE
                    │
    ┌───────────────┴───────────────┐
 INHALED ANTIGEN             INGESTED ANTIGEN
(Adenoid + Tubal tonsils)   (Palatine + Lingual tonsils)
 [Furrows trap antigen]       [Crypts trap antigen]
    └───────────────┬───────────────┘
                    │
         M-CELLS (reticular epithelium)
           Antigen transcytosis
                    │
              ANTIGEN-PRESENTING CELLS
           (Dendritic cells, Macrophages)
           Process antigen → MHC-II
                    │
          ┌─────────┴─────────┐
       T-CELLS             B-CELLS
  (extrafollicular)    (germinal centers)
          │                   │
   CD4+ Th: Cytokines    Affinity maturation
   (IL-2, IL-4, IL-6,    Somatic hypermutation
    IFN-γ, IL-21)        Class switching
          │                   │
   CD8+ CTL           IgG, IgA, IgM, IgD
   (direct killing)    Plasma cells +
          │            Memory B-cells
   Treg: Tolerance           │
   induction           SIgA (secretory IgA)
          │            → released into mucosa
          └──────┬────────────┘
                 │
    LOCAL MUCOSAL + SYSTEMIC IMMUNITY
    + IMMUNOLOGICAL MEMORY established

IV. SPECIFIC IMMUNOLOGICAL FUNCTIONS

• First immunological contact for inhaled and ingested antigens, especially in childhood (Scott-Brown's Vol 2)
• Adenoid/tubal tonsils sample air antigens; palatine/lingual tonsils sample food-borne antigens
• Crypts (6-20 in palatine tonsil) and furrows of adenoid increase surface area

• Germinal centers produce B-cells giving rise to IgG and IgA plasma cells (Scott-Brown's Vol 2)
• Immunoglobulins produced: IgG, IgA, IgM, IgD (KJ Lee's)
• Additional products: complement components, interferon, lysozymes, cytokines
• Secretory IgA (SIgA) is the predominant mucosal immunoglobulin - provides coating protection on mucosal surfaces

• CD4+ T helper cells: Support B-cell responses and cytokine-mediated inflammation
• CD8+ cytotoxic T-cells: Kill virus-infected cells
• T follicular helper (Tfh) cells: Drive germinal center reactions
• Regulatory T-cells (Treg): Immune tolerance and homeostasis

• Adenoid: Plays a key role in development of immunological memory in young children (Scott-Brown's Vol 2)
• Early adenoidectomy causes detectable negative effect on serum IgG antibodies, impairing immunity to pneumococcus (Scott-Brown's)
• Memory B-cells and long-lived plasma cells from tonsil germinal centers provide lasting protection

• NK cells, macrophages, innate lymphoid cells provide immediate non-specific defence
• Antimicrobial peptides and defensins secreted by epithelium

• Key inductive site for IgA class switching and regulatory T-cell expansion during childhood
• Establishes long-term mucosal immune homeostasis (Frontiers in Immunology, 2026)

V. AGE-RELATED CHANGES

IMMUNOLOGICAL ACTIVITY vs. AGE

Birth → 2y → 5-7y → Puberty → Adult → Old Age
  │       │     │       │        │        │
Initial  Rapid  PEAK   Invol-  Minimal  Remnant
seeding growth activity ution   tissue   only
        starts  Max IgA begins
               (FDG-PET
               intense,
               ages 6-8)

VI. CLINICAL CORRELATIONS

PART C: RECENT ADVANCES (RGUHS Perspective)

1. IL-6/JAK2/STAT3 in Chronic Tonsillitis (2026): This signaling axis is now established as a central driver of chronic tonsillar inflammation and B-cell hyperactivation [PMID 42371825].
2. Tonsil and IgA Nephropathy: Tonsillar lymphoid tissue produces aberrant galactose-deficient IgA1 complexes that deposit in glomeruli. Tonsillectomy is now a treatment option for IgA nephropathy [PMID 35054911].
3. Waldeyer's Ring Lymphoma - Rituximab Era: R-CHOP is the standard; radiotherapy benefit declining; primary Waldeyer ring DLBCL has best 5-year OS (77%) vs. nodal sites (Cummings; PMID 33908077).
4. Mucosal Tolerance - Sjögren's Risk (2026): A landmark 2026 population-based cohort (Frontiers in Immunology) showed tonsillectomy/adenoidectomy before age 18 significantly raises long-term Sjögren's syndrome risk - confirming the ring's irreplaceable role in mucosal immune homeostasis.
5. Biofilm Pathogenesis: Chronic adenoid disease and OME now understood via biofilm formation - bacterial communities resisting antibiotics and perpetuating chronic inflammation (Scott-Brown's Vol 2).
6. TORS (Transoral Robotic Surgery): Detailed knowledge of tonsil surgical anatomy (parapharyngeal space, ICA proximity, nerve plexus) is now essential for robotic oropharyngeal surgery for HPV-related cancers (Cummings).
7. M-cell and Mucosal Vaccine Research: Waldeyer's ring M-cells are being studied as targets for intranasal mucosal vaccine delivery, particularly for respiratory pathogens (COVID-19, influenza).

SOURCES CITED

• Scott-Brown's Otorhinolaryngology Head & Neck Surgery (9781138094642, 9781138094634) - Palatine tonsils, Waldeyer's ring, Adenoid immune function
• Cummings Otolaryngology Head and Neck Surgery (9780323612173) - Oropharyngeal anatomy, WR lymphomas
• KJ Lee's Essential Otolaryngology (9781260122237) - Waldeyer ring components, Immunology
• Bailey & Love's Short Practice of Surgery 28th Ed (9780367548117) - Fig 52.2 (diagram above)
• Dhingra PL - Diseases of ENT (standard RGUHS text - anatomy and immunology of tonsils)
• Hazarika P - ENT Head & Neck Surgery (pharyngeal lymphoid tissue anatomy)
• Zakir Hussain - ENT (Indian subcontinent standard - surgical anatomy, tonsillectomy)
• Stell & Maran's Head and Neck Surgery - External palatine vein, parapharyngeal danger zone in tonsillectomy
• Acar G - Surgical Anatomy of the Tonsils, InTechOpen 2020 (MALT, M-cells, immune function)
• PMID 35054911 - Tonsil IgA and IgA nephropathy (Int J Mol Sci 2022)
• PMID 42371825 - IL-6/JAK2/STAT3 in chronic tonsillitis (J Interferon Cytokine Res 2026)
• PMID 33908077 - WR DLBCL in rituximab era (Hematol Oncol 2021)
• Frontiers in Immunology 2026 - WR surgery and Sjögren's syndrome risk
