ECG Findings in 10 Diseases

1. Anterolateral ST-Elevation Myocardial Infarction (STEMI)

ECG Features:

ST elevation in leads V1-V4 (anterior) and I, aVL, V5-V6 (lateral)
Reciprocal ST depression in inferior leads (III, aVF)
Hyperacute T waves early; Q waves develop as infarct evolves
Proximal LAD occlusion produces the widest distribution of changes

Anterolateral STEMI - ST elevation V1-V6 and I, aVL

Fig. 1 - Anterolateral STEMI: ST elevation in V1-V4 and leads I, aVL, V5-V6. Proximal LAD lesion confirmed at PCI. (ROSEN's Emergency Medicine)

2. Inferior STEMI

ECG Features:

ST elevation in leads II, III, aVF
Reciprocal ST depression in I and aVL
If ST elevation is greater in lead III than lead II: suggests RCA occlusion (90% sensitive, 71% specific)
ST elevation in V1 with inferior MI suggests right ventricular infarction
Posterior extension: ST depression + tall R waves in V1-V3

Inferior STEMI with reciprocal changes - leads II, III, aVF elevation

Fig. 2 - Inferior STEMI with marked ST elevation in inferior leads and ST depression reciprocal changes in aVL/I. (ROSEN's Emergency Medicine)

3. High Lateral STEMI

ECG Features:

ST elevation in leads I and aVL (first diagonal or left circumflex occlusion)
Reciprocal ST depression in leads III, aVF, and V1
May have subtle ST elevation in V2

High lateral STEMI - ST elevation leads I and aVL

Fig. 3 - High Lateral STEMI: ST elevation I and aVL, reciprocal depression III, aVF. 90% stenosis at LAD/D1 bifurcation. (ROSEN's Emergency Medicine)

4. Extensive Inferior + Posterior + RV MI (15-Lead ECG)

ECG Features:

ST elevation II, III, aVF (inferior)
ST depression V1-V3 with prominent R wave = posterior MI (reciprocal)
ST elevation in posterior leads V8-V9
ST elevation in right-sided leads (RVq) = right ventricular MI

15-lead ECG inferior lateral posterior and RV MI

Fig. 4 - 15-lead ECG showing inferior + lateral + posterior + RV infarction. Note posterior leads V8-V9 and right-sided leads (ROSEN's Emergency Medicine)

5. Atrial Fibrillation (AF)

ECG Features:

No discernible P waves - replaced by chaotic/fibrillatory baseline
Irregularly irregular ventricular response
Narrow QRS complexes (unless bundle branch block/preexcitation coexists)
Atrial rate >600 bpm; ventricular rate typically 120-170 bpm when AV node unaffected
A very rapid ventricular response (>200 bpm) suggests an accessory pathway (WPW)

Atrial fibrillation - three examples showing irregularly irregular rhythm and no P waves

Fig. 5 - Three examples of atrial fibrillation showing absence of P waves and irregularly irregular ventricular response. (Tintinalli's Emergency Medicine)

6. Atrial Flutter

ECG Features:

Regular "sawtooth" flutter waves at ~300 bpm - best seen in II, III, aVF, V1
Usually regular ventricular rate due to fixed AV block ratio (2:1 most common = ~150 bpm)
Regular narrow-complex tachycardia at exactly ~150 bpm should always raise suspicion for flutter with 2:1 block
P waves (flutter waves) are single morphology, downward-deflecting

7. Ventricular Tachycardia (VT)

ECG Features:

Wide-complex tachycardia (QRS >120 ms, often >160 ms)
AV dissociation (P waves and QRS complexes independent) - most reliable sign of VT
Fusion beats and capture beats confirm AV dissociation
Concordance: all precordial leads positive (positive concordance) or all negative (negative concordance) - strongly suggests VT
No RS complex in any precordial lead favors VT
Initial R wave in aVR favors VT

Key rule: Any wide-complex tachycardia should be treated as VT until proven otherwise, especially in patients with structural heart disease or prior MI.

8. Third-Degree (Complete) AV Block

ECG Features:

Complete dissociation of P waves and QRS complexes
Atrial rate is faster than ventricular rate
P waves march through at their own rate; QRS complexes at a slow escape rate (20-60 bpm)
Wide QRS escape rhythm = block below AV node (His-Purkinje); narrow QRS = junctional escape
Causes: acute MI (especially inferior), Lyme disease, autoimmune, infiltrative cardiomyopathy, drug toxicity

Key finding: Regular P waves at ~80 bpm + slow regular wide QRS at ~35 bpm, completely independent of each other.

9. Wolff-Parkinson-White (WPW) Syndrome

ECG Features:

Short PR interval (<120 ms)
Delta wave - slurred upstroke at start of QRS due to ventricular preexcitation
Widened QRS (>120 ms)
Pseudo-ST and T changes (secondary repolarization abnormalities)
Risk: AF with rapid conduction through accessory pathway can precipitate VF

Classic triad: Short PR + delta wave + widened QRS = WPW pattern.

10. Hyperkalemia

ECG Features (progressive with rising K+):

K+ Level	ECG Change
5.5-6.0 mEq/L	Tall, peaked (tented) T waves - narrow base, symmetric
6.0-7.0 mEq/L	PR prolongation, P wave flattening
7.0-8.0 mEq/L	Widening of QRS
>8.0 mEq/L	Sine wave pattern (QRS merges with T wave)
Critical	Ventricular fibrillation / asystole

Peaked T waves in hyperkalemia are narrow-based and symmetric, distinguishing them from the broad asymmetric T waves in ischemia.

Summary Table

#	Disease	Key ECG Finding
1	Anterolateral STEMI	ST elevation V1-V4, I, aVL
2	Inferior STEMI	ST elevation II, III, aVF + reciprocal changes
3	High Lateral STEMI	ST elevation I, aVL
4	Posterior/RV MI	ST depression V1-V3 + tall R, ST elevation V8-V9/RV leads
5	Atrial Fibrillation	No P waves, irregularly irregular QRS
6	Atrial Flutter	Sawtooth flutter waves ~300 bpm, regular ventricular rate ~150
7	Ventricular Tachycardia	Wide QRS, AV dissociation, fusion beats
8	Complete Heart Block	P-QRS dissociation, atrial rate > ventricular rate
9	WPW Syndrome	Short PR, delta wave, wide QRS
10	Hyperkalemia	Peaked T waves → wide QRS → sine wave pattern

*Sources: ROSEN's Emergency Medicine (9th Ed.), Tintinalli's Emergency Medicine, Braunwald's Heart Disease, Goldman-Cecil Medicine, Harrison's Principles of Internal Medicine 22E (2025)*This covers 10 important conditions with their hallmark ECG patterns and real textbook ECG images. Here are a few high-yield mnemonics to remember:

STEMI localization: ST elevation in II/III/aVF = inferior; V1-V4 = anterior; I/aVL = lateral; V1-V3 depression + tall R = posterior
AF vs Flutter: AF = irregularly irregular + no P waves; Flutter = regular sawtooth at 300 bpm with 2:1 block giving rate ~150
VT vs SVT: Wide complex + AV dissociation + fusion beats = VT until proven otherwise
WPW triad: Short PR + delta wave + wide QRS
Hyperkalemia progression: Peaked T → flat P → wide QRS → sine wave → VF

Let me know if you'd like to go deeper on any specific condition!

ECG finding with images and ECG reading with all disease.

Pulling ECG images and readings for all major diseases now - running parallel searches across the medical library.

Searching sources...

Finding Sources

Reading File

Excellent - found images for pericarditis, Brugada, LBBB/RBBB. Let me fetch all these images in parallel now.

Loading Image

Reading File

Loading Image

Finding Sources

Reading File

Finding Sources

Loading Image

Reading File

Finding Sources

Reading File

Finding Sources

Loading Image

Reading File

Loading Image

Finding Sources

I now have an excellent collection of textbook ECG images. Let me compile the full, comprehensive illustrated guide.---

Complete ECG Guide: Findings & Readings Across All Major Diseases

HOW TO READ ANY ECG - Systematic Approach

Before reading individual diseases, always follow this order:

Rate - Count R waves in 6-second strip x 10, or 300/large squares between R-R
Rhythm - Regular? Irregular? Identify P waves
P waves - Present? Normal shape? One before each QRS?
PR interval - Normal: 120-200 ms (3-5 small squares)
QRS duration - Normal: <120 ms (3 small squares)
QRS axis - Normal: -30° to +90°
ST segments - Elevation? Depression? Horizontal/upsloping/downsloping?
T waves - Upright? Inverted? Peaked?
QT interval - QTc normal: <440 ms (male), <460 ms (female)
Ancillary - Q waves, bundle branch blocks, hypertrophy

SECTION A: ISCHEMIC HEART DISEASE

1. Anterior STEMI (LAD Occlusion)

ECG Reading:

Feature	Finding
Rate	Usually normal or tachycardic
Rhythm	Sinus rhythm (may have PVCs)
P waves	Normal
PR interval	Normal
QRS	May develop pathological Q waves in V1-V4
ST segments	Elevation in V1-V4 (and I, aVL if anterolateral)
T waves	Hyperacute upright early; inversion later
Reciprocal	ST depression in II, III, aVF

Key ECG findings:

ST elevation ≥1 mm in 2 contiguous leads
"Tombstone" ST elevations in severe LAD occlusion
Loss of R-wave progression (R waves become smaller V1→V4)
Pathological Q waves (>1 small sq wide, >¼ R-wave height) = completed infarct

Anterolateral STEMI - ST elevation V1-V4, I, aVL with Q waves forming

ECG: Anterolateral STEMI. ST elevation clearly visible in V1-V4 and lateral leads I, aVL, V5-V6. Proximal LAD occlusion. (ROSEN's Emergency Medicine)

2. Inferior STEMI (RCA or LCx Occlusion)

ECG Reading:

Feature	Finding
ST Elevation	II, III, aVF
Reciprocal	ST depression in I, aVL
Key clue	If STE greater in III than II → RCA occlusion (90% sens.)
RV involvement	STE in V1 with inferior MI = right ventricular MI
Posterior extension	ST depression + tall R in V1-V3

How to distinguish RCA vs LCx inferior STEMI:

RCA: STE III > II, ST depression in aVL and I
LCx: STE II ≥ III, aVL isoelectric or elevated

Inferior STEMI with reciprocal ST depression in I and aVL

ECG: Inferior STEMI. Marked ST elevation in II, III, aVF with reciprocal ST depression in aVL and lateral leads. (ROSEN's Emergency Medicine)

3. High Lateral STEMI (Diagonal / LCx Occlusion)

ECG Reading:

Feature	Finding
ST Elevation	I, aVL (sometimes V2)
Reciprocal	ST depression in III, aVF, V1
Culprit	First diagonal (D1) or left circumflex

High lateral STEMI - ST elevation leads I and aVL with reciprocal ST depression

ECG: High Lateral STEMI. ST elevation in I, aVL. Reciprocal depression in III, aVF, V1. (ROSEN's Emergency Medicine)

4. Extensive Inferior + Posterior + Right Ventricular MI

ECG Reading (15-lead):

Territory	Leads	Finding
Inferior	II, III, aVF	ST elevation
Lateral	I, aVL, V5-V6	ST elevation
Posterior	V1-V3 (standard)	ST depression + tall R wave (reciprocal)
Posterior (direct)	V7-V9	ST elevation (smaller magnitude)
Right ventricle	RV4	ST elevation

Reading tip: Posterior MI is the "mirror image" - flip V1-V3 upside down mentally and you see STEMI pattern.

15-lead ECG: Inferior, posterior, lateral, and right ventricular MI all in one tracing

ECG: 15-lead showing inferior + lateral + posterior + RV MI. Standard leads show inferior STE; V1-V3 show STD with prominent R (posterior); V8-V9 and RVq confirm. (ROSEN's Emergency Medicine)

SECTION B: ARRHYTHMIAS

5. Atrial Fibrillation (AF)

ECG Reading:

Feature	Finding
Rate	Ventricular: 120-170 bpm (uncontrolled); slower if controlled/AV node disease
Rhythm	Irregularly IRREGULAR - hallmark
P waves	ABSENT - replaced by chaotic fibrillatory baseline
PR interval	Not measurable
QRS	Narrow (unless BBB or WPW coexists)
Baseline	Fine fibrillatory waves, most prominent in V1

Key rule: If you see NO P waves + irregularly irregular QRS = AF until proven otherwise.

AF with rate >200 bpm = suspect WPW accessory pathway (medical emergency - avoid AV nodal blockers!)

Three examples of atrial fibrillation showing absent P waves and irregularly irregular QRS complexes

ECG: Three examples of AF. Note the complete absence of P waves, chaotic baseline, and irregularly irregular ventricular response. (Tintinalli's Emergency Medicine)

6. Atrial Flutter

ECG Reading:

Feature	Finding
Rate	Atrial: ~300 bpm; Ventricular: ~150 bpm (2:1 block)
Rhythm	Usually regular (if fixed AV block ratio)
P waves	Sawtooth flutter waves - no isoelectric baseline between them
Best leads	II, III, aVF, V1 for flutter waves
AV ratio	Usually 2:1 (rate ~150), can be 3:1 or 4:1

Bedside clue: Regular narrow-complex tachycardia at exactly ~150 bpm = atrial flutter with 2:1 block until proven otherwise. Apply vagal maneuver to slow rate and reveal flutter waves.

7. Ventricular Tachycardia (VT)

ECG Reading:

Feature	Finding
Rate	100-250 bpm
Rhythm	Usually regular
QRS	Wide (>120 ms), often >160 ms
AV dissociation	P waves and QRS independent - most specific sign
Fusion beats	Hybrid QRS (sinus + VT) = confirms AV dissociation
Capture beats	Narrow QRS "captured" in a run of wide QRS = confirms VT
Concordance	All precordial QRS all positive (positive) or all negative (negative) = strongly suggests VT
aVR sign	Initial R wave in aVR, or notching of initial downstroke = VT

Critical rule: Any wide-complex tachycardia in a patient with prior MI or cardiomyopathy = VT until proven otherwise. Never give verapamil to wide-complex tachycardia.

8. Supraventricular Tachycardia (SVT/AVNRT)

ECG Reading:

Feature	Finding
Rate	150-250 bpm
Rhythm	Perfectly regular
QRS	Narrow (<120 ms) unless aberrant conduction
P waves	Hidden in or just after QRS (retrograde P waves)
RP interval	Very short (<70 ms in AVNRT)
Response	Terminates abruptly with vagal maneuver or adenosine

9. Complete (Third-Degree) AV Heart Block

ECG Reading:

Feature	Finding
P waves	Present, regular at own rate (~60-100 bpm)
QRS	Present, regular at slow escape rate (20-60 bpm)
Key finding	P waves and QRS are COMPLETELY INDEPENDENT
Atrial rate	Always FASTER than ventricular rate
QRS morphology	Narrow = junctional escape; Wide = ventricular escape (worse)

How to read: Measure P-P interval and R-R interval separately. They march out at their own rates with NO relationship to each other.

Complete AV block (High-grade): Sinus P waves at 82 bpm completely dissociated from slow ventricular escape rhythm

ECG: High-grade/Complete AV block. Sinus P waves at ~82 bpm march independently from slow ventricular complexes. Variable R-R confirms intermittent conduction. (Braunwald's Heart Disease)

SECTION C: CONDUCTION DISORDERS

10. Right Bundle Branch Block (RBBB)

ECG Reading:

Feature	Finding
QRS duration	≥120 ms (wide)
V1 pattern	rsR' or rSR' ("rabbit ears") pattern
Wide S wave	Wide terminal S in V5-V6 and lead I
ST/T	Discordant ST/T in V1-V2 (opposite to QRS)
Axis	Usually normal

Memory aid: "WiLLiaM MaRRoW" for LBBB vs RBBB - in V1: LBBB = W shape, RBBB = M shape. In V6: LBBB = M, RBBB = W.

RBBB: rsR' pattern in V1, wide S in V5-V6, normal axis, discordant ST changes

ECG: Right Bundle Branch Block (RBBB). Widened QRS with rsR' in V1, wide terminal S wave in V5 and lead I. (Goldman-Cecil Medicine)

11. Left Bundle Branch Block (LBBB)

ECG Reading:

Feature	Finding
QRS duration	≥120 ms
V1 pattern	QS or rS pattern (deep S, no R)
V5-V6 pattern	Broad notched R wave without Q
Lead I/aVL	Broad notched R wave
ST/T	Discordant throughout (ST/T opposite to QRS)
Clinical significance	New LBBB with chest pain = treat as STEMI equivalent!

Reading LBBB: In V1 you see a deep wide S (or QS); in V6 and I you see a tall notched R. The ST-T changes are EXPECTED (secondary) and should NOT be over-interpreted unless using Sgarbossa criteria.

LBBB (E): Broad notched R in I, aVL, V4-V6; QS in V1-V3; discordant ST-T changes

ECG: Left Bundle Branch Block (LBBB) - Panel E. Broad notched R waves in I, aVL, V4-V6. QS in V1-V3. Discordant ST/T changes throughout. (Goldman-Cecil Medicine)

12. Left Anterior Fascicular Block (LAFB)

ECG Reading:

Feature	Finding
QRS duration	<120 ms (normal width)
Axis	Left axis deviation: -45° to -90°
Lead I, aVL	qR pattern (small Q, tall R)
Lead II, III, aVF	rS pattern (small R, deep S)
Clinical	Often benign; may indicate LAD disease if new

13. RBBB + LAFB (Bifascicular Block)

ECG Reading:

Feature	Finding
QRS duration	≥120 ms
V1	rsR' (RBBB pattern)
Axis	Left axis deviation (-45° to -90°)
Clinical risk	May progress to complete heart block; consider pacing

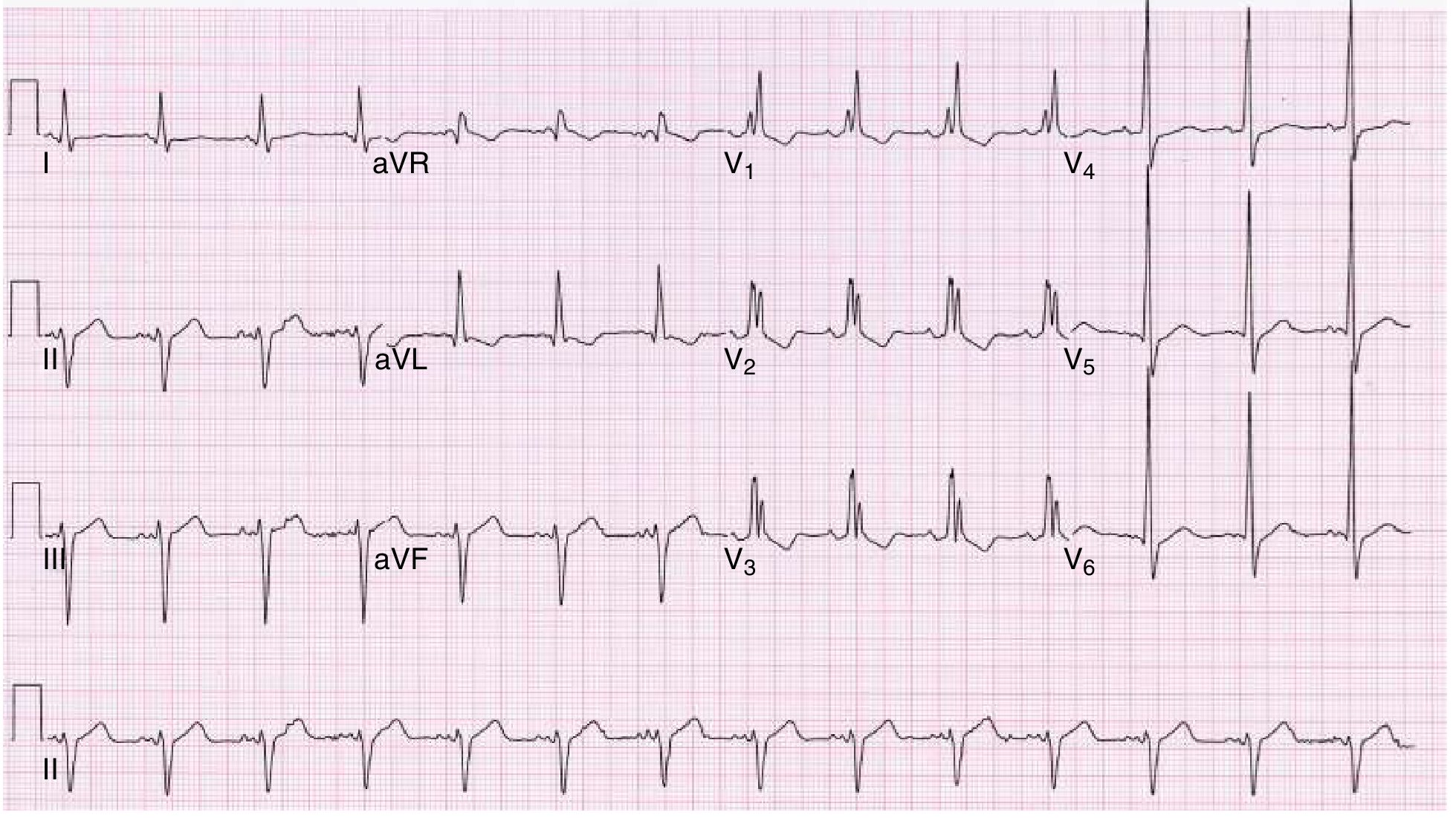

RBBB + LAFB (C): Wide QRS with rsR' in V1 plus marked left axis deviation (-60°)

ECG: RBBB + Left Anterior Fascicular Block. rsR' pattern in V1 (RBBB) combined with left axis deviation ~-60° (LAFB). (Goldman-Cecil Medicine)

SECTION D: CHANNELOPATHIES & GENETIC SYNDROMES

14. Wolff-Parkinson-White (WPW) Syndrome

ECG Reading (Sinus Rhythm):

Feature	Finding
PR interval	Short (<120 ms)
Delta wave	Slurred upstroke at start of QRS
QRS	Widened (>120 ms)
ST/T	Pseudo-changes (secondary to pre-excitation)
Risk	AF with rapid accessory pathway conduction → VF

Classic ECG triad: Short PR + Delta wave + Wide QRS

During WPW tachycardias:

Orthodromic AVRT (65%): Regular, narrow complex, rate 160-220 bpm
Antidromic AVRT (5-10%): Wide complex, looks like VT
AF with WPW: Irregular, wide-complex, rates >200 bpm (most dangerous!)

Never give: Adenosine, verapamil, digoxin, or beta-blockers in AF + WPW (can cause VF)

WPW Syndrome: Short PR interval, delta waves clearly visible, widened QRS complex

ECG: Wolff-Parkinson-White syndrome. Short PR interval and slurred delta wave upstroke with widened QRS. (Tintinalli's Emergency Medicine)

WPW - Short PR, delta wave, wide QRS; downward arrows mark delta waves in V1

ECG: WPW with delta wave morphology upright in V1 and across precordium, negative in inferior leads - consistent with left posterior accessory pathway. (Braunwald's Heart Disease)

15. Long QT Syndrome

ECG Reading:

Feature	Finding
QTc	>440 ms (male), >460 ms (female) - corrected by Bazett: QTc = QT/√RR
T waves	Broad, notched, or "humped" T waves
Arrhythmia	Torsades de pointes (twisting QRS axis around baseline)
Risk triggers	Hypokalemia, hypomagnesemia, QT-prolonging drugs, exercise

Bazett formula: QTc = QTm ÷ √(R-R interval in seconds)

Normal QT at 60 bpm: 350-440 ms
QTc >500 ms = very high risk for torsades

Causes of acquired long QT:

Drugs: antipsychotics, macrolides, fluoroquinolones, antifungals, sotalol, amiodarone
Electrolytes: hypokalemia, hypomagnesemia, hypocalcemia
Ischemia, CNS events (stroke, SAH)

16. Brugada Syndrome

ECG Reading:

Feature	Finding
Key leads	V1-V2 (and V3)
Type 1 (diagnostic)	Coved ST elevation ≥2 mm with downsloping to negative T wave
Type 2	Saddleback pattern (>2 mm ST elevation, positive or biphasic T)
QRS	May resemble RBBB
Provocation	ST changes worsen with fever, Na+ channel blockers, drugs

Reading Brugada: In V1, look for a "shark fin" or "coved" pattern - the ST goes up, curves over, and descends to a negative T wave. This is NOT normal RBBB.

Clinical: Predominantly affects young males. Risk of polymorphic VT and VF during sleep or fever. Associated with SCN5A loss-of-function mutations. Treatment: ICD.

SECTION E: ELECTROLYTE DISORDERS

17. Hyperkalemia

ECG Reading (Progressive Changes):

K+ Level	ECG Change
5.5-6.0 mEq/L	Tall, peaked (tented) T waves - narrow base, symmetric, pointy
6.0-7.0 mEq/L	PR prolongation, P wave flattening/disappearance
7.0-8.0 mEq/L	Progressive QRS widening
>8.0 mEq/L	Sine wave pattern (QRS merges with T wave)
Critical	VF or asystole

Peaked T waves in hyperkalemia vs ischemia:

Hyperkalemia: Narrow base, symmetric, tall, pointy ("tented")
Ischemia (hyperacute): Broad base, asymmetric, usually in one territory

Hyperkalemia can also mimic:

Brugada pattern (pseudo-RBBB + coved ST in V1-V2)
STEMI pattern (especially when QRS widens)

18. Hypokalemia

ECG Reading:

Feature	Finding
T waves	Flattened or inverted T waves
U waves	Prominent U waves (after T wave, especially V2-V3)
QT interval	Apparent QT prolongation (actually QU prolongation)
ST changes	ST depression
Risk	Torsades de pointes

Key sign: Prominent U wave (positive deflection after T wave) larger than T wave in same lead = hypokalemia until proven otherwise.

SECTION F: PERICARDIAL & MYOCARDIAL DISEASE

19. Acute Pericarditis

ECG Reading (4 Stages):

Stage 1 (Hours to days - diagnostic stage):

Feature	Finding
ST elevation	Diffuse, concave (saddle-shaped), in MULTIPLE territories
PR depression	Diffuse PR depression (most leads)
aVR	ST depression + PR ELEVATION ("knuckle sign")
Key distinction	NO reciprocal ST depression (unlike STEMI)

Stage 2 (Days): ST and PR normalize

Stage 3 (1-3 weeks): Diffuse T-wave inversions

Stage 4 (Weeks-months): ECG returns to normal

Pericarditis vs STEMI:

Feature	Pericarditis	STEMI
ST distribution	Diffuse (multiple territories)	Localized (one territory)
ST shape	Concave (saddle-shaped)	Convex (domed/tombstone)
PR depression	YES (hallmark)	NO
Reciprocal changes	ABSENT	PRESENT
Q waves	NO	YES (infarct)

Acute Pericarditis - Stage 1: Diffuse saddle-shaped ST elevation with PR depression across multiple leads

ECG: Acute Pericarditis Stage 1. Diffuse ST elevation in non-territory-specific distribution, PR depression in most leads, PR elevation in aVR. (Fuster & Hurst's The Heart)

20. Hypertrophic Cardiomyopathy (HCM)

ECG Reading:

Feature	Finding
LVH voltage	Tall R in V5-V6 (>26 mm), tall R in aVL (>13 mm)
Pathological Q waves	Deep, narrow Q waves in I, aVL, V5-V6 (septal hypertrophy)
T waves	Deep T-wave inversions (especially lateral)
ST changes	ST depression in lateral leads
Apical HCM	Giant T-wave inversions (deeply negative, "giant negative T waves") in V4-V6

SECTION G: PULMONARY DISEASE

21. Pulmonary Embolism (PE)

ECG Reading:

Feature	Finding
Most common	Sinus tachycardia (most frequent finding)
S1Q3T3	S wave in I + Q wave in III + T-wave inversion in III
Right heart strain	T-wave inversions V1-V4 (right precordial)
RBBB	New incomplete or complete RBBB
Right axis deviation	QRS axis shifts rightward
P pulmonale	Tall peaked P waves in II (right atrial enlargement)

Caution: S1Q3T3 is specific but not sensitive (seen in <20% of PE). Most PE ECGs show only sinus tachycardia or are normal. The most specific finding for massive PE is new RBBB + right precordial T-wave inversions.

22. Chronic Obstructive Pulmonary Disease (COPD) / Cor Pulmonale

ECG Reading:

Feature	Finding
Rate/rhythm	Sinus tachycardia; Multifocal atrial tachycardia (MAT) in COPD exacerbations
P pulmonale	Tall peaked P waves in II, III, aVF (>2.5 mm)
Right axis deviation	QRS axis +90° to +180°
Poor R progression	Small R waves across precordium (low voltage)
RVH pattern	R > S in V1, deep S in V5-V6
Low voltage	QRS <5 mm limb leads (air trapping/barrel chest)

MAT (Multifocal Atrial Tachycardia): Rate >100 bpm, ≥3 different P-wave morphologies, irregular rhythm - classic in COPD/respiratory failure.

SECTION H: STRUCTURAL HEART DISEASE

23. Left Ventricular Hypertrophy (LVH)

ECG Reading:

Feature	Finding
Cornell criteria	S in V3 + R in aVL >2.8 mV (men), >2.0 mV (women)
Sokolow-Lyon	S in V1 + R in V5 or V6 >35 mm
"Strain pattern"	ST depression + T inversion in I, aVL, V5-V6
Left axis deviation	Mild LAD common

24. Right Ventricular Hypertrophy (RVH)

ECG Reading:

Feature	Finding
R > S in V1	Dominant R in V1 (R wave taller than S wave)
Right axis deviation	Axis >+90°
Deep S in V5-V6	Persistence of S waves laterally
ST/T changes	Strain pattern: ST depression + T inversion in V1-V3

SECTION I: OTHER IMPORTANT ECG PATTERNS

25. Digoxin Effect vs Digoxin Toxicity

Digoxin Effect (therapeutic):

Feature	Finding
ST changes	"Scooped" or reversed tick ST depression - characteristic downsloping
QT	Shortened
PR	Mildly prolonged
T waves	Flattened or inverted

Digoxin Toxicity:

Feature	Finding
Bradycardia	SA or AV node dysfunction
Heart blocks	1st, 2nd, or 3rd degree AV block
Atrial tachycardia with block	Classic: PAT with 2:1 block
Bidirectional VT	Alternating QRS axis - pathognomonic
Ventricular arrhythmias	PVCs, bigeminy, VT, VF

26. Hypercalcemia vs Hypocalcemia

Condition	ECG Finding
Hypercalcemia	Shortened QT interval (shortened ST segment)
Hypocalcemia	Prolonged QT interval (prolonged ST segment, QT >500 ms)

27. Early Repolarization (Benign)

ECG Reading:

Feature	Finding
J point	Notched or slurred J point at QRS-ST junction
ST shape	Upsloping/concave ST elevation
Distribution	Mid-lateral precordial leads, can be inferior
aVR	Reciprocal ST depression in aVR
Common in	Young males, athletes (up to 100% in endurance athletes)

Distinguish from pericarditis: Early repolarization has no PR depression, no evolution through stages, and changes normalize with exercise/tachycardia.

28. Hypothermia

ECG Reading:

Feature	Finding
Rate	Bradycardia (profound)
Osborn (J) wave	Positive deflection at J point - pathognomonic for hypothermia
QRS	Widening
QT	Prolonged
Arrhythmia	AF, VF at <28°C core temperature
Muscle tremor	Fine artifact simulating AF

Summary Quick-Reference Table

#	Disease	Rate	Rhythm	Key ECG Finding
1	Anterior STEMI	Normal/↑	Sinus	STE V1-V4, Q waves developing
2	Inferior STEMI	Normal/↑	Sinus	STE II, III, aVF + reciprocal STD I, aVL
3	High Lateral STEMI	Normal/↑	Sinus	STE I, aVL + reciprocal STD III, aVF
4	Posterior MI	Normal	Sinus	STD V1-V3 + tall R wave, STE V7-V9
5	Atrial Fibrillation	Variable	Irregularly irregular	No P waves, chaotic baseline
6	Atrial Flutter	~150	Regular	Sawtooth flutter waves at 300 bpm
7	Ventricular Tachycardia	100-250	Regular	Wide QRS + AV dissociation
8	SVT/AVNRT	150-250	Regular	Narrow QRS, P hidden in QRS
9	Complete Heart Block	Slow escape <40	AV dissociated	Independent P waves and QRS
10	RBBB	Normal	Sinus	rSR' in V1, wide S in V5-V6
11	LBBB	Normal	Sinus	Broad notched R in I, V5-V6; QS in V1
12	LAFB	Normal	Sinus	Left axis deviation, qR in aVL
13	WPW	Variable	Variable	Short PR + delta wave + wide QRS
14	Long QT	Normal	Sinus (risk of TdP)	QTc >440-460 ms, broad T waves
15	Brugada	Normal	Sinus (risk of VF)	Coved ST elevation V1-V2, negative T
16	Hyperkalemia	Slow	Sinus → sinusoidal	Peaked T → flat P → wide QRS → sine wave
17	Hypokalemia	Normal	Sinus (risk of TdP)	Flat T, prominent U wave, long QU
18	Acute Pericarditis	Normal/↑	Sinus	Diffuse STE concave + PR depression
19	PE	↑ (tachycardia)	Sinus	S1Q3T3, T inversion V1-V4, RBBB
20	COPD/Cor Pulmonale	↑	MAT or sinus	P pulmonale, RAD, poor R progression
21	LVH	Normal	Sinus	Voltage criteria + strain pattern
22	Digoxin toxicity	Slow	Various	PAT with block, bidirectional VT
23	Hypothermia	Slow	AF/VF at <28°C	Osborn (J) wave, bradycardia
24	Hypocalcemia	Normal	Sinus (risk of TdP)	Long QT (prolonged ST)

*Sources: ROSEN's Emergency Medicine (9th Ed.), Tintinalli's Emergency Medicine, Braunwald's Heart Disease, Fuster & Hurst's The Heart (15th Ed.), Goldman-Cecil Medicine, Harrison's Principles of Internal Medicine 22E (2025)*This is a full illustrated ECG reference guide covering 24 diseases across 8 clinical categories, with real textbook ECG images. Here's a recap of what's covered:

Sections:

A - Ischemic Heart Disease: Anterior STEMI, Inferior STEMI, High Lateral STEMI, Posterior/RV MI
B - Arrhythmias: AF, Atrial Flutter, VT, SVT, Complete Heart Block
C - Conduction Disorders: RBBB, LBBB, LAFB, Bifascicular block
D - Channelopathies: WPW, Long QT, Brugada syndrome
E - Electrolytes: Hyperkalemia, Hypokalemia
F - Pericardial/Myocardial: Acute Pericarditis, HCM
G - Pulmonary: PE (S1Q3T3), COPD/Cor pulmonale/MAT
H - Structural + Other: LVH, RVH, Digoxin toxicity, Hypothermia (Osborn waves), Hypocalcemia

High-yield memory pearls:

PR depression = pericarditis (no other cause does this diffusely)
Short PR + delta wave = WPW
Peaked T → sine wave = hyperkalemia progression
S1Q3T3 + sinus tach = think PE
Wide QRS + AV dissociation = VT
Irregularly irregular + no P waves = AF

This is a shared conversation. Sign in to Orris to start your own chat.
