Here is a thorough comparison of sinus pause and sinus arrest, drawn from Braunwald's Heart Disease, Harrison's, Fuster & Hurst's, Goldman-Cecil, Rosen's Emergency Medicine, and the Textbook of Family Medicine.
Sinus Pause vs. Sinus Arrest
These two terms describe the same fundamental event - a failure of the SA node to fire at its expected time - but differ primarily in duration and sometimes in implied mechanism.
Core Definitions
| Feature | Sinus Pause | Sinus Arrest |
|---|---|---|
| Definition | Brief, transient failure of SA node to discharge | Prolonged cessation of SA nodal impulse formation |
| Duration | Typically < 3 seconds (some sources: <2 s) | Generally > 3 seconds (some definitions: >3 s on ambulatory monitoring) |
| Mechanism | Disorder of impulse formation (depressed SA automaticity) | Same - failure of SA automaticity; the more extreme form |
| Clinical concern | Often benign, especially in athletes/during sleep | Potentially pathologic if symptomatic while awake |
Per Goldman-Cecil Medicine: "A sinus pause of more than 3 seconds is considered pathologic if it is associated with symptoms while a patient is awake."
ECG Key: The Critical Differentiator - Sinus Pause/Arrest vs. SA Exit Block
Both sinus pause/arrest and SA exit block produce absent P waves and a long isoelectric line. The distinction:
| Feature | Sinus Pause / Sinus Arrest | SA Exit Block (SA Block) |
|---|---|---|
| Mechanism | Failure of impulse formation within the SA node | Failure of impulse conduction from SA node to atrium (impulse is generated, but blocked from exiting) |
| Pause duration | NOT a multiple of the basic P-P interval | IS a multiple of the basic P-P interval (2x, 3x, 4x) |
| Wenckebach pattern | Absent | Present in Type I (Mobitz I SA block): P-P interval progressively shortens before the dropped P wave; pause < 2 × shortest P-P cycle |
This is the single most tested ECG distinction:
-
Pause = multiple of P-P → SA exit block (failure of conduction)
-
Pause ≠ multiple of P-P → Sinus arrest/pause (failure of automaticity)
-
Braunwald's Heart Disease, block8, line 46
-
Fuster and Hurst's The Heart, block12, line 26
ECG Appearance

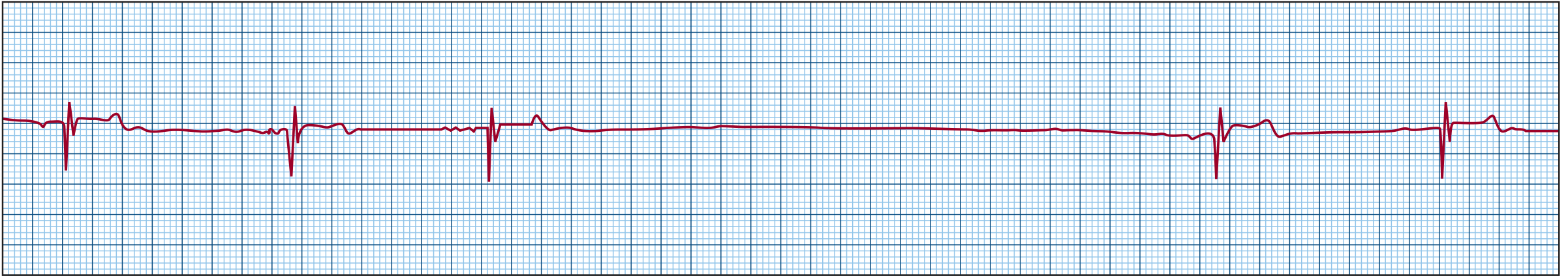

Telemetry strip showing sinus bradycardia followed by a sinus pause (Fuster & Hurst's The Heart)
On the strip you can see:
- Normal sinus beats (P-QRS-T complexes at regular intervals)
- A long isoelectric line (absent P wave and no QRS) = the pause/arrest
- Resumption of sinus rhythm after the pause (the next P-P interval does not align as a neat multiple of the prior P-P interval)
Causes
Common to both:
-
Increased vagal tone (gagging, carotid sinus massage, vomiting, straining, pain, neurocardiogenic activation)
-
Acute MI (especially inferior, which affects RCA/SA nodal artery)
-
Sick Sinus Syndrome (SSS) - age-related fibrotic degeneration of SA node
-
Drug toxicity: digitalis, beta-blockers, calcium channel blockers, quinidine, procainamide, flecainide
-
Acute myocarditis
-
Obstructive sleep apnea (sinus arrest/AV block during apnea episodes)
-
Metabolic derangements (hyperkalemia, hypothyroidism)
-
Stroke (central autonomic dysregulation)
-
Athletes: sinus pauses are common and benign (high vagal tone)
-
Rosen's Emergency Medicine, block11, line 1795
-
Textbook of Family Medicine, block8, line 1486
Clinical Significance
| Scenario | Significance |
|---|---|
| Pauses during sleep or in trained athletes | Usually benign - no treatment needed |
| Pauses >3 s while awake with symptoms (presyncope, syncope, fatigue) | Pathologic - evaluate for SSS |
| Pause with no escape rhythm | Can cause ventricular asystole - dangerous |
| Pause followed by a junctional or ventricular escape beat | Latent pacemaker has "rescued" - note the escape |
Relationship to Sick Sinus Syndrome
Sinus arrest is one of the hallmark features of Sick Sinus Syndrome (SSS). SSS encompasses:
- Sinus bradycardia
- Sinus arrest / SA exit block
- Tachy-Brady syndrome - alternating atrial fibrillation (tachycardia) with periods of sinus arrest (bradycardia) after the tachycardia terminates
- Rosen's Emergency Medicine, block11, line 1798
Treatment
| Situation | Management |
|---|---|
| Asymptomatic, incidental, during sleep | Observe, investigate cause |
| Reversible cause (drugs, electrolytes, vagal) | Remove/treat the cause |
| Symptomatic acute bradycardia | Atropine IV; temporary pacing if refractory |
| Chronic symptomatic SSS with sinus arrest | Permanent pacemaker (Class I indication) |
| Pacemaker mode | Atrial-based pacing (AAI or DDD) preferred over single-chamber ventricular pacing (Class I, Level B-R) |
- Fuster and Hurst's The Heart, block12 (Table 30-2)
Summary Mnemonic
"Arrest = Absent automaticity; block = blocked conduction"
- Sinus arrest/pause: SA node does NOT fire → pause is not a P-P multiple
- SA exit block: SA node fires but impulse is blocked → pause is a P-P multiple (2x, 3x, 4x)
The terms "sinus pause" and "sinus arrest" are often used interchangeably in clinical practice for pauses of 3-10 seconds. The distinction in strict usage is one of degree (pause < 3 s vs. arrest ≥ 3 s), not mechanism. Both differ fundamentally from SA exit block, which is the critical electrocardiographic distinction.
Gallavardin phenomenon
Finding Sources
Searching the Web
Gallavardin phenomenon aortic stenosis murmur apex mechanism
Finding Sources
Reading File
Reading File
Reading File
Reading File
Reading File
Here is a complete breakdown of the Gallavardin phenomenon, sourced from Harrison's, Braunwald's, Goldman-Cecil, and Fuster & Hurst's.
Gallavardin Phenomenon
Named after: Louis Gallavardin (described with Ravault, 1925)
Context: A sign of aortic stenosis (AS)
Definition
The Gallavardin phenomenon (also called the Gallavardin effect) is the dissociation of the aortic stenosis murmur into two seemingly separate components as it radiates toward the apex:
- Base component - Harsh, low-pitched, rough, rasping crescendo-decrescendo (ejection systolic) murmur, loudest at the 2nd right intercostal space, radiating to the carotids/neck
- Apical component - The same murmur, but as it transmits to the apex, the high-frequency components are selectively filtered, making it sound higher-pitched, purer, and more musical - closely mimicking mitral regurgitation (MR)
"The coarse systolic murmur of aortic stenosis may sound higher-pitched and more acoustically pure at the apex, a phenomenon eponymously referred to as the Gallavardin effect." - Harrison's Principles of Internal Medicine, 22nd Ed.
"The murmur may disappear over the sternum and reappear over the left ventricular apex, thereby giving the false impression that a murmur of mitral regurgitation is also present." - Goldman-Cecil Medicine
Mechanism
The murmur of AS is produced by turbulent, high-velocity flow through the stenotic valve. As this murmur propagates through the chest toward the apex:
- The low-frequency, harsh components are attenuated by the intervening tissue
- Only the high-frequency, musical components reach the apex
- This selective transmission creates the impression of a second, separate murmur at the apex
Reference: Giles TD, Martinez EC, Burch GE. Gallavardin phenomenon in aortic stenosis: a possible mechanism. Arch Intern Med. 1974;134(4):747-749.
How to Distinguish Gallavardin Apical Murmur from True Mitral Regurgitation
This is the clinically important question. Several bedside features help:
| Feature | Gallavardin (AS at apex) | True Mitral Regurgitation |
|---|---|---|
| Radiation | Does NOT radiate to the left axilla | Radiates to the left axilla (classic) |
| Effect of premature beat / compensatory pause | Increases in intensity (longer diastolic filling → more flow → louder AS murmur) | Unchanged or minimally affected |
| S2 | May be single, soft, or paradoxically split (severe AS); A2 may be diminished | S2 usually normal or widely split |
| Carotid pulse | Delayed, low-volume (pulsus parvus et tardus) | Normal carotid upstroke |
| Maneuvers | Murmur louder with squatting (↑ venous return/stroke volume); softer with Valsalva/standing | Louder with squatting and isometric handgrip; softer with Valsalva/standing |
| Thrill | May have systolic thrill at base / suprasternal notch | Thrill at apex if present |
| Murmur timing | Late-peaking in severe AS (peaks toward A2) | Plateau-shaped, holosystolic |
- Braunwald's Heart Disease, block9, line 1375
- Harrison's Principles of Internal Medicine 22E, block29, line 1094
Clinical Significance
- The Gallavardin phenomenon is more common in severe, calcific AS - because heavy calcification produces more high-frequency vibrations and causes the harsh murmur to radiate further
- As disease progresses, the apical component can become so loud it completely overshadows the base murmur, leading to misdiagnosis as isolated MR (or coexisting AS + MR)
- The murmur of AS varies with cycle length (louder after long R-R intervals, e.g., AF or after a premature beat) - a key differentiating point from MR, which does not change - Braunwald's Heart Disease, block9, line 1375
- When in doubt, color Doppler echocardiography will clarify by showing absence of mitral regurgitant jet
Association with Severity of AS
Per Fuster & Hurst's The Heart:
- Early/mild AS - murmur peaks early in systole
- Severe AS - murmur peaks late in systole, extends to S2, acquires a high-pitched musical character (which is when Gallavardin phenomenon becomes most prominent)
- The Gallavardin effect tends to be most striking with marked calcification, which also makes the high-frequency components more pronounced
Key Summary
The Gallavardin phenomenon = aortic stenosis murmur that disappears over the sternum and reappears at the apex as a musical, high-pitched sound - mimicking mitral regurgitation. The key differentiators are: no axillary radiation, increased intensity after a compensatory pause, pulsus parvus et tardus, and absence of MR on Doppler echo.
