Determinants of Virulence / Factors Predisposing to Microbial Pathogenicity
(5-marker answer — ~500 words, structured for exam writing)
Definition
Virulence is the degree of pathogenicity of a microorganism. Virulence factors are bacterial products or structural components that enable the organism to establish infection, evade host defenses, and cause tissue damage. They are encoded on chromosomal genes, plasmids, bacteriophages, or pathogenicity islands (large genetic regions containing co-regulated sets of virulence genes).
Determinants of Virulence (ABCDEFGI mnemonic)
1. Adhesins (Adherence Factors)
The first step in infection is colonization of host surfaces. Bacteria use surface structures to attach to host cells:
- Fimbriae/pili - e.g., Type 1 fimbriae of E. coli bind uroepithelial cells
- Non-fimbrial adhesins - surface proteins that bind specific host receptors
- Without adhesion, bacteria are cleared by mucociliary flow, peristalsis, and urine flow.
2. Capsule and Biofilm
- Capsule - a polysaccharide coat that resists phagocytosis (e.g., Streptococcus pneumoniae, Klebsiella, H. influenzae type b). Encapsulated strains are far more virulent than unencapsulated mutants.
- Biofilm - a structured community of bacteria embedded in polysaccharide matrix (e.g., Pseudomonas aeruginosa in cystic fibrosis lungs). Biofilms resist antibiotics and immune clearance. Formation is triggered by quorum sensing via N-acyl homoserine lactone (AHL).
3. Invasion Factors
Pathogens may invade host tissues using:
- Degradative enzymes: hyaluronidase (breaks connective tissue), collagenase, fibrinolysin (streptokinase), coagulase (fibrin clot around staph to protect from immune cells)
- Intracellular invasion mechanisms - e.g., Shigella, Salmonella, Listeria invade epithelial cells and macrophages; survival inside cells shields them from antibodies and complement.
4. Toxins
A. Exotoxins - secreted proteins; highly potent, antigenically specific, heat-labile:
- Cytotoxins - destroy host cells directly (e.g., C. perfringens alpha toxin)
- Neurotoxins - block neurotransmission (e.g., tetanospasmin, botulinum toxin)
- Enterotoxins - cause fluid secretion in GI tract (e.g., cholera toxin - ADP-ribosylates Gs protein - > cAMP overproduction - > secretory diarrhea)
- Superantigens - non-specific T-cell activation causing cytokine storm (e.g., TSST-1 of S. aureus)
B. Endotoxin (LPS) - lipopolysaccharide of Gram-negative outer membrane. Released on bacterial lysis. Activates macrophages via TLR-4 - > TNF-alpha, IL-1, IL-6 - > fever, hypotension, DIC (septic shock).
5. Secretion Systems
Bacteria deliver virulence proteins directly into host cells via specialized molecular machinery:
- Type III SS ("injectosome") - a needle-like apparatus that injects effector proteins into the host cytoplasm (e.g., Salmonella, Shigella, Yersinia). Activated by contact with host cells.
- Type IV SS - transports DNA or proteins; used by Helicobacter pylori (CagA injection) and Agrobacterium.
6. Evasion of Host Defenses
- Antigenic variation - rapid switching of surface antigens to evade antibody responses (e.g., Neisseria gonorrhoeae varies pili, Opa proteins, and LOS; Borrelia recurrentis varies surface lipoproteins - causes relapsing fever)
- IgA protease - secreted by N. gonorrhoeae, H. influenzae, S. pneumoniae to destroy mucosal IgA
- Serum resistance - complement evasion by modifying LPS or recruiting factor H
- Intracellular survival - Mycobacterium tuberculosis blocks phagolysosome fusion; Listeria escapes the phagosome into cytoplasm
7. Iron Acquisition
Iron is an essential growth factor. Host iron is sequestered in transferrin/lactoferrin/ferritin. Bacteria produce siderophores (e.g., enterobactin, aerobactin) that chelate iron with very high affinity and transport it back into the bacterium. Iron availability directly regulates expression of multiple virulence genes.
8. Genetic Determinants - Pathogenicity Islands
- Large DNA segments (10-200 kb) in the chromosome or plasmids
- Often flanked by transposon sequences - transferable to other strains
- Encode multiple co-regulated virulence factors
- Example: SPI-2 of Salmonella - activated by acidic phagosomal pH - > assembles type III SS - > promotes intracellular survival
- Example: cag-PAI of H. pylori - encodes CagA and VacA - > promotes peptic ulcer and gastric cancer
Summary Table
| Determinant | Mechanism | Example |
|---|---|---|
| Adhesins | Bind host receptors | Pili of E. coli |
| Capsule | Antiphagocytic | S. pneumoniae |
| Biofilm | Antibiotic/immune resistance | P. aeruginosa |
| Exotoxins | Cytolytic, neurotoxic, enterotoxic | Cholera toxin |
| Endotoxin (LPS) | Macrophage activation, septic shock | Gram-negative bacteria |
| Type III secretion | Injects effectors into host cells | Salmonella, Shigella |
| Antigenic variation | Evades antibody response | N. gonorrhoeae |
| Siderophores | Iron chelation | E. coli aerobactin |
| Pathogenicity islands | Co-regulate multiple virulence genes | SPI-2 of Salmonella |
Sources:
- Medical Microbiology, 9e - Chapter 14, Mechanisms of Bacterial Pathogenesis
- Jawetz, Melnick & Adelberg's Medical Microbiology, 28e - Chapter on Bacterial Pathogenesis
Little weasy language
Here's the same answer rewritten in simpler, easier language — like how you'd explain it to a friend before writing it in the exam:
Determinants of Virulence in Bacteria
What is virulence?
Virulence simply means how powerful a bacterium is at causing disease. The features that make a bacterium dangerous are called virulence factors. These are encoded in genes on chromosomes, plasmids, or special regions called pathogenicity islands.
The Main Determinants
1. Adhesion (Sticking to Host Cells)
Before a bacterium can cause disease, it first has to stick to the body. It does this using:
- Fimbriae/pili - tiny hair-like projections that grab onto host cell surfaces
- Example: E. coli uses fimbriae to stick to the bladder wall and cause UTI
Without sticking, bacteria just get washed away by urine, mucus, or saliva.
2. Capsule and Biofilm
- Capsule - a slimy coat around the bacteria that stops white blood cells (neutrophils) from eating them up (antiphagocytic). Example: Streptococcus pneumoniae - capsulated strains cause pneumonia; without capsule, they are harmless.
- Biofilm - bacteria group together and form a thick protective layer (like a fortress). Very hard to kill with antibiotics. Example: Pseudomonas in lungs of cystic fibrosis patients.
3. Invasion
Some bacteria don't just sit on the surface - they actually enter host tissues. They do this by:
- Enzymes that break down tissue barriers:
- Hyaluronidase - breaks connective tissue ("spreading factor")
- Streptokinase - dissolves clots, helps bacteria spread
- Coagulase - forms a clot around bacteria to hide from immune cells
- Direct cell invasion - e.g., Shigella and Salmonella enter intestinal cells and live inside them, safe from antibodies.
4. Toxins (The Biggest Weapon)
A. Exotoxins - proteins secreted by bacteria, very potent:
- Cytotoxins - kill host cells directly (e.g., C. perfringens alpha toxin - causes gas gangrene)
- Neurotoxins - attack nerves (e.g., tetanus toxin blocks inhibitory signals - causes spasms; botulinum toxin blocks muscle activation - causes paralysis)
- Enterotoxins - act on the gut (e.g., cholera toxin increases cAMP - > massive watery diarrhea)
- Superantigens - over-activate the immune system causing a "cytokine storm" - fever, shock (e.g., TSST-1 of Staph. aureus in toxic shock syndrome)
B. Endotoxin (LPS) - part of the Gram-negative bacterial wall. Released when bacteria die. Triggers fever, low blood pressure, and in severe cases - septic shock (via TNF-alpha, IL-1 release).
5. Secretion Systems (Injection Devices)
Some bacteria have a molecular "syringe" (called Type III secretion system) that injects harmful proteins directly into host cells.
- Think of it like a bacterium literally stabbing a host cell and injecting poison.
- Examples: Salmonella, Shigella, Yersinia
6. Escaping the Immune System
Clever bacteria have tricks to dodge our defenses:
- Antigenic variation - they keep changing their surface proteins so antibodies can't recognize them anymore. Example: N. gonorrhoeae, Borrelia (causes relapsing fever - fever comes back every time bacteria switch their coat)
- IgA protease - an enzyme that destroys IgA (the antibody that guards mucosal surfaces). Example: H. influenzae, N. gonorrhoeae
- Intracellular hiding - M. tuberculosis lives inside macrophages and blocks being killed. Listeria escapes the phagosome into the cell's own cytoplasm.
7. Iron Grabbing (Siderophores)
Bacteria need iron to grow. Our body locks iron away in proteins like transferrin so bacteria can't get it. Clever bacteria make siderophores - tiny molecules that steal iron from our proteins and carry it back to the bacteria.
- Example: E. coli makes aerobactin, a siderophore.
- More iron = more bacterial growth = more disease.
8. Pathogenicity Islands
These are big chunks of DNA that carry many virulence genes together. They switch on all at once in response to a trigger (like acidic pH in the stomach, or oxygen levels).
- Example: Salmonella has an island called SPI-2 that switches on inside macrophage vacuoles and helps bacteria survive there.
- These islands can be transferred between bacteria, spreading virulence.
Quick Revision Table
| Factor | What it does | Example |
|---|---|---|
| Adhesins/Pili | Stick to host cells | E. coli UTI |
| Capsule | Block phagocytosis | S. pneumoniae |
| Biofilm | Antibiotic resistance | Pseudomonas |
| Exotoxins | Kill cells / affect nerves / gut | Cholera, Tetanus |
| Endotoxin (LPS) | Septic shock | Gram-negatives |
| Secretion systems | Inject proteins into host cells | Salmonella |
| Antigenic variation | Dodge antibodies | N. gonorrhoeae |
| Siderophores | Steal iron for growth | E. coli |
| Pathogenicity islands | Bundle of virulence genes | Salmonella SPI-2 |
Same science, just easier to read and remember. Good luck in the exam!
Anaerobic culture media ka mindmap banao
Finding Sources
Reading File
Reading File
Finding Sources
Finding Sources
Reading File
Finding Sources
Generating Image

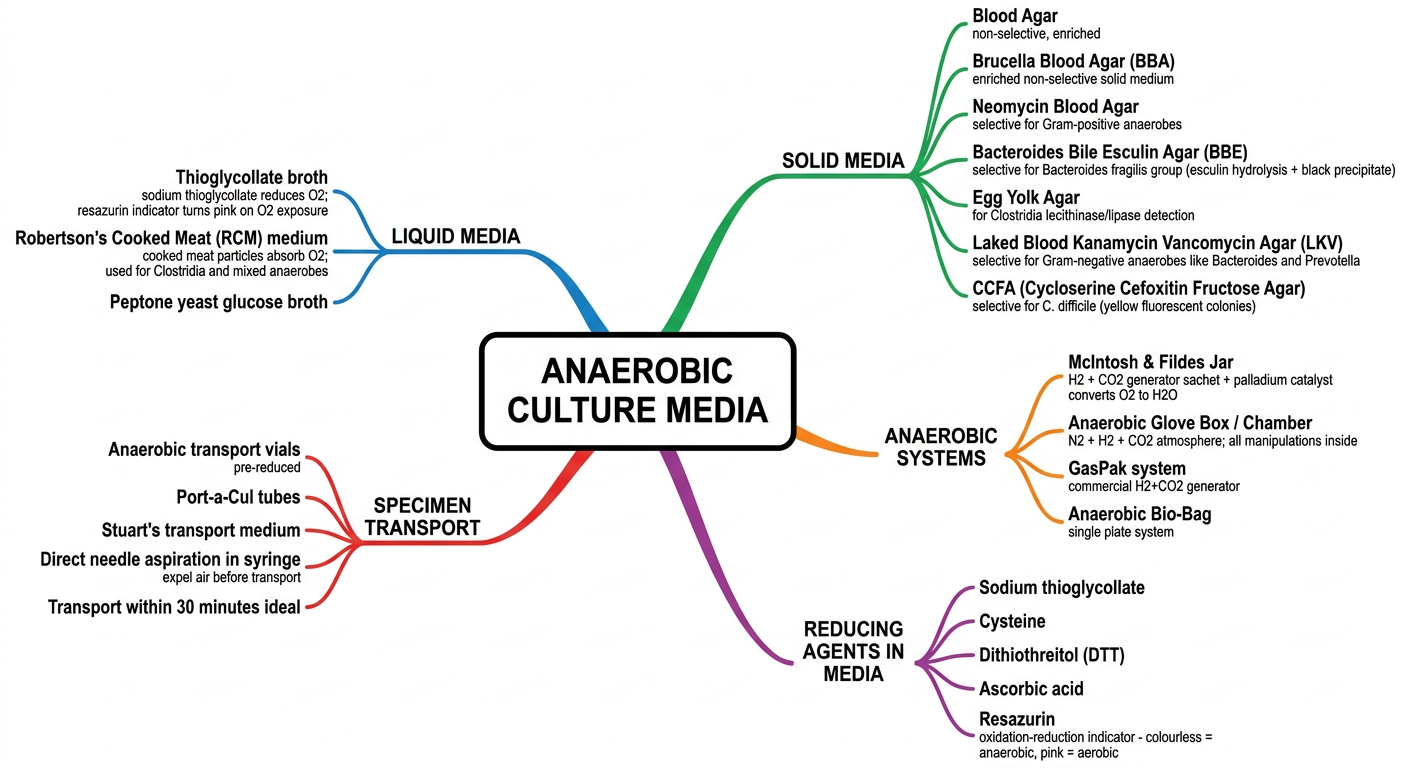

A detailed educational mind map on "Anaerobic Culture Media" for a microbiology exam. Central node labeled "ANAEROBIC CULTURE MEDIA" in bold. Five main branches radiating outward: 1. LIQUID MEDIA (branch color: blue) - sub-nodes: Thioglycollate broth (sodium thioglycollate reduces O2; resazurin indicator turns pink on O2 exposure), Robertson's Cooked Meat (RCM) medium (cooked meat particles absorb O2; used for Clostridia and mixed anaerobes), Peptone yeast glucose broth 2. SOLID MEDIA (branch color: green) - sub-nodes: Blood Agar (non-selective, enriched), Brucella Blood Agar (BBA) - enriched non-selective solid medium, Neomycin Blood Agar - selective for Gram-positive anaerobes, Bacteroides Bile Esculin Agar (BBE) - selective for Bacteroides fragilis group (esculin hydrolysis + black precipitate), Egg Yolk Agar - for Clostridia lecithinase/lipase detection, Laked Blood Kanamycin Vancomycin Agar (LKV) - selective for Gram-negative anaerobes like Bacteroides and Prevotella, CCFA (Cycloserine Cefoxitin Fructose Agar) - selective for C. difficile (yellow fluorescent colonies) 3. ANAEROBIC SYSTEMS (branch color: orange) - sub-nodes: McIntosh & Fildes Jar (H2 + CO2 generator sachet + palladium catalyst converts O2 to H2O), Anaerobic Glove Box / Chamber (N2 + H2 + CO2 atmosphere; all manipulations inside), GasPak system (commercial H2+CO2 generator), Anaerobic Bio-Bag (single plate system) 4. REDUCING AGENTS IN MEDIA (branch color: purple) - sub-nodes: Sodium thioglycollate, Cysteine, Dithiothreitol (DTT), Ascorbic acid, Resazurin (oxidation-reduction indicator - colourless = anaerobic, pink = aerobic) 5. SPECIMEN TRANSPORT (branch color: red) - sub-nodes: Anaerobic transport vials (pre-reduced), Port-a-Cul tubes, Stuart's transport medium, Direct needle aspiration in syringe (expel air before transport), Transport within 30 minutes ideal Clean white background, colorful branches, neat labels, professional medical diagram style suitable for MBBS exam revision.
Yeh raha tumhara mindmap! Saare 5 main branches cover kiye hain. Neeche quick summary bhi hai revision ke liye:
📋 Quick Revision Points
💧 Liquid Media
| Medium | Key Feature |
|---|---|
| Thioglycollate Broth | Sodium thioglycollate O2 ko reduce karta hai; resazurin indicator - pink ho toh O2 aa gaya |
| Robertson's Cooked Meat (RCM) | Cooked meat particles O2 absorb karte hain; Clostridia ke liye best |
| Peptone Yeast Glucose Broth | General purpose anaerobic liquid medium |
🧫 Solid Media
| Medium | Selective For |
|---|---|
| Blood Agar | Non-selective, enriched - sab anaerobes |
| Brucella Blood Agar (BBA) | Gold standard non-selective solid medium |
| LKV Agar (Laked blood + Kanamycin + Vancomycin) | Gram-negative anaerobes (Bacteroides, Prevotella) |
| BBE Agar (Bile Esculin) | Bacteroides fragilis - black colonies |
| Neomycin Blood Agar | Gram-positive anaerobes |
| CCFA Agar | C. difficile - yellow fluorescent colonies, UV mein glow karte hain |
| Egg Yolk Agar | Clostridia - lecithinase/lipase activity |
⚗️ Anaerobic Systems
- McIntosh & Fildes Jar - H2 + CO2 sachet + palladium catalyst → O2 → H2O
- Anaerobic Glove Box - N2 + H2 + CO2 ka sealed chamber
- GasPak - Commercial ready-made H2+CO2 generator
- Bio-Bag - Single plate ke liye small anaerobic pouch
🔴 Reducing Agents
Sodium thioglycollate, Cysteine, DTT, Ascorbic acid
Resazurin = indicator (colourless = anaerobic ✅, pink = O2 contamination ❌)
🚚 Specimen Transport
- Port-a-Cul / Anaerobic transport vials - pre-reduced media
- Syringe mein collect karo, air nikaal do, 30 min mein lab bhejo
- Pus apna best transport medium hai agar delay na ho
