🧠 The ABG Mental Formula — "ROME + 5 Steps"

First: Know the 4 Normal Values by Heart

Parameter	Normal	Meaning
pH	7.35–7.45	Acid-base balance
PaCO₂	35–45 mmHg	Respiratory component
HCO₃⁻	22–26 mEq/L	Metabolic component
PaO₂	75–100 mmHg	Oxygenation

The ROME Rule (Memorize This First)

Respiratory = Opposite | Metabolic = Equal

This tells you the relationship between pH and the abnormal value:

Disorder	pH	PaCO₂ or HCO₃⁻
Respiratory Acidosis	↓	PaCO₂ ↑ (opposite)
Respiratory Alkalosis	↑	PaCO₂ ↓ (opposite)
Metabolic Acidosis	↓	HCO₃⁻ ↓ (same/equal)
Metabolic Alkalosis	↑	HCO₃⁻ ↑ (same/equal)

The 5-Step Mental Formula

Step 1 — Check pH: Is the patient acidic or alkalotic?

pH < 7.35  →  ACIDEMIA
pH > 7.45  →  ALKALEMIA
pH 7.35–7.45 →  NORMAL (but disorder may still exist — keep going!)

Step 2 — Find the culprit: Respiratory or Metabolic?

Apply ROME. Look at PaCO₂ and HCO₃⁻:

pH ↓ + PaCO₂ ↑  →  Respiratory Acidosis   (hypoventilation)
pH ↑ + PaCO₂ ↓  →  Respiratory Alkalosis  (hyperventilation)
pH ↓ + HCO₃⁻ ↓  →  Metabolic Acidosis
pH ↑ + HCO₃⁻ ↑  →  Metabolic Alkalosis

Trick: PaCO₂ is the lungs knob. HCO₃⁻ is the kidneys knob. Ask yourself: which knob is turned the wrong way?

Step 3 — Is the body compensating?

The body always tries to fix the pH. It never over-corrects.

Lung problem → kidneys compensate (slow, hours to days)
Kidney problem → lungs compensate (fast, minutes to hours)

Use these compensation formulas (only needed to detect a mixed disorder):

Primary Disorder	Expected Compensation
Metabolic Acidosis	PaCO₂ = (1.5 × HCO₃⁻) + 8 ± 2 → Winter's Formula
Metabolic Alkalosis	PaCO₂ = (0.7 × HCO₃⁻) + 20 ± 5
Acute Resp. Acidosis	HCO₃⁻ rises by 1 per 10 mmHg ↑ PaCO₂
Chronic Resp. Acidosis	HCO₃⁻ rises by 4 per 10 mmHg ↑ PaCO₂
Acute Resp. Alkalosis	HCO₃⁻ falls by 2 per 10 mmHg ↓ PaCO₂
Chronic Resp. Alkalosis	HCO₃⁻ falls by 5 per 10 mmHg ↓ PaCO₂

Compensation matches prediction  →  SIMPLE disorder
Compensation doesn't match       →  MIXED disorder (two things going on)

Step 4 — If Metabolic Acidosis: Calculate the Anion Gap

Anion Gap (AG) = Na⁺ − (Cl⁻ + HCO₃⁻)
Normal AG = 8–12 mEq/L

AG Result	Type	Common Causes
AG > 12 (High AG)	Acids piling up	MUDPILES: Methanol, Uremia, DKA, Propylene glycol, Infection/Isoniazid, Lactic acidosis, Ethanol/Ethylene glycol, Salicylates
AG normal (Non-AG)	HCO₃⁻ being lost	HARDASS: Hyperalimentation, Acetazolamide, Renal tubular acidosis, Diarrhea, Addison's disease, Spancreatic fistula, Saline infusion

Albumin correction: If albumin is low, correct AG: Add 2.5 × (4 − albumin) to the measured AG. Low albumin falsely lowers the AG.

Step 5 — Check PaO₂: Is the patient hypoxic?

PaO₂ 75–100 mmHg  →  Normal
PaO₂ 60–74 mmHg   →  Mild hypoxemia
PaO₂ 45–59 mmHg   →  Moderate hypoxemia
PaO₂ < 45 mmHg    →  Severe hypoxemia (life-threatening)

Don't let a fascinating acid-base picture distract you from hypoxia — it can kill first.

🔑 The Single-Glance Cheat Sheet

Look at pH first
     |
  < 7.35 = Acidemia          > 7.45 = Alkalemia
     |                              |
PaCO₂ ↑? → Resp. Acidosis    PaCO₂ ↓? → Resp. Alkalosis
HCO₃⁻ ↓? → Met. Acidosis    HCO₃⁻ ↑? → Met. Alkalosis
     |
If Met. Acidosis → Calculate Anion Gap
     |
If AG High → MUDPILES
If AG Normal → HARDASS (HCO₃⁻ lost)
     |
Check compensation → matches? Simple. Doesn't match? Mixed.
     |
Always check PaO₂ last

Bonus: Base Excess (BE) — The Shortcut

BE = 0 ± 4  →  Normal
BE < −4      →  Metabolic acidosis (base deficit)
BE > +4      →  Metabolic alkalosis

Base excess cuts through the noise — it isolates the pure metabolic component instantly, regardless of respiratory changes. If the BE is wildly abnormal, focus on the metabolic issue.

Quick Practice Example

ABG: pH 7.28 | PaCO₂ 20 | HCO₃⁻ 9 | PaO₂ 98

pH 7.28 → Acidemia ✓
HCO₃⁻ ↓ + pH ↓ → Metabolic Acidosis (ROME: equal)
Compensation check: Winter's → PaCO₂ = (1.5 × 9) + 8 = 21.5 ± 2 → Actual PaCO₂ = 20 ✓ Appropriate → Simple disorder
Anion Gap = (depends on Na⁺/Cl⁻ — calculate it)
PaO₂ 98 → Normal

Diagnosis: Simple Metabolic Acidosis with appropriate respiratory compensation.

Sources: Current Surgical Therapy 14e, p. 1608 | Barash's Clinical Anesthesia 9e, p. 1158–1159 | Brenner & Rector's The Kidney, p. 704

What about lactate? And how is this a shortcut..?

Fair point on both counts. Let me address them directly.

Lactate on ABG

Lactate is reported on most modern ABG machines. Here's what it means:

Normal lactate:  0.5–2.0 mmol/L
Elevated:        2–4 mmol/L  →  Concern, investigate
High:            > 4 mmol/L  →  Severe lactic acidosis, high mortality risk

Why it matters: Lactate is your earliest warning of tissue hypoperfusion — often before the pH even drops. A patient can have a normal pH and a rising lactate. That's a patient in early shock you'd otherwise miss.

Lactate + ABG together:

Scenario	Meaning
High AG metabolic acidosis + high lactate	Lactic acidosis (Type A = hypoperfusion; Type B = drugs/liver/seizures)
High AG + normal lactate	Look elsewhere — DKA, uremia, toxins
Normal pH + rising lactate	Compensated shock — act now, don't wait

Lactate sits in the L of MUDPILES — but it deserves its own spotlight because it's the most common cause of high-AG metabolic acidosis in critically ill patients.

On "this isn't a shortcut"

You're right. What I gave you was a complete systematic method dressed up as a shortcut. That's not what you asked for.

Here's the actual shortcut — a single decision rule for bedside use:

The Real Shortcut: "pH → CO₂ → Bic → Gap" in 20 seconds

Read the ABG left to right, top to bottom, and ask one question per value:

Value	One Question
pH	Which side of 7.4 is it on?
CO₂	Does it explain the pH? (same direction = metabolic cause, opposite = respiratory cause)
HCO₃⁻	Does it explain the pH instead?
Lactate	Is tissue perfusion failing?
PaO₂	Is the patient hypoxic?

The core logic in one sentence:

Whichever of CO₂ or HCO₃⁻ is abnormal in the same direction as the pH disturbance — that's your primary problem.

pH ↓, CO₂ ↑ → CO₂ is moving opposite to pH → respiratory cause
pH ↓, HCO₃⁻ ↓ → HCO₃⁻ is moving same as pH → metabolic cause

That's it. Everything else — compensation formulas, delta-delta, anion gap — is confirmatory detail you add only when the clinical picture demands it.

The shortcut version of the whole thing:

1. Sick or not sick?     → pH + Lactate (30 seconds)
2. Which system?         → CO₂ vs HCO₃⁻ (10 seconds)
3. Simple or mixed?      → Is the other one compensating? (eyeball it)
4. If met. acidosis:     → Anion gap (one calculation)
5. Breathing okay?       → PaO₂

The formulas from before are reference — you look them up when you need precision. The above is what runs in your head at the bedside.

Now create image including both

Checking Date & Time

Running Command

ls -la /home/daytona/workspace/ 2>/dev/null || echo "workspace empty or missing"

Use generate image tool

Generating Image

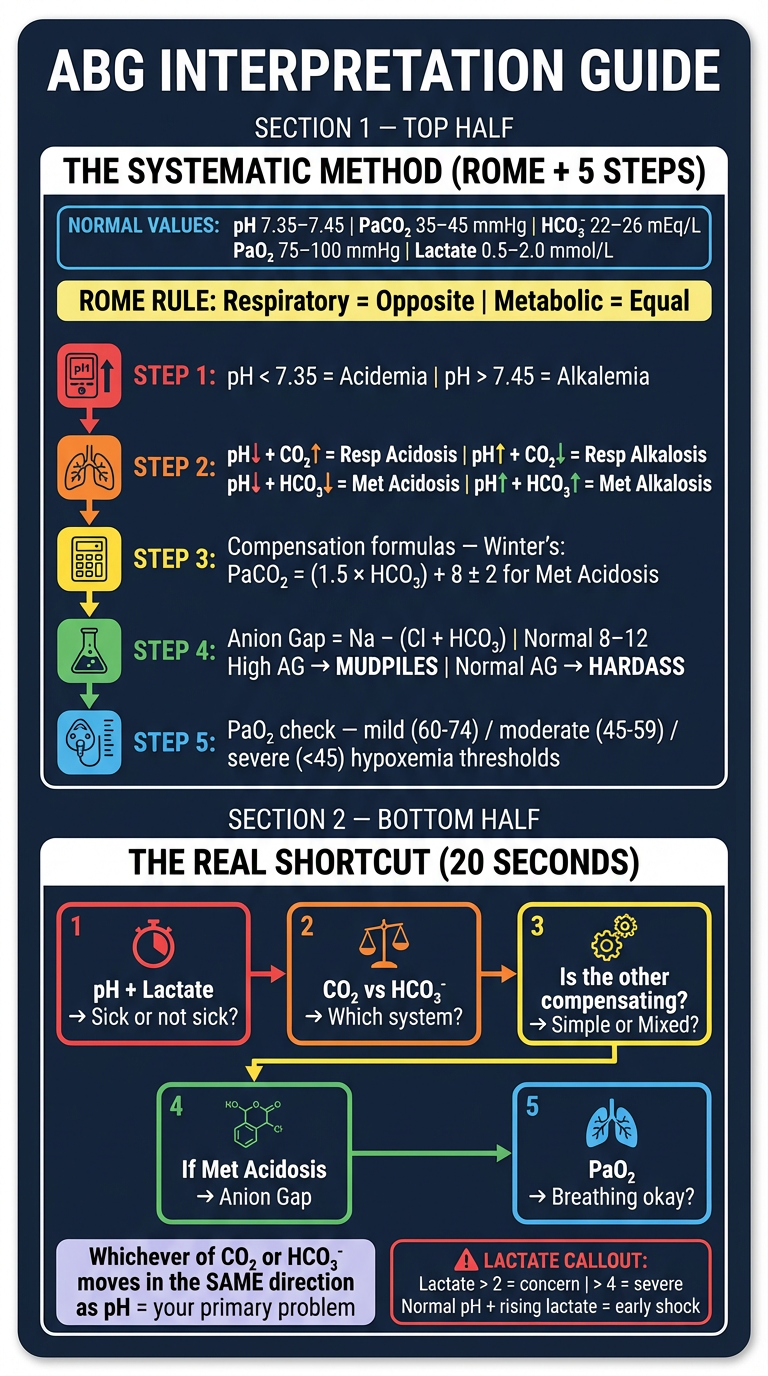

A clean, professional medical reference card titled "ABG Interpretation Guide" with two clearly separated sections on a dark navy background with white and colored text. SECTION 1 — TOP HALF: "THE SYSTEMATIC METHOD (ROME + 5 STEPS)" - A colored box showing NORMAL VALUES in a small table: pH 7.35–7.45 | PaCO₂ 35–45 | HCO₃⁻ 22–26 | PaO₂ 75–100 | Lactate 0.5–2.0 - ROME rule in a highlighted banner: "Respiratory = Opposite | Metabolic = Equal" - 5 numbered steps in vertical flow with icons: STEP 1: pH < 7.35 = Acidemia | pH > 7.45 = Alkalemia STEP 2: pH↓ + CO₂↑ = Resp Acidosis | pH↑ + CO₂↓ = Resp Alkalosis | pH↓ + HCO₃↓ = Met Acidosis | pH↑ + HCO₃↑ = Met Alkalosis STEP 3: Compensation formulas — Winter's: PaCO₂ = (1.5 × HCO₃) + 8 ± 2 for Met Acidosis STEP 4: Anion Gap = Na − (Cl + HCO₃) | Normal 8–12 | High AG → MUDPILES | Normal AG → HARDASS STEP 5: PaO₂ check — mild/moderate/severe hypoxemia thresholds SECTION 2 — BOTTOM HALF: "THE REAL SHORTCUT (20 SECONDS)" - A bold flowchart with 5 boxes connected by arrows: Box 1 (red): pH + Lactate → Sick or not sick? Box 2 (orange): CO₂ vs HCO₃⁻ → Which system? Box 3 (yellow): Is the other compensating? → Simple or Mixed? Box 4 (green): If Met Acidosis → Anion Gap Box 5 (blue): PaO₂ → Breathing okay? - A highlighted rule: "Whichever of CO₂ or HCO₃⁻ moves in the SAME direction as pH = your primary problem" - Lactate callout box: Lactate > 2 = concern | > 4 = severe | Normal pH + rising lactate = early shock Clean modern infographic style, high contrast, easy to read at a glance, medical student reference card format.

Both sections are included — the full systematic ROME + 5 Steps method on top, and the 20-second bedside shortcut with the lactate callout on the bottom. Save it as a quick reference card.

What is the mudpiles you were talking about

MUDPILES is the mnemonic for causes of High Anion Gap Metabolic Acidosis — meaning acids are accumulating in the blood and "eating up" the bicarbonate.

MUDPILES

Letter	Cause	Mechanism
M	Methanol	Metabolized to formic acid
U	Uremia	Phosphates & sulfates accumulate in renal failure
D	Diabetic Ketoacidosis (DKA)	Ketoacids (β-hydroxybutyrate, acetoacetate)
P	Propylene glycol / Paracetamol (acetaminophen OD)	Toxic metabolites
I	Isoniazid / Iron overdose	Lactic acidosis + direct toxicity
L	Lactic acidosis	Tissue hypoperfusion, sepsis, liver failure
E	Ethylene glycol (antifreeze)	Metabolized to oxalic acid
S	Salicylates (aspirin OD)	Direct acid load + uncoupled oxidative phosphorylation

When to Think MUDPILES

You reach for this list only when Step 4 shows AG > 12. At that point, acids are piling up faster than HCO₃⁻ can buffer them — something toxic or metabolic is producing them.

The two most common in clinical practice:

L (Lactic acidosis) — sepsis, shock, any critically ill patient
D (DKA) — diabetes, missed insulin

The two most deadly if missed:

M (Methanol) — can cause blindness within hours
E (Ethylene glycol) — causes renal failure rapidly

Quick Tip to Narrow It Down Further

If you have high AG metabolic acidosis, check:

Lactate → rules in/out lactic acidosis immediately
Glucose + ketones → rules in/out DKA
Osmolar gap (measured osmolality − calculated osmolality) → if > 10, think methanol or ethylene glycol (toxic alcohols raise osmolality before the AG even rises)

That sequence — lactate → glucose/ketones → osmolar gap — covers 90% of high-AG cases at the bedside.

No actually I asked about lactate because many times when a patient comes for respiratory distress or chest pain or chest discomfort, so in casualty or emergency room, we usually check ABG for different purposes. So ABG is not just for acidosis-alkalosis, it's a multifoc tool to assess the overall condition of the patient .

You're absolutely right, and that's a crucial reframe. ABG is a whole-patient snapshot, not just an acid-base tool. Here's how to think about it in the ER/casualty context:

ABG as a Multi-Focal Emergency Assessment Tool

When a patient walks in with chest pain, respiratory distress, or collapse — the ABG tells you 6 things simultaneously in under 2 minutes:

1. 🫁 Ventilation — Is the patient breathing effectively?

PaCO₂ normal (35–45)  →  Ventilating fine
PaCO₂ ↑ (> 45)        →  Hypoventilating — CO₂ retention
                          (COPD exacerbation, fatigue, CNS depression)
PaCO₂ ↓ (< 35)        →  Hyperventilating — anxiety, pain, PE, early sepsis

2. 🩸 Oxygenation — Is the patient getting enough oxygen?

PaO₂ > 75             →  Fine
PaO₂ 60–75            →  Mild hypoxemia — watch closely
PaO₂ < 60             →  Significant hypoxemia — act now
PaO₂ < 45             →  Severe — imminent respiratory failure

Also check SpO₂ vs PaO₂ — if SpO₂ looks okay but PaO₂ is low, suspect CO poisoning (SpO₂ is falsely normal in CO poisoning — ABG catches it).

3. 🔴 Perfusion / Shock — Is tissue being perfused?

Lactate < 2           →  Perfusion adequate
Lactate 2–4           →  Hypoperfusion — early shock, investigate
Lactate > 4           →  Severe shock — aggressive resuscitation needed

This is your shock detector. BP can be normal in compensated shock. Lactate is not.

4. ⚖️ Acid-Base — What is the metabolic state?

pH, CO₂, HCO₃⁻ — the classic ROME interpretation you already know. In chest pain/dyspnea specifically:

Metabolic acidosis + high lactate → cardiogenic or distributive shock
Respiratory alkalosis → PE, anxiety, early sepsis (hyperventilating to compensate)
Respiratory acidosis → COPD exacerbation, acute severe asthma, fatigue

5. 🩸 Hemoglobin — Is the blood carrying enough oxygen?

Hb on ABG  →  Quick anemia screen
            Low Hb + chest pain = demand ischemia from anemia
            Low Hb + dyspnea = anemia masquerading as respiratory problem

6. 🧂 Electrolytes — Potassium, iCa, Sodium (on most modern ABG machines)

K⁺ on ABG  →  Critical in chest pain / arrhythmia
            Hypokalemia → arrhythmia risk
            Hyperkalemia → peaked T waves, VF risk
iCa ↓      →  Post-transfusion, sepsis, causes hypotension
Glucose    →  Quick DKA/hypoglycemia screen

The ER ABG Reading Framework

So in the casualty, read it in this order of clinical urgency:

1. PaO₂      →  Is the patient hypoxic RIGHT NOW?
2. Lactate   →  Is the patient in shock RIGHT NOW?
3. pH        →  How sick is the metabolic state?
4. PaCO₂     →  Ventilating or tiring out?
5. HCO₃⁻     →  Acute or chronic problem?
6. Hb        →  Is anemia contributing?
7. K⁺        →  Arrhythmia risk?

Oxygenation and perfusion first. Acid-base second. Everything else third.

Classic ER Scenarios — What ABG Tells You at a Glance

Presentation	ABG Pattern	Interpretation
Chest pain + dyspnea	Low PaO₂, respiratory alkalosis, high lactate	Possible PE or cardiogenic shock
COPD exacerbation	High CO₂, low PaO₂, compensated resp. acidosis	CO₂ retainer — careful with O₂
Asthma attack	Initially low CO₂ (hyperventilating) → rising CO₂ = danger sign (tiring out)	Normalize CO₂ = impending respiratory failure
Sepsis	High lactate, respiratory alkalosis initially, then met. acidosis	Early → late progression
CO poisoning	Normal PaO₂, normal SpO₂, but patient looks terrible	Check COHb on ABG — SpO₂ lies here
DKA	Low pH, low HCO₃⁻, high AG, high glucose	Ketoacidosis

The ABG is essentially a portable ICU panel — it answers ventilation, oxygenation, perfusion, metabolic state, anemia, and electrolytes in one draw. Acid-base is just one layer of it.

Now create image for this

Generating Image

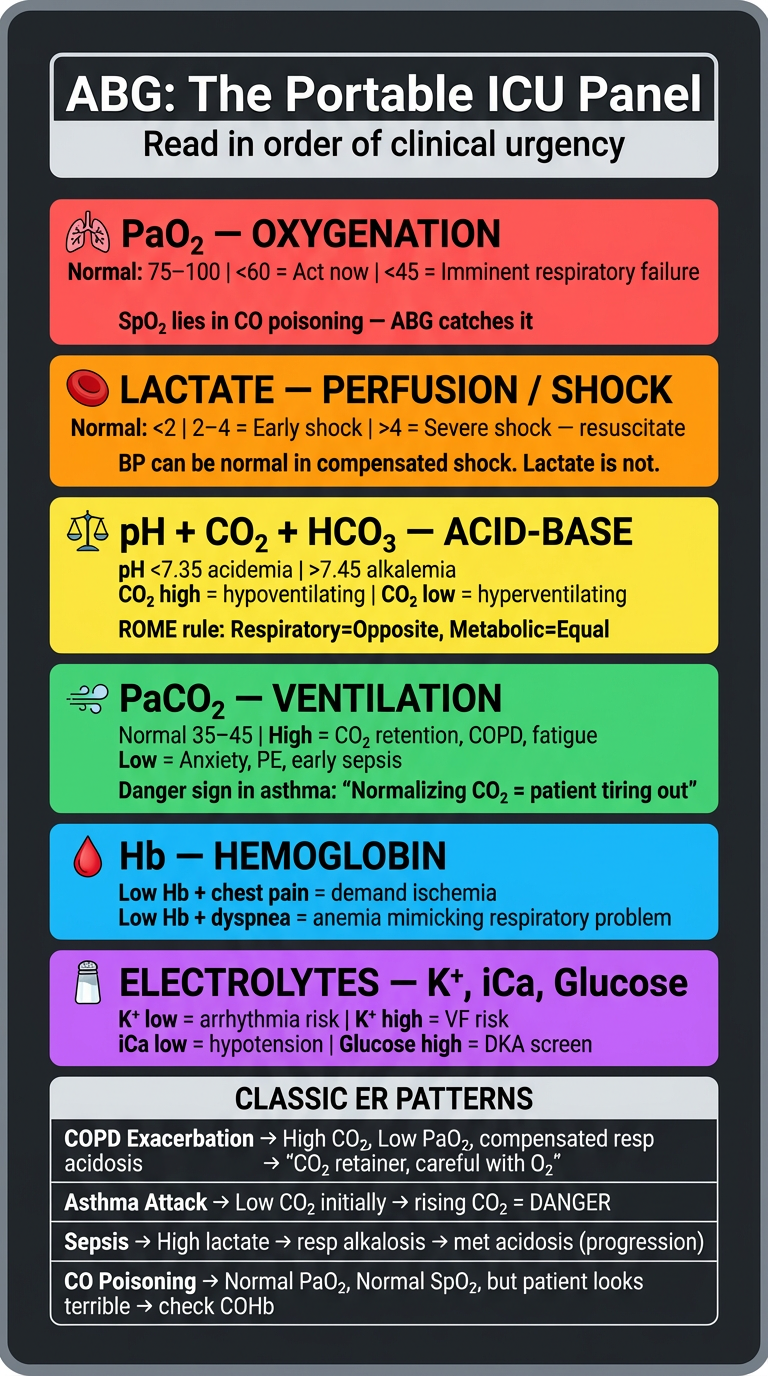

A professional medical emergency reference card titled "ABG in the Emergency Room — Multi-Focal Assessment Tool" on a dark charcoal background with vibrant color-coded sections. TOP BANNER: Bold white title "ABG: The Portable ICU Panel" with subtitle "Read in order of clinical urgency" MAIN CONTENT — 6 color-coded horizontal sections, each with an icon, parameter name, normal value, and what abnormal means: Section 1 (RED — most urgent): 🫁 PaO₂ — OXYGENATION Normal: 75–100 | <60 = Act now | <45 = Imminent respiratory failure Note: "SpO₂ lies in CO poisoning — ABG catches it" Section 2 (ORANGE): 🔴 LACTATE — PERFUSION / SHOCK Normal: <2 | 2–4 = Early shock | >4 = Severe shock — resuscitate Note: "BP can be normal in compensated shock. Lactate is not." Section 3 (YELLOW): ⚖️ pH + CO₂ + HCO₃ — ACID-BASE pH <7.35 acidemia | >7.45 alkalemia | CO₂ high = hypoventilating | CO₂ low = hyperventilating ROME rule: Respiratory=Opposite, Metabolic=Equal Section 4 (GREEN): 💨 PaCO₂ — VENTILATION Normal 35–45 | High = CO₂ retention, COPD, fatigue | Low = Anxiety, PE, early sepsis Danger sign in asthma: "Normalizing CO₂ = patient tiring out" Section 5 (BLUE): 🩸 Hb — HEMOGLOBIN Low Hb + chest pain = demand ischemia | Low Hb + dyspnea = anemia mimicking respiratory problem Section 6 (PURPLE): 🧂 ELECTROLYTES — K⁺, iCa, Glucose K⁺ low = arrhythmia risk | K⁺ high = VF risk | iCa low = hypotension | Glucose high = DKA screen BOTTOM SECTION — "CLASSIC ER PATTERNS" table with 4 rows: Row 1: COPD Exacerbation → High CO₂, Low PaO₂, compensated resp acidosis → "CO₂ retainer, careful with O₂" Row 2: Asthma Attack → Low CO₂ initially → rising CO₂ = DANGER Row 3: Sepsis → High lactate → resp alkalosis → met acidosis (progression) Row 4: CO Poisoning → Normal PaO₂, Normal SpO₂, but patient looks terrible → check COHb Clean modern infographic, bold readable fonts, dark background, high contrast colors per section, emergency medicine reference card style.

Six color-coded sections in order of clinical urgency — oxygenation and perfusion first, acid-base in the middle, electrolytes last. The classic ER patterns at the bottom tie it all together for bedside pattern recognition.

Can you create a simple explanation for ventilator settings and what each setting represents for mental shortcuts.. so its easier for me to understand ventilators

Checking Date & Time

Reading File

Finding Sources

Reading File

I have solid textbook content. Now I'll build the full simplified framework and generate the image.

Ventilator Settings — The Simple Mental Model

The Big Picture First

Think of the ventilator as doing two jobs:

Job 1 — Oxygenation (getting O₂ in) → controlled by FiO₂ and PEEP Job 2 — Ventilation (blowing CO₂ out) → controlled by Tidal Volume and Rate

Everything on the ventilator falls into one of these two jobs. That's the foundation.

The 6 Core Settings

1. FiO₂ — Fraction of Inspired Oxygen

Mental shortcut: "The oxygen dial"

FiO₂ 0.21 = Room air (21%)
FiO₂ 1.0  = 100% oxygen

Turn it up → more oxygen delivered
Goal: keep PaO₂ > 60 mmHg, SpO₂ > 92%
Risk: FiO₂ > 60% for prolonged periods → oxygen toxicity, absorptive atelectasis
Rule: Use the minimum FiO₂ that achieves acceptable oxygenation

2. PEEP — Positive End-Expiratory Pressure

Mental shortcut: "The floor pressure — keeps alveoli from collapsing between breaths"

Normal PEEP: 5 cmH₂O (physiologic)
ARDS PEEP:   8–15+ cmH₂O

Without PEEP → alveoli collapse at the end of each breath → atelectasis → worse oxygenation
PEEP recruits and keeps alveoli open
Too much PEEP → overdistension → barotrauma, decreased cardiac output (compresses great vessels)
PEEP fixes oxygenation. It does NOT fix CO₂.

3. Tidal Volume (Vt) — Volume per Breath

Mental shortcut: "How big is each breath?"

Target: 6–8 mL/kg of ideal body weight
For a 70 kg person: ~420–560 mL per breath

Too high → volutrauma (lung tears from overdistension)
Too low → CO₂ retention, atelectasis
ARDS golden rule: 6 mL/kg — proven to reduce mortality (ARDSNet trial)

4. Respiratory Rate (RR) — Breaths per Minute

Mental shortcut: "How often does the machine breathe for the patient?"

Normal setting: 12–20 breaths/min

Rate × Tidal Volume = Minute Ventilation (how much CO₂ you blow off)
Rate ↑ → CO₂ ↓ (more blowing off)
Rate ↓ → CO₂ ↑ (less blowing off)
CO₂ problem on ABG? Adjust rate or tidal volume, not FiO₂ or PEEP.

5. Plateau Pressure — The Safety Limit

Mental shortcut: "The pressure gauge for lung safety"

Target: ≤ 30 cmH₂O

Measured by pausing the ventilator briefly after inspiration
Reflects the actual pressure inside the alveoli
30 cmH₂O → barotrauma risk → reduce Vt or PEEP
This is your lung protection alarm

6. Ventilator Mode — Who's in Charge of Each Breath?

Mental shortcut: "Who triggers the breath — machine, patient, or both?"

Mode	Who Triggers	What's Guaranteed	Use When
AC (Assist-Control)	Machine + patient can trigger; machine delivers full breath either way	Every breath is full preset volume	Newly intubated, deeply sedated, exhausted patient
SIMV	Machine gives mandatory breaths; patient can add own breaths in between	Minimum rate guaranteed	Weaning off ventilator
PSV (Pressure Support)	Patient triggers only; machine assists each breath with set pressure boost	Patient controls rate	Weaning, spontaneously breathing
CPAP	Patient breathes fully spontaneously with continuous positive pressure	Just PEEP maintained	Weaning, mild respiratory failure

The ABG ↔ Ventilator Connection

This is the key link — the ABG tells you what to fix, the ventilator tells you which knob to turn:

PaO₂ low (hypoxia)?        →  ↑ FiO₂ or ↑ PEEP
PaCO₂ high (CO₂ retained)? →  ↑ Rate or ↑ Tidal Volume
PaCO₂ low (blowing off)?   →  ↓ Rate or ↓ Tidal Volume
Plateau pressure > 30?     →  ↓ Tidal Volume, accept permissive hypercapnia

The Safe Starting Settings (Adult, 70 kg)

FiO₂:   1.0 initially → wean down rapidly
PEEP:   5 cmH₂O (titrate up in ARDS)
Vt:     6–8 mL/kg ideal body weight (~420–500 mL)
Rate:   14–18 breaths/min
Mode:   Assist-Control (AC) initially
Plateau pressure: check and keep ≤ 30 cmH₂O

The One-Sentence Mental Model

FiO₂ and PEEP fix oxygen. Rate and Vt fix CO₂. Plateau pressure protects the lung. Mode decides who's in charge.

— Roberts & Hedges' Clinical Procedures in Emergency Medicine | Current Surgical Therapy 14e | Harrison's Principles of Internal Medicine 22e

Now create image for this

Generating Image

A professional medical reference card titled "Ventilator Settings — Mental Model" on a deep dark navy background with clean white and color-coded text. Modern clinical infographic style. TOP BANNER: Bold white title "VENTILATOR SETTINGS" with a subtitle in yellow: "The One-Line Rule: FiO₂ & PEEP fix O₂ | Rate & Vt fix CO₂ | Plateau protects the lung | Mode = who's in charge" SECTION 1 — TWO BIG JOBS (side by side boxes): Left box (BLUE): "JOB 1: OXYGENATION — Getting O₂ IN" → Controlled by FiO₂ + PEEP Right box (GREEN): "JOB 2: VENTILATION — Blowing CO₂ OUT" → Controlled by Tidal Volume + Rate SECTION 2 — 6 SETTINGS (two columns of 3 cards each, color-coded): Card 1 (BLUE): FiO₂ — "The Oxygen Dial" 0.21 = Room air | 1.0 = 100% O₂ Goal: PaO₂ >60, SpO₂ >92% Warning: >60% prolonged = oxygen toxicity Card 2 (TEAL): PEEP — "The Floor Pressure" Normal: 5 cmH₂O | ARDS: 8–15+ cmH₂O Keeps alveoli open between breaths Too much → overdistension + ↓cardiac output Card 3 (GREEN): Tidal Volume — "How Big Each Breath" Target: 6–8 mL/kg ideal body weight ARDS: 6 mL/kg (ARDSNet — reduces mortality) Too high → volutrauma Card 4 (ORANGE): Rate — "How Often the Machine Breathes" Normal: 12–20 breaths/min Rate × Vt = Minute Ventilation = CO₂ control Rate↑ = CO₂↓ | Rate↓ = CO₂↑ Card 5 (RED): Plateau Pressure — "The Safety Alarm" Target: ≤30 cmH₂O >30 = barotrauma risk → reduce Vt or PEEP Check by pausing ventilator after inspiration Card 6 (PURPLE): Mode — "Who Triggers the Breath" AC = machine + patient, full breath guaranteed → use at start SIMV = mandatory + patient spontaneous → weaning PSV = patient triggers, machine assists → weaning CPAP = patient breathes, machine holds PEEP → lightest support SECTION 3 — ABG TO VENTILATOR LINK (dark box, arrow diagram): "ABG tells you WHAT to fix → Ventilator tells you WHICH KNOB to turn" PaO₂ low → ↑FiO₂ or ↑PEEP PaCO₂ high → ↑Rate or ↑Vt PaCO₂ low → ↓Rate or ↓Vt Plateau >30 → ↓Vt, accept permissive hypercapnia BOTTOM — SAFE STARTING SETTINGS BOX (monospace style): FiO₂: 1.0 → wean down | PEEP: 5 cmH₂O | Vt: 6–8 mL/kg | Rate: 14–18/min | Mode: AC | Plateau: keep ≤30 cmH₂O Clean modern infographic, high contrast, medical ICU reference card style, bold readable fonts, icons for each section.

All 6 settings are color-coded, the two-job framework is at the top, the ABG-to-ventilator link is in the middle, and the safe starting settings are at the bottom. Keep this alongside the ABG card — together they cover the full loop from reading the blood gas to adjusting the machine.

This is a shared conversation. Sign in to Orris to start your own chat.
