Here is a comprehensive overview of Anaesthesia Monitoring & Equipment, drawn from Miller's Anesthesia (10e), Morgan & Mikhail's Clinical Anesthesiology (7e), Barash's Clinical Anesthesia (9e), and Schwartz's Principles of Surgery (11e).
Anaesthesia Monitoring & Equipment
1. The Anaesthesia Workstation
The anaesthesia machine receives medical gases from a supply, controls flow and reduces pressure, vaporises volatile agents, and delivers the gas mixture to the patient's airway via a breathing circuit.

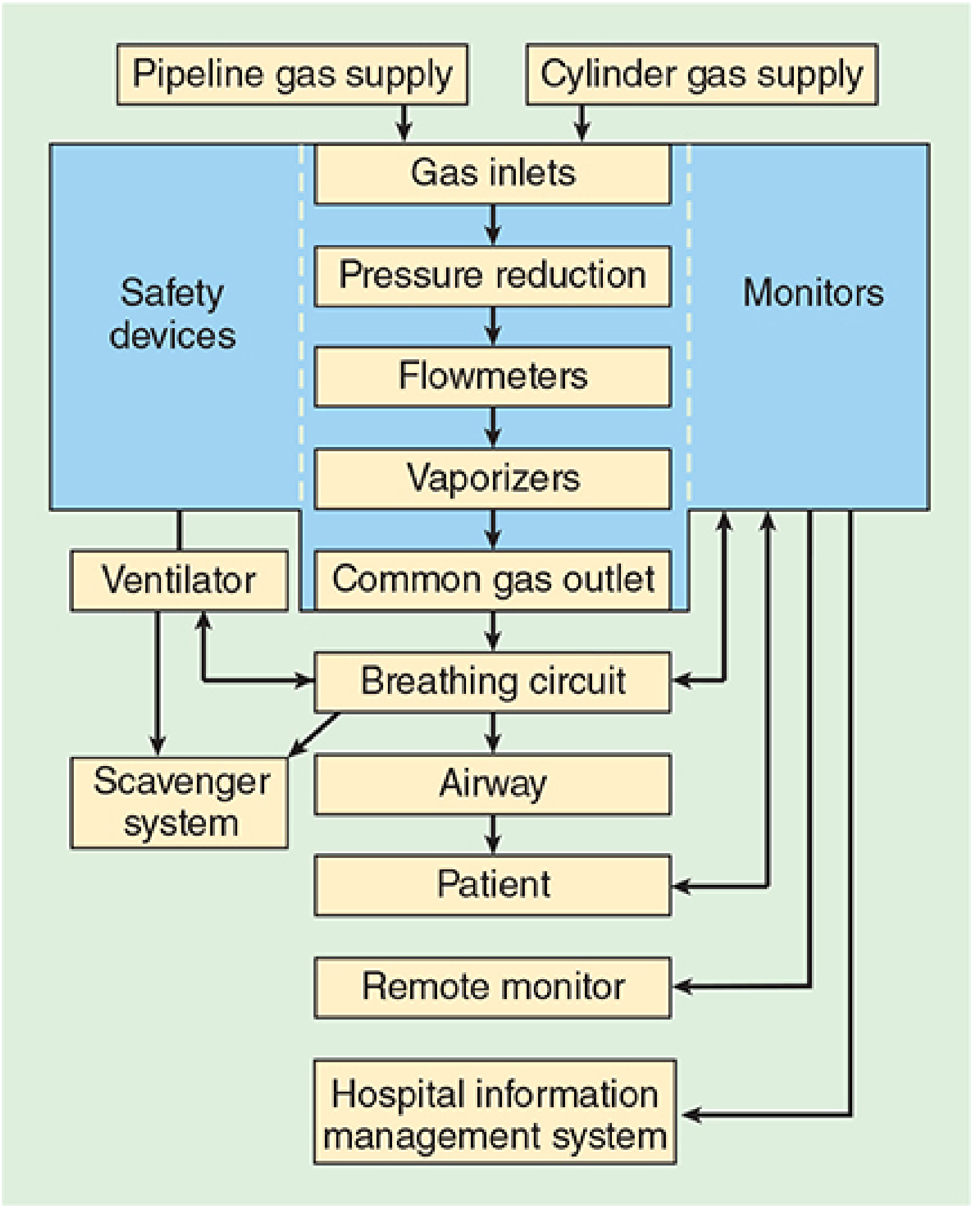

Functional schematic of the anaesthesia workstation — Morgan & Mikhail's Clinical Anesthesiology, 7e
Essential Safety Features (ASTM F1850 Standards)
| Feature | Purpose |
|---|---|
| DISS fittings (non-interchangeable pipeline inlets) | Prevent incorrect gas pipeline connections |
| Pin Index Safety System (cylinders) | Prevent wrong cylinder attachment |
| Low O₂ pressure alarm | Detect oxygen supply failure |
| Hypoxic guard (min O₂/N₂O ratio controller) | Prevent delivery of <21% O₂ |
| O₂ failure safety device | Shuts off N₂O if O₂ fails |
| Vaporiser interlock | Prevents simultaneous delivery of >1 volatile agent |
| Capnography + anaesthetic gas measurement | Guides ventilation; prevents overdose; reduces awareness |
| Breathing circuit pressure monitor + alarm | Prevents barotrauma; detects disconnection |
| Exhaled volume monitor | Prevents hypo-/hyperventilation |
Gas Supply
- Pipeline: ~50 psig, colour-coded, DISS fittings
- Cylinders (backup): E-cylinders at 45 psig; O₂ = 1900 psig full (600 L); N₂O = 745 psig full (1590 L)
- Colour codes (North America): O₂ = green; N₂O = blue; CO₂ = grey; Air = yellow; He = brown; N₂ = black
2. ASA Standards for Basic Intraoperative Monitoring
Standard 1: Qualified anaesthesia personnel present throughout.
Standard 2: Continuous evaluation of four domains:
| Domain | Monitors Required |
|---|---|
| Oxygenation | Inspired O₂ analyser, pulse oximetry, clinical observation |
| Ventilation | Auscultation, observation of chest/reservoir bag, end-tidal CO₂ (ETCO₂) |
| Circulation | Continuous ECG, NIBP every ≤5 minutes, pulse assessment |
| Temperature | Core (oesophageal/nasopharyngeal) or skin probe |
3. Key Monitors — Functions & Details
Pulse Oximetry (SpO₂)
- Non-invasive, continuous measure of arterial O₂ saturation
- Uses differential light absorption of oxyhaemoglobin vs deoxyhaemoglobin at 660 nm and 940 nm
- Limitations: inaccurate with motion, poor perfusion, methaemoglobinaemia, carboxyhaemoglobinaemia
Capnography (ETCO₂)
- Monitors exhaled CO₂ waveform continuously
- Confirms endotracheal intubation (gold standard alongside direct visualisation)
- ETCO₂ ≈ PaCO₂ − 2–5 mmHg in normal lungs (gradient increases with V/Q mismatch)
- During CPR: sudden rise in ETCO₂ signals return of spontaneous circulation (ROSC)
- Also detects oesophageal intubation, apnoea, air embolism, malignant hyperthermia (sudden rise)
ECG
- Continuous display; detects arrhythmias, ischaemia (ST changes), and rate
- Lead II: best for arrhythmia detection (P-wave visibility)
- Lead V5: most sensitive for detecting left ventricular ischaemia
Non-Invasive Blood Pressure (NIBP)
- Oscillometric method; recorded at minimum every 5 minutes per ASA standards
Arterial Line (Invasive BP)
- Indications: haemodynamically unstable patients, major surgery (cardiac, thoracic, vascular), frequent ABG sampling
- Provides beat-to-beat BP and access for blood gas analysis
- Radial artery is the most common site
Temperature
- Core temperature via oesophageal probe (most accurate intraoperatively) or nasopharyngeal probe
- Bladder (Foley) catheter with temperature sensor for core measurement
- Prevents undetected hypothermia or malignant hyperthermia (rapid rise)
4. Depth of Anaesthesia Monitoring
Awareness under general anaesthesia affects approximately 1–2 per 1000 patients. Several EEG-based monitors have been developed:
| Monitor | Signal Used | Target Range | Principle |
|---|---|---|---|
| BIS (Bispectral Index) | 1-channel EEG | 40–60 | Weighted sum: α/β ratio, bicoherence, burst suppression |
| Patient State Index (PSI) | 4-channel EEG | 25–50 | Discriminant analysis of power spectrum, hemispheric symmetry |
| Narcotrend Index (NI) | EEG | — | Pattern classification A–F |
| ETAG (end-tidal anaesthetic gas) | Volatile agent concentration | MAC >0.7 | Pharmacodynamic proxy |
Note: A landmark RCT of >6,000 patients (B-Aware trial) showed BIS-guided anaesthesia was not superior to titrating depth using end-tidal anaesthetic gas concentration (MAC >0.7) for preventing awareness. — Schwartz's Principles of Surgery, 11e
As anaesthesia deepens: beta activation → slowing → burst suppression → isoelectricity.
5. Neuromuscular Blockade Monitoring
Train-of-Four (TOF) stimulation: four successive stimuli at 2 Hz over 2 seconds applied (typically) to the ulnar nerve, observing adductor pollicis.
| TOF Findings | Interpretation |
|---|---|
| 4 twitches, no fade, T4/T1 ratio ≥ 0.9 | Adequate reversal — safe for extubation |
| 2–3 twitches | ~75–80% receptor occupancy — sufficient for abdominal/thoracic relaxation |
| 0–1 twitches | Deep block |
| Phase I succinylcholine block | No fade; no posttetanic potentiation |
| Phase II block (prolonged sux) | Resembles non-depolarising block (fade present) |
Objective monitoring (acceleromyography) is preferred over subjective methods. A 2018 consensus statement recommends documenting a TOF ratio ≥ 0.90 as the only reliable indicator of safe recovery from neuromuscular blockade. — Morgan & Mikhail's, 7e
6. Advanced Haemodynamic Monitoring
| Monitor | Use Case | Notes |
|---|---|---|
| Central Venous Pressure (CVP) | Volume status, RV preload | Via internal jugular or subclavian; risk of pneumothorax, infection |
| Pulmonary Artery Catheter (PAC) | Complex cardiac cases, pulmonary hypertension | Measures PCWP, CO, mixed venous O₂ saturation |
| Transoesophageal Echocardiography (TEE) | Cardiac surgery, haemodynamic instability | Assesses myocardial function, volume status, valvular disease; also guides valve replacement surgery |
7. PACU Monitoring (Post-Anaesthesia Care Unit)
Mandatory monitoring in PACU per Morgan & Mikhail includes:
- SpO₂ (pulse oximetry)
- ECG
- Automated NIBP
- Respiratory rate and airway patency
- Capnography where available
Summary: Monitor Types at a Glance
| Monitor | What is Measured | Invasiveness | Complication Risk |
|---|---|---|---|
| Pulse oximetry | Arterial O₂ saturation | Non-invasive | None |
| Capnography | Ventilatory/circulatory status | Non-invasive | None |
| ECG | Cardiac rhythm, rate, ischaemia | Non-invasive | None |
| NIBP | Blood pressure | Non-invasive | Minimal |
| Arterial catheter | Continuous BP + ABG | Invasive | ++ |
| BIS / EEG-based | Depth of anaesthesia | Non-invasive | Minimal |
| Temperature probe | Core body temp | Minimally invasive | Minimal |
| CVP / PA catheter | Cardiac function, filling pressures | Invasive | +++ |
| TEE | Cardiac function, volume status | Invasive | +++ |
| TOF / nerve stimulator | Neuromuscular blockade depth | Non-invasive | None |
— Adapted from Schwartz's Principles of Surgery, 11e (Table 46-3)
Sources: Morgan & Mikhail's Clinical Anesthesiology, 7e | Miller's Anesthesia, 10e | Barash's Clinical Anesthesia, 9e | Schwartz's Principles of Surgery, 11e
