Tracheoesophageal Anomalies & VACTERL

Embryology and Pathogenesis

During the 4th week of gestation, the primitive foregut divides into a dorsal (esophagus) and ventral (trachea/lungs) component via the tracheoesophageal septum. This septum forms as bilateral tracheoesophageal folds fuse in a caudocranial direction. Failure of this separation leads to the spectrum of tracheoesophageal anomalies.
Key molecular pathways involved include Sonic Hedgehog (SHH) signaling, which is critical for appropriate foregut separation. Mutations in N-Myc (MYCN), SOX2, and CHD7 have been identified in syndromic cases. Experimental doxorubicin (Adriamycin) administration in rodent embryos disrupts SHH signaling and produces a spectrum of VACTERL-type anomalies.
  • Incidence: 1 in 3,000-4,500 live births; slight male predilection
  • ~60-70% have associated anomalies
  • Sleisenger and Fordtran's GI and Liver Disease, p. 708
  • The Developing Human - Clinically Oriented Embryology, p. 576

Classification of EA/TEF (Gross Classification)

The five anatomic variants and their frequencies:
Anatomic variants and incidence of EA/TEF - from Sabiston Textbook of Surgery
TypeDescriptionIncidence
APure EA - isolated blind proximal pouch, no fistula8-10%
BEA + proximal TEF (proximal pouch communicates with trachea)1%
CEA + distal TEF (proximal blind pouch + distal esophagus connects to trachea)85-86% (most common)
DEA + double TEF (both proximal and distal segments communicate with trachea)2%
EH-type TEF - TEF without EA (esophageal continuity intact)4-8%
Type C is by far the most common: the proximal esophagus ends blindly (atresia) ~1-2 vertebral bodies above the fistula; the TEF connects the distal esophagus to the membranous trachea, typically just above the carina.
  • Schwartz's Principles of Surgery, p. 1745
  • Sabiston Textbook of Surgery, p. 2679

Clinical Presentation

EA (Types A, B, C, D)

  • Excessive drooling / pooling of secretions from birth
  • Choking, coughing, cyanosis at first feeding
  • Regurgitation immediately after feeding
  • Abdominal distension (air entering GI tract via distal TEF in type C/D)
  • Scaphoid / gasless abdomen = strongly suggests isolated EA (type A) - no fistula pathway for air to enter bowel
  • Maternal polyhydramnios (most pronounced in type A - 86%) - fluid cannot pass to stomach for absorption
  • Prenatal US: absent stomach bubble + polyhydramnios

H-Type TEF (Type E) - unique presentation

  • No atresia, so diagnosis often delayed to childhood or adulthood
  • Recurrent aspiration pneumonia
  • Coughing/choking with feeds
  • Diagnosis often requires esophagram; can be missed due to small fistula size
  • Sleisenger and Fordtran's GI and Liver Disease, p. 710

Diagnosis

Gold standard clinical finding: Failure to pass an orogastric/nasogastric tube into the stomach.
FindingSignificance
NG/OG tube coiled at thoracic inlet (T2 level) on CXRConfirms proximal EA
Air below diaphragm on plain filmConfirms distal TEF
Absent bowel gas + failed tube insertionSuggests pure EA (type A)
Contrast esophagram (1 mL water-soluble)Confirms anatomy if doubt; oral contrast CONTRAINDICATED due to aspiration risk
BronchoscopyEvaluates tracheomalacia and TEF location; assesses for proximal/secondary fistula
Chest radiograph of TEF with EA (catheter coiled in upper pouch):
CXR showing catheter coiled at thoracic inlet in EA/TEF
Neonatal radiograph showing coiled feeding tube and distal air (Type C EA/TEF):
AP neonatal radiograph showing coiled OGT and subdiaphragmatic gas confirming distal TEF
Mandatory workup includes echocardiography (cardiac defects; determines aortic arch side for surgical planning) and renal ultrasound.
  • Sabiston Textbook of Surgery, p. 2679

VACTERL Association

VACTERL is a non-random, non-genetic aggregation of congenital anomalies. At least 2-3 features must be present for the designation (occurring in 10-21% of EA-TEF cases).
LetterComponentFrequency in EA
VVertebral anomalies (hemivertebrae, absent vertebrae)6-20%
AAnorectal malformations (imperforate anus)10-15%
CCardiac defects (VSD, ASD, tetralogy of Fallot)15-35%
TETracheoesophageal fistula + Esophageal atresia-
RRenal anomalies (agenesis, horseshoe kidney)5-15%
LLimb defects (radial ray - absent radius, thumb hypoplasia)5-20%
A variant VACTERL-H includes hydrocephalus and is associated with mutations in FANCB (Fanconi anemia pathway).
The most common associated anomaly overall is cardiovascular defects (17-50%), most commonly VSD.
  • Mulholland and Greenfield's Surgery, p. 5402
  • Fischer's Mastery of Surgery, p. 7994
  • Sleisenger and Fordtran's GI, p. 709 (Table 43.1)

Other Associated Syndromes

SyndromeGeneKey Features
CHARGECHD7Coloboma, Heart defects, Atresia choanae, Retardation, Genital/Ear anomalies
FeingoldMYCNEA/duodenal atresias, microcephaly, syndactyly
Fanconi Anemia>20 genesBone marrow failure, radial ray defects
Anophthalmia-esophageal-genitalSOX2Anophthalmia, EA, urogenital anomalies
VACTERL-HFANCBVACTERL + hydrocephalus

Preoperative Management

  1. Stop oral feeds immediately
  2. Replogle/sump tube into upper esophageal pouch for continuous suction (decompresses pooled secretions)
  3. Head-up / prone positioning to reduce aspiration and gastric reflux through fistula
  4. Broad-spectrum IV antibiotics (aspiration pneumonitis risk)
  5. Avoid intubation if possible - positive pressure ventilation preferentially inflates GI tract via the fistula, worsening gastric distension and compromising ventilation
  6. If intubation is necessary: advance ETT distal to the TEF OR place an occluding balloon catheter in the fistula
  7. Emergent gastrostomy (water seal) if ventilation fails - allows air from the fistula to escape rather than inflate the stomach
  8. Preoperative echocardiogram - determines aortic arch side (right vs. left) which dictates surgical approach
  • Sabiston Textbook of Surgery, p. 2679; Mulholland and Greenfield's Surgery, p. 5402

Surgical Management

Standard Type C EA + Distal TEF

Approach: Right thoracotomy (extrapleural approach) - for patients with the conventional left-sided aortic arch (majority). Right aortic arch (5%) may require left thoracotomy or alternative planning.
Steps:
  1. Rigid bronchoscopy (optional for primary cases; evaluates tracheomalacia, confirms TEF location, excludes secondary fistula)
  2. Extrapleural dissection; division of azygos vein to expose TEF
  3. Fistula ligation and division - sequentially divide 1-2 mm segments and close tracheal defect immediately with absorbable interrupted sutures (prevents ventilation loss)
  4. Mobilize upper pouch maximally (well-vascularized); limit mobilization of lower pouch (segmental/precarious blood supply - ischemia risk)
  5. Primary end-to-end esophageal anastomosis (single or double layer)
  6. Thoracoscopic approach now increasingly preferred with equivalent outcomes

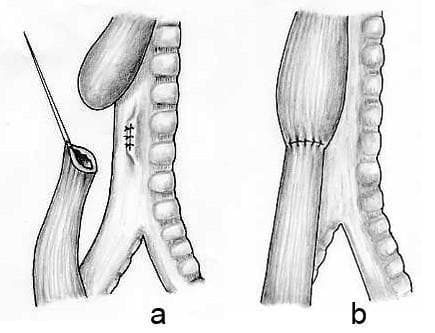

Surgical repair of EA/TEF - anastomosis diagram:
Surgical repair - anastomosis of EA/TEF
  • Sabiston Textbook of Surgery, pp. 2679-2680

Long-Gap EA

Defined when the gap between esophageal segments is >2-3 vertebral bodies (~3 cm). Management options:
  • Placement of gastrostomy for enteral feeding in neonatal period
  • Delay primary anastomosis to ~4-6 months of age (allow spontaneous esophageal elongation with growth; mark distal end with hemoclip on prevertebral fascia)
  • Confirm adequate elongation radiographically before attempting anastomosis
  • Esophageal replacement (stomach, colon, or jejunal conduit) if adequate length cannot be achieved

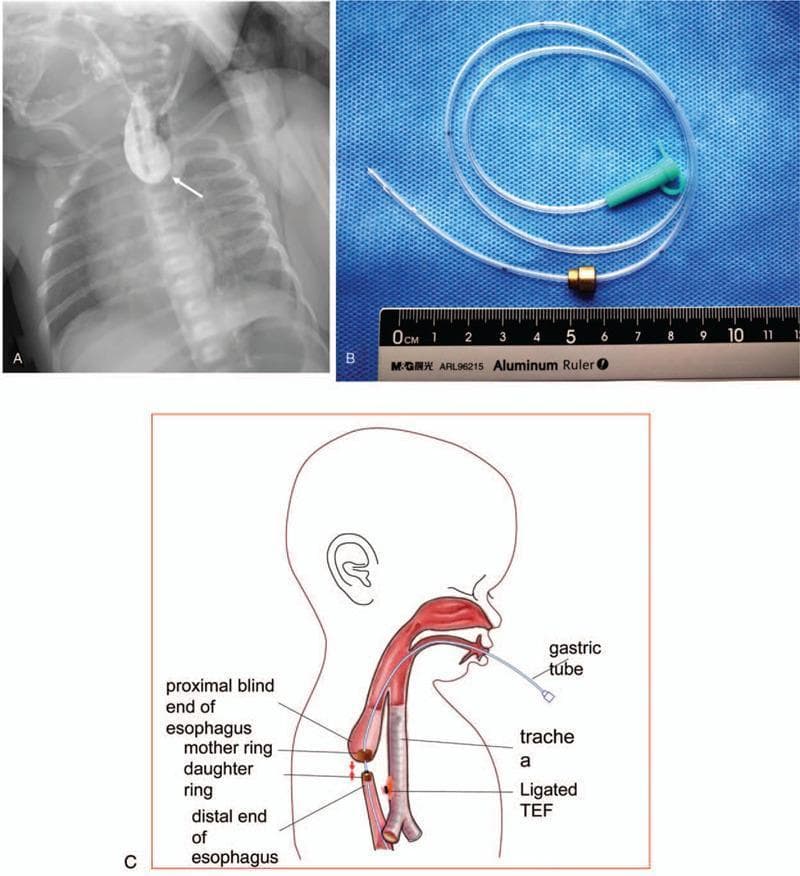

  • Magnetic compression anastomosis (MCA) - emerging technique for LGEA

Postoperative Complications

ComplicationNotes
Anastomotic leakMost common early complication
Anastomotic strictureRequires esophageal dilation
Recurrent TEFPresents with recurrent aspiration; bronchoscopy with Fogarty catheter for diagnosis
TracheomalaciaVery common; "dying spells" (cyanotic episodes) with feeds; most improve with age; severe cases may need aortopexy
GERDNear-universal; requires long-term management
Esophageal dysmotilityAffects long-term swallowing

Other Tracheoesophageal Anomalies

Laryngotracheoesophageal Cleft (LTEC)

  • Failure of complete separation of larynx/upper trachea from esophagus
  • Persistent connection of variable length between the two structures
  • Symptoms: aspiration, similar to TEF
  • Distinguishing feature: aphonia (inability to speak/vocalize)

Tracheal Stenosis

  • Usually associated with one of the TEF variants
  • Results from unequal partitioning of the foregut
  • Can be a web (incomplete atresia) or complete atresia (uniformly fatal)

Tracheal Bronchus (Tracheal Diverticulum)

  • Blind bronchus-like projection from trachea
  • May terminate in normal lung tissue (tracheal lobe)
  • Causes recurrent infection and respiratory distress in infants
  • The Developing Human - Clinically Oriented Embryology, pp. 576-577

Waterston / Spitz Risk Classification (Prognosis)

Spitz classification (more current):
GroupCriteriaSurvival
IBirth weight >1.5 kg, no major cardiac defect~97%
IIBirth weight <1.5 kg OR major cardiac defect~59%
IIIBirth weight <1.5 kg AND major cardiac defect~22%
The two most important adverse prognostic factors are low birth weight and the presence of a major congenital cardiac defect.
Key Summary Points:
  • EA/TEF incidence ~1:3,000-4,500; type C (EA + distal TEF) = 85% of cases
  • Hallmark diagnosis: failure to pass NG/OG tube + gas below diaphragm on plain film
  • VACTERL = Vertebral + Anorectal + Cardiac + TEF/EA + Renal + Limb; requires 2+ features; present in 10-21%
  • Preop: Replogle tube, head-up, avoid PPV, echo (aortic arch side)
  • Surgery: right extrapleural thoracotomy (or thoracoscopy); TEF ligation + primary anastomosis
  • H-type TEF (type E) presents late with recurrent aspiration pneumonia, often diagnosed in childhood
