Here is a complete, well-structured overview of pneumothorax with line diagrams.
Pneumothorax
Definition: A collection of air in the pleural space (between the visceral and parietal pleura), causing the lung to collapse partially or completely by disrupting the normally negative intrapleural pressure. - Murray & Nadel's Textbook of Respiratory Medicine
Classification - Line Diagram

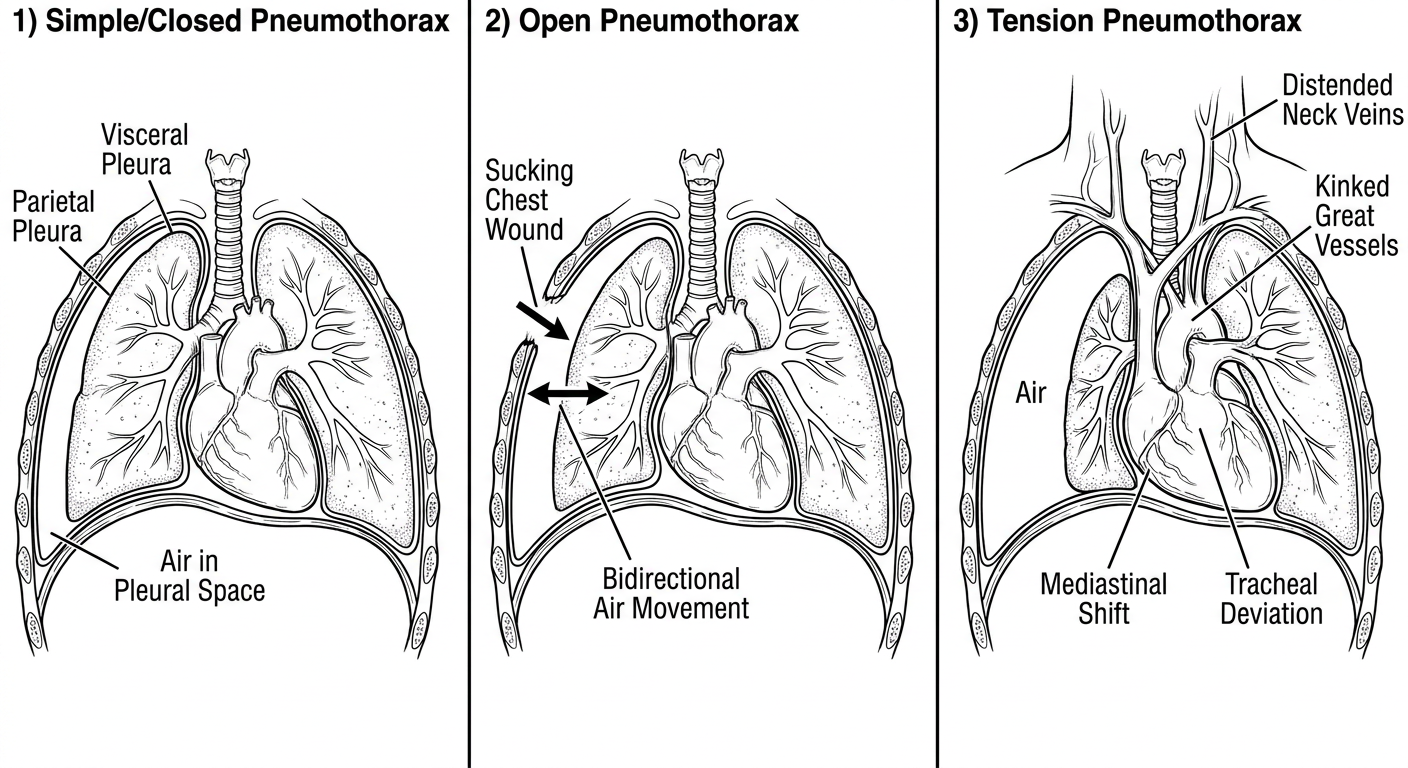

Types of Pneumothorax - Mechanisms (Line Diagram)
1. Primary Spontaneous Pneumothorax (PSP)
Definition: Occurs without a precipitating event or underlying pulmonary disease.
Mechanism:
- Air leaks from subpleural blebs or bullae (usually at the apex) into the pleural space
- Blebs form due to faster lung tissue growth than vasculature, thinning the lung at zones of highest oxygen tension
- Microscopic "pleural porosity" - large pores (10-20 μm) in mesothelial cells allow air leaks
- The result: visceral and parietal pleurae separate; lung recoils inward; chest wall expands outward
Who gets it:
- Tall, thin males aged 15-30 years
- Strong association with cigarette/marijuana smoking
- 3-7x more common in men
- Bimodal age distribution: first peak 15-34 years; rising incidence again after age 60
Features:
- Usually limited air accumulation (no valve mechanism - it is a simple/closed pneumothorax)
- Recurrence ~13% after first episode; rises to ~50% after second episode
2. Secondary Spontaneous Pneumothorax (SSP)
Definition: Pneumothorax occurring as a complication of underlying lung disease.
Common causes:
| Disease | Mechanism |
|---|---|
| COPD (most common) | Centri-acinar emphysema, rupture of emphysematous bullae |
| Asthma | Air trapping, alveolar overdistension |
| Tuberculosis | Cavitation, bronchopleural fistula |
| Pneumocystis pneumonia (PCP) | Pneumatocele formation |
| Marfan syndrome | Connective tissue defects |
| Cystic fibrosis | Chronic infection, cyst formation |
Key distinction from PSP: Patients are older (>55 years), have higher morbidity and mortality, and leaks are less likely to resolve with conservative measures. - Fischer's Mastery of Surgery
3. Traumatic Pneumothorax
A. Closed Traumatic
- Blunt chest trauma (rib fractures puncturing lung) or deceleration injury
- No communication with external environment
- Air leak is self-limiting once pressure equilibrates
B. Open Pneumothorax ("Sucking Chest Wound")
- Large chest wall defect allows direct communication between pleural space and atmosphere
- Air flows in and out with breathing (bidirectional) - the "sucking" sound
- Lung collapses as intrapleural pressure equilibrates with atmospheric pressure
- Management: 3-sided occlusive dressing (acts as a one-way valve) + urgent chest tube
C. Iatrogenic Pneumothorax
- Complication of procedures: central line insertion, thoracentesis, lung biopsy, pacemaker insertion, positive pressure ventilation (barotrauma)
- Patients on mechanical ventilation (PPV) are at high risk of progression to tension pneumothorax
4. Tension Pneumothorax (Life-threatening)
Mechanism - One-Way Valve:
Inspiration → Air enters pleural space through defect
Expiration → Defect closes (valve), air CANNOT escape
↓
Progressive accumulation of air under pressure
↓
Ipsilateral lung: complete collapse
Mediastinum: shifts AWAY from affected side
↓
Tracheal deviation (away from lesion)
Kinking of superior/inferior vena cava
↓ venous return → ↓ cardiac output → SHOCK
Clinical Signs (The 5 T's):
- Tachycardia
- Tracheal deviation (away from affected side)
- Tension (raised JVP / distended neck veins)
- Tympanic (hyperresonance on percussion)
- Total absence of breath sounds (ipsilateral)
-
- Hypotension, elevated peak airway pressure if ventilated
This is a clinical diagnosis - do NOT wait for CXR. Treat immediately with needle decompression (2nd ICS, mid-clavicular line) followed by chest tube.
- Current Surgical Therapy 14e, Roberts & Hedges' Clinical Procedures in Emergency Medicine
5. Catamenial Pneumothorax (Special Type)
- Recurrent pneumothorax in women of reproductive age (30-35 years)
- Occurs within 72 hours before/after menstruation
- Usually right-sided
- Caused by pleural/diaphragmatic endometriosis
- Air enters through diaphragmatic fenestrations from the peritoneum
Summary Comparison Table
| Feature | PSP | SSP | Open | Tension |
|---|---|---|---|---|
| Age | 15-30 yr | >55 yr | Any | Any |
| Sex | M >> F | M > F | Any | Any |
| Cause | Blebs | Lung disease | Trauma | Valve mechanism |
| Lung collapse | Partial | Variable | Partial | Complete |
| Mediastinal shift | No | No | No | Yes |
| Immediate threat | Low | Moderate | Moderate | High |
| Treatment | Observation/drain | Drain | 3-side dressing + drain | Needle decompression |
Management Overview
Small, asymptomatic PSP (<2 cm on CXR)
→ Observe, repeat CXR at 4-6 hours, supplemental O₂
Larger or symptomatic pneumothorax
→ Simple aspiration OR small-bore chest drain (24 Fr)
→ Connect to water-seal drainage ± suction (-20 cmH₂O)
Recurrent PSP / SSP with ongoing leak
→ Video-Assisted Thoracoscopic Surgery (VATS)
→ Blebectomy + parietal pleurectomy + mechanical/chemical pleurodesis
Tension pneumothorax
→ IMMEDIATE needle decompression (14-16G cannula, 2nd ICS MCL)
→ Then chest drain
Open pneumothorax
→ 3-sided occlusive dressing → chest drain (away from wound)
- Fischer's Mastery of Surgery, Current Surgical Therapy 14e, Roberts & Hedges' Clinical Procedures in Emergency Medicine

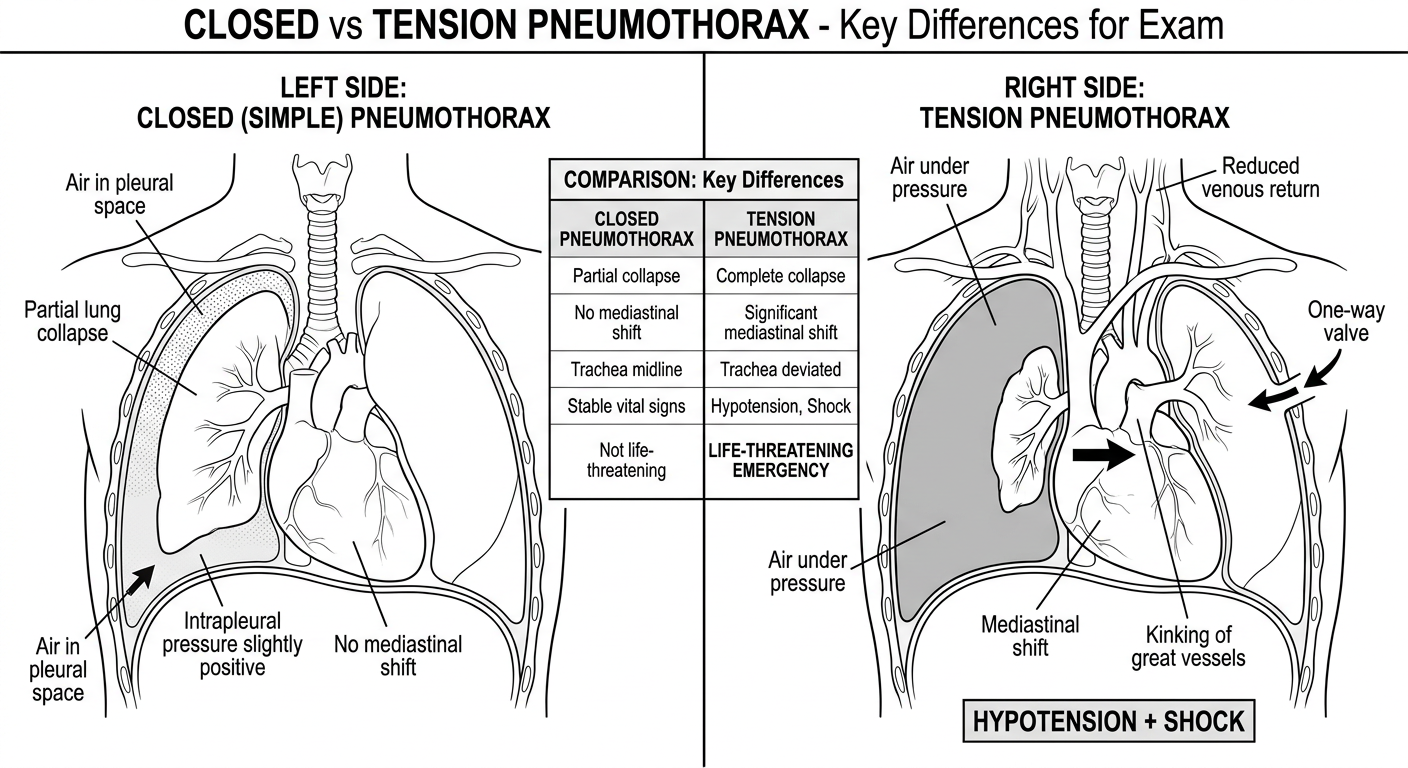

CN u make one closed tension pneumothorax diagrams for exam clearly showing difference
Generating Image
Here are the key exam points to remember alongside the diagram:
Closed vs Tension Pneumothorax - Exam Summary
| Feature | Closed (Simple) | Tension |
|---|---|---|
| Air entry | One-time leak, self-limiting | Continuous, one-way valve |
| Lung collapse | Partial | Complete |
| Mediastinal shift | None | Away from lesion |
| Tracheal deviation | None | Away from lesion |
| Intrapleural pressure | Slightly positive, then equalizes | Progressively increasing |
| JVP / neck veins | Normal | Distended |
| BP | Normal | Hypotension / Shock |
| Trachea | Midline | Deviated contralaterally |
| Breath sounds | Reduced ipsilaterally | Absent ipsilaterally |
| Emergency? | No | YES - immediate action |
| Treatment | Observation / chest drain | Needle decompression FIRST (2nd ICS, MCL) then chest tube |
The One-Way Valve - Key Concept for Exams
The single most important difference is the valve mechanism in tension pneumothorax:
- Inspiration → air is sucked INTO pleural space through the defect
- Expiration → defect closes like a flap valve → air CANNOT escape
- Each breath adds more air under pressure
- This progressively compresses the lung, shifts the mediastinum, kinks the SVC/IVC → preload drops → cardiac output falls → obstructive shock
Mnemonic for tension pneumothorax signs: "3 Aways"
- Trachea deviates away
- Mediastinum shifts away
- Treat it before it takes you away (i.e., it's immediately life-threatening - don't wait for CXR!)
