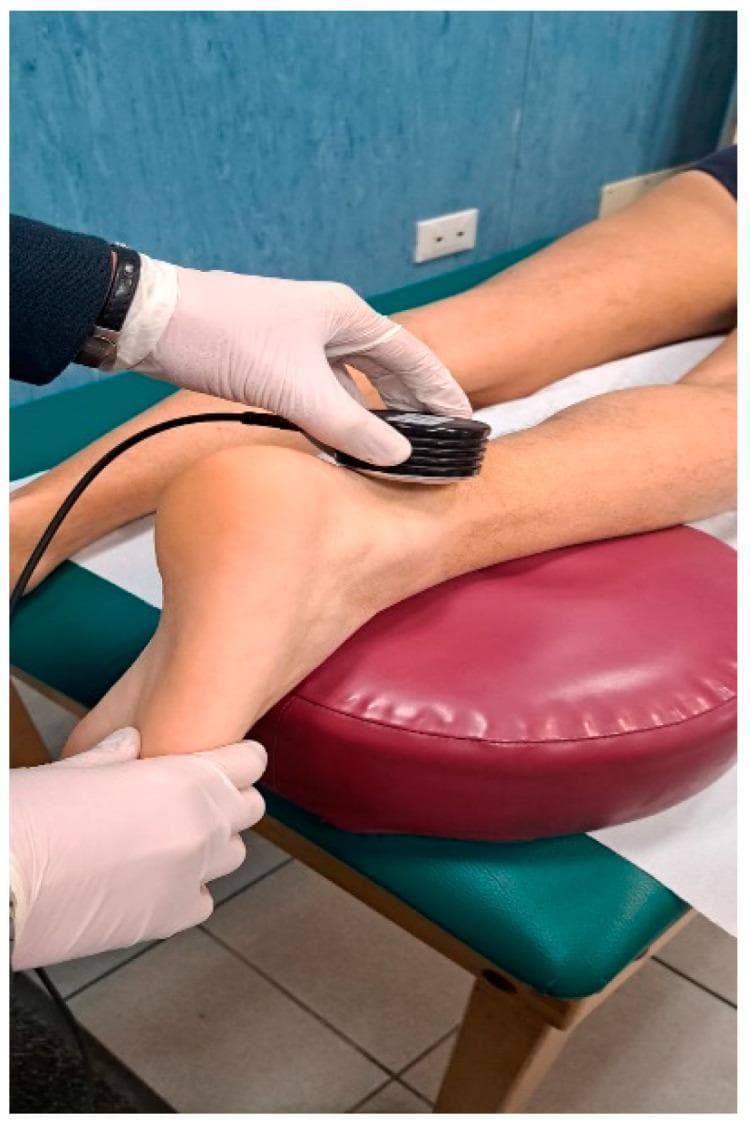

A clinical procedural photograph demonstrating the application of therapeutic ultrasound for mid-portion Achilles tendinopathy (AT). The image shows a patient in a prone or supine-modified position with the lower leg elevated on a maroon-colored bolster for comfort and anatomical access. A healthcare provider, wearing white examination gloves, is shown applying a black, circular ultrasound therapy probe to the posterior aspect of the ankle. The probe is positioned directly over the mid-portion of the Achilles tendon, approximately 2–6 cm proximal to the calcaneal insertion. The practitioner's second hand is seen stabilizing the heel to maintain the ankle in a neutral or slightly dorsiflexed position during the procedure. This modality is utilized in physical therapy and sports medicine to promote healing, increase local blood flow, and provide pain relief in patients with chronic tendinosis or degenerative tendon changes. The setting is a professional clinical environment featuring a padded treatment table and standard medical equipment.

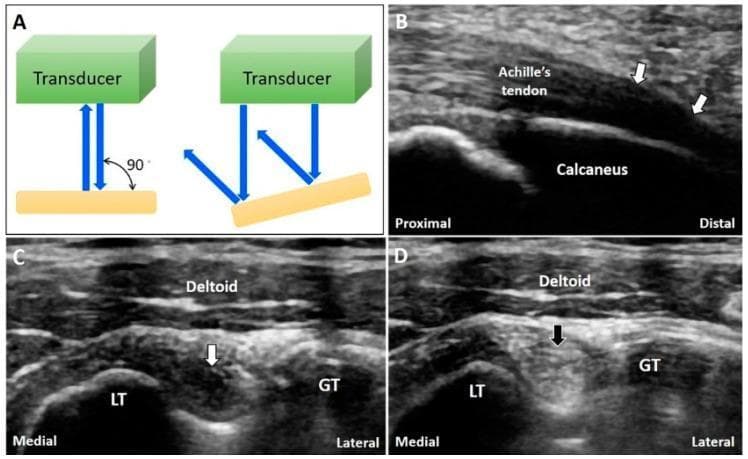

This educational composite focuses on the ultrasound artifact of anisotropy in musculoskeletal imaging. Panel A is a physics diagram illustrating that the ultrasound beam is reflected back to the transducer when incident at 90 degrees, but reflected away when the target is oblique, leading to signal loss. Panel B shows a long-axis ultrasound view of the Achilles tendon insertion on the calcaneus. White arrows indicate a hypoechoic (dark) area caused by anisotropy where the tendon fibers curve, which could be mistaken for tendinopathy or a tear. Panels C and D provide a short-axis comparison of the long head of the biceps tendon within the bicipital groove, situated between the lesser tubercle (LT) and greater tubercle (GT) under the deltoid muscle. In Panel C, a white arrow points to an anisotropic hypoechoic region within the tendon. Panel D demonstrates the resolution of the artifact (black arrow) after tilting the transducer to achieve a perpendicular angle of insonation, restoring normal hyperechoic fibrillar echogenicity. This figure teaches clinicians how to differentiate technical artifacts from true pathology during musculoskeletal ultrasound examinations.

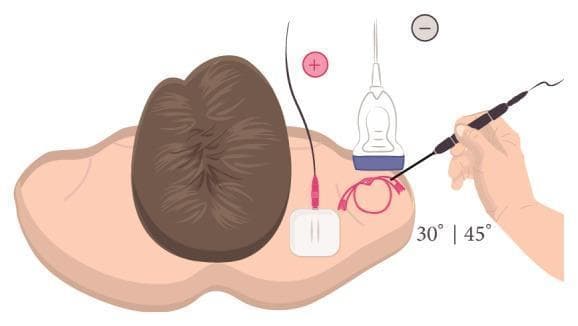

Educational illustration demonstrating the setup for Ultrasound (US)-guided percutaneous electrolysis for the treatment of shoulder tendinopathy, specifically targeting the supraspinatus tendon. The diagram depicts a patient in a supine position with the right shoulder area exposed. A linear ultrasound transducer is placed on the anterior shoulder for real-time visualization of the tendon. An acupuncture needle, functioning as the cathode (-), is inserted at a 30° to 45° angle to the skin surface, following a long-axis approach toward the target tissue under the probe. A surface electrode pad is placed over the upper trapezius muscle to serve as the anode (+), completing the galvanic current circuit. The illustration highlights the spatial relationship between the transducer, the needle insertion angle, and the electrical circuit configuration necessary for delivering therapeutic microtrauma to the affected tendon structure.

A clinical procedural photograph demonstrating an intra-articular injection of Platelet-Rich Plasma (PRP) into a patient's knee joint. A gloved hand is shown administering approximately 5cc of a translucent, straw-colored fluid via a syringe. The needle entry point is localized to the lateral aspect of the knee, positioned approximately 1 cm lateral to the patellar tendon and 1 cm inferior to the joint line. The anatomical landmarks of the patella and joint space are visible under the skin. The patient's lower leg is partially covered by a white protective cast or drape, and the procedure is being performed in a clinical setting on a treatment table. This image illustrates the standard clinical technique for regenerative therapy in the management of knee osteoarthritis.

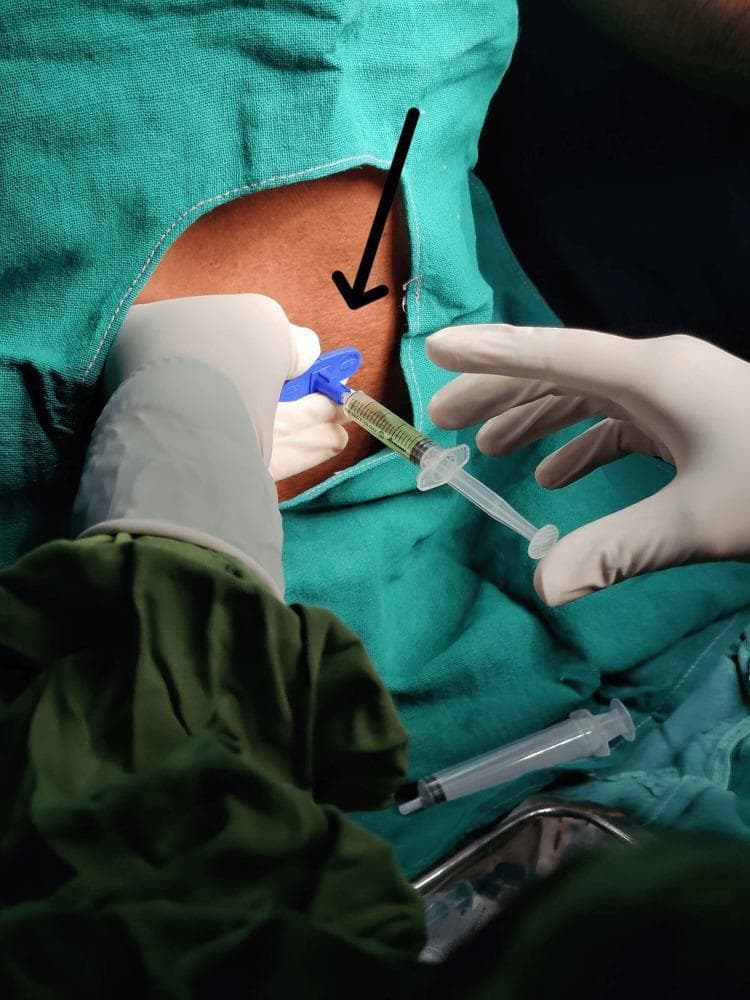

Clinical photograph demonstrating an epidural platelet-rich plasma (PRP) infiltration procedure in a patient with lumbar disc herniation. The image shows a sterile surgical field created by green fabric drapes. A clinician, wearing white sterile gloves, is performing the injection. A syringe containing a straw-colored, yellow fluid (PRP) is connected via a blue winged hub/connector to a needle already inserted into the skin of the lumbar region, as indicated by a black directional arrow. A second gloved hand is visible stabilizing the needle hub. In the foreground, an additional unused syringe rests on a metal instrument tray within the sterile field. The procedure illustrates a minimally invasive biological therapy for chronic low back pain and radiculopathy, serving as a teaching tool for interventional pain management and musculoskeletal regenerative medicine.

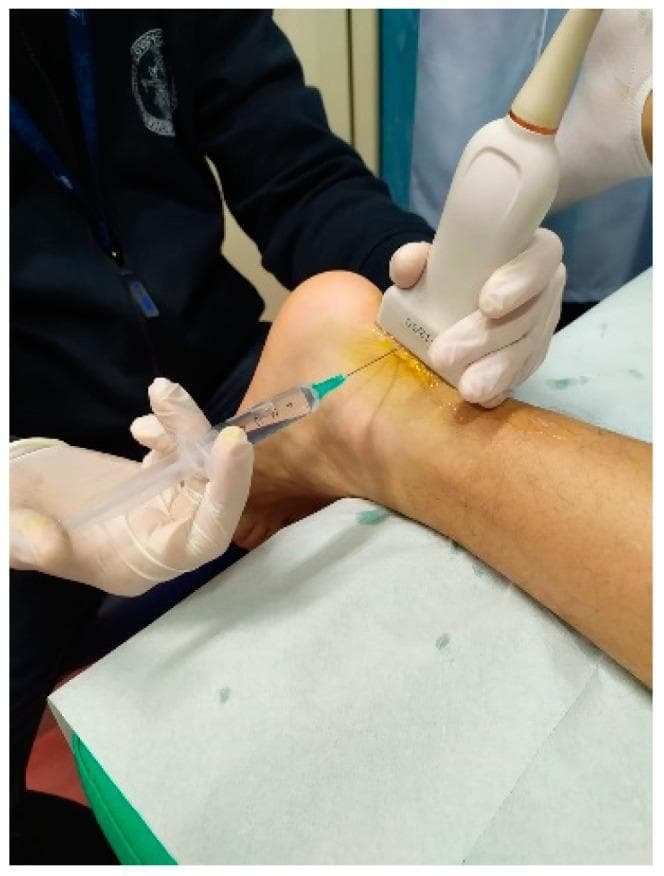

This clinical photograph demonstrates an ultrasound-guided high-volume image-guided injection (HVIGI) performed on the mid-portion of a patient's Achilles tendon. The patient is positioned prone with the ankle slightly elevated on a sterile disposable sheet. A clinician wearing protective gloves is using a high-frequency linear ultrasound transducer, applied with acoustic coupling gel, to visualize the tendon in real-time. Simultaneously, a needle attached to a large-capacity syringe containing clear saline or local anesthetic is inserted percutaneously into the paratendinous space. The procedure aims to mechanically strip the paratenon from the tendon and disrupt neo-vessels or nerves associated with chronic tendinopathy. This image serves as an educational reference for minimally invasive musculoskeletal procedures and ultrasound-guided interventional techniques in sports medicine and orthopedics for managing resistant Achilles tendinopathy.

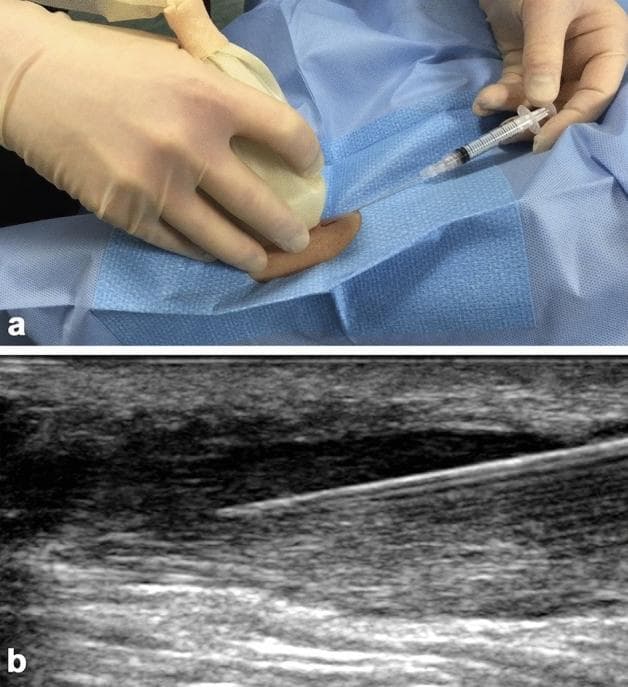

This composite educational image illustrates an ultrasound-guided stem cell injection for Achilles tendinosis. (a) A clinical photograph showing the sterile intraoperative setup where a practitioner, wearing sterile gloves, uses a high-frequency linear ultrasound probe (covered in a sterile sheath) to visualize the target area while inserting a syringe needle. The anatomical region is prepared with sterile blue drapes. (b) A corresponding longitudinal greyscale ultrasound image demonstrating the 'in-plane' needle technique. The needle appears as a distinct hyperechoic (bright) linear structure. It is positioned within a localized area of low reflectivity (hypoechoic) in the superficial portion of a thickened Achilles tendon, characteristic of focal tendinosis. The image captures the procedural moment of injection performed while withdrawing the needle distal-to-proximal through the disorganized fibrous tissue. This visual serves as a teaching tool for musculoskeletal interventional radiology, highlighting real-time imaging guidance to ensure precise delivery of biologics like bone marrow-derived mesenchymal stem cells (BMMSCs) into chronic tendon lesions.

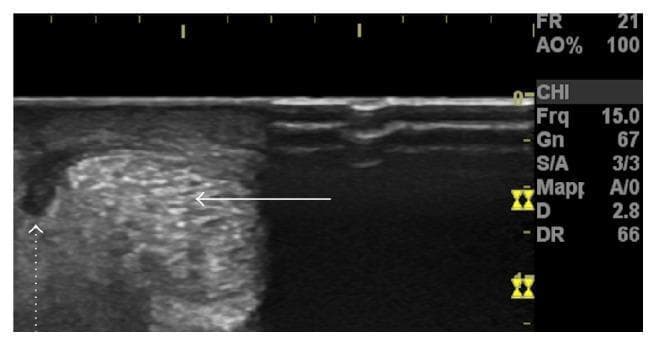

High-resolution cross-sectional (axial) ultrasound image of the Achilles tendon. The main body of the tendon (indicated by a solid white arrow) exhibits a heterogeneous echotexture with a mixture of hyperechoic and hypoechoic areas, representing its normal fibrous architecture under pathological stress. Laterally to the tendon body, a prominent hypoechoic, nearly anechoic region is visible (indicated by a dotted white arrow), which represents a peritendinous fluid collection. This finding is characteristic of acute paratendinopathy, where fluid accumulates between the tendon and its surrounding paratenon. The image serves as a clinical diagnostic example of musculoskeletal ultrasound used to differentiate between isolated tendinopathy and paratenon involvement in acute calf injuries.

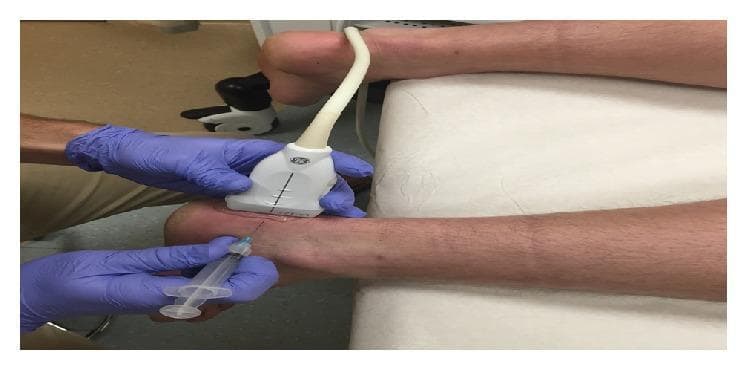

This clinical photograph demonstrates a sonographically guided injection procedure for chronic insertional Achilles calcific tendinosis. The patient is positioned prone with the lower leg and ankle resting on a padded examination table. A clinician wearing purple sterile gloves is shown performing a real-time ultrasound-guided intervention. One hand stabilizes a linear ultrasound probe placed in a short-axis orientation over the posterior calcaneal region to visualize the Achilles tendon insertion and associated enthesophytes. The other hand directs a 25-gauge needle attached to a syringe containing a lidocaine and dextrose mixture (prolotherapy). The needle is inserted at a shallow, medial-to-lateral trajectory, targeting the area anterior to the calcaneal enthesophyte. This procedural image illustrates the technique of ultrasound-guided fenestration and injection, emphasizing the coordinate placement of the imaging transducer and the needle to ensure precise delivery of the injectate into the pathology-affected tissues. The clinical focus is on musculoskeletal medicine, specifically the management of tendinopathy through minimally invasive regenerative techniques.

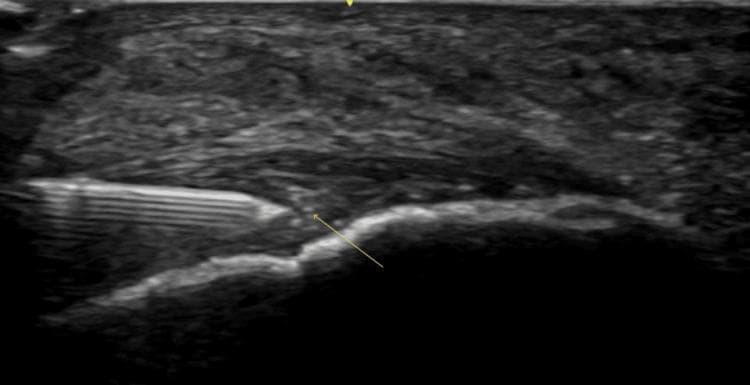

A diagnostic ultrasound image of the distal Achilles tendon in a long-axis view, illustrating an ultrasound-guided injection procedure. The Achilles tendon appears pathologically thickened with a heterogeneous, predominantly hypoechoic texture, consistent with insertional Achilles tendinopathy (IAT). Distinct anechoic voids and hyperechoic calcifications are visible near the tendon's insertion on the calcaneus. A hyperechoic needle is visualized using a long-axis, in-plane approach, with the tip (indicated by an arrow) positioned within the substance of the tendon. The procedure demonstrates a targeted injection (such as Botulinum toxin A or PRP) into the area of maximal tendinopathic change. The image serves as an educational example of musculoskeletal ultrasound intervention, showing real-time needle tracking and the characteristic sonographic features of chronic tendon degeneration.

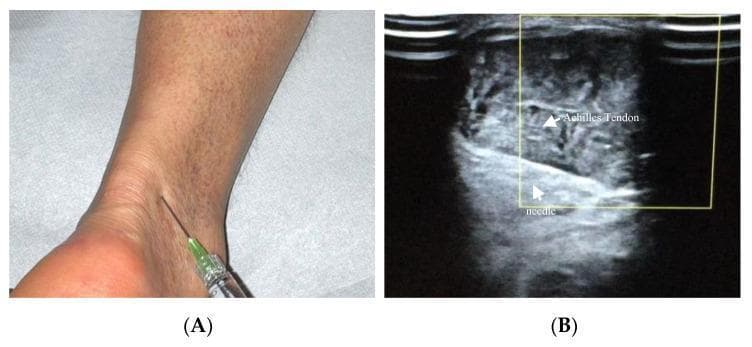

This composite educational figure illustrates the clinical and ultrasonographic aspects of a hyaluronic acid (HA) injection for Achilles tendinopathy. Panel A is a clinical photograph showing a dorsolateral approach to the Achilles tendon in the lower ankle region. A syringe with a 22-gauge needle and a green hub is shown at the entry point, demonstrating the trajectory required to reach the peritendinous space or mesotendon. Panel B is a corresponding ultrasound image (5–12 MHz linear probe) in the transverse plane. It depicts the internal anatomy of the Achilles tendon, which appears as a heterogeneous, ellipsoidal structure. Within the ultrasound's yellow focus box, the 22-gauge needle is clearly visible as a hyperechoic linear structure inserted at a 30-degree angle. Labels identify both the 'Achilles Tendon' and the 'needle' within the mesotendon. This content is designed for orthopedics and sports medicine education, demonstrating precise needle placement for viscosupplementation or regenerative therapy while avoiding intratendinous injection.

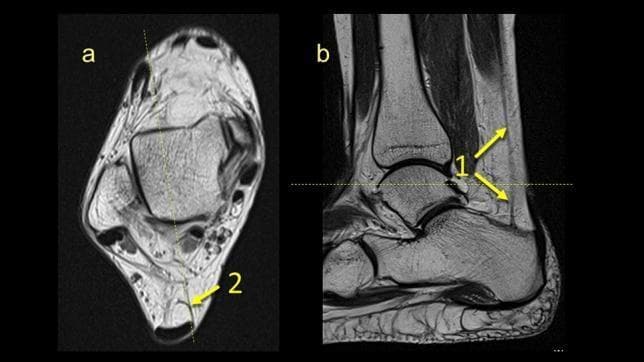

This diagnostic image consists of two MRI panels (a and b) illustrating the anatomy of the plantaris tendon and its relationship to the paratenon at the level of the ankle. Panel (a) is an axial T1-weighted image showing a transverse view of the ankle, where arrow 2 highlights the plantaris tendon inserting into the medial part of the paratenon, located superficially and posterior to the talus. Panel (b) is a sagittal cross-section where arrow 1 points to the plantaris tendon as it courses along the posterior aspect of the lower leg. The arrows in (b) demonstrate the longitudinal extension of the tendon; as it moves superiorly, the structure appears to fan out or thicken. The images provide anatomical detail regarding the distal lower leg, specifically the Kager's fat pad region and the fibrotic connections between the plantaris tendon, Achilles tendon paratenon, and local ligamentous structures. This comparison is used to visualize the plantaris tendon's morphology and its integration into the surrounding soft tissue layers for clinical and educational assessment of ankle anatomy.

This transverse grayscale ultrasound image demonstrates the normal sonographic appearance of a human tendon, likely the Achilles tendon. The structure is outlined by a white dotted region of interest (ROI) markers, revealing an ovoid shape in cross-section. The tendon displays a characteristic fibrillary internal architecture, characterized by a uniform distribution of bright, hyperechoic dots and short linear echoes, which represent the parallel collagen fiber bundles imaged in the short axis. The borders are well-defined and smooth against the surrounding hypoechoic paratenon and subcutaneous tissues. The image serves as a baseline for understanding musculoskeletal sonography, specifically illustrating optimal perpendicular beam incidence to avoid anisotropy. In this orientation, the tendon appears correctly hyperechoic and organized, without the artifactual hypoechogenicity often mistaken for tendinopathy or partial-thickness tears.

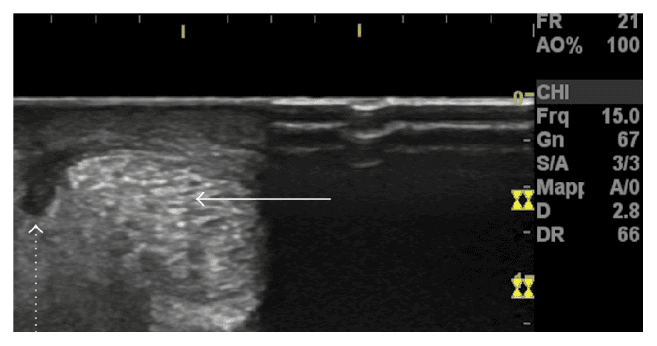

**Imaging Modality:** High-resolution musculoskeletal ultrasound (MSKUS). **Anatomical Region:** Achilles tendon, axial (transverse) cross-sectional view. **Observed Pathology:** Acute paratendinopathy with associated peritendinous fluid collection. **Visual Features:** * **Achilles Tendon:** The main body of the tendon (indicated by a solid white arrow) displays a characteristic speckled, hyperechoic fibrillar pattern in the transverse plane. * **Fluid Collection:** A distinct, well-defined hypoechoic (dark) crescentic area is visible at the lateral periphery of the tendon (indicated by a dotted arrow). * **Localization:** The hypoechoic region is situated between the tendon substance and the overlying paratenon, consistent with inflammatory exudate or fluid accumulation. * **Surrounding Tissue:** The superficial soft tissues and skin layers are visible superior to the tendon structure. **Clinical Significance:** This sonographic presentation is characteristic of acute paratendinopathy, where the primary inflammatory process involves the tendon sheath (paratenon) rather than the tendon transition itself. The presence of peritendinous fluid is a key diagnostic marker for differentiating acute paratenon inflammation from chronic tendinosis or mid-portion tears.

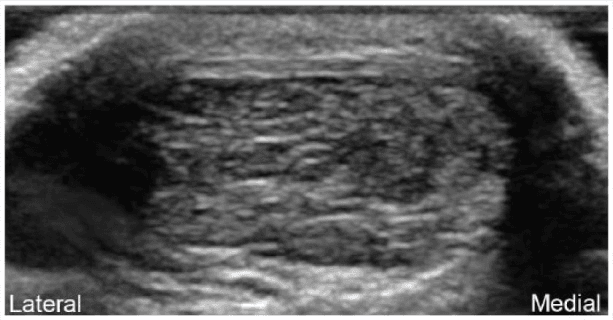

**Imaging Modality:** Musculoskeletal Ultrasound (grayscale) **Anatomical Region:** Posterior ankle, transverse view of the Achilles tendon. **Observations:** The image shows a transverse cross-section of the mid-portion Achilles tendon. Significant morphological changes are present, characterized by marked fusiform thickening and an overall increase in the cross-sectional area of the tendon. **Pathology/Features:** * **Echo-texture:** There is a loss of the normal organized fibrillar pattern. The tendon displays heterogeneous echogenicity with prominent, ill-defined hypoechoic (darker) areas. * **Distribution:** The hypoechoic changes are localized primarily to the central and medial aspects of the tendon body. This distribution corresponds to the anatomical territory of the soleus-derived fascicles. * **Borders:** The paratenon appears slightly thickened, though the anterior and posterior margins of the tendon remain identifiable despite the internal reorganization. **Diagnostic Context:** These sonographic findings are highly indicative of mid-portion Achilles tendinopathy (tendinosis). The specific localization to the medial and central fascicles suggests selective involvement of the soleus component of the Achilles complex. No discrete anechoic clefts suggestive of a full-thickness tear are visualized in this view.

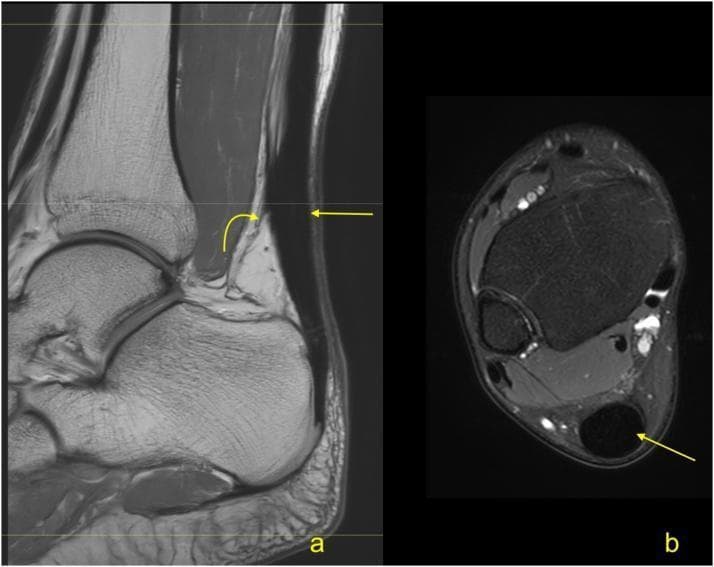

This diagnostic imaging set consists of two MRI views of the ankle and Achilles tendon in a 63-year-old patient following a partial rupture eight months prior. Image 'a' is a sagittal PD-weighted (proton density) MRI showing the Achilles tendon and Kager's fat pad. A straight yellow arrow indicates the area of tendon remodeling, characterized by persistent thickening and altered signal intensity despite clinical recovery. A curved yellow arrow points to peritendinous adhesions within Kager's fat pad, visible as linear low-signal bands. Image 'b' is an axial PD-weighted MRI with fat suppression. The straight yellow arrow highlights the thickened, hypointense Achilles tendon in cross-section. The use of fat suppression in this view increases the conspicuity of possible edema or fluid within the paratenon and adjacent soft tissues. These images illustrate the typical long-term morphological changes and postoperative sequelae, such as fibrosis and adhesions, following traumatic Achilles injury.

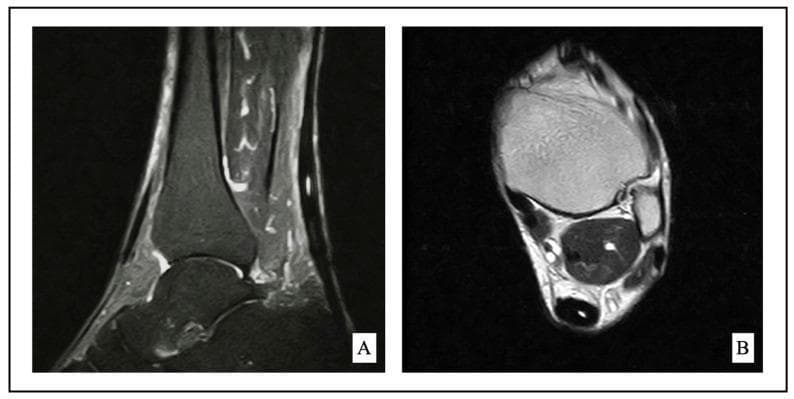

This diagnostic image consists of two MRI views of the ankle demonstrating midportion Achilles tendinopathy. Panel A is a sagittal fat-saturated MRI, which highlights fluid and edema as high-signal intensity. It reveals a thickened Achilles tendon with internal high-signal changes and disruption of the normal linear fibrillar pattern, characteristic of tendinosis and chronic inflammation. Adjacent structures including Kager's fat pad and the retrocalcaneal region show subtle reactive changes. Panel B is an axial T1-weighted MRI providing a cross-sectional view of the mid-tendon. This view demonstrates focal fusiform thickening (hypertrophy) and loss of the normal anterior concave or flat border of the Achilles tendon. The surrounding paratenon and soft tissues are visualized to assess for paratenonitis or fluid collections. These images are clinically significant for orthopedic and radiological evaluation of chronic Achilles tendon pathology, often used to guide management decisions between conservative physical therapy and surgical debridement.

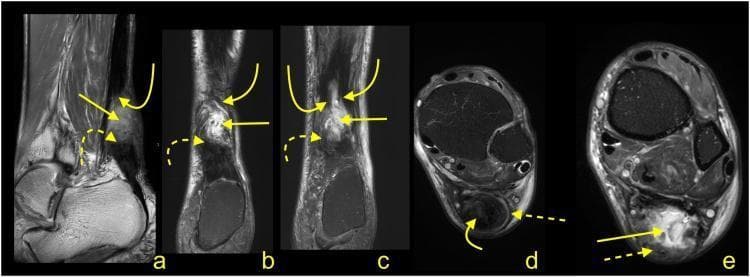

This set of multi-planar MRI images (sagittal, coronal, and axial) illustrates the status of an Achilles tendon four months after a rupture managed with conservative treatment. The modality includes PD-weighted (a), T2-weighted with fat suppression (b, c), and PD-weighted with fat suppression (d, e) sequences. Key diagnostic features include the clear separation of the proximal stump (indicated by curved solid arrows) and the distal stump (indicated by dashed curved arrows), both of which exhibit highly irregular, frayed outlines. Notably, there is a lack of visible fibrotic adhesions bridging the gap between the two stumps, signifying a failure of primary tendon healing or 'non-union'. The paratenon is clearly preserved but demonstrates pathological thickening (indicated by dashed straight arrows), suggesting chronic reactive changes. The surrounding Kager's fat pad and regional soft tissues are otherwise unremarkable. This case serves as an educational example of the long-term MRI appearance of unsuccessful conservative healing in total midportion Achilles tendon ruptures.
