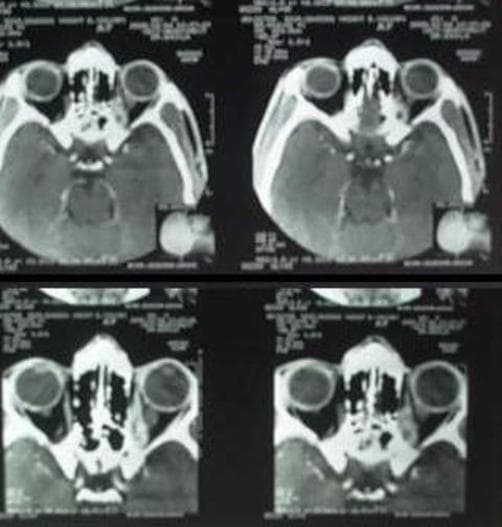

This diagnostic image consists of axial slices from a computerized tomography (CT) scan of the orbits. The imaging demonstrates the anatomy of the ocular globes, extraocular muscles, and posterior orbital structures. In the left orbit, there is significant thickening of the medial rectus and superior rectus muscles. Within these thickened muscles, multiple small, well-defined, non-enhancing hypodense lesions are visible, particularly in the posterior aspect. One prominent lesion within the superior rectus muscle displays a central hyperdense dot, characteristic of a scolex, which is highly suggestive of orbital cysticercosis. The pathology is seen to approximate the optic canal, potentially causing compression or thickening of the optic nerve. This case illustrates a classic radiological presentation of parasitic infection localized to the extraocular muscles, resulting in inflammatory myositis and associated clinical symptoms such as ptosis and restrictive ocular motility. The scan is a key educational tool for distinguishing orbital inflammatory conditions and infectious myositis in ophthalmology and radiology.

This diagnostic image consists of axial slices from a computerized tomography (CT) scan of the orbits. The imaging demonstrates the anatomy of the ocular globes, extraocular muscles, and posterior orbital structures. In the left orbit, there is significant thickening of the medial rectus and superior rectus muscles. Within these thickened muscles, multiple small, well-defined, non-enhancing hypodense lesions are visible, particularly in the posterior aspect. One prominent lesion within the superior rectus muscle displays a central hyperdense dot, characteristic of a scolex, which is highly suggestive of orbital cysticercosis. The pathology is seen to approximate the optic canal, potentially causing compression or thickening of the optic nerve. This case illustrates a classic radiological presentation of parasitic infection localized to the extraocular muscles, resulting in inflammatory myositis and associated clinical symptoms such as ptosis and restrictive ocular motility. The scan is a key educational tool for distinguishing orbital inflammatory conditions and infectious myositis in ophthalmology and radiology.

Finding Sources
Reading File
Finding Sources
Finding Sources
Finding Sources
Finding Sources
Reading File
Reading File
Reading File
Finding Sources
Reading File
Finding Sources
Reading File
Reading File
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
Now I have rich, authoritative content from Gray's Anatomy for Students and Eric Kandel's Principles of Neural Science, plus excellent diagrams. Let me compile the comprehensive answer.

Extraocular Muscles - Complete Overview

The extraocular muscles (EOMs) are 7 muscles within the orbit that control eyeball movement and upper eyelid elevation. Six of them move the globe; the seventh (levator palpebrae superioris) raises the eyelid.

Anatomical Overview

The orbit contains two groups of muscles:
  • Extrinsic (extraocular) muscles - move the eyeball or raise the eyelid
  • Intrinsic muscles - inside the eyeball (ciliary, sphincter pupillae, dilator pupillae)

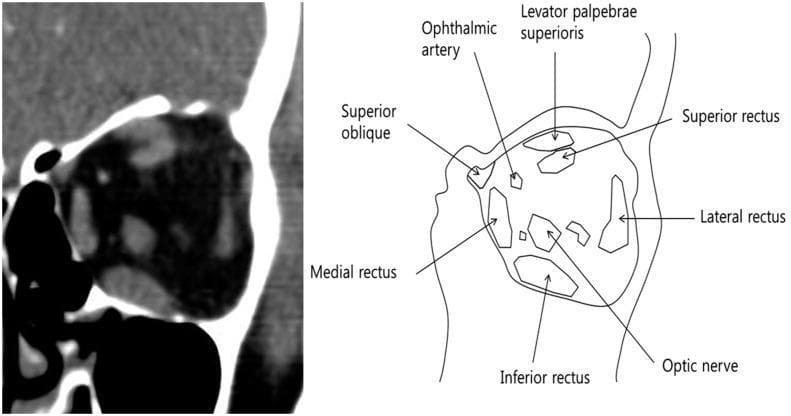

Here is the coronal CT + diagram showing the EOMs in the orbit:
Coronal CT and diagram of extraocular muscles in the orbit

The 7 Extrinsic Muscles - Origin, Insertion, Innervation, Action

(Source: Gray's Anatomy for Students, Table 8.8)

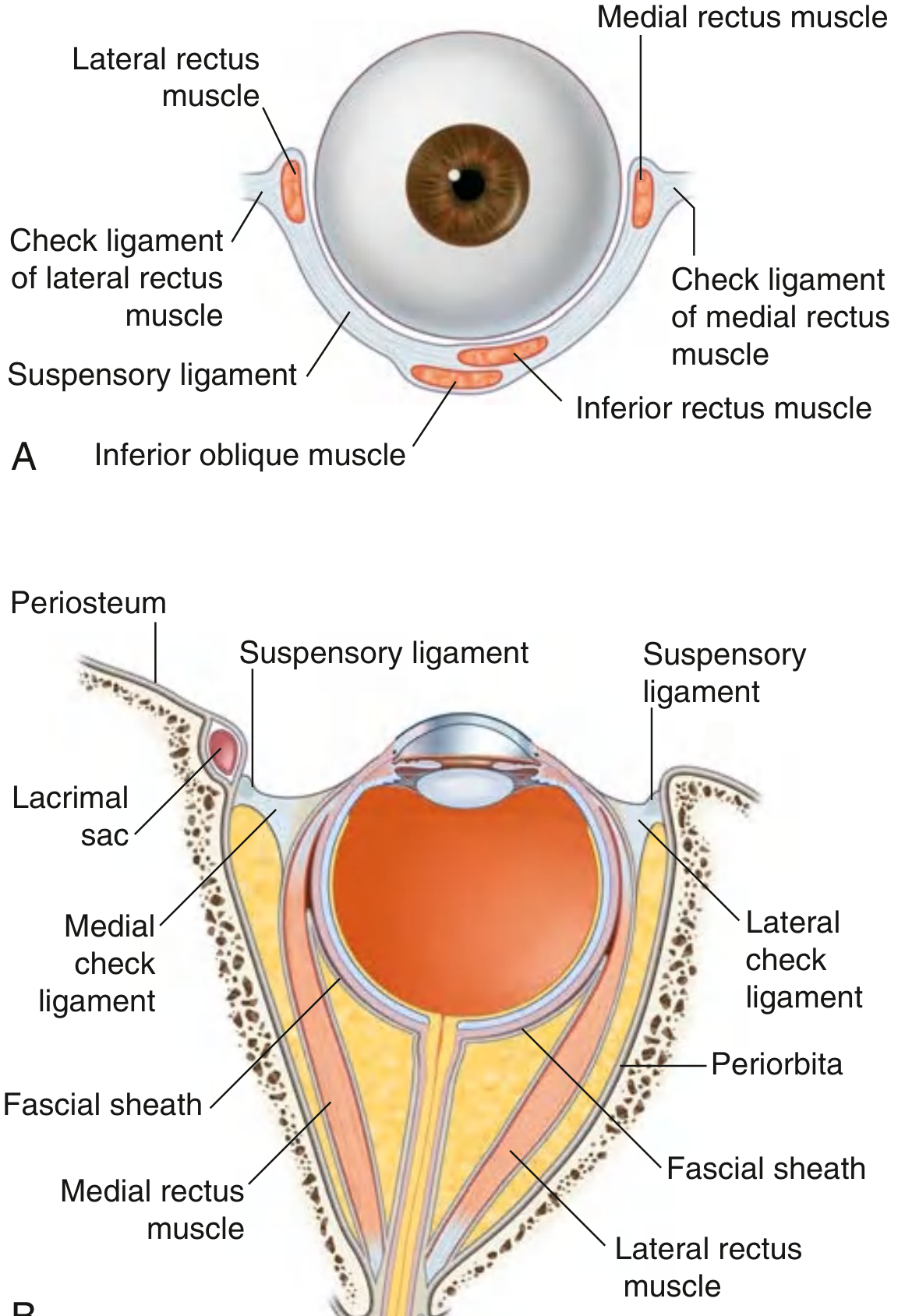

Check ligaments and fascial sheaths of the extraocular muscles - anterior and superior views
MuscleOriginInsertionNerveAction
Levator palpebrae superiorisLesser wing of sphenoid, anterior to optic canalAnterior surface of superior tarsal plate; few fibers to skin + conjunctival fornixCN III (superior branch)Elevates upper eyelid
Superior rectusSuperior part of common tendinous ring (Annulus of Zinn)Anterior half of eyeball, superiorlyCN III (superior branch)Elevation, adduction, intorsion
Inferior rectusInferior part of Annulus of ZinnAnterior half of eyeball, inferiorlyCN III (inferior branch)Depression, adduction, extorsion
Medial rectusMedial part of Annulus of ZinnAnterior half of eyeball, mediallyCN III (inferior branch)Adduction
Lateral rectusLateral part of Annulus of Zinn (bridges superior orbital fissure)Anterior half of eyeball, laterallyCN VI (Abducens)Abduction
Superior obliqueBody of sphenoid, superomedial to optic canalOuter posterior quadrant, superior surfaceCN IV (Trochlear)Depression, abduction, intorsion
Inferior obliqueMedial floor of orbit, posterior to orbital rim (maxilla, lateral to nasolacrimal groove)Outer posterior quadrant, inferior surfaceCN III (inferior branch)Elevation, abduction, extorsion
Memory mnemonic for innervation: LR₆SO₄ - Lateral Rectus = CN VI, Superior Oblique = CN IV, all others = CN III

The Common Tendinous Ring (Annulus of Zinn)

All four rectus muscles and the levator palpebrae superioris originate from the common tendinous ring at the orbital apex. The ring surrounds the optic canal and bridges the superior orbital fissure. The lateral rectus has a dual head - one head from each limb of the ring.

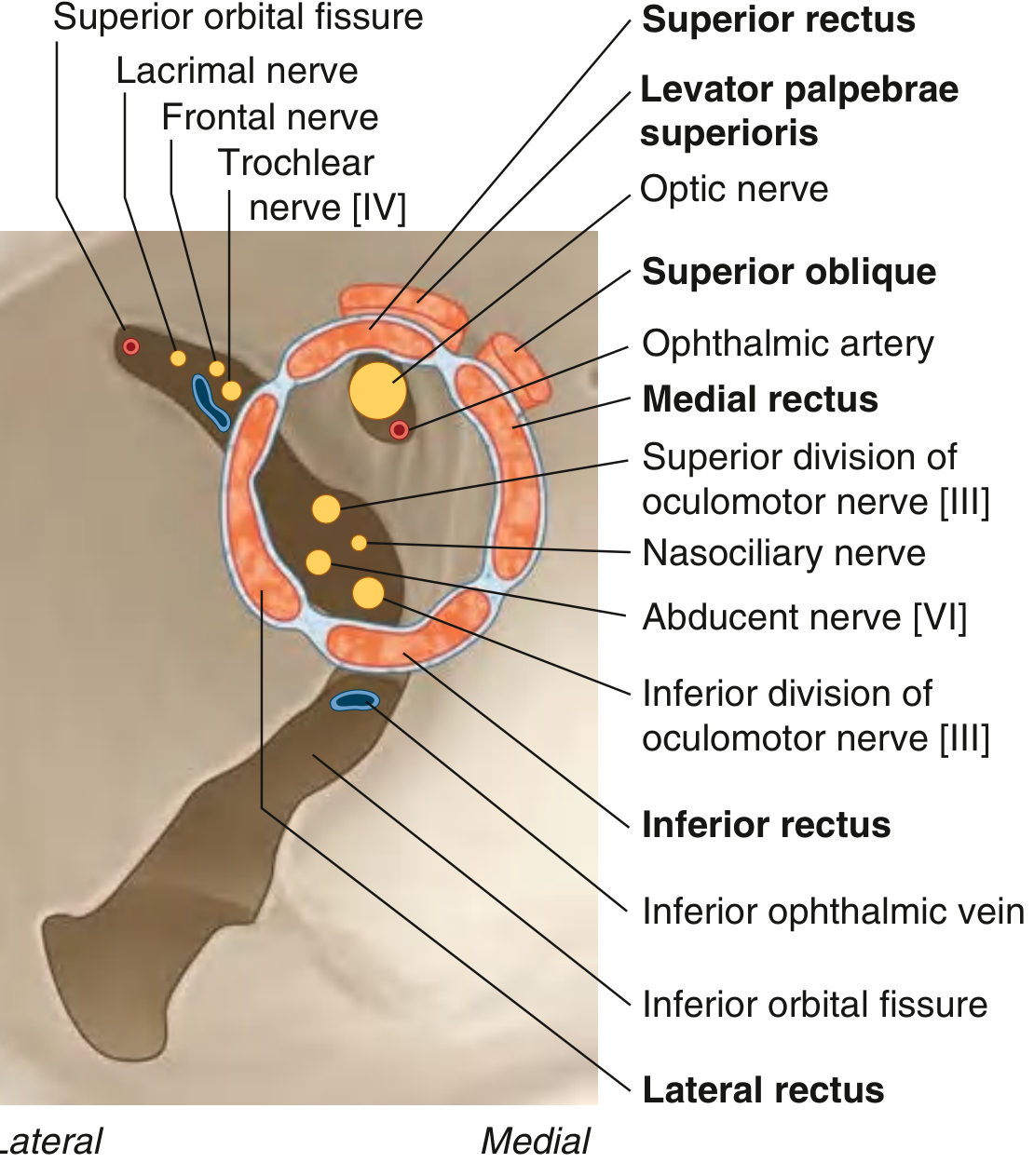

The diagram below shows the cross-section at the Annulus of Zinn, with the EOMs and their corresponding nerves:
Cross-section at the common tendinous ring showing extraocular muscles and nerves

Agonist-Antagonist Pairs

The six globe-moving muscles are arranged in three agonist-antagonist pairs (Kandel, Principles of Neural Science):
  1. Medial rectus ↔ Lateral rectus (horizontal rotation)
  2. Superior rectus ↔ Inferior rectus (primarily vertical + torsional)
  3. Superior oblique ↔ Inferior oblique (primarily vertical + torsional)
The superior and inferior recti and the obliques are collectively called "cyclovertical muscles" because they produce both vertical and torsional rotation.

Actions of Individual Muscles

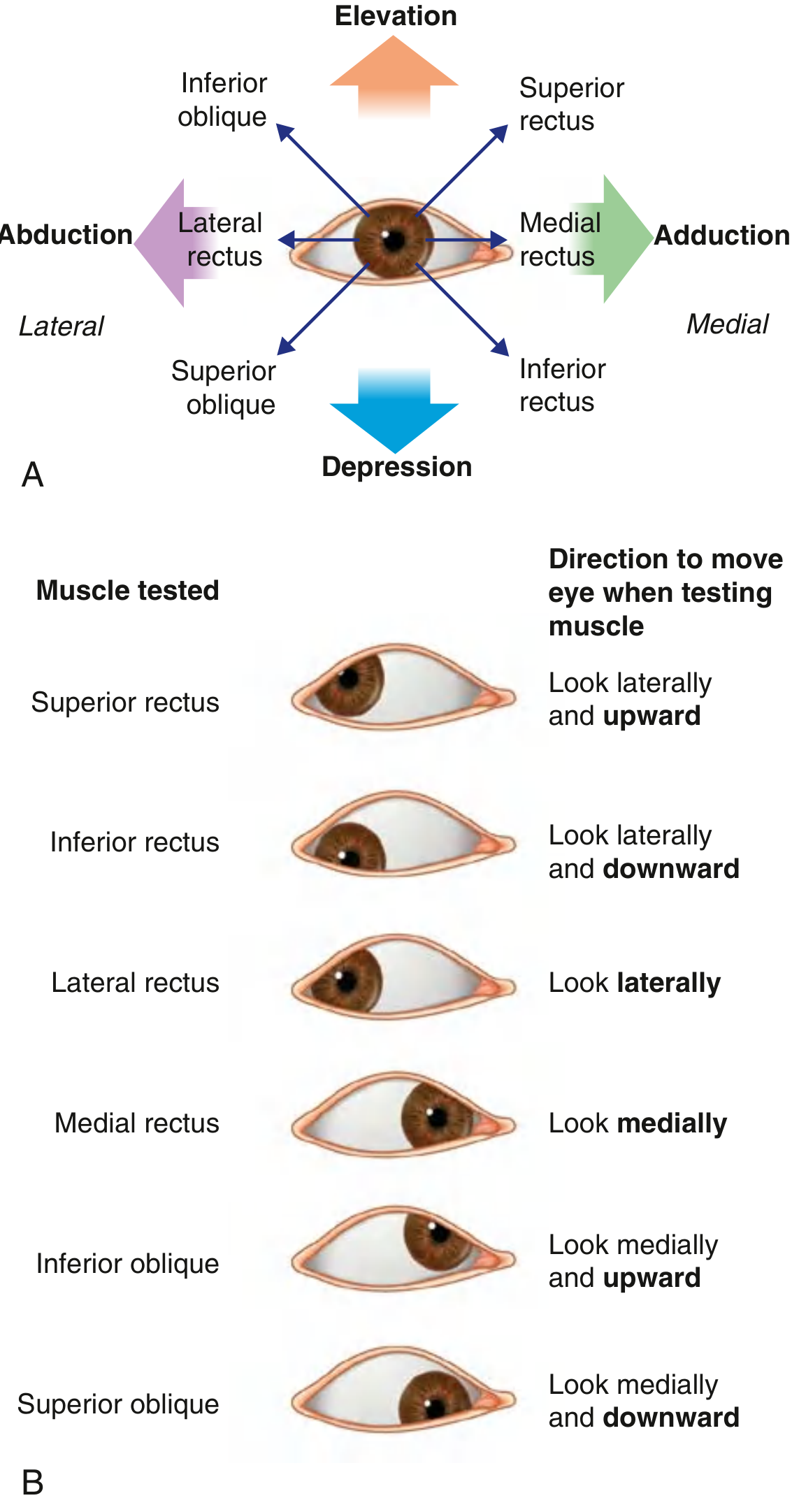

Actions (A) and clinical testing positions (B) of all six extraocular muscles

Key points about the obliques:

  • The oblique muscles insert posterior to the equator of the globe - this is why their actions are counterintuitive (superior oblique depresses, inferior oblique elevates)
  • The rectus muscles insert anterior to the equator
  • The superior oblique tendon passes through the trochlea (a fibrocartilaginous pulley on the superomedial orbital rim), making the trochlea its functional origin
  • The superior oblique's action depends on eye position:
    • In adduction → primarily depresses the eye
    • In abduction → primarily intorts the eye

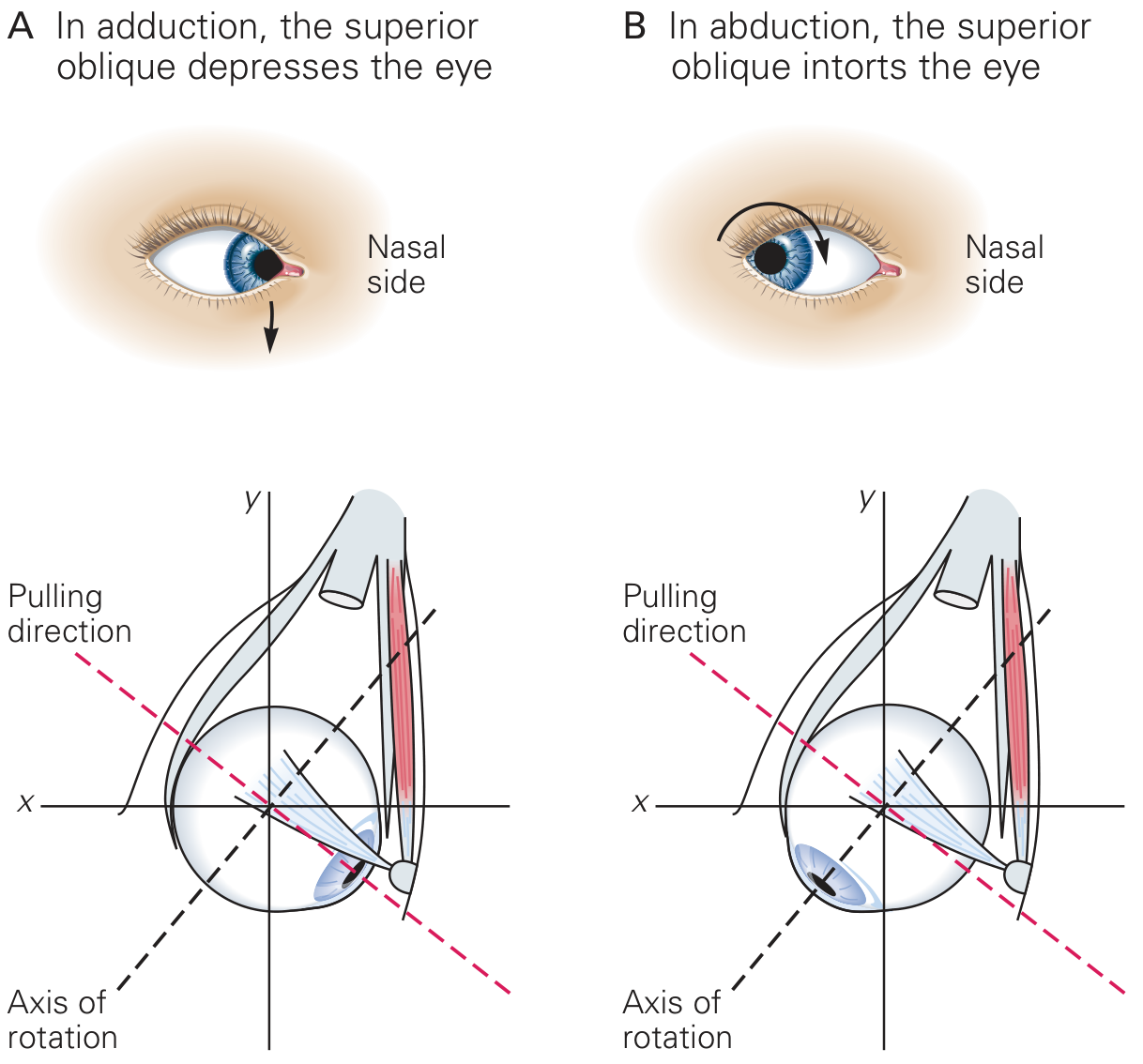

Superior oblique action changes with eye position: depression in adduction, intorsion in abduction

Movements of the Eyeball

Six types of movement are possible (Gray's Anatomy for Students, p. 1076):
MovementDescription
ElevationPupil moves superiorly
DepressionPupil moves inferiorly
AbductionPupil moves laterally
AdductionPupil moves medially
Intorsion (internal rotation)Top of pupil rotates toward the nose
Extorsion (external rotation)Top of pupil rotates toward the temple

Conjugate Eye Movements - Yoke Muscles

For binocular vision, each muscle in one eye is paired with its yoke muscle in the other eye (Hering's law of equal innervation):
Right eye muscleLeft eye muscleGaze direction
Right lateral rectusLeft medial rectusGaze right
Right medial rectusLeft lateral rectusGaze left
Right superior rectusLeft inferior obliqueRight-upgaze
Right inferior rectusLeft superior obliqueRight-downgaze
Right superior obliqueLeft inferior rectusLeft-downgaze
Right inferior obliqueLeft superior rectusLeft-upgaze

Clinical Testing of Individual Muscles

The clinical H-pattern is used to isolate each muscle. The obliques are tested with the eye adducted first (to bring the oblique tendon axis into alignment with the globe axis):
MuscleClinical test position
Superior rectusAbduct eye, then look up
Inferior rectusAbduct eye, then look down
Superior obliqueAdduct eye, then look down
Inferior obliqueAdduct eye, then look up
Lateral rectusLook laterally
Medial rectusLook medially

Cranial Nerve Palsies - Clinical Correlations

(Harrison's Principles of Internal Medicine, 22e)

CN III (Oculomotor) Palsy

  • Supplies SR, IR, MR, IO, levator palpebrae, and pupillary constrictor
  • Complete CN III palsy → "down and out" eye + complete ptosis + fixed dilated pupil
  • Pupil-sparing CN III palsy is typically microvascular (diabetes, hypertension) - the pupillomotor fibers run on the outside of the nerve and are spared with ischemic injury
  • Pupil-involving CN III palsy = posterior communicating artery aneurysm until proven otherwise (surgical emergency)
  • Aberrant regeneration follows trauma/compression - misdirected fibers cause lid elevation on downgaze (pseudo-Graefe sign) or adduction

CN IV (Trochlear) Palsy

  • Innervates the superior oblique only
  • Only cranial nerve that decussates before leaving the brainstem (exits dorsally from the midbrain)
  • Palsy causes hypertropia + excyclotorsion - patients complain of vertical diplopia worse on reading/descending stairs
  • Classic feature: head tilt test (Parks-Bielschowsky) - tilting the head toward the affected side worsens vertical diplopia; tilting away alleviates it
  • Most common cause of isolated vertical diplopia; commonly idiopathic microvascular or post-head trauma (free edge of tentorium impinges on nerve)

CN VI (Abducens) Palsy

  • Innervates the lateral rectus only
  • Palsy → esotropia + horizontal diplopia, worse on ipsilateral gaze
  • Abducens nucleus lesion (vs fascicle): nuclear lesion affects interneurons projecting via MLF to contralateral medial rectus → complete ipsilateral horizontal gaze palsy (not just one eye)
  • Foville syndrome (dorsal pons): lateral gaze palsy + ipsilateral facial palsy + contralateral hemiparesis
  • Millard-Gubler syndrome (ventral pons): lateral rectus weakness alone + facial palsy (fascicle involved, not nucleus)
  • The long subarachnoid course of CN VI makes it susceptible to raised ICP (false localizing sign - bilateral abducens palsy)
  • Gradenigo's syndrome: mastoiditis → petrous apex involvement → abducens palsy + ipsilateral facial pain + deafness

Special Features

Levator Palpebrae Superioris

  • Most superior muscle in the orbit
  • Contains smooth muscle fibers (Superior Tarsal Muscle / Müller's muscle) on its inferior surface
  • These smooth fibers are innervated by postganglionic sympathetic fibers from the superior cervical ganglion
  • CN III loss → complete ptosis; sympathetic loss (Horner's syndrome) → partial ptosis

Fascial Sheaths and Check Ligaments

  • Each EOM is enclosed in a fascial sheath that fuses with the fascial sheath of the globe (Tenon's capsule)
  • Where these sheaths thicken, they form check ligaments that limit overaction of each muscle
  • The medial and lateral check ligaments are especially strong; together with inferior ligamentous extensions they form the suspensory ligament of Lockwood which supports the globe

Soft-Tissue Pulleys

  • Modern understanding: each EOM has a dual insertion - part of the muscle inserts on a soft-tissue pulley in the orbit, through which the rest of the muscle passes to reach the globe
  • These pulleys change the muscle's pulling direction as the eye moves, stabilizing ocular rotations

Blood Supply

The EOMs receive their blood supply primarily from the ophthalmic artery (branch of the internal carotid), via muscular branches. The lateral rectus also receives contributions from the lacrimal artery.

Summary Table

NerveMuscles suppliedPalsy causes
CN III (Oculomotor)SR, IR, MR, IO, Levator palpebrae, ciliary & sphincter pupillaeDown-and-out eye, ptosis, mydriasis; aneurysm (pupil-involving), microvascular ischemia (pupil-sparing)
CN IV (Trochlear)Superior obliqueVertical diplopia, worse reading; head tilt; trauma, microvascular
CN VI (Abducens)Lateral rectusEsotropia, horizontal diplopia; raised ICP, pontine lesions, Gradenigo's
Sources: Gray's Anatomy for Students (Elsevier), pp. 1076-1079 | Kandel, Principles of Neural Science, 6th ed., Ch. 35 | Harrison's Principles of Internal Medicine, 22e
