A 28-week, 900-g infant has temperature fluctuations in an incubator. The unit is single-walled, room temperature is 25°C, and humidity has not been used. The infant is otherwise stable. Tasks: 6. Explain why a double-walled incubator reduces radiant heat loss, using the temperature gradients described in the material. [2 marks] 7. State when humidification is particularly useful and what must be done to the water if humidification is used. [2 marks] 8. List two environmental/equipment factors that can reduce incubator efficiency. [2 marks] 9. State two maintenance checks relevant to filters/calibration. [2 marks] 10. Give the two criteria in the material for when a baby may no longer require incubator care. [2 marks]
"infant, premature"[MeSH Terms] AND "body temperature"[MeSH Terms]
neonatal incubator double wall radiant heat loss humidification water maintenance filter calibration criteria discontinue incubator care
https://publications.aap.org/book/chapter-pdf/1350964/unit7.…
"when a baby may no longer require incubator care"
"incubator efficiency" filters calibration humidification water neonatal
"infant, premature"[MeSH Terms] AND "humidity"

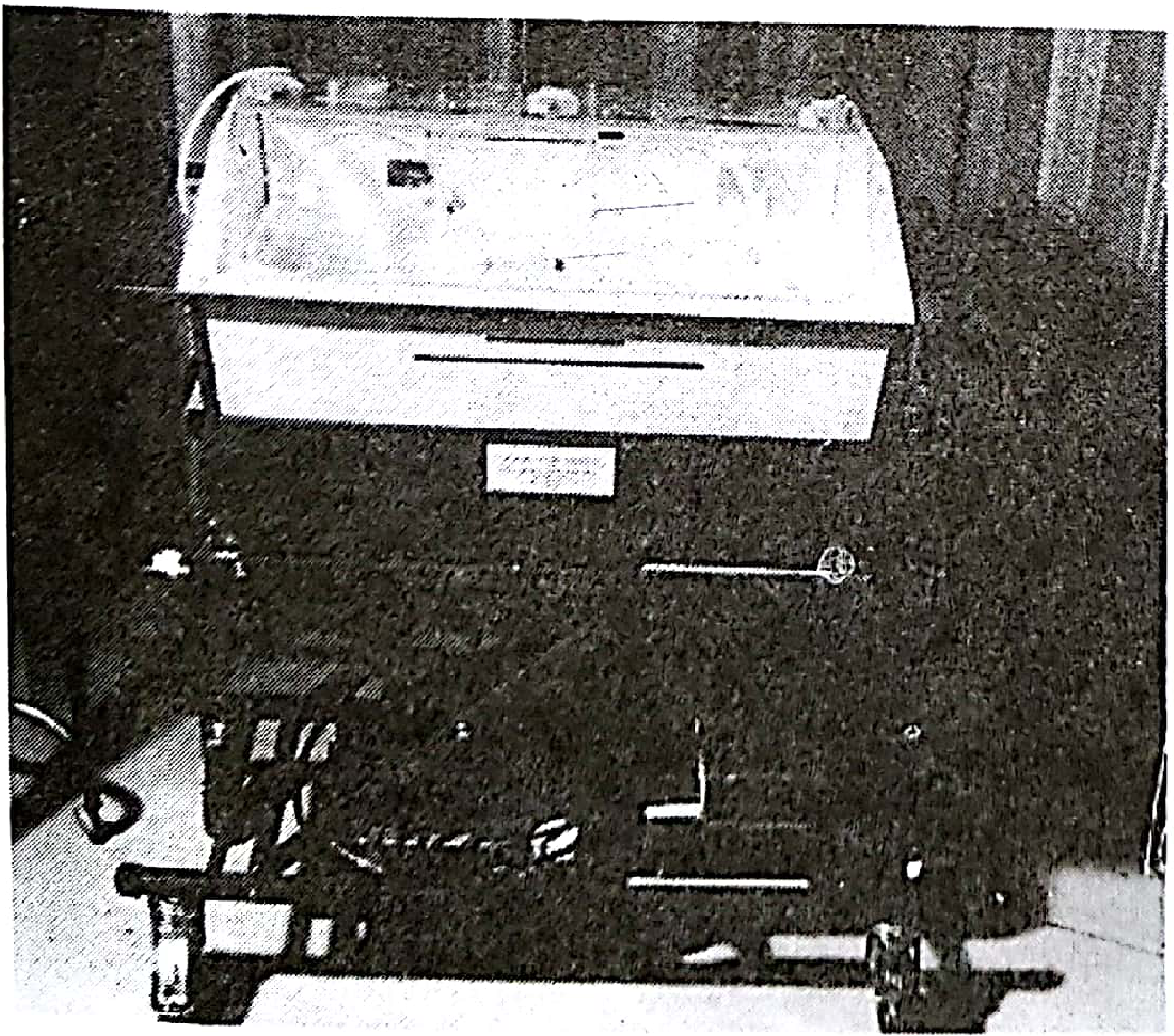

A double wall traps a layer of warm air between the two walls. This keeps the inner wall warmer and nearer to the infant’s skin temperature than the room-facing wall. Therefore, the temperature gradient between the infant and the inner wall is much smaller than with a single wall exposed to a 25°C room, so less heat is lost by radiation. AAP thermal-environment material
- Particularly useful for very preterm, extremely low birth-weight infants, especially in the first days of life, because their immature skin permits high evaporative water and heat loss. This 28-week, 900-g infant is a typical candidate.
- Use sterile water only and change/handle it according to infection-control policy to avoid bacterial colonisation. NICU humidification guideline
- Low room temperature, draughts, or positioning near a cold wall/window.
- Frequent opening of doors/portholes, causing loss of warmed air and temperature fluctuations.
- Check that air filters are clean, correctly fitted, and replaced at the manufacturer’s recommended interval.
- Check and document calibration/accuracy of the incubator’s temperature-control system and temperature probes against an independent calibrated thermometer.
- The baby can maintain a normal, stable body temperature in an open cot at ordinary room temperature.
- The baby has reached an adequate weight, commonly about 1.7 to 1.8 kg in traditional practice, provided they remain clinically stable. Evidence supports transfer of stable infants to a cot at around 1.6 kg in many settings, but unit policy varies. Cochrane review
A 700-g ventilated infant needs transfer from the NICU to another hospital. The transport incubator is electrically operated. Before departure, the battery indicator is low and the team has not packed the full equipment set. Tasks: 11. List four essential functions/features that the transport incubator must provide. [2 marks] 12. Name four essential items/equipment that must accompany the transport incubator. [2 marks] 13. What are two technical causes of hypothermia or equipment failure highlighted in the material? [2 marks] 14. State two measures to reduce injury during transport over uneven roads/traffic. [2 marks] 15. List two specifications/features expected in an electrically operated transport incubato
"Infant Transport"[MeSH Terms] AND "Equipment and Supplies"[MeSH Terms]
neonatal transport incubator required functions equipment battery thermal regulation safety vibration transport guideline
https://publications.aap.org/books/chapter-pdf/1616646/aap_9…
"electrically operated transport incubator" specifications battery
- Maintains a controlled warm environment.
- Monitors the infant’s heart rate and body temperature.
- Monitors inspired oxygen concentration.
- Has an inbuilt mechanical ventilator for a ventilated infant.
It should also permit clear observation and rapid emergency access. Transport-neonate text
- Adequate oxygen supply, with reserve cylinder.
- Airway/resuscitation equipment: laryngoscope and appropriately sized endotracheal tubes.
- Suction apparatus with spare catheters.
- Cardiorespiratory monitor with pulse oximeter and temperature monitoring.
For this ventilated infant, also take essential ventilator circuits, emergency drugs, and backup batteries/power leads.
- A low or discharged battery can cause heater, ventilator, monitor, or alarm failure during transfer.
- Unwarmed, dry transport gases increase evaporative and insensible heat loss, contributing to hypothermia. Transport incubators should be pre-warmed and, where available, gas humidification used. Neonatal thermoregulation guidance
- Secure the infant with the incubator’s restraint system and firmly lock/secure the incubator, cylinders, monitor, and all equipment to the transport trolley/ambulance mounts.
- Use careful, smooth driving: avoid sudden acceleration, braking, and sharp turns; reduce speed over uneven roads. Use positioning aids/padding to limit movement and vibration.
- Operation from both external AC/DC power and an internal rechargeable battery, with a battery-charge/low-battery indicator and alarm.
- Battery capacity sufficient for the planned journey plus a safety reserve, with a fully charged backup battery before departure. Many units provide about 3 to 4 hours under specified conditions, but the manufacturer’s stated runtime must be checked. Example transport-incubator specifications
A preterm infant has an SpO₂ reading of 96%, but the foot is cold, the BP cuff is cycling on the same limb, and the baby is moving vigorously. The displayed value is fluctuating. Tasks: 16. Identify four factors in this scenario that can produce an inaccurate pulse-oximeter reading. [3 marks] 17. Explain the two core physical principles on which pulse oximetry depends. [2 marks] 18. What should be done regarding the desired saturation range and alarm limits? [2 marks] 19. State one important limitation of pulse oximetry at high saturation levels. [1 marks] 20. Name one pressure-related complication of prolonged probe contact. [2 marks]
"Pulse Oximetry"[MeSH Terms] AND "Infant, Premature"[MeSH Terms]
neonatal pulse oximetry cold extremity blood pressure cuff motion artifact high saturation accuracy alarm limits pressure injury guideline
- Cold foot reduces local perfusion.
- Poor peripheral arterial pulsatility from vasoconstriction/low perfusion gives a weak signal.
- A cycling BP cuff on the same limb intermittently compresses arterial flow and can produce venous pulsation artefact.
- Vigorous movement produces motion artefact.
- Dual-wavelength spectrophotometry: oxyhaemoglobin and deoxyhaemoglobin absorb red and infrared light differently. The monitor compares absorption at approximately 660 nm and 940 nm.
- Arterial pulsatility: it identifies the changing, pulsatile arterial component of absorption and subtracts non-pulsatile tissue, venous, and capillary absorption. Miller's Anesthesia, 10e, p. 5456.
- Prescribe and document the infant’s intended SpO₂ target, then titrate oxygen to keep within it. For many preterm infants receiving oxygen, a common target is 91%-95%, subject to local NICU policy and the infant’s condition.
- Set active lower and upper alarms tightly around the target, commonly about 89%-95% or no more than 1%-2% outside the chosen range. Do not leave a high alarm disabled. Preterm oxygen-targeting guidance
At SpO₂ values in the mid-to-high 90s, the oxyhaemoglobin dissociation curve is relatively flat. Thus, an SpO₂ of 96% cannot reliably distinguish normal oxygenation from a potentially high PaO₂ or hyperoxia. Pulse oximetry does not directly measure PaO₂. Costanzo Physiology, 7e.
Pressure injury/skin breakdown progressing to pressure necrosis at the probe site. In a very preterm infant this may occur rapidly, so use an appropriately sized probe, avoid tight fixation, inspect the skin, and rotate sites regularly.
A 30-week, 1200-g infant has an apnea monitor based on chest-wall movement. The alarm does not activate during an episode in which the airway is obstructed but the chest continues to move. Tasks: 21. Explain why this monitor may fail to detect the event. [2 marks] 22. Name three types of apnea-monitor technology listed in the material. [3 marks] 23. State two other causes of false/poor detection by movement-based monitoring. [2 marks] 24. Give one recent trend designed to improve detection of both types of apnea. [1 marks] 25. State the babies for whom the material recommends apnea monitoring. [2 marks]
"Apnea"[MeSH Terms] AND "Infant, Premature"[MeSH Terms]
neonatal apnea monitor chest wall movement obstructive apnea impedance pneumography types apnea monitoring indications preterm infants
neonatal apnea monitor movement false detection electrode displacement cardiac artifact types impedance thermistor capsule monitor recommendations babies apnea monitoring
It detects thoracic movement, not actual airflow. In obstructive apnea, respiratory effort and chest movement continue despite upper-airway obstruction, so the monitor can interpret this as normal breathing and not alarm. Miller's Anesthesia, 10e, p. 5552.
- Transthoracic impedance pneumography using ECG chest electrodes.
- Inductive plethysmography.
- Pressure/movement sensors, such as a pressure pad, abdominal pneumatic sensor, or strain gauge.
- Cardiac motion/cardiovascular artefact, which may be mistaken for breathing.
- Infant movement or external vibration, which can be interpreted as respiratory movement.
Use of multimodal monitoring, combining chest-impedance respiratory monitoring with pulse oximetry and heart-rate/bradycardia monitoring. This improves recognition of clinically important central and obstructive or mixed events, which often cause desaturation and/or bradycardia.
- All infants born at less than 34 weeks’ gestation, including this 30-week infant.
- Other at-risk infants, including those receiving caffeine, sedatives/opioids, prostaglandin infusion, or first immunisations; clinically unwell/unstable infants; and babies with congenital syndromes/anomalies that predispose to central or obstructive apnea. NHSGGC neonatal guideline
A 1.8-kg infant has an oscillometric BP measured with a loosely applied cuff while the arm is below the level of the heart. The reported MAP is 42 mmHg. Tasks: 26. List four positioning/cuff principles required for an accurate non-invasive BP measurement. [3 marks] 27. For a limb circumference of 5 cm, select the appropriate cuff size from the supplied table. [2 marks] 28. State the recommended inflation and deflation approach. [2 marks] 29. Using the material's weight-based table, state the approximate expected mean BP range for a 1–2 kg infant. [1 marks] 30. State one reason invasive MAP may be more reliable than SBP/DBP in an arterial line.
"Blood Pressure Determination"[MeSH Terms] AND "Infant, Newborn"[MeSH Terms]
neonatal blood pressure measurement cuff limb circumference 5 cm table inflation deflation mean blood pressure 1 2 kg
neonatal blood pressure cuff chart circumference 5 cm cuff 3 cm mean arterial pressure 1-2 kg expected range
"1-2 kg" "mean blood pressure" newborn table cuff
