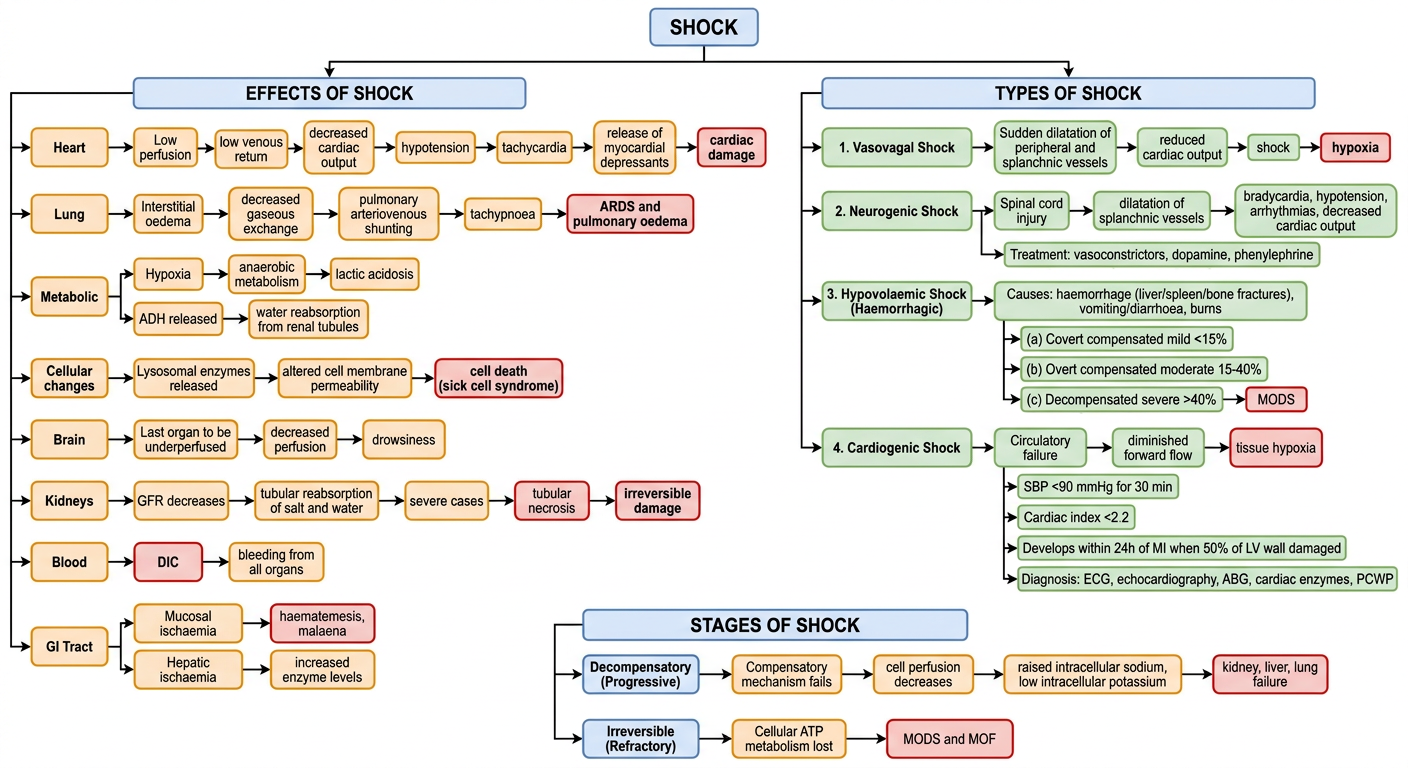

Here is the flowchart based on the SRB's Manual of Surgery content. It covers:
Left side - Effects of Shock across all organ systems: Heart, Lungs, Metabolic, Cellular, Brain, Kidneys, Blood, and GI Tract - each showing the cascade of damage.
Right side - Types of Shock:
- Vasovagal - splanchnic vessel dilatation
- Neurogenic - spinal cord injury pathway and treatment
- Hypovolaemic - causes and three severity grades (mild <15%, moderate 15-40%, severe >40%)
- Cardiogenic - MI-related, diagnostic criteria, and investigations
Bottom - Stages of Shock: Progressive (decompensatory) and Irreversible (refractory) stages with their cellular consequences.
Create a PDF reference card summarizing shock types and management
Reading File
Running Command
Running Command
Writing File
Running Command
Running Command
Your reference card is ready:
Shock Reference Card
PDF Document · PDF
The PDF is a single A4 page with 5 color-coded sections:
| Section | Color | Content |
|---|---|---|
| 1. Types of Shock | Teal | Vasovagal, Neurogenic, Hypovolaemic, Cardiogenic - causes, features, management |
| 2. Stages of Shock | Amber | Compensatory → Decompensatory → Irreversible with mechanisms |
| 3. Effects by Organ | Red | Heart, Lung, Metabolic, Cellular, Brain, Kidney, Blood, GI - pathophysiology cascade |
| 4. Hypovolaemia Grading | Green | Mild (<15%), Moderate (15-40%), Severe (>40%) with HR/BP/clinical features |
| 5. Quick Notes | Purple | Distributive, Obstructive, DIC, Sick Cell Syndrome, key drugs |
