Fetal Sex Determination on Sonography: A Complete Obstetrician-Level Guide

Important Legal Note: In India, fetal sex determination and disclosure to patients is prohibited under the Pre-Conception and Pre-Natal Diagnostic Techniques (PC-PNDT) Act, 1994. The information below is strictly for academic, clinical training, and anomaly detection purposes (e.g., diagnosing disorders of sexual development).

1. Embryological Basis - Why Both Sexes Look Identical Early On

Understanding sex determination on USG requires knowing the embryological timeline:

Week 5-6: The genital tubercle forms as a midline structure - identical in both sexes (indifferent stage)
Week 7-8: SRY gene on the Y chromosome triggers testicular differentiation in males
Week 9 (CRL ~33 mm): Male-female differentiation begins. The genital tubercle starts diverging
Week 11-13: External genitalia begin to show sex-specific morphology
Week 16-20: Genitalia are well-differentiated and clearly visible on USG

This is why gestational age is the single most important variable in accuracy.

2. FIRST TRIMESTER (11-14 Weeks): The Nub Theory / Genital Tubercle Angle Method

This is the earliest reliable method and is based entirely on the sagittal midline view.

The Principle

The genital tubercle (informally called the "nub") is present in ALL fetuses. In males, testosterone causes it to elongate and tilt cranially (upward), while in females it remains flat or tilts caudally (downward).

How to Assess

Obtain a strict mid-sagittal profile view of the fetus (same plane used for NT measurement)
Draw a reference horizontal line along the lumbosacral skin surface
Measure the angle of the genital tubercle relative to this line

Interpretation

Angle	Sex Prediction
> 30° (cranial, pointing UP toward fetus's head)	MALE
< 10° (parallel or caudal, pointing DOWN)	FEMALE
10-30° (intermediate)	Indeterminate - repeat later

Accuracy by CRL (Crown-Rump Length)

CRL	Gestational Age	Accuracy
< 50 mm	< 11+4 weeks	~40-50% (not reliable)
50-55 mm	11+4 to 12 weeks	~75%
55-60 mm	~12 weeks	~96%
≥ 60 mm	12+2 weeks	~99-100%
≥ 76 mm	~13 weeks	99-100%

First Trimester Images

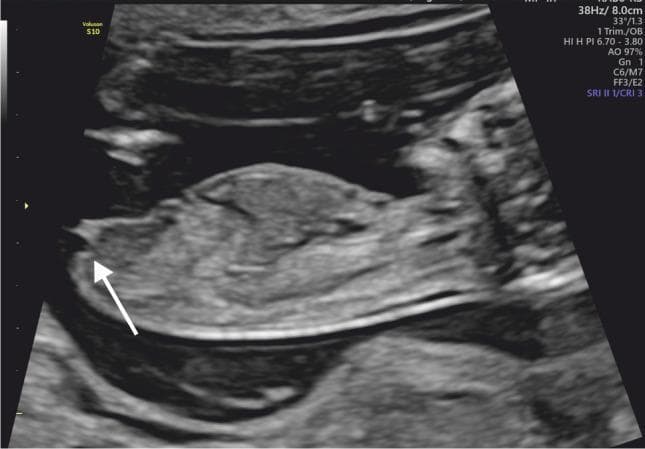

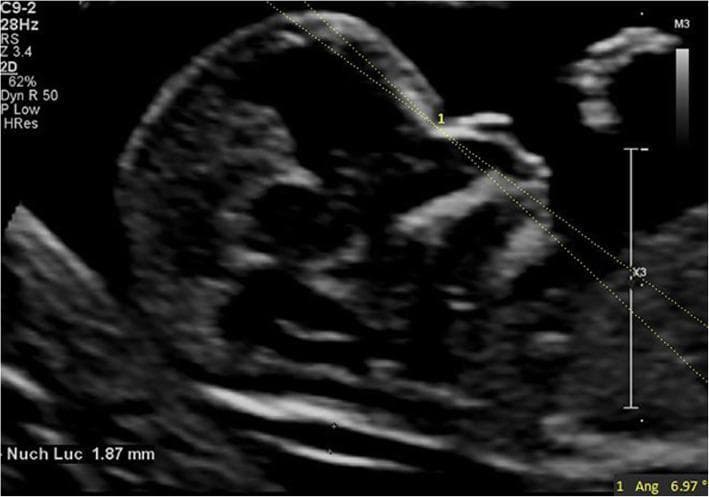

Female fetus at 13 weeks - genital tubercle parallel to spine (< 30°):

Female fetus at 13 weeks - genital tubercle angle parallel to spine, indicating female sex

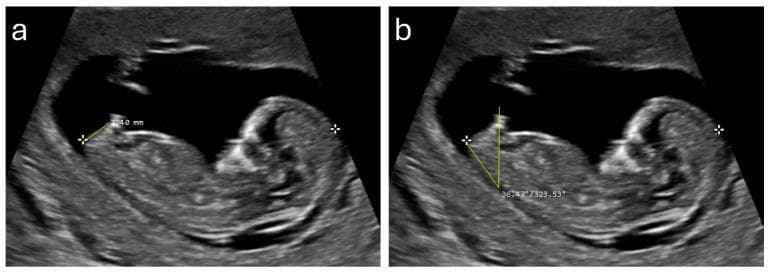

Male fetus at ~12 weeks - cranially-directed tubercle with measured angle (> 30°), plus anogenital distance measurement:

Fetal sex determination at 12 weeks - genital tubercle angle and anogenital distance measurement showing male characteristics

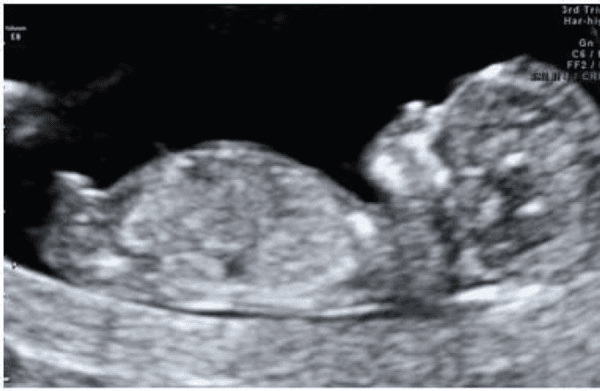

Male fetus at ~12-13 weeks - cranially pointing phallus:

First trimester 12-13 week fetus showing cranially directed genital tubercle consistent with male sex

Anogenital Distance (AGD) - Additional Marker at 11-13 Weeks

Measured from the anterior edge of the anus to the tip of the genital tubercle
Males have a significantly longer AGD than females even in the first trimester
Can be combined with the genital tubercle angle for higher first-trimester accuracy

3. SECOND TRIMESTER (18-22 Weeks): The Gold Standard Window

This is when you have the highest accuracy (>95%) and the clearest landmarks. The standard anomaly scan at 18-20 weeks is the ideal time.

Scanning Technique

Place the probe transversely (axial plane) at the level of the fetal perineum, between the thighs. The fetus ideally needs the legs abducted with the perineum facing the probe.

3A. Female - The "Hamburger Sign" (Three-Line Sign)

What you see: Three parallel echogenic (bright white) linear structures in the transverse/axial perineal plane:

Outer two lines = labia majora
Central dot/line = clitoris between the labia minora

This looks exactly like a hamburger in cross-section (two buns + filling in the middle), hence the name.

Key features:

No protruding structure
Lines are parallel and symmetric
Clitoris appears as a small central echogenic nodule

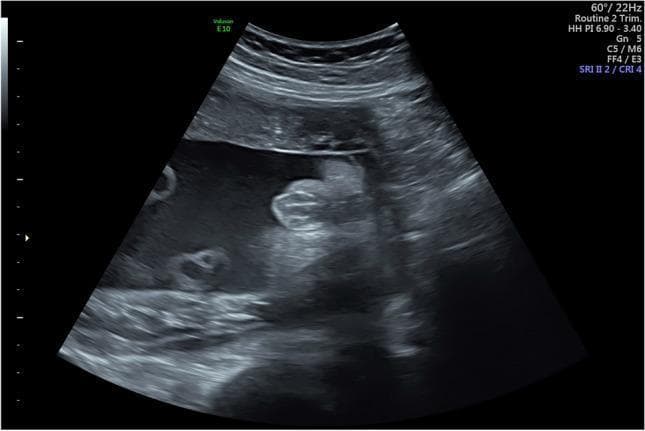

Female "hamburger sign" - transverse view at 30+ weeks:

Female fetus hamburger sign - three parallel hyperechoic lines representing labia majora and clitoris at 30 weeks

Female hamburger sign with labeled anatomy (arrowhead pointing to parallel lines):

Female and male fetal genitalia comparison - hamburger sign versus dome shape in transverse ultrasound

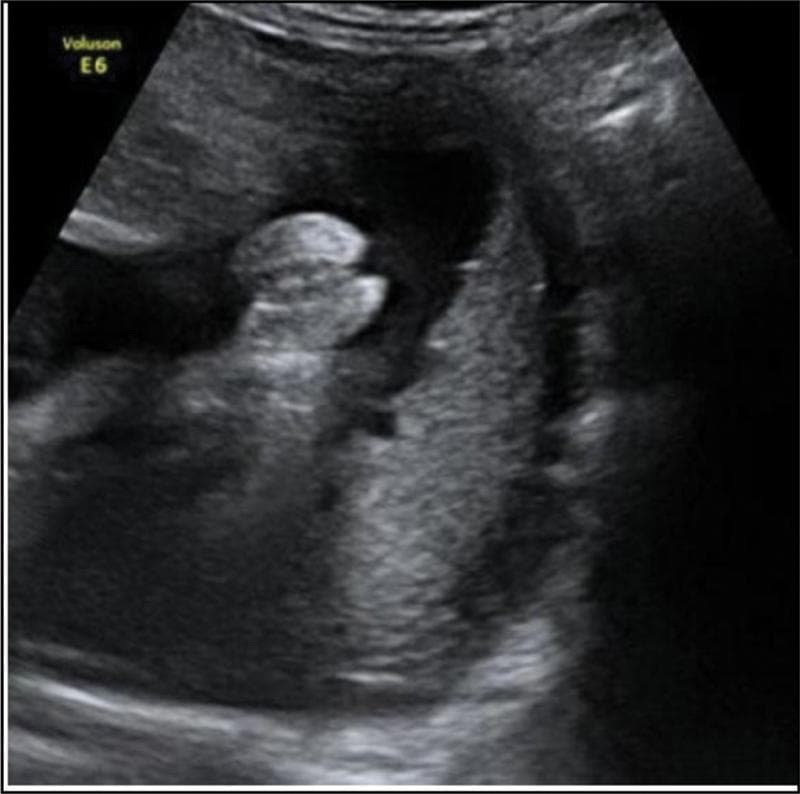

Female - mid-trimester with clitoris as central echogenic nodule between labia:

Midtrimester female fetal genitalia showing hamburger sign with clitoris as central nodule

3B. Male - The "Turtle Sign" / "Snail Sign"

What you see: In the transverse perineal view:

A dome-shaped echogenic protrusion from the perineum representing the phallus pointing upward
Posterior to it, the scrotum as a larger rounded structure

This resembles a turtle's head poking out from its shell - hence "turtle sign."

Additional views for male:

Sagittal view: Elongated echogenic structure pointing away from the fetal body
Scrotum: Two oval, moderately echogenic structures in the scrotal sac
Testicular descent: By 28-32 weeks, testes descend into the scrotum and can be identified as echogenic ovoid structures

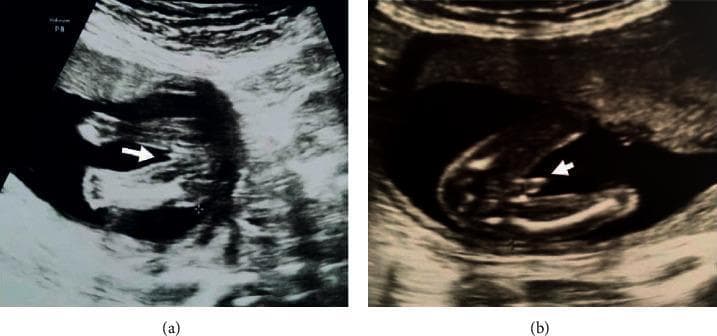

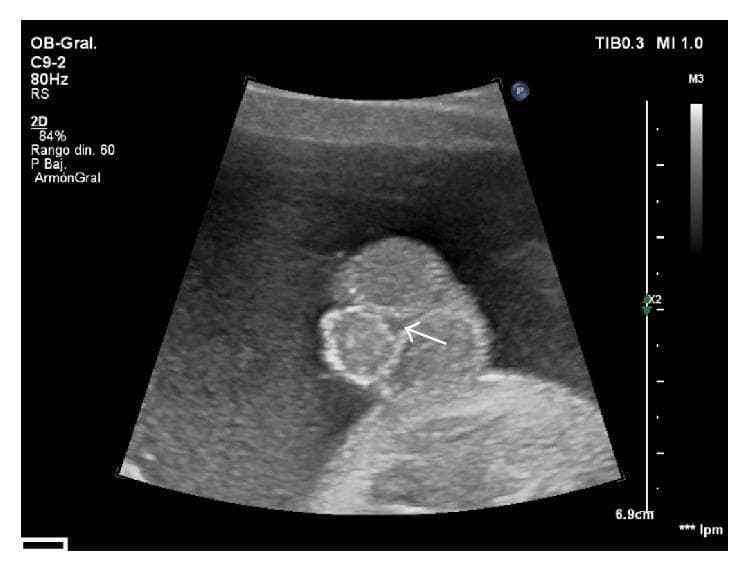

2D male vs female comparison (transverse views - arrowhead showing dome-shaped phallus on right):

(See image above - right panel shows male dome-shaped phallus vs. female parallel lines on left)

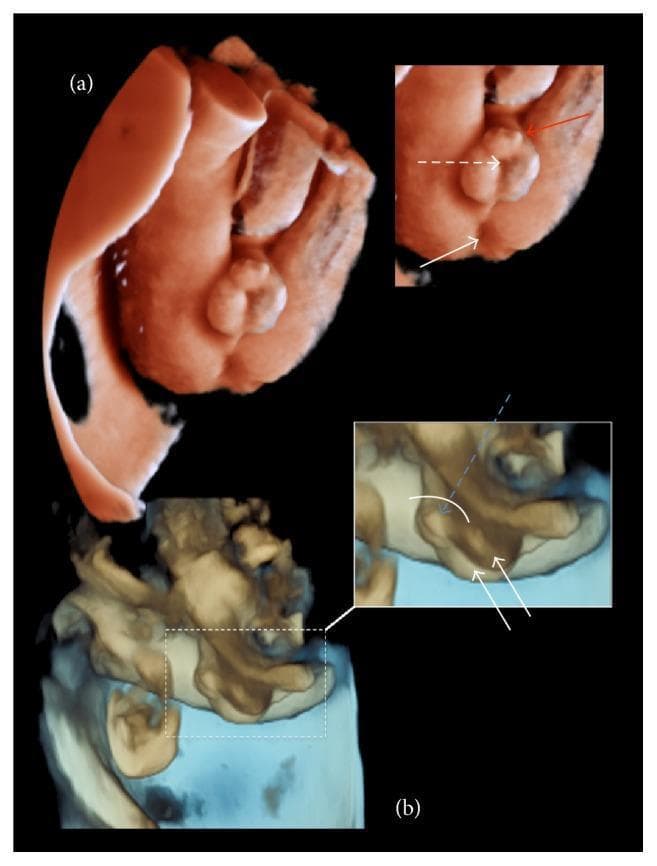

3D surface rendering - male fetus at 20 weeks showing "turtle sign" with penis and scrotum:

3D surface rendered ultrasound of male fetal external genitalia at 20 weeks showing turtle sign with penis and scrotum

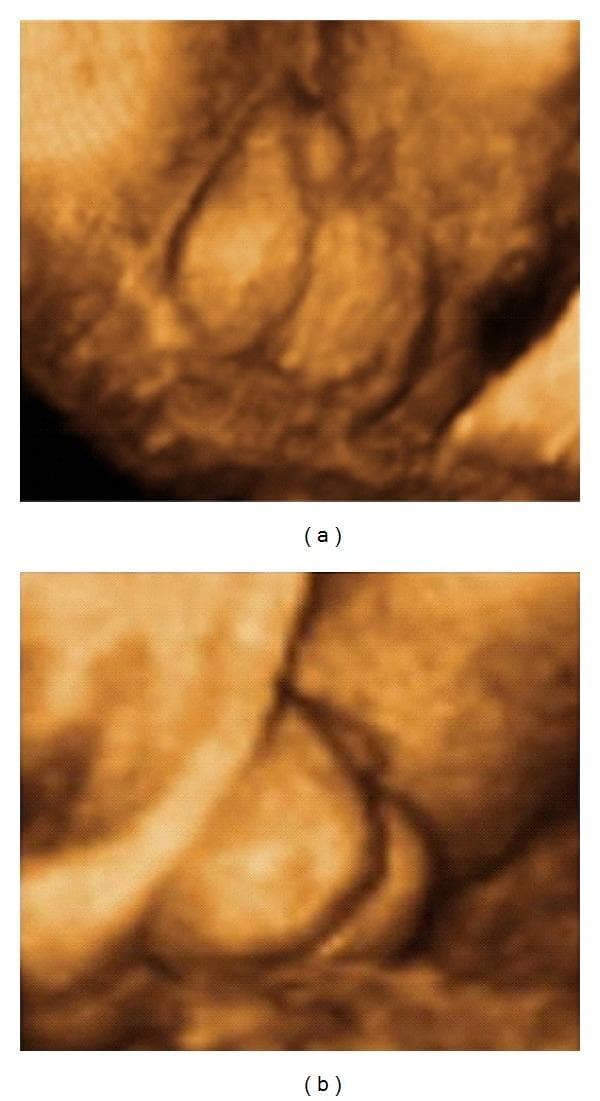

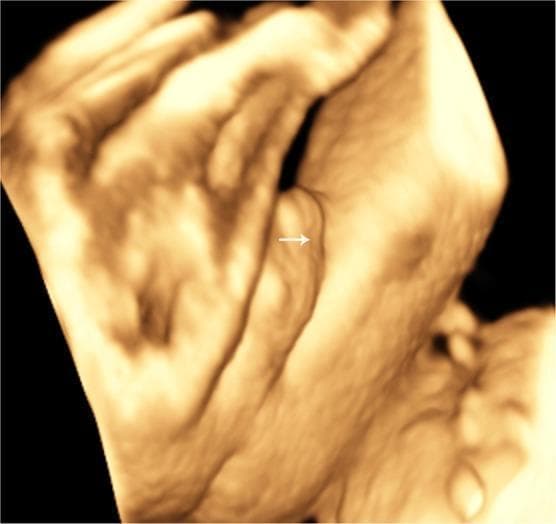

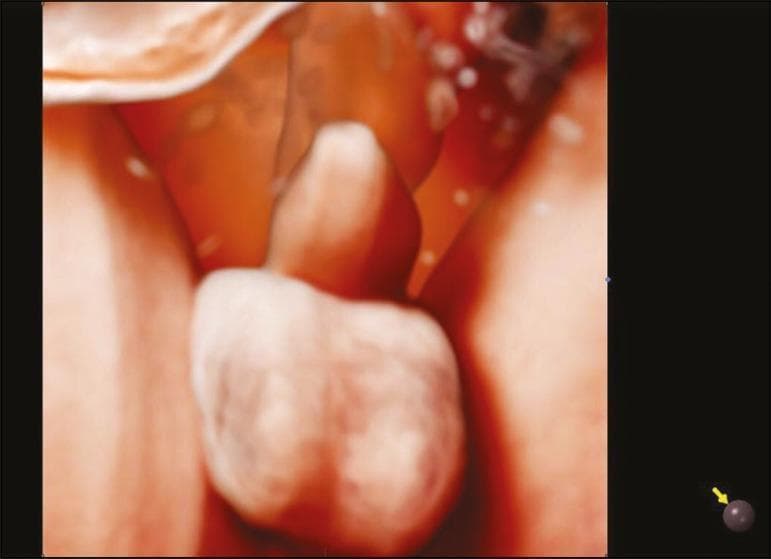

3D Realistic Vue rendering - male fetus at 30 weeks, clear penis and bilobed scrotum:

3D realistic rendering ultrasound at 30 weeks showing male fetal penis superiorly and scrotum as distinct bilobed sac

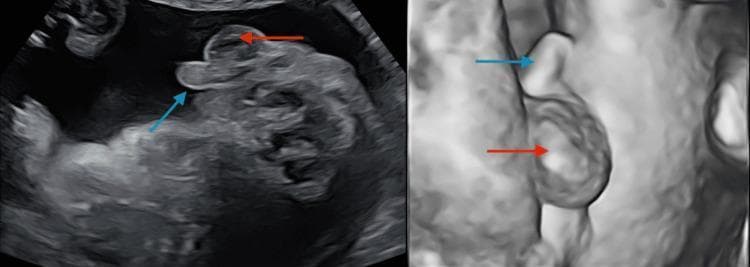

2D + 3D combined view at 20 weeks - blue arrow = penis, red arrow = scrotum:

Level 2 anatomy scan at 20 weeks showing male fetal genitalia with blue arrow indicating penis and red arrow indicating scrotum in 2D and 3D views

4. Summary Comparison Table

Feature	MALE	FEMALE
First trimester sign	Genital tubercle > 30° cranially	Genital tubercle < 10°, parallel/caudal
Second trimester (transverse view)	Dome-shaped protrusion (turtle sign)	Three parallel lines (hamburger sign)
Scrotal structures	Two ovoid echogenic testes in scrotal sac	Absent
Sagittal view	Elongated echogenic phallus	Flat perineum
AGD	Longer anogenital distance	Shorter
3D appearance	Penis + scrotum clearly distinct	Parallel labial folds

5. Accuracy Data

Gestational Age	Accuracy
11 weeks (early nub)	70-78%
12 weeks	90-99%
13 weeks	~100%
18-22 weeks (anomaly scan)	95-99%
28-32 weeks	>99%

Accuracy drops when:

Fetus has legs crossed/adducted (most common cause of error)
Oligohydramnios (limited amniotic fluid reduces acoustic window)
Maternal obesity (poor penetration)
Posterior fetal position
Early gestational age with indeterminate tubercle position

6. Pitfalls and Confounders to Know

Common Errors

Umbilical cord mistaken for penis - always confirm by seeing scrotal structures and follow the cord to the placenta/cord insertion
Hypertrophied labia minora can mimic a phallus in females
Early gestational age (<16 weeks) - the clitoris in females can appear prominent and be confused for a male phallus

The "Sagittal Sign" (Early Second Trimester, 11-15 Weeks)

A midline sagittal view alternative to the nub theory
Cranial direction of genital tubercle = male
Caudal direction = female
Achieves 99-100% accuracy when CRL > 60 mm

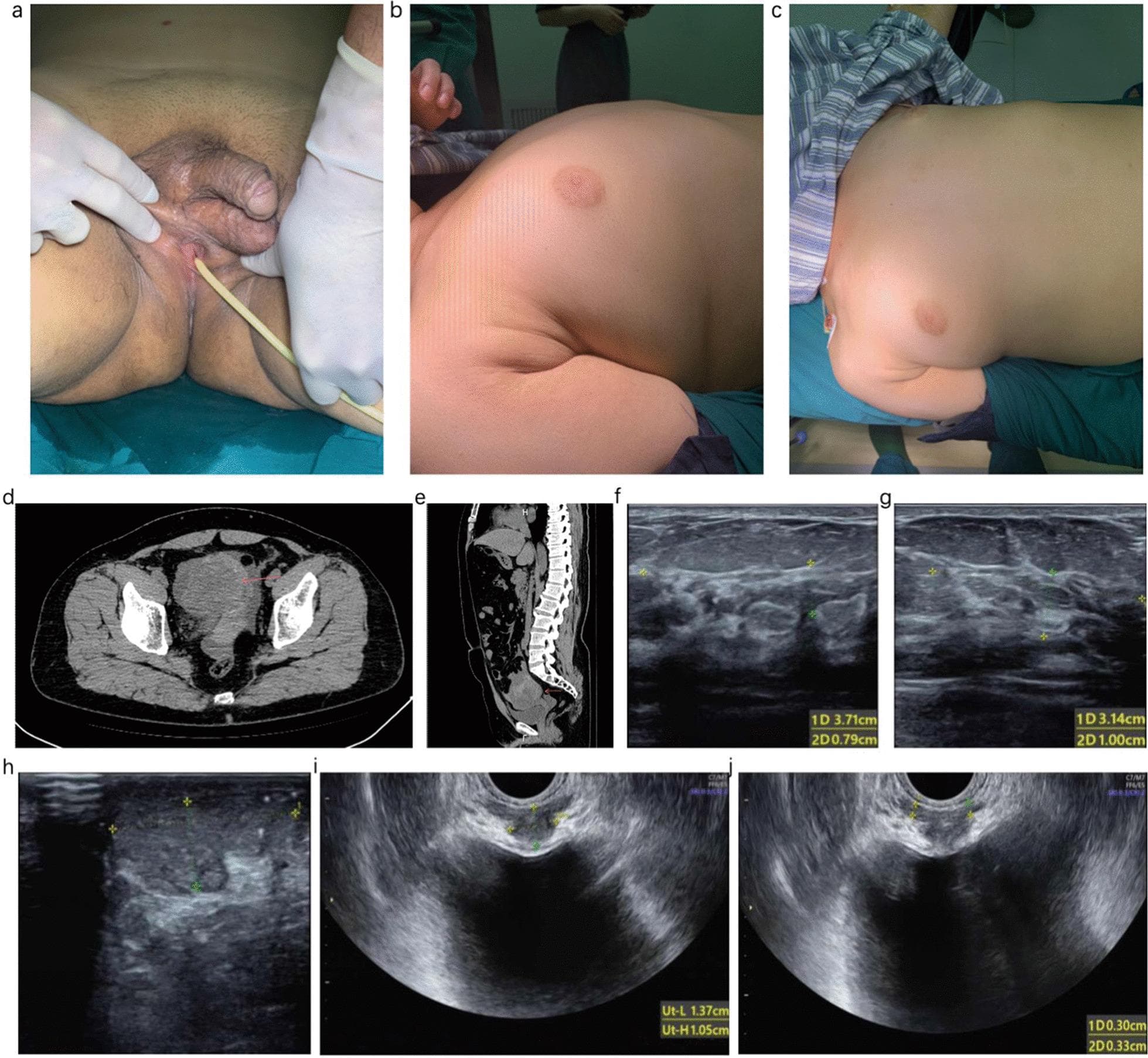

7. Pathological States to Recognize - Disorders of Sexual Development (DSD)

As a gynecologist doing anomaly scans, you must recognize when genitalia are ambiguous rather than clearly male or female:

Tulip Sign - Ambiguous Genitalia

Seen in severe hypospadias or virilized female (e.g., congenital adrenal hyperplasia):

Two diverging echogenic folds flanking a central small phallus-like structure
Resembles a tulip flower - outer petals = labioscrotal folds, central bud = phallus/clitoris

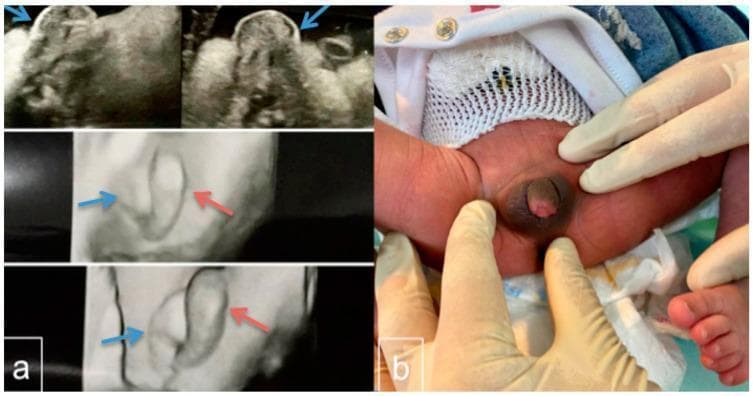

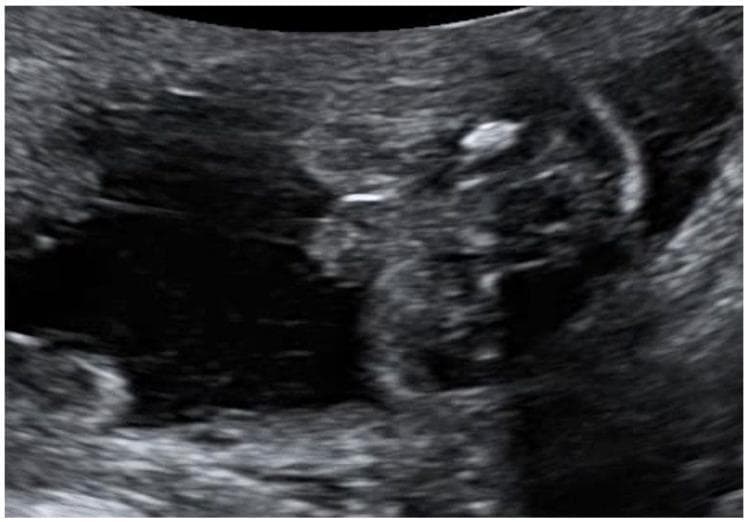

Tulip sign in fetal ultrasound - ambiguous genitalia at 20 weeks showing splayed labioscrotal folds flanking central phallus-like structure consistent with severe hypospadias or DSD

Clitoromegaly (Virilized Female - CAH)

Female with enlarged, prominent clitoris
Sagittal view shows a thick, prominent clitoral projection
Axial view shows divergent, convex labial lines rather than the usual parallel lines
Look for associated uterus on intrapelvic scanning to confirm female internal anatomy

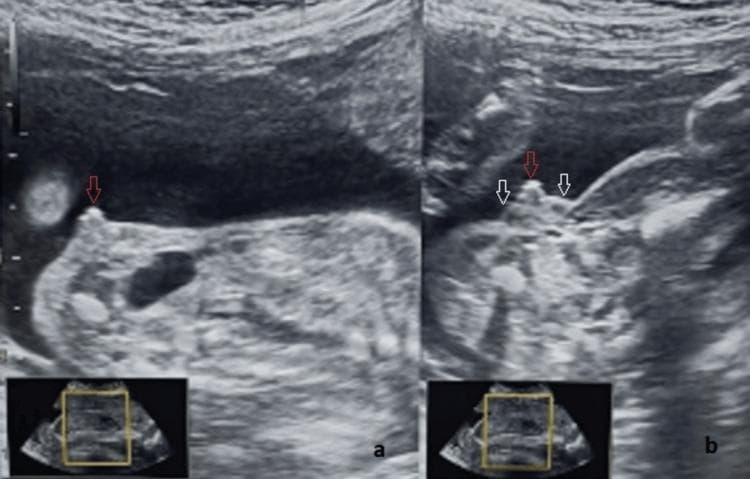

Clitoromegaly at 25 weeks - sagittal and axial views showing prominent clitoris (red arrow) with labial hypertrophy (white arrows) in virilized female fetus

Hypospadias in Males

Scrotum visible but penis absent or poorly defined
"Tulip sign" with proximal urethral meatus
Bifid/divided scrotum visible
Important to distinguish from ambiguous genitalia

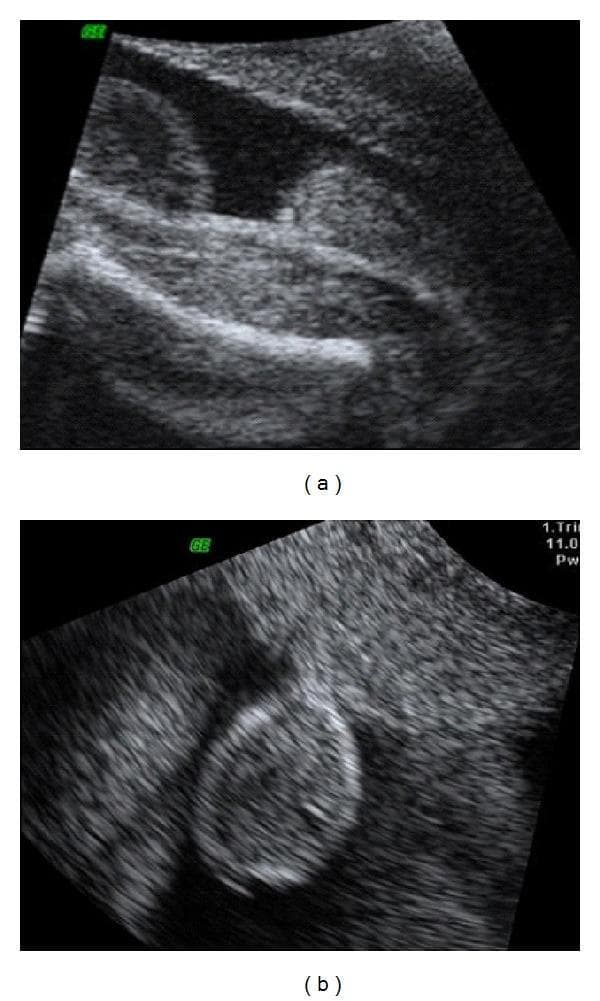

Male hypospadias at 27 weeks - scrotum visible but penis absent in 2D axial views suggesting severe hypospadias

8. Adjunctive Methods Beyond Sonography

When sonography is inconclusive or a DSD is suspected, additional tests include:

Test	What It Shows	When Used
NIPT (Cell-free fetal DNA)	Chromosomal sex (XX/XY) from maternal blood	From 10 weeks; very accurate for sex chromosomes
Chorionic Villus Sampling (CVS)	Full karyotype (46,XX or 46,XY)	10-13 weeks; invasive; when DSD suspected
Amniocentesis	Full karyotype	15-20 weeks; gold standard for chromosomal analysis
SRY gene PCR	Presence/absence of male-determining gene	When mosaicism suspected

9. Practical Tips for the Gynecologist at the Console

Always record gestational age first - this determines which signs to use and expected accuracy
Use the anomaly scan at 18-20 weeks as your primary window - it's the most reliable
Three-plane assessment: transverse (hamburger/turtle), sagittal (phallus shape), and coronal (labial/scrotal folds)
3D/4D ultrasound adds significant confidence when 2D findings are borderline
When in doubt, call it indeterminate and rescan in 2-4 weeks
Always look for both external AND internal genital anatomy - confirm uterus/ovaries in suspected females; gonads in males
Document the scan plane and measurements - medicolegally important especially when DSD is noted

The sonographic finding should always be correlated with karyotype when a disorder of sexual development is suspected. Phenotypic sex on USG does not always equal chromosomal sex.

Create a clinical reference guide PDF with key measurements for fetal sex determination at each gestational age

Reading File

Running Command

ls -la /tmp/workspace/ 2>/dev/null || echo "workspace does not exist yet"

Running Command

mkdir -p /tmp/workspace/fetal-sex-guide && python3 -c "import reportlab; print('reportlab OK')"

Writing File

~/fetal-sex-guide/build_pdf.py

"""
Clinical Reference Guide: Fetal Sex Determination by Sonography
Built with ReportLab
"""

from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.units import mm, cm
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.enums import TA_CENTER, TA_LEFT, TA_RIGHT, TA_JUSTIFY
from reportlab.platypus import (
    SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle,
    HRFlowable, PageBreak, KeepTogether
)
from reportlab.platypus.flowables import BalancedColumns
from reportlab.graphics.shapes import Drawing, Rect, String, Line, Circle, Polygon
from reportlab.graphics import renderPDF
from reportlab.graphics.charts.barcharts import VerticalBarChart
from copy import deepcopy
import os

# ─── Output path ───────────────────────────────────────────────────────────────
OUT_PATH = "/tmp/workspace/fetal-sex-guide/Fetal_Sex_Determination_Clinical_Reference.pdf"

# ─── Colour palette ────────────────────────────────────────────────────────────
TEAL        = colors.HexColor("#0B6E6E")
TEAL_LIGHT  = colors.HexColor("#E6F4F4")
TEAL_MID    = colors.HexColor("#A8D5D5")
NAVY        = colors.HexColor("#1A2E44")
GOLD        = colors.HexColor("#C8A84B")
GOLD_LIGHT  = colors.HexColor("#FDF6E3")
PINK        = colors.HexColor("#D6336C")
PINK_LIGHT  = colors.HexColor("#FDEEF4")
BLUE_MALE   = colors.HexColor("#1565C0")
BLUE_LIGHT  = colors.HexColor("#E3F2FD")
GREEN       = colors.HexColor("#2E7D32")
GREEN_LIGHT = colors.HexColor("#E8F5E9")
ORANGE      = colors.HexColor("#E65100")
ORANGE_LIGHT= colors.HexColor("#FFF3E0")
GREY_DARK   = colors.HexColor("#37474F")
GREY_MID    = colors.HexColor("#90A4AE")
GREY_LIGHT  = colors.HexColor("#ECEFF1")
WHITE       = colors.white
BLACK       = colors.black
RED_WARN    = colors.HexColor("#B71C1C")
RED_WARN_L  = colors.HexColor("#FFEBEE")

W, H = A4  # 595.27 x 841.89 pts

# ─── Styles ────────────────────────────────────────────────────────────────────
base = getSampleStyleSheet()

def style(name, **kwargs):
    s = ParagraphStyle(name, **kwargs)
    return s

TITLE_S = style("Title_S", fontName="Helvetica-Bold", fontSize=22,
                textColor=WHITE, alignment=TA_CENTER, spaceAfter=2)
SUBTITLE_S = style("Subtitle_S", fontName="Helvetica", fontSize=11,
                   textColor=TEAL_MID, alignment=TA_CENTER, spaceAfter=2)
META_S = style("Meta_S", fontName="Helvetica", fontSize=8,
               textColor=GOLD_LIGHT, alignment=TA_CENTER)

H1 = style("H1", fontName="Helvetica-Bold", fontSize=14,
           textColor=WHITE, spaceBefore=0, spaceAfter=0)
H2 = style("H2", fontName="Helvetica-Bold", fontSize=11,
           textColor=NAVY, spaceBefore=8, spaceAfter=4)
H3 = style("H3", fontName="Helvetica-Bold", fontSize=9.5,
           textColor=TEAL, spaceBefore=6, spaceAfter=3)
BODY = style("Body", fontName="Helvetica", fontSize=8.5,
             textColor=GREY_DARK, leading=13, spaceAfter=3)
BODY_SM = style("BodySm", fontName="Helvetica", fontSize=7.5,
                textColor=GREY_DARK, leading=11)
BODY_B = style("BodyB", fontName="Helvetica-Bold", fontSize=8.5,
               textColor=GREY_DARK)
NOTE = style("Note", fontName="Helvetica-Oblique", fontSize=7.5,
             textColor=GREY_MID, leading=11)
WARN = style("Warn", fontName="Helvetica-Bold", fontSize=8,
             textColor=RED_WARN)
CELL_HD = style("CellHd", fontName="Helvetica-Bold", fontSize=8,
                textColor=WHITE, alignment=TA_CENTER)
CELL_BD = style("CellBd", fontName="Helvetica", fontSize=8,
                textColor=GREY_DARK, alignment=TA_CENTER, leading=11)
CELL_BL = style("CellBl", fontName="Helvetica", fontSize=8,
                textColor=GREY_DARK, alignment=TA_LEFT, leading=11)
CELL_BB = style("CellBb", fontName="Helvetica-Bold", fontSize=8,
                textColor=NAVY, alignment=TA_LEFT, leading=11)
BADGE_M = style("BadgeM", fontName="Helvetica-Bold", fontSize=9,
                textColor=BLUE_MALE, alignment=TA_CENTER)
BADGE_F = style("BadgeF", fontName="Helvetica-Bold", fontSize=9,
                textColor=PINK, alignment=TA_CENTER)
FOOTER_S = style("Footer_S", fontName="Helvetica", fontSize=7,
                 textColor=GREY_MID, alignment=TA_CENTER)

# ─── Helper: coloured banner ────────────────────────────────────────────────────
def banner(text, bg=TEAL, fg=WHITE, fs=12, pad=6):
    d = Drawing(W - 40*mm, fs + pad*2 + 4)
    bw = W - 40*mm
    bh = fs + pad*2 + 4
    d.add(Rect(0, 0, bw, bh, fillColor=bg, strokeColor=None))
    d.add(String(bw/2, pad + 2, text, fontName="Helvetica-Bold", fontSize=fs,
                 fillColor=fg, textAnchor="middle"))
    return d

# ─── Helper: small coloured box ─────────────────────────────────────────────────
def tag(text, bg, fg=WHITE):
    return f'<font color="{fg.hexval() if hasattr(fg,"hexval") else "#FFFFFF"}"><b>{text}</b></font>'

# ─── Helper: accuracy bar drawing ──────────────────────────────────────────────
def accuracy_bars():
    data = [
        ("11 wk", 70, 78),
        ("12 wk", 90, 99),
        ("13 wk", 99, 100),
        ("18-20 wk", 95, 99),
        ("28+ wk", 99, 100),
    ]
    bw = W - 44*mm
    bh = 90
    d = Drawing(bw, bh)
    bar_w = 28
    gap = 18
    x_start = 40
    y_base = 22
    max_h = 55
    step = (bw - x_start - 10) / len(data)

    # grid lines
    for pct in [25, 50, 75, 100]:
        y = y_base + (pct / 100) * max_h
        d.add(Line(x_start, y, bw - 10, y,
                   strokeColor=colors.HexColor("#CFD8DC"), strokeWidth=0.5,
                   strokeDashArray=[2, 3]))
        d.add(String(x_start - 4, y - 3, f"{pct}%", fontName="Helvetica",
                     fontSize=6, fillColor=GREY_MID, textAnchor="end"))

    for i, (label, lo, hi) in enumerate(data):
        cx = x_start + i * step + step / 2
        # range bar (lo to hi)
        ylo = y_base + (lo / 100) * max_h
        yhi = y_base + (hi / 100) * max_h
        d.add(Rect(cx - bar_w/2, ylo, bar_w, yhi - ylo,
                   fillColor=TEAL_MID, strokeColor=None))
        # hi marker
        d.add(Rect(cx - bar_w/2, yhi - 3, bar_w, 3,
                   fillColor=TEAL, strokeColor=None))
        # lo value label
        d.add(String(cx, ylo - 9, f"{lo}%", fontName="Helvetica-Bold",
                     fontSize=6.5, fillColor=TEAL, textAnchor="middle"))
        # hi value label
        d.add(String(cx, yhi + 2, f"{hi}%", fontName="Helvetica-Bold",
                     fontSize=6.5, fillColor=TEAL, textAnchor="middle"))
        # x label
        d.add(String(cx, y_base - 10, label, fontName="Helvetica",
                     fontSize=6.5, fillColor=GREY_DARK, textAnchor="middle"))

    # axis
    d.add(Line(x_start, y_base, x_start, y_base + max_h + 5,
               strokeColor=GREY_MID, strokeWidth=0.8))
    d.add(Line(x_start, y_base, bw - 10, y_base,
               strokeColor=GREY_MID, strokeWidth=0.8))
    d.add(String(bw / 2, bh - 8, "Sonographic Sex Determination Accuracy by Gestational Age",
                 fontName="Helvetica-Bold", fontSize=7.5, fillColor=NAVY, textAnchor="middle"))
    return d

# ─── Helper: nub angle diagram ─────────────────────────────────────────────────
def nub_diagram():
    bw = W - 44*mm
    bh = 110
    d = Drawing(bw, bh)
    d.add(Rect(0, 0, bw, bh, fillColor=GREY_LIGHT, strokeColor=None))

    cx = bw / 2
    half = bw * 0.38

    # --- MALE side (left) ---
    mx = cx - half
    by = 60  # base y
    # fetal body silhouette (oval)
    d.add(Rect(mx - 40, by - 12, 80, 24, rx=12, ry=12,
               fillColor=colors.HexColor("#B0BEC5"), strokeColor=None))
    # spine line
    d.add(Line(mx - 38, by, mx + 38, by, strokeColor=GREY_DARK, strokeWidth=1))
    # nub - 45 deg cranial
    import math
    ang = math.radians(45)
    nub_len = 22
    nx_end = mx + nub_len * math.cos(ang)
    ny_end = by + nub_len * math.sin(ang)
    d.add(Line(mx, by, nx_end, ny_end, strokeColor=BLUE_MALE, strokeWidth=2.5))
    d.add(Circle(nx_end, ny_end, 3, fillColor=BLUE_MALE, strokeColor=None))
    # angle arc indicator
    d.add(String(mx + 12, by + 8, ">30°", fontName="Helvetica-Bold",
                 fontSize=8, fillColor=BLUE_MALE))
    d.add(String(mx, by - 22, "MALE", fontName="Helvetica-Bold",
                 fontSize=10, fillColor=BLUE_MALE, textAnchor="middle"))
    d.add(String(mx, by - 32, "Tubercle cranially directed", fontName="Helvetica",
                 fontSize=7, fillColor=GREY_DARK, textAnchor="middle"))

    # --- FEMALE side (right) ---
    fx = cx + half
    d.add(Rect(fx - 40, by - 12, 80, 24, rx=12, ry=12,
               fillColor=colors.HexColor("#B0BEC5"), strokeColor=None))
    d.add(Line(fx - 38, by, fx + 38, by, strokeColor=GREY_DARK, strokeWidth=1))
    # nub - nearly horizontal / slight caudal
    ang_f = math.radians(-5)
    nx_ef = fx + nub_len * math.cos(ang_f)
    ny_ef = by + nub_len * math.sin(ang_f)
    d.add(Line(fx, by, nx_ef, ny_ef, strokeColor=PINK, strokeWidth=2.5))
    d.add(Circle(nx_ef, ny_ef, 3, fillColor=PINK, strokeColor=None))
    d.add(String(fx + 8, by + 5, "<10°", fontName="Helvetica-Bold",
                 fontSize=8, fillColor=PINK))
    d.add(String(fx, by - 22, "FEMALE", fontName="Helvetica-Bold",
                 fontSize=10, fillColor=PINK, textAnchor="middle"))
    d.add(String(fx, by - 32, "Tubercle parallel / caudal", fontName="Helvetica",
                 fontSize=7, fillColor=GREY_DARK, textAnchor="middle"))

    # title
    d.add(String(cx, bh - 8, "Genital Tubercle Angle — Mid-Sagittal View (11–13 Weeks)",
                 fontName="Helvetica-Bold", fontSize=8, fillColor=NAVY, textAnchor="middle"))

    # reference line label
    d.add(String(cx - half - 42, by + 2, "Lumbosacral\naxis", fontName="Helvetica",
                 fontSize=6, fillColor=GREY_MID))
    return d

# ─── Helper: 2nd trimester sign diagram ────────────────────────────────────────
def trimester2_diagram():
    bw = W - 44*mm
    bh = 100
    d = Drawing(bw, bh)
    d.add(Rect(0, 0, bw, bh, fillColor=colors.HexColor("#E8EAF6"), strokeColor=None))

    half = bw * 0.37
    cx = bw / 2
    by = 52

    # === FEMALE - Hamburger sign (left) ===
    fx = cx - half
    # outer labia lines
    for dy in [-10, 10]:
        d.add(Rect(fx - 22, by + dy - 2, 44, 4, rx=2, ry=2,
                   fillColor=PINK, strokeColor=None))
    # clitoris (central dot)
    d.add(Circle(fx, by, 4, fillColor=PINK, strokeColor=None))
    # label
    d.add(String(fx, by - 22, "FEMALE", fontName="Helvetica-Bold",
                 fontSize=10, fillColor=PINK, textAnchor="middle"))
    d.add(String(fx, by - 33, "\"Hamburger / Three-line sign\"", fontName="Helvetica-Oblique",
                 fontSize=7, fillColor=GREY_DARK, textAnchor="middle"))
    d.add(String(fx, by + 20, "Labia majora (outer lines)", fontName="Helvetica",
                 fontSize=6.5, fillColor=GREY_DARK, textAnchor="middle"))
    d.add(String(fx, by + 29, "Clitoris (central dot)", fontName="Helvetica",
                 fontSize=6.5, fillColor=GREY_DARK, textAnchor="middle"))

    # === MALE - Turtle sign (right) ===
    mx = cx + half
    # scrotum (large oval base)
    d.add(Rect(mx - 20, by - 8, 40, 20, rx=10, ry=10,
               fillColor=BLUE_MALE, strokeColor=None))
    # penis (protrusion)
    d.add(Rect(mx - 6, by + 10, 12, 18, rx=3, ry=3,
               fillColor=colors.HexColor("#1E88E5"), strokeColor=None))
    d.add(Circle(mx, by + 29, 6, fillColor=colors.HexColor("#1565C0"), strokeColor=None))
    # label
    d.add(String(mx, by - 22, "MALE", fontName="Helvetica-Bold",
                 fontSize=10, fillColor=BLUE_MALE, textAnchor="middle"))
    d.add(String(mx, by - 33, "\"Turtle / Dome sign\"", fontName="Helvetica-Oblique",
                 fontSize=7, fillColor=GREY_DARK, textAnchor="middle"))
    d.add(String(mx, by + 42, "Phallus (protrusion) + Scrotum (base)", fontName="Helvetica",
                 fontSize=6.5, fillColor=GREY_DARK, textAnchor="middle"))

    d.add(String(cx, bh - 5, "Transverse Perineal View — 2nd Trimester (18–22 Weeks)",
                 fontName="Helvetica-Bold", fontSize=8, fillColor=NAVY, textAnchor="middle"))
    return d

# ─── Page templates ─────────────────────────────────────────────────────────────
def cover_header(canvas, doc):
    canvas.saveState()
    # Full-width teal header block
    canvas.setFillColor(NAVY)
    canvas.rect(0, H - 120*mm, W, 120*mm, fill=1, stroke=0)
    # Gold accent stripe
    canvas.setFillColor(GOLD)
    canvas.rect(0, H - 122*mm, W, 4*mm, fill=1, stroke=0)
    # Teal lower
    canvas.setFillColor(TEAL)
    canvas.rect(0, H - 128*mm, W, 6*mm, fill=1, stroke=0)
    canvas.restoreState()

def inner_header(canvas, doc):
    canvas.saveState()
    # Narrow top bar
    canvas.setFillColor(NAVY)
    canvas.rect(0, H - 18*mm, W, 18*mm, fill=1, stroke=0)
    canvas.setFillColor(GOLD)
    canvas.rect(0, H - 19.5*mm, W, 1.5*mm, fill=1, stroke=0)
    # Header text
    canvas.setFont("Helvetica-Bold", 8)
    canvas.setFillColor(WHITE)
    canvas.drawString(20*mm, H - 12*mm, "CLINICAL REFERENCE: FETAL SEX DETERMINATION BY SONOGRAPHY")
    canvas.setFont("Helvetica", 7)
    canvas.setFillColor(GOLD)
    canvas.drawRightString(W - 20*mm, H - 12*mm, f"Page {doc.page}")
    # Footer
    canvas.setFillColor(GREY_LIGHT)
    canvas.rect(0, 0, W, 10*mm, fill=1, stroke=0)
    canvas.setFont("Helvetica-Oblique", 6.5)
    canvas.setFillColor(GREY_MID)
    canvas.drawCentredString(W/2, 4*mm,
        "For academic and clinical training use only • PC-PNDT Act 1994 prohibits fetal sex disclosure in India")
    canvas.restoreState()

# ─── Build document ─────────────────────────────────────────────────────────────
doc = SimpleDocTemplate(
    OUT_PATH,
    pagesize=A4,
    leftMargin=18*mm, rightMargin=18*mm,
    topMargin=25*mm, bottomMargin=14*mm,
    title="Fetal Sex Determination – Clinical Reference Guide",
    author="Orris Medical AI",
    subject="Obstetrics & Gynecology – Prenatal Sonography"
)

story = []

# ══════════════════════════════════════════════════════════════════
# PAGE 1 — COVER
# ══════════════════════════════════════════════════════════════════
# Spacer to clear the blue header block (≈120 mm from top)
story.append(Spacer(1, 95*mm))

story.append(Paragraph("FETAL SEX DETERMINATION", TITLE_S))
story.append(Paragraph("Clinical Reference Guide for Obstetric Sonography", SUBTITLE_S))
story.append(Spacer(1, 4*mm))
story.append(Paragraph("Key Measurements • Sonographic Signs • Accuracy Data • Clinical Pitfalls", META_S))
story.append(Spacer(1, 6*mm))
story.append(HRFlowable(width="100%", thickness=1, color=GOLD, spaceAfter=4))

# Cover summary boxes
cover_data = [
    [
        Paragraph("<b>PC-PNDT ACT 1994</b>\nSex disclosure prohibited\nin India by law.", BODY_SM),
        Paragraph("<b>FIRST TRIMESTER</b>\nNub / Genital Tubercle\nAngle Method\n11–13 weeks", BODY_SM),
        Paragraph("<b>SECOND TRIMESTER</b>\nHamburger Sign (♀)\nTurtle Sign (♂)\n18–22 weeks", BODY_SM),
        Paragraph("<b>GOLD STANDARD</b>\nKaryotype / NIPT for\nambiguous cases", BODY_SM),
    ]
]
cover_tbl = Table(cover_data, colWidths=[(W - 36*mm)/4]*4)
cover_tbl.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(0,0), RED_WARN_L),
    ("BACKGROUND", (1,0),(1,0), BLUE_LIGHT),
    ("BACKGROUND", (2,0),(2,0), PINK_LIGHT),
    ("BACKGROUND", (3,0),(3,0), GREEN_LIGHT),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.5, GREY_MID),
    ("ALIGN",      (0,0),(-1,-1), "CENTER"),
    ("VALIGN",     (0,0),(-1,-1), "MIDDLE"),
    ("TOPPADDING", (0,0),(-1,-1), 8),
    ("BOTTOMPADDING",(0,0),(-1,-1), 8),
    ("LEFTPADDING",(0,0),(-1,-1), 6),
    ("RIGHTPADDING",(0,0),(-1,-1), 6),
]))
story.append(cover_tbl)
story.append(Spacer(1, 5*mm))
story.append(Paragraph(
    "Version 1.0 | July 2026 | Compiled for Obstetrics & Gynecology Specialists",
    NOTE
))
story.append(PageBreak())

# ══════════════════════════════════════════════════════════════════
# PAGE 2 — EMBRYOLOGICAL BASIS + ACCURACY CHART
# ══════════════════════════════════════════════════════════════════
story.append(Spacer(1, 2*mm))

# Section banner
story.append(Paragraph("1. EMBRYOLOGICAL BASIS & TIMELINE", H2))
story.append(HRFlowable(width="100%", thickness=1.5, color=TEAL, spaceAfter=4))

timeline_data = [
    [Paragraph("<b>Week</b>", CELL_HD),
     Paragraph("<b>CRL (approx.)</b>", CELL_HD),
     Paragraph("<b>Developmental Event</b>", CELL_HD),
     Paragraph("<b>Sonographic Relevance</b>", CELL_HD)],
    [Paragraph("5–6", CELL_BD), Paragraph("~8–10 mm", CELL_BD),
     Paragraph("Genital tubercle forms — identical in both sexes (indifferent stage)", CELL_BL),
     Paragraph("Sex CANNOT be determined", CELL_BL)],
    [Paragraph("7–8", CELL_BD), Paragraph("~16–22 mm", CELL_BD),
     Paragraph("SRY gene activates in XY; testicular differentiation begins", CELL_BL),
     Paragraph("Still not visible on USG", CELL_BL)],
    [Paragraph("9", CELL_BD), Paragraph("~30–33 mm", CELL_BD),
     Paragraph("Male-female divergence begins — testosterone drives phallic growth", CELL_BL),
     Paragraph("Earliest limit of sex prediction", CELL_BL)],
    [Paragraph("11–13", CELL_BD), Paragraph("50–80 mm", CELL_BD),
     Paragraph("External genitalia show sex-specific morphology; nub angle measurable", CELL_BL),
     Paragraph("Nub theory applicable; accuracy rises sharply with CRL", CELL_BL)],
    [Paragraph("16–18", CELL_BD), Paragraph("~120–160 mm", CELL_BD),
     Paragraph("Labia fully developed; scrotum filling; penis elongated", CELL_BL),
     Paragraph("2nd trimester signs emerging", CELL_BL)],
    [Paragraph("18–22", CELL_BD), Paragraph("~160–220 mm", CELL_BD),
     Paragraph("Genitalia well-differentiated; amniotic fluid optimal for visualisation", CELL_BL),
     Paragraph("OPTIMAL WINDOW — hamburger/turtle signs reliable", CELL_BL)],
    [Paragraph("28–36", CELL_BD), Paragraph("~250–330 mm", CELL_BD),
     Paragraph("Testicular descent complete (~32 wk); labial fat deposition complete", CELL_BL),
     Paragraph("3rd trimester confirmation; testes visible in scrotum", CELL_BL)],
]
tbl_timeline = Table(timeline_data,
                     colWidths=[18*mm, 28*mm, 82*mm, 58*mm])
tbl_timeline.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), TEAL),
    ("BACKGROUND", (0,1),(-1,1), GREY_LIGHT),
    ("BACKGROUND", (0,2),(-1,2), WHITE),
    ("BACKGROUND", (0,3),(-1,3), GREY_LIGHT),
    ("BACKGROUND", (0,4),(-1,4), WHITE),
    ("BACKGROUND", (0,5),(-1,5), GREY_LIGHT),
    ("BACKGROUND", (0,6),(-1,6), TEAL_LIGHT),  # optimal window highlighted
    ("BACKGROUND", (0,7),(-1,7), WHITE),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_MID),
    ("VALIGN",     (0,0),(-1,-1), "TOP"),
    ("TOPPADDING", (0,0),(-1,-1), 4),
    ("BOTTOMPADDING",(0,0),(-1,-1), 4),
    ("LEFTPADDING",(0,0),(-1,-1), 5),
    ("RIGHTPADDING",(0,0),(-1,-1), 5),
]))
story.append(tbl_timeline)
story.append(Spacer(1, 2*mm))
story.append(Paragraph(
    "★ Row highlighted in teal = gold-standard window for routine anomaly scan sex assessment.",
    NOTE
))

story.append(Spacer(1, 5*mm))

# Accuracy bar chart
story.append(Paragraph("2. ACCURACY BY GESTATIONAL AGE", H2))
story.append(HRFlowable(width="100%", thickness=1.5, color=TEAL, spaceAfter=4))
story.append(accuracy_bars())
story.append(Spacer(1, 2*mm))
story.append(Paragraph(
    "Bars represent published range (low–high). Accuracy below 12 weeks is operator- and CRL-dependent. "
    "Values from Efrat et al. (2006), Whitlow et al. (1999), and Stocker & Evens (1977).",
    NOTE
))
story.append(PageBreak())

# ══════════════════════════════════════════════════════════════════
# PAGE 3 — FIRST TRIMESTER: NUB THEORY
# ══════════════════════════════════════════════════════════════════
story.append(Spacer(1, 2*mm))
story.append(Paragraph("3. FIRST TRIMESTER METHOD — NUB THEORY (11–13 Weeks)", H2))
story.append(HRFlowable(width="100%", thickness=1.5, color=TEAL, spaceAfter=4))
story.append(Paragraph(
    "The genital tubercle (\"nub\") is identifiable in all fetuses from ~11 weeks. "
    "Its angle relative to the lumbosacral skin surface predicts sex. "
    "Obtain a <b>strict mid-sagittal profile view</b> (same plane as NT measurement).",
    BODY
))
story.append(Spacer(1, 3*mm))
story.append(nub_diagram())
story.append(Spacer(1, 3*mm))

# CRL table
story.append(Paragraph("3A. ACCURACY BY CRL", H3))
crl_data = [
    [Paragraph("<b>CRL (mm)</b>", CELL_HD),
     Paragraph("<b>Gest. Age (approx.)</b>", CELL_HD),
     Paragraph("<b>Feasibility</b>", CELL_HD),
     Paragraph("<b>Accuracy (if assigned)</b>", CELL_HD),
     Paragraph("<b>Clinical Note</b>", CELL_HD)],
    [Paragraph("< 50 mm", CELL_BD), Paragraph("< 11+4 wk", CELL_BD),
     Paragraph("~40%", CELL_BD), Paragraph("Not recommended", CELL_BD),
     Paragraph("Too early; indifferent stage still present", CELL_BL)],
    [Paragraph("50–55 mm", CELL_BD), Paragraph("11+4 – 12 wk", CELL_BD),
     Paragraph("~65%", CELL_BD), Paragraph("~75%", CELL_BD),
     Paragraph("High indeterminate rate; use NT scan opportunity", CELL_BL)],
    [Paragraph("55–60 mm", CELL_BD), Paragraph("~12 wk", CELL_BD),
     Paragraph("~80%", CELL_BD), Paragraph("~96%", CELL_BD),
     Paragraph("Good accuracy; combine with AGD for confidence", CELL_BL)],
    [Paragraph("60–70 mm", CELL_BD), Paragraph("12+2 – 13 wk", CELL_BD),
     Paragraph("~97%", CELL_BD), Paragraph("~99–100%", CELL_BD),
     Paragraph("Excellent; reliable if position optimal", CELL_BL)],
    [Paragraph("≥ 76 mm", CELL_BD), Paragraph("≥ 13 wk", CELL_BD),
     Paragraph("~99%", CELL_BD), Paragraph("99–100%", CELL_BD),
     Paragraph("Near-perfect accuracy; both sexes equally reliable", CELL_BL)],
]
tbl_crl = Table(crl_data, colWidths=[22*mm, 30*mm, 22*mm, 38*mm, 74*mm])
tbl_crl.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), NAVY),
    ("ROWBACKGROUNDS", (0,1),(-1,-1), [WHITE, BLUE_LIGHT]),
    ("BACKGROUND", (0,4),(-1,4), TEAL_LIGHT),  # best row
    ("BACKGROUND", (0,5),(-1,5), GREEN_LIGHT),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_MID),
    ("VALIGN",     (0,0),(-1,-1), "TOP"),
    ("TOPPADDING", (0,0),(-1,-1), 4),
    ("BOTTOMPADDING",(0,0),(-1,-1), 4),
    ("LEFTPADDING",(0,0),(-1,-1), 5),
    ("RIGHTPADDING",(0,0),(-1,-1), 5),
]))
story.append(tbl_crl)
story.append(Spacer(1, 3*mm))

# Angle interpretation
story.append(Paragraph("3B. GENITAL TUBERCLE ANGLE — INTERPRETATION TABLE", H3))
angle_data = [
    [Paragraph("<b>Angle</b>", CELL_HD),
     Paragraph("<b>Direction</b>", CELL_HD),
     Paragraph("<b>Sex</b>", CELL_HD),
     Paragraph("<b>Action</b>", CELL_HD)],
    [Paragraph("> 30°", CELL_BD),
     Paragraph("Cranially directed (toward fetal head)", CELL_BL),
     Paragraph("♂  MALE", BADGE_M),
     Paragraph("High confidence if CRL > 60 mm", CELL_BL)],
    [Paragraph("10°–30°", CELL_BD),
     Paragraph("Intermediate — neither cranial nor caudal", CELL_BL),
     Paragraph("INDETERMINATE", style("Ind", fontName="Helvetica-Bold", fontSize=8, textColor=ORANGE, alignment=TA_CENTER)),
     Paragraph("Report as indeterminate; rescan in 2–3 weeks", CELL_BL)],
    [Paragraph("< 10°", CELL_BD),
     Paragraph("Parallel to spine or caudally directed", CELL_BL),
     Paragraph("♀  FEMALE", BADGE_F),
     Paragraph("High confidence if CRL > 60 mm", CELL_BL)],
]
tbl_angle = Table(angle_data, colWidths=[20*mm, 68*mm, 30*mm, 68*mm])
tbl_angle.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), TEAL),
    ("BACKGROUND", (0,1),(-1,1), BLUE_LIGHT),
    ("BACKGROUND", (0,2),(-1,2), ORANGE_LIGHT),
    ("BACKGROUND", (0,3),(-1,3), PINK_LIGHT),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_MID),
    ("VALIGN",     (0,0),(-1,-1), "MIDDLE"),
    ("TOPPADDING", (0,0),(-1,-1), 5),
    ("BOTTOMPADDING",(0,0),(-1,-1), 5),
    ("LEFTPADDING",(0,0),(-1,-1), 5),
    ("RIGHTPADDING",(0,0),(-1,-1), 5),
]))
story.append(tbl_angle)
story.append(Spacer(1, 3*mm))

# AGD box
agd_data = [[
    Paragraph(
        "<b>ANOGENITAL DISTANCE (AGD) — Adjunctive First-Trimester Marker</b><br/><br/>"
        "• Measured from <b>anterior edge of anus</b> to the <b>tip of genital tubercle</b> (mid-sagittal view)<br/>"
        "• Males have a <b>statistically significantly longer AGD</b> than females at 11–13 weeks<br/>"
        "• Used alongside the genital tubercle angle to <b>improve confidence</b> when the angle is near the cut-off<br/>"
        "• Reference: AGD > ~7–8 mm at CRL 60–70 mm tends to predict male",
        BODY_SM
    )
]]
tbl_agd = Table(agd_data, colWidths=[W - 36*mm])
tbl_agd.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,-1), BLUE_LIGHT),
    ("BOX",        (0,0),(-1,-1), 1.5, BLUE_MALE),
    ("TOPPADDING", (0,0),(-1,-1), 6),
    ("BOTTOMPADDING",(0,0),(-1,-1), 6),
    ("LEFTPADDING",(0,0),(-1,-1), 8),
    ("RIGHTPADDING",(0,0),(-1,-1), 8),
]))
story.append(tbl_agd)
story.append(PageBreak())

# ══════════════════════════════════════════════════════════════════
# PAGE 4 — SECOND TRIMESTER
# ══════════════════════════════════════════════════════════════════
story.append(Spacer(1, 2*mm))
story.append(Paragraph("4. SECOND TRIMESTER — GOLD STANDARD (18–22 Weeks)", H2))
story.append(HRFlowable(width="100%", thickness=1.5, color=TEAL, spaceAfter=4))
story.append(Paragraph(
    "The anomaly scan at 18–20 weeks is the optimal window for sex determination. "
    "Accuracy exceeds <b>95–99%</b> with optimal fetal position. "
    "Scan the perineum in <b>three planes</b>: transverse (primary), sagittal (confirmatory), and coronal (supplementary).",
    BODY
))
story.append(Spacer(1, 3*mm))
story.append(trimester2_diagram())
story.append(Spacer(1, 3*mm))

# Signs table
story.append(Paragraph("4A. SECOND TRIMESTER SONOGRAPHIC SIGNS", H3))
signs_data = [
    [Paragraph("<b>Sign</b>", CELL_HD),
     Paragraph("<b>Sex</b>", CELL_HD),
     Paragraph("<b>Plane</b>", CELL_HD),
     Paragraph("<b>Description</b>", CELL_HD),
     Paragraph("<b>Pitfall</b>", CELL_HD)],
    [Paragraph("Hamburger Sign\n(Three-Line Sign)", CELL_BB),
     Paragraph("♀ Female", BADGE_F),
     Paragraph("Transverse perineal", CELL_BD),
     Paragraph("3 parallel echogenic lines: labia majora (outer) + clitoris (central). "
               "Lines parallel, no protruding structure.", CELL_BL),
     Paragraph("Hypertrophied labia minora can mimic a phallus", CELL_BL)],
    [Paragraph("Turtle Sign\n(Dome Sign)", CELL_BB),
     Paragraph("♂ Male", BADGE_M),
     Paragraph("Transverse perineal", CELL_BD),
     Paragraph("Dome-shaped echogenic protrusion (phallus) with rounded scrotum posteriorly. "
               "Resembles turtle head emerging from shell.", CELL_BL),
     Paragraph("Umbilical cord loop between legs can mimic penis", CELL_BL)],
    [Paragraph("Sagittal Phallus Sign", CELL_BB),
     Paragraph("♂ Male", BADGE_M),
     Paragraph("Sagittal", CELL_BD),
     Paragraph("Elongated echogenic structure projecting anteriorly from perineum. "
               "Confirms transverse finding.", CELL_BL),
     Paragraph("Prominent clitoris in early 2nd trimester", CELL_BL)],
    [Paragraph("Scrotal Sign", CELL_BB),
     Paragraph("♂ Male", BADGE_M),
     Paragraph("Transverse / coronal", CELL_BD),
     Paragraph("Bilateral echogenic ovoid structures in the scrotum. "
               "Testes descend ~28–32 weeks and appear as moderate-echogenicity ovoids.", CELL_BL),
     Paragraph("Empty scrotum with undescended testes (confirm perineal/inguinal region)", CELL_BL)],
    [Paragraph("Flat Perineum Sign", CELL_BB),
     Paragraph("♀ Female", BADGE_F),
     Paragraph("Sagittal", CELL_BD),
     Paragraph("Absence of any protruding structure. "
               "Smooth, flat perineal contour in the sagittal plane.", CELL_BL),
     Paragraph("Early 2nd trimester (<16 wk) — clitoris may appear prominent", CELL_BL)],
]
tbl_signs = Table(signs_data, colWidths=[28*mm, 18*mm, 24*mm, 68*mm, 48*mm])
tbl_signs.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), NAVY),
    ("ROWBACKGROUNDS", (0,1),(-1,-1), [PINK_LIGHT, BLUE_LIGHT, BLUE_LIGHT, BLUE_LIGHT, PINK_LIGHT]),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_MID),
    ("VALIGN",     (0,0),(-1,-1), "TOP"),
    ("TOPPADDING", (0,0),(-1,-1), 5),
    ("BOTTOMPADDING",(0,0),(-1,-1), 5),
    ("LEFTPADDING",(0,0),(-1,-1), 5),
    ("RIGHTPADDING",(0,0),(-1,-1), 5),
]))
story.append(tbl_signs)
story.append(Spacer(1, 3*mm))

# Scanning checklist
story.append(Paragraph("4B. PERINEAL SCANNING TECHNIQUE CHECKLIST", H3))
checklist_data = [
    [Paragraph("□  Fetal position optimal — legs abducted, perineum facing probe", BODY_SM),
     Paragraph("□  Transverse plane at level of fetal perineum (primary)", BODY_SM)],
    [Paragraph("□  Sagittal plane to confirm phallus morphology", BODY_SM),
     Paragraph("□  Coronal plane for labial/scrotal fold assessment", BODY_SM)],
    [Paragraph("□  Adequate amniotic fluid — acts as acoustic window", BODY_SM),
     Paragraph("□  If umbilical cord is suspected, trace to insertion point", BODY_SM)],
    [Paragraph("□  3D/4D mode when 2D findings are borderline", BODY_SM),
     Paragraph("□  Document scan plane and finding in report", BODY_SM)],
]
tbl_check = Table(checklist_data, colWidths=[(W - 36*mm)/2]*2)
tbl_check.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,-1), GREY_LIGHT),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_MID),
    ("TOPPADDING", (0,0),(-1,-1), 4),
    ("BOTTOMPADDING",(0,0),(-1,-1), 4),
    ("LEFTPADDING",(0,0),(-1,-1), 8),
    ("RIGHTPADDING",(0,0),(-1,-1), 5),
]))
story.append(tbl_check)
story.append(PageBreak())

# ══════════════════════════════════════════════════════════════════
# PAGE 5 — COMPARATIVE REFERENCE + 3RD TRIMESTER + PITFALLS
# ══════════════════════════════════════════════════════════════════
story.append(Spacer(1, 2*mm))
story.append(Paragraph("5. FULL GESTATIONAL AGE COMPARISON TABLE", H2))
story.append(HRFlowable(width="100%", thickness=1.5, color=TEAL, spaceAfter=4))

full_data = [
    [Paragraph("<b>GA</b>", CELL_HD),
     Paragraph("<b>CRL / FL</b>", CELL_HD),
     Paragraph("<b>Method</b>", CELL_HD),
     Paragraph("<b>Male Features</b>", CELL_HD),
     Paragraph("<b>Female Features</b>", CELL_HD),
     Paragraph("<b>Accuracy</b>", CELL_HD)],
    [Paragraph("11 wk", CELL_BD), Paragraph("~50 mm", CELL_BD),
     Paragraph("Genital tubercle angle\n(nub theory)", CELL_BL),
     Paragraph("Nub > 30° cranially directed", CELL_BL),
     Paragraph("Nub parallel to spine (<10°)", CELL_BL),
     Paragraph("70–78%", CELL_BD)],
    [Paragraph("12 wk", CELL_BD), Paragraph("55–65 mm", CELL_BD),
     Paragraph("Nub angle + AGD", CELL_BL),
     Paragraph("Nub > 30°; AGD longer", CELL_BL),
     Paragraph("Nub <10°; AGD shorter", CELL_BL),
     Paragraph("90–99%", CELL_BD)],
    [Paragraph("13 wk", CELL_BD), Paragraph("65–80 mm", CELL_BD),
     Paragraph("Nub angle (sagittal sign)", CELL_BL),
     Paragraph("Distinct cranial direction", CELL_BL),
     Paragraph("Caudal / parallel direction", CELL_BL),
     Paragraph("~100%", CELL_BD)],
    [Paragraph("14–17 wk", CELL_BD), Paragraph("80–130 mm", CELL_BD),
     Paragraph("Early external genitalia\n(transitional window)", CELL_BL),
     Paragraph("Phallus elongating; scrotal swelling", CELL_BL),
     Paragraph("Labial development; flat perineum", CELL_BL),
     Paragraph("85–92%\n(variable)", CELL_BD)],
    [Paragraph("18–22 wk\n★ OPTIMAL", CELL_BB), Paragraph("~16–22 cm FL", CELL_BD),
     Paragraph("Hamburger sign\nTurtle sign", CELL_BL),
     Paragraph("Dome-shaped phallus + scrotum\n(turtle sign); elongated sagittal phallus", CELL_BL),
     Paragraph("3 parallel lines (hamburger sign);\nflat perineum in sagittal", CELL_BL),
     Paragraph("95–99%", CELL_BD)],
    [Paragraph("23–27 wk", CELL_BD), Paragraph("~22–24 cm FL", CELL_BD),
     Paragraph("External genitalia\n2D + 3D", CELL_BL),
     Paragraph("Clear penis and scrotum; testes in inguinal region", CELL_BL),
     Paragraph("Well-defined labia; small clitoris visible", CELL_BL),
     Paragraph("97–99%", CELL_BD)],
    [Paragraph("28–36 wk", CELL_BD), Paragraph("~25–33 cm FL", CELL_BD),
     Paragraph("External genitalia;\ntesticular descent", CELL_BL),
     Paragraph("Testes visible in scrotum (usually by 32 wk);\nscrotum echogenic", CELL_BL),
     Paragraph("Labia majora fat deposition complete;\nclitoris small relative to labia", CELL_BL),
     Paragraph(">99%", CELL_BD)],
    [Paragraph("Term\n(37–40 wk)", CELL_BD), Paragraph("~33–36 cm FL", CELL_BD),
     Paragraph("3D / 2D confirmation", CELL_BL),
     Paragraph("Well-descended testes; prominent scrotum", CELL_BL),
     Paragraph("Full labial fat pads; clitoris covered by labia majora", CELL_BL),
     Paragraph(">99%", CELL_BD)],
]
tbl_full = Table(full_data, colWidths=[18*mm, 18*mm, 32*mm, 52*mm, 52*mm, 14*mm])
tbl_full.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), NAVY),
    ("ROWBACKGROUNDS", (0,1),(-1,-1), [WHITE, GREY_LIGHT, WHITE, GREY_LIGHT,
                                        TEAL_LIGHT, WHITE, GREY_LIGHT, WHITE]),
    ("BACKGROUND", (0,5),(-1,5), TEAL_LIGHT),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_MID),
    ("VALIGN",     (0,0),(-1,-1), "TOP"),
    ("TOPPADDING", (0,0),(-1,-1), 4),
    ("BOTTOMPADDING",(0,0),(-1,-1), 4),
    ("LEFTPADDING",(0,0),(-1,-1), 4),
    ("RIGHTPADDING",(0,0),(-1,-1), 4),
]))
story.append(tbl_full)
story.append(Spacer(1, 2*mm))
story.append(Paragraph("★ = optimal window. FL = femur length. GA = gestational age.", NOTE))
story.append(Spacer(1, 4*mm))

# Factors affecting accuracy
story.append(Paragraph("6. FACTORS AFFECTING ACCURACY", H2))
story.append(HRFlowable(width="100%", thickness=1.5, color=TEAL, spaceAfter=4))
factors_data = [
    [Paragraph("<b>Factor</b>", CELL_HD),
     Paragraph("<b>Effect</b>", CELL_HD),
     Paragraph("<b>Mitigation</b>", CELL_HD)],
    [Paragraph("Fetal position (legs crossed/adducted)", CELL_BB),
     Paragraph("Most common cause of sex being unassignable", CELL_BL),
     Paragraph("Ask mother to walk, reposition; rescan in 15–30 min", CELL_BL)],
    [Paragraph("Oligohydramnios", CELL_BB),
     Paragraph("Reduced acoustic window; poor visualisation", CELL_BL),
     Paragraph("Transvaginal approach; 3D mode", CELL_BL)],
    [Paragraph("Gestational age < 11 weeks", CELL_BB),
     Paragraph("Indifferent stage; genitalia not differentiable", CELL_BL),
     Paragraph("Do not attempt; wait for CRL ≥ 55 mm", CELL_BL)],
    [Paragraph("Maternal obesity (BMI > 35)", CELL_BB),
     Paragraph("Poor transabdominal penetration", CELL_BL),
     Paragraph("Higher frequency probe; transvaginal approach early", CELL_BL)],
    [Paragraph("Umbilical cord between legs", CELL_BB),
     Paragraph("Can be mistaken for male phallus", CELL_BL),
     Paragraph("Trace cord to placental insertion; use colour Doppler", CELL_BL)],
    [Paragraph("Early 2nd trimester clitoromegaly", CELL_BB),
     Paragraph("Prominent clitoris may mimic phallus", CELL_BL),
     Paragraph("Look for scrotal structures; confirm with NIPT if uncertain", CELL_BL)],
    [Paragraph("Posterior or prone fetal position", CELL_BB),
     Paragraph("Perineum not facing probe", CELL_BL),
     Paragraph("Maternal position changes; defer to later scan", CELL_BL)],
]
tbl_factors = Table(factors_data, colWidths=[46*mm, 60*mm, 80*mm])
tbl_factors.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), ORANGE),
    ("ROWBACKGROUNDS", (0,1),(-1,-1), [ORANGE_LIGHT, WHITE, ORANGE_LIGHT, WHITE,
                                        ORANGE_LIGHT, WHITE, ORANGE_LIGHT]),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_MID),
    ("VALIGN",     (0,0),(-1,-1), "TOP"),
    ("TOPPADDING", (0,0),(-1,-1), 4),
    ("BOTTOMPADDING",(0,0),(-1,-1), 4),
    ("LEFTPADDING",(0,0),(-1,-1), 5),
    ("RIGHTPADDING",(0,0),(-1,-1), 5),
]))
story.append(tbl_factors)
story.append(PageBreak())

# ══════════════════════════════════════════════════════════════════
# PAGE 6 — DSD / PATHOLOGICAL + ADJUNCTIVE TESTS + LEGAL
# ══════════════════════════════════════════════════════════════════
story.append(Spacer(1, 2*mm))
story.append(Paragraph("7. DISORDERS OF SEXUAL DEVELOPMENT (DSD) — RECOGNITION ON USG", H2))
story.append(HRFlowable(width="100%", thickness=1.5, color=TEAL, spaceAfter=4))
story.append(Paragraph(
    "When genitalia do not fit clearly into male or female morphology, report as <b>ambiguous</b> "
    "and refer to a fetal medicine specialist. Do NOT guess. Karyotype is mandatory in these cases.",
    BODY
))
story.append(Spacer(1, 3*mm))

dsd_data = [
    [Paragraph("<b>Sign / Pattern</b>", CELL_HD),
     Paragraph("<b>Sonographic Appearance</b>", CELL_HD),
     Paragraph("<b>Possible Diagnosis</b>", CELL_HD),
     Paragraph("<b>Next Step</b>", CELL_HD)],
    [Paragraph("Tulip Sign", CELL_BB),
     Paragraph("Two splayed echogenic folds flanking a small central phallus-like nub — resembles a tulip flower", CELL_BL),
     Paragraph("Severe hypospadias; micropenis with bifid scrotum; 46,XY DSD", CELL_BL),
     Paragraph("Karyotype; fetal medicine referral; 3D USG", CELL_BL)],
    [Paragraph("Clitoromegaly\n(Virilised Female)", CELL_BB),
     Paragraph("Prominent thick clitoris in sagittal view; divergent convex labial lines in axial view; "
               "uterus/ovaries present internally", CELL_BL),
     Paragraph("Congenital Adrenal Hyperplasia (CAH) — 46,XX virilised; maternal androgen exposure", CELL_BL),
     Paragraph("Maternal 17-OHP; steroid assay; amniocentesis for karyotype", CELL_BL)],
    [Paragraph("Scrotum without Penis", CELL_BB),
     Paragraph("Scrotal sac visible but phallus absent or rudimentary", CELL_BL),
     Paragraph("Severe hypospadias; cloacal exstrophy; 45,X/46,XY mosaicism", CELL_BL),
     Paragraph("3D USG; detailed anomaly scan; NIPT / karyotype", CELL_BL)],
    [Paragraph("Ambiguous — Neither\nHamburger nor Turtle", CELL_BB),
     Paragraph("Cannot classify as 3-line or dome shape; intermediate morphology", CELL_BL),
     Paragraph("Any DSD; suboptimal fetal position; very early GA", CELL_BL),
     Paragraph("Rescan at later GA; 3D/4D; NIPT if > 10 weeks", CELL_BL)],
    [Paragraph("Gonadal Dysgenesis Pattern", CELL_BB),
     Paragraph("Ambiguous external genitalia + absent/hypoplastic gonads; "
               "streak gonads may not be visible", CELL_BL),
     Paragraph("Turner syndrome mosaicism; Swyer syndrome (46,XY gonadal dysgenesis)", CELL_BL),
     Paragraph("Full karyotype; pelvic anatomy detail; MRI if USG inconclusive", CELL_BL)],
]
tbl_dsd = Table(dsd_data, colWidths=[28*mm, 58*mm, 52*mm, 48*mm])
tbl_dsd.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), colors.HexColor("#6A1B9A")),
    ("ROWBACKGROUNDS", (0,1),(-1,-1), [colors.HexColor("#F3E5F5"), WHITE,
                                        colors.HexColor("#F3E5F5"), WHITE,
                                        colors.HexColor("#F3E5F5")]),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_MID),
    ("VALIGN",     (0,0),(-1,-1), "TOP"),
    ("TOPPADDING", (0,0),(-1,-1), 5),
    ("BOTTOMPADDING",(0,0),(-1,-1), 5),
    ("LEFTPADDING",(0,0),(-1,-1), 5),
    ("RIGHTPADDING",(0,0),(-1,-1), 5),
]))
story.append(tbl_dsd)
story.append(Spacer(1, 4*mm))

# Adjunctive methods
story.append(Paragraph("8. ADJUNCTIVE / CONFIRMATORY METHODS", H2))
story.append(HRFlowable(width="100%", thickness=1.5, color=TEAL, spaceAfter=4))
adj_data = [
    [Paragraph("<b>Method</b>", CELL_HD),
     Paragraph("<b>GA Window</b>", CELL_HD),
     Paragraph("<b>What It Shows</b>", CELL_HD),
     Paragraph("<b>Accuracy</b>", CELL_HD),
     Paragraph("<b>Indication</b>", CELL_HD)],
    [Paragraph("NIPT (cfDNA)", CELL_BB),
     Paragraph("≥ 10 wk", CELL_BD),
     Paragraph("Chromosomal sex (XX/XY) from maternal blood; non-invasive", CELL_BL),
     Paragraph(">99%", CELL_BD),
     Paragraph("Early sex determination (where legal); DSD screening; aneuploidy screen", CELL_BL)],
    [Paragraph("CVS", CELL_BB),
     Paragraph("10–13 wk", CELL_BD),
     Paragraph("Full karyotype (46,XX or 46,XY); rapid FISH for sex chromosomes", CELL_BL),
     Paragraph("99–100%", CELL_BD),
     Paragraph("DSD suspected; sex-linked disorder; aneuploidy risk", CELL_BL)],
    [Paragraph("Amniocentesis", CELL_BB),
     Paragraph("15–20 wk", CELL_BD),
     Paragraph("Full karyotype; gold standard for chromosomal analysis", CELL_BL),
     Paragraph("99–100%", CELL_BD),
     Paragraph("DSD; ambiguous genitalia on USG; chromosomal anomaly suspected", CELL_BL)],
    [Paragraph("SRY Gene PCR", CELL_BB),
     Paragraph("Any (via CVS/amn.)", CELL_BD),
     Paragraph("Presence/absence of male-determining SRY gene on Y chromosome", CELL_BL),
     Paragraph("Very high", CELL_BD),
     Paragraph("Suspected gonadal dysgenesis; 46,XY DSD; sex reversal syndromes", CELL_BL)],
    [Paragraph("3D / 4D USG", CELL_BB),
     Paragraph("16 wk onwards", CELL_BD),
     Paragraph("Surface rendering of genital morphology; better spatial anatomy", CELL_BL),
     Paragraph("Enhances 2D", CELL_BD),
     Paragraph("Borderline 2D findings; hypospadias characterisation; DSD", CELL_BL)],
]
tbl_adj = Table(adj_data, colWidths=[24*mm, 20*mm, 64*mm, 18*mm, 60*mm])
tbl_adj.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,0), GREEN),
    ("ROWBACKGROUNDS", (0,1),(-1,-1), [GREEN_LIGHT, WHITE, GREEN_LIGHT, WHITE, GREEN_LIGHT]),
    ("BOX",        (0,0),(-1,-1), 0.5, GREY_MID),
    ("INNERGRID",  (0,0),(-1,-1), 0.3, GREY_MID),
    ("VALIGN",     (0,0),(-1,-1), "TOP"),
    ("TOPPADDING", (0,0),(-1,-1), 4),
    ("BOTTOMPADDING",(0,0),(-1,-1), 4),
    ("LEFTPADDING",(0,0),(-1,-1), 5),
    ("RIGHTPADDING",(0,0),(-1,-1), 5),
]))
story.append(tbl_adj)
story.append(Spacer(1, 4*mm))

# Legal notice
legal_data = [[
    Paragraph(
        "<b>⚠  LEGAL NOTICE — PC-PNDT ACT 1994 (India)</b><br/><br/>"
        "The Pre-Conception and Pre-Natal Diagnostic Techniques Act, 1994 (as amended) <b>prohibits the "
        "determination and disclosure of fetal sex</b> to any person by any means, including ultrasound, "
        "for non-medical purposes. Violation is a criminal offence punishable by imprisonment and fine.<br/><br/>"
        "<b>This guide is strictly for academic training, DSD diagnosis, and sex-linked disorder screening.</b> "
        "Sex determination for selective abortion is illegal under Indian law.",
        BODY_SM
    )
]]
tbl_legal = Table(legal_data, colWidths=[W - 36*mm])
tbl_legal.setStyle(TableStyle([
    ("BACKGROUND", (0,0),(-1,-1), RED_WARN_L),
    ("BOX",        (0,0),(-1,-1), 2, RED_WARN),
    ("TOPPADDING", (0,0),(-1,-1), 8),
    ("BOTTOMPADDING",(0,0),(-1,-1), 8),
    ("LEFTPADDING",(0,0),(-1,-1), 10),
    ("RIGHTPADDING",(0,0),(-1,-1), 10),
]))
story.append(tbl_legal)
story.append(Spacer(1, 4*mm))

# References
story.append(Paragraph("KEY REFERENCES", H3))
refs = [
    "Efrat Z et al. Fetal gender assignment by first-trimester ultrasound. Ultrasound Obstet Gynecol. 2006;27:619-21.",
    "Whitlow BJ et al. The influence of fetal neck position on nuchal translucency measurement. Br J Obstet Gynaecol. 1999.",
    "Odeh M et al. Fetal sex assignment by first-trimester ultrasound at 11-13+6 weeks. J Ultrasound Med. 2009.",
    "Emerson DS et al. The sagittal sign: an early second trimester sonographic indicator of fetal gender. J Ultrasound Med. 1989.",
    "Stocker J, Evens L. Fetal sex determination by ultrasound. Obstet Gynecol. 1977;50:462-6.",
    "Creasy & Resnik's Maternal-Fetal Medicine: Principles and Practice, 8th ed. Elsevier.",
    "PC-PNDT Act 1994, Government of India. Ministry of Health & Family Welfare.",
]
for r in refs:
    story.append(Paragraph(f"• {r}", NOTE))

# ─── Build ──────────────────────────────────────────────────────────────────────
doc.build(
    story,
    onFirstPage=cover_header,
    onLaterPages=inner_header,
)
print(f"PDF saved to: {OUT_PATH}")

Running Command

cd /tmp/workspace/fetal-sex-guide && python3 build_pdf.py 2>&1

Running Command

ls -lh /tmp/workspace/fetal-sex-guide/

Your clinical reference guide PDF is ready for download:

Fetal Sex Determination Clinical Reference

PDF Document · PDF

Here is what the 6-page guide contains:

Page 1 - Cover

Title card with color-coded summary boxes covering the PC-PNDT Act, first trimester method, second trimester method, and gold standard confirmatory tests

Page 2 - Embryological Timeline + Accuracy Chart

Week-by-week table from week 5 to term, with CRL, developmental event, and sonographic relevance
Visual bar chart showing accuracy ranges (70% at 11 weeks → 100% at 13 weeks → 95-99% at 18-22 weeks)

Page 3 - First Trimester: Nub Theory

Annotated schematic diagram of the genital tubercle angle (male >30° cranial vs. female <10° caudal)
CRL-to-accuracy reference table (50 mm to ≥76 mm)
Genital tubercle angle interpretation table (>30° = male / 10-30° = indeterminate / <10° = female)
Anogenital distance (AGD) adjunctive marker box

Page 4 - Second Trimester Gold Standard

Schematic diagram of hamburger sign (female) vs. turtle/dome sign (male)
Full signs reference table: hamburger sign, turtle sign, sagittal phallus sign, scrotal sign, flat perineum sign - each with plane, description, and pitfall
Perineal scanning technique checklist (8 items)

Page 5 - Full Gestational Age Comparison + Pitfalls

Master table from 11 weeks to term with GA, CRL/FL, method, male features, female features, and accuracy
Factors affecting accuracy table (8 common causes with mitigation strategies)

Page 6 - DSD Recognition + Adjunctive Methods + Legal Notice

DSD pattern recognition table: tulip sign, clitoromegaly, scrotum without penis, ambiguous genitalia, gonadal dysgenesis
Adjunctive methods table: NIPT, CVS, amniocentesis, SRY PCR, 3D/4D USG
PC-PNDT Act 1994 legal notice
Key references

This is a shared conversation. Sign in to Orris to start your own chat.
