🔭 The Complete Guide to Endoscopic Urology Instruments
Sources: Bailey & Love's Short Practice of Surgery 28th Ed., Pfenninger & Fowler's Procedures for Primary Care 3rd Ed., Campbell-Walsh-Wein Urology, BESDATA Ureteroscope Guide, and clinical manufacturer catalogs (Karl Storz, Richard Wolf, Olympus).
🧠 MASTER MEMORY FRAMEWORK
Use this acronym to remember all major instruments:
"Can Urologists Really Navigate Pelvic Stones?"
- C - Cystoscope
- U - Ureteroscope
- R - Resectoscope
- N - Nephroscope
- P - Percutaneous Access Instruments (dilators, sheaths)
- S - Special instruments (urethrotome/VIU, lithotriptors, stent introducers)
⚙️ PART 1: THE CYSTOSCOPE
What is it?
The cystoscope is your gateway to the lower urinary tract - the first and most foundational endourological instrument. Think of it as a periscope for the bladder.
CLASSIFICATION: Rigid vs. Flexible
| Feature | Rigid Cystoscope | Flexible Cystoscope |
|---|---|---|
| Anaesthesia | General/spinal preferred | Local anaesthesia (lidocaine gel) |
| Optics | Hopkins rod-lens system | Fiberoptic bundles / CCD chip |
| Irrigation | Separate in/outflow taps on sheath | Integrated single channel |
| Lens change | Remove & swap telescopes | Entire scope must be removed |
| Patient position | Lithotomy (legs up) | Supine (comfortable) |
| Procedures | Full range - biopsy, resection, catheter, stents | Limited - surveillance, stent removal, small biopsies |
| Image quality | Superior | Adequate for diagnosis |

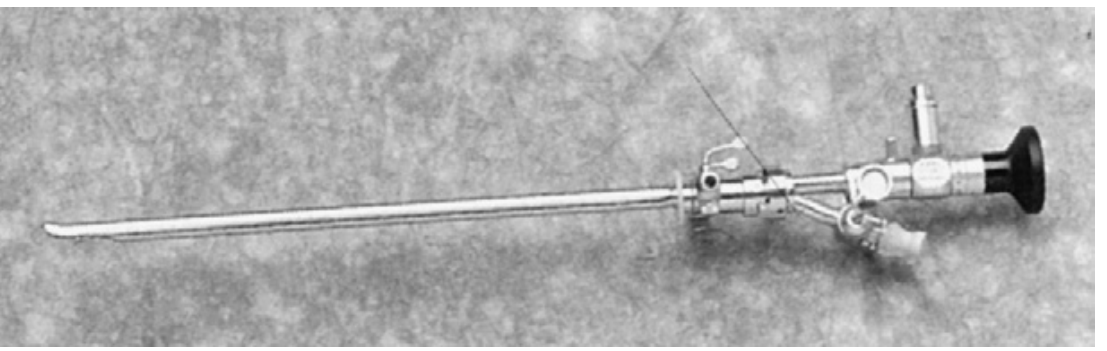

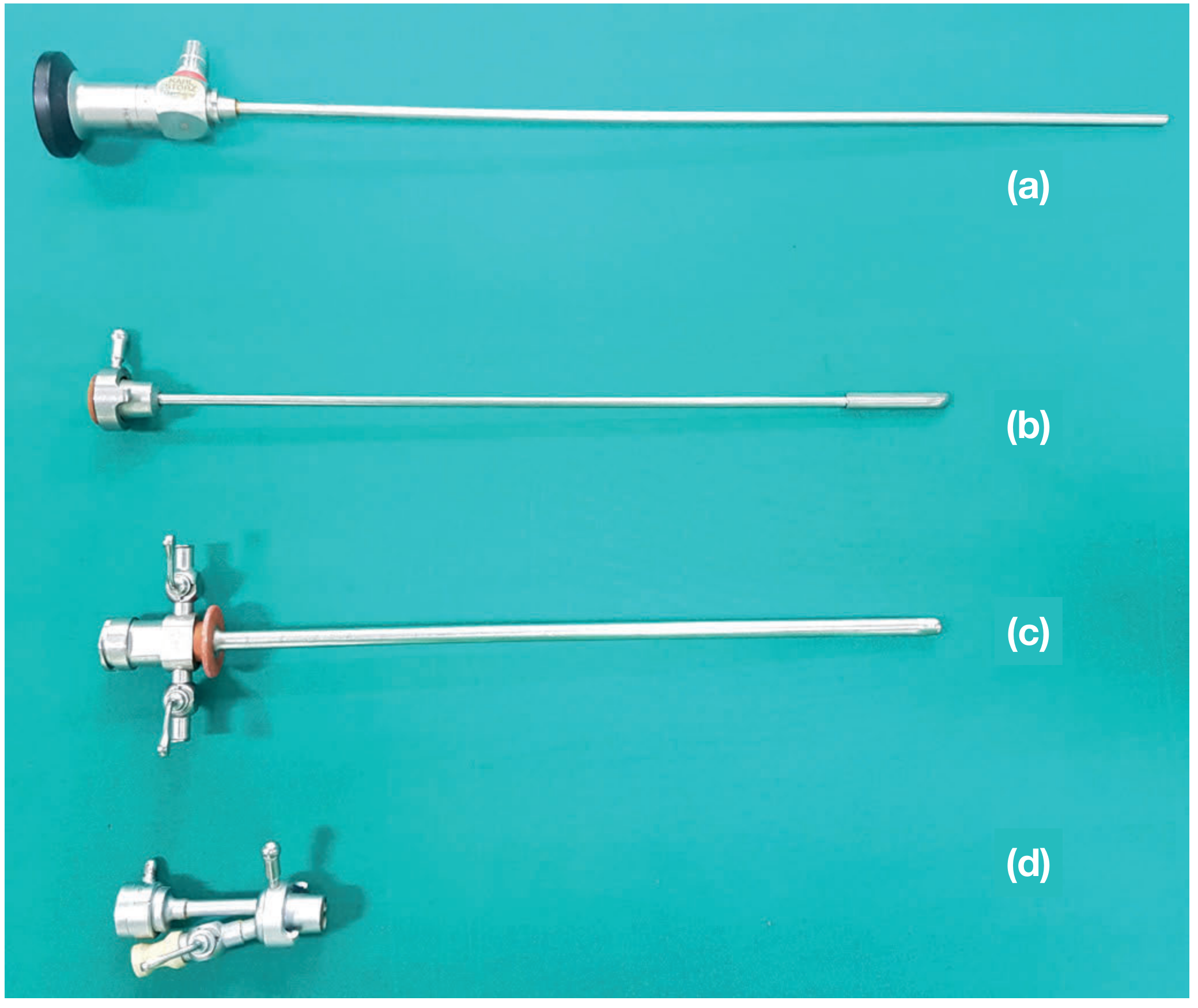

PARTS OF THE RIGID CYSTOSCOPE (The "TOBS" System)
Memory trick: "The Old Bridge Speaks" = Telescope - Obturator - Bridge - Sheath
1. TELESCOPE 🔭
- The optical core - contains the Hopkins rod-lens system (invented by Prof. Harold Hopkins, revolutionizing urology)
- Size: 4 mm diameter, 30 cm length (fits all sheaths)
- Light post: connects to external fibreoptic light cable
- Eyepiece/camera port: top of the telescope; camera head attaches here
Classified by VIEWING ANGLE:
| Angle | Name | Use | Memory Trick |
|---|---|---|---|
| 0° | Forward/Straight | Urethroscopy (straight ahead) | "0 = go straight" |
| 12° | Forward oblique | Urethra & bladder neck | "12 = slight detour" |
| 30° | Forward oblique | Base & anterolateral bladder, ureteral orifices | "30 = standard workhorse" |
| 70° | Lateral | Bladder dome & lateral walls | "70 = look sideways up" |
| 120° | Retrograde/Retrospective | Anterior bladder neck from inside | "120 = look backwards" |
Clinical Pearl: With flexible cystoscopes rising in popularity, the 70° and 120° rigid telescopes are becoming obsolete. The 30° is the most commonly used. (Pfenninger & Fowler, p.799)
How the Hopkins Rod-Lens System works:
Traditional scopes used air-filled tubes with small glass lenses. Hopkins reversed this - he used long glass rods with air spaces in between. More glass = more light transmission = brighter, clearer image. This was the single greatest optical revolution in endourology.
2. SHEATH (Outer Tube) 🧪
- The metal tube that goes into the patient - it is the vehicle
- Size: 17-26 French (Fr) diameter (1 Fr = 0.33 mm)
- Has inflow and outflow ports (stopcocks/taps) for irrigation fluid
- Beak of the sheath: the distal tip, designed to be atraumatic (bulbous dorsally, smooth)
- Has calibration markings to measure prostatic urethral length
- A sheath with beak can be passed without an obturator; without beak (e.g., VIU/resectoscope sheath), it needs an obturator
Measuring prostatic urethral length with the sheath:
- Insert scope fully → note external meatus marking (Point A)
- Withdraw to bladder neck → note marking (Point B)
- Withdraw further to verumontanum → note marking (Point C)
- Distance B-C = prostatic urethral length
Irrigation fluids:
- Saline or Ringer's lactate: for procedures without electrocautery
- Non-conducting solutions (glycine, sorbitol, mannitol, sterile water): required for monopolar electrocautery to avoid current dissipation
3. OBTURATOR 🔵
- The blunt solid inner rod that occupies the sheath during blind insertion
- Prevents trauma by replacing the sharp telescope during passage
- Used in females (shorter urethra, blind insertion possible) and when the sheath beak doesn't allow direct vision insertion
- Memory trick: "Obturator = Obstacle-remover" - it smoothens entry
4. BRIDGE 🌉
- The connector between the telescope and sheath - like a bridge joining two shores
- Provides an extra length (the bridge adds the "male extra length" because male urethra is longer)
- Has working channel ports - typically 1 or 2 channels
- One-channel bridge: passage of a single 5-7 Fr instrument
- Two-channel bridge: simultaneous use of 2 instruments (e.g., catheter + forceps)
- The bridge also seals the scope-sheath assembly to maintain irrigation pressure

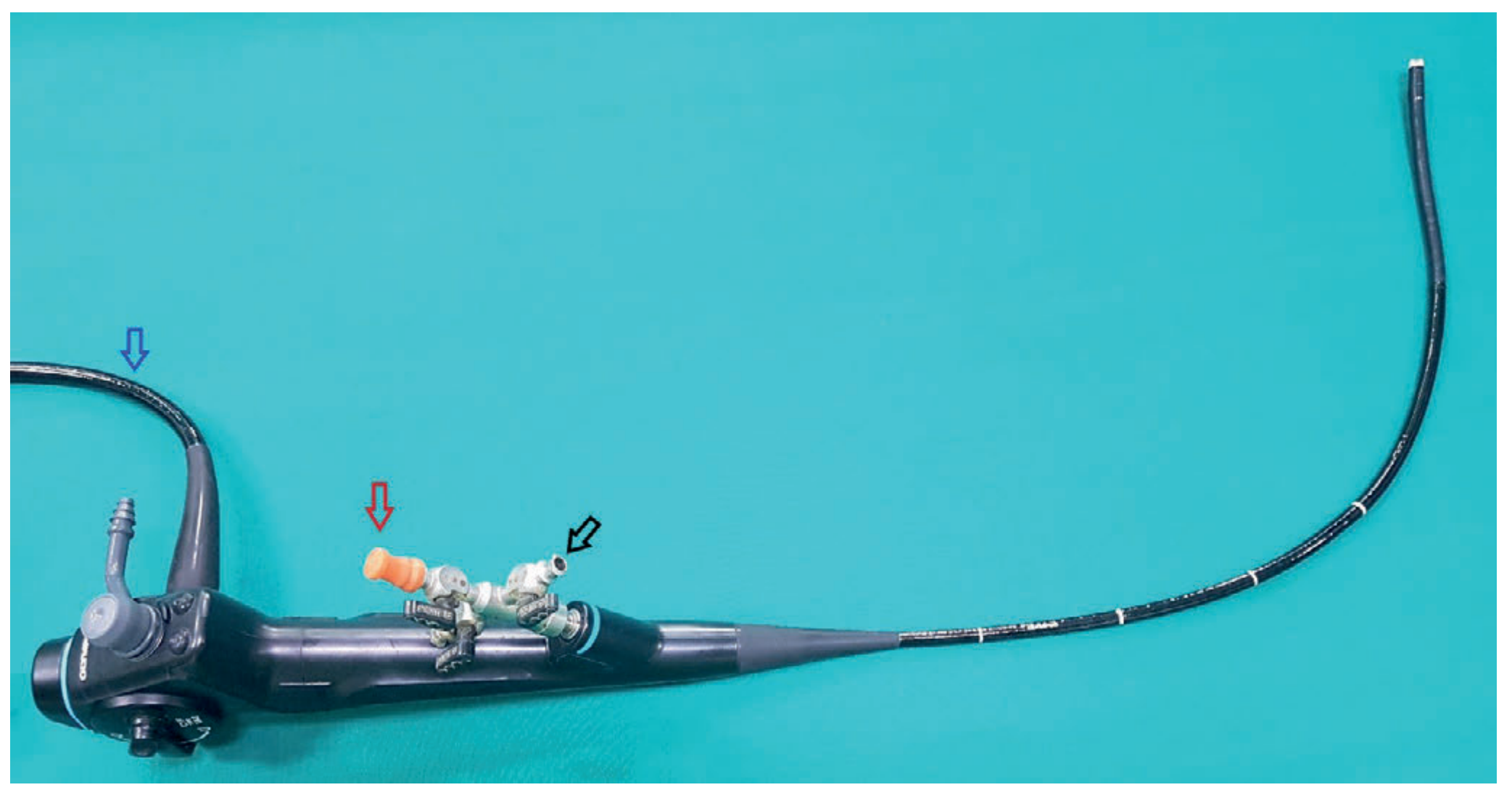

PARTS OF THE FLEXIBLE CYSTOSCOPE
The flexible scope is an integrated single-unit - no separate sheath or bridge. Its parts:
| Part | Function |
|---|---|
| Body/Handle | Held by surgeon; contains deflection lever, working channel port, irrigation taps |
| Deflection lever | Controls tip angulation - up to 290° in a single plane |
| Working channel port | Entry for 5-6 Fr instruments (smaller than rigid) |
| Light post | Connects fibreoptic light cable |
| Video connection | Connects to camera/monitor system |
| Insertion tube (shaft) | Long flexible shaft housing fibers, working channel, deflection wires |
| Distal tip | Houses objective lens or CCD chip; deflects actively |
Two subtypes of flexible cystoscopes:
- Fiberoptic (conventional): Image transmitted via glass fiber bundles; has eyepiece
- Digital (videoscope): CCD/CMOS chip at the tip sends electronic signals directly to monitor; superior resolution; no fiber "pixelation"
⚙️ PART 2: THE URETEROSCOPE
What is it?
An ureteroscope is a longer, narrower cystoscope designed to travel past the bladder and up into the ureter and renal pelvis. Think of it as a deep-sea explorer going into increasingly narrow territory.
History:
- 1979: First dedicated ureteroscope designed by Richard Wolf Medical Instruments
- 1985: First fiberoptic ureteroscope by ACMI
- 2000s: Digital (chip-on-tip) flexible ureteroscopes introduced
CLASSIFICATION: Three Main Types
TYPE 1: RIGID URETEROSCOPE
- Completely inflexible shaft
- Best for distal/lower ureter (straight anatomical segments)
- Optics: rod-lens or fiberoptic
- Largely replaced by semirigid but still used in some settings
TYPE 2: SEMI-RIGID URETEROSCOPE
- Most commonly used in current practice
- Has slight inherent bendability but no active deflection
- Sizing is expressed as two numbers (e.g., 7/8.5):
- First number = tip diameter (7 Fr)
- Second number = shaft diameter (8.5 Fr)
- Common sizes: 6/7.5, 7/8.5, 8/9.5
- Length: Short = 35 cm (females); Long = 45 cm (males)
- All modern semirigid URS have optical fibers
- Working channel: straight (for pneumatic lithotripsy) or oblique (for laser - "uretero-laser scope")
TYPE 3: FLEXIBLE URETEROSCOPE
- Actively deflecting tip (180-270°+ deflection)
- Reaches the entire upper urinary tract including all renal calyces
- Fiberoptic vs Digital (video) subtypes:
| Fiberoptic URS | Digital URS | |
|---|---|---|
| Image capture | Fiber bundles → eyepiece → camera | CCD/CMOS chip at tip |
| Image quality | Good but "pixelated" fiber pattern | High definition, superior |
| Durability | Less durable (fragile fibers) | More durable |
| Cost | Less expensive | More expensive |
| Single-use variants | Available | Growing category |
PARTS OF THE URETEROSCOPE
Memory trick: "HELLO WIDE" = Handle - Eyepiece/LED - Light post - Lever (deflection) - Optical system - Working channel - Insertion tube - Distal tip - Extension
| Part | Detail |
|---|---|
| Eyepiece (Fiberoptic) | Ocular lens; magnifies and makes image visible; has focusing ring |
| Handle/Body | Proximal; ergonomic grip; houses working channel port, irrigation inlets |
| Deflection lever (flexible) | Moves tip up-down; some scopes have 4-way deflection |
| Light post | Connects fibreoptic light source cable |
| Working channel | 1 or 2 channels; most have single ~3.6 Fr channel (or dual smaller channels) |
| Insertion tube/shaft | Long slim shaft; the "corridor" into the ureter |
| Distal tip | Tapered for atraumatic entry; houses lens/sensor and channel exit; laser-resistant materials at channel opening |

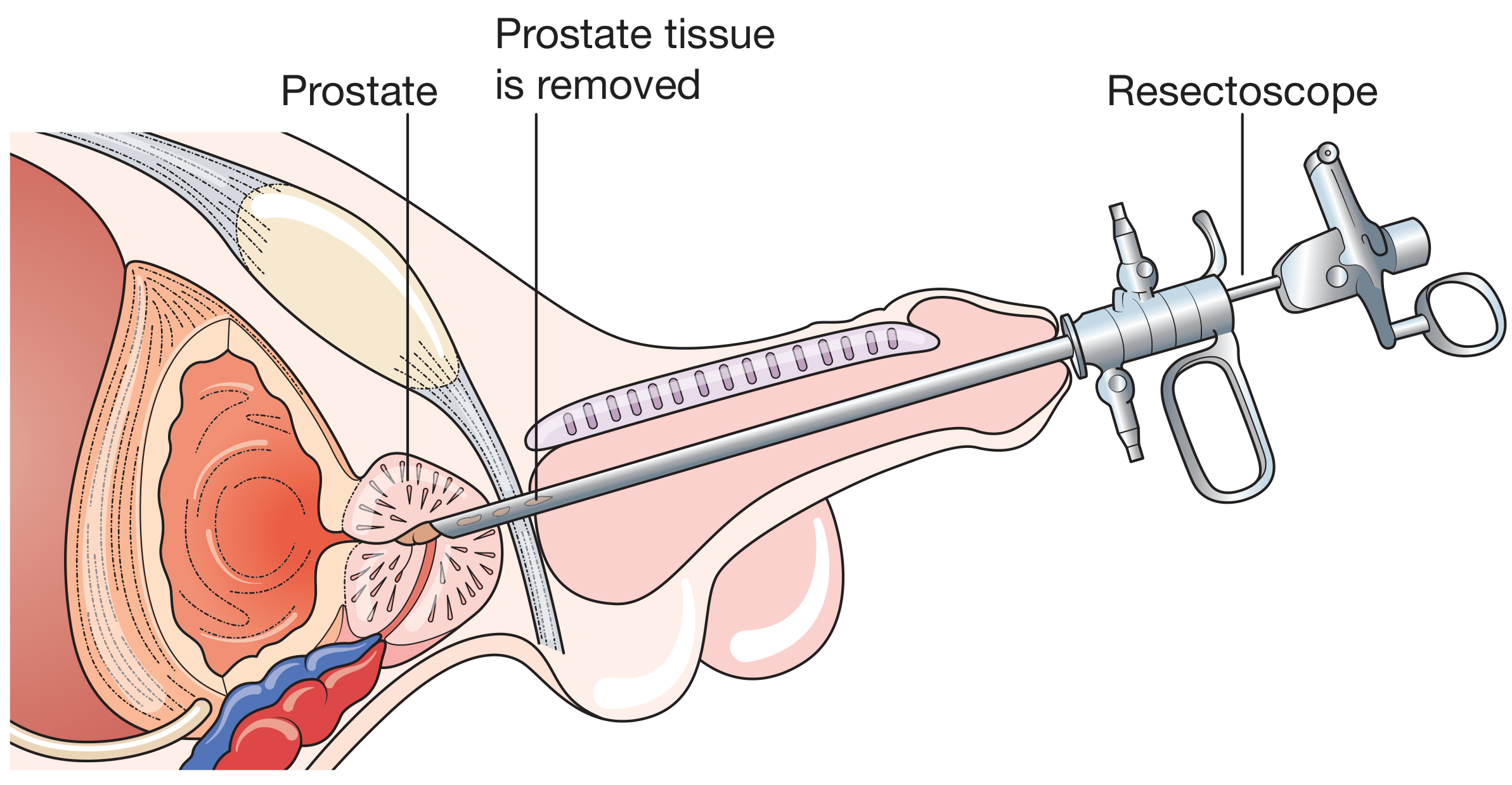

⚙️ PART 3: THE RESECTOSCOPE
What is it?
The resectoscope is the surgical workhorse of endourology - it is what removes prostate tissue in TURP and cuts bladder tumors in TURBT. Think of it as a lawnmower inside the bladder.
Historical note: The greatest advance was Prof. Harold Hopkins' rigid lens system - the same that transformed cystoscopes. His fibreoptic-illuminated lenses provide unparalleled visualization. (Bailey & Love's, p.1550)
CLASSIFICATION
By Current Type:
| Type | Irrigant Used | Mechanism | Risk of TURP Syndrome |
|---|---|---|---|
| Monopolar (conventional) | Non-conducting (glycine 1%, sorbitol, mannitol) | Current passes patient → return plate | Yes (hyponatremia risk) |
| Bipolar (modern) | Normal saline | Current flows loop → adjacent electrode | No (saline = physiological) |
Resection time limit: Monopolar TURP is limited to 1 hour due to risk of fluid resorption with glycine. Bipolar TURP with saline has no such time constraint and allows larger prostates to be resected safely. (Bailey & Love's, p.1550)
By Procedure:
- TURP (Transurethral Resection of Prostate)
- TURBT (Transurethral Resection of Bladder Tumour)
- Bladder neck incision (Collins knife)
PARTS OF THE RESECTOSCOPE
Memory trick: "SLOW TRIP" = Sheath - Loop electrode - Optical telescope - Working element - Telescope (30°) - Roller/Rollerball - Irrigation ports - Passive/active mechanism
| Part | Detail |
|---|---|
| Outer sheath | 24-28 Fr; fits transurethrally; has large inflow/outflow ports for continuous irrigation |
| Inner sheath (Albarran/deflector) | Optional; can deflect instruments |
| Resectoscope body/handle | Pistol-grip mechanism; thumb moves working element back and forth |
| Working element | The "gun trigger" - moves the loop forward (cut) and back (passive/spring return) |
| Telescope (30°) | Standard is 30° forward oblique lens for TURP; gives best view of lateral lobes |
| Diathermy loop | Tungsten wire loop; activated by high-frequency current; cuts and coagulates |
| Rollerball/roller electrode | Used for coagulation only (not cutting); rolls over bleeding points |
| Irrigation ports | Inflow = bring clear fluid in; Outflow = carry "chips" and blood out; continuous flow = constant clear field |
How the resection works (step by step):
- Loop is extended forward past the tissue
- Current is activated (cutting mode)
- Loop is drawn back through the tissue → a strip ("chip") is cut
- Coagulation current stops bleeding
- Chips accumulate → periodically washed out with an Ellik evacuator
- Procedure ends when adequate channel is created through the prostate
Resection rate: Approximately 1 gram of prostate per minute in experienced hands.
⚙️ PART 4: THE NEPHROSCOPE
What is it?
The nephroscope is a thick, short, sturdy scope used via a surgically created track into the kidney (percutaneous route). If the cystoscope is a periscope and the ureteroscope is a deep-sea explorer, the nephroscope is a drill-and-tunnel engineer accessing a kidney stone from outside.
Used for: Percutaneous Nephrolithotomy (PCNL) - removal of large kidney stones (>20mm) that cannot pass or be broken with ESWL.
CLASSIFICATION
By Size:
| Type | Sheath Size | Use |
|---|---|---|
| Standard PCNL | 24-30 Fr | Large staghorn/complex stones |
| Mini-PCNL | 14-20 Fr | Medium stones, reduced morbidity |
| Ultra-mini/Micro-PCNL | 8-14 Fr | Small calyceal stones, pediatrics |
| Micro-PCNL | 4.8-8 Fr | Exclusively for stone dusting |
By Optics:
- Standard nephroscope (30° lens, rod-lens system)
- Flexible nephroscope (used in difficult calyceal positions)
- Combined cysto-nephroscope (flexible dual-purpose scopes, e.g., Olympus CYF-VH)
PARTS OF THE NEPHROSCOPE
| Part | Detail |
|---|---|
| Telescope | Typically 12° or 0° forward-oblique; rod-lens system; 4 mm diameter |
| Sheath | Short (15-20 cm), wide (24-30 Fr) to accommodate large instruments; designed for PCNL tract |
| Obturator | Solid rod used to introduce sheath into the established tract |
| Working channels | Large (up to 8 Fr); accepts nephroscopy forceps, ultrasonic/pneumatic probes, laser fibers |
| Irrigation ports | High-flow inflow and outflow; essential to maintain clear vision during stone fragmentation |
| Instrument arm | Angled working arm allows tools to be directed toward the stone |
The PCNL Setup Sequence:
- Percutaneous needle puncture into renal calyx (under fluoroscopy/ultrasound)
- Guidewire passed through needle
- Track dilated (Alken metal dilators, Amplatz dilators, or one-step balloon dilator)
- Amplatz sheath (30 Fr) placed to maintain tract
- Nephroscope introduced through the sheath
- Stone fragmented with pneumatic, ultrasonic, or laser lithotriptor
- Fragments removed with nephroscopy forceps/basket
⚙️ PART 5: THE URETHROTOME (VIU Sheath)
What is it?
Used for Visual Internal Urethrotomy (VIU) - cutting urethral strictures under direct vision. It is similar to a cystoscope sheath but the sheath requires an obturator (no beak design), and a cold knife or Otis urethrotome is passed through the working channel.
Key difference from cystoscope sheath: VIU sheath has no atraumatic beak, so it MUST be passed with an obturator.
⚙️ PART 6: THE UROLOGY STACK & ACCESSORIES
Every endourological procedure depends on a surrounding system - the urology stack. Think of it as the mission control for endoscopy.
| Component | Function |
|---|---|
| Light source | Xenon or LED 300W; supplies bright white light via fibreoptic cable |
| Fibreoptic light cable | Transmits light from source to telescope; must never be kinked |
| Camera head | Attaches to telescope eyepiece; converts optical image to digital signal |
| Monitor (HD/4K) | Displays the operative field; allows documentation |
| Image processor | Processes camera signal; may include NBI/narrow-band imaging |
| Irrigation system | Hanging bags (500 mL-3 L) on IV pole; controlled via stopcocks |
| Electrocautery/diathermy unit | Generator for monopolar or bipolar current; essential for resection/coagulation |
⚙️ PART 7: ACCESSORY INSTRUMENTS (passed through working channels)
These are the tools that work through the cystoscope, ureteroscope, or nephroscope:
| Instrument | Size | Function |
|---|---|---|
| Biopsy forceps | 5 Fr, 43 cm (rigid) / flexible variants | Take tissue samples |
| Grasping forceps | 3-5 Fr | Retrieve foreign bodies, stone fragments |
| Ureteral catheters | 3-6 Fr | Retrograde pyelography, stent guidance |
| Dormia basket / Stone basket | 3-5 Fr | Capture and extract ureteral stones |
| Balloon dilator | 4-7 Fr | Dilate ureteral orifice / PCNL tract |
| Laser fiber | 200-600 µm | Holmium, Thulium, or TFL laser lithotripsy |
| Pneumatic lithotripsy probe | Straight channel only | Mechanical stone fragmentation |
| Roller electrode | 24+ Fr sheath | Bladder fulguration, TURBT hemostasis |
| Collins knife | Resectoscope sheath | Bladder neck incision |
| Ellik evacuator | Post-resection | Wash out prostate chips from bladder |
🗺️ ANATOMICAL ROUTE MAP: Which Scope Goes Where?
EXTERNAL MEATUS
↓ [Cystoscope sheath enters here]
URETHRA ← Cystoscope (0° lens), VIU/urethrotome
↓
BLADDER ← Cystoscope (30° & 70° lens), Resectoscope (TURP/TURBT)
↓
URETERAL ORIFICE ← Cystoscope identifies, guides ureteroscope
↓
URETER ← Semi-rigid Ureteroscope (lower/mid ureter)
↓
RENAL PELVIS ← Flexible Ureteroscope (URS)
↓
RENAL CALYCES ← Flexible URS or Nephroscope (percutaneous track)
↑
EXTERNAL FLANK
Nephroscope enters via PCNL track
🎓 QUICK COMPARISON TABLE
| Feature | Cystoscope | Ureteroscope (semirigid) | Resectoscope | Nephroscope |
|---|---|---|---|---|
| French size | 17-26 Fr | 6-9 Fr tip | 24-28 Fr | 24-30 Fr |
| Length | 30 cm | 35-45 cm | 30 cm | 15-20 cm |
| Telescope angle | 0°, 30°, 70°, 120° | 0° | 30° | 12° |
| Working channel | 5-7 Fr | 3.6-4 Fr | Large (loop) | 6-10 Fr |
| Irrigation | In/out taps | Single port | Continuous flow | High-flow in/out |
| Access route | Transurethral | Transurethral → ureter | Transurethral | Percutaneous flank |
| Key use | Diagnosis, stents, biopsies | Stone, stricture, tumour (ureter/kidney) | TURP, TURBT | Large renal stones (PCNL) |
📌 HIGH-YIELD EXAM FACTS
- French size = 3 × diameter in mm (e.g., 24 Fr = 8 mm diameter)
- Hopkins rod-lens system = more glass than air → brighter image = revolution in endourology
- 30° telescope = most used for cystoscopy; 0° = urethroscopy
- Bipolar TURP uses saline; monopolar uses glycine/sorbitol → risk of dilutional hyponatremia (TURP syndrome)
- Semirigid URS sizing: First number = tip Fr, second = shaft Fr (e.g., 7/8.5)
- Flexible ureteroscope deflects up to 290° in a single plane
- Obturator is needed for sheaths without an atraumatic beak (VIU, resectoscope sheath); not needed if beak is present (cystoscope sheath)
- Resection rate: ~1 g prostate/min; monopolar TURP max duration = 1 hour
- Ellik evacuator is used to wash out chips after TURP
- Cystoscope components mnemonic = TOBS (Telescope - Obturator - Bridge - Sheath)
Sources:
- Bailey and Love's Short Practice of Surgery, 28th Edition, pp. 1474, 1550
- Pfenninger and Fowler's Procedures for Primary Care, 3rd Edition, pp. 799-801
- Campbell-Walsh-Wein Urology, Percutaneous Nephrolithotomy sections
- BESDATA Ureteroscope Guide (clinical classification)
- Karl Storz & Richard Wolf instrument catalogs
This is a shared conversation. Sign in to Orris to start your own chat.
