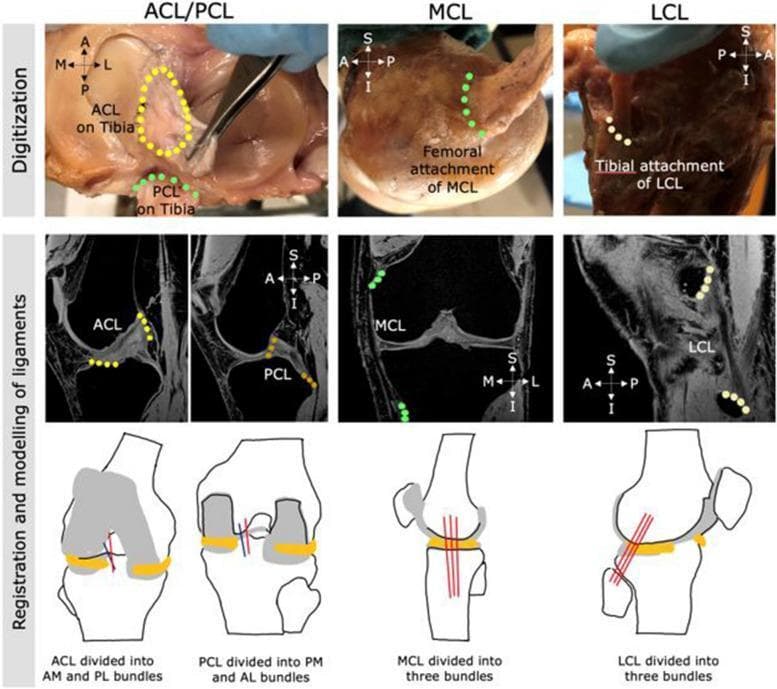

This composite educational image illustrates the multi-step process for digitizing and modeling human knee ligaments—ACL, PCL, MCL, and LCL—for orthopedic research. The top row features clinical photographs of cadaveric dissections where ligaments are digitized using anatomical landmarks: the ACL is highlighted as an oval area on the tibia, while the PCL, MCL, and LCL attachment sites are marked with colored point sequences. The middle row displays T1-weighted or Proton Density MRI scans in sagittal and coronal planes, showing the registration of these digitized points onto medical imaging to define ligamentous paths. The bottom row consists of schematic anatomical diagrams demonstrating the conceptual subdivision of ligaments into functional bundles: the ACL into anteromedial (AM) and posterolateral (PL) bundles; the PCL into posteromedial (PM) and anterolateral (AL) bundles; and the collateral ligaments (MCL and LCL) each into three distinct fiber bundles. This visualization supports biomechanical finite element modeling and the understanding of knee ligamentous stability and anatomy.

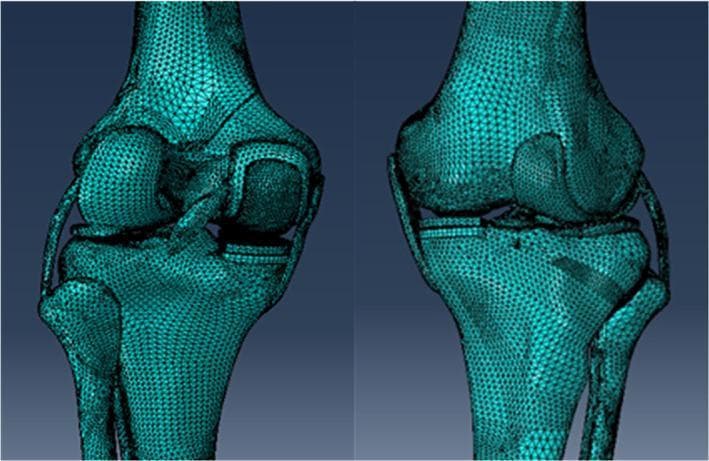

This image presents two views of a high-fidelity 3D computational model of a human knee joint featuring a Unicompartmental Knee Arthroplasty (UKA). The model is rendered using a complex triangular finite element mesh, providing a faceted visualization of the anatomical and prosthetic surfaces. The anatomy shown includes the distal femur, proximal tibia, and proximal fibula. Crucial soft tissue structures, including the anterior and posterior cruciate ligaments (ACL/PCL) and the medial and lateral collateral ligaments (MCL/LCL), are modeled as cable-like structures connecting the bony elements. The UKA is situated in the medial compartment, consisting of a metallic femoral condyle resurfacing component and a tibial baseplate platform. The model is designed for biomechanical stress analysis and surgical simulation, specifically investigating the impact of tibial component alignment and obliquity on load distribution. The teal-colored mesh highlights the geometry used for finite element analysis (FEA), demonstrating the interaction between the prosthetic implants and the native bone-cartilage complex.

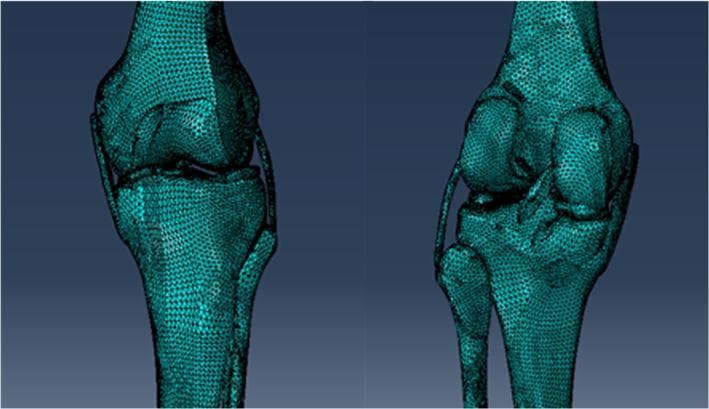

This diagnostic illustration presents two perspective views of a three-dimensional (3D) native human knee joint model. The visualization is a finite element or triangulated mesh representation derived from fused CT and MRI data. Anatomical structures shown include the distal femur, proximal tibia, and proximal fibula, with the mesh density clearly defining the cortical surfaces and contours. The model highlights soft tissue integration, specifically depicting the meniscus and the four major stabilizing ligaments: the anterior cruciate ligament (ACL), posterior cruciate ligament (PCL), medial collateral ligament (MCL), and lateral collateral ligament (LCL). The spatial relationships illustrate the tibiofemoral and proximal tibiofibular articulations. This digital model serves as a foundation for biomechanical simulations, such as Unicompartmental Knee Arthroplasty (UKA) planning and stress distribution analysis. The anatomical accuracy is tailored for orthopedic research and surgical education, emphasizing joint kinematics and structural integrity.

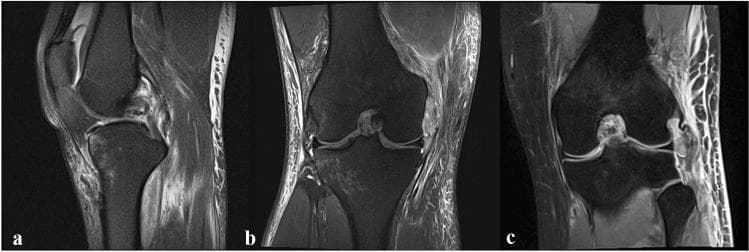

This set of three MRI images of the human knee joint illustrates combined ligamentous injuries. Image (a) is a sagittal view demonstrating an intraligamentous tear of the posterior cruciate ligament (PCL). The image shows discontinuity and high signal intensity within the PCL fibers, accompanied by peri-ligamentous edema. Image (b) is a coronal view displaying a medial collateral ligament (MCL) avulsion from its femoral attachment site, indicative of a posteromedial corner (PMC) injury. Image (c) is a coronal view highlighting a lateral collateral ligament (LCL) avulsion at the fibular attachment, representative of a posterolateral corner (PLC) injury. Both coronal images (b and c) reveal significant soft tissue edema and disruption of the normal dark, linear appearance of the collateral ligaments. These diagnostic images are essential for evaluating complex knee instability and planning surgical interventions such as PCL bracing or ligament augmentation.

Reading File

Finding Sources

Reading File

Finding Sources

Reading File

Finding Sources

Loading Image

I now have all the information needed for a comprehensive answer. Let me compile it.

Ligaments of the Knee Complex

Anterior and posterior views of the knee joint showing cruciate ligaments, menisci, and transverse ligament

Anterior (flexed) and Posterior views of the knee joint - Gray's Atlas of Anatomy

1. Anterior Cruciate Ligament (ACL)

Origin (Femoral Attachment): Semicircular area on the posteromedial aspect of the lateral femoral condyle; divided by the bifurcate ridge and bordered by the intercondylar ridge. The lateral intercondylar ridge forms the superior border of the ACL insertion.

Insertion (Tibial Attachment): Broad, irregular, oval area on the tibia immediately medial to the attachment of the anterior horn of the lateral meniscus, and posterior to the tubercle of the anterior horn of the medial meniscus.

Bundles:

Anteromedial (AM) bundle - originates proximal to the bifurcate ridge; tight in flexion; primary restraint against anterior tibial translation (evaluated by Lachman and anterior drawer tests)
Posterolateral (PL) bundle - originates distal to the bifurcate ridge; tight in extension; primarily a rotatory restraint (evaluated by pivot shift test)

Dimensions: Length ~30 mm; diameter ~11 mm Composition: 90% type I collagen, 10% type III collagen Tensile strength: ~2200 N (up to 2500 N in young individuals)

Blood Supply: Branches of the middle genicular artery and contributions from the infrapatellar fat pad vasculature. Both cruciate ligaments share this supply.

Nerve Supply: Mechanoreceptor nerve fibers (proprioceptive) have been identified within the ACL. Innervation is primarily from branches of the posterior articular nerve (a branch of the posterior division of the tibial nerve) and the obturator nerve. These fibers play a proprioceptive role in detecting joint position and protecting the joint from injury.

2. Posterior Cruciate Ligament (PCL)

Origin (Femoral Attachment): Broad crescent-shaped area on the anterolateral surface of the medial femoral condyle; divided by the bifurcate prominence and bordered by the medial intercondylar ridge.

Insertion (Tibial Attachment): Tibial sulcus below the articular surface (posterior aspect of the proximal tibia); center of insertion is in line with the posterior attachment of the medial meniscus.

Bundles:

Anterolateral (AL) bundle - originates anterior to the bifurcate prominence; tight in flexion (mnemonic: PCL is your "PAL" - important AL bundle is tight in flexion)
Posteromedial (PM) bundle - originates posterior to the bifurcate prominence; tight in extension

Both bundles are codominant and function to resist posterior tibial translation at all degrees of knee flexion.

Dimensions: Length ~38 mm; diameter ~13 mm Tensile strength: ~2500-3000 N

Blood Supply: Same as ACL - middle genicular artery branches + fat pad.

Nerve Supply: Branches of the posterior articular nerve (tibial nerve). Mechanoreceptors present.

3. Medial Collateral Ligament (MCL)

The MCL has two components - superficial (sMCL) and deep (dMCL).

A. Superficial MCL (sMCL)

Origin: Proximal and posterior to the medial epicondyle of the femur. Radiographically, originates slightly anterior to the junction of the posterior femoral cortex reference line and Blumensaat line. Lies deep to the sartorial fascia, gracilis tendon, and semitendinosus tendon.

Insertion: Two separate tibial attachments:

Proximal: onto soft tissue overlying the anterior arm of semimembranosus
Distal: directly to bone, just anterior to the posterior cortex of the tibia, 6-7 cm distal to the joint line

Length: 100-120 mm Tensile strength: ~550 N

Function:

Primary stabilizer against valgus stress throughout the flexion arc
Secondary stabilizer to rotatory stress
Anterior fibers tighten during the first 90 degrees of flexion; posterior fibers tighten in extension

B. Deep MCL (dMCL) / Mid-third Medial Capsular Ligament

Thickening of the medial joint capsule
Has distinct meniscofemoral and meniscotibial components
Intimately associated with the medial meniscus
Tensile strength: ~100 N

Blood Supply: Branches from the medial inferior genicular artery and the medial superior genicular artery (branches of the popliteal artery).

Nerve Supply: Branches of the saphenous nerve (terminal branch of the femoral nerve) and the posterior articular nerve (tibial nerve). The saphenous nerve runs anterior to the semitendinosus and gracilis and posterior to the inferior border of the sartorius - it must be protected during medial knee repairs.

4. Lateral Collateral Ligament (LCL / Fibular Collateral Ligament)

Origin (Femoral): Proximal and posterior to the lateral femoral epicondyle; or posterior, superficial, and proximal to the insertion of the popliteus tendon. (Mnemonic: popliteus is "DAD" - distal, anterior, and deep to the LCL)

Insertion (Fibular): Anterior to the midpoint of the lateral aspect of the fibular head - it is the most anterior structure inserting on the proximal fibula. (Order from anterior to posterior on fibular head: LCL → popliteofibular ligament → biceps femoris)

Length: 63-71 mm Tensile strength: ~750 N

Function:

Primary restraint to varus stress at all degrees of knee flexion
Tight in extension, lax in flexion (due to its location posterior to the axis of knee rotation)

Blood Supply: Lateral inferior genicular artery and lateral superior genicular artery (branches of the popliteal artery).

Nerve Supply: Common peroneal nerve (common fibular nerve) runs posterior to the biceps femoris - it must be protected during lateral knee repairs. Proprioceptive fibers from the posterior articular nerve.

5. Posterolateral Corner (PLC) Structures

The PLC is composed of three primary structures:

LCL
Popliteus tendon - muscle originates on posterior tibia above the soleal line; femoral insertion is distal, anterior, and deep to the LCL; internally rotates the tibia
Popliteofibular ligament - originates from the musculotendinous junction of popliteus; inserts on the medial aspect of the fibular head and styloid

Function: Primary stabilizer of external tibial rotation; also resists varus stress and posterior tibial translation.

6. Posteromedial Corner (PMC) Structures

Structures between the posterior border of the sMCL and medial border of the PCL:

Capsular thickenings from semimembranosus insertions
Posterior horn of medial meniscus
Posterior Oblique Ligament (POL)
Oblique Popliteal Ligament (OPL)

Posterior Oblique Ligament (POL)

Origin: Proximal and posterior to the sMCL origin; distal and posterior to the adductor tubercle
Insertion (central arm): Posteromedial tibia
Three components: superficial, central, and capsular arms
Primary stabilizer against internal rotation between 0-30 degrees of knee flexion
Secondary stabilizer to valgus stress, particularly in extension

7. Anterolateral Ligament (ALL)

A recently described ligament located anterior to the LCL:

Origin: Immediately anterior to the popliteus tendon insertion on the lateral femoral condyle.

Insertion: Midway between Gerdy's tubercle and the fibular head; has firm attachments to the lateral meniscus.

Function: Stabilizer against internal tibial rotation (resists the pivot shift phenomenon in ACL-deficient knees).

8. Medial Patellofemoral Ligament (MPFL)

Origin (Femoral): Anterior and distal to the adductor tubercle; or proximal and posterior to the medial epicondyle. Radiographically, this is the Schottle point - slightly anterior to the posterior femoral cortex reference line and immediately proximal to the most posterior aspect of the Blumensaat line.

Insertion (Patellar): Junction of the proximal and middle thirds on the medial border of the patella.

Length: 53-55 mm

Function: Primary passive restraint to lateral patellar translation - contributes 50-60% of restraint at 0-30 degrees of knee flexion.

9. Meniscofemoral Ligaments (Variably Present)

Humphrey ligament (anterior meniscofemoral ligament): Passes anterior to the PCL
Wrisberg ligament (posterior meniscofemoral ligament): Passes posterior to the PCL
Both insert on the posterior horn of the lateral meniscus and originate on either side of the posteromedial bundle of the PCL on the medial femoral condyle

Summary Table: Blood Supply and Nerve Supply

Ligament	Blood Supply	Nerve Supply
ACL	Middle genicular artery + fat pad	Posterior articular nerve (tibial n.); proprioceptive mechanoreceptors
PCL	Middle genicular artery + fat pad	Posterior articular nerve (tibial n.)
sMCL / dMCL	Medial superior & inferior genicular arteries	Saphenous nerve (femoral n.) + posterior articular nerve
LCL	Lateral superior & inferior genicular arteries	Common peroneal nerve territory; posterior articular nerve
POL / PMC	Medial genicular branches	Posterior articular nerve (tibial n.)
MPFL	Medial superior genicular artery	Saphenous nerve branches

Key Clinical Points:

Both cruciate ligaments are intra-articular but extrasynovial - covered by a synovial fold; this limits their healing capacity after rupture
The saphenous nerve (medial) and common peroneal nerve (lateral) are at risk during medial and lateral knee repairs respectively
The middle genicular artery is the dominant vessel to both cruciates; it arises directly from the popliteal artery and pierces the posterior capsule
Mechanoreceptors (Ruffini endings, Pacinian corpuscles, Golgi tendon organ-like endings) in the ACL and PCL provide proprioceptive feedback

Sources: Miller's Review of Orthopaedics 9th Ed., p. 334-340; Gray's Anatomy for Students; Campbell's Operative Orthopaedics 15th Ed.
