Measuring Aortic Jet Velocity (AJV) and Pulmonary Jet Velocity (PJV)

Both are measured using Continuous Wave (CW) Doppler because the velocities involved (often >2 m/s) exceed the Nyquist limit of pulsed wave Doppler.

Aortic Jet Velocity (AJV)

Why it matters

AJV is the single strongest predictor of clinical outcome in aortic stenosis and the most reliable parameter for serial follow-up. It is used in the simplified Bernoulli equation to derive pressure gradients.

Transducer and technique

  • Use a non-imaging, dedicated CW Doppler ("Pedoff") transducer - its smaller footprint allows better angulation and a higher signal-to-noise ratio than a combined imaging/Doppler transducer.
  • Key principle: The ultrasound beam must be parallel to the jet direction (intercept angle <15° gives <5% error). Never assume the jet is parallel to the LVOT or aortic long axis - it is often eccentric.

Acoustic windows - search all of these

WindowPatient position
ApicalSteep left lateral decubitus, apical cutout in exam bed
High right parasternalRight lateral decubitus
Suprasternal notchSupine, neck extended
Subcostal / left parasternalIf above are suboptimal
  • Record from all windows and use the highest velocity obtained - that represents the most parallel intercept angle.

Measurement steps

  1. Set velocity scale ~1 m/s higher than the expected peak
  2. Set wall filters high
  3. Adjust gain for clear spectral definition
  4. Measure at the outer edge of the dark spectral envelope (not the faint blur from Doppler artifacts or excessive gain)
  5. Trace the VTI by tracing the dark edge over systole

Normal vs. abnormal

  • Normal aortic velocity: ~1.0-1.5 m/s
  • Mild AS: 2.0-2.9 m/s
  • Moderate AS: 3.0-3.9 m/s
  • Severe AS: ≥4.0 m/s

Pressure gradient from AJV

Using the simplified Bernoulli equation:
  • Peak gradient: ΔPmax = 4 × Vmax²
  • Mean gradient: ΔPmean = 2.4 × Vmax² (approximation for native AS)
Pitfall: Other high-velocity systolic jets can mimic the aortic jet - subaortic obstruction, MR, TR, VSD, and pulmonic stenosis. Differentiate by timing, shape, and associated diastolic signals (see image below).

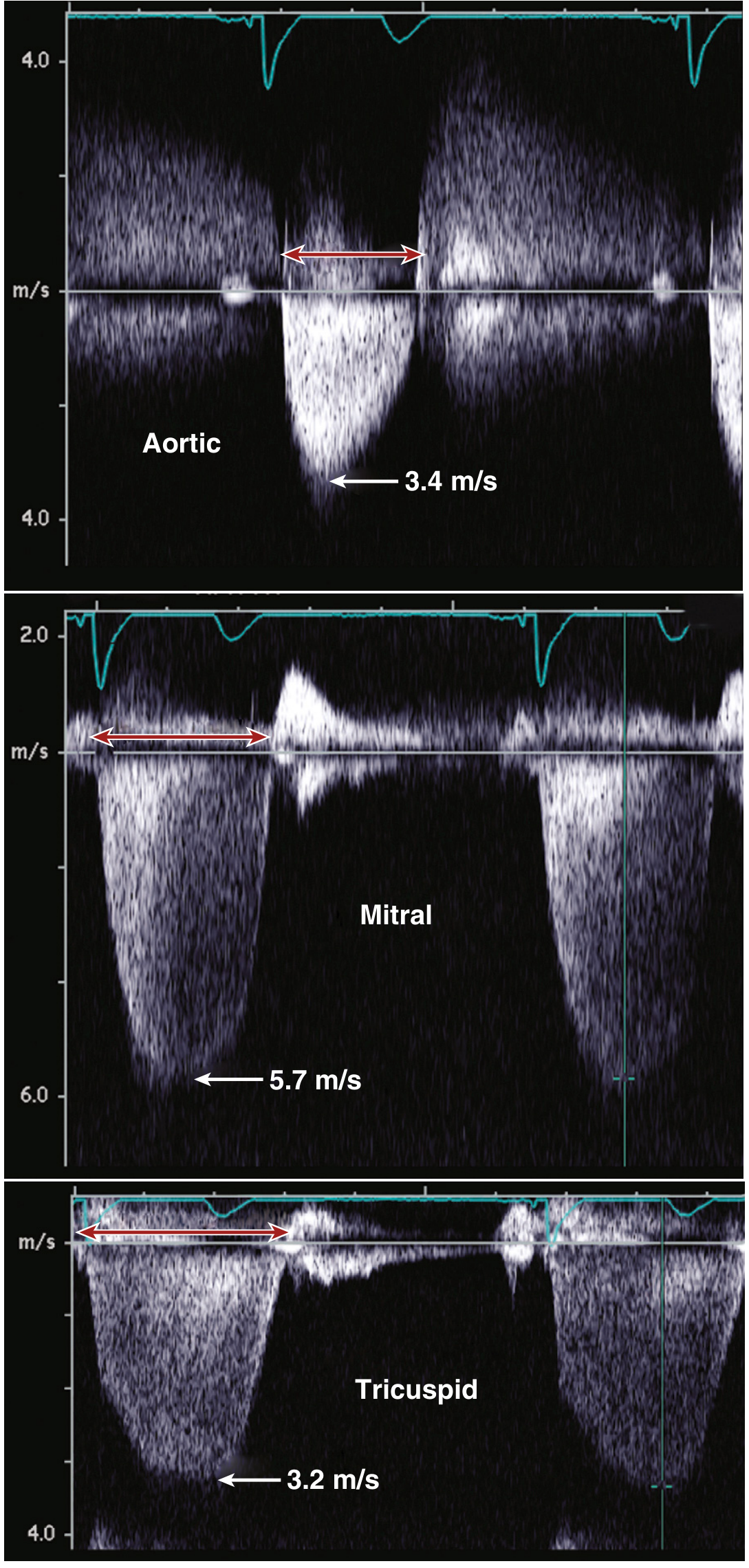

CW Doppler signals of aortic (3.4 m/s), mitral (5.7 m/s), and tricuspid (3.2 m/s) jets showing differentiation by timing and shape

Pulmonary Jet Velocity (PJV)

Why it matters

PJV is used to assess pulmonic stenosis severity and can help estimate RV pressures indirectly. In the presence of pulmonic stenosis, the peak gradient across the pulmonic valve = 4 × Vpulmonic².

Transducer and technique

  • Also requires CW Doppler for high velocities (severe pulmonic stenosis can reach 4-5+ m/s)
  • Primary window: Parasternal short-axis (PSAX) at the level of the great vessels, angling toward the RV outflow tract (RVOT)
  • Also accessible from: subcostal and, in some patients, left parasternal views
  • For TEE: RV outflow view at ~90° rotation

Measurement steps

  1. In PSAX, identify the pulmonic valve and RVOT
  2. Align CW Doppler beam with the direction of flow through the pulmonic valve
  3. The signal appears in systole, directed away from the transducer (below baseline in standard orientation)
  4. Measure peak velocity at the dense outer edge of the spectral envelope
  5. Trace VTI for stroke volume calculations across the RVOT (using RVOT diameter from 2D)

Normal vs. abnormal

  • Normal pulmonary velocity: ~0.6-0.9 m/s (measured with PW Doppler at the valve)
  • Mild pulmonic stenosis: Vmax <3 m/s / peak gradient <36 mmHg
  • Moderate: Vmax 3-4 m/s / gradient 36-64 mmHg
  • Severe: Vmax >4 m/s / gradient >64 mmHg

Key Comparison

FeatureAJVPJV
Doppler modeCW (dedicated transducer preferred)CW
Primary windowApical + right parasternal + SSNParasternal short-axis (RVOT)
DirectionAway from transducer (apical view)Away from transducer (PSAX)
Normal value~1.0-1.5 m/s~0.6-0.9 m/s
Severe stenosis≥4.0 m/s≥4.0 m/s
Gradient formula4 × Vmax²4 × Vmax²
Jet often eccentric?Yes - always search multiple windowsLess so, but still verify alignment
Bottom line: The key technical principle for both is beam-jet alignment. For AJV, this requires a multi-window search because the jet is often eccentric. For PJV, the PSAX window usually gives good alignment, but always verify you have the highest, cleanest signal.
- Textbook of Clinical Echocardiography (Otto), Chapter 11
