Synthetic Mid-Urethral Slings (MUS) - Diagrams & Overview

Synthetic mid-urethral slings are the most commonly performed surgical procedure for stress urinary incontinence (SUI). Here is a structured overview with the key textbook diagrams.

Device Types and Trocars

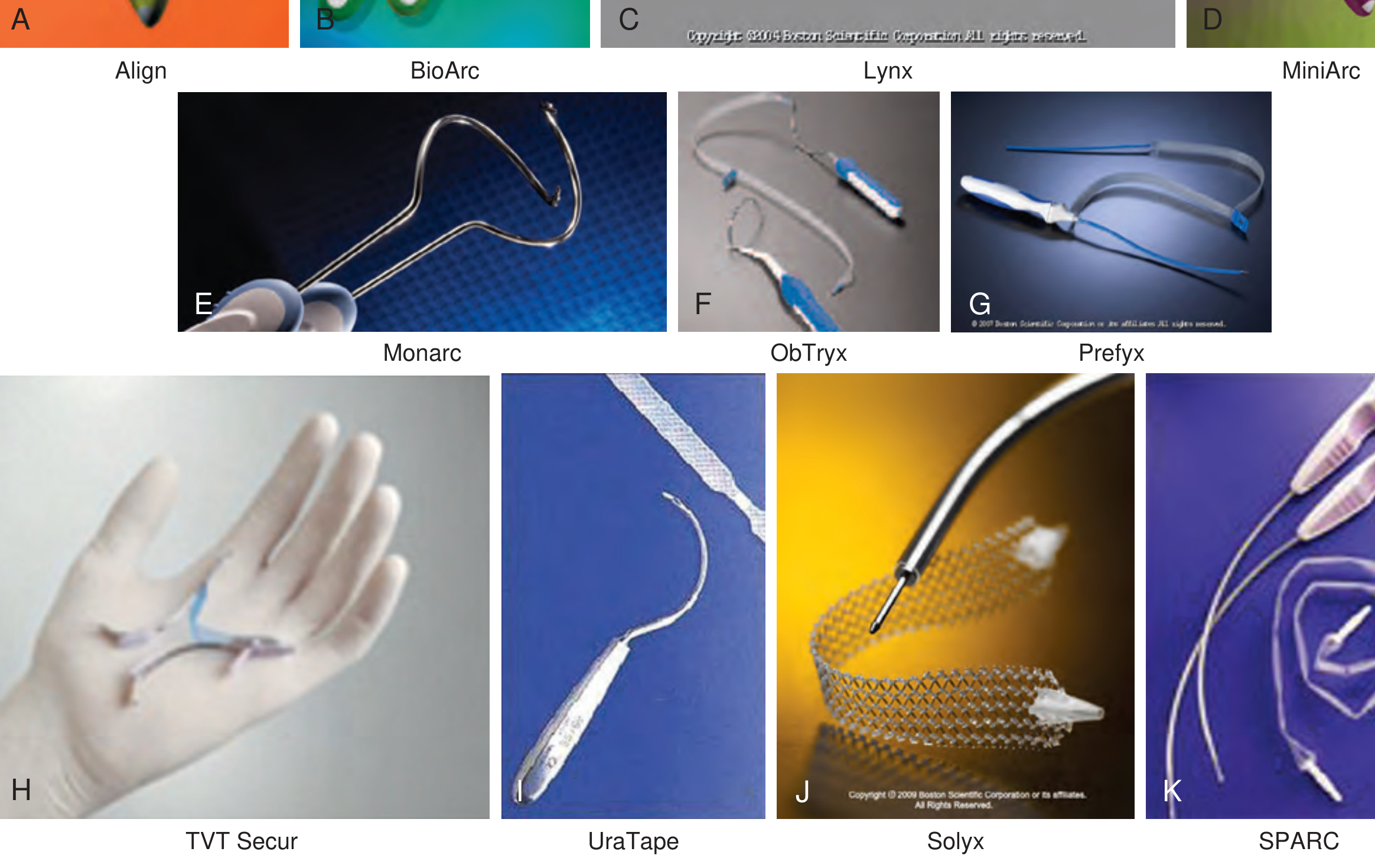

Fig. 125.8 - MUS trocars and prosthetics (from Campbell-Walsh-Wein Urology):
MUS trocars and prosthetics - Align, BioArc, Lynx, MiniArc, Monarc, ObTryx, Prefyx, TVT Secur, UraTape, Solyx, SPARC
This figure shows the variety of sling systems: A. Align, B. BioArc, C. Lynx, D. MiniArc, E. Monarc (transobturator outside-in), F. ObTryx, G. Prefyx, H. TVT Secur (single-incision), I. UraTape, J. Solyx, K. SPARC. The standard sling consists of two curved 5-mm insertion trocars and a 40-cm long, 1.1-cm wide polypropylene mesh strip.

1. Retropubic Approach (TVT - Tension-Free Vaginal Tape)

Fig. 125.9 - Retropubic MUS placement:
The retropubic sling passes through the space of Retzius (retropubic space), exiting via two small suprapubic stab incisions ~2 cm lateral to the midline.
Key anatomical landmarks:
  • The trocar passes from the vaginal incision (1.5 cm from the external meatus) upward through the endopelvic fascia
  • Traverses the space of Retzius, stays in close contact with the inferior pubic bone surface
  • Exits suprapubically just above the symphysis pubis
  • Sling anchors to the endopelvic fascia
Technique steps:
  1. Two suprapubic stab incisions, 2 cm lateral to midline just above the symphysis
  2. Midline vaginal incision 1.5 cm, 1.5 cm proximal to the urethral meatus
  3. Dissection laterally to the pubocervical (endopelvic) fascia bilaterally (not perforated)
  4. Trocar passed bottom-up (vagina to abdomen) or top-down with a catheter guide deflecting the bladder
  5. Cystoscopy mandatory with 70-degree lens to exclude bladder/urethral perforation
  6. Sling placed loosely; tension adjusted with a clamp between sling and urethra

2. Transobturator Approach (TOT / TVT-O)

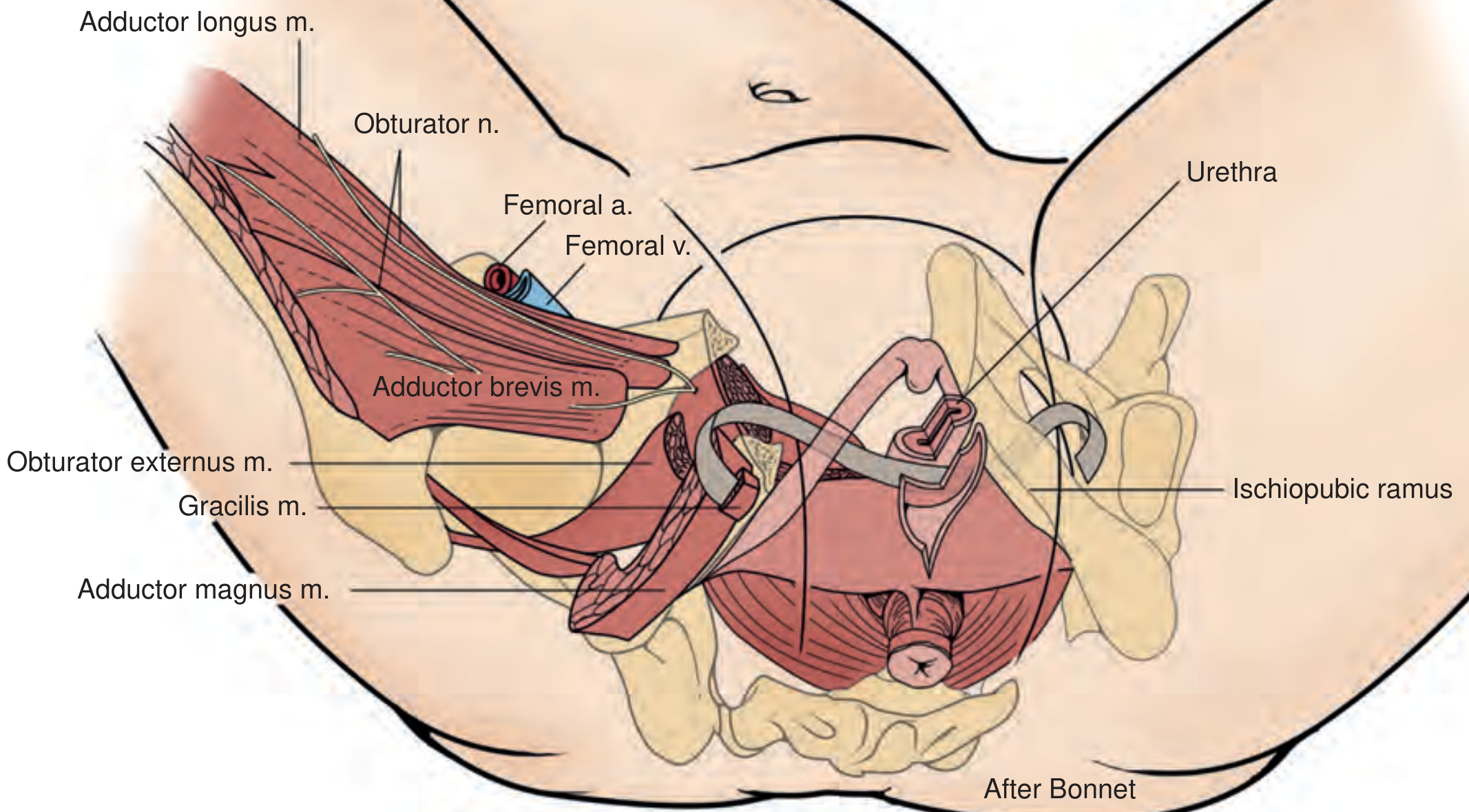

Fig. 125.10 - Transobturator MUS placement:
Transobturator MUS - anatomical diagram showing adductor longus, obturator nerve, femoral vessels, ischiopubic ramus, and sling path
The sling passes through the obturator foramen, anchoring in the obturator internus and externus muscle/fascia, and exits via stab incisions in the groin crease at the level of the clitoris.
Key structures transited (visible in diagram):
  • Adductor longus muscle (medial thigh)
  • Obturator nerve (at risk)
  • Obturator externus muscle
  • Adductor brevis and gracilis muscles
  • Ischiopubic ramus (bony landmark)
Two sub-techniques:
  • Outside-in (TOT): Puncture incision in the groin crease at the inferior pubic ramus / adductor longus junction, trocar perforates obturator membrane and exits the vaginal incision - guided by the surgeon's index finger
  • Inside-out (TVT-O): Vaginal incision first, introducer passed at 45 degrees through the obturator membrane, helical passer rotated to exit the interthigh stab incision

3. Single-Incision Sling (SIS / Mini-sling)

Fig. 125.11 - Single-incision MUS, two configurations:
  • (A) Hammock position - anchors into the obturator internus muscle bilaterally
  • (B) U-shaped position - anchors into connective tissue of the urogenital diaphragm (endopelvic fascia) behind the pubic bone
Short polypropylene mesh segment with pointed self-anchoring ends, placed through a single vaginal incision only - no abdominal or thigh exit incisions. Tension set when a hemostat tip passes easily between sling and urethra.

Material

All synthetic MUS are made of type 1 macroporous polypropylene mesh (pore size >75 microns), which allows tissue ingrowth, resists infection, and avoids the problems of microporous mesh.

Mechanism of Action

The MUS works by:
  1. Impeding posterior urethral wall movement during stress maneuvers (Valsalva), directing it anteriorly
  2. Compressing the urethral lumen by inward movement of the posterior wall under the sling
  3. Dynamic urethral kinking during stress events (Lo et al., 2001)
  4. The sling is anchored broadly - not just at the midline - which explains why continence is maintained even after sling incision for obstruction in many patients

Outcomes at a Glance

Type~10-year objective cureKey complication
Retropubic (TVT)84-91%Bladder perforation (trocar passage), voiding dysfunction
Transobturator (TOT/TVT-O)Similar efficacyGroin/thigh pain, obturator nerve injury
Single-incisionLower (variable)Less data; early versions had higher failure rates
Overall ~90% cure rate reported at 17-year follow-up (Bailey & Love's Surgery, p. 6105). Cystoscopy is mandatory after all approaches to exclude bladder and urethral injury.
