Pleural Tap (Thoracocentesis/Thoracentesis) - Clinical Anatomy

Definition and Purpose

A pleural tap (thoracocentesis, thoracocentesis) is a procedure in which a needle or catheter is introduced through the chest wall into the pleural space to aspirate fluid (or occasionally air). It is one of the most commonly performed interventional procedures in hospital practice.

Diagnostic tap: 50 mL of fluid obtained for laboratory analysis (protein, LDH, cytology, microbiology)
Therapeutic tap: typically up to 1.5 L removed to relieve dyspnea from a large effusion

- Roberts and Hedges' Clinical Procedures in Emergency Medicine, p. 250

Relevant Anatomy

1. The Pleural Space

The pleural cavity is a potential space between the visceral pleura (tightly adherent to the lung surface) and the parietal pleura (lining the chest wall, diaphragm, and mediastinum). In health it contains only a thin film of fluid (~10-20 mL) for lubrication.

The parietal pleura is divided into:

Costal part - lines the bony thoracic wall
Diaphragmatic part - overlies the diaphragm
Mediastinal part - adjacent to mediastinal connective tissue
Pleural cupula - extends above the superior thoracic aperture (clinically important - risk of pneumothorax from subclavian/jugular line insertion)

- Color Atlas of Human Anatomy Vol. 2 Internal Organs, p. 224

2. Pleural Recesses

The costodiaphragmatic recess is the most dependent part of the pleural cavity - the gutter between the chest wall and diaphragm where fluid accumulates by gravity. This is the target for pleural aspiration in the upright patient.

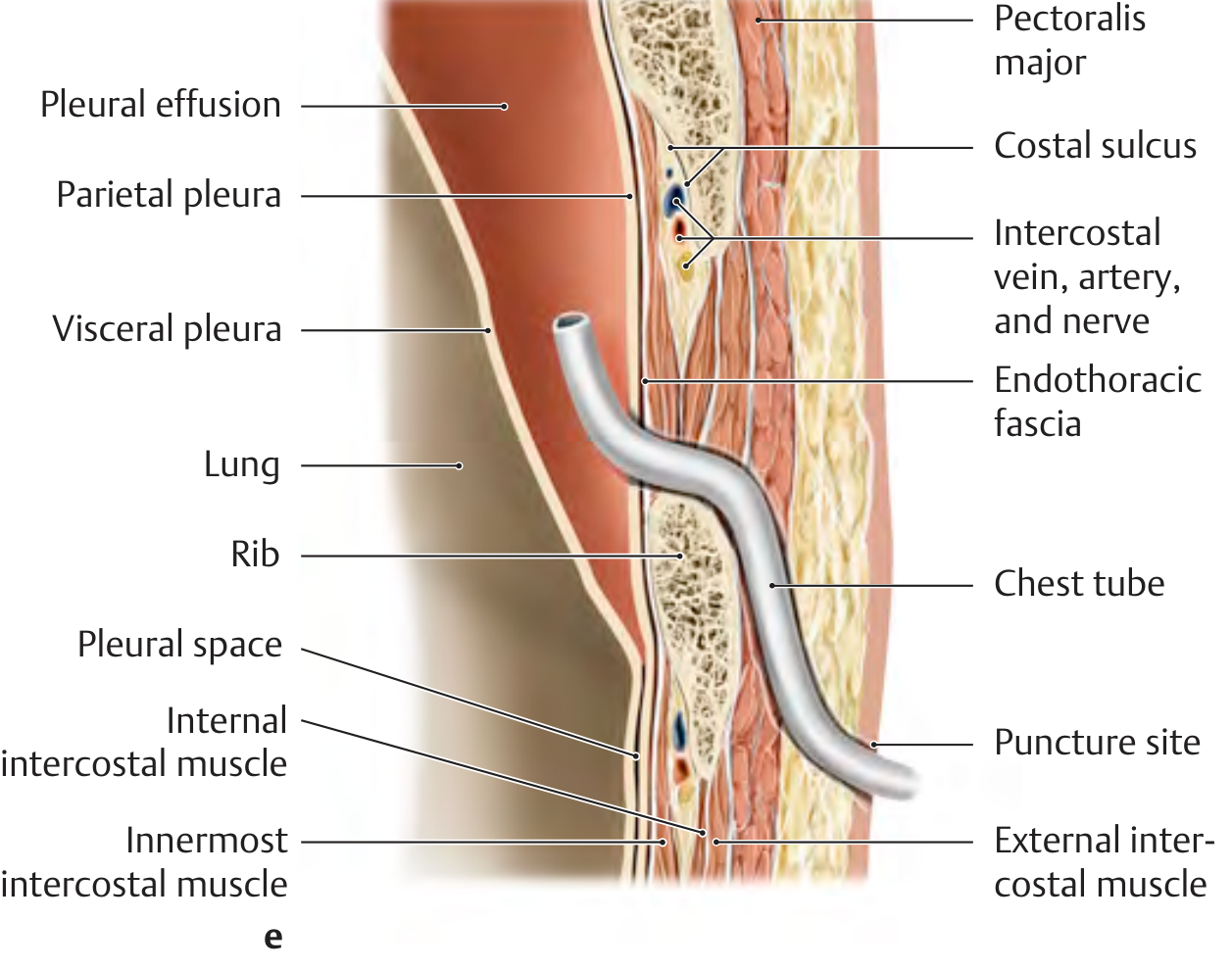

Cross-sectional anatomy showing chest tube placement through chest wall layers, labeling parietal pleura, visceral pleura, pleural space, lung, ribs, intercostal muscles, endothoracic fascia, and the neurovascular bundle in the costal sulcus

THIEME Atlas of General Anatomy - cross-section at the posterior axillary line showing all relevant layers

3. The Intercostal Neurovascular Bundle - Most Important Anatomical Point

Each intercostal space contains a neurovascular bundle running in the costal groove (costal sulcus) on the undersurface (inferior border) of each rib in the order (from above downward): Vein - Artery - Nerve (VAN).

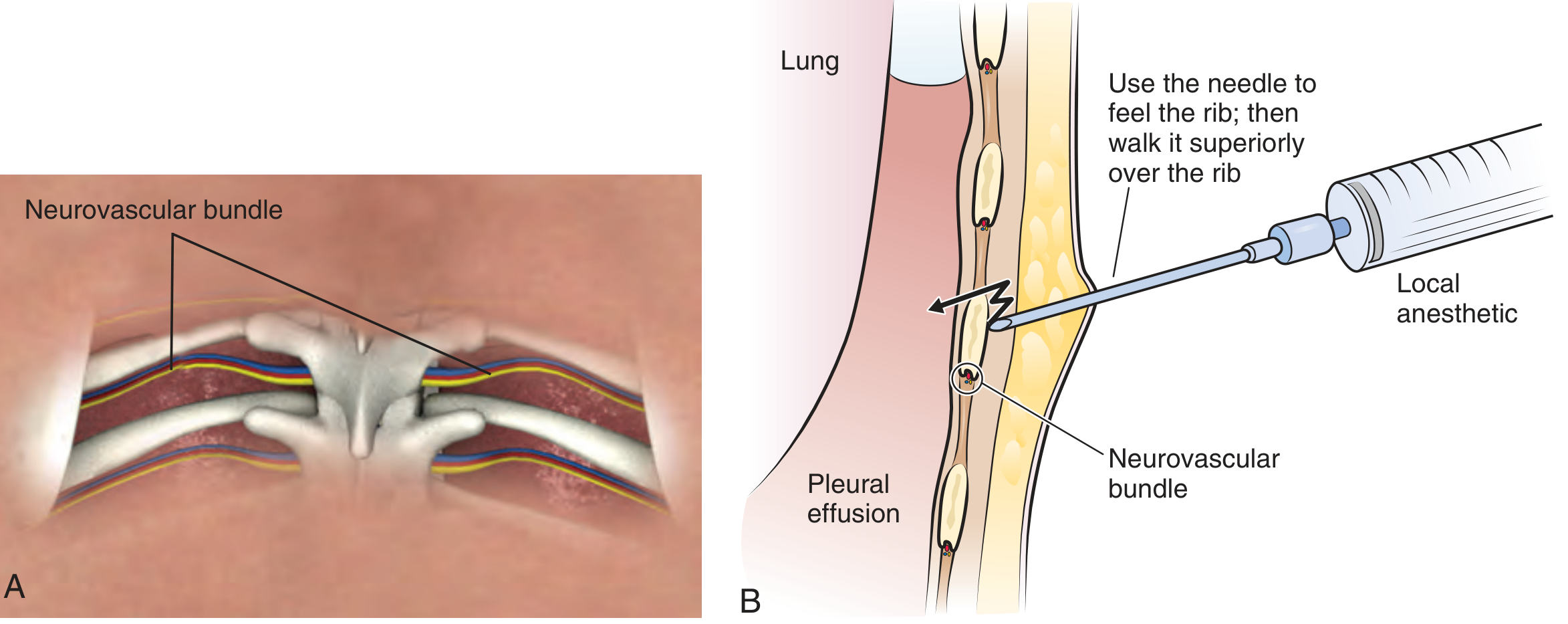

Intercostal neurovascular bundle anatomy and needle technique

The needle MUST be inserted over the superior border (upper edge) of the lower rib of the chosen intercostal space - never along the inferior border of the upper rib, which risks lacerating the intercostal vessels and nerve, causing haemorrhage, haematoma, or neuralgia.

- Roberts and Hedges' Clinical Procedures in Emergency Medicine, p. 255 - THIEME Atlas of General Anatomy and Musculoskeletal System, p. 228

4. Layers the Needle Traverses

From outside to inside:

Skin and subcutaneous fat
Trapezius / serratus anterior / rhomboid muscles (depending on site)
External intercostal muscle
Internal intercostal muscle
Innermost intercostal muscle
Endothoracic fascia
Parietal pleura - parietal pleura is highly pain-sensitive (innervated by intercostal nerves and phrenic nerve) - adequate local anaesthetic infiltration here is essential
Pleural space - target

- Color Atlas of Human Anatomy Vol. 2, p. 224

5. Pleural Borders - Surface Anatomy

The pleural reflection levels are key to choosing a safe insertion site and avoiding subdiaphragmatic organ puncture:

Line	Lung border	Pleural border
Midclavicular	6th rib	7th rib
Axillary	8th rib	9th rib
Scapular	10th rib	11th rib
Paravertebral	T10 spinous process	T11 spinous process

The pleura extends 1-2 intercostal spaces below the lung border - this is the costodiaphragmatic recess.

Safe Site for Needle Entry

Classic Landmark Approach (Upright, Sitting Patient)

The patient sits upright leaning forward with arms resting on a table. Fluid sinks posteriorly and laterally.

Optimal insertion site for a free pleural effusion:

7th or 8th intercostal space on the posterior axillary line (or just medial to the scapular angle)
The needle enters over the upper border of the lower rib
Minimum 10 mm depth of fluid on ultrasound before attempting aspiration

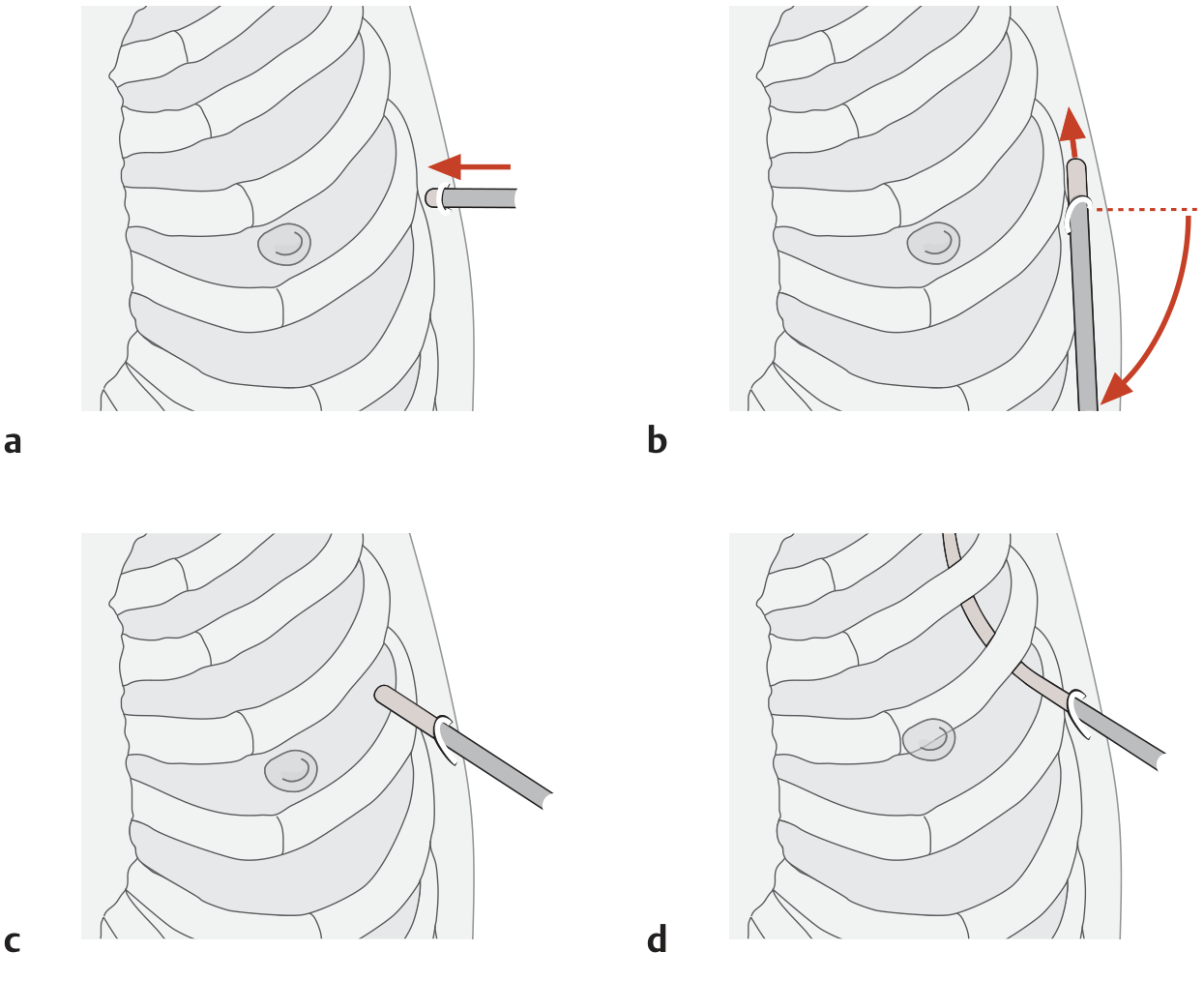

Chest tube insertion steps - four-step diagram showing skin incision, tunneling subcutaneously, entering intercostal space above rib, and advancing into pleural cavity

Safe Triangle for Chest Drain (BTS guideline)

Lateral border of pectoralis major
Lateral border of latissimus dorsi
Inferior boundary: horizontal line from the nipple (approximately 4th or 5th intercostal space)
This is the axillary approach, used especially for chest drains

- Grainger & Allison's Diagnostic Radiology, p. 77

Critical Lower Limit

Do not insert below the 5th intercostal space anteriorly or below the 7th/8th intercostal space posteriorly. Lower than this risks crossing the pleural recess and penetrating:

Liver (on the right)
Spleen (on the left)
Diaphragm

- Gray's Anatomy for Students, p. 283

Procedure Summary

Confirm with ultrasound - all pleural aspirations should be US-guided; must confirm ≥10 mm fluid depth with no intervening lung at maximal inspiration
Position - upright sitting, leaning forward
Identify the rib - count from 2nd rib at the sternal angle downwards
Local anaesthetic - infiltrate skin, subcutaneous tissue, intercostal muscles, and generously anaesthetize the periosteum of the rib and parietal pleura (extremely pain-sensitive)
Insert needle over the upper edge of the lower rib - "walk" the needle superiorly off the top of the rib to clear the neurovascular bundle
Advance until a "pop" is felt on entering the pleural space; aspirate to confirm fluid
Withdraw 50 mL (diagnostic) or up to 1.5 L (therapeutic) - do not exceed 1.5 L in a single session (risk of re-expansion pulmonary oedema)

Complications and Their Anatomical Basis

Complication	Anatomical Basis
Pneumothorax (~5%)	Inadvertent lung puncture; highest risk in COPD
Haemorrhage / haematoma	Intercostal vessel (VAN bundle) laceration - needle too close to inferior rib border
Intercostal neuralgia	Nerve injury from the same bundle
Liver / spleen puncture	Needle inserted too inferiorly below the costodiaphragmatic recess
Diaphragmatic injury	Below safe lower limit
Re-expansion pulmonary oedema	Rapid removal of >1.5 L
Vasovagal reaction	Parietal pleura stimulation - keep atropine available
Infection / empyema	Breach of sterile technique

- Grainger & Allison's Diagnostic Radiology, p. 77-78 - Roberts and Hedges' Clinical Procedures in Emergency Medicine, p. 256

Key Anatomical Rules to Remember

Always over the top of the lower rib - to avoid the VAN bundle in the costal groove
Never below the 5th space anteriorly / 8th space posteriorly - diaphragm, liver, spleen risk
Parietal pleura = pain - anaesthetize it well; visceral pleura has no pain fibres
Costodiaphragmatic recess = where fluid collects - aspirate here in the upright patient
Pleural cupula projects into the neck - vulnerable in subclavian access
US guidance is now standard - reduces complication rates significantly and accounts for fluid shifting between marking and aspiration

Sources: Roberts and Hedges' Clinical Procedures in Emergency Medicine; Grainger & Allison's Diagnostic Radiology; THIEME Atlas of General Anatomy and Musculoskeletal System; Gray's Anatomy for Students; Color Atlas of Human Anatomy Vol. 2 Internal Organs

this are performed posterior to the median glunaric line at one or more intercostal spaces below the fluid level with the patient in the sitting position but not below the ninth intercostal space, lest it may injure the diaphragm, the spleen on the left side and the liver on the right side. make it easy

Here's that point broken down simply:

Where to Insert the Needle (Posterior Approach)

Position

Patient sits upright, leaning slightly forward
Fluid sinks posteriorly by gravity - perfect for access

The Rule in Simple Terms

Behind the midscapular line + one or two spaces below the fluid level + never below the 9th intercostal space

Why Each Part Matters

Rule	Why
Posterior to the midscapular line	Fluid collects here in the sitting patient - it's the most dependent (lowest) region posteriorly
One or more spaces below the fluid level	You need to be IN the fluid, not above it - going one space below the top of the fluid ensures you hit the collection, not the lung
NOT below the 9th intercostal space	Below this you risk hitting: diaphragm, spleen (left side), liver (right side)

Visual Memory Aid

Fluid level (top of effusion)
        ↓
   ---- rib ----    ← skip this (too close to lung)
   ---- rib ----    ← INSERT HERE (1-2 spaces below fluid)
   ---- rib ----
   ---- 9th rib ---- ← STOP. Do not go below this
        ↓
   Diaphragm / Liver / Spleen  ← danger zone

The "Over the Top of the Rib" Rule

Once you've chosen the right space, the needle goes over the upper edge of the lower rib - because the intercostal vein, artery, and nerve (VAN) run under the rib above.

One-Line Summary

Sit the patient up, go behind the scapular line, one space below the fluid, over the top of the rib, and stop before the 9th space.
