I now have all the data needed. Let me compile a comprehensive, well-organized answer.
Here is a detailed breakdown of ossification centres for the radius, ulna, humerus, clavicle, and scapula with their age of appearance and fusion, compiled from authoritative forensic medicine and clinical surgery textbooks.
Ossification Centres: Upper Limb Bones
(A = Appearance; F = Fusion)
HUMERUS
Upper End - 3 centres (mnemonic: "1, 3, 5 - all unite at 6")
| Centre | Appearance | Fusion |
|---|---|---|
| Head | 1 year | All 3 unite into one epiphysis at ~6 years |
| Greater tubercle | 3 years | Fuses with head at 4-5 years |
| Lesser tubercle | 5 years | Fuses with greater tubercle at 5-7 years |
| Combined upper epiphysis fuses with shaft | - | 18 years |
Lower End - 4 centres (mnemonic: CRITOE)
| Centre | Appearance | Notes |
|---|---|---|
| Capitulum | 1 year | Earliest lower end centre |
| Radial head | 5 years | (upper end of radius) |
| Internal (medial) epicondyle | 5-6 years | Fuses last - at 16 years |
| Trochlea | 9-10 years | |
| Olecranon | 8-9 years | (upper end of ulna) |
| External (lateral) epicondyle | 10-12 (11) years |
Lower end fusion: Capitulum + trochlea + lateral epicondyle form a conjoint epiphysis at ~14 years, then unite with shaft at 15 years. Medial epicondyle unites separately at 16 years.
Key clinical point: the medial epicondyle is the LAST lower end centre to appear but LAST to fuse - it can be avulsed and pulled into the joint, mimicking loose body. - S. Das, Clinical Surgery 13th Ed.
RADIUS
2 secondary centres (shaft ossifies in foetal life - primary centre)
| Centre | Appearance | Fusion |
|---|---|---|
| Upper end (head) | 5-6 years | 15-16 years |
| Lower end | 1-2 years | 18-19 years (last to fuse in upper limb) |
| Radial tuberosity | ~14-15 years (occasional extra centre) | - |
The lower end of the radius fuses later (18-19 years) than the lower end of the humerus (15-16 years). This is the opposite of the mnemonic rule for the lower limb. - S. Das, Clinical Surgery
ULNA
2 secondary centres
| Centre | Appearance | Fusion |
|---|---|---|
| Upper end (olecranon) | 8-9 years | 16-17 years |
| Lower end (head) | 5-6 years | 18-19 years |
| Head of 1st metacarpal | 2 years | 15-17 years |
CLAVICLE
The clavicle is unique - it is the first bone to ossify in the body (by intramembranous ossification) and the last to complete fusion.
| Centre | Type | Appearance | Fusion |
|---|---|---|---|
| Shaft (body) | Primary (intramembranous) | 5th-6th week IUL | - |
| Medial (sternal) end | Secondary | 15-19 years | 20-22 years |
| Acromial end | Secondary (small/inconstant) | Adolescence | Early adulthood |
The medial end of the clavicle is the last epiphysis in the body to fuse (20-22 years). Useful forensically - non-union of medial clavicle = age < 22 years.

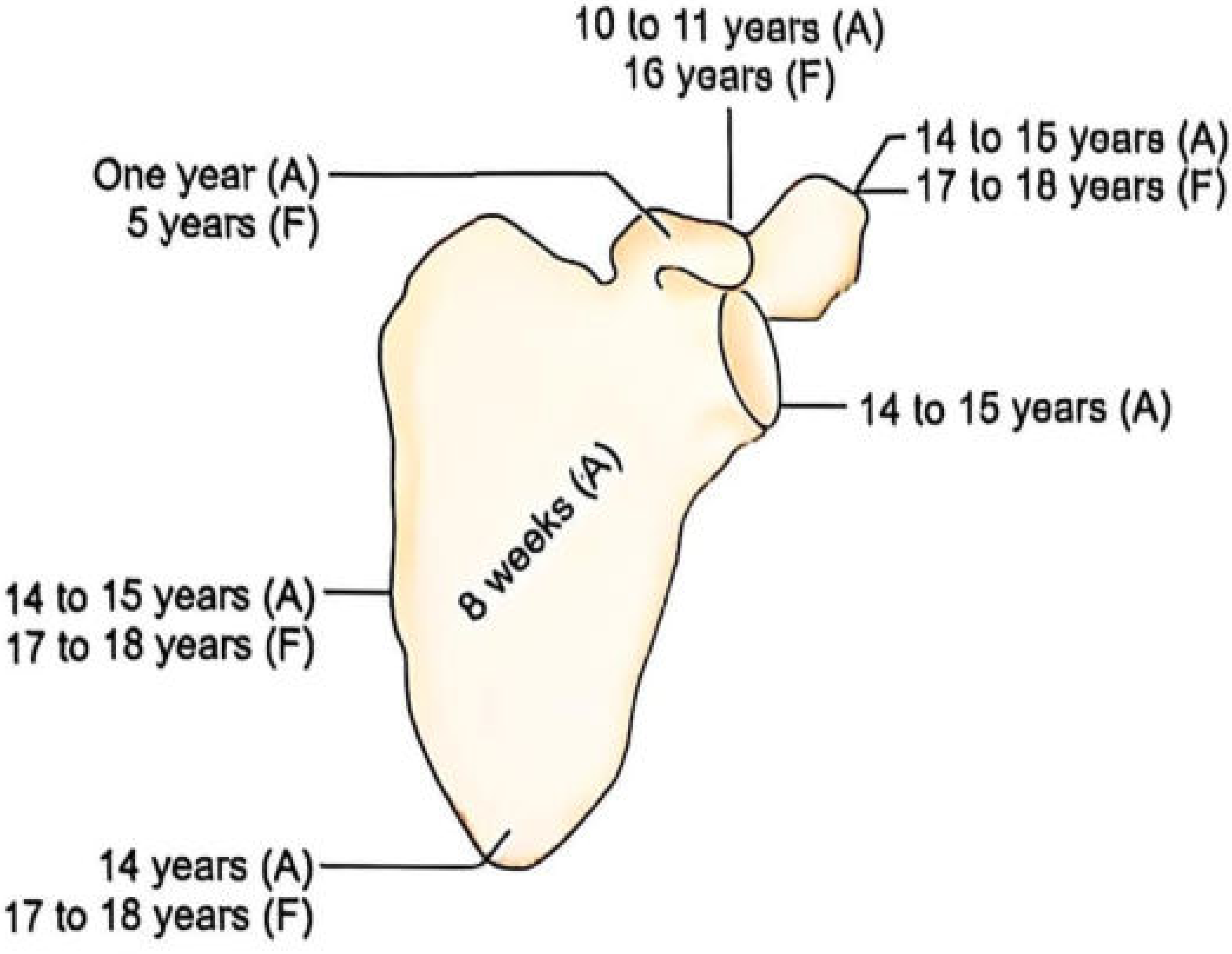

SCAPULA
The body of the scapula ossifies by intramembranous ossification starting at 8 weeks IUL (primary centre).
| Centre | Appearance | Fusion |
|---|---|---|
| Body (primary) | 8 weeks IUL | - |
| Coracoid (base) | 1 year; tip = 10-11 years | 14-15 years |
| Glenoid cavity | 14-15 years | 17-18 years |
| Acromion | 14-15 years (from 2-3 sub-centres) | 17-18 years |
| Inferior angle | 14 years | 17-18 years |
| Medial (vertebral) border | 14-15 years | 17-18 years |
| Sub-coracoid centre | 10-11 years | 16 years |
Note: Failure of acromion centres to fuse (os acromiale) is a recognized anatomical variant that can cause subacromial impingement syndrome in adults.
Summary Table: Appearance vs. Fusion
| Bone / Centre | Appearance | Fusion |
|---|---|---|
| Clavicle shaft | 5-6 wk IUL | - |
| Scapula body | 8 wk IUL | - |
| Humerus - head | 1 yr | 18 yr |
| Humerus - capitulum | 1 yr | 15 yr (conjoint) |
| Radius - lower end | 1-2 yr | 18-19 yr |
| Humerus - greater tubercle | 3 yr | 6 yr (with head) |
| Humerus - lesser tubercle | 5 yr | 6 yr (conjoint) |
| Humerus - medial epicondyle | 5-6 yr | 16 yr |
| Radius - upper end | 5-6 yr | 15-16 yr |
| Ulna - lower end | 5-6 yr | 18-19 yr |
| Scapula - coracoid | 1 yr (base) | 14-15 yr |
| Ulna - olecranon | 8-9 yr | 16-17 yr |
| Humerus - trochlea | 9-10 yr | 15 yr (conjoint) |
| Humerus - lateral epicondyle | 10-12 yr | 15 yr (conjoint) |
| Scapula - acromion | 14-15 yr | 17-18 yr |
| Clavicle - medial end | 15-19 yr | 20-22 yr (LAST in body) |
