Pulmonary Embolism (PE): Small Clots in the Lungs - Complete Study Sheet

Source references: Sabiston Textbook of Surgery (19e/21e), Rosen's Emergency Medicine, Murray & Nadel's Textbook of Respiratory Medicine

1. What Is a Small Pulmonary Embolism?

A pulmonary embolism (PE) occurs when a blood clot (thrombus) - usually originating from a deep vein thrombosis (DVT) in the legs or pelvis - travels through the venous system and lodges in a pulmonary artery, blocking blood flow to part of the lung.

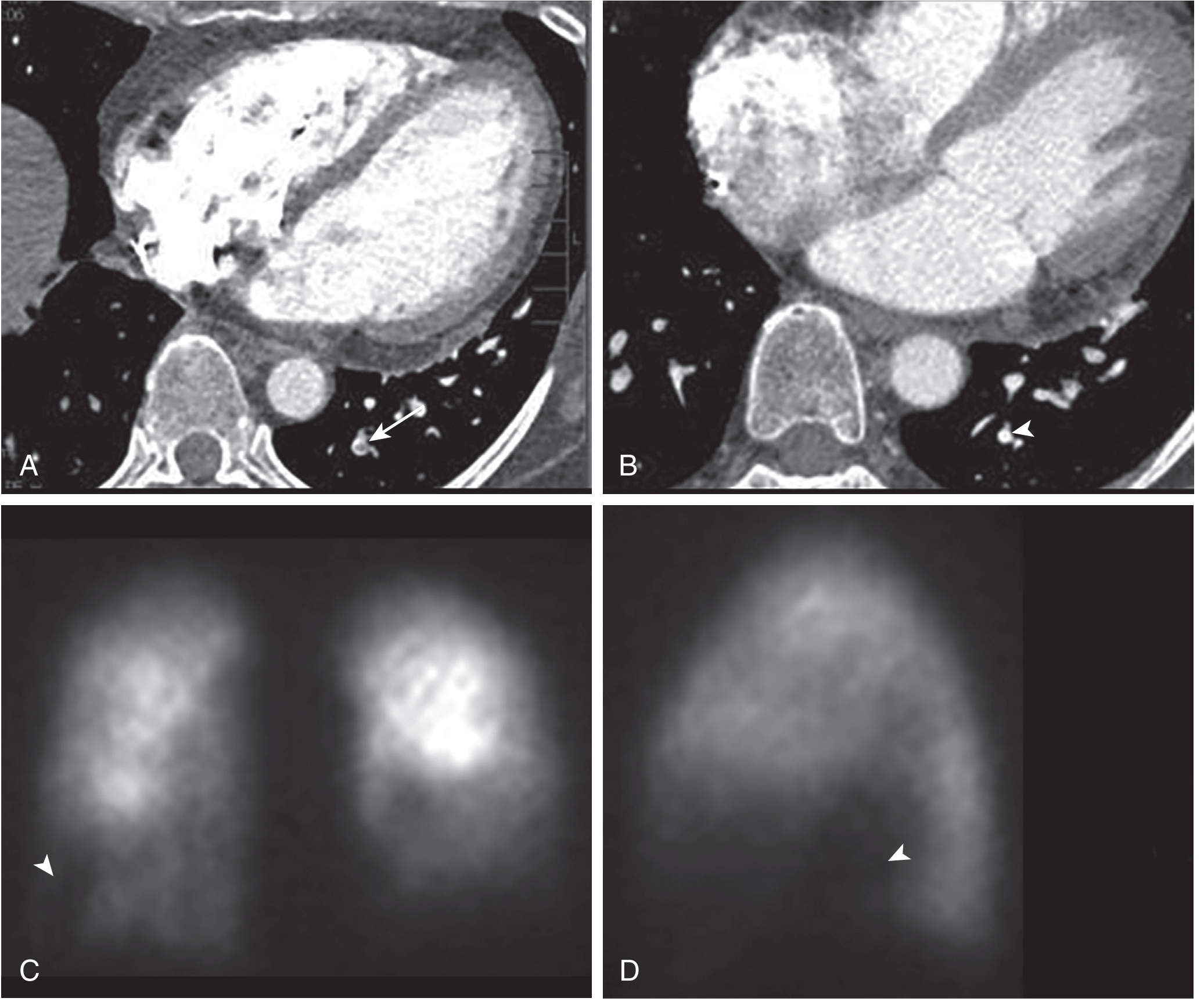

"Small" clots typically refer to subsegmental PE (clots in smaller, more peripheral pulmonary arteries) or non-massive (low-risk) PE, as opposed to massive PE which causes hemodynamic collapse.
PE is the third most common cause of cardiovascular death after myocardial infarction and stroke. - Sabiston Textbook of Surgery

2. Risk Factors (Virchow's Triad)

FactorExamples
HypercoagulabilityCancer, inherited thrombophilia (Factor V Leiden, Protein C/S deficiency, Antithrombin deficiency), oral contraceptives, pregnancy
Venous stasisProlonged immobility, heart failure, post-surgical bed rest
Endothelial injurySurgery, trauma, central venous catheters

3. Clinical Features

Symptoms (most to least common)

  • Dyspnea (75-80%) - may be constant, worsening, or only on exertion
  • Chest pain - often pleuritic (sharp, worsens with breathing); present in ~67% of cases
  • Hemoptysis - suggests pulmonary infarction
  • Palpitations, dizziness, syncope (<5% present with syncope but it can occur)
  • Unilateral leg swelling (<30%) - raises suspicion when combined with dyspnea

Signs

  • Tachycardia, tachypnea
  • Low-grade fever (<38.6°C)
  • Hypoxemia (SpO2 <94%)
  • Signs of RV strain in severe cases
Note: Small PE can be completely asymptomatic - Rosen's Emergency Medicine

4. Diagnosis

Step-by-Step Diagnostic Approach

Step 1 - Assess Pre-test Probability (PTP)
Use the Revised Geneva Score or Wells Score:
Revised Geneva ScorePoints
Age >65 years1
Previous DVT or PE3
Surgery/fracture within 1 month2
Active malignancy2
Unilateral lower limb pain3
Hemoptysis2
HR 75-94 bpm3
HR ≥95 bpm5
DVT pain/edema on palpation4
Low risk = 0-3Intermediate = 4-10
Step 2 - PERC Rule (if low pre-test probability)
If ALL 8 criteria are negative, PE can be excluded without further testing:
  • Age <50, HR <100, SpO2 >94%, no leg swelling, no hemoptysis, no recent surgery/trauma, no prior PE/DVT, no hormone use
Step 3 - D-Dimer
  • 95-98% sensitive; useful to rule out PE in non-high PTP
  • Threshold: 500 ng/mL standard, or age x 10 ng/mL for patients >50 years
  • False positives: infection, cancer, pregnancy, surgery

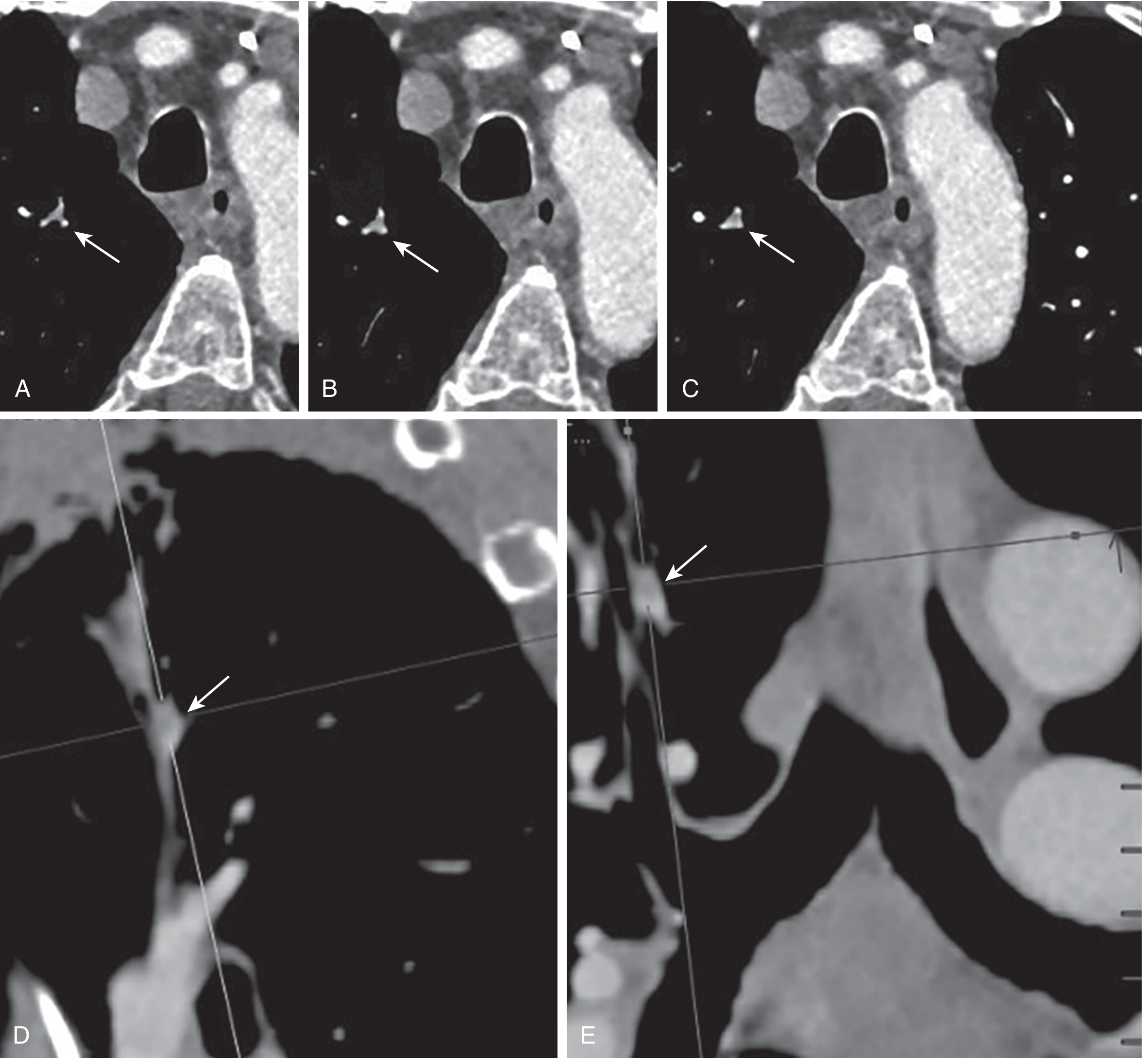

Step 4 - CT Pulmonary Angiography (CTPA)
  • Gold standard imaging for PE
  • Look for filling defects in pulmonary arteries
Step 5 - Echocardiography
  • Useful in hemodynamically unstable patients
  • RV dilation, McConnell sign (RV free wall akinesis, apical sparing), D-sign (septal shift)
Other tests:
  • ECG: New RBBB, S1Q3T3 pattern, T-wave inversions V1-V4, sinus tachycardia
  • ABG: Hypoxemia (PaO2 <80 mmHg), hypocapnia, elevated A-a gradient >20 Torr
  • Troponin / BNP: Elevated in RV strain; help risk-stratify intermediate PE

5. Risk Stratification

CategoryCriteriaMortality
Low-Risk (non-massive)Hemodynamically stable, no RV dysfunction<1-3%
Intermediate-Risk (submassive)Stable + RV dysfunction on imaging OR elevated troponin/BNP3-15%
High-Risk (massive)Hemodynamically unstable (SBP <90 mmHg)15-50%
Small peripheral clots usually fall into the Low-Risk category.

6. Medical Treatment - Step by Step

For Low-Risk (Small) PE:

Step 1 - Supportive Care
  • Supplemental oxygen to keep SpO2 >90%
  • Avoid intubation if possible (increases intrathoracic pressure, worsens RV failure)
Step 2 - Anticoagulation (Start immediately - cornerstone of treatment)
Preferred agents:
  • DOAC (Direct Oral Anticoagulants) - preferred for low-risk PE:
    • Rivaroxaban 15 mg twice daily x 21 days, then 20 mg daily
    • Apixaban 10 mg twice daily x 7 days, then 5 mg twice daily
  • LMWH (Low-Molecular-Weight Heparin) - e.g., enoxaparin 1 mg/kg SC twice daily
  • Unfractionated Heparin (UFH) IV - used if thrombolysis or surgery planned
Duration of anticoagulation:
  • Provoked PE (reversible cause): 3 months
  • Unprovoked PE: minimum 3 months, consider extended therapy
  • Cancer-associated: indefinite (use LMWH or DOAC)
Step 3 - Monitoring
  • Monitor hemodynamics, repeat troponin/BNP at 6-12 hours
  • Watch for clinical deterioration - if patient worsens, upgrade risk category
Step 4 - Disposition
  • Low-risk patients may be suitable for outpatient treatment (use Hestia criteria or PESI score to confirm safety)
  • Intermediate-risk: hospital admission, monitored bed
  • High-risk: ICU

7. Percutaneous (Catheter-Based) Interventions

Used for patients who fail anticoagulation or are not candidates for surgery:
  • Catheter-Directed Thrombolysis (CDT): Catheter placed directly into pulmonary artery, thrombolytics (tPA) infused locally at low dose over 12-24 hours - lower bleeding risk than systemic thrombolysis
  • Catheter-Assisted Thrombus Removal (CATR) / Aspiration Thrombectomy: Mechanical suction device removes clot via catheter; major bleeding rate ~5%
  • Ultrasound-Accelerated Thrombolysis (EKOS): Ultrasound energy with CDT to enhance drug penetration into clot

8. Surgical Treatment - Pulmonary Embolectomy (Step by Step)

Indications (AHA 2011 / ESC 2019 Guidelines)

  • Massive PE with contraindications to fibrinolysis
  • Massive PE that remains hemodynamically unstable after fibrinolysis
  • Intermediate-high-risk PE with hemodynamic deterioration on anticoagulation
  • Coexisting right atrial/ventricular thrombus
  • RV overload with risk of further thrombus migration
Note: Surgical embolectomy is typically NOT indicated for small, low-risk PE. It is reserved for life-threatening cases. The steps below describe what happens when surgery is required.

Historical Note

Frederick Trendelenburg first proposed direct thrombus removal in 1908. The first successful surgery was reported in 1924. Cooley reported the first successful case using cardiopulmonary bypass (CPB) in 1961. - Sabiston Textbook of Surgery

Surgical Steps: Open Pulmonary Embolectomy

Step 1 - Patient Preparation and Anesthesia
  • General anesthesia
  • Arterial line, central venous access, Foley catheter
  • TEE (transesophageal echocardiography) monitoring
  • Full anticoagulation with heparin (systemic)
Step 2 - Incision
  • Median sternotomy - vertical incision down the center of the chest, sternum divided
Step 3 - Cannulation for Cardiopulmonary Bypass (CPB)
  • Cannulate the ascending aorta (arterial return)
  • Cannulate both venae cavae (superior and inferior) for venous drainage
  • Initiate CPB - the heart-lung machine takes over circulation
Step 4 - Cardiac Management During Surgery
  • Surgery is often performed WITHOUT aortic cross-clamping (beating heart or fibrillating heart)
  • Aortic cross-clamp + cold cardioplegia (cardiac arrest) is used if:
    • Right heart thrombi are present
    • Thrombus straddles the foramen ovale
Step 5 - Opening the Pulmonary Artery
  • The main pulmonary artery is opened 1-2 cm downstream from the pulmonary valve
  • The incision is extended into the proximal left pulmonary artery
Step 6 - Clot Removal
  • Use forceps and suction catheters to remove clots from:
    • Left pulmonary artery
    • Behind the aorta toward the right pulmonary artery (RPA)
  • If needed, the RPA is exposed and opened between the aorta and superior vena cava (SVC) for better access to distal segments
  • In acute PE: thrombi are typically soft, rod-shaped, red - relatively easy to remove
  • Goal: remove all easily accessible large central thrombi - even partial removal gives significant hemodynamic improvement
  • Fogarty balloon catheter is rarely used (risk of vessel wall injury in distal arteries); however, flexible choledochoscope-guided balloon thrombectomy has been reported
Step 7 - Check for Acute-on-Chronic PE
  • If chronic thromboembolic pulmonary hypertension (CTEPH) is found, a more complex procedure - pulmonary thromboendarterectomy (PTE/PEA) - may be required
Step 8 - Closure
  • Pulmonary arteriotomy is closed
  • CPB is weaned off gradually as the heart recovers
  • Sternum is closed with sternal wires
  • Skin closed in layers
Step 9 - Post-Operative Care
  • ICU admission
  • Continue anticoagulation (start UFH, transition to long-term anticoagulation)
  • Monitor RV function by echocardiography
  • Watch for reperfusion injury, bleeding complications

9. Summary Table: Treatment by Risk Category

PE TypeFirst TreatmentSecond LineSurgery?
Low-risk (small PE)DOAC anticoagulation-No
IntermediateHeparin + monitoringCDT or systemic thrombolysisRarely
High-risk (massive)Heparin + systemic tPACDT, CATRYes, if thrombolysis fails/contraindicated

10. Key Drugs Quick Reference

DrugClassDoseNotes
RivaroxabanDOAC15 mg BID x 21d → 20 mg dailyNo monitoring needed
ApixabanDOAC10 mg BID x 7d → 5 mg BIDPreferred in cancer, elderly
EnoxaparinLMWH1 mg/kg SC BIDAvoid if CrCl <30
UFHHeparin80 u/kg IV bolus → 18 u/kg/hrUse if surgery/thrombolysis planned
Alteplase (tPA)Thrombolytic100 mg IV over 2hSystemic; high bleeding risk
Sources: Sabiston Textbook of Surgery (21st ed.), Rosen's Emergency Medicine (10th ed.), Murray & Nadel's Textbook of Respiratory Medicine
