Atrial Fibrillation - Diagrams and Mechanism

How AF Starts and How It Looks on ECG

The diagram below from Nature Reviews Disease Primers is the clearest overview - it shows both the cardiac anatomy and the corresponding ECG changes, from normal sinus rhythm through to full AF:
Atrial Fibrillation mechanism and ECG - Nature Reviews Disease Primers
Reading the diagram panel by panel:
  • Panel a - Normal cardiac anatomy: SA node triggers an orderly impulse down the AV node to Purkinje fibres (LA = left atrium, RA = right atrium, LV = left ventricle, RV = right ventricle, PV = pulmonary veins)
  • Panel b - Normal ECG: organized P wave (atrial contraction) followed by a QRS complex
  • Panel c - Normal QRS: organized ventricular activation
  • Panel d - AF starts: chaotic re-entrant circuits and/or rapidly firing foci (often from the pulmonary veins) cause disorganized atrial activity - the P wave disappears, replaced by irregular fibrillatory (f) waves
  • Panel e - Established AF: the AV node is bombarded with 350-600 impulses/min, conducts unpredictably, producing rapid, irregularly irregular QRS complexes ("QRSs") and impaired pump function

ECG Appearance in AF

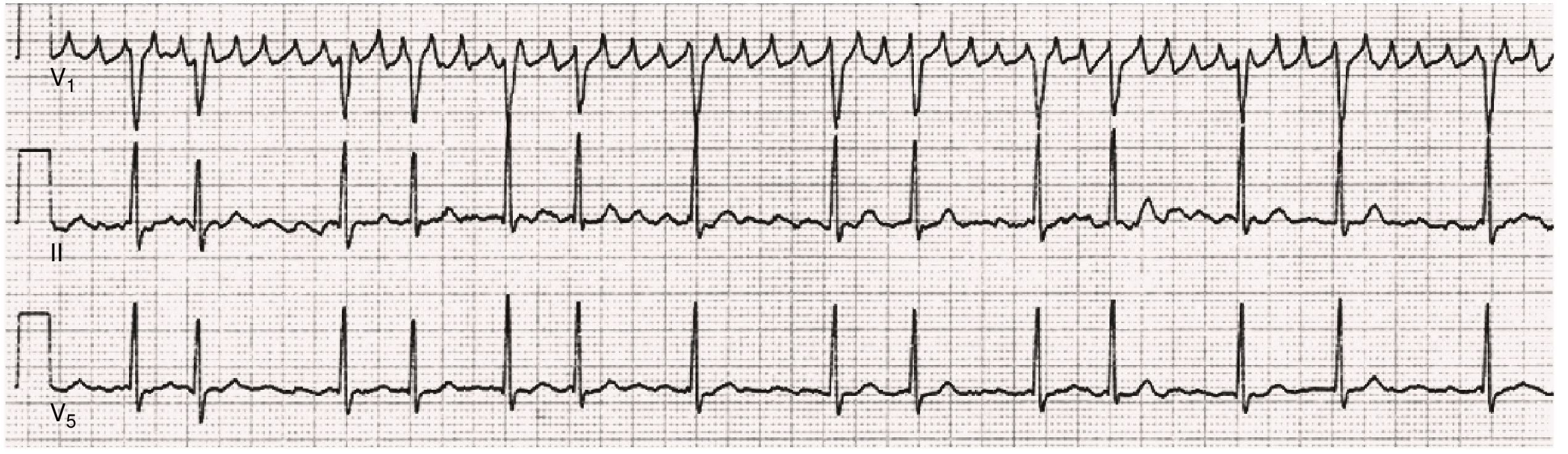

Figure 66.2 from Braunwald's Heart Disease - prominent fibrillatory (f) waves in V1 mimicking flutter, confirmed as AF by typical f waves in leads II and V1:
AF ECG - prominent f waves in V1 and II (Braunwald's Fig 66.2)

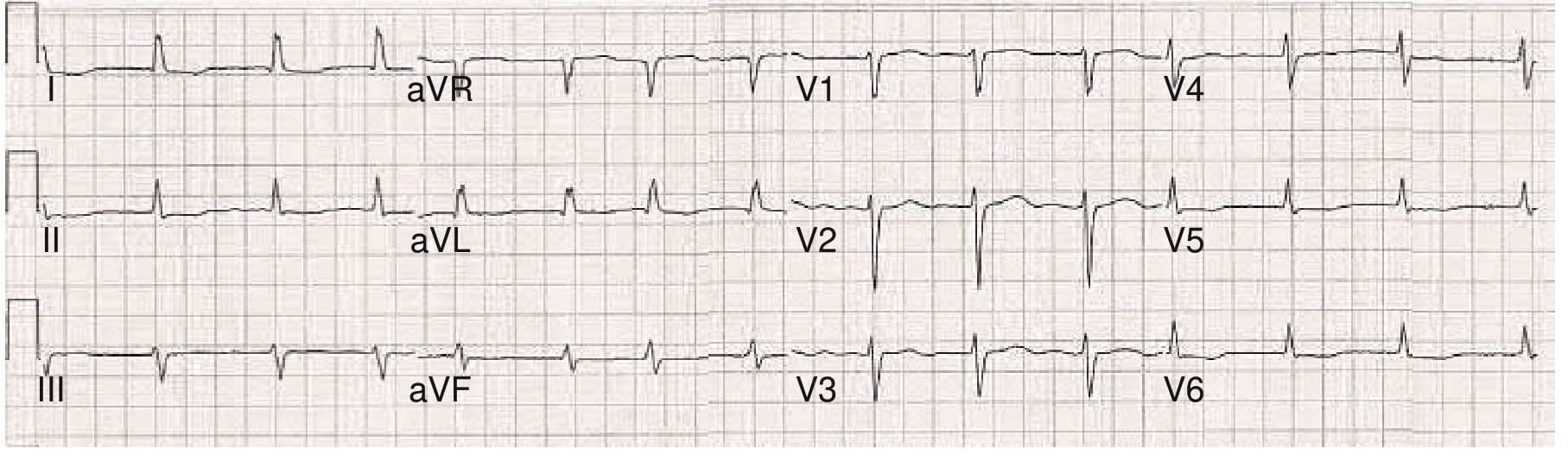

Figure 66.3 from Braunwald's Heart Disease - 12-lead ECG where no discrete f waves are visible, but the irregularly irregular ventricular rate establishes the diagnosis:
12-lead ECG of AF - no discernible f waves, irregularly irregular (Braunwald's Fig 66.3)

Three Key ECG Features of AF

FeatureNormal Sinus RhythmAtrial Fibrillation
P wavesPresent, upright, regularAbsent - replaced by chaotic f waves (350-600/min)
RR intervalRegularIrregularly irregular
Ventricular rate60-100 bpmVariable (often 100-160 bpm if uncontrolled)

Mechanisms (from Braunwald's Heart Disease, p. 522)

Three main mechanistic concepts underlie AF:
  1. Multiple reentrant wavelets - multiple simultaneous re-entry circuits in the atria, continuously recycling and sustaining chaos
  2. Rapidly discharging autonomic foci - ectopic firing foci, most commonly in the pulmonary veins, trigger and maintain AF (especially paroxysmal AF)
  3. Single reentrant circuit with fibrillatory conduction - a "mother rotor" drives multiple daughter wavelets across the atria
In persistent AF, atrial remodeling (including interstitial fibrosis and conduction abnormalities) provides the substrate that maintains the arrhythmia beyond the initial trigger.

Clinical Consequences

  • The AV node acts as a gatekeeper, but still allows irregular, rapid ventricular responses
  • Loss of atrial "kick" (active atrial contraction) reduces cardiac output by ~10-20%, which matters most in patients with stiff/hypertrophic ventricles
  • Blood stasis in the left atrial appendage promotes thrombus formation, leading to AF's 5-fold increase in stroke risk
  • CHA₂DS₂-VASc score guides anticoagulation decisions
Sources: Braunwald's Heart Disease (9780323722193), Chapter 66; Nature Reviews Disease Primers 2016
