Humeral Shaft Fractures - Rockwood & Green's Fractures in Adults (10th Ed, 2025)
1. EPIDEMIOLOGY
- Constitute 1-2% of all fractures in the body and 13-14% of all humeral fractures

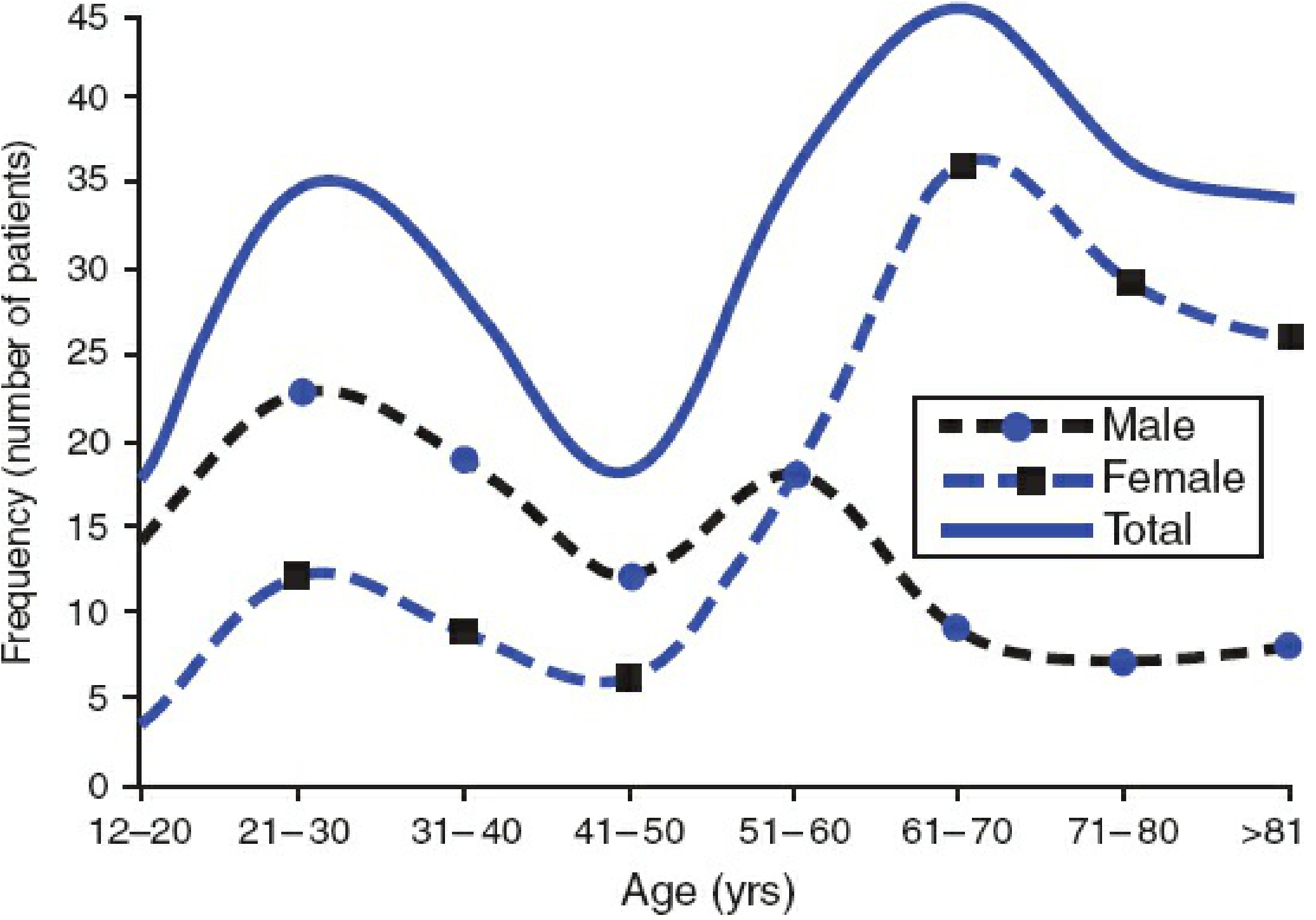

- Bimodal age-gender distribution: young men (peak 21-30 yrs from high-energy trauma) and older women (peak 61-70 yrs from low-energy falls)
- Ground-level fall is the most common mechanism (simple fall:RTA ratio = 9:1 in the USA; 3.5:1 in the UK)
- Incidence is projected to nearly double by 2030 compared with 2008
2. MECHANISMS OF INJURY
| Mechanism | Notes |
|---|---|
| Ground-level fall | Most common overall; typically older women |
| Road traffic accident | High-energy; typically younger men |
| Sports/falls from height | 5-8% depending on geography |
| Direct blow | Transverse or comminuted fracture pattern |
| Twisting/torsional force | Spiral fracture pattern (classic: arm wrestling) |
3. ANATOMY AND APPLIED PATHOLOGY
- Proximal: superior border of pectoralis major insertion
- Distal: superior border of the supracondylar ridges (or olecranon fossa)
- Radial nerve runs in the spiral groove of the posterior humerus and is the most vulnerable structure - at risk in middle and distal third fractures
- Brachial artery and median nerve lie anteromedially
- Musculocutaneous nerve penetrates the coracobrachialis proximally
- Holstein-Lewis fracture (distal third spiral fracture) classically entraps the radial nerve at the lateral intermuscular septum
| Fracture Level | Proximal Fragment | Distal Fragment |
|---|---|---|
| Above pectoralis major | Abducted + externally rotated (deltoid/rotator cuff) | Displaced medially (pec major) |
| Between pec major and deltoid insertion | Adducted medially (pec major) | Proximally + abducted (deltoid) |
| Below deltoid insertion | Abducted (deltoid) | Proximal pull (biceps/triceps) |
4. CLASSIFICATION
AO/OTA Classification (most widely used)
- Type A - Simple (A1: spiral, A2: oblique, A3: transverse)
- Type B - Wedge (B1: spiral wedge, B2: bending wedge, B3: fragmented wedge)
- Type C - Complex/comminuted (C1: spiral, C2: segmental, C3: irregular)
AO classification by bone loss / soft tissue damage:
- Open fractures graded using the OTA/OFS Open Fracture Classification (Skin / Muscle / Arterial / Contamination / Bone Loss - each graded 1-3)
- Closed fractures: Tscherne-Gotzen classification (Grade 0-III)
5. ASSOCIATED INJURIES
Radial Nerve Injury
- Occurs in 10-12% of closed humeral shaft fractures - the most common associated injury
- Clinical features: wrist drop (inability to dorsiflex wrist and digits), numbness over dorsoradial hand and dorsal aspect of radial 3.5 digits
- Holstein-Lewis fracture (distal spiral) has highest risk of radial nerve entrapment
- Primary (immediate) palsy at time of injury: Initial expectant (wait-and-watch) treatment is preferred. ~70% recover spontaneously within 3-6 months
- Secondary palsy (after closed manipulation or open fractures): Explore immediately
- If no recovery by 3-4 months - electrophysiologic studies (EMG/NCS) and exploration if needed
- Shao et al. (systematic review 1964-2004): Confirmed policy of initial conservative observation is preferred
Vascular Injury
- Less common but limb threatening; brachial artery injury is the most critical
- Clinical: absent distal pulses, expanding hematoma, limb ischemia
- Requires emergency vascular exploration and repair
Other Associated Injuries
- Ipsilateral forearm fractures ("floating elbow") - absolute indication for surgery
- Shoulder and elbow intra-articular extension
- Brachial plexus injury with high-energy or shoulder-dislocating mechanisms
6. IMAGING
- Standard: AP and lateral radiographs of the whole humerus (including shoulder and elbow joints)
- CT scan: if intra-articular extension is suspected or fracture lines approach joints
- Fracture union (Sarmiento's definition): osseous bridging between main fragments on at least one radiograph with no pain at fracture site
- CT is not routine - reserved for suspected nonunion or delayed union not progressing on plain films
7. NON-OPERATIVE TREATMENT
Acceptable Alignment Criteria
| Parameter | Acceptable Limit |
|---|---|
| Varus/valgus angulation | Up to 20-30° |
| Anterior angulation | Up to 20° |
| Shortening | Up to 3 cm |
| Rotation | Up to 15° |
Methods (Progression over time)
- Coaptation/U-Slab splint - Initial immobilization for swelling
- Hanging arm cast - Traction by gravity; patient must remain upright; risk of distraction if used too long
- Functional Brace (Sarmiento brace) - The gold standard for non-operative treatment
- Applied at 1-2 weeks post-injury when pain/swelling allows
- Hydrostatic compression of soft tissues around bone
- Allows shoulder and elbow mobility
- Union rates: 85-95% for mid-shaft fractures
- Higher nonunion risk: AO type A fractures, proximal third fractures, large gap, absence of bridging callus at 6 weeks
- Low-intensity pulsed ultrasound (LIPUS)
- Vitamin D supplementation
8. OPERATIVE TREATMENT
Absolute Indications for Surgery
- Inability to maintain satisfactory reduction by closed means
- Multiple injuries (polytrauma)
- Bilateral fractures
- Floating elbow (ipsilateral forearm fracture)
- Intra-articular fracture extension
- Progressive nerve palsy or nerve palsy after closed manipulation
- Significant vascular injury
- Neurologic deficit after penetrating injury
- Nonunion / infected nonunion
- Open fractures
- Pathologic fractures
Relative Indications for Surgery
- Segmental fractures
- Noncompliant patients
- Obesity or large-breasted patients (preclude brace use)
- Periprosthetic fractures
9. SURGICAL OPTIONS
A. Open Reduction Internal Fixation (ORIF) with Plate
Surgical Approaches:
- Anterior (anterolateral) - Henry approach; exposes entire humerus; radial nerve identified in distal third; suitable for middle and distal third fractures
- Posterior - Triceps-splitting or triceps-sparing (paratricipital); best for distal shaft and fractures involving radial nerve exploration; provides widest access to radial nerve in spiral groove
- Lateral - Less commonly used; intermediate option
Plate Selection:
- Traditional 4.5 mm narrow DCP or LC-DCP - minimum 3-4 screws proximal and distal; 8-10 hole for simple fractures; longer bridging plates for comminuted fractures
- Locking compression plates (LCP) - superior for osteoporotic bone; better pull-out resistance
- Dual plating - orthogonal 3.5 mm plates (9-hole anterior + 7-hole lateral) - superior rotation stiffness; useful for narrow humerus or combined diaphyseal-articular fractures
MIPO (Minimally Invasive Plate Osteosynthesis)
- Anterior or posterior approach with 2 small "windows"
- Avoids fracture hematoma disturbance; radial nerve must be identified and protected
- Suitable for middle and distal diaphyseal fractures
B. Intramedullary Nailing (IMN)
Antegrade IMN
- Entry point: tip of greater tuberosity at medullary canal axis (1 cm medial to greater tuberosity tip)
- Patient positioned: supine or beach chair, arm hanging off table
- Nail length/diameter: measured on preoperative AP + lateral radiographs
- Minimum 3 interlocking screws proximally and distally
- Specific complications:
- Nail protrusion and shoulder impingement
- Shoulder dysfunction (rotator cuff damage from entry)
- "Backing out" of proximal locking screws
- Iatrogenic proximal humeral fracture
Retrograde IMN
- Entry: 1 × 2 cm window in posterior supracondylar cortex via olecranon fossa
- Patient positioned: prone or lateral decubitus
- Skin incision: 4-5 cm from olecranon tip proximally; triceps split
- Specific complications:
- Iatrogenic supracondylar fracture at entry site
- Elbow stiffness
Plating vs. Nailing Comparison
| Feature | ORIF Plate | IMN |
|---|---|---|
| Shoulder dysfunction | Lower | Higher (antegrade) |
| Radial nerve iatrogenic injury | Higher (direct exposure) | Lower |
| Elbow complications | Lower | Higher (retrograde) |
| Rotation control | Good (dual plate superior) | Moderate |
| Preference | Most centers worldwide | Certain cases: segmental, osteoporotic |
C. External Fixation
- Rarely used as definitive treatment
- Indicated in: contaminated open fractures, massive soft tissue injury, temporary stabilization in polytrauma
- Complications: pin track infection, refracture after removal
10. AUTHOR'S PREFERRED TREATMENT (Rockwood Chapter Authors)
- Most closed humeral shaft fractures: Functional brace (Sarmiento) as primary treatment
- Operative treatment reserved for the absolute and relative indications listed above
- If surgery is needed: ORIF with plate (posterior or anterior approach) is preferred over IMN in most cases due to lower shoulder dysfunction rates
- Radial nerve palsy in closed fractures: expectant observation initially; explore only if secondary palsy or no recovery at 3-4 months
11. COMPLICATIONS AND ADVERSE OUTCOMES
General Complications (all methods)
Nonunion
- Incidence: 1-10% after non-operative and 10-15% after surgical management
- Higher after surgery likely reflects selection bias (more complex fractures operated)
- Risk factors: open fractures, segmental, transverse, comminuted, significant displacement, bone loss, smoking, diabetes, NSAIDs, malnutrition, noncompliance
- Nonunion after surgery often due to technical error (inadequate fixation, fracture gap distraction)
- Most are atrophic nonunions
- Standard: ORIF + autologous bone graft (iliac crest)
- If bone defect: autograft, allograft, BMPs, or shortening considered
- Technique: wide exposure, remove previous implants, debride all fibrous tissue and dead bone until healthy bleeding bone on both sides, compress fragments, stable fixation
Infection
- Higher risk with open fractures and revision surgery
- Requires debridement + antibiotics; may require staged procedures
Secondary Neurologic Injury
- Iatrogenic radial nerve injury during ORIF (posterior approach)
- Risk reduced by careful nerve identification and protection
Implant-Specific Complications
| Implant | Specific Complications |
|---|---|
| Plate | Loss of fixation (especially osteoporotic bone) |
| Antegrade nail | Nail protrusion + impingement, shoulder dysfunction, proximal screw back-out |
| Retrograde nail | Supracondylar fracture at entry, elbow stiffness |
| External fixation | Pin track infection, refracture after removal |
12. SPECIAL CONSIDERATIONS
Open Fractures
- Classified by OTA/OFS system (Skin / Muscle / Artery / Contamination / Bone Loss)
- Require urgent surgical debridement and irrigation
- Antibiotic coverage; delayed wound closure or flap coverage if needed
- Definitive stabilization: plate or external fixator depending on contamination
Osteoporotic Fractures
- Higher risk of nonunion and fixation failure
- LCP preferred over conventional plates; consider bone grafting at index surgery
- Nutritional optimization (vitamin D, calcium) important
Pathologic Fractures
- Most commonly from metastatic disease (breast, lung, kidney, prostate)
- Prophylactic fixation if at risk; intramedullary nailing preferred for metastatic lesions (load-sharing implant)
- Postoperative radiotherapy often required
Periprosthetic Fractures
- Around shoulder or elbow prostheses
- Classification and treatment depend on prosthesis stability and bone stock
- Stable prosthesis + adequate bone: ORIF with plate and cerclage wires
- Loose prosthesis: revision arthroplasty + fixation
SUMMARY TABLE
| Aspect | Key Point |
|---|---|
| Incidence | 1-2% of all fractures |
| Bimodal distribution | Young men (trauma) + older women (falls) |
| Most common mechanism | Ground-level fall |
| Most common nerve injury | Radial nerve (10-12%) |
| High-risk fracture for radial nerve | Holstein-Lewis (distal spiral) |
| Gold standard non-operative Rx | Sarmiento functional brace |
| Acceptable angulation | Up to 20-30° varus/valgus, 20° anterior |
| Nonunion rate non-op | 1-10% |
| Nonunion rate operative | 10-15% |
| Preferred operative Rx | ORIF with plate (anterior or posterior approach) |
| Radial nerve palsy - primary | Observe; 70% spontaneous recovery |
| Radial nerve palsy - secondary | Immediate exploration |
