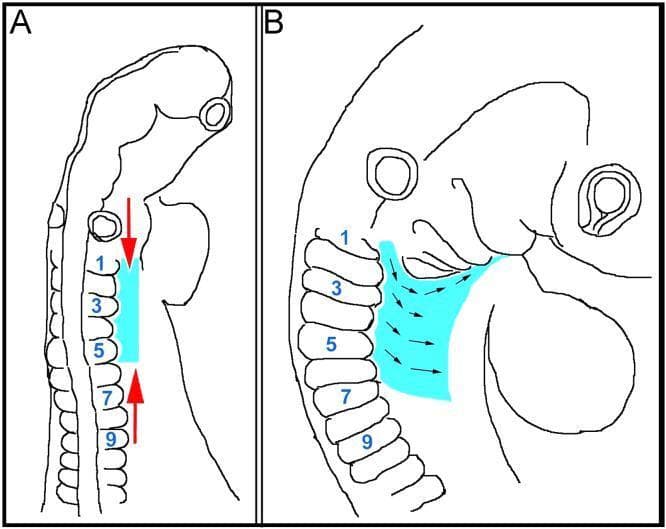

This medical illustration depicts an anatomical diagram of avian embryo development, specifically focused on the morphogenetic movements of the lateral mesoderm and ectoderm at the head-trunk interface. Panel A provides a dorsal view of the embryo, illustrating rostrocaudal compression of the lateral tissues (highlighted in cyan) indicated by opposing red arrows. Panel B provides a lateral view, showing mediolateral expansion of the same tissue layers. Somites are numbered 1 through 9 to serve as anatomical landmarks. Small black arrows in Panel B track the migration route of tissues originating from the level of rostral somites. These tissues move around the pharyngeal arches and extend along the floor of the pharynx toward the mandibular arch. This diagram serves to explain the 'conveyor belt' mechanism where the movement of lateral mesoderm and ectoderm aids in the assembly of the hypopharyngeal apparatus and facilitates the transport of non-migratory muscle precursors. Key structures shown include the neural tube, otic vesicle, somites, and pharyngeal arches within the context of vertebrate embryology and developmental anatomy.

High-resolution episcopic microscopy (HREM) images illustrating the comparative embryological anatomy of the pharyngeal region in a human embryo (Carnegie Stage 13) and a mouse embryo (35 somites). The plate includes coronal (transverse) and sagittal sections, highlighting the segmental organization of pharyngeal arches and pouches. The images contrast the traditional numerical nomenclature (1, 2, 3, 4, 6) with a proposed descriptive naming system: Mandibular (M), Hyoid (H), Carotid (C), Aortic (A), and Pulmonary (P). In the human coronal view (a), bilateral symmetry of the arches is visible, while the sagittal view (b) clearly depicts the cranial-to-caudal sequence of these structures. Pharyngeal pouches are numerically labeled (1-4, 6) in orange, representing endodermal outpocketings between the arches. This visual resource is designed for developmental biology and embryology education, emphasizing that there are five distinct arches formed during normal amniote development, which has significant implications for understanding congenital cardiac malformations and the derivatives of the pharyngeal apparatus.

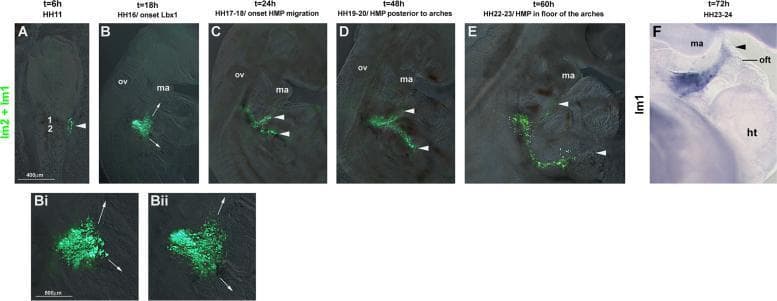

This composite diagnostic and pathophysiology diagram illustrates the migration of occipital lateral mesoderm in a developing avian embryo using GFP electroporation and in situ hybridization. Panels A through E display a temporal sequence from HH11 (t=6h) to HH22-23 (t=60h). Fluorescent GFP-labeled cells, initially localized near somites 1 and 2 (lm1+lm2), are shown organizing into two distinct migratory streams: a rostral stream projecting toward the pharyngeal arches and a lateral-caudal stream. Higher magnification panels (Bi, Bii) at HH16 highlight the onset of this bifurcation. Panel F shows GFP mRNA expression (blue staining) at HH23-24, demonstrating the accumulation of these lateral mesoderm-derived cells near the mandibular arch (ma) and the heart's outflow tract (oft). Anatomical landmarks include the otic vesicle (ov), heart (ht), and mandibular arch. This content serves as an educational resource for embryology and developmental biology, specifically regarding circumpharyngeal cell movements and the origins of cranial and cardiac mesodermal structures.

This comparative anatomical diagram displays three-dimensional reconstructions of pharyngeal arch artery development in mouse (E9.5 to E13.5) and human (CS11 to CS20) embryos, utilizing high-resolution episcopic microscopy (HREM) datasets. The reconstructions, highlighted in red, demonstrate the systematic transition from embryonic arch arteries to the definitive adult arterial configuration. Key developmental milestones illustrated include the formation of the initial first and second arches, the subsequent appearance of the third, fourth, and sixth (ultimate, denoted by *) arch arteries, and the involution of the carotid duct (cd). The images track the transformation of the third arch into the common carotid (cc) and proximal internal carotid arteries (ica), and the second arch into the external carotid artery (eca). Visible cardiovascular landmarks include the aorta (ao), pulmonary trunk (pt), and pulmonary arteries (pa). This series highlights the dramatic elongation of the common carotid arteries as the heart descends and the embryo grows along the anterior-posterior axis, providing a comprehensive visual of pharyngeal arch remodeling and outflow tract septation across mammalian species.

Here are key images illustrating pharyngeal arch development:

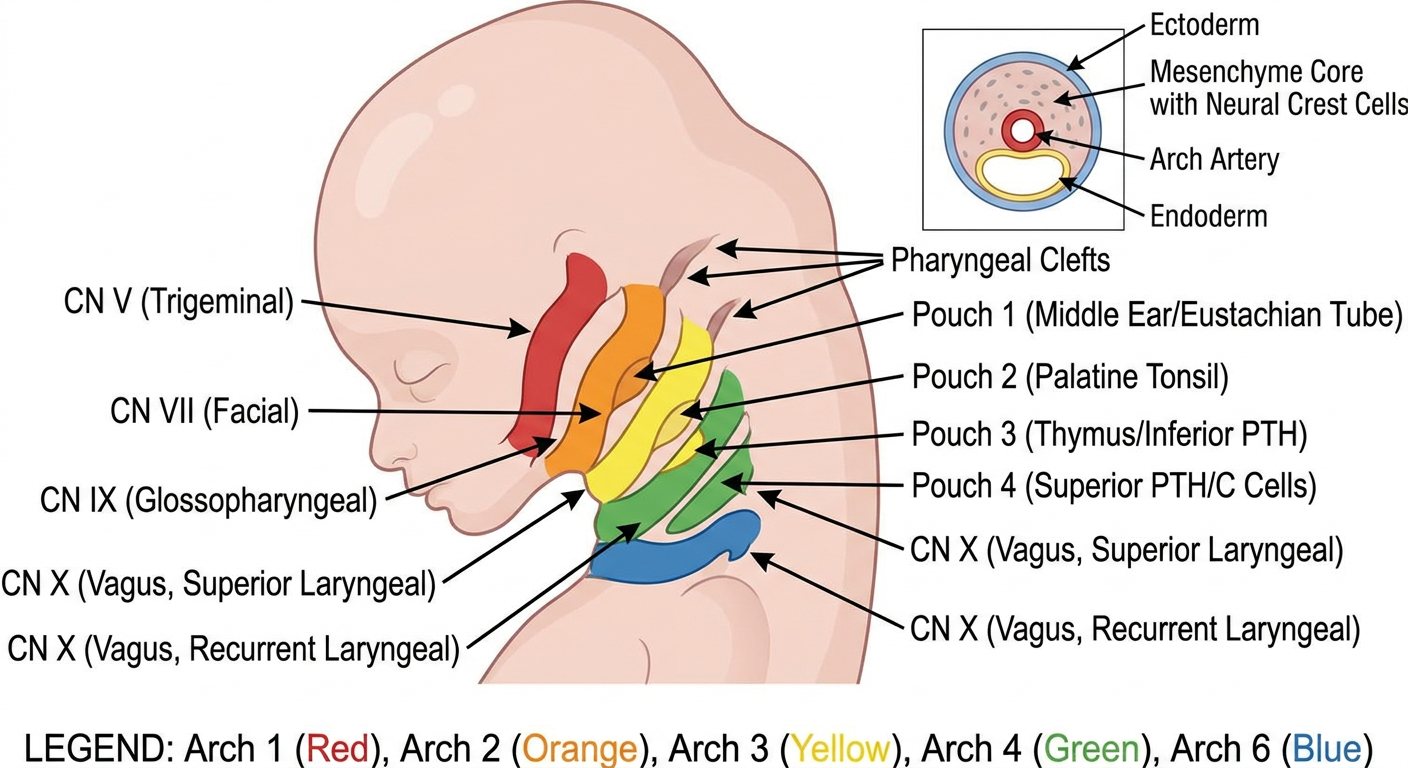

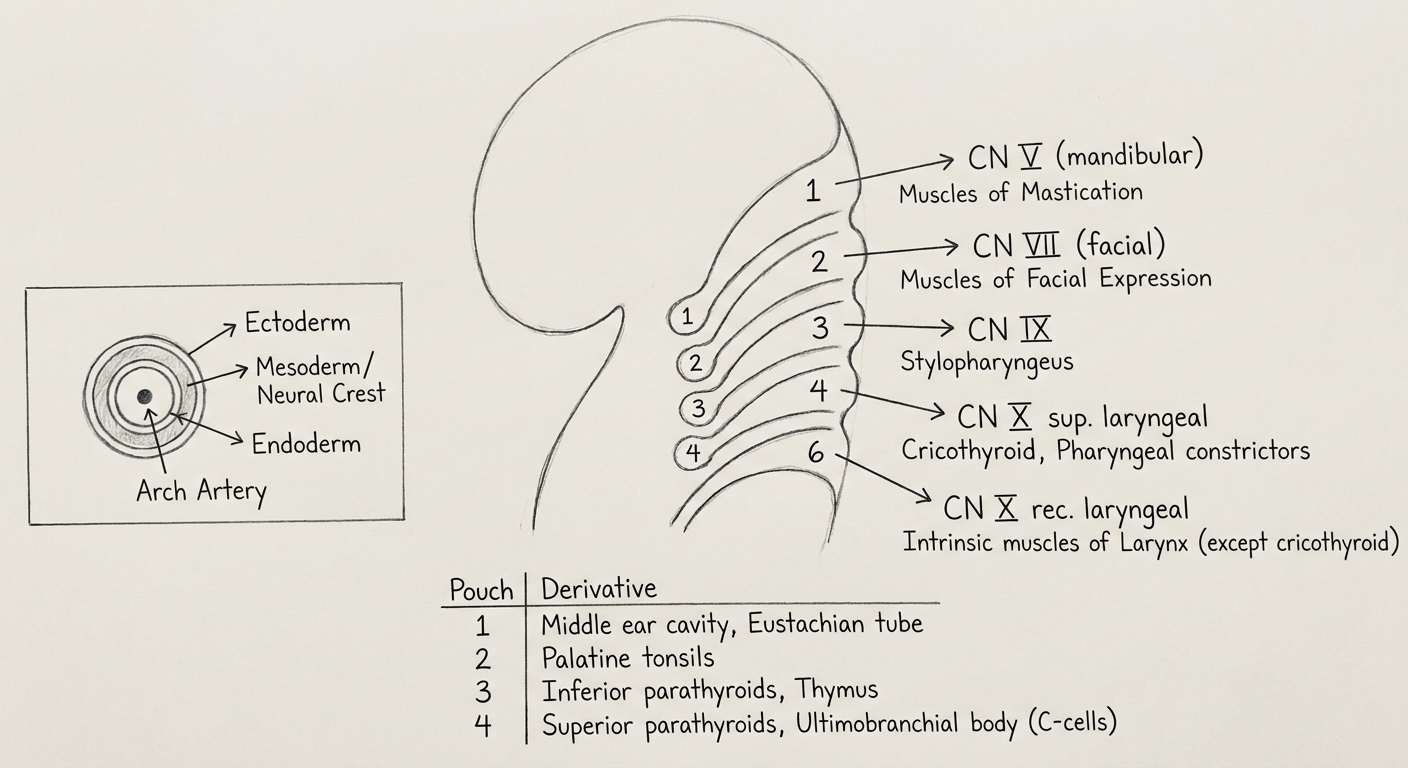

1. Pharyngeal Arch Structure - Embryological Layers

Pharyngeal arches embryological layers - ectoderm, endoderm, mesoderm

A 3D reconstruction and schematic showing the sequential pharyngeal arches (1-4) with their tissue layers - outer ectoderm (pink), internal endoderm (blue) forming pouches, mesenchymal core (green), and arch arteries (red). Includes immunofluorescence labeling of Pax9 expression in pharyngeal endoderm.

2. Human vs. Mouse Pharyngeal Arch Anatomy (Carnegie Stage 13)

Pharyngeal arches human and mouse comparison - HREM sections

High-resolution coronal and sagittal sections comparing human (Carnegie Stage 13) and mouse (35 somites) pharyngeal arch organization. Labels both the traditional numeric system (1, 2, 3, 4, 6) and descriptive names: Mandibular (M), Hyoid (H), Carotid (C), Aortic (A), Pulmonary (P).

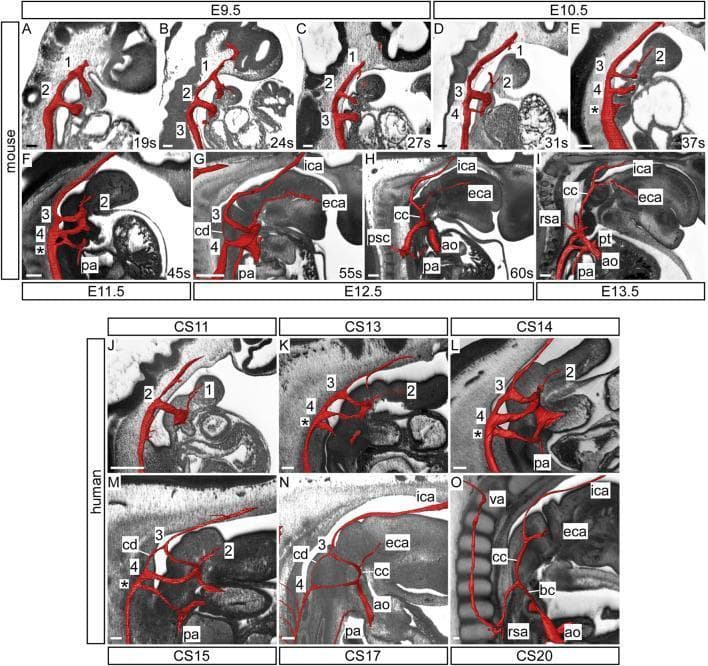

3. Pharyngeal Arch Artery Remodeling (Mouse E9.5-E13.5 / Human CS11-CS20)

Pharyngeal arch artery development mouse and human 3D reconstruction

3D reconstructions showing pharyngeal arch artery remodeling into adult vasculature - arch 3 → common carotid and internal carotid arteries; arch 6 → pulmonary arteries; aortic and pulmonary trunks visible.

Key summary of pharyngeal arches:

Arch	Nerve	Cartilage	Muscle	Artery
1 (Mandibular)	CN V2/V3	Meckel's + malleus/incus	Muscles of mastication, tensor tympani	Maxillary a.
2 (Hyoid)	CN VII	Stapes, styloid process, lesser cornu hyoid	Muscles of facial expression	Stapedial a.
3	CN IX	Greater cornu hyoid	Stylopharyngeus	Common/internal carotid
4	CN X (sup. laryngeal)	Thyroid cartilage	Pharyngeal constrictors	Aortic arch (L), subclavian (R)
6	CN X (recurrent laryngeal)	Cricoid/arytenoid cartilages	Intrinsic laryngeal muscles	Pulmonary arteries/ductus arteriosus

Create a pharyngeal arch reference guide or study sheet

Asking for Preferences

Reading File

Finding Sources

Reading File

Running Command

mkdir -p /tmp/workspace/pharyngeal-arches && ls /tmp/workspace/pharyngeal-arches/

Writing File

~/pharyngeal-arches/build_study_sheet.py

from reportlab.lib.pagesizes import A4
from reportlab.lib import colors
from reportlab.lib.styles import getSampleStyleSheet, ParagraphStyle
from reportlab.lib.units import cm, mm
from reportlab.platypus import (
    SimpleDocTemplate, Paragraph, Spacer, Table, TableStyle,
    HRFlowable, KeepTogether
)
from reportlab.lib.enums import TA_CENTER, TA_LEFT, TA_JUSTIFY
from reportlab.pdfbase import pdfmetrics
from reportlab.pdfbase.ttfonts import TTFont
import os

OUTPUT = "/tmp/workspace/pharyngeal-arches/Pharyngeal_Arches_Study_Sheet.pdf"

doc = SimpleDocTemplate(
    OUTPUT,
    pagesize=A4,
    leftMargin=1.5*cm, rightMargin=1.5*cm,
    topMargin=1.5*cm, bottomMargin=1.5*cm
)

W, H = A4

# ─── Color palette ────────────────────────────────────────────────────────────
C_NAVY   = colors.HexColor("#1B3A6B")
C_TEAL   = colors.HexColor("#0D7377")
C_GOLD   = colors.HexColor("#F0A500")
C_LIGHT  = colors.HexColor("#EAF4F4")
C_PALE   = colors.HexColor("#FFF8E7")
C_WHITE  = colors.white
C_GRAY   = colors.HexColor("#555555")
C_LGRAY  = colors.HexColor("#E8E8E8")
C_RED    = colors.HexColor("#C0392B")
C_GREEN  = colors.HexColor("#1A7A4A")
C_PURPLE = colors.HexColor("#6C3483")
C_ORANGE = colors.HexColor("#D35400")
C_BROWN  = colors.HexColor("#7B4F2E")
C_PINK   = colors.HexColor("#A93226")

# Arch colours for the main table rows
ARCH_COLORS = {
    1: colors.HexColor("#FDEBD0"),  # warm orange
    2: colors.HexColor("#D5F5E3"),  # green
    3: colors.HexColor("#D6EAF8"),  # blue
    4: colors.HexColor("#E8DAEF"),  # purple
    6: colors.HexColor("#FDFEFE"),  # white/pale
}
ARCH_HDR_COLORS = {
    1: colors.HexColor("#E59866"),
    2: colors.HexColor("#58D68D"),
    3: colors.HexColor("#5DADE2"),
    4: colors.HexColor("#AF7AC5"),
    6: colors.HexColor("#AAB7B8"),
}

# ─── Styles ───────────────────────────────────────────────────────────────────
styles = getSampleStyleSheet()

def S(name, **kw):
    return ParagraphStyle(name, **kw)

title_style = S("Title_",
    fontName="Helvetica-Bold", fontSize=20, textColor=C_WHITE,
    alignment=TA_CENTER, spaceAfter=2)

subtitle_style = S("Subtitle_",
    fontName="Helvetica", fontSize=11, textColor=C_GOLD,
    alignment=TA_CENTER, spaceAfter=4)

section_style = S("Section_",
    fontName="Helvetica-Bold", fontSize=12, textColor=C_WHITE,
    alignment=TA_LEFT, spaceBefore=8, spaceAfter=4,
    leftIndent=4, leading=16)

body_style = S("Body_",
    fontName="Helvetica", fontSize=8.5, textColor=colors.black,
    alignment=TA_LEFT, spaceAfter=2, leading=12)

small_style = S("Small_",
    fontName="Helvetica", fontSize=7.5, textColor=C_GRAY,
    alignment=TA_LEFT, spaceAfter=1, leading=11)

bold_style = S("Bold_",
    fontName="Helvetica-Bold", fontSize=8.5, textColor=colors.black,
    alignment=TA_LEFT, spaceAfter=2)

italic_style = S("Italic_",
    fontName="Helvetica-Oblique", fontSize=8.5, textColor=C_GRAY,
    alignment=TA_LEFT, spaceAfter=2)

th_style = S("TH_",
    fontName="Helvetica-Bold", fontSize=8, textColor=C_WHITE,
    alignment=TA_CENTER, leading=11)

td_style = S("TD_",
    fontName="Helvetica", fontSize=7.5, textColor=colors.black,
    alignment=TA_LEFT, leading=11)

td_bold = S("TD_Bold",
    fontName="Helvetica-Bold", fontSize=7.5, textColor=colors.black,
    alignment=TA_LEFT, leading=11)

td_center = S("TD_Cen",
    fontName="Helvetica", fontSize=7.5, textColor=colors.black,
    alignment=TA_CENTER, leading=11)

note_style = S("Note_",
    fontName="Helvetica-Oblique", fontSize=7, textColor=C_GRAY,
    alignment=TA_LEFT, spaceAfter=2, leading=10)

mnemonic_style = S("Mnemonic_",
    fontName="Helvetica-Bold", fontSize=9, textColor=C_NAVY,
    alignment=TA_CENTER, spaceAfter=2, leading=13)

warn_style = S("Warn_",
    fontName="Helvetica-Bold", fontSize=8, textColor=C_RED,
    alignment=TA_LEFT, spaceAfter=2)

# ─── Helper: section header ───────────────────────────────────────────────────
def section_header(text, bg=C_NAVY):
    t = Table([[Paragraph(text, section_style)]], colWidths=[doc.width])
    t.setStyle(TableStyle([
        ("BACKGROUND", (0,0), (-1,-1), bg),
        ("TOPPADDING",    (0,0), (-1,-1), 5),
        ("BOTTOMPADDING", (0,0), (-1,-1), 5),
        ("LEFTPADDING",   (0,0), (-1,-1), 8),
        ("ROUNDEDCORNERS", [4,4,4,4]),
    ]))
    return t

def subsection_header(text, bg=C_TEAL):
    t = Table([[Paragraph(text, S("sub_h",
        fontName="Helvetica-Bold", fontSize=10, textColor=C_WHITE,
        alignment=TA_LEFT, leading=14)
    )]], colWidths=[doc.width])
    t.setStyle(TableStyle([
        ("BACKGROUND", (0,0), (-1,-1), bg),
        ("TOPPADDING",    (0,0), (-1,-1), 4),
        ("BOTTOMPADDING", (0,0), (-1,-1), 4),
        ("LEFTPADDING",   (0,0), (-1,-1), 8),
    ]))
    return t

def colored_box(content_paras, bg=C_LIGHT, border=C_TEAL):
    inner = [[p] for p in content_paras]
    t = Table(inner, colWidths=[doc.width - 1.2*cm])
    t.setStyle(TableStyle([
        ("BACKGROUND", (0,0), (-1,-1), bg),
        ("BOX",        (0,0), (-1,-1), 1.2, border),
        ("TOPPADDING",    (0,0), (-1,-1), 4),
        ("BOTTOMPADDING", (0,0), (-1,-1), 3),
        ("LEFTPADDING",   (0,0), (-1,-1), 8),
        ("RIGHTPADDING",  (0,0), (-1,-1), 8),
    ]))
    return t

# ─── Title block ──────────────────────────────────────────────────────────────
def make_title_block():
    title_para = Paragraph("PHARYNGEAL ARCHES", title_style)
    sub_para   = Paragraph("Complete Reference &amp; Study Sheet  •  Embryology", subtitle_style)
    source_para = Paragraph(
        "Sources: The Developing Human (Moore &amp; Persaud) | Langman's Medical Embryology",
        S("src", fontName="Helvetica-Oblique", fontSize=8, textColor=colors.HexColor("#CCDDDD"),
          alignment=TA_CENTER))
    block = Table([
        [title_para],
        [sub_para],
        [source_para],
    ], colWidths=[doc.width])
    block.setStyle(TableStyle([
        ("BACKGROUND",    (0,0), (-1,-1), C_NAVY),
        ("TOPPADDING",    (0,0), (-1,-1), 10),
        ("BOTTOMPADDING", (0,0), (-1,-1), 8),
        ("LEFTPADDING",   (0,0), (-1,-1), 10),
    ]))
    return block

# ─── Overview box ─────────────────────────────────────────────────────────────
def make_overview():
    items = [
        Paragraph("<b>What are Pharyngeal Arches?</b>", bold_style),
        Paragraph(
            "5 pairs of mesodermal arches (1-4, 6) separated by clefts (ectoderm) and pouches (endoderm). "
            "Develop in week 4-5. Each arch has: <b>artery</b> (from truncus arteriosus), "
            "<b>cartilage/bone</b>, <b>muscle</b>, and <b>cranial nerve</b>.",
            body_style),
        Spacer(1, 3),
        Paragraph("<b>Composition of each arch:</b>  Ectoderm (outer) | Mesenchyme core (neural crest cells + paraxial mesoderm) | Endoderm (inner)", body_style),
        Paragraph(
            "<b>Key concept:</b> Even when arch muscles migrate away, their cranial nerve follows — so nerve supply identifies arch of origin.",
            italic_style),
    ]
    return colored_box(items, bg=C_LIGHT, border=C_TEAL)

# ─── Main derivatives table ───────────────────────────────────────────────────
def make_main_table():
    col_w = [doc.width * x for x in [0.08, 0.11, 0.13, 0.21, 0.20, 0.16, 0.11]]

    header = [
        Paragraph("Arch", th_style),
        Paragraph("Name", th_style),
        Paragraph("Nerve (CN)", th_style),
        Paragraph("Muscles", th_style),
        Paragraph("Cartilage / Bone", th_style),
        Paragraph("Artery", th_style),
        Paragraph("Ligament", th_style),
    ]

    data = [header]

    arch_data = [
        {
            "num": "1",
            "name": "Mandibular",
            "nerve": "V2 (maxillary)\nV3 (mandibular)",
            "muscles": "• Muscles of mastication\n  (temporalis, masseter,\n  pterygoids)\n• Mylohyoid\n• Ant. belly of digastric\n• Tensor tympani\n• Tensor veli palatini",
            "cart": "• Meckel's cartilage\n• Malleus\n• Incus\n• Mandible (membranous)\n• Maxilla, zygoma\n• Part of temporal bone",
            "artery": "Maxillary a.\n(from ext. carotid)",
            "lig": "Ant. lig. of malleus\nSphenomandibular lig.",
            "color": ARCH_COLORS[1],
            "hdr": ARCH_HDR_COLORS[1],
        },
        {
            "num": "2",
            "name": "Hyoid\n(Reichert)",
            "nerve": "VII (Facial)",
            "muscles": "• Muscles of facial\n  expression\n• Stapedius\n• Stylohyoid\n• Post. belly of digastric\n• Auricular muscles",
            "cart": "• Stapes\n• Styloid process\n• Stylohyoid lig.\n• Lesser cornu of hyoid\n• Upper body of hyoid",
            "artery": "Stapedial a.\n(involutes)",
            "lig": "Stylohyoid lig.",
            "color": ARCH_COLORS[2],
            "hdr": ARCH_HDR_COLORS[2],
        },
        {
            "num": "3",
            "name": "Third",
            "nerve": "IX (Glosso-\npharyngeal)",
            "muscles": "• Stylopharyngeus\n  (only muscle!)",
            "cart": "• Greater cornu of hyoid\n• Lower body of hyoid",
            "artery": "Common carotid a.\nProximal int. carotid a.",
            "lig": "—",
            "color": ARCH_COLORS[3],
            "hdr": ARCH_HDR_COLORS[3],
        },
        {
            "num": "4",
            "name": "Fourth",
            "nerve": "X – Superior\nlaryngeal br.",
            "muscles": "• Cricothyroid\n• Levator veli palatini\n• Pharyngeal\n  constrictors",
            "cart": "• Thyroid cartilage\n• Superior cornu\n  of thyroid",
            "artery": "L: Aortic arch\nR: Subclavian a.",
            "lig": "—",
            "color": ARCH_COLORS[4],
            "hdr": ARCH_HDR_COLORS[4],
        },
        {
            "num": "6",
            "name": "Sixth\n(5 absent)",
            "nerve": "X – Recurrent\nlaryngeal br.",
            "muscles": "• Intrinsic muscles\n  of larynx\n• Striated muscles\n  of esophagus",
            "cart": "• Cricoid cartilage\n• Arytenoid cartilage\n• Corniculate cartilage\n• Cuneiform cartilage",
            "artery": "L: Ductus arteriosus\n  → lig. arteriosum\nR: Pulmonary a. (prox.)",
            "lig": "—",
            "color": ARCH_COLORS[6],
            "hdr": ARCH_HDR_COLORS[6],
        },
    ]

    def p(txt, style=td_style):
        return Paragraph(txt.replace("\n", "<br/>"), style)

    for a in arch_data:
        row = [
            p(f"<b>{a['num']}</b>", S("arch_num", fontName="Helvetica-Bold", fontSize=11,
               textColor=C_NAVY, alignment=TA_CENTER, leading=14)),
            p(f"<b>{a['name']}</b>", td_bold),
            p(a["nerve"]),
            p(a["muscles"]),
            p(a["cart"]),
            p(a["artery"]),
            p(a["lig"]),
        ]
        data.append(row)

    t = Table(data, colWidths=col_w, repeatRows=1)

    ts = TableStyle([
        # Header
        ("BACKGROUND",    (0,0), (-1,0), C_NAVY),
        ("TEXTCOLOR",     (0,0), (-1,0), C_WHITE),
        ("FONTNAME",      (0,0), (-1,0), "Helvetica-Bold"),
        ("FONTSIZE",      (0,0), (-1,0), 8),
        ("ALIGN",         (0,0), (-1,0), "CENTER"),
        ("TOPPADDING",    (0,0), (-1,0), 5),
        ("BOTTOMPADDING", (0,0), (-1,0), 5),
        # All cells
        ("FONTSIZE",      (0,1), (-1,-1), 7.5),
        ("TOPPADDING",    (0,1), (-1,-1), 4),
        ("BOTTOMPADDING", (0,1), (-1,-1), 4),
        ("LEFTPADDING",   (0,0), (-1,-1), 4),
        ("RIGHTPADDING",  (0,0), (-1,-1), 4),
        ("VALIGN",        (0,0), (-1,-1), "TOP"),
        ("GRID",          (0,0), (-1,-1), 0.5, colors.HexColor("#CCCCCC")),
        ("LINEABOVE",     (0,0), (-1,0), 1.5, C_NAVY),
        ("LINEBELOW",     (0,-1), (-1,-1), 1.5, C_NAVY),
    ])

    # Row colors
    for i, a in enumerate(arch_data):
        row_idx = i + 1
        ts.add("BACKGROUND", (0, row_idx), (-1, row_idx), a["color"])
        ts.add("BACKGROUND", (0, row_idx), (0, row_idx), a["hdr"])
        ts.add("TEXTCOLOR",  (0, row_idx), (0, row_idx), C_WHITE)

    t.setStyle(ts)
    return t

# ─── Pharyngeal Pouches ───────────────────────────────────────────────────────
def make_pouches_table():
    col_w = [doc.width * x for x in [0.10, 0.30, 0.30, 0.30]]
    header = [
        Paragraph("Pouch", th_style),
        Paragraph("Derivatives", th_style),
        Paragraph("Cleft (Ectoderm)", th_style),
        Paragraph("Clinical note", th_style),
    ]
    pouch_data = [
        ("1", "Tubotympanic recess\n• Tympanic cavity (middle ear)\n• Auditory (Eustachian) tube",
              "1st cleft → External auditory meatus\n(+ auricle formation)",
              "Branchial cyst/fistula if 1st cleft persists"),
        ("2", "• Palatine tonsils\n• Tonsillar fossa",
              "2nd–4th clefts → buried by 2nd arch\novergrowth → cervical sinus",
              "Branchial (cervical) cyst/fistula from\npersistent cervical sinus"),
        ("3", "• Inferior parathyroid glands (DORSAL)\n• Thymus (VENTRAL)",
              "(obliterated)",
              "Accessory thymic tissue possible;\nmigrates caudally with thymus"),
        ("4", "• Superior parathyroid glands (DORSAL)\n• Ultimobranchial body → C cells of thyroid\n  (parafollicular; make calcitonin)",
              "(obliterated)",
              "DiGeorge: 3rd+4th pouch failure →\nabsent thymus, absent parathyroids,\ncardiac outflow defects (22q11 del.)"),
        ("5", "Rudimentary — merges with 4th pouch", "(absent)", "—"),
    ]

    data = [header]
    row_bg = [colors.HexColor("#FDEBD0"), colors.HexColor("#D5F5E3"),
              colors.HexColor("#D6EAF8"), colors.HexColor("#E8DAEF"),
              C_LGRAY]

    def p(txt, style=td_style):
        return Paragraph(txt.replace("\n", "<br/>"), style)

    for i, (num, deriv, cleft, note) in enumerate(pouch_data):
        data.append([
            p(f"<b>{num}</b>", S("pn", fontName="Helvetica-Bold", fontSize=10,
              textColor=C_NAVY, alignment=TA_CENTER, leading=14)),
            p(deriv),
            p(cleft),
            p(note, note_style),
        ])

    t = Table(data, colWidths=col_w, repeatRows=1)
    ts = TableStyle([
        ("BACKGROUND",    (0,0), (-1,0), C_TEAL),
        ("TEXTCOLOR",     (0,0), (-1,0), C_WHITE),
        ("FONTNAME",      (0,0), (-1,0), "Helvetica-Bold"),
        ("FONTSIZE",      (0,0), (-1,0), 8),
        ("ALIGN",         (0,0), (-1,0), "CENTER"),
        ("TOPPADDING",    (0,0), (-1,-1), 4),
        ("BOTTOMPADDING", (0,0), (-1,-1), 4),
        ("LEFTPADDING",   (0,0), (-1,-1), 4),
        ("RIGHTPADDING",  (0,0), (-1,-1), 4),
        ("VALIGN",        (0,0), (-1,-1), "TOP"),
        ("GRID",          (0,0), (-1,-1), 0.5, colors.HexColor("#CCCCCC")),
        ("LINEABOVE",     (0,0), (-1,0), 1.5, C_TEAL),
        ("LINEBELOW",     (0,-1), (-1,-1), 1.5, C_TEAL),
    ])
    for i, bg in enumerate(row_bg):
        ts.add("BACKGROUND", (0, i+1), (-1, i+1), bg)
    t.setStyle(ts)
    return t

# ─── Arch Arteries / Vascular fate ───────────────────────────────────────────
def make_arteries_table():
    col_w = [doc.width * x for x in [0.08, 0.46, 0.46]]
    header = [
        Paragraph("Arch", th_style),
        Paragraph("Left-sided fate", th_style),
        Paragraph("Right-sided fate", th_style),
    ]
    art_data = [
        ("1", "Most involutes; maxillary a. (remnant)", "Same"),
        ("2", "Stapedial a. → involutes", "Same"),
        ("3", "Common carotid a. + proximal internal carotid a.", "Common carotid a. + proximal internal carotid a."),
        ("4", "Definitive aortic arch (between L. common carotid & L. subclavian)", "Right subclavian a. (proximal)"),
        ("5", "Transient / absent", "Transient / absent"),
        ("6", "Pulmonary trunk; ductus arteriosus (patent → lig. arteriosum)", "Right pulmonary a. (proximal portion)"),
    ]
    data = [header]
    for num, l, r in art_data:
        data.append([
            Paragraph(f"<b>{num}</b>", S("an", fontName="Helvetica-Bold", fontSize=10,
              textColor=C_NAVY, alignment=TA_CENTER, leading=14)),
            Paragraph(l.replace("\n","<br/>"), td_style),
            Paragraph(r.replace("\n","<br/>"), td_style),
        ])
    t = Table(data, colWidths=col_w, repeatRows=1)
    row_bgs = [colors.HexColor("#FDEBD0"), colors.HexColor("#D5F5E3"),
               colors.HexColor("#D6EAF8"), colors.HexColor("#E8DAEF"),
               C_LGRAY, colors.HexColor("#FDFEFE")]
    ts = TableStyle([
        ("BACKGROUND",    (0,0), (-1,0), colors.HexColor("#C0392B")),
        ("TEXTCOLOR",     (0,0), (-1,0), C_WHITE),
        ("FONTNAME",      (0,0), (-1,0), "Helvetica-Bold"),
        ("FONTSIZE",      (0,0), (-1,0), 8),
        ("ALIGN",         (0,0), (-1,0), "CENTER"),
        ("TOPPADDING",    (0,0), (-1,-1), 4),
        ("BOTTOMPADDING", (0,0), (-1,-1), 4),
        ("LEFTPADDING",   (0,0), (-1,-1), 5),
        ("RIGHTPADDING",  (0,0), (-1,-1), 5),
        ("VALIGN",        (0,0), (-1,-1), "TOP"),
        ("GRID",          (0,0), (-1,-1), 0.5, colors.HexColor("#CCCCCC")),
        ("LINEABOVE",     (0,0), (-1,0), 1.5, colors.HexColor("#C0392B")),
    ])
    for i, bg in enumerate(row_bgs):
        ts.add("BACKGROUND", (0, i+1), (-1, i+1), bg)
    t.setStyle(ts)
    return t

# ─── Mnemonics ────────────────────────────────────────────────────────────────
def make_mnemonics():
    items = [
        ("Arch nerves (1→6):", "V, VII, IX, X (sup), X (rec)", "CNN: V – VII – IX – X"),
        ("Pouches 3 & 4:", "3 = inferior PTH + thymus\n4 = superior PTH + C cells",
         "3 is INFERIOR (Thymus Travels); 4 is SUPERIOR (Stays)"),
        ("1st arch muscles:", "Mastication, Mylohyoid, ant. Digastric, tensor Tympani, tensor Veli palatini",
         "\"My Mouth Deserves Two Very Tasty Veggies\""),
        ("2nd arch muscles:", "Facial expression, Stapedius, Stylohyoid, Post. Digastric, Auricular",
         "\"FSSPA\" – Facial, Stapedius, Stylohyoid, Post-Dig, Auricular"),
        ("Arch 3 muscle:", "Only: Stylopharyngeus (CN IX)", "\"3 = Stylopharyngeus = Sole CN-IX muscle\""),
        ("Meckel's cartilage:", "Malleus + Incus (ossicles); mandible formed around it by membranous ossification",
         "\"Meckel Makes Middle-ear ossicles\""),
        ("Arch 6 artery:", "Ductus arteriosus (L side) — remember: RECURRENT laryngeal wraps around it!",
         "\"6 = ductus = recurrent nerve hook\""),
    ]
    rows = []
    for label, fact, tip in items:
        rows.append([
            Paragraph(f"<b>{label}</b>", S("ml", fontName="Helvetica-Bold", fontSize=8,
              textColor=C_NAVY, leading=11)),
            Paragraph(fact.replace("\n","<br/>"), td_style),
            Paragraph(f"<i>{tip}</i>", S("mt", fontName="Helvetica-Oblique", fontSize=7.5,
              textColor=C_PURPLE, leading=11)),
        ])
    t = Table(rows, colWidths=[doc.width*0.22, doc.width*0.38, doc.width*0.40])
    t.setStyle(TableStyle([
        ("BACKGROUND",    (0,0), (-1,-1), C_PALE),
        ("BOX",           (0,0), (-1,-1), 1.2, C_GOLD),
        ("LINEBELOW",     (0,0), (-1,-2), 0.5, colors.HexColor("#DDDDAA")),
        ("TOPPADDING",    (0,0), (-1,-1), 4),
        ("BOTTOMPADDING", (0,0), (-1,-1), 3),
        ("LEFTPADDING",   (0,0), (-1,-1), 5),
        ("RIGHTPADDING",  (0,0), (-1,-1), 5),
        ("VALIGN",        (0,0), (-1,-1), "TOP"),
    ]))
    return t

# ─── Clinical conditions ──────────────────────────────────────────────────────
def make_clinical():
    clin = [
        ("Treacher Collins Syndrome",
         "1st arch syndrome",
         "Autosomal dominant (TCOF1 / treacle protein). Malar hypoplasia, down-slanting palpebral fissures, "
         "deformed external ears, lower eyelid defects. Cause: insufficient neural crest migration into arch 1."),
        ("Pierre Robin Sequence",
         "1st arch syndrome",
         "Micrognathia (small mandible) → posterior tongue displacement → bilateral cleft palate. "
         "Most cases sporadic; rarely AD."),
        ("DiGeorge Syndrome\n(22q11.2 deletion)",
         "3rd & 4th pouch failure",
         "Absent thymus + parathyroids, cardiac outflow defects (VSD, TOF, truncus arteriosus), "
         "hypoparathyroidism (hypocalcaemia), T-cell immunodeficiency. CATCH-22 mnemonic."),
        ("Branchial (Lateral Cervical)\nCyst / Fistula / Sinus",
         "2nd arch / cervical sinus remnant",
         "Persistent cervical sinus → cyst along ant. border of SCM at level of angle of jaw. "
         "Fistula opens externally. Common presentation: painless lateral neck mass in young adult."),
        ("Patent Ductus Arteriosus\n(PDA)",
         "Arch 6 artery",
         "Ductus arteriosus (arch 6 L) fails to close → L→R shunt. "
         "Continuous machinery murmur. Treat: indomethacin (premature) or surgical ligation."),
        ("Right-sided Aortic Arch /\nVascular Ring",
         "Arch 4 anomaly",
         "Double aortic arch or aberrant R subclavian (arch 4 R) → vascular ring compressing trachea/esophagus. "
         "Stridor, dysphagia. Dx: barium swallow / CT angiography."),
        ("Preauricular Sinus/Tag",
         "1st arch cleft remnant",
         "Pit or tag anterior to helix. Often benign; can get recurrent infections."),
    ]
    rows = []
    for name, arch, desc in clin:
        rows.append([
            Paragraph(f"<b>{name}</b>", S("cn", fontName="Helvetica-Bold", fontSize=8,
              textColor=C_RED, leading=11)),
            Paragraph(arch.replace("\n","<br/>"), S("ca", fontName="Helvetica-Oblique", fontSize=7.5,
              textColor=C_NAVY, leading=11)),
            Paragraph(desc, td_style),
        ])
    t = Table(rows, colWidths=[doc.width*0.24, doc.width*0.20, doc.width*0.56])
    t.setStyle(TableStyle([
        ("BACKGROUND",    (0,0), (-1,-1), colors.HexColor("#FEF9F9")),
        ("BOX",           (0,0), (-1,-1), 1.2, C_RED),
        ("LINEBELOW",     (0,0), (-1,-2), 0.5, colors.HexColor("#DDCCCC")),
        ("TOPPADDING",    (0,0), (-1,-1), 4),
        ("BOTTOMPADDING", (0,0), (-1,-1), 3),
        ("LEFTPADDING",   (0,0), (-1,-1), 5),
        ("RIGHTPADDING",  (0,0), (-1,-1), 5),
        ("VALIGN",        (0,0), (-1,-1), "TOP"),
    ]))
    return t

# ─── Quick recall boxes ───────────────────────────────────────────────────────
def make_quick_boxes():
    boxes = [
        ("Arch 1 nerve – CN V", "#FDEBD0",
         ["V2 sensory: face (maxillary)",
          "V3 motor: mastication muscles",
          "V3 sensory: lower face/chin"]),
        ("Arch 2 nerve – CN VII", "#D5F5E3",
         ["Motor: facial expression",
          "Stapedius (dampens loud sounds)",
          "Chorda tympani (taste ant. 2/3 tongue)"]),
        ("Arch 3 nerve – CN IX", "#D6EAF8",
         ["Motor: stylopharyngeus only",
          "Sensory: post. 1/3 tongue taste",
          "Carotid body/sinus afferents"]),
        ("Arch 4 nerve – CN X (sup.)", "#E8DAEF",
         ["Motor: cricothyroid (pitch)",
          "Levator veli palatini",
          "Pharyngeal constrictors"]),
        ("Arch 6 nerve – CN X (rec.)", "#EAF4F4",
         ["All other intrinsic laryngeal muscles",
          "L recurrent loops under arch 6 artery\n(ductus arteriosus)",
          "R recurrent loops under arch 4 artery\n(subclavian)"]),
    ]
    cell_w = doc.width / len(boxes)
    cells = []
    for title, bg_hex, points in boxes:
        bg = colors.HexColor(bg_hex)
        content = Paragraph(f"<b>{title}</b>",
            S("bh", fontName="Helvetica-Bold", fontSize=7.5, textColor=C_NAVY,
              alignment=TA_CENTER, leading=11))
        pts = [Paragraph(f"• {p.replace(chr(10),'<br/>  ')}", small_style) for p in points]
        inner = [[content]] + [[p] for p in pts]
        inner_t = Table(inner, colWidths=[cell_w - 0.6*cm])
        inner_t.setStyle(TableStyle([
            ("BACKGROUND",    (0,0), (-1,-1), bg),
            ("TOPPADDING",    (0,0), (-1,-1), 3),
            ("BOTTOMPADDING", (0,0), (-1,-1), 2),
            ("LEFTPADDING",   (0,0), (-1,-1), 4),
            ("RIGHTPADDING",  (0,0), (-1,-1), 4),
            ("LINEBELOW",     (0,0), (0,0), 0.8, C_NAVY),
        ]))
        cells.append(inner_t)
    t = Table([cells], colWidths=[cell_w]*len(boxes))
    t.setStyle(TableStyle([
        ("VALIGN",       (0,0), (-1,-1), "TOP"),
        ("LEFTPADDING",  (0,0), (-1,-1), 2),
        ("RIGHTPADDING", (0,0), (-1,-1), 2),
        ("BOX",          (0,0), (-1,-1), 1, C_NAVY),
    ]))
    return t

# ─── High-yield USMLE facts ───────────────────────────────────────────────────
def make_usmle_facts():
    facts = [
        "Arch 5 is absent/vestigial in humans — skip from 4 to 6.",
        "The RECURRENT laryngeal nerve hooks around arch 6 artery (L=ductus; R=subclavian derived from arch 4).",
        "Arch 3 gives stylopharyngeus — the ONLY muscle innervated by CN IX.",
        "Thymus + inferior PTH from pouch 3 (migrate together; PTH ends lower = inferior).",
        "Superior PTH from pouch 4 (migrates less; stays superior).",
        "C cells (parafollicular; calcitonin) come from ultimobranchial body — pouch 4/5.",
        "DiGeorge = 22q11.2 deletion → CATCH-22: Cardiac defects, Abnormal facies, T-cell deficit, Cleft palate, Hypocalcaemia.",
        "Meckel's cartilage (arch 1) → malleus + incus; DOES NOT form mandible directly (membranous ossification around it).",
        "Second arch overgrows to cover arches 2-4 clefts → cervical sinus; failure to obliterate = branchial cyst.",
        "Left recurrent laryngeal nerve = longest cranial nerve course due to looping under ductus arteriosus.",
    ]
    rows = []
    for i, f in enumerate(facts):
        rows.append([
            Paragraph(f"<b>{'★' if i < 5 else '◆'}</b>",
                S("fc", fontName="Helvetica-Bold", fontSize=10,
                  textColor=C_GOLD if i<5 else C_TEAL,
                  alignment=TA_CENTER, leading=13)),
            Paragraph(f, td_style),
        ])
    t = Table(rows, colWidths=[doc.width*0.06, doc.width*0.94])
    t.setStyle(TableStyle([
        ("BACKGROUND",    (0,0), (-1,-1), colors.HexColor("#F0F8FF")),
        ("BOX",           (0,0), (-1,-1), 1.2, C_NAVY),
        ("LINEBELOW",     (0,0), (-1,-2), 0.4, colors.HexColor("#CCDDEE")),
        ("TOPPADDING",    (0,0), (-1,-1), 3),
        ("BOTTOMPADDING", (0,0), (-1,-1), 3),
        ("LEFTPADDING",   (0,0), (-1,-1), 5),
        ("RIGHTPADDING",  (0,0), (-1,-1), 5),
        ("VALIGN",        (0,0), (-1,-1), "MIDDLE"),
    ]))
    return t

# ─── Assemble document ────────────────────────────────────────────────────────
story = []

story.append(make_title_block())
story.append(Spacer(1, 6))

story.append(make_overview())
story.append(Spacer(1, 8))

story.append(section_header("ARCH DERIVATIVES — COMPLETE REFERENCE TABLE"))
story.append(Spacer(1, 3))
story.append(make_main_table())
story.append(Spacer(1, 8))

story.append(section_header("CRANIAL NERVE QUICK REFERENCE — PER ARCH", bg=C_TEAL))
story.append(Spacer(1, 3))
story.append(make_quick_boxes())
story.append(Spacer(1, 8))

story.append(section_header("PHARYNGEAL POUCHES & CLEFTS", bg=colors.HexColor("#1A7A4A")))
story.append(Spacer(1, 3))
story.append(make_pouches_table())
story.append(Spacer(1, 8))

story.append(section_header("ARCH ARTERIES & VASCULAR FATE", bg=colors.HexColor("#C0392B")))
story.append(Spacer(1, 3))
story.append(make_arteries_table())
story.append(Spacer(1, 8))

story.append(section_header("MNEMONICS & MEMORY AIDS", bg=C_GOLD))
story.append(Spacer(1, 3))
story.append(make_mnemonics())
story.append(Spacer(1, 8))

story.append(section_header("CLINICAL CONDITIONS & CONGENITAL ANOMALIES", bg=C_RED))
story.append(Spacer(1, 3))
story.append(make_clinical())
story.append(Spacer(1, 8))

story.append(section_header("HIGH-YIELD USMLE / EXAM FACTS", bg=C_NAVY))
story.append(Spacer(1, 3))
story.append(make_usmle_facts())
story.append(Spacer(1, 6))

# Footer note
story.append(HRFlowable(width="100%", thickness=0.5, color=C_GRAY))
story.append(Paragraph(
    "Sources: Moore & Persaud — The Developing Human: Clinically Oriented Embryology (10th ed.) | "
    "Sadler — Langman's Medical Embryology (14th ed.)  •  Compiled for educational use.",
    S("ft", fontName="Helvetica-Oblique", fontSize=7, textColor=C_GRAY,
      alignment=TA_CENTER, spaceAfter=0)))

doc.build(story)
print(f"PDF saved: {OUTPUT}")

Running Command

cd /tmp/workspace/pharyngeal-arches && python build_study_sheet.py

Running Command

ls -lh /tmp/workspace/pharyngeal-arches/Pharyngeal_Arches_Study_Sheet.pdf

Your study sheet is ready:

Pharyngeal Arches Study Sheet

PDF Document · PDF

Here's what's inside the PDF, organized across 7 color-coded sections:

1. Overview Box

Arch composition (ectoderm / neural crest mesenchyme / endoderm)
Key principle: nerve supply always identifies arch of origin

2. Complete Derivatives Table (color-coded per arch)

Arch	Nerve	Muscles	Cartilage/Bone	Artery	Ligament
1	CN V2/V3	Mastication + mylohyoid + tensor tympani/palatini	Meckel's, malleus, incus, mandible, maxilla	Maxillary a.	Ant. lig. of malleus, sphenomandibular lig.
2	CN VII	Facial expression, stapedius, stylohyoid, post. digastric	Stapes, styloid, lesser cornu hyoid	Stapedial a.	Stylohyoid lig.
3	CN IX	Stylopharyngeus (only!)	Greater cornu + lower body of hyoid	Common/int. carotid	—
4	CN X (sup. laryngeal)	Cricothyroid, levator palatini, constrictors	Thyroid cartilage	Aortic arch (L) / subclavian (R)	—
6	CN X (recurrent)	All intrinsic laryngeal + esophagus	Cricoid, arytenoid, corniculate, cuneiform	Ductus arteriosus (L) / pulm. a.	—

3. Cranial Nerve Quick Reference - mini cards per arch

4. Pharyngeal Pouches & Clefts table

Pouch 1 → middle ear + Eustachian tube
Pouch 2 → palatine tonsils
Pouch 3 → inferior PTH + thymus (migrate together)
Pouch 4 → superior PTH + C cells (calcitonin)

5. Arch Arteries - left vs. right vascular fate

6. Mnemonics & Memory Aids

Nerve sequence, muscle memory aids, "3 = inferior, 4 = superior" PTH rule

7. Clinical Conditions

Treacher Collins, Pierre Robin, DiGeorge (CATCH-22), branchial cysts, PDA, vascular rings

10 High-Yield USMLE Facts highlighted at the bottom

Diagram for pharyngeal arches

Generating Image

Detailed medical embryology diagram of pharyngeal arches. Show a lateral view of a 4-week human embryo head and neck region with all 5 pharyngeal arches (1, 2, 3, 4, 6) clearly labeled and color-coded. Each arch should be a distinct color. Include labeled arrows pointing to: the cranial nerve for each arch (CN V for arch 1, CN VII for arch 2, CN IX for arch 3, CN X superior laryngeal for arch 4, CN X recurrent laryngeal for arch 6), the pharyngeal pouches (1-4) between arches labeled with their derivatives (pouch 1 = middle ear/Eustachian tube, pouch 2 = palatine tonsil, pouch 3 = thymus/inferior PTH, pouch 4 = superior PTH/C cells), and pharyngeal clefts on the outer surface. Also show a small inset cross-section of a single arch showing ectoderm outer layer, mesenchyme core with neural crest cells, arch artery in center, and endoderm inner layer. Include a legend/key at the bottom. Clean, professional, textbook-quality medical illustration style with white background.

Here's your pharyngeal arches diagram showing:

5 color-coded arches (1, 2, 3, 4, 6) in lateral embryo view
Cranial nerve labels for each arch (CN V, VII, IX, X sup., X rec.)
Pharyngeal pouches (1-4) with their key derivatives
Pharyngeal clefts on the outer ectoderm surface
Cross-section inset of a single arch showing ectoderm, mesenchyme core, arch artery, and endoderm layers

Would you like me to generate additional views - such as a vascular fate diagram (arch arteries → adult vessels), a pouch derivatives flowchart, or a clinical anomalies visual?

To draw in exam

Generating Image

Simple clean hand-drawn style diagram of pharyngeal arches suitable for reproducing in a medical exam. Black lines on white background, no shading or complex art. Show a lateral profile outline of an embryo head and neck (simple oval/teardrop shape). Draw 5 arch bars (numbered 1, 2, 3, 4, 6) as curved ridges on the neck, separated by clefts. Between arches on the inside draw pouches numbered 1-4. Use simple straight labeled arrows pointing outward for: Arch 1 = CN V (mandibular), Arch 2 = CN VII (facial), Arch 3 = CN IX, Arch 4 = CN X sup. laryngeal, Arch 6 = CN X rec. laryngeal. Below each arch number write the key muscle in small text. Add a small separate box showing cross-section of arch with concentric labels: ectoderm outside, mesoderm/neural crest middle, arch artery dot in center, endoderm inside. At bottom add a compact 2-column table: Pouch | Derivative. Style: simple pencil-sketch outline, easy to copy in 5 minutes in exam, clear labels, nothing decorative.

Here's your exam-ready draw-it-yourself diagram. Here's how to reproduce it quickly in an exam:

Step-by-step drawing guide (under 5 minutes):

1. Draw the embryo outline

Simple teardrop/oval for the head, curving neck below

2. Draw 5 arch bars on the neck

5 curved ridges labeled 1, 2, 3, 4, 6 (skip 5!)
Clefts (ectoderm grooves) between them on the outside

3. Label pouches on the inside

4 internal pockets labeled P1, P2, P3, P4 between the arches

4. Arrow-label each arch

Arch	Nerve	Key muscle/structure
1	CN V (V2/V3)	Mastication muscles
2	CN VII	Facial expression
3	CN IX	Stylopharyngeus
4	CN X (sup. laryngeal)	Cricothyroid
6	CN X (rec. laryngeal)	Intrinsic laryngeal

5. Draw a small cross-section circle (inset)

Outer ring = Ectoderm
Middle = Neural crest/mesenchyme
Inner ring = Endoderm
Central dot = Arch artery

6. Add a small pouch table

Pouch	Derivative
1	Middle ear + Eustachian tube
2	Palatine tonsil
3	Thymus + inf. PTH
4	Sup. PTH + C cells

Exam tip: Examiners love seeing: (1) arch numbering with nerve labels, (2) the cross-section inset, and (3) the pouch derivatives table alongside the diagram. This alone can score full marks on a pharyngeal arch question.

Cranial nerve

Asking for Preferences

Reading File

Finding Sources

Searching Images

all 12 cranial nerves overview diagram base of brain

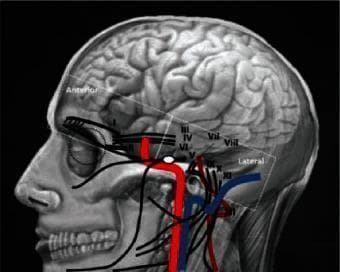

This medical illustration presents a lateral projection of the human cranial region, serving as an anatomical diagram of the skull base, brain, and neurovascular structures. The image overlays a detailed skull rendering with the cerebral hemispheres, emphasizing cortical gyri and sulci. A key feature is the schematic mapping of the twelve cranial nerves (labeled I–XII in Roman numerals), showing their approximate pathways as they exit the brainstem and navigate through skull base foramina. Major vascular structures are highlighted in red (arterial, including the internal carotid artery) and blue (venous), demonstrating their close spatial proximity to the cranial nerves near the zygomatic arch and mandible. The diagram includes orientation labels for 'Anterior' and 'Lateral' perspectives. It is designed for clinical education in neuroanatomy and skull base surgery, illustrating the complex topographic relationships essential for diagnostic imaging and surgical planning in procedures such as microvascular decompression or tumor resection.

An anatomical diagram featuring a high-magnification photograph of a cadaveric brain dissection, illustrating the neurovascular relationships at the base of the brain. The image highlights the Circle of Willis and associated cranial nerves. Key vascular structures labeled include the internal carotid artery (Car. A.), which branches into the first segment of the middle cerebral artery (M1) and the posterior communicating artery (P.Co.A.). The posterior cerebral artery (PCA) is shown in its various segments: the precommunicating (P1), crural (P2A), ambient (P2P), and quadrigeminal (P3) segments. Also visible are the lateral lenticulostriate arteries (Lent. Str. A.) originating from M1, and the medial posterior choroidal artery (M.P.Ch.A.). Neurological landmarks include the optic chiasm and the oculomotor nerve (CN III), which is positioned between the P.Co.A. and the P1 segment of the PCA. This visual is designed for advanced neuroanatomical education, demonstrating the spatial orientation and arterial supply pathways critical for neurosurgery and vascular neurology.

A 3D anatomical reconstruction showcasing the segmentation and spatial orientation of the 12 pairs of human cranial nerves (CN I–XII). The image presents two views: a lateral perspective within a partially transparent skull (left) and an anterior-inferior view relative to the brain and brainstem (right). Each nerve is color-coded for identification: CN I (Olfactory), CN II (Optic) with the optic chiasm and tract, CN III (Oculomotor), CN IV (Trochlear), CN V (Trigeminal) including V2 (maxillary) and V3 (mandibular) divisions, CN VI (Abducens), CN VII (Facial), CN VIII (Vestibulocochlear), CN IX (Glossopharyngeal), CN X (Vagus), CN XI (Accessory), and CN XII (Hypoglossal). Key inner ear structures, including the snail-shaped cochlea and the loop-like semicircular canals, are visualized in relation to the facial and vestibulocochlear nerves. This diagnostic-quality illustration demonstrates the complex neuroanatomical pathways through the skull base and their origins at the brainstem, serving as a pedagogical tool for neurology, radiology, and neurosurgery training.

This composite image illustrates a neurosurgical virtual reality (VR) simulation environment. Panel (a) presents an Overview of a Virtual Operating Room, featuring 3D models of surgical staff, anesthesia equipment, and a patient positioned for a procedure. Panel (b) provides a detailed Anatomical Diagram within the simulator, showing a rendered model of the skull base and brain. Key structures include a segmented right cerebral hemisphere with visible gyri and sulci, the Circle of Willis (CoW) highlighted in red to demonstrate cerebrovascular landmarks, and the optic nerve protruding from the optic canal highlighted in yellow. The model is designed for educational training in neurosurgical approaches, such as craniotomy and Sylvian fissure dissection. The visualization emphasizes the spatial relationships between the sphenoid bone, cranial nerves, and major intracranial vessels, providing a high-fidelity environment for pre-operative planning and anatomical study.

Reading File

Loading Image

Here is a complete overview of all 12 cranial nerves.

All 12 Cranial Nerves — Complete Overview

3D reconstruction of all 12 cranial nerves showing their origins and skull base pathways

3D color-coded reconstruction showing all 12 CNs (I-XII) from lateral and inferior brain views, with skull base foramina and inner ear structures.

Functional Components at a Glance

Before diving in, here are the fiber types found in cranial nerves (from Gray's Anatomy for Students):

Type	Abbrev.	Function	CNs
General Somatic Afferent	GSA	Touch, pain, temperature	V, VII, IX, X
General Visceral Afferent	GVA	Sensory from viscera	IX, X
Special Afferent	SA	Smell, taste, vision, hearing, balance	I, II, VII, VIII, IX, X
General Somatic Efferent	GSE	Motor to voluntary muscles	III, IV, VI, XII
General Visceral Efferent	GVE	Motor to smooth muscle/glands (parasympathetic)	III, VII, IX, X
Branchial Efferent	BE	Motor to pharyngeal arch muscles	V, VII, IX, X, XI

Parasympathetic outflow in the head travels via CN III, VII, IX, X only.

The 12 Cranial Nerves

CN I - Olfactory


Type	Special sensory (smell)
Origin	Olfactory epithelium (nasal mucosa) → cribriform plate → olfactory bulb
Foramen	Cribriform plate (ethmoid)
Function	Smell (olfaction)
Lesion	Anosmia - loss of smell (head trauma, meningioma, COVID-19)
Exam tip	Only CN that does NOT relay in thalamus first

CN II - Optic


Type	Special sensory (vision) - technically part of CNS, not PNS
Origin	Retinal ganglion cells → optic disc → optic nerve → chiasm → tracts
Foramen	Optic canal
Function	Vision; pupillary light reflex (afferent limb)
Lesion	Bitemporal hemianopia (chiasm lesion = pituitary adenoma); homonymous hemianopia (tract lesion)

CN III - Oculomotor


Type	GSE + GVE (parasympathetic)
Origin	Midbrain (anterior to cerebral aqueduct)
Foramen	Superior orbital fissure
Function	Most eye movements (SR, IR, MR, IO); levator palpebrae; pupil constriction + accommodation (via ciliary ganglion)
Lesion	"Down and out" eye; ptosis; FIXED DILATED pupil (surgical CN III palsy — e.g. PComm aneurysm). Medical CN III palsy (diabetes) = pupil spared
Mnemonic	LR6SO4 — the REST is CN III

CN IV - Trochlear


Type	GSE
Origin	Midbrain (posterior - only CN to exit dorsal brainstem)
Foramen	Superior orbital fissure
Function	Superior oblique muscle → depresses eye when adducted
Lesion	Vertical diplopia; head tilt away from lesion. Patient tilts head to compensate ("reading palsy")
Exam tip	Longest intracranial course; thinnest CN; most common CN injured in closed head trauma

CN V - Trigeminal


Type	GSA + BE (branchial motor)
Origin	Pons (motor nucleus + main sensory nucleus)
Divisions	V1 (ophthalmic) - superior orbital fissure; V2 (maxillary) - foramen rotundum; V3 (mandibular) - foramen ovale
Function	Largest CN. Sensory: entire face, scalp, sinuses, teeth, meninges. Motor: muscles of mastication (arch 1) + tensor tympani + tensor veli palatini
Reflexes	Corneal reflex (afferent); jaw jerk (both limbs = V3)
Lesion	Trigeminal neuralgia (tic douloureux) - electric shock pain V2/V3; numbness in face
Ganglia	Trigeminal (Gasserian) ganglion - sensory; no parasympathetic ganglion of its own

CN VI - Abducens


Type	GSE
Origin	Pons (floor of 4th ventricle)
Foramen	Superior orbital fissure
Function	Lateral rectus muscle → abducts eye
Lesion	Failure to abduct; medial deviation (convergent squint). Most common CN palsy due to raised ICP (false localizing sign - long course)

CN VII - Facial


Type	BE + GVE + SA (taste) + GSA
Origin	Pons (cerebellopontine angle)
Foramen	Internal acoustic meatus → facial canal → stylomastoid foramen
Function	Motor: muscles of facial expression (arch 2), stapedius, stylohyoid, post. digastric. Taste: anterior 2/3 of tongue (chorda tympani). Parasympathetic: lacrimal + submandibular + sublingual glands
Branches (TEMPORAL)	To Five Zones Be Ready: Temporal, Zygomatic (Frontal), Buccal, Marginal mandibular, Cervical
Lesion	UMN lesion = contralateral lower face only (forehead spared). LMN (Bell's palsy) = ipsilateral entire face + hyperacusis + taste loss
Ganglia	Geniculate (sensory); pterygopalatine; submandibular

CN VIII - Vestibulocochlear


Type	Special afferent (hearing + balance)
Origin	Cochlea (cochlear division) + semicircular canals/utricle/saccule (vestibular division)
Foramen	Internal acoustic meatus
Function	Hearing; balance; nystagmus reflex
Lesion	Sensorineural deafness; tinnitus; vertigo; nystagmus. Acoustic neuroma (CN VIII schwannoma) at CP angle → also affects CN VII

CN IX - Glossopharyngeal


Type	BE + GVE + GVA + SA
Origin	Medulla
Foramen	Jugular foramen
Function	Motor: stylopharyngeus (arch 3 - only muscle!). Taste: posterior 1/3 of tongue. Sensory: pharynx, carotid sinus/body (baroreceptor + chemoreceptor). Parasympathetic: parotid gland (via otic ganglion)
Reflex	Gag reflex (afferent limb)
Lesion	Loss of gag reflex afferent; glossopharyngeal neuralgia (rare)

CN X - Vagus


Type	BE + GVE + GVA + SA
Origin	Medulla (dorsal motor nucleus = parasympathetic; nucleus ambiguus = motor)
Foramen	Jugular foramen
Function	Motor: pharynx/larynx (arch 4 + 6 muscles via sup. + recurrent laryngeal branches). Parasympathetic: heart, lungs, gut to splenic flexure. Sensory: larynx, trachea, esophagus, thoracic/abdominal viscera
Key branches	Recurrent laryngeal (loops under arch 6 L = ductus; arch 4 R = subclavian); superior laryngeal
Lesion	Hoarseness (recurrent laryngeal); dysphagia; absent gag reflex efferent; uvula deviates AWAY from lesion
Exam tip	Only CN that leaves head/neck to supply thorax + abdomen

CN XI - Accessory


Type	BE (branchial efferent)
Origin	Cranial root (medulla) + spinal root (C1-C5 spinal cord)
Foramen	Jugular foramen
Function	Sternocleidomastoid (turns head away) + trapezius (shrugs shoulder)
Lesion	Weak shoulder shrug; failure to turn head to opposite side; drooping shoulder
Exam tip	Only CN to originate partly from spinal cord

CN XII - Hypoglossal


Type	GSE
Origin	Medulla
Foramen	Hypoglossal canal
Function	All intrinsic + extrinsic tongue muscles (except palatoglossus = CN X)
Lesion	Tongue deviates TOWARD lesion (LMN); wasting + fasciculations. Away from lesion (UMN). "Lick your wound" - tongue goes to the injured side

Summary Table

CN	Name	Type	Foramen	Key Function	Key Lesion
I	Olfactory	Sensory	Cribriform plate	Smell	Anosmia
II	Optic	Sensory	Optic canal	Vision	Hemianopia
III	Oculomotor	Motor + Para	SOF	Eye movement, pupil constriction	Down & out, dilated pupil
IV	Trochlear	Motor	SOF	Superior oblique	Vertical diplopia, head tilt
V	Trigeminal	Both	SOF/FR/FO	Face sensation, mastication	Trigeminal neuralgia
VI	Abducens	Motor	SOF	Lateral rectus	Medial deviation
VII	Facial	Both + Para	IAM/Stylomastoid	Facial expression, taste ant. 2/3	Bell's palsy
VIII	Vestibulocochlear	Sensory	IAM	Hearing, balance	Deafness, vertigo
IX	Glossopharyngeal	Both + Para	Jugular	Stylopharyngeus, taste post. 1/3	Loss of gag (afferent)
X	Vagus	Both + Para	Jugular	Larynx/pharynx, viscera	Hoarseness, uvula deviation
XI	Accessory	Motor	Jugular	SCM, trapezius	Weak shoulder shrug
XII	Hypoglossal	Motor	Hypoglossal canal	Tongue	Tongue deviation toward lesion

SOF = superior orbital fissure; FR = foramen rotundum; FO = foramen ovale; IAM = internal acoustic meatus

Classic Mnemonics

Names: Oh Oh Oh To Touch And Feel Very Good Velvet. Such Heaven → Olfactory, Optic, Oculomotor, Trochlear, Trigeminal, Abducens, Facial, Vestibulocochlear, Glossopharyngeal, Vagus, Spinal accessory, Hypoglossal
Type (S/M/Both): Some Say Marry Money But My Brother Says Bad Business Marry Money → Sensory, Sensory, Motor, Motor, Both, Motor, Both, Sensory, Both, Both, Motor, Motor
Parasympathetic CNs: 3, 7, 9, 10 only
Eye movement CNs: LR6(SO4) rest = 3

Sources: Gray's Anatomy for Students, The Developing Human

This is a shared conversation. Sign in to Orris to start your own chat.
