Here is the full labelled diagram and a detailed explanation based on authoritative neuroanatomy textbooks.

Spinal Cord - Labelled Diagrams

Longitudinal View (Overall Anatomy)

From Gray's Anatomy for Students:

Spinal cord longitudinal view showing cervical enlargement, lumbosacral enlargement, conus medullaris, and filum terminale

Cross-Section with External Features

Spinal cord cross-section showing anterior median fissure, posterior median sulcus, posterolateral sulcus, gray matter and white matter arrangement

Arrangement of Fiber Tracts (Cross-Section)

From Localization in Clinical Neurology, 8e - this diagram shows tract lamination with somatotopic arrangement (C = cervical, Th = thoracic, L = lumbar, S = sacral):

Spinal cord cross-section fiber tract diagram showing fasciculus gracilis, fasciculus cuneatus, dorsal spinocerebellar tract, lateral corticospinal tract, ventral spinocerebellar tract, spinothalamic tract, and ventral corticospinal tract with somatotopic lamination

Generated Comprehensive Diagram

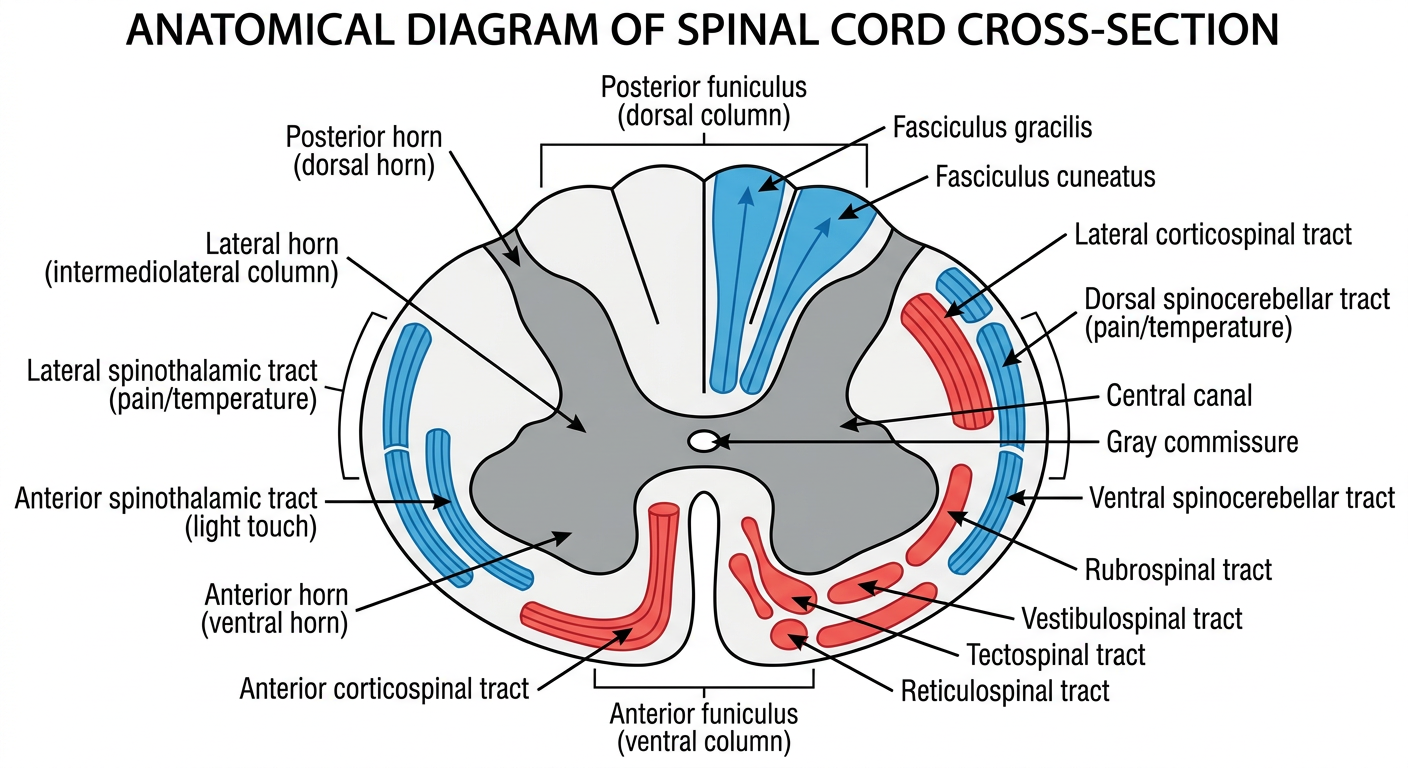

Labelled spinal cord cross-section diagram with all major ascending and descending fiber tracts, gray matter horns, and funiculi

Detailed Notes on Fiber Arrangement

Gray Matter (Central, H-shaped)

Region	Contents
Posterior (dorsal) horn	Receives sensory input; contains laminae I-VI (Rexed); substantia gelatinosa (lamina II)
Anterior (ventral) horn	Motor neurons (alpha + gamma); laminae VIII-IX
Lateral horn (T1-L2 only)	Intermediolateral column; preganglionic sympathetic neurons
Gray commissure	Connects the two halves; contains central canal

White Matter - Three Funiculi

Funiculus	Location	Major Tracts
Posterior (dorsal)	Between dorsomedian and dorsolateral sulci	Fasciculus gracilis, Fasciculus cuneatus
Lateral	Between dorsolateral and ventrolateral sulci	Lateral corticospinal, lateral spinothalamic, spinocerebellar tracts
Anterior (ventral)	Between ventrolateral sulcus and anterior median fissure	Anterior corticospinal, anterior spinothalamic, vestibulospinal, tectospinal

Ascending Tracts (Sensory - shown in blue)

1. Posterior Column (Dorsal Column - Medial Lemniscus Pathway)

Fasciculus gracilis (medial) - lower limb and lower trunk (T7-sacral); fine touch, proprioception, vibration
Fasciculus cuneatus (lateral) - upper limb and upper trunk (C1-T6); same modalities
Somatotopic: sacral fibers most medial, cervical fibers most lateral

2. Lateral Spinothalamic Tract

Located in lateral funiculus (anterolateral quadrant)
Carries pain and temperature (sharp, localized - neospinothalamic)
Fibers decussate via anterior white commissure over 1-2 segments
Somatotopic: cervical fibers dorsomedial, sacral fibers ventrolateral

3. Anterior Spinothalamic Tract

Located in anterior funiculus
Carries light touch (crude touch, pressure)
Also crosses via anterior white commissure

4. Spinocerebellar Tracts (in lateral funiculus)

Dorsal spinocerebellar tract (Clark's column, C8-L2 origin) - unconscious proprioception from lower limb; ipsilateral
Ventral spinocerebellar tract - lower limb proprioception; crosses twice (effectively ipsilateral)

Descending Tracts (Motor - shown in red)

1. Corticospinal Tracts (pyramidal)

Lateral corticospinal tract (in lateral funiculus) - 85% of fibers; crossed; controls voluntary skilled movement of contralateral limbs
Anterior corticospinal tract (in anterior funiculus) - 15% of fibers; uncrossed (crosses at segmental level); controls axial/proximal muscles

2. Extrapyramidal Tracts

Rubrospinal tract - lateral funiculus; from red nucleus; controls limb flexors
Vestibulospinal tract - anterior funiculus; from vestibular nuclei; controls trunk and extensor muscle tone (balance)
Tectospinal tract - anterior funiculus; from superior colliculus; head-turning reflexes
Reticulospinal tracts - anterior/lateral funiculi; from reticular formation; modulates tone and reflexes

Clinical Relevance - Tract Lamination

A key feature (shown in the textbook diagram above) is somatotopic lamination within each tract - for example, in the lateral corticospinal tract, cervical (C) fibers lie most medially, and sacral (S) fibers lie most laterally. This explains why:

Central cord syndrome (central lesion) affects arms more than legs (cervical fibers are central)
Extramedullary compression affects sacral fibers first (peripheral location)

Sources: Localization in Clinical Neurology, 8e; Gray's Anatomy for Students
