The Oxygen Cascade

The oxygen cascade describes the stepwise fall in partial pressure of oxygen (PO₂) as it travels from atmospheric air down to the mitochondria — the site of utilization. Each step involves a pressure "drop," driven by passive diffusion along concentration gradients.

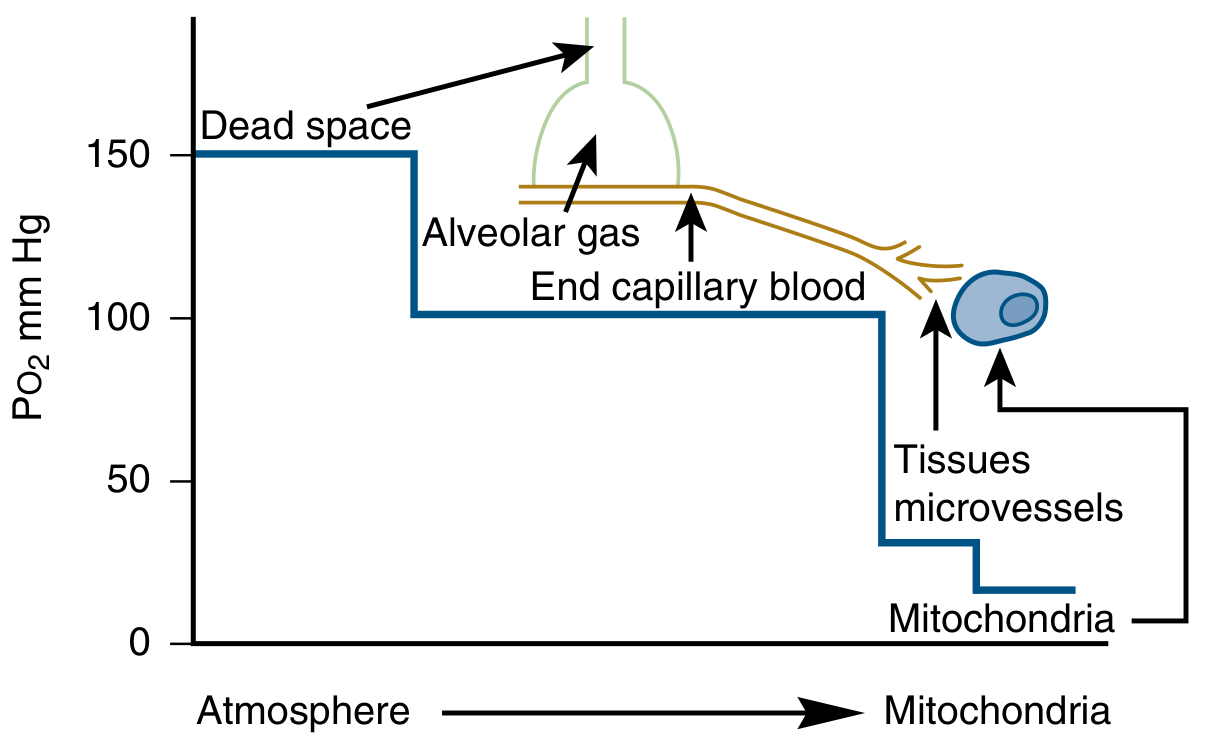

Oxygen cascade diagram showing stepwise PO₂ fall from atmosphere (~150 mmHg) through dead space, alveolar gas (~100 mmHg), end-capillary blood, tissue microvessels (~40 mmHg) to mitochondria (~5 mmHg)

Oxygen cascade from atmosphere to mitochondria (Murray & Nadel's Respiratory Medicine)

Steps of the Cascade

1. Atmospheric Air → Inspired Air

Location	PO₂ (mmHg)
Dry atmosphere (sea level)	~159
Moist inspired air (trachea)	~149

Atmospheric O₂ = 20.9% × 760 mmHg = 159 mmHg.

Once inhaled, air is warmed and humidified. Water vapor pressure at 37°C = 47 mmHg, so:

PO₂ (moist inspired) = 0.209 × (760 − 47) = 149 mmHg

2. Inspired Air → Alveolar Gas (~100 mmHg)

This is the largest single drop in the cascade. The alveolar PO₂ settles lower than inspired PO₂ because:

Ventilation continuously adds O₂ to alveoli
Pulmonary blood flow continuously removes O₂

The equilibrium is described by the Alveolar Gas Equation:

PAO₂ = PIO₂ − (PACO₂ / R)

Where:

PIO₂ = inspired PO₂ (~149 mmHg)
PACO₂ = alveolar PCO₂ (~40 mmHg, equal to arterial in normal lungs)
R = respiratory exchange ratio (typically ~0.8)

PAO₂ = 149 − (40/0.8) = 149 − 50 = ~100 mmHg

The alveolar PO₂ varies only 3–4 mmHg with each breath because the FRC volume dampens oscillations. CO₂ displaces O₂ in the alveolus, accounting for most of this drop.

3. Alveolar Gas → Arterial Blood (~95 mmHg)

Even in the ideal lung, end-capillary blood would equal alveolar PO₂. In reality, arterial PO₂ is slightly lower due to the alveolar-to-arterial (A-a) gradient (normally 10–12 mmHg on air).

Three mechanisms widen this gradient:

Diffusion limitation — thickened alveolar membrane (e.g., interstitial lung disease, extreme exercise at altitude)
Ventilation-perfusion (V/Q) mismatch — the major contributor in most lung disease; low V/Q units contribute desaturated blood
Shunt — true right-to-left shunt (anatomic or intrapulmonary); notably refractory to supplemental O₂ because raising FiO₂ cannot oxygenate non-ventilated alveoli

Gas exchange is normally perfusion-limited (not diffusion-limited): haemoglobin fully saturates in the first one-third of the pulmonary capillary under resting conditions.

4. Arterial Blood → Tissue Capillaries / Mixed Venous Blood (~40 mmHg)

Oxygen is delivered to tissues by:

Haemoglobin (primary carrier): ~1.34 mL O₂/g Hb when fully saturated; SaO₂ ≈ 97–98% at PaO₂ ~95 mmHg
Dissolved O₂: only 0.003 mL/100 mL/mmHg (minor contribution)

Oxygen delivery (DO₂):

DO₂ = CO × (Hb × 1.34 × SaO₂ + 0.003 × PaO₂)

At the tissue level, O₂ unloads from haemoglobin along the oxyhaemoglobin dissociation curve. The Bohr effect (↑PCO₂, ↑H⁺, ↑temperature, ↑2,3-DPG) shifts the curve rightward, lowering O₂ affinity and promoting unloading in metabolically active tissues. The P50 (PO₂ at 50% saturation) is normally ~27 mmHg.

Mixed venous PO₂ = ~40 mmHg (SvO₂ ~75%), reflecting the extraction by tissues.

5. Tissue Capillaries → Mitochondria (<5 mmHg)

Tissue extraction drops PO₂ a further ~55 mmHg. The mitochondrial PO₂ is not precisely measurable, but oxidative phosphorylation (cytochrome c oxidase) continues efficiently at only a few mmHg of PO₂.

Summary Table

Step	Location	PO₂ (mmHg)	Mechanism of Drop
1	Dry atmosphere	159	—
2	Moist inspired air	149	Water vapour dilution
3	Alveolar gas	~100	CO₂ exchange; alveolar gas equation
4	Arterial blood	~95	A-a gradient (V/Q mismatch, shunt, diffusion)
5	Mixed venous blood	~40	Tissue O₂ extraction; Bohr effect
6	Mitochondria	<5	Cellular utilization

Clinical Relevance

Perturbation	Step Affected	Example
High altitude	Step 1→2: ↓Pbar → ↓PIO₂ → ↓PAO₂	AMS, HAPE
Hypoventilation	Step 2: ↑PACO₂ → ↓PAO₂	Opioids, COPD exacerbation
V/Q mismatch	Step 3: ↑A-a gradient	PE, pneumonia, asthma
Shunt	Step 3: ↑A-a gradient, O₂-refractory	Hepatopulmonary syndrome, ARDS
Anaemia / ↓CO	Step 4: ↓DO₂	Haemorrhage, cardiogenic shock
Mitochondrial dysfunction	Step 5→6: ↑venous O₂ (can't extract)	Cyanide poisoning, sepsis

The cascade illustrates why hypoxia at tissue level can result from failure at any step — from environmental to cellular — and guides targeted therapy.

Sources: Murray & Nadel's Textbook of Respiratory Medicine; Harrison's Principles of Internal Medicine 22E; Costanzo Physiology 7th Edition; Goodman & Gilman's Pharmacological Basis of Therapeutics

Drugs and equipment used in general anaesthesia and spinal anaesthesia ( intubation tray)

Finding Sources

Reading File

Finding Sources

Reading File

Finding Sources

Reading File

Searching Images

intubation tray equipment laryngoscope endotracheal tube

Loading Image

Finding Sources

Reading File

I now have comprehensive information from multiple authoritative anaesthesia textbooks. Let me compose the complete answer.

Drugs & Equipment in General Anaesthesia and Spinal Anaesthesia

PART 1: GENERAL ANAESTHESIA

General anaesthesia involves three phases: induction → maintenance → reversal/emergence.

A. Drugs Used in General Anaesthesia

1. Induction Agents (IV)

Drug	Dose	Key Features	Caution
Propofol	1.5–2.5 mg/kg IV	Most commonly used; antiemetic; bronchodilator; rapid onset	↓BP 25–40%; central apnoea; pain on injection
Ketamine	1–2 mg/kg IV or 4–6 mg/kg IM	Dissociative; ↑BP, HR, CO; bronchodilator; analgesic; preserves airway reflexes	Hallucinations/emergence delirium; ↑salivation (give glycopyrrolate)
Etomidate	0.2–0.3 mg/kg IV	Haemodynamically neutral; preferred in CV compromise, ↑ICP, trauma	Adrenocortical suppression; myoclonus; PONV; pain on injection
Thiopental	3–5 mg/kg IV	Barbiturate; rapid onset; ↓ICP	No longer widely available in US; cardiovascular depression
Midazolam	0.05–0.1 mg/kg	Anxiolysis/sedation/amnesia as adjunct; can be sole agent in high dose	Prolonged sedation at induction doses; respiratory depression synergistic with opioids

2. Maintenance Agents

Inhaled volatile agents:

Agent	Key Properties
Sevoflurane	Smooth induction; least airway irritation; preferred for mask induction
Isoflurane	Economical; potent bronchodilator
Desflurane	Very rapid emergence; airway irritant — not for mask induction
Nitrous oxide (N₂O)	Analgesic adjunct; reduces volatile agent requirements (↓MAC)

IV maintenance: Propofol infusion (TIVA — total IV anaesthesia), remifentanil infusion

3. Neuromuscular Blocking Agents (NMBAs)

Class	Drug	Onset	Duration	Notes
Depolarising	Succinylcholine	45–60 s	10–15 min	Rapid onset; used for RSI/suspected difficult airway
Non-depolarising	Rocuronium	60–90 s (1.2 mg/kg for RSI)	30–60 min	Reversible with sugammadex
	Vecuronium	3–5 min	25–40 min	Cardiac stability
	Cisatracurium	3–5 min	40–75 min	Hofmann elimination; preferred in liver/renal failure
	Atracurium	2–3 min	20–35 min	Histamine release

Reversal:

Neostigmine + glycopyrrolate (anticholinesterase; must give with anticholinergic)
Sugammadex — selective reversal of rocuronium/vecuronium; rapid, complete

4. Opioids (Analgesia / Blunting Laryngoscopy Response)

Drug	Notes
Fentanyl	1–3 µg/kg; most widely used intraoperative opioid
Remifentanil	Ultra-short; infusion only; no accumulation
Morphine	Longer duration; suitable for postoperative analgesia
Sufentanil	5–10× more potent than fentanyl

5. Adjuncts / Premedication

Drug	Role
Midazolam	Anxiolysis, anterograde amnesia
Glycopyrrolate / Atropine	Antisialogogue; prevent bradycardia
Lidocaine IV	Blunts ↑ICP/BP response to intubation; adjunct to propofol (reduces injection pain)
Dexmedetomidine	α₂-agonist; sedation with preserved respiratory drive; used for awake fibreoptic intubation
Ondansetron / Dexamethasone	PONV prophylaxis
Ephedrine / Phenylephrine	Vasopressors for induction hypotension

B. Equipment for General Anaesthesia / Intubation Tray

Difficult airway trolley showing laryngoscope blades (Macintosh sizes 3 & 4, Miller sizes 2 & 3), ETTs sizes 4.0–8.0, stylet, Magill forceps, rocuronium vials, syringes, lubricating gel, and adhesive tape

Standard intubation tray / difficult airway trolley (Macintosh + Miller blades, ETTs, stylet, Magill forceps)

Airway / Intubation Tray Contents

Laryngoscopes:

Direct laryngoscope with handle + blades:
- Macintosh (curved) — sizes 2, 3 (standard adult), 4 (large adult); tip in vallecula
- Miller (straight) — sizes 2–3; tip lifts epiglottis directly; preferred for paediatrics/anterior larynx
Video laryngoscope (e.g., GlideScope, McGrath) — for anticipated difficult airway

Endotracheal Tubes (ETTs):

Adult female: ID 7.0–7.5 mm | Adult male: ID 8.0–8.5 mm
Cuffed (standard); uncuffed (children <8 y traditionally, though cuffed now accepted)
Depth of insertion: ~23 cm (F), ~25 cm (M) at lips

Paediatric ETT sizing:

ETT ID (mm) = (Age/4) + 4 (uncuffed) or (Age/4) + 3.5 (cuffed)
Depth = ID × 3 cm

Age	ETT Size	Blade
Neonate/premature	3.0 uncuffed	0 straight
0–6 months	3.5 cuffed	1 straight
1–2 years	4.5 cuffed	1.5 straight
5–6 years	5.0 cuffed	2 curved
Adult female	7.0–7.5	Mac 3
Adult male	8.0–8.5	Mac 3–4

Other intubation tray equipment:

Stylet / bougie (gum elastic bougie) — for difficult/anterior larynx
Magill forceps — nasotracheal intubation / foreign body removal
10 mL syringe — cuff inflation
Tape / tie — ETT fixation
Bite block
Lubricating gel / lignocaine jelly
Suction (Yankauer catheter)
Bag-valve-mask (BVM / Ambu bag) with appropriate mask — preoxygenation and rescue ventilation
Oropharyngeal airways (Guedel) — sizes 0–4 (adult 3–4)
Nasopharyngeal airway — alternative in semi-conscious patients

Monitoring (before induction):

SpO₂, ECG, NIBP (minimum)
Capnography (ETCO₂) — mandatory confirmation of intubation
Temperature probe, BIS (depth of anaesthesia monitoring)

Anaesthetic Machine:

Vaporisers, breathing circuit, CO₂ absorber, ventilator
Functioning suction
IV access × 2 (minimum large-bore)

PART 2: SPINAL ANAESTHESIA

Spinal (subarachnoid) anaesthesia = injection of local anaesthetic ± adjuncts into the subarachnoid (intrathecal) space.

A. Drugs Used in Spinal Anaesthesia

1. Local Anaesthetics

Drug	Dose	Baricity	Duration	Notes
Bupivacaine (hyperbaric)	10–15 mg (2–3 mL 0.5%)	Hyperbaric (in dextrose)	2–4 h	Most commonly used; reliable block
Bupivacaine (isobaric)	10–15 mg	Isobaric	2–4 h	Less predictable spread
Lidocaine	30–100 mg (2–5% hyperbaric)	Hyperbaric	1–2 h	Fast onset; transient neurological symptoms risk
Ropivacaine	15–22.5 mg	Isobaric	2–4 h	Less motor block than bupivacaine
Chloroprocaine	40–60 mg	—	30–60 min	Short procedures
Tetracaine	5–20 mg	Hyperbaric or hypobaric	2–4 h	Traditional; slower onset

Baricity determines spread:

Hyperbaric (+ dextrose) → sinks with gravity → predictable, lower spread
Isobaric → position independent
Hypobaric (+ sterile water) → rises → useful for prone/lithotomy

2. Adjuncts Added to Spinal Injectate

Drug	Dose	Effect
Fentanyl	10–25 µg	↑ block quality; ↑ duration of analgesia; reduces LA dose needed
Morphine (preservative-free)	0.1–0.3 mg	Prolonged postoperative analgesia (up to 24 h); risk of delayed respiratory depression
Sufentanil	5–7.5 µg	Rapid, dense analgesia
Epinephrine	0.1–0.2 mg	Prolongs block; vasoconstricts; ↑ quality of block (esp. with short-acting LAs)
Clonidine	15–45 µg	α₂-agonist; prolongs sensory/motor block; off-label
Neostigmine	10–50 µg	Prolongs analgesia; more nausea

3. Vasopressors (for Post-Spinal Hypotension)

Drug	Notes
Phenylephrine	Now first-line for spinal hypotension; α₁-agonist; ↓HR (reflex bradycardia)
Ephedrine	Mixed α/β; preserves HR; historical first-line; more fetal acidosis than phenylephrine
Norepinephrine	Emerging alternative; maintains CO better than phenylephrine
Atropine / Epinephrine	High spinal / bradycardia / cardiac arrest

B. Equipment for Spinal Anaesthesia

Item	Detail
Spinal needle	Preferred: pencil-point (Whitacre, Sprotte) — atraumatic, ↓PDPH risk; 24–27 gauge. Quincke (cutting bevel) — 22–25 G, more PDPH
Introducer needle	Used to guide small-gauge pencil-point needles through skin/ligament
Syringe	5 mL (for local anaesthetic) + 2 mL (for skin LA)
Skin cleaning	Chlorhexidine (preferred) or povidone-iodine; sterile field
Sterile drape + gloves	Full aseptic technique
Local anaesthetic for skin	1% lignocaine for skin wheal
Drug ampoules	Hyperbaric bupivacaine 0.5%; opioid additives; vasopressor drawn up
IV cannula + fluids	Mandatory — for fluid co-loading / vasopressor administration
Patient position aids	Pillow for lateral decubitus; C-spine support; stool for sitting position
Monitoring	SpO₂, ECG, NIBP — continuous throughout
Resuscitation equipment	Must be immediately available: airway kit, BVM, epinephrine, atropine, vasopressors
Block height assessment	Ice/cold spray, pinprick, light touch

Dermatomal levels required:

Surgery	Minimum level
Perianal / perineum	S2–5
Lower limb	L2–3
Hips	L1–2
Lower abdomen / TURP	T10
Caesarean section	T4 (nipple line)
Upper abdomen	T4–6 (with caution)

Key Differences Summary

Feature	General Anaesthesia	Spinal Anaesthesia
Airway required	Yes — intubation/LMA	No (unless high block or emergency)
Consciousness	Lost	Preserved (usually with sedation)
Main drugs	Propofol/ketamine/etomidate + NMBA + volatile agent	Hyperbaric bupivacaine ± fentanyl/morphine
Duration limit	Unlimited	~2–4 h (single shot)
Major complications	Aspiration, failed intubation, awareness	High spinal, PDPH, hypotension, TNS
Ideal for	All surgery types	Lower limb, pelvic, caesarean, urological

Sources: Miller's Anesthesia 10e; Morgan & Mikhail's Clinical Anesthesiology 7e; Cummings Otolaryngology; Sabiston Textbook of Surgery; Barash Clinical Anesthesia 9e; Tintinalli's Emergency Medicine

Oxygen dissociation curve with Clinical correlation

Finding Sources

Reading File

Loading Image

Reading File

Finding Sources

Loading Image

Reading File

Finding Sources

Reading File

Loading Image

Reading File

Excellent — I have comprehensive textbook content and all necessary images. Let me now compose the full answer.

Oxygen Dissociation Curve — With Clinical Correlations

1. The Curve: What It Is

The oxyhaemoglobin dissociation curve (ODC) describes the relationship between the partial pressure of oxygen (PO₂) in blood and the percentage saturation of haemoglobin with oxygen (SaO₂). It is sigmoid (S-shaped), not a straight line — a direct consequence of the cooperative binding of O₂ to haemoglobin's four haem groups.

ODC showing arterial (PO₂ 100, Sat 97%) and venous (PO₂ 40, Sat 75%) points, with right-shift factors: ↑Temp, ↑DPG, ↑PCO₂, ↓pH

Standard ODC showing arterial and mixed venous operating points. (Murray & Nadel's Respiratory Medicine)

2. Key Values (Normal, at pH 7.4, 37°C)

Parameter	Value
Normal arterial PO₂	~100 mmHg → SaO₂ ~97%
Mixed venous PO₂	~40 mmHg → SvO₂ ~75%
P50 (PO₂ at 50% saturation)	26.5 mmHg
O₂ capacity (Hb 15 g/dL)	~20.8 mL O₂/100 mL blood
O₂ content formula	(1.39 × Hb × SaO₂) + (0.003 × PaO₂)
Dissolved O₂ only	0.003 mL/100 mL/mmHg

Each gram of haemoglobin carries 1.34–1.39 mL O₂ when fully saturated. Normal resting O₂ extraction is ~25% (only one-quarter of delivered O₂ is used at rest).

3. The Sigmoid Shape: Two Physiologically Critical Segments

ODC (Fishman's) showing total O₂ content curve (red) vs dissolved O₂ (blue), with P50 = 26.5 mmHg marked

Total O₂ content vs dissolved O₂. P50 = 26.5 mmHg (Fishman's Pulmonary Diseases)

Upper Flat Portion (PO₂ 60–100 mmHg)

Small drop in PaO₂ (e.g., 100 → 70 mmHg) causes only minor fall in SaO₂
Clinical advantage: Patients with mild/moderate hypoxaemia (PaO₂ 60–100) remain reasonably saturated — a "safety margin"
Clinical trap: Pulse oximetry appears reassuringly normal even with significant PaO₂ fall — e.g., PaO₂ can drop from 100 → 60 mmHg while SpO₂ only falls from 97% → 90%

Lower Steep Portion (PO₂ 20–60 mmHg)

A small drop in PO₂ releases large amounts of O₂ to tissues
Facilitates efficient unloading at tissue capillaries (PO₂ 40 → 20 mmHg)
Maintains adequate diffusion gradient into mitochondria

4. Shifts of the Curve

Right-shift (↑H⁺, ↑CO₂, ↑2,3-DPG, ↑Temp → blue curve) vs left-shift (↓H⁺, ↓CO₂, ↓2,3-DPG, ↓Temp → green curve) vs normal (red)

Left shift (green) = ↑affinity, ↓unloading. Right shift (blue) = ↓affinity, ↑unloading. (Fishman's Pulmonary Diseases)

Right Shift (↑P50 — decreased O₂ affinity → more O₂ released to tissues)

Factor	Mechanism	Mnemonic
↑Temperature	Disrupts Hb-O₂ bonds	CADET
↑PCO₂	Bohr effect	CO₂
↓pH (↑H⁺)	Bohr effect	Acidosis
↑2,3-DPG	Binds β-chains, stabilises deoxyHb	DPG
↑Altitude (chronic)	↑2,3-DPG response	Exercise/altitude
Anaemia (chronic)	↑2,3-DPG compensation	Temperature

Left Shift (↓P50 — increased O₂ affinity → less O₂ released to tissues)

Factor	Clinical Example
↓Temperature	Hypothermia, stored blood
↓PCO₂	Hyperventilation (alkalosis)
↑pH	Metabolic alkalosis
↓2,3-DPG	Stored/banked blood (depletes within 7 days)
Carboxyhaemoglobin (COHb)	CO poisoning
Methaemoglobin	Drug-induced (dapsone, nitrites)
Fetal haemoglobin (HbF)	Newborns
High O₂-affinity Hb variants	Polycythaemia (rare mutations)

5. The Bohr Effect

The Bohr effect is the right shift of the ODC caused by ↑CO₂ and ↑H⁺:

At tissues: Metabolising cells produce CO₂ and H⁺ → blood PCO₂ and H⁺ rise → ODC shifts right → O₂ released more readily to tissues
At lungs: CO₂ diffuses out → blood PCO₂ and H⁺ fall → ODC shifts left → Hb reloads O₂ efficiently from alveolar gas

Quantitatively, the Bohr effect augments O₂ delivery by only 2–3% at rest, but becomes more significant during strenuous exercise when lactic acid production causes a marked acidosis (pH may fall to 7.2 → P50 rises from ~27 to ~38 mmHg).

Shift curves showing pH 7.6 (left), 7.4 (normal), 7.2 (right) and right-shift factors CO₂, H⁺, temperature, BPG

pH effect on the ODC (Bohr effect): pH 7.6 shifts left, pH 7.2 shifts right by ~15%. (Guyton & Hall)

6. 2,3-DPG: Mechanism and Clinical Significance

2,3-DPG (= 2,3-bisphosphoglycerate, 2,3-BPG) is produced by glycolysis in red cells. It:

Enters the central cavity of deoxyhaemoglobin between the β-chains (electrostatic binding)
Stabilises the T-state (tense/deoxy) → requires higher PO₂ to load O₂ → right shift
Normal concentration: ~5 mM

Clinical importance of ↑2,3-DPG (right shift):

Chronic anaemia → compensatory ↑2,3-DPG → tissues receive more O₂ per gram Hb
Chronic altitude exposure → ↑2,3-DPG (adaptive)

Clinical importance of ↓2,3-DPG (left shift):

Stored blood: 2,3-DPG degrades significantly within 7 days of refrigerated storage → left-shifted curve → impaired O₂ unloading to tissues despite transfusion
Restores to ~50% at 7 hours post-transfusion; ~95% by 48 hours

7. Clinical Correlations

A. Carbon Monoxide (CO) Poisoning

CO binds Hb with 250× greater affinity than O₂
COHb has two effects:
1. Functional anaemia — CO occupies O₂-binding sites
2. Left shift — CO on remaining haem sites increases O₂ affinity of other sites → O₂ won't unload at tissues
Danger: SpO₂ falsely normal (pulse ox cannot distinguish COHb from OxyHb) — must use co-oximetry
Treatment: 100% O₂ → displaces CO (half-life: 5 h on room air → 80 min on 100% O₂ → 20 min on hyperbaric O₂)

B. Methaemoglobinaemia

Fe²⁺ oxidised to Fe³⁺ (cannot carry O₂)
↑O₂ affinity of remaining Hb → left shift → tissue hypoxia despite adequate PaO₂
Causes: dapsone, nitrites, prilocaine, amyl nitrite, phenazopyridine
SpO₂ reads ~85% regardless of true saturation
Treatment: methylene blue 1–2 mg/kg IV

C. Fetal Haemoglobin (HbF)

γ-chains replace β-chains → 2,3-DPG cannot bind effectively
HbF curve shifted left → P50 ~20 mmHg (vs 27 for HbA)
Higher O₂ affinity allows fetus to extract O₂ from maternal blood across placenta
At placenta: fetal blood "steals" O₂ from maternal blood (Bohr effect assists — maternal blood acidifies slightly as it unloads O₂, shifting maternal curve right, facilitating fetal loading)

D. Sickle Cell Disease (HbS)

HbS has reduced O₂ affinity (right shift)
At low PO₂ (tissues), deoxyHbS polymerises → sickling → vaso-occlusion and haemolysis
Voxelotor (new treatment): small molecule that binds α-chain N-terminus → increases O₂ affinity (left shift) → keeps Hb oxygenated longer → reduces sickling

E. Anaemia

Hb↓ → O₂ content ↓ at any given PaO₂ and SaO₂
PaO₂ and SpO₂ may be normal, but oxygen content and delivery (DO₂) are reduced
Compensatory: ↑2,3-DPG (right shift), ↑cardiac output, ↑O₂ extraction

F. Altitude / Chronic Hypoxia

↓PaO₂ → immediate: hyperventilation → ↑pH → left shift (transient, impairs unloading)
Days–weeks: ↑2,3-DPG, ↑erythropoiesis → right shift (adaptive, improves O₂ delivery)
Chronic mountain dwellers also show ↑Hb and ↑capillary density

G. Transfusion of Stored Blood

Stored RBCs: ↓2,3-DPG → left-shifted curve → Hb clings to O₂, won't release to tissues
Especially relevant in massive transfusion, cardiac surgery
2,3-DPG recovers within 48 hours post-transfusion

H. Exercise

Muscle: ↑CO₂, ↑H⁺ (lactic acid), ↑temperature → marked right shift → greatly enhanced O₂ unloading exactly where needed
Resting: only ~25% O₂ extracted; during maximal exercise: up to 75–85% extracted

I. Hypothermia

↓Temperature → left shift → Hb holds O₂ tightly → ↓tissue O₂ delivery
Clinically relevant in cardiac surgery with cardiopulmonary bypass, near-drowning
Also causes: ↓O₂ demand (which partly compensates)

8. Summary Table

Condition	Shift	P50	Clinical consequence
Exercise, fever, sepsis	Right	↑	↑ O₂ delivery to active tissues
Chronic anaemia, altitude	Right	↑	Compensatory ↑ unloading
CO poisoning	Left	↓	O₂ loads but won't unload
Methaemoglobinaemia	Left	↓	SpO₂ misleading; tissue hypoxia
Stored blood	Left	↓	Impaired O₂ release post-transfusion
HbF (fetus)	Left	↓	Facilitates placental O₂ transfer
HbS (sickle cell)	Right	↑	Sickling at low PO₂
Hypothermia	Left	↓	↓ O₂ delivery to tissues
Hyperventilation / alkalosis	Left	↓	↑ Hb-O₂ affinity
Acidosis / hypoventilation	Right	↑	↑ O₂ release (Bohr effect)

Sources: Fishman's Pulmonary Diseases and Disorders; Murray & Nadel's Respiratory Medicine; Guyton & Hall Medical Physiology; Mulholland & Greenfield's Surgery

Oxygen flux and Bain cicuits

Finding Sources

Reading File

Finding Sources

Reading File

Loading Image

Searching Images

Bain circuit Mapleson D coaxial anaesthesia breathing system diagram

Reading File

Finding Sources

Loading Image

Finding Sources

I now have all the content and images needed. Let me compose the comprehensive answer.

Oxygen Flux and the Bain Circuit

PART 1: OXYGEN FLUX (Oxygen Delivery — DO₂)

1. Definition

Oxygen flux (also called oxygen delivery, DO₂) is the rate at which oxygen is transported from the lungs to the systemic microcirculation per unit time. It is the product of cardiac output (CO) and arterial oxygen content (CaO₂).

2. The Core Formula

DO₂ = CO × CaO₂ × 10

Where the ×10 converts CaO₂ from mL/dL to mL/L so units are consistent.

Normal DO₂ = ~1000 mL/min (at rest, average adult)

3. Components of DO₂

A. Cardiac Output (CO)

CO = Heart Rate (HR) × Stroke Volume (SV)

Determinants of stroke volume:

Factor	Description
Preload	End-diastolic volume (Frank-Starling law)
Contractility	Intrinsic myocardial force independent of load
Afterload	Systemic vascular resistance (SVR) — force against which ventricle ejects

Normal CO = 5 L/min

B. Arterial Oxygen Content (CaO₂)

CaO₂ = (Hb × 1.34 × SaO₂) + (0.003 × PaO₂)

Component	Contribution	Notes
Hb-bound O₂	~19.8 mL/dL	Dominant — Hb 15 g/dL × 1.34 × 0.98
Dissolved O₂	~0.3 mL/dL	Tiny at normal PaO₂ (~100 mmHg)

Normal CaO₂ = 17–20 mL/dL

So: DO₂ = 5 L/min × 20 mL/dL × 10 = 1000 mL/min ✓

4. Oxygen Consumption (VO₂) and Extraction

VO₂ = CO × (CaO₂ − CvO₂) × 10 (Fick principle)

Normal VO₂ = ~250 mL/min (25% of DO₂ at rest)

Oxygen Extraction Ratio (OER) = VO₂ / DO₂ = ~25%

The myocardium has the highest extraction ratio at ~75% — it has almost no oxygen reserve.

Mixed venous saturation (SvO₂) reflects the global balance:

SvO₂ = 1 − (VO₂/DO₂) → Normal: 60–80% Central venous saturation (ScvO₂) normal: 65–85%

5. Normal Haemodynamic Parameters Table

Parameter	Equation	Normal
DO₂	CO × CaO₂ × 10	950–1150 mL/min
CaO₂	1.34 × Hb × SaO₂ + 0.003 × PaO₂	17–20 mL/dL
VO₂	CO × (CaO₂ − CvO₂) × 10	200–300 mL/min
OER	VO₂ / DO₂	22–30%
SvO₂	Pulmonary artery (mixed venous)	60–80%

6. DO₂ vs VO₂ Relationship: The Critical DO₂ Threshold

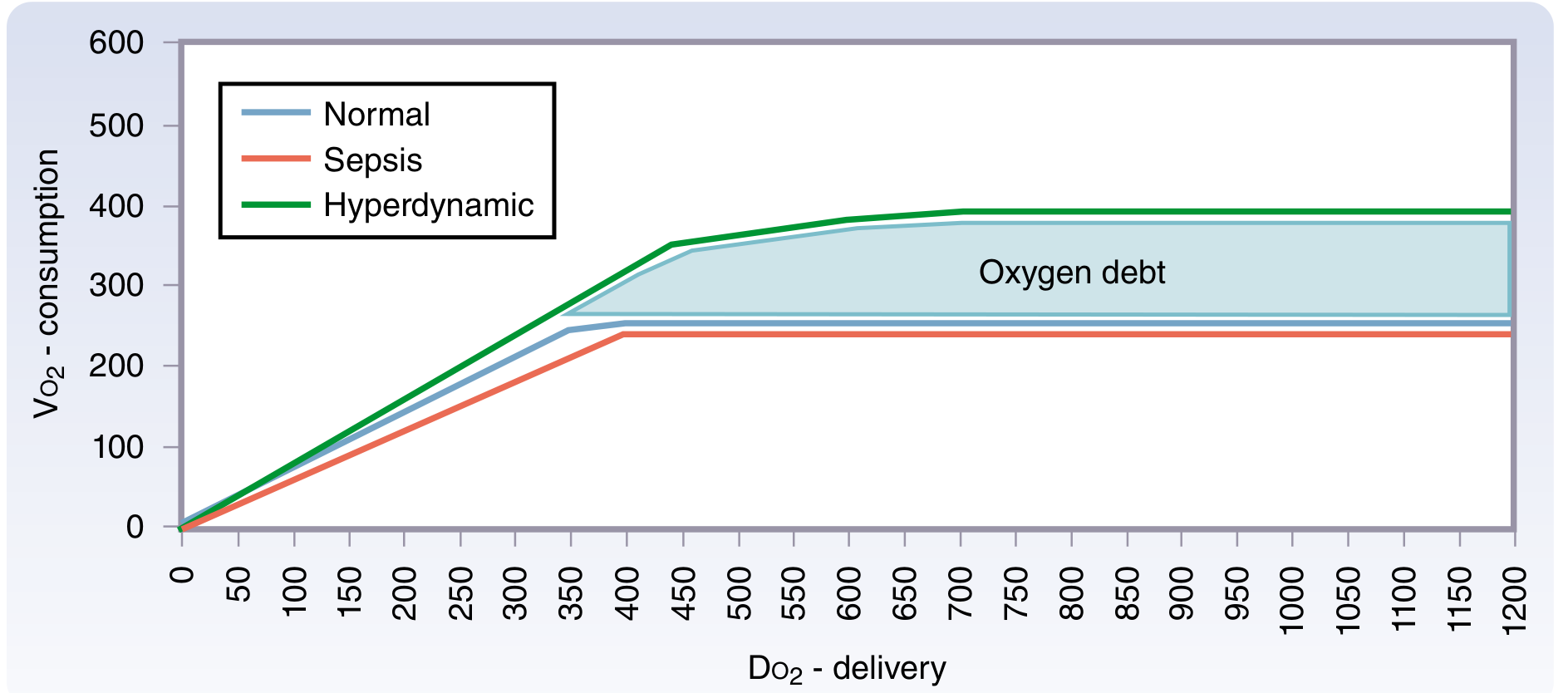

DO₂ vs VO₂ graph: normal (blue), sepsis (red), hyperdynamic (green). Delivery-dependent zone at left; flat (supply-independent) zone at right; "oxygen debt" area shaded between sepsis and hyperdynamic curves

DO₂ vs VO₂: delivery-independent (right) and delivery-dependent (left, shock) zones. Note oxygen debt in sepsis. (Sabiston Textbook of Surgery)

Two physiological zones:

Zone	DO₂ level	VO₂ behaviour	State
Supply-independent	DO₂ > critical threshold (~400 mL/min)	VO₂ constant despite ↑DO₂	Normal
Supply-dependent	DO₂ < critical threshold	VO₂ falls proportionally with DO₂	Shock / anaerobic metabolism

In the supply-dependent zone, cells switch to anaerobic metabolism → lactic acid accumulates → oxygen debt.

During recovery, VO₂ rises above normal (hyperdynamic phase) to repay the oxygen debt — seen classically in post-resuscitation sepsis.

7. Causes of Reduced DO₂

Mechanism	Examples
↓ Cardiac output	Cardiogenic shock (MI), hypovolemia, cardiac tamponade, PE
↓ Haemoglobin	Haemorrhage, haemolysis, chronic anaemia
↓ SaO₂	Respiratory failure, V/Q mismatch, shunt
↓ PaO₂	Hypoventilation, diffusion limitation, altitude
CO poisoning	COHb: reduces O₂ carrying capacity AND impairs unloading
Sepsis	Maldistribution of flow; microcirculatory failure despite normal global DO₂

8. Clinical Monitoring of Oxygen Flux

Marker	Significance
SvO₂ < 60%	↑ Extraction → supply-demand mismatch
ScvO₂ < 65%	Surrogate for SvO₂; used in Surviving Sepsis Bundle
Lactate > 2 mmol/L	Anaerobic metabolism → inadequate DO₂
Base deficit	Cumulative oxygen debt
Near-infrared spectroscopy (NIRS)	Regional tissue saturation (cerebral, somatic)

PART 2: THE BAIN CIRCUIT

1. Background — Mapleson Classification

Mapleson (1954) classified breathing systems (A–F) based on the relative positions of the Fresh Gas Inlet (FGI) and the APL (Adjustable Pressure-Limiting) valve. The position of these components determines efficiency and the required fresh gas flow (FGF) to prevent CO₂ rebreathing.

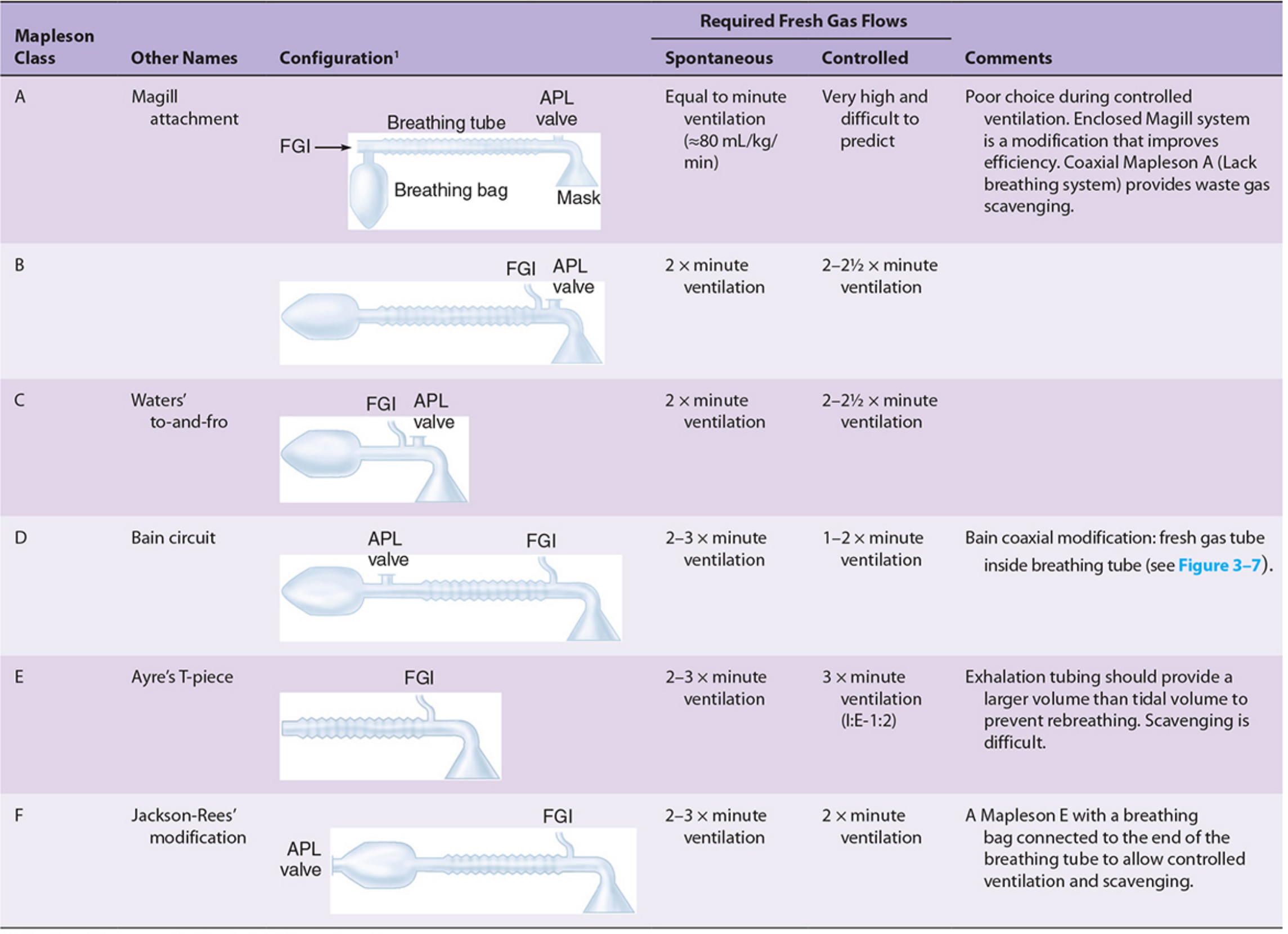

Mapleson circuits A–F: configurations, fresh gas flows for spontaneous and controlled ventilation, with Bain circuit listed as a coaxial Mapleson D modification

All six Mapleson circuits with required fresh gas flows and configurations. (Morgan & Mikhail's Clinical Anesthesiology)

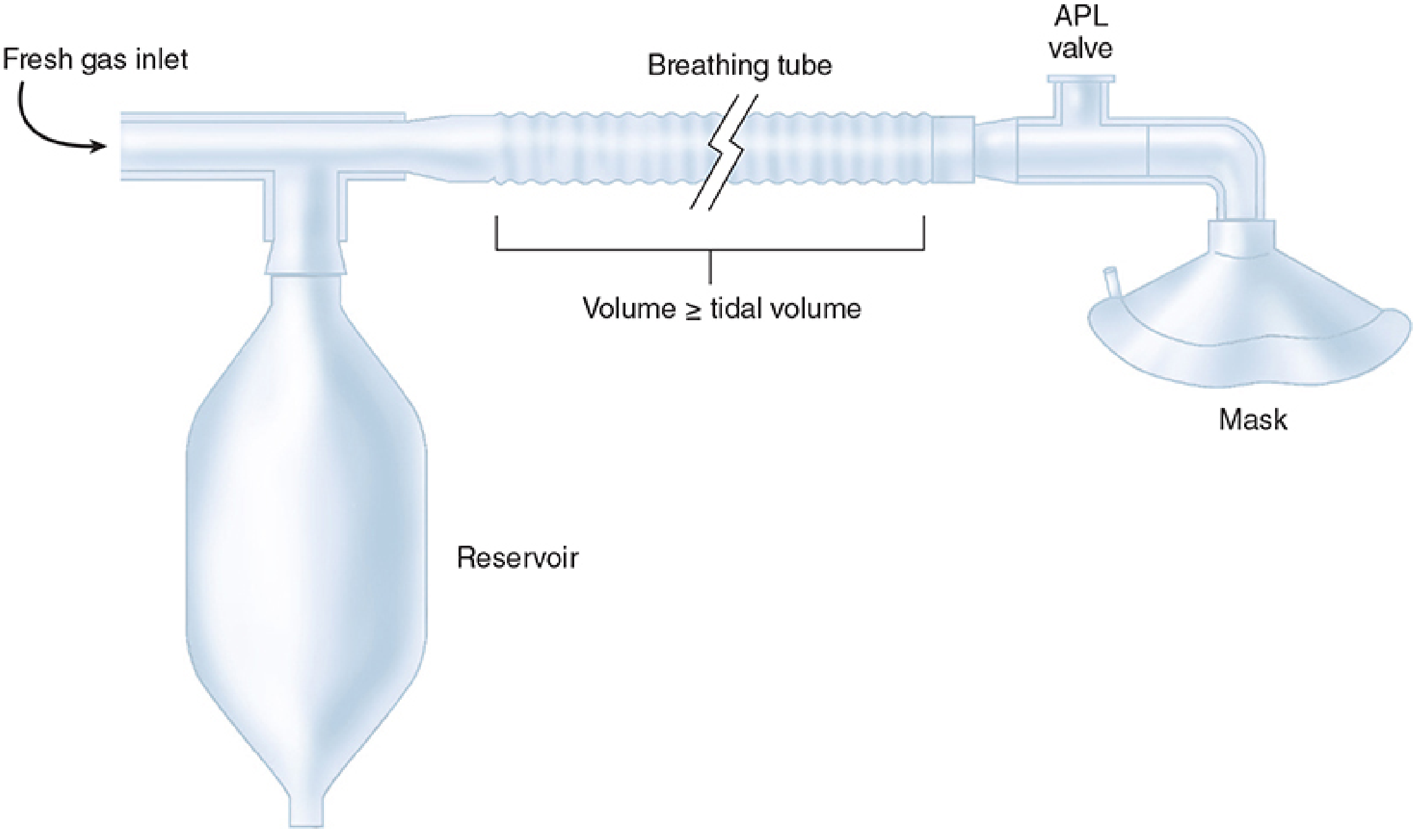

Mapleson circuit components: fresh gas inlet, breathing tube (volume ≥ tidal volume), reservoir bag, APL valve, mask

Mapleson A circuit components. Key principle: breathing tube volume must be ≥ tidal volume.

2. The Bain Circuit — Description

The Bain circuit (1972, Bain & Spoerel) is a coaxial modification of the Mapleson D system:

Inner tube (narrow): carries fresh gas from the machine → empties at the patient end
Outer tube (wide corrugated): carries exhaled gases away from the patient → vented via the APL (pop-off) valve near the reservoir bag (machine end)

[Reservoir bag] — [APL valve] ←←←←← EXHALED gas (outer tube) ←←←←← [Patient]
                                       ←←←←← FRESH gas (inner tube) ←←←←←←←←

The fresh gas enters the inner tube at the machine end but exits at the patient end — the opposite direction to exhalation.

3. Components

Component	Description
Outer corrugated tube	~22 mm diameter; exhaled gas reservoir; transparent for inner tube inspection
Inner narrow tube	~7 mm diameter; carries fresh gas to patient end
Reservoir bag	2–3 L; acts as gas reservoir and visible ventilation monitor
APL valve (pop-off)	Located at machine/bag end; vents excess gas; set open during spontaneous breathing
Patient connector (Y-piece)	Connects to mask, ETT, or LMA

4. Fresh Gas Flow Requirements

No CO₂ absorber → rebreathing is prevented entirely by adequate fresh gas flow:

Mode	Required FGF	Notes
Spontaneous ventilation	2–3 × minute ventilation	Fresh gas pushes exhaled CO₂ toward APL valve
Controlled (IPPV) ventilation	70 mL/kg/min or 1.5–2 × minute ventilation	Fresh gas sweeps CO₂ away; more efficient during IPPV

For an average 70 kg adult (minute ventilation = 70 mL/kg/min × 70 = 4.9 L/min):

Spontaneous: FGF ~10–12 L/min
Controlled: FGF ~4.9–7 L/min

The Bain circuit is more efficient during controlled ventilation (like all Mapleson D systems) because positive pressure during inspiration flushes alveolar gas toward the APL valve.

5. Advantages of the Bain Circuit

Advantage	Explanation
Lightweight and portable	Compact coaxial design
Convenient for remote/shared airway (ENT, dental)	APL valve at machine end, away from surgical field
Easy scavenging	Pop-off valve remote from patient — simple scavenger attachment
Heat and humidity conservation	Expired gases in outer tube warm incoming fresh gas by countercurrent exchange
Disposable	Single-use versions available; reduces cross-infection
Suitable for both spontaneous and controlled ventilation	Versatile use
Minimal apparatus dead space	Fresh gas delivered right at the patient end

6. Disadvantages and Hazards

Hazard	Consequence	Prevention
Kinking of inner tube	Fresh gas not delivered → hypercapnia (CO₂ rebreathing from outer tube)	Inspect outer transparent tube before use
Disconnection of inner tube	Same — outer tube becomes dead space	Pethick test
High FGF needed	Wasteful; drying/cooling if humidification lost	Ensure FGF formula followed
Obstructed filter	↑ Respiratory resistance mimicking bronchospasm	Check filter
Awareness if FGF inadequate	Insufficient anaesthetic agent delivery	Monitor ETCO₂ and volatile agent concentration

7. Pethick Test (Integrity Test of Inner Tube)

Used to confirm the inner fresh gas tube is intact and patent:

Occlude the patient end of the circuit
Apply high-flow oxygen via the machine until the reservoir bag is fully inflated
Open the patient end — flush oxygen at high flow into the circuit (O₂ flush button)
Observe the reservoir bag:
- Bag deflates → inner tube intact (Venturi effect at patient end reduces circuit pressure)
- Bag stays inflated → inner tube has a leak (fresh gas escaping into expiratory limb)

8. Comparison: Bain vs Other Systems

Feature	Mapleson A	Bain (Mapleson D)	Circle system
Best for	Spontaneous ventilation	Controlled ventilation	Long procedures, low flow
FGF (spontaneous)	= MV	2–3 × MV	0.5–1 L/min
FGF (controlled)	>3 × MV (inefficient)	1.5–2 × MV	0.5–1 L/min
CO₂ absorber	No	No	Yes (soda lime)
Heat/humidity	Minimal	Partial (countercurrent)	Good
Portability	Moderate	High	Low (heavy machine)
Scavenging	Moderate	Easy	Good
Paediatric use	Mapleson F preferred	Yes	Yes (with modifications)

9. Clinical Uses of the Bain Circuit

ENT, head and neck, dental surgery — surgical field at airway; APL valve at machine end is out of the way
Short procedures requiring controlled ventilation (e.g., day surgery, minor procedures)
Transfer/transport anaesthesia — portable and lightweight
Spontaneous breathing with higher FGF (less common — Mapleson A more efficient for this)
Paediatrics (Mapleson F/Jackson-Rees preferred but Bain used in older children)

Summary

Topic	Key Point
DO₂ formula	CO × CaO₂ × 10; normal ~1000 mL/min
Normal VO₂	~250 mL/min (25% extraction)
Critical DO₂	~400 mL/min; below this → supply-dependent VO₂ → anaerobic metabolism
Bain =	Coaxial Mapleson D modification
Fresh gas direction	Inner tube → patient end
Exhaled gas direction	Outer tube → APL valve (machine end)
FGF (controlled)	70 mL/kg/min or 1.5–2× MV
FGF (spontaneous)	2–3× MV
Key hazard	Inner tube kink/disconnect → rebreathing
Safety test	Pethick test (reservoir bag deflates = tube intact)

Sources: Harrison's Principles of Internal Medicine 22E; Sabiston Textbook of Surgery; Mulholland & Greenfield's Surgery 7e; Morgan & Mikhail's Clinical Anesthesiology 7e; Barash Clinical Anesthesia 9e; Miller's Anesthesia 10e

This is a shared conversation. Sign in to Orris to start your own chat.
