ANATOMY AND PHYSIOLOGY OF THE CEREBELLUM WITH PATHWAYS

🧠 INTRODUCTION

• Coordination of voluntary movement
• Planning and execution of movement
• Maintenance of posture and equilibrium
• Coordination of head and eye movements
• Integration of sensory + motor information

---

PART I: GROSS ANATOMY

A. External Features

B. Lobes (Anatomical Divisions)

C. Longitudinal (Functional) Zones

Key Rule: Vermis → fastigial; Intermediate → interpositus; Lateral → dentate

---

PART II: INTERNAL ANATOMY

A. Deep Cerebellar Nuclei (from medial to lateral)

1. Fastigial nucleus – medial; receives from vermis; projects to vestibular nuclei + reticular formation
2. Globose nucleus – receives from intermediate zone
3. Emboliform nucleus – receives from intermediate zone
4. (Globose + Emboliform together = Interpositus nucleus)
5. Dentate nucleus – largest; lateral; receives from lateral hemisphere; projects to thalamus & red nucleus

Mnemonic: Father Goes Eat Dosa = Fastigial, Globose, Emboliform, Dentate (medial → lateral)

B. Cerebellar Cortex — Three Layers

C. Key Cell Types

D. Afferent Fiber Types Into Cortex

---

PART III: CEREBELLAR PEDUNCLES

1. Inferior Cerebellar Peduncle (Restiform body)

2. Middle Cerebellar Peduncle (Brachium pontis)

No efferent fibers leave through MCP.

3. Superior Cerebellar Peduncle (Brachium conjunctivum)

---

PART IV: PATHWAYS IN DETAIL

A. AFFERENT PATHWAYS (Into Cerebellum)

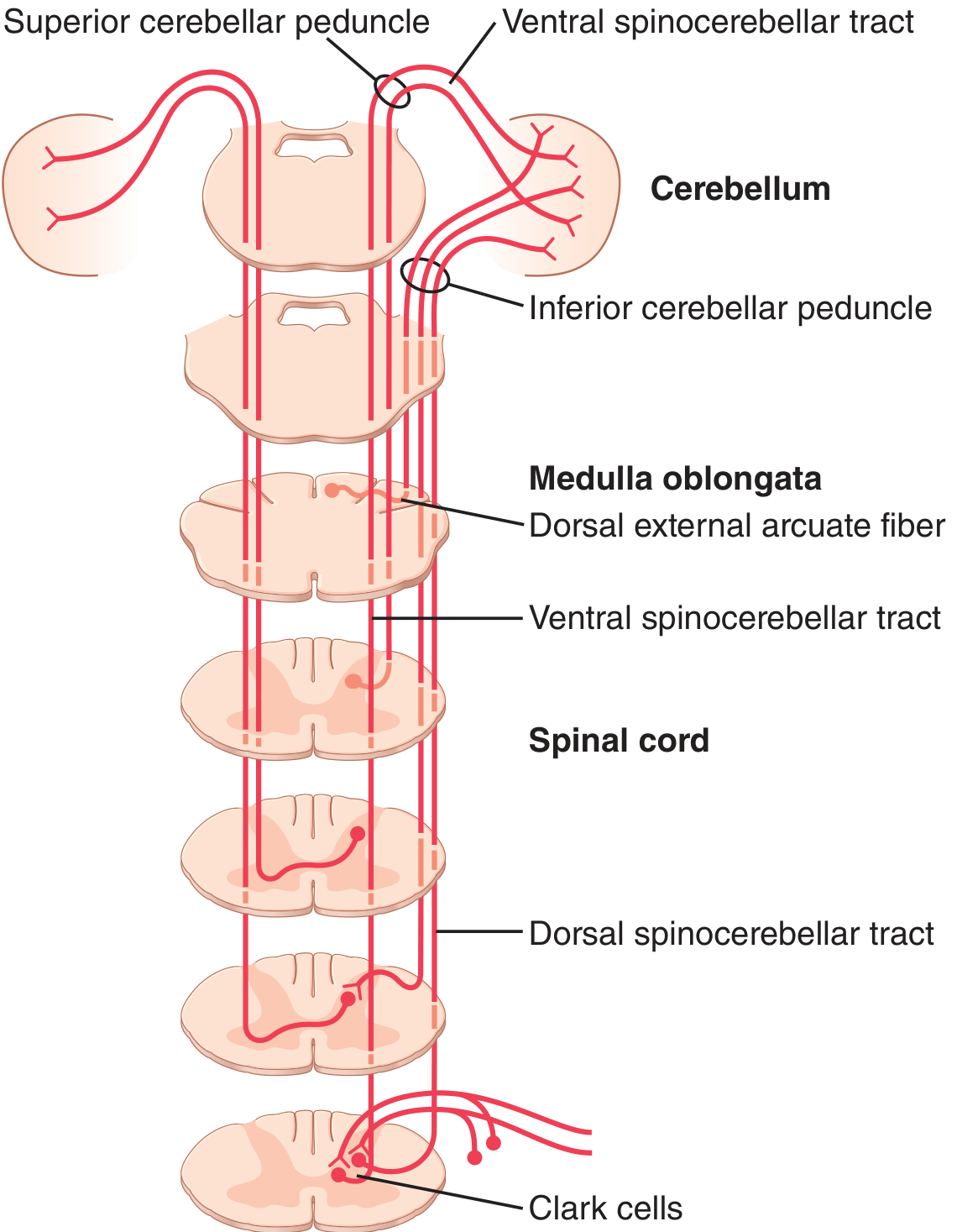

1. Spinocerebellar Pathways

Spinocerebellar tracts are the fastest conducting tracts in the body — up to 120 m/sec (Guyton & Hall)

2. Corticopontocerebellar Pathway (Most important afferent)

• Cerebral cortex (motor + premotor + somatosensory) → Internal capsule → Pontine nuclei (synapse) → Contralateral MCP → Cerebellar cortex (lateral hemispheres)
• Carries: voluntary motor plans

3. Olivocerebellar Pathway

• Inferior olivary nucleus (medulla) → contralateral ICP → Climbing fibers → Purkinje cell dendrites
• Excited by: cerebral motor cortex, basal ganglia, reticular formation, spinal cord
• Carries: error signals for motor learning

4. Vestibulocerebellar Pathway

• Vestibular ganglion + medial/inferior vestibular nuclei → ICP (via juxtarestiform body) → Flocculonodular lobe + fastigial nucleus
• Carries: balance and head-position information

---

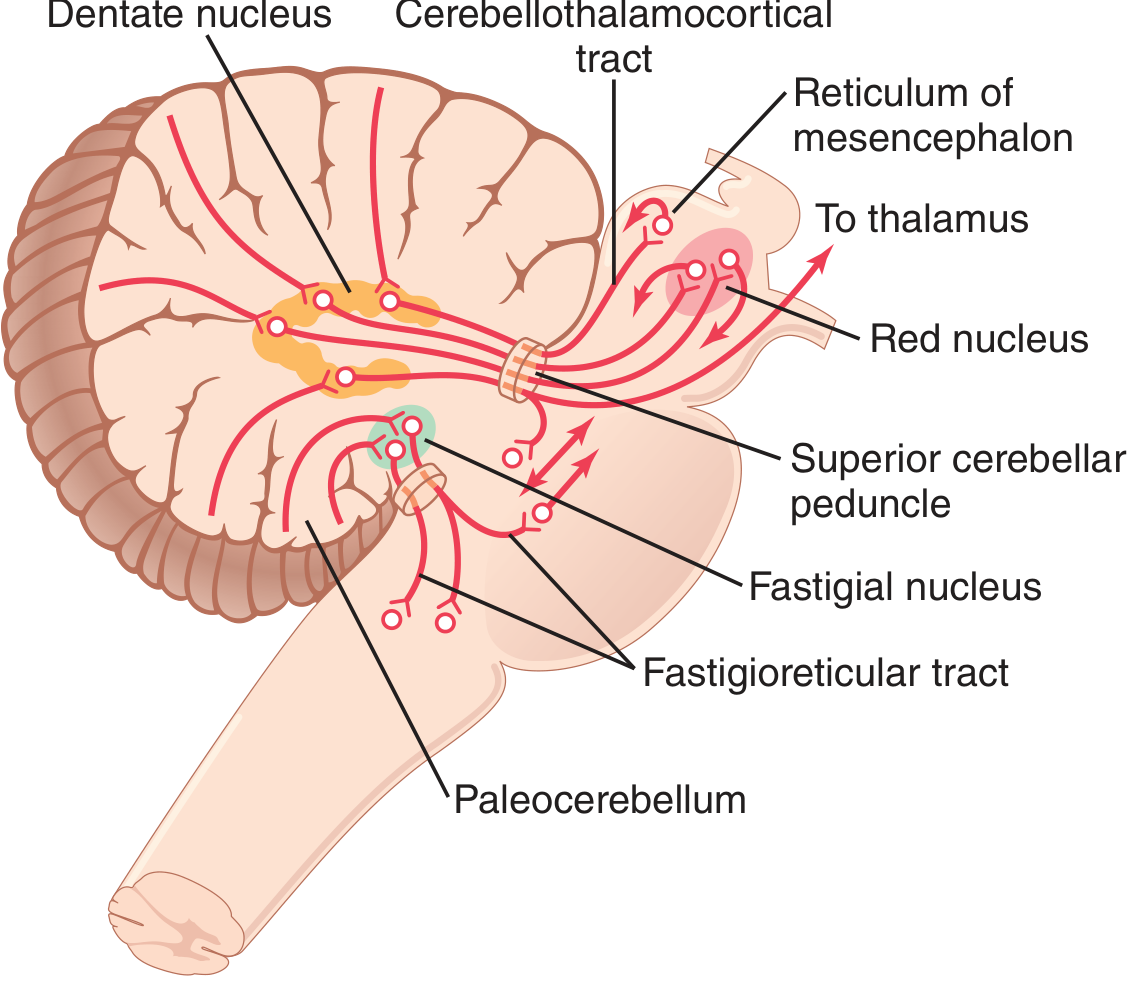

B. EFFERENT PATHWAYS (From Cerebellum)

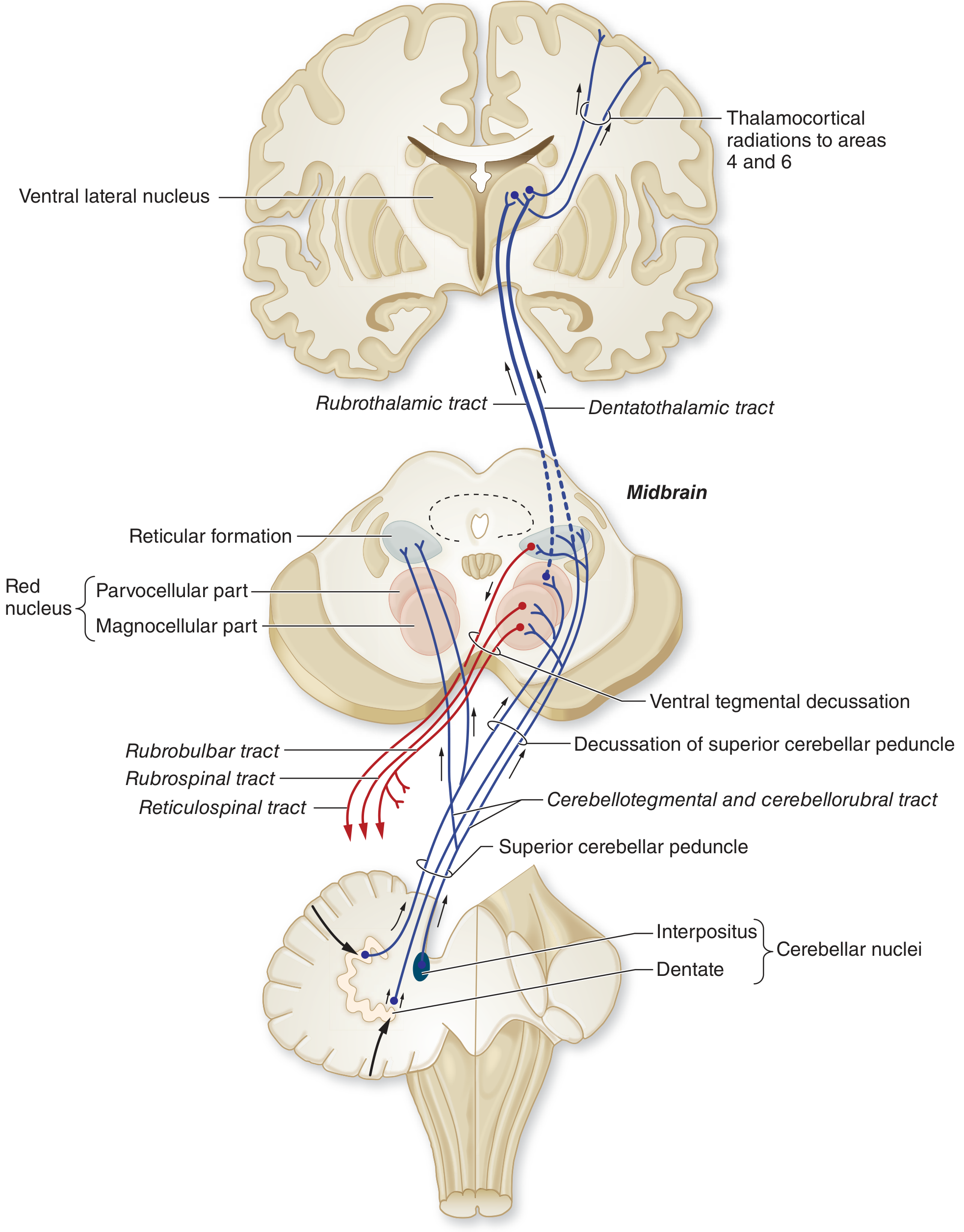

Main Circuit: Cerebello-Thalamo-Cortical

Since cerebellar nuclei → thalamus → motor cortex is crossed, and corticospinal tract is also crossed, a cerebellar lesion causes ipsilateral signs.

---

PART V: PHYSIOLOGY

Functions of Each Division

Role in Motor Control

1. Comparator function: Compares intended movement (from motor cortex) with actual movement (from proprioceptors) and corrects errors
2. Timing function: Times the sequence of muscle contractions
3. Predictive function: Anticipates upcoming needs of motor programs
4. Motor learning: Climbing fiber error signals modify Purkinje cell responses over time

---

PART VI: VASCULAR SUPPLY

Rich anastomotic network between all three on each side.

---

PART VII: SUMMARY TABLE FOR QUICK REVISION

---

EXAM TIPS FOR RGUHS 🎯

1. Draw the cerebellar peduncle table (afferent/efferent per peduncle) — commonly asked for 5–10 marks
2. Draw the cortical layers diagram with cell types
3. Comparator function and ipsilateral signs are frequently asked
4. Spinocerebellar tract table — origin, peduncle, crossing
5. For long essay (10 marks): Cover all parts above in sequence: Gross anatomy → Lobes → Deep nuclei → Cortex → Peduncles → Pathways → Function → Blood supply

---

---

PHYSIOLOGY OF THE CEREBELLUM

INTRODUCTION

---

PART I: FUNCTIONAL DIVISIONS

---

PART II: NEURONAL CIRCUIT OF THE CEREBELLAR CORTEX

Cerebellar Cortex — 3 Layers & 5 Cell Types

Key Rule for RGUHS:

All axons projecting UPWARD = Excitatory (mossy fibers, climbing fibers, parallel fibers) All axons projecting DOWNWARD = Inhibitory (Purkinje cells, basket cells, stellate cells)

---

PART III: INPUT FIBER SYSTEMS — THE TWO EXCITATORY INPUTS

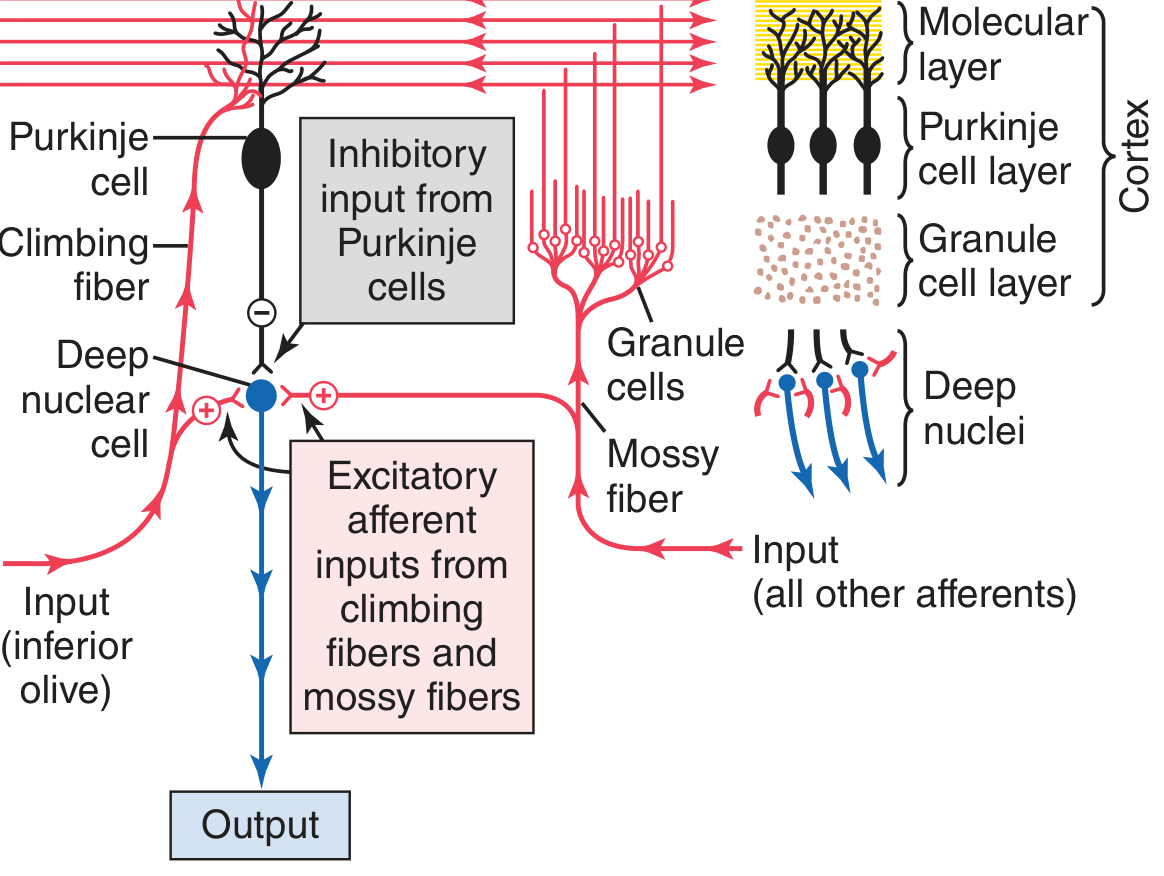

Functional Unit Diagram (Guyton & Hall)

A. Climbing Fibers

B. Mossy Fibers

Key Difference: Climbing vs Mossy Fibers

---

PART IV: BASIC NEURONAL CIRCUIT

AFFERENT INPUT
(Mossy fibers + Climbing fibers)
        |
        ↓ Excite (+)
DEEP CEREBELLAR NUCLEI  ←—— (−) Inhibitory input from PURKINJE CELLS
        |
        ↓ Excite (+)
    OUTPUT to thalamus, brainstem, spinal cord

• Deep nuclear cells fire continuously under resting conditions
• Mossy + Climbing fibers excite (+) deep nuclear cells
• Purkinje cells inhibit (−) deep nuclear cells
• Normal state: slight net excitation at deep nuclei → steady moderate output

1. Motor cortex signal → Deep nuclei excited → movement initiated
2. Milliseconds later → Purkinje cell inhibitory signal arrives → acts as "delay-line negative feedback" → damps the movement and prevents overshooting

This is the basis of cerebellar damping — preventing oscillation.

---

PART V: SPECIFIC FUNCTIONS OF EACH DIVISION

1. Vestibulocerebellum — Equilibrium & Eye Movement Control

• Receives input from vestibular apparatus + vestibular nuclei → projects back via fastigial nucleus → vestibular nuclei → vestibulospinal tract
• Controls balance between agonist and antagonist muscles of spine, hip, shoulders during postural changes
• Coordinates eye movements with head movements (prevents nystagmus)
• A lesion causes: truncal ataxia, gait ataxia, nystagmus (worse during rapid movement)
• Key problem: transmission delay from periphery = 15–20 ms even at 120 m/sec; cerebellum uses predictive signals to compensate

2. Spinocerebellum — Synergy and Tone Control

• Receives proprioception from muscles, tendons, joints via spinocerebellar tracts
• The vermis (via fastigial) controls axial/proximal muscles
• The intermediate zone (via interpositus) controls distal limb movements, especially reciprocal agonist-antagonist contractions of hands and fingers
• Output: Interpositus → VL thalamus → Motor cortex + Red nucleus → corticospinal + rubrospinal tracts
• Lesion causes: limb ataxia, decomposition of movement, dysmetria

3. Cerebrocerebellum — Motor Planning & Imagery

• Receives motor plans from cerebral cortex → pontine nuclei → contralateral lateral cerebellum (via MCP)
• Projects back: Dentate → VL thalamus → Motor cortex (areas 4 & 6)
• Functions:
  • Plans sequential voluntary movements up to tenths of a second in advance
  • Develops "motor imagery" — mental rehearsal of movements
  • Acts as timing device for sequential contractions
• Lesion causes: intention tremor, past-pointing, dysdiadochokinesia

---

PART VI: EFFERENT OUTPUT CIRCUITS

Three Major Output Circuits (Guyton & Hall):

---

PART VII: COMPARATOR FUNCTION (THE MOST IMPORTANT CONCEPT)

MOTOR CORTEX sends "intended movement" plan
        |
        ↓ via corticopontocerebellar pathway
CEREBELLUM receives copy of motor command (efference copy)
        +
CEREBELLUM receives actual movement status
via spinocerebellar tracts (proprioception)
        |
        ↓ COMPARES both
If ERROR detected:
→ Corrective signal sent back to motor cortex via dentate-thalamo-cortical pathway
→ Movement is adjusted

---

PART VIII: MOTOR LEARNING

• When a new movement is attempted → feedback from proprioceptors shows mismatch between intended vs. actual
• Climbing fibers deliver error signals → alter long-term sensitivity of Purkinje cells (synaptic plasticity — Long-Term Depression, LTD)
• Over time, the adjusted Purkinje responses produce perfect timing and accuracy
• Once learned, climbing fibers no longer need to send error signals
• Basis of: practice makes perfect, motor skill learning, recovery of function after injury

---

PART IX: LATERAL INHIBITION (Spatial Sharpening)

• Excited by parallel fibers (from granule cells)
• Inhibit neighboring Purkinje cells (lateral inhibition)
• Result: the Purkinje cell receiving the main signal fires strongly; adjacent Purkinje cells are inhibited
• This sharpens the spatial pattern of activity — similar to the concept of surround inhibition in sensory systems

---

PART X: ROLE IN TIMING

• The cerebellum acts as a "timer" for predictive control
• It predicts the future state of the body based on current motor commands
• This is critical because sensory feedback is always delayed (15–20 ms for feet)
• Example: catching a ball requires predicting where the hand and ball will be, not where they are NOW

---

PART XI: NON-MOTOR FUNCTIONS (RGUHS Bonus)

• Cognitive processing — attention, language (cerebellar cognitive affective syndrome — Schmahmann's syndrome)
• Emotional regulation — inappropriate predictions of emotional responses with lateral lesions
• Procedural memory — learning motor sequences

---

SUMMARY TABLE FOR QUICK REVISION

---

EXAM TIPS FOR RGUHS 🎯

1. "Explain the neuronal circuit of cerebellar cortex" (5–10 marks) — Draw the functional unit: mossy → granule → parallel fiber → Purkinje cell; climbing fiber → Purkinje cell directly; Purkinje → deep nucleus (−); mossy/climbing collaterals → deep nucleus (+)
2. Comparator function — Always include this; it's the hallmark of cerebellar physiology
3. Motor learning / Marr-Albus-Ito theory — High-value addition for distinction marks
4. Three functional divisions table — commonly asked as short note (5 marks)
5. Climbing vs mossy fiber comparison table — frequently appears as short answer

---
