APL (Adjustable Pressure-Limiting) Valve in the Anesthesia Machine

The APL valve - also called the "pop-off" valve or pressure relief valve - is an operator-adjustable relief valve that is one of the core safety components of the anesthesia breathing circuit.

Location in the Circuit

The APL valve is placed between the CO2 absorber and the expiratory valve, close to the reservoir bag (see diagram below). This position, before the absorber, helps conserve the absorber's capacity and minimizes the venting of fresh gas.

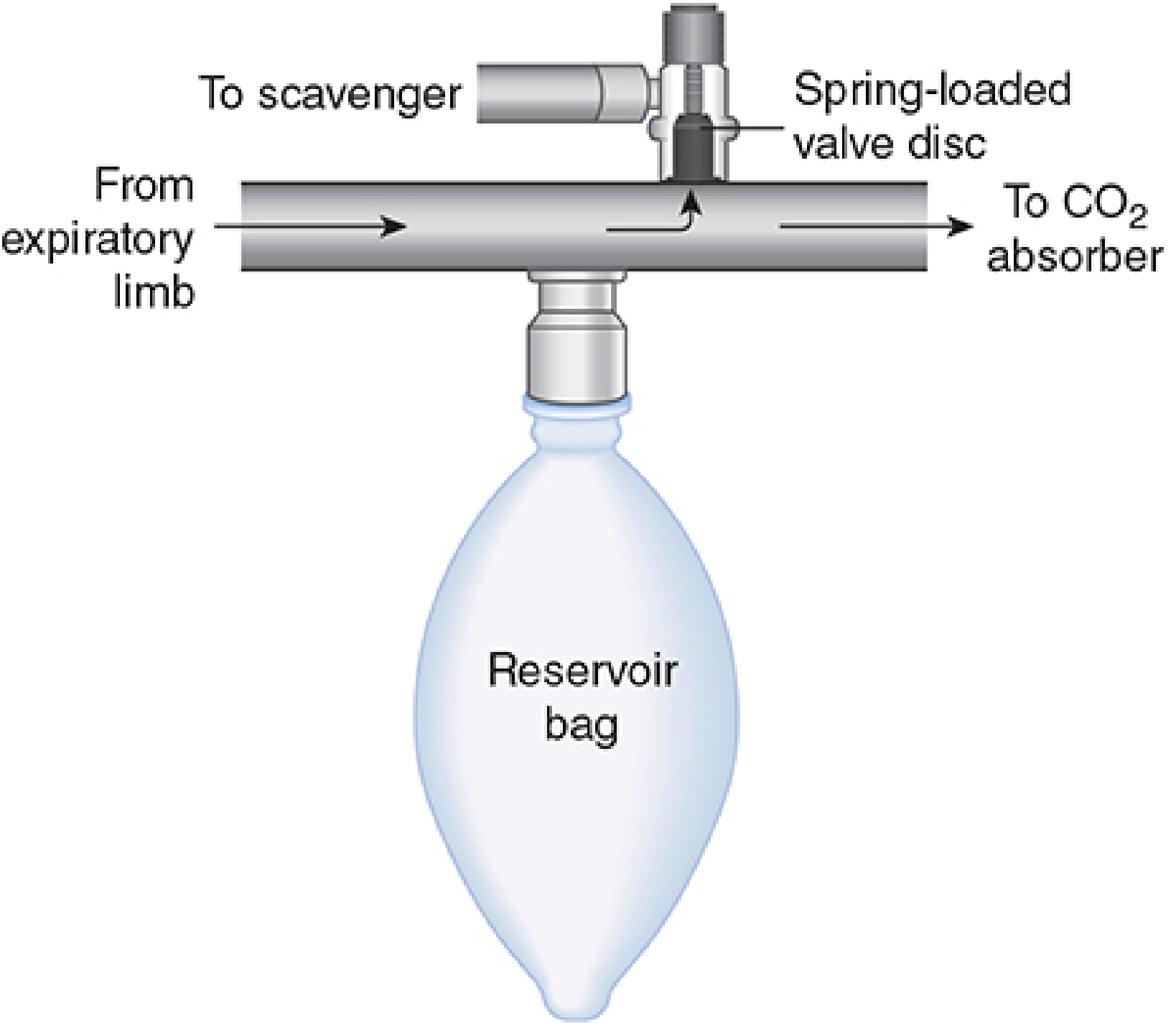

APL valve and reservoir bag in the circle system - from the expiratory limb, a spring-loaded disc vents gas to the scavenger while the reservoir bag sits below

Fig. APL valve position in the circle system - Morgan & Mikhail's Clinical Anesthesiology, 7e

Primary Functions

1. Venting Excess Gas to the Scavenger

The APL valve regulates the flow of excess gas from the expiratory limb of the breathing circuit into the waste gas scavenging system. Without it, fresh gas continuously flowing from the flowmeters would build up pressure in a closed circuit. Waste-gas scavengers depend on the APL valve (and the ventilator spill valve) to receive vented gases, reducing operating room pollution that may pose a health hazard to surgical personnel. - Morgan & Mikhail's Clinical Anesthesiology, 7e

2. Controlling Breathing Circuit Pressure During Manual and Spontaneous Ventilation

The APL valve is the primary means of controlling airway/circuit pressure during bag (manual) ventilation and spontaneous breathing. By adjusting the spring tension on the control dial, the clinician sets the pressure at which the valve opens and vents gas. - Miller's Anesthesia, 10e

Mechanism of Action

The valve works on a spring-loaded disc principle (see diagram below):

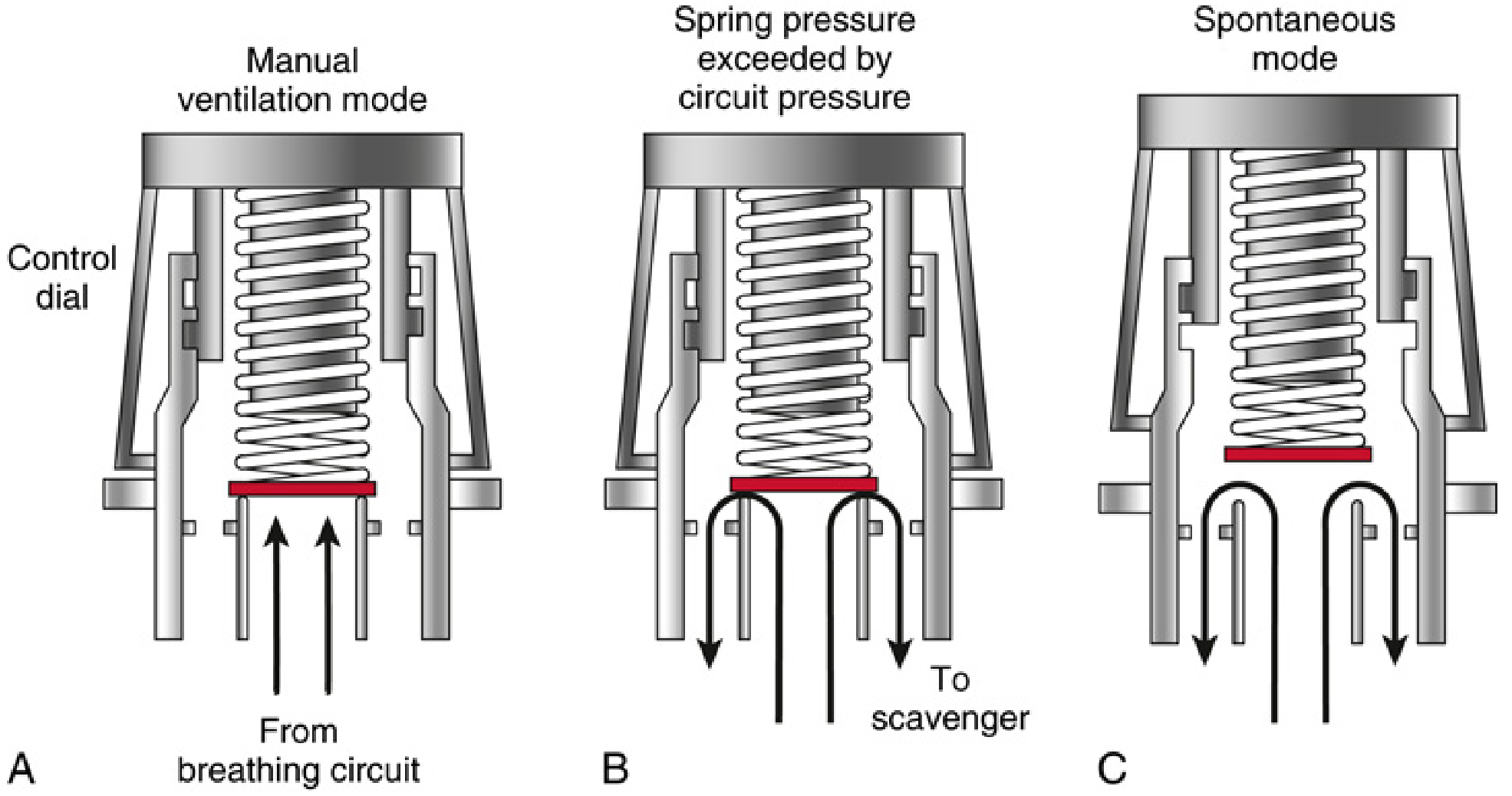

APL valve mechanism in three modes: Manual ventilation (valve closed by spring), Circuit pressure exceeds spring tension (disc lifts, gas vents to scavenger), Spontaneous mode (disc lifted off seat, free flow to scavenger)

Fig. APL valve: pressure-regulating type - Miller's Anesthesia, 10e

(A) Manual ventilation mode: The operator tightens the control dial to increase spring tension, raising the threshold pressure at which gas can escape. The valve stays closed until circuit pressure exceeds the set value.
(B) Spring pressure exceeded: When breathing circuit pressure rises above the set spring tension (e.g., during a bag squeeze), the disc lifts off the valve seat and excess gas vents to the scavenger.
(C) Spontaneous mode: The control dial is opened fully - the disc is lifted off the seat entirely, allowing gas to flow freely to the scavenger with minimal resistance, so the patient can breathe spontaneously without effort against a partially closed valve.

In the pressure-regulating type, circuit pressure is independent of fresh gas flow rate. - Miller's Anesthesia, 10e

Modes of Ventilation and APL Behavior

Mode	APL Valve Status
Spontaneous ventilation	Fully open (minimal resistance)
Manual (bag) ventilation	Partially closed - operator sets desired peak pressure
Mechanical ventilation	Excluded/isolated from the circuit (bag/ventilator switch turned to "ventilator")

When the machine is switched to the ventilator mode, the APL valve is functionally removed from the circuit - either by a bag/ventilator selector switch or automatically on newer machines. The ventilator then uses its own internal spill valve (pneumatically closed during inspiration to allow positive pressure generation). - Morgan & Mikhail's Clinical Anesthesiology, 7e

Important Clinical Points

Oxygen flush hazard: Using the O2 flush valve during the inspiratory phase of mechanical ventilation must be avoided. At that moment, the ventilator spill valve is closed AND the APL is excluded - so the surge of oxygen (600-1200 mL/s) is delivered directly to the patient's lungs, risking barotrauma. - Morgan & Mikhail, 7e
Inadvertent closure: If the APL valve is accidentally left closed (fully tightened) during spontaneous or manual ventilation, pressure builds up in the circuit and can be transmitted to the patient's lungs. The reservoir bag provides some protection by its compliance characteristics but is not a substitute for proper APL valve management. - Miller's Anesthesia, 10e
Pre-use checklist: Standard anesthesia machine checkout requires confirming the APL valve is open before leaving the machine unattended (with selector on "Bag" mode). - Morgan & Mikhail, 7e
Valve malfunction: Mechanical failures (breakage, obstruction by gas-sampling line under the control knob) have been reported. Not all APL valves behave linearly - on certain machines, peak inspiratory pressure may routinely exceed the set value. Vigilant circuit pressure monitoring during manual ventilation is mandatory. - Miller's Anesthesia, 10e
Use in Mapleson circuits: APL valves are also a component of Mapleson semi-open circuits (A, B, C, D, E, F). Their position relative to the fresh gas inlet and reservoir bag determines circuit performance and rebreathing characteristics.

Summary

The APL valve has three core uses:

Pressure relief - prevents dangerous pressure buildup in the circuit
Pressure control - lets the clinician set the desired maximum circuit pressure during manual ventilation
Scavenging interface - routes excess/waste anesthetic gases out of the circuit to the scavenging system

It is active only during bag/spontaneous mode and is bypassed during mechanical ventilation, when the ventilator's own spill valve takes over.
