Normal Anatomy of PNS & Nasal Cavity — Anatomical Variants, Frontal Cells, Onodi, Haller, Pre-FESS Assessment & Radiology

Sources: KJ Lee's Essential Otolaryngology (9781260122237); Cummings Otolaryngology Head and Neck Surgery (9780323612173); Scott-Brown's Otorhinolaryngology; Medscape Radiology

PART 1 — NORMAL NASAL CAVITY ANATOMY

Nasal Cavity Framework

The nasal cavity is divided by the nasal septum (bony + cartilaginous) into two symmetric chambers. Each chamber runs from the nares anteriorly to the choana posteriorly.

Walls of the nasal cavity:

Wall	Components
Floor	Hard palate (palatine process of maxilla + horizontal plate of palatine bone)
Roof	Nasal bones (ant.), cribriform plate (mid.), sphenoid body (post.)
Medial (septal) wall	Perpendicular plate of ethmoid (bony, superior); vomer (bony, inferior); quadrilateral (septal) cartilage (anterior)
Lateral wall	Maxilla, ethmoid labyrinth, inferior concha, lacrimal bone, palatine bone, medial pterygoid plate

Nasal Septum

Bony part: Perpendicular plate of ethmoid (superior + posterior) + vomer (posterior inferior)
Cartilaginous part: Quadrilateral (septal) cartilage anteriorly
The septum attaches inferiorly to the maxillary crest and superiorly to the cribriform plate

Turbinates (Conchae)

There are 3 (sometimes 4) turbinates on each lateral nasal wall, forming 3 corresponding meatuses below them:

Turbinate	Origin	Meatus Below	Drainage Into That Meatus
Inferior turbinate	Independent bone (concha nasalis inferior) - NOT part of ethmoid	Inferior meatus	Nasolacrimal duct (via Hasner's valve)
Middle turbinate	Ethmoid bone	Middle meatus	Frontal sinus, anterior ethmoid cells, maxillary sinus (via ostiomeatal complex)
Superior turbinate	Ethmoid bone	Superior meatus	Posterior ethmoid cells
Supreme turbinate	Ethmoid bone (when present)	Supreme meatus	Sphenoid sinus (or directly to sphenoethmoidal recess)

Key point: The sphenoethmoidal recess is a space medial to the superior turbinate, between it and the nasal septum - the sphenoid sinus ostium opens here (not into a meatus).

Ostiomeatal Complex (OMC) - The Critical Drainage Unit

The OMC is the final common pathway for drainage of the frontal, anterior ethmoid, and maxillary sinuses. It is the most important structure in PNS pathology.

Components of the OMC:

Uncinate process - sickle-shaped bony projection of the ethmoid; its superior attachment determines where the frontal sinus drains (see below)
Ethmoid infundibulum - cleft between the uncinate process (medial) and lamina papyracea (lateral); the maxillary sinus ostium opens into its floor
Hiatus semilunaris - the crescentic gap between the free posterior edge of the uncinate process and the anterior face of the ethmoid bulla; the infundibulum opens into the middle meatus through this
Ethmoid bulla - the most constant and largest anterior ethmoid cell; most reliable surgical landmark
Middle meatus - the space below the middle turbinate receiving all anterior sinus drainage
Frontal recess - the hourglass-shaped space leading from the frontal sinus inferiorly into the anterior ethmoid

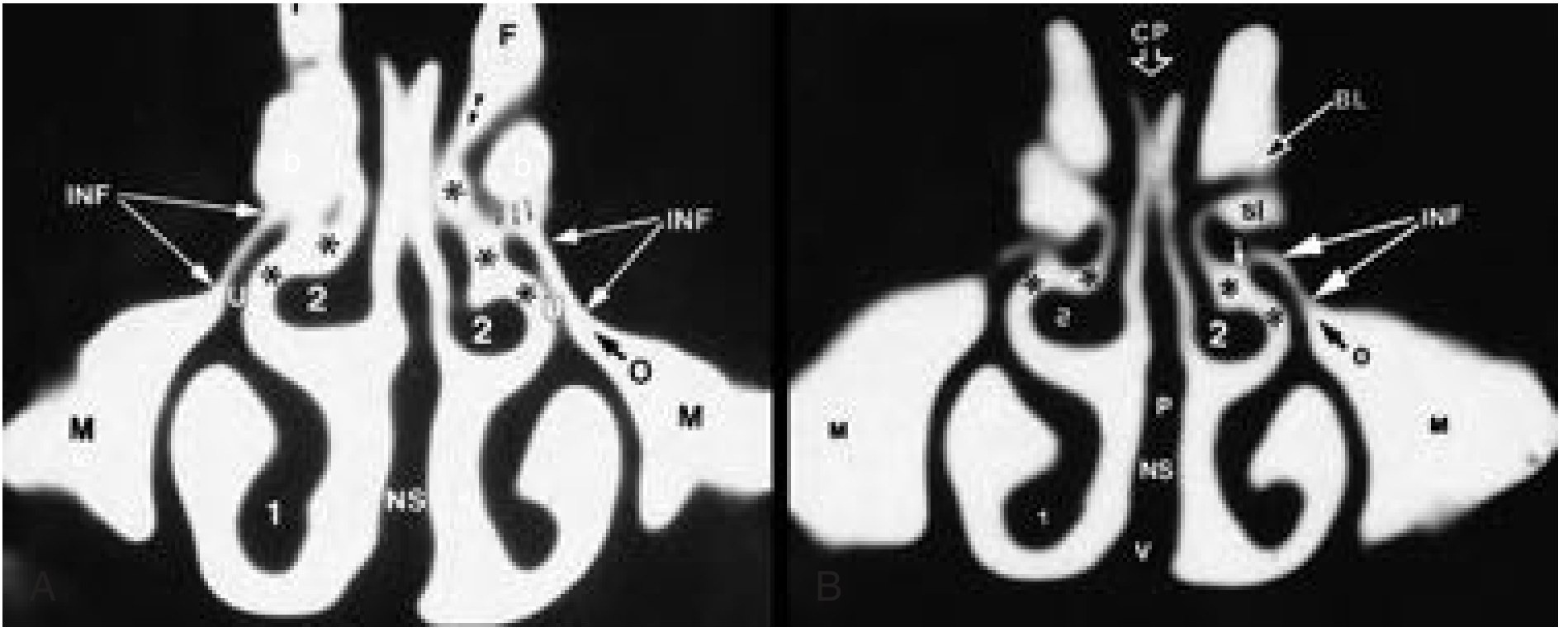

Coronal CT of OMC - anterior ostiomeatal channels showing frontal sinus (F), ethmoid bulla (b), infundibulum (INF), uncinate (U), maxillary sinus (M), middle meatus (asterisks), middle turbinate (2), basal lamella (BL), nasal septum (NS)

Fig. 38.5 (Cummings): Coronal CT through anterior ethmoid. F = Frontal sinus; b = Ethmoid bulla; INF = Infundibulum; U = Uncinate process; M = Maxillary sinus; asterisks = middle meatus; 2 = Middle turbinate; BL = Basal lamella; NS = Nasal septum; O = Primary maxillary ostium.

PART 2 — NORMAL PARANASAL SINUS ANATOMY

Embryological Development (in order of completion)

Sinus	Timing	Notes
Ethmoid	First to develop in utero	Most developed at birth (in number, not size); anterior from middle meatus, posterior from superior meatus
Maxillary	Present at birth (small)	Floor above nasal floor in early childhood (unerupted teeth); reaches adult size by ~15 years
Sphenoid	Pneumatization begins postnatally (~1 year)	Adult size by age 12; pneumatizes in inferior-posterolateral direction
Frontal	Last to develop; NOT present at birth	Develops postnatally; completes into early adulthood; arises from anterior ethmoid cells migrating superiorly

Size order (largest to smallest): Maxillary > Frontal > Sphenoid > Ethmoid

A. Ethmoid Sinus

The ethmoid consists of 7-15 air cells in a labyrinthine arrangement within the ethmoid bone, divided by the basal lamella (ground lamella) of the middle turbinate into anterior and posterior groups:

Anterior ethmoid cells (drain into middle meatus via OMC):

Generally smaller but more numerous
Include: agger nasi cells, ethmoid bulla, suprabullar cells, frontal recess cells, Haller cells

Posterior ethmoid cells (drain into superior meatus):

Generally larger but fewer
Include: Onodi cells (see below)

Key ethmoid landmarks:

Ethmoid bulla: Largest and most constant anterior ethmoid cell; lies posterior to the uncinate process; its anterior face defines the posterior wall of the frontal recess
Basal lamella of middle turbinate: Three-part attachment structure:
- Vertical portion: attaches medially to the lateral wall of the cribriform plate / olfactory fossa
- Oblique portion: angles laterally
- Horizontal portion: attaches laterally to the lamina papyracea
Sinus lateralis (lateral sinus): Air space between the basal lamella and the ethmoid bulla, above the bulla
Suprabullar recess: Potential air space between the bulla and the skull base (fovea ethmoidalis)

B. Maxillary Sinus

The largest PNS; pyramidal in shape with apex pointing toward the zygoma.

Boundary	Structure
Roof / Superior	Orbital floor (infraorbital canal traverses it - contains infraorbital nerve/artery)
Floor / Inferior	Alveolar and palatine processes of maxilla (tooth roots may project into floor)
Lateral	Zygoma and zygomaticomaxillary buttress
Medial	Lateral nasal wall (contains natural ostium)
Posterior	Posterior maxillary wall facing pterygopalatine fossa (PPF) and infratemporal fossa
Anterior	Facial surface of maxilla

Natural ostium: opens high on the medial wall into the posterior infundibulum / hiatus semilunaris; not in the most dependent position - mucus must be swept upward against gravity toward the ostium (mucociliary clearance is essential)
Accessory ostia are common (10-40%) and appear in the fontanelle areas

C. Frontal Sinus

Two asymmetric sinuses separated by an intersinus septum (often deviated)
Anterior wall: Thick diploic bone (frontal bone)
Posterior wall: Thin (forms anterior wall of anterior cranial fossa); intracranial complications arise from posterior wall breach
Floor: Forms the roof of the orbit medially and the frontal recess inferiorly
Frontal beak: Thick bone of the frontal process of maxilla, projecting posteriorly into the frontal recess, limiting its anteroposterior extent
May be aplastic in 10-52% depending on ethnicity (bilateral or unilateral)

Frontal Recess:

Hourglass-shaped communication between frontal sinus and anterior ethmoid / middle meatus
Narrowest part = frontal ostium (os)
Boundaries:
- Anterior: frontal beak / agger nasi cell
- Medial: lateral lamella of cribriform plate
- Lateral: lamina papyracea
- Posterior: anterior wall of ethmoid bulla / suprabullar recess
- Superior: fovea ethmoidalis

The uncinate process superior attachment determines frontal sinus drainage:

If uncinate attaches to skull base or middle turbinate → frontal sinus drains medially (into middle meatus directly)
If uncinate attaches to lamina papyracea → frontal sinus drains laterally (into the infundibulum)

D. Sphenoid Sinus

Located in the body of the sphenoid bone, posterior to the nasal cavity
Pneumatization begins ~1 year of age; adult size by ~12 years
Divided by an intersinus septum (often asymmetric; the septum may insert onto the optic or carotid canal - critical surgical hazard)

Boundaries and important relationships:

Boundary	Adjacent structure	Clinical significance
Superior	Sella turcica, pituitary gland, optic chiasm	Trans-sphenoidal hypophysectomy; chiasm injury
Lateral	Cavernous sinus, ICA, CN III-VI	ICA / optic nerve dehiscence
Posterior	Basilar artery, pons
Inferior	Nasopharynx, choanal arch
Anterior	Posterior nasal cavity, posterior ethmoid	Sphenoethmoidal recess

Landmarks within sphenoid sinus:

Optic nerve: projects as a ridge along the superolateral wall
ICA: projects as a ridge along the inferolateral wall
Sella: posterior superior
Vidian canal (pterygoid canal): anteroinferior floor; contains vidian nerve (GSPN + deep petrosal)
Foramen rotundum: lateral wall, below the optic canal

Landmark for sphenoid ostium:

Between nasal septum and posterior insertion of the superior turbinate
1/3 of the way up from choana to skull base
1.5 cm superior to the bony choanal arch
7 cm at a 30° angle from the anterior nasal spine

Sphenoid sinus pneumatization types:

Conchal (3%): no pneumatization beyond the body
Presellar (24%): pneumatization up to the anterior sella wall
Sellar (most common, ~73%): pneumatization beneath and behind the sella

PART 3 — ANATOMICAL VARIANTS

3A. Ethmoid Cell Variants

1. Agger Nasi Cell (ANC) — Most Common Variant

The most anterior ethmoid cell, located anterior to the axilla of the middle turbinate (the point where the middle turbinate attaches to the lateral nasal wall)
Creates a visible bulge in the lateral nasal wall, just anterior to the uncinate process
Posterior wall of the ANC forms the anterior boundary of the frontal recess
Degree of ANC pneumatization determines the AP dimension of the frontal recess:
- Large, well-pneumatized ANC → small "frontal beak" → large frontal AP distance
Incidence: ~65-90%
Enlarged ANC can obstruct the frontal recess → frontal sinusitis
On coronal CT: seen anterior to the axilla of the middle turbinate as an air cell in the most anterior ethmoid position

2. Onodi Cell (Sphenoethmoid Cell)

A posterior ethmoid cell that pneumatizes posteriorly over the superolateral aspect of the sphenoid sinus
When present, the optic nerve (and occasionally the ICA) courses along the superolateral wall of the Onodi cell rather than the sphenoid sinus lateral wall
This places these structures at increased risk of iatrogenic injury during posterior ethmoidectomy and sphenoidotomy
Incidence: ~30% (KJ Lee); some studies report 10-40%
CT identification: On coronal CT - a horizontal septation within what appears to be the sphenoid sinus, posterior to the bony choanal arch; the Onodi cell is superolateral, and the true sphenoid sinus is inferomedial
On axial CT: The Onodi cell appears as an ethmoid-type cell lying posterior to the main posterior ethmoid cells, above the sphenoid sinus
Key question: presence of Onodi cell is mandated on pre-FESS CT report because sphenoidotomy performed thinking the Onodi cell is the sphenoid sinus risks direct optic nerve injury

Surgical significance: Answer to "which structure is at greatest risk with an Onodi cell?" = OPTIC NERVE (D. in KJ Lee board question)

3. Haller Cells (Infraorbital Ethmoid Cells)

Ethmoid air cells that pneumatize along the floor of the orbit and roof of the maxillary sinus, medial to the orbit
Located within the medial aspect of the orbital floor / superior portion of the maxillary sinus infundibulum
Narrow the maxillary sinus infundibulum → obstruct maxillary sinus drainage → predispose to recurrent maxillary sinusitis
Incidence: ~10-20%
CT identification: Coronal CT - air cells along the orbital floor, inferior to the lamina papyracea and superior/medial to the maxillary sinus infundibulum; in a pre-FESS report, size of the Haller cell and degree of infundibular narrowing must be noted
These cells must be opened (Haller cell resection) during maxillary antrostomy if symptomatic

3B. Frontal Sinus Cell Classifications (All Systems)

Frontal sinus cells are ethmoid cells that develop in the region of the frontal recess and may extend into or impinge on the frontal sinus drainage pathway. Three classification systems are in use:

System 1: KUHN Classification (Original)

Type	Description
Type 1	Single cell above the agger nasi cell, not pneumatizing into the frontal sinus
Type 2	Tier (2 or more) of cells above the agger nasi cell, not pneumatizing into the frontal sinus
Type 3	Single cell pneumatizing into the frontal sinus (beyond frontal ostium)
Type 4	Isolated cell entirely within the frontal sinus (no contact with frontal recess)

System 2: Modified Kuhn / Wormald Classification

Type	Description
Type 1	Same as Kuhn Type 1: single cell above ANC
Type 2	Same as Kuhn Type 2: tier of cells above ANC
Type 3	Cell pneumatizing into frontal sinus but <50% of the vertical height of the sinus
Type 4	Cell pneumatizing into frontal sinus and ≥50% of the vertical height of the sinus (entirely within the frontal sinus)

The key modification is in Types 3 and 4 - based on % occupation of frontal sinus height rather than just presence within or outside the sinus.

System 3: IFAC — International Frontal Sinus Anatomy Classification (2016 — Current Standard)

The IFAC was developed by the International Frontal Sinus Anatomy Working Group (Wormald, Hosemann et al., 2016) to provide a standardized, anatomy-based terminology:

Cell Type	Location	Key Feature
Agger nasi cell (ANC)	Most anterior ethmoid cell, anterior to MT axilla	Forms anterior wall of frontal recess
Supra agger cell	Anterior-lateral ethmoid cell, above the ANC	Does NOT pneumatize into the frontal sinus
Supra agger frontal cell	Anterior-lateral ethmoid cell	Pneumatizes into the frontal sinus (anterior wall of sinus)
Supra bulla cell	Above the ethmoid bulla, does not enter frontal sinus	In suprabullar recess region
Supra bulla frontal cell	Originates in suprabullar region	Pneumatizes along the skull base into the posterior region of the frontal sinus
Frontal bulla cell	Originates from the ethmoid bulla itself	Pneumatizes into the frontal sinus from the posterior wall / floor
Supraorbital ethmoid cell (SOE)	Pneumatizes over the orbital roof, posterior and lateral to the frontal sinus	Lateral to the frontal sinus; can obstruct the frontal recess laterally
Intersinus septal cell	Pneumatization of the interfrontal sinus septum	Medial origin; displaces frontal drainage pathway laterally

Note on the Frontal Bulla Cell specifically: This is an ethmoid cell that arises from the posterior-inferior wall of the frontal sinus (from the bulla ethmoidalis base), pneumatizing upward into the frontal sinus. It is particularly difficult to remove endoscopically and is a common cause of failed frontal sinus surgery. The frontal bulla cell pushes the drainage pathway anteriorly and reduces the AP diameter.

3C. Turbinate Variants

Middle Turbinate Variants

Variant	Description	Clinical Significance
Concha bullosa	Pneumatization (air cell within) the middle turbinate - most common in the vertical (bulbous) portion	Most common anatomic variant (~28-40%); can obstruct the OMC and middle meatus; may require resection of the lateral lamella
Paradoxical middle turbinate	Middle turbinate curves laterally (convex face pointing medially) instead of the normal medial curve	Can narrow the middle meatus; implicated in recurrent sinusitis; medially-deviated, paradoxical configuration
Pneumatized inferior portion	Pneumatization confined to the inferior/bulbous portion of middle turbinate	Less common
Hypoplastic / absent	Rarely, middle turbinate may be hypoplastic or absent	Important landmark for surgical navigation - its absence is disorienting
Lateralization	Post-surgical: middle turbinate migrates laterally and scars against the lateral wall	Causes OMC obstruction - common cause of FESS failure

Inferior Turbinate Variants

Pneumatization (concha bullosa of inferior turbinate): Rare; air cell within the inferior turbinate
Hypertrophy: Most common inferior turbinate finding; not truly a pneumatization but contributes to nasal obstruction

Superior Turbinate Variants

Pneumatization of superior turbinate: Rare; when present, may be contiguous with posterior ethmoid cells

Uncinate Process Variants

Variant	Description	Effect
Pneumatized uncinate	Air cell within the uncinate process	Can contribute to OMC obstruction - rare (4%)
Bent / medialized uncinate	Uncinate bends medially against the middle turbinate	Narrows the infundibulum
Lateralized uncinate	Uncinate is pressed against the lamina papyracea	Closes the infundibulum laterally
Absent uncinate	Post-surgical most commonly	Alters OMC anatomy

Attachment Variants of the Uncinate Process (Superior)

This is one of the most critical surgical anatomy variants:

Superior Uncinate Attachment	Frontal Recess Drainage Direction	Effect
To skull base (most common, ~65%)	Drains medially into the middle meatus (not into the infundibulum)	The frontal sinus is bordered medially by the uncinate
To lamina papyracea (~30%)	Drains laterally into the infundibulum	The frontal sinus is bordered anterolaterally
To middle turbinate (~5%)	Drains into MT junction	Creates a "terminal recess" pattern

When the uncinate attaches to the skull base or MT, the frontal infundibulum is "blind" and the frontal recess is entirely separate from the ethmoid infundibulum - called a "terminal infundibulum".

3D. Nasal Septal Variants

Variant	Description	Clinical Significance
Deviated septum	Deflection left or right, S-shaped, or C-shaped	Most common variant (up to 67%); can obstruct ipsilateral nasal airway and OMC; most common cause of nasal obstruction
Septal spur	Bony protrusion at the junction of vomer and maxillary crest	Can contact the turbinate - "kissing lesion" causing mucosal contact headache; may obstruct OMC
Pneumatized septum	Air cell within the perpendicular plate of ethmoid extending to the nasal septum	~20%; can be confused with a mass
Septal perforation	Defect through the septum	Cocaine, trauma, granulomatous disease (GPA, sarcoid), post-surgical
High septal deviation	Deviation in the superior nasal septum near the cribriform plate	Restricts surgical access to the OMC

3E. Skull Base and Orbital Variants

Keros Classification (Depth of Olfactory Fossa)

The Keros classification describes the depth of the olfactory fossa (the depth of the cribriform plate below the ethmoid roof), corresponding to the length of the lateral lamella of the cribriform plate:

Keros Type	Depth of Olfactory Fossa	Lateral Lamella Length	Risk
Type 1	1-3 mm	Short	Lowest risk of CSF leak
Type 2	4-7 mm	Medium	Moderate risk (most common)
Type 3	8-16 mm	Long / steep	Highest risk of skull base penetration and CSF leak during ESS

The lateral lamella is the thinnest and weakest bone in the skull base - it forms the medial wall of the olfactory fossa and is the most common site of iatrogenic CSF leak during FESS. In Keros Type 3, the long thin lateral lamella is particularly prone to fracture.

Important: Keros classification must be stated in ALL pre-FESS CT reports.

Ethmoid Artery Variants

Variant	Description	Significance
"Pendant" / pedicled AEA	Anterior ethmoid artery hangs in a mesentery within the ethmoidal space rather than being protected in the skull base	High risk of retraction into orbit if transected → orbital hematoma → blindness
AEA position	Normally posterior to the frontal recess	Pre-FESS CT: look for low-lying AEA on coronal slices

The AEA lies posterior to the frontal recess in the skull base. The PEA lies just anterior to the sphenoid sinus in the skull base.

Lamina Papyracea (LP) Variants

Dehiscence: Gap in LP allowing orbital fat to herniate into the ethmoid - congenital, traumatic, or post-surgical; risk of orbital injury during ethmoidectomy
Medialized LP: Bows medially into the ethmoid, narrowing the operative corridor

Sphenoid Sinus Variants

Anterior clinoid process pneumatization: Extension of sphenoid pneumatization into the anterior clinoid; places the optic nerve at heightened risk (Fig. 38.14)
Carotid dehiscence: ICA protrudes into the sinus with no bony covering (~8-22%)
Optic nerve dehiscence: Optic nerve bulges into the sinus without bony cover (~4-8%)
Onodi cell (see above)

PART 4 — PRE-FESS CT ASSESSMENT

Why CT Before FESS?

CT paranasal sinuses is mandatory before any FESS to:

Confirm diagnosis and extent of disease
Define relevant anatomy and variations
Identify dangerous structures and their relationships
Plan the surgical approach
Provide an intraoperative road map

CT Technique for PNS

Modality: Multi-detector CT (MDCT)
Plane: Coronal plane is the primary plane for sinus CT - mimics the endoscopic surgical view; also obtain axial and reconstructed sagittal
Bone algorithm with bone windows (W: 2000-4000 HU, L: 250-700 HU) is essential
Slice thickness: 0.625 mm - 1.25 mm (thin-section) with coronal reformats at 2-3 mm
Contrast: NOT required for routine PNS CT (plain non-contrast); contrast only for complications (orbital/intracranial extension, tumors, vascular lesions)
Radiation reduction: In children, low-dose protocols are appropriate
Positioning: True coronal sections are best obtained with patient prone with neck extended or supine with neck extended; multiplanar reformats from axial acquisition are now standard

Systematic Approach to Reading a Pre-FESS CT

Read coronal slices from anterior to posterior; supplement with axial (top to bottom) and sagittal.

Step 1 - Frontal Sinuses and Frontal Recess (Anterior Coronal Slices):

Frontal sinus: size, symmetry, septation, posterior wall integrity
Frontal recess: patency, ANC size, frontal cells present (type and number)
Drainage pathway direction (medial vs lateral based on uncinate attachment)
Supraorbital ethmoid cells

Step 2 - OMC Region (Mid-Anterior Coronal Slices):

Uncinate process: attachment (superior), position, pneumatization
Infundibulum: width, obstruction
Ethmoid bulla: size
Hiatus semilunaris: patency
Middle turbinate: pneumatization, paradoxical, attachment
Maxillary sinus ostium: position, accessory ostia
Haller cells: present/absent, degree of infundibular narrowing

Step 3 - Ethmoid Sinuses (Mid Coronal Slices):

Ethmoid roof (fovea ethmoidalis): height, symmetry, slope
Keros classification (depth of olfactory fossa)
Lateral lamella: length, asymmetry between sides
Anterior ethmoid artery: position (in skull base vs pendant)
Lamina papyracea: integrity, medialization, dehiscence
Number and position of remaining ethmoid cells
Basal lamella configuration

Step 4 - Sphenoid Sinus (Posterior Coronal Slices):

Sinus size, symmetry, intersinus septum attachment
Presence of Onodi cell (horizontal septation posterior to choanal arch, Onodi = superolateral, sphenoid = inferomedial)
Optic nerve: position, dehiscence
ICA: position (vidian canal, sella-lateral wall), dehiscence
Degree of pneumatization
Anterior clinoid pneumatization

Step 5 - Nasal Cavity:

Nasal septum: deviation direction, spurs, pneumatization
Inferior turbinate hypertrophy
Middle turbinate: concha bullosa, paradoxical
Nasal polyps

Full Pre-FESS CT Checklist (Cummings Revision Surgery Table, adapted for primary FESS)

Region	What to Report
Maxillary	Degree of sinus pneumatization, hypoplasia; Haller cells (infraorbital ethmoid cells) and size; uncinate process (retained, position); primary ostium location; accessory ostia; inferior turbinate position; prior inferior meatal window
Ethmoid	Integrity of skull base; integrity of medial orbital wall (lamina papyracea); cribriform plate width and depth (Keros classification, both sides); skull base height (anterior vs posterior); skull base slope; dehiscence or pendant AEA or PEA; retained/residual partitions; neo-osteogenesis; orbital fat herniation
Sphenoid	Degree of pneumatization; Onodi cell present/absent; optic nerve dehiscence; ICA dehiscence; integrity of skull base and lateral wall; intersinus septum attachment site; sphenoidotomy location (revision)
Frontal	Integrity of skull base; lamina papyracea integrity; cribriform depth (Keros); drainage pathway (medial vs lateral); anterior ethmoid artery dehiscence; all accessory cells (type by Kuhn/IFAC); residual uncinate; neo-osteogenesis
Nasal cavity	Septal deviation and direction, bony spurs; concha bullosa; paradoxical middle turbinate; inferior turbinate hypertrophy

Lund-Mackay Scoring System

Used to quantify extent of disease on CT pre-FESS:

Each sinus scored 0-2: 0 = clear, 1 = partial opacity, 2 = complete opacity Additional score for OMC: 0 = patent, 2 = obstructed Maximum score = 24 (12 per side) Score ≥8 generally correlates with significant CRS requiring surgery

Skull base and ethmoid artery anatomy - showing AEA location (coronal CT with pendant AEA) and PEA position, with endoscopic view confirming frontal sinus drainage and suprabullar space (SB)

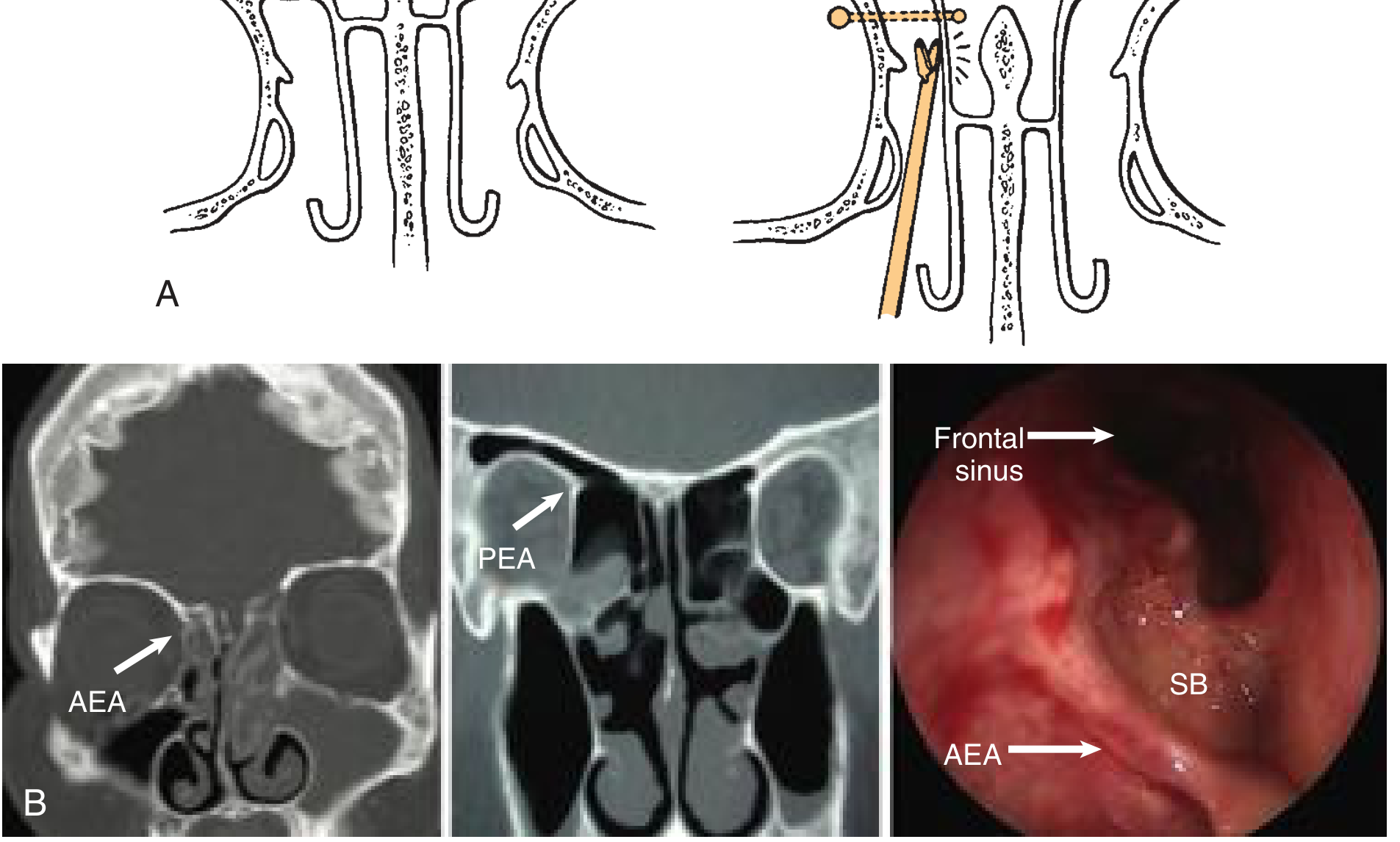

Fig. 44.12B (Cummings): Coronal CT (left, AEA = anterior ethmoidal artery in skull base), mid-coronal CT (middle, PEA = posterior ethmoidal artery just anterior to sphenoid), endoscopic view (right, SB = suprabullar space, AEA visible as pedicled artery).

PART 5 — RADIOLOGY OF PNS

CT (Primary Modality)

Indications:

Pre-FESS planning (mandatory)
Chronic rhinosinusitis (CRS) assessment
Acute complicated sinusitis (orbital/intracranial complications - use contrast)
Sinonasal trauma
Sinonasal tumors
Post-operative assessment

Normal CT appearances:

Air-filled sinuses appear black (air density)
Sinus walls are smooth, thin corticated bone
Mucosa: normally too thin to see on CT (visible only when thickened ≥3 mm)
Sinus ostia: best seen on coronal CT

Pathological CT findings:

Finding	Description
Mucosal thickening	>3 mm; peripheral; smooth margins → inflammatory; nodular or mass-like → polyp or neoplasm
Air-fluid level	Acute sinusitis (also post-lavage, intubation, trauma)
Complete opacification	CRS, polyp disease, mucocele, tumor
Mucocele	Expanded sinus with thinned/remodeled walls; homogeneous density; may show bony dehiscence
Bony sclerosis / neo-osteogenesis	Chronic disease; thickened, sclerotic walls indicate long-standing CRS
Bony erosion	Aggressive pathology: fungal sinusitis (invasive), neoplasm; occasional mucocele
Calcifications	Fungal disease (inspissated secretions with calcifications); antrochoanal polyp (rare)

CT patterns of mucosal disease:

Infundibular pattern: Isolated maxillary sinus disease with obstructed infundibulum; unilateral
OMC pattern: Ipsilateral maxillary + frontal + anterior ethmoid disease (OMC obstruction)
Sphenoethmoid recess pattern: Posterior ethmoid + sphenoid disease
Sinonasal polyposis: Bilateral pan-sinusitis; expansion of sinuses; middle meatal polyps
Sporadic (isolated): Single sinus, various causes

MRI of PNS

Indications (CT remains primary; MRI is supplementary):

Tumors - superior soft tissue characterization; perineural spread; dural/intracranial involvement
Fungal sinusitis - "signal void" on T2 in inspissated allergic mucin (characteristic)
Intracranial/orbital complications of sinusitis
Differentiating retained secretions from soft tissue mass

MRI signal characteristics of sinus contents:

Contents	T1	T2
Air (normal)	Black	Black
Water/watery secretions	Low	High (bright)
Inspissated/viscous secretions	High (bright - protein)	Low or heterogeneous
Fungal inspissated mucin	Variable (often high T1)	Very low / signal void (characteristic of allergic fungal sinusitis)
Tumors	Intermediate	Intermediate to high
Fibrous tissue / neo-osteogenesis	Low	Low

Plain Films (Outdated)

Previously used: Waters view (best for maxillary sinuses), Caldwell (frontal + ethmoid), lateral, submentovertex. Now largely replaced by CT in most settings, but may still be used in initial assessment of acute sinusitis in primary care. Air-fluid levels, mucosal thickening, and opacification can be seen.

QUICK REFERENCE SUMMARY TABLE

All Anatomical Variants at a Glance

Variant	Location	Incidence	Key Clinical Effect	CT Identification
Agger nasi cell	Anterior to MT axilla (most anterior ethmoid)	65-90%	Frontal recess obstruction	Anterior-most air cell, coronal CT
Concha bullosa	Within middle turbinate	28-40%	OMC obstruction	Widened MT with air cell on coronal CT
Paradoxical middle turbinate	MT curves laterally	~10%	Middle meatus narrowing	Lateral curve on coronal CT
Haller cell	Along orbital floor / maxillary roof	10-20%	Maxillary infundibular obstruction → recurrent maxillary sinusitis	Coronal CT: air cell below lamina papyracea and above maxillary sinus
Onodi cell	Posterior ethmoid, superolateral to sphenoid	10-30%	Optic nerve / ICA injury during sphenoidotomy	Horizontal septum in "sphenoid" - Onodi superolateral, true sphenoid inferomedial
Septal deviation	Nasal septum	~67%	Nasal obstruction, OMC narrowing	Deviated perpendicular plate / vomer on axial CT
Pneumatized septum	Perpendicular plate of ethmoid	~20%	Surgical landmark confusion	Air cell in nasal septum
Keros Type 3	Olfactory fossa	~5%	High CSF leak risk at lateral lamella	Deep olfactory fossa (8-16 mm) on coronal CT
Pendant AEA	AEA hanging in mesentery	~15%	Orbital hematoma if transected	Conical bony projection from orbit into ethmoid on coronal CT
Frontal cell Type 3/4	Frontal recess → frontal sinus	Variable	Frontal sinus outflow obstruction	Air cell extending above level of frontal os on sagittal CT
Supraorbital ethmoid cell	Over orbital roof, lateral to frontal sinus	Variable	Lateral frontal recess obstruction	Coronal + axial CT: air cell over orbit
Frontal bulla cell	Posterior frontal sinus	Variable	Pushes drainage anteriorly	Posterior wall of frontal sinus pneumatization
LP dehiscence	Medial orbital wall	Variable	Orbital fat exposure during ethmoidectomy	Defect in orbital wall on coronal CT
Clinoid pneumatization	Anterior clinoid process	Variable	Optic nerve risk	Air in anterior clinoid process on axial CT
Deviated intersinus septum (sphenoid)	Sphenoid intersinus septum	Common	ICA injury during septum takedown	Attachment of septum traced to ICA / optic canal on CT

Sources: KJ Lee's Essential Otolaryngology 11th ed., pp. 519-528; Cummings Otolaryngology Head and Neck Surgery, Chapters 38, 44, 45; Scott-Brown's ORL Vol 1; Medscape Radiology - CT of Paranasal Sinuses; PMC12085865 (2025).

Detailed anatomy of retroperitoneum with all fascia and space and it's content and it's extension and significance with ct mri image. Radiology

Reading File

Finding Sources

Reading File

Finding Sources

Reading File

Loading Image

Reading File

Finding Sources

Loading Image

Reading File

Finding Sources

Reading File

Finding Sources

Reading File

Loading Image

I now have all the textbook content and images needed. Let me compose the comprehensive, fully referenced answer:

Detailed Anatomy of the Retroperitoneum — Fascia, Spaces, Contents, Extensions, Clinical Significance, CT & MRI

Sources: Campbell Walsh Wein Urology 3-Vol Set (9780323546423); NKF Primer on Kidney Diseases 8e (9780323791229); Brenner & Rector's The Kidney (9780323532655); Grainger & Allison's Diagnostic Radiology (9780323760751); Schwartz's Principles of Surgery 11e (9781259835346)

1. OVERVIEW AND DEFINITION

The retroperitoneum is the large extraperitoneal compartment of the abdomen and pelvis, lying:

Anterior boundary: Posterior parietal peritoneum
Posterior boundary: Posterior abdominal wall (transversalis fascia + muscles)
Superior boundary: Diaphragm
Inferior boundary: Open — communicates with extraperitoneal pelvic structures (pelvic floor, Space of Bogros)
Lateral boundary: Lateroconal fascia (fusion of Gerota fascia laminae)

2. EMBRYOLOGICAL BASIS OF RETROPERITONEAL FASCIA

The retroperitoneal fasciae arise from mesoderm. In late fetal development, the primitive mesenchyme differentiates into three strata (Tobin 1944, Skandalakis):

Stratum	Gives Rise To	Clinical Significance
Outer stratum	Transversalis fascia (covers deep surface of transversus abdominis)	Defines posterior pararenal space posteriorly
Intermediate stratum	Gerota fascia (anterior + posterior laminae); embeds GU organs	Contains kidney, adrenal, ureter within perirenal space
Inner stratum	Fusion fasciae (fascia of Toldt, retroduodenal fascia); associated with GI organs	Forms the anterior boundary of the anterior pararenal space; gives rise to the White Line of Toldt

3. RETROPERITONEAL FASCIAE — DETAILED ANATOMY

A. Lumbodorsal (Thoracolumbar) Fascia

The lumbodorsal fascia has three distinct layers investing the posterior abdominal wall musculature. They merge laterally into one layer near the tip of the 12th rib, which fuses with the aponeurosis of the transversus abdominis:

Layer	Position	Muscles Covered
Posterior lamella	Superficial; originates from spinous processes	Covers erector spinae (sacrospinalis) muscles posteriorly
Middle lamella	Between erector spinae and quadratus lumborum	Separates the two muscle groups
Anterior lamella	Deep; attaches to vertebral transverse processes	Covers the ventral surface of quadratus lumborum; continuous with psoas fascia anteriorly

All three merge laterally → single layer → fuses with transversus aponeurosis

Dorsal lumbotomy incision: A vertical incision through the lumbodorsal fascia lateral to the erector spinae and quadratus lumborum allows entry into the retroperitoneum without incising muscle - a key surgical approach for the kidney.

B. Transversalis Fascia

Derived from the outer embryological stratum
Lines the deep surface of the transversus abdominis muscle
Crosses the midline anteriorly and fuses with the lumbodorsal fascia posteriorly
Posterior to the kidney, lies anterior to the fascia investing the quadratus lumborum and psoas
May fuse medially with the posterior lamina of Gerota fascia - this fusion creates the medial boundary of the posterior pararenal space; this plane must be incised to access the renal hilum during retroperitoneal dissection

C. Gerota Fascia (Renal Fascia / Perirenal Fascia)

Described by Romanian anatomist Dimitrie D. Gerota (1867-1939) in 1895. It is the most clinically critical retroperitoneal fascial structure.

Derived from the intermediate embryological stratum, it has two laminae:

Lamina	Eponym	Character	CT Visibility
Anterior lamina	Fascia of Toldt / Prerenal fascia	Thinner	Less frequently seen on CT
Posterior lamina	Fascia of Zückerkandl / Retrorenal fascia	Thicker	More frequently visualized on CT

Lateral extent — Lateroconal fascia: The anterior and posterior laminae of Gerota fascia merge laterally to form the lateroconal fascia, which:

Separates the anterior pararenal space (APS) from the posterior pararenal space (PPS)
Continues anterolaterally, deep to the transversalis fascia
Forms the lateral boundary of the perirenal space

Extent of Gerota fascia:

Direction	Extent
Superior	Closed - fuses with diaphragmatic fascia; adrenal gland contained within its superior aspect (separated by thin connective tissue septum)
Lateral	Closed - merges into lateroconal fascia
Medial	Fuses with adventitia of renal vessels, aorta, IVC; may communicate across midline below the renal hilum (cadaveric injection studies)
Inferior	OPEN - cone-shaped, open at its inferior extent into the extraperitoneal pelvis

Key clinical point: The inferior opening of Gerota fascia means perinephric fluid collections (urinoma, hematoma, abscess) track inferiorly into the pelvis through this open cone. This is the basis of urine tracking down to the pelvis in obstructive uropathy with fornical rupture.

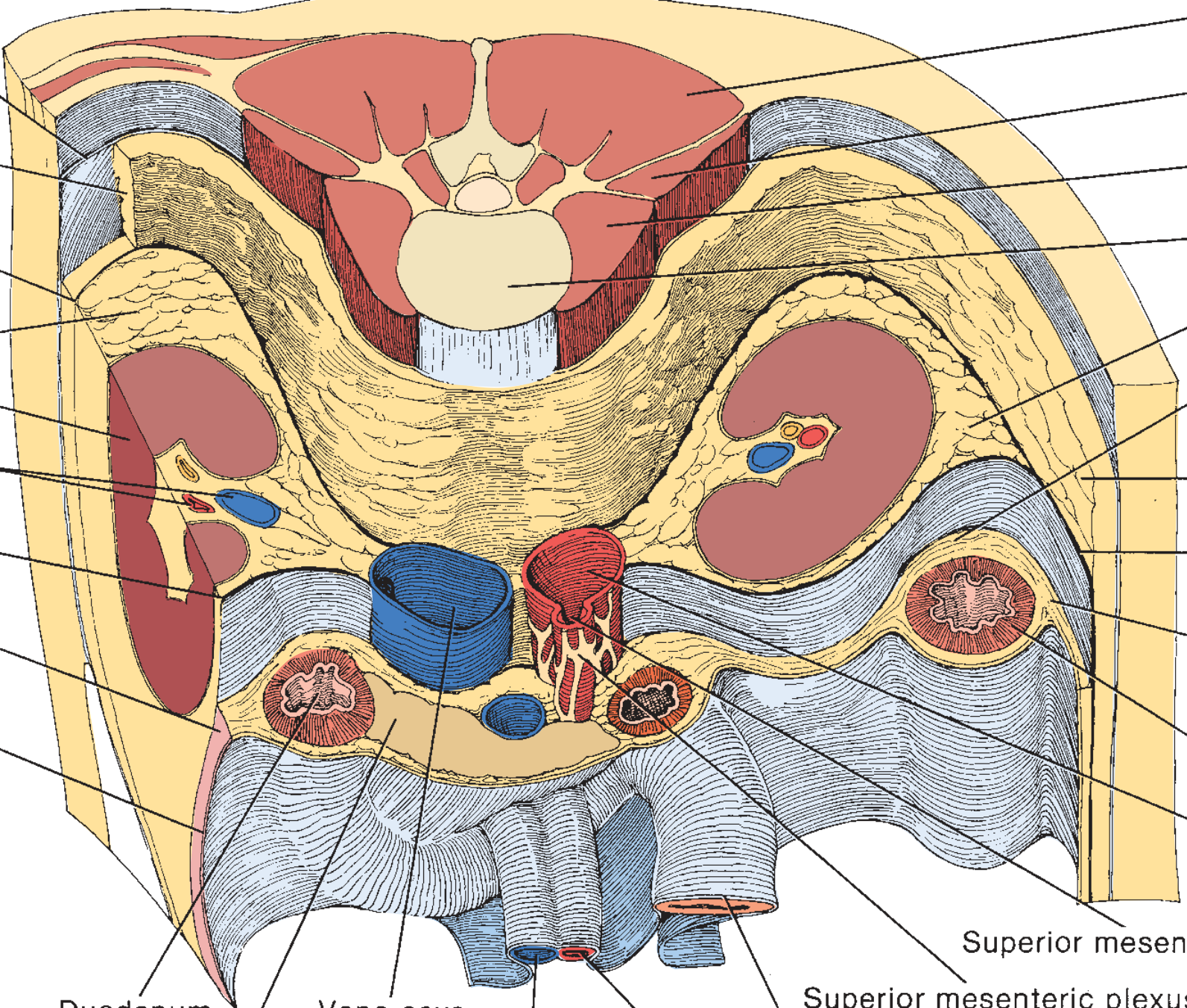

Fig. 75.16 - Organization of fasciae surrounding the kidney. From outside in: Anterolateral abdominal wall muscles → Transversalis fascia → Paranephric fat → Gerota (perirenal) fascia → Perinephric fat → Kidney. Psoas major and Quadratus lumborum are posterior. IVC medially.

Fig. 75.16 (Campbell Walsh Wein): Organization of the fasciae and fat surrounding the kidney — showing Gerota (perirenal) fascia, transversalis fascia, perinephric fat, paranephric fat, psoas major, quadratus lumborum, IVC, kidney.

Fig. 75.13 - Transverse section through kidney and posterior abdominal wall showing fascia renalis anterior leaf, fascia renalis posterior leaf (fascia lumbodorsalis), retrorenal fat, retroperitoneal fat, kidney, peritoneum, muscles (M. transv. = transversus, M. obl. int., M. obl. ext.) and skin.

Fig. 75.13 (Campbell Walsh Wein): Transverse section through the kidney. Labels: Fascia renalis (ant. leaf) = anterior lamina of Gerota; Fascia renalis (post. leaf) = posterior lamina (Zückerkandl / fascia lumbodorsalis); Retrorenal fat = pararenal fat posterior to Gerota; Retroperitoneal fat = anterior pararenal fat.

4. THE THREE RETROPERITONEAL SPACES

The retroperitoneal fasciae divide the retroperitoneum into three major spaces:

ANTERIOR → POSTERIOR (from front to back):

Posterior parietal peritoneum
        ↓
ANTERIOR PARARENAL SPACE (APS)
        ↓ — Anterior lamina of Gerota (fascia of Toldt)
PERIRENAL SPACE (PR)
        ↓ — Posterior lamina of Gerota (fascia of Zückerkandl)
POSTERIOR PARARENAL SPACE (PPS)
        ↓ — Transversalis fascia
Posterior abdominal wall muscles

Space 1: Anterior Pararenal Space (APS)

Feature	Detail
Anterior boundary	Posterior layer of parietal peritoneum
Posterior boundary	Anterior lamina of Gerota fascia
Lateral boundary	Lateroconal fascia
Medial boundary	Open — communicates with contralateral APS across the midline
Contents	Ascending colon, descending colon (secondarily retroperitoneal); pancreas (head, neck, body); duodenum (2nd and 3rd parts); colonic mesenteries
Fat character	Relatively sparse mesenteric/colonic peritoneal fat
Communication	Bilateral APS communicate across the midline behind the pancreas and duodenum

Surgical access (White Line of Toldt): The APS is developed surgically by incising along the White Line of Toldt - the visible lateral border of the fusion of colonic mesentery with the posterior peritoneum, formed during embryogenesis when the inner stratum GI organs fused with the primary dorsal peritoneum. Medial reflection of the colon through this plane enters the APS and exposes the kidney anteriorly.

Clinical significance of APS:

Acute pancreatitis: Inflammatory exudate and pancreatic enzymes spread within the APS, extend bilaterally across the midline, and track into the adjacent perirenal space
Colonic perforation / diverticulitis: Gas and fecal material spread within the APS
Retroperitoneal duodenal injury: Gas and bile track in the APS around the duodenum

Space 2: Perirenal Space (PR) — Most Important Space

Feature	Detail
Anterior boundary	Anterior lamina of Gerota fascia
Posterior boundary	Posterior lamina of Gerota fascia
Lateral boundary	Lateroconal fascia (fusion of the two laminae)
Medial boundary	Adventitia of renal vessels / aorta / IVC; possible midline communication below hilum
Superior boundary	Closed — fuses with diaphragmatic fascia
Inferior boundary	OPEN — cone-shaped; communicates with extraperitoneal pelvis
Shape	Inverted cone / funnel, open inferiorly

Contents of the Perirenal Space:

Structure	Notes
Kidney	Surrounded by perinephric fat
Adrenal gland	Superior, separated by thin fascia from kidney
Ureter	Descends from renal pelvis through inferior cone
Perinephric (perirenal) fat	Finer, lighter yellow than paranephric fat; fills the space between the kidney and Gerota fascia
Renal artery and vein (vascular pedicle)	At the renal hilum
Gonadal vessels (testicular/ovarian)	Descend inferiorly through the open cone
Kumin septa	Fine fibrous trabeculae within perinephric fat; thicken in renal inflammation ("perinephric stranding" on CT)
Lymphatics	Follow renal vessels

Fat character: Perinephric fat is finer and lighter yellow than paranephric fat (coarser yellow-orange). This color distinction helps during colon mobilization for retroperitoneal surgery.

Pathological collections within the perirenal space:

Type	Cause	Behavior
Urinoma	Fornical rupture (intrapelvic pressure >35 cmH₂O), trauma, iatrogenic	Tracks inferiorly through open cone → pelvis
Perinephric hematoma	Renal laceration, trauma, ruptured aneurysm, anticoagulation	Contained by Gerota fascia until volume overwhelms
Perinephric abscess	Infected urinoma, ascending UTI, hematogenous seeding	Contained; may rupture through fascia in necrotizing infection
Lymphocele	Post-transplant lymphadenectomy	Within perirenal space / pelvic extraperitoneal space

Renal cell carcinoma TNM staging vis-a-vis Gerota fascia:

T3a: Perinephric/renal sinus fat invasion, not beyond Gerota fascia
T3b: Renal vein or IVC involvement below diaphragm
T4: Tumor invades beyond Gerota fascia → includes ipsilateral adrenal extension

Space 3: Posterior Pararenal Space (PPS)

Feature	Detail
Anterior boundary	Posterior lamina of Gerota fascia
Posterior and lateral boundaries	Transversalis fascia
Medial boundary	Fusion of transversalis fascia with posterior lamina of Gerota → medial closed
Contents	Fat only — the coarser yellow-orange "pararenal fat body" (no organs)
Inferior extension	Communicates with Space of Bogros (between transversalis fascia and iliac fascia, lateral to iliac vessels)

Clinical significance of PPS:

Contains no organs - fluid here is rare
Hemorrhage from aortic aneurysm rupture may track posterolaterally into PPS
Posterior pararenal fat is seen most prominently posterior to the kidney on cross-sectional imaging

5. RETROPERITONEAL CONTENTS — COMPLETE LIST

Primary Retroperitoneal Organs

Structures that developed retroperitoneally and were never within the peritoneal cavity:

Kidneys (within perirenal space)
Ureters (within / descending from perirenal space)
Adrenal (suprarenal) glands (within perirenal space, superior)
Abdominal aorta and branches
Inferior vena cava and tributaries
Lumbar lymph nodes and cisterna chyli
Sympathetic trunks and lumbar plexus

Secondarily Retroperitoneal Organs

Organs that began intraperitoneal but fused posteriorly during embryogenesis:

Duodenum — 2nd (descending) and 3rd (horizontal) portions
Ascending colon and hepatic flexure
Descending colon and splenic flexure
Pancreas — head, neck, body (the tail is intraperitoneal within the splenorenal ligament)

6. POSTERIOR ABDOMINAL WALL — MUSCLE ANATOMY

Posterior abdominal wall muscles: Psoas major, Psoas minor, Quadratus lumborum, Iliacus, Transversus abdominis with lumbar vessels running between

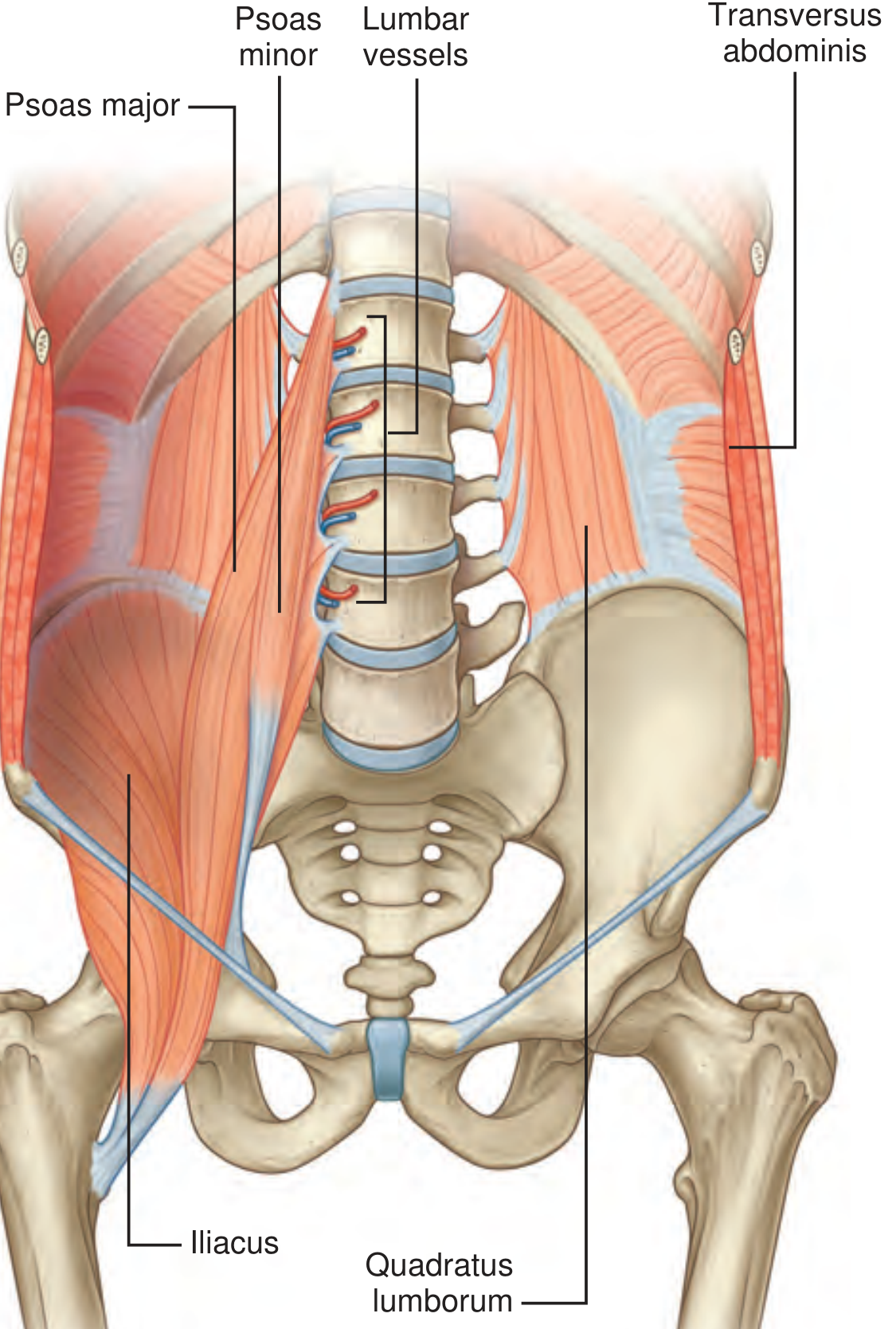

Fig. 75.8 (Campbell Walsh Wein): Posterior abdominal wall muscles — Psoas major (T12-L5 to lesser trochanter), Psoas minor, Iliacus (iliac fossa to lesser trochanter), Quadratus lumborum (L5 + iliac crest to 12th rib + L1-L4), Transversus abdominis, with lumbar vessels crossing anteriorly.

Muscle	Origin	Insertion	Function	Retroperitoneal Significance
Psoas major	T12-L5 vertebral bodies	Lesser trochanter	Hip flexion	Kidney lies on its anterior surface; psoas shadow obliteration = retroperitoneal fluid/mass
Psoas minor	T12-L1	Pelvic brim	Weak lumbar flexion	Absent in many individuals
Iliacus	Iliac fossa, sacrum	Lesser trochanter	Hip flexion	Iliacus hematoma in anticoagulated patients → femoral nerve compression
Quadratus lumborum	L5 vertebra, iliac crest	12th rib, L1-L4 transverse processes	Depress 12th rib, lateral bending	Posterior to kidney; divides posterior musculature
Erector spinae	Sacrum, vertebrae	Lower ribs, vertebrae	Spinal extension	Posterior wall deep to lumbodorsal fascia
Transversus abdominis	Lumbodorsal fascia, iliac crest, ribs 7-12	Linea alba, pubic crest	Compress abdomen	Fuses with lumbodorsal fascia; gives rise to transversalis fascia

7. VASCULAR ANATOMY OF THE RETROPERITONEUM

Aorta and Branches

The abdominal aorta enters at T12 through the aortic hiatus and bifurcates at L4 into the common iliac arteries.

Branch	Level	Supply
Inferior phrenic arteries	T12	Diaphragm; give off superior suprarenal arteries
Celiac trunk	T12/L1	Liver, stomach, spleen, duodenum, pancreas (contains aorticorenal ganglion)
Superior mesenteric artery (SMA)	L1	Small bowel, right colon to splenic flexure
Renal arteries	L1-L2	Kidneys; right renal artery passes posterior to IVC
Gonadal (testicular/ovarian) arteries	L2	Gonads; arise below renal arteries
Inferior mesenteric artery (IMA)	L3-L4	Left colon to upper rectum
Lumbar arteries (x4 pairs)	L1-L4 vertebral bodies (posterior)	Posterior body wall and spine
Median sacral artery	Posterior aorta just above bifurcation	Sacrum and coccyx
Common iliac arteries	L4	Bifurcate into internal and external iliac

Inferior Vena Cava and Tributaries

The IVC forms from the confluence of common iliac veins at the level of L5, inferior and to the right of the aortic bifurcation. It ascends to the right of the aorta, anterior to the vertebral bodies, entering the thorax through the central tendon of the diaphragm at T8.

Key venous asymmetry	Left	Right
Gonadal vein	Enters left renal vein at right angle	Enters IVC directly
Adrenal vein	Enters left renal vein	Enters IVC directly (short, no tributaries)
Renal vein	Longer (7-8 cm); receives gonadal + adrenal + lumbar	Shorter (3 cm); no tributaries typically

Clinical note: Left gonadal vein draining into the left renal vein at right angles + its greater length → increased back pressure → left-sided varicocele more common. A sudden right varicocele should prompt retroperitoneal imaging to exclude right RCC with venous thrombus.

8. LYMPHATICS OF THE RETROPERITONEUM

The retroperitoneal lymphatics consist of para-aortic (lumbar) lymph nodes and paracaval nodes running alongside the major vessels.

Drainage levels:

Testes/ovaries: Follow gonadal vessels → para-aortic nodes at L1-L2 (primary landing zone for testicular tumors)
Kidneys: Para-aortic nodes (left side) and paracaval nodes (right side); inter-aortocaval nodes
Bladder, prostate, uterus, cervix: Pelvic nodes (obturator, internal iliac, external iliac) → common iliac → para-aortic
Distal penis/vulva/anus/lower rectum: Inguinal nodes (exception to the above)

All lumbar lymphatics → lumbar lymphatic trunks → cisterna chyli (at L1-L2, between aorta and right crus of diaphragm) → thoracic duct.

9. NERVOUS STRUCTURES

Autonomic Nervous System

Sympathetic nervous system:

Preganglionic fibers exit T1-L2 via ventral roots → anterior rami → ipsilateral sympathetic trunk
The paired sympathetic trunks run medial to the psoas, along the anterolateral aspect of the spine
Lumbar arteries and veins cross the sympathetic trunk perpendicularly
Fibers may synapse in the sympathetic chain ganglia or leave as splanchnic nerves to synapse in aortic autonomic plexuses

Major retroperitoneal autonomic plexuses:

Celiac plexus (paired ganglia lateral to celiac artery): innervation to kidney, adrenal, renal pelvis, proximal ureter, testes
Renal plexus (adjacent to renal arteries): contains aorticorenal ganglion (inferior extension of celiac ganglion)
Superior mesenteric plexus
Superior hypogastric plexus (L4-L5 level; "presacral nerve"): sympathetic innervation to pelvic viscera; injury during aortic / lymph node surgery → retrograde ejaculation

Parasympathetic nervous system:

Craniosacral outflow
S2-S4 → pelvic splanchnic nerves (nervi erigentes) → pelvic viscera
Vagus (CN X) → abdominal and thoracic viscera

Somatic Nervous System — Lumbosacral Plexus

Nerve	Roots	Course	Clinical
Iliohypogastric	L1	Exits lateral border of psoas, crosses quadratus lumborum	Sensory to groin; injured in flank incisions
Ilioinguinal	L1	Crosses quadratus lumborum and iliacus, runs through inguinal canal	Sensory to scrotum/labia and medial thigh
Genitofemoral	L1-L2	Pierces psoas anteriorly, descends on its anterior surface	Genital and femoral branches; cremasteric reflex
Lateral femoral cutaneous	L2-L3	Exits lateral border of psoas → below inguinal ligament	Sensory to lateral thigh; meralgia paresthetica
Femoral	L2-L4	Within groove between psoas and iliacus, beneath inguinal ligament	Motor to quadriceps; sensory anterior thigh; injured in iliacus hematoma or large retroperitoneal mass
Obturator	L2-L4	Descends on medial border of psoas → obturator foramen	Motor to adductors; sensory medial thigh
Lumbosacral trunk	L4-L5	Joins sacral plexus	Sciatic nerve precursor

10. KIDNEY ANATOMY WITHIN THE RETROPERITONEUM

Position and Relations

Lie retroperitoneally on either side of the vertebral column, resting on the psoas muscles
Longitudinal axes oblique (~30° anterior rotation): upper poles more medial and posterior, lower poles more lateral and anterior
Respiratory mobility: ~3 cm inferior descent during inspiration and on standing
Right kidney: T12-L3; displaced inferiorly by liver
Left kidney: T11-L3; slightly higher

Vertebral level mnemonic: Right kidney = L1-L3; Left kidney = T12-L3

Anterior Relations

Side	Anterior Relations (superior to inferior)
Right	Liver (hepatorenal ligament), adrenal (superomedial), duodenum 2nd part (medial - Kocher maneuver for access), hepatic flexure, small intestine
Left	Stomach + spleen (superiorly; splenorenal ligament), adrenal (superomedial), tail of pancreas + splenic vessels (medially), splenic flexure, descending colon, jejunum

Posterior Relations

Both kidneys (posterior relations are symmetric):

Diaphragm (upper poles)
12th rib (right); 11th and 12th ribs (left)
Subcostal nerve and vessels (T12) cross obliquely
Iliohypogastric nerve (L1) and ilioinguinal nerve (L1) cross inferiorly
Psoas major (medially), quadratus lumborum (laterally), aponeurosis of transversus abdominis (lateral)

Renal Hilar Anatomy — Mnemonic VAUA

From anterior to posterior at the renal hilum:

V = Renal Vein (most anterior)
A = Renal Artery
U = Renal pelvis (Ureter)
A = Posterior segmental Artery (most posterior)

Fig. 75.22 (CWW): Retroperitoneal cross-section at level of kidneys showing bilateral kidneys, duodenum (DUO), pancreas (PANC), IVC, aorta (Ao), perinephric fat (PNF), renal artery (RA), renal vein (RV), renal pelvis (RP), ureter (U), superior mesenteric artery (SMA), superior mesenteric vein (SMV)

Fig. 75.22 (Campbell Walsh Wein): Retroperitoneal cross-sectional anatomy at the level of the renal pedicles — both kidneys, perinephric fat, duodenum, pancreas, IVC, aorta, and renal vessels.

11. RADIOLOGICAL ANATOMY — CT AND MRI

CT Anatomy of the Retroperitoneum

Technique: MDCT with thin slices (0.625-1.25 mm) in axial plane with coronal and sagittal reformats. Bone and soft-tissue windows. Contrast enhancement for vascular/parenchymal assessment.

CT — Normal Fascial Appearances

Structure	CT Appearance
Gerota fascia (posterior lamina)	Thin, linear soft-tissue density line posterior to the kidney, separating perinephric fat from paranephric fat — more reliably visualized than the anterior lamina
Gerota fascia (anterior lamina)	Thin, often not visible unless thickened by pathology
Perinephric fat	Low-density (-100 to -50 HU) fat surrounding the kidney within Gerota fascia; fine, homogeneous
Paranephric fat	Low-density fat external to Gerota fascia, most prominent posterior to kidney; coarser, yellow-orange (but on CT both fats are identical density)
Lateroconal fascia	Thin line at the lateral margin of the retroperitoneum (lateral to kidney), between the anterior and posterior pararenal spaces
Transversalis fascia	Deep to posterior pararenal fat; separates PPS from abdominal wall musculature
Psoas muscle	Well-defined, elliptical muscle on either side of lumbar spine; loss of psoas shadow on plain film = retroperitoneal fluid/mass

CT — Normal Kidney Appearances at Each Phase

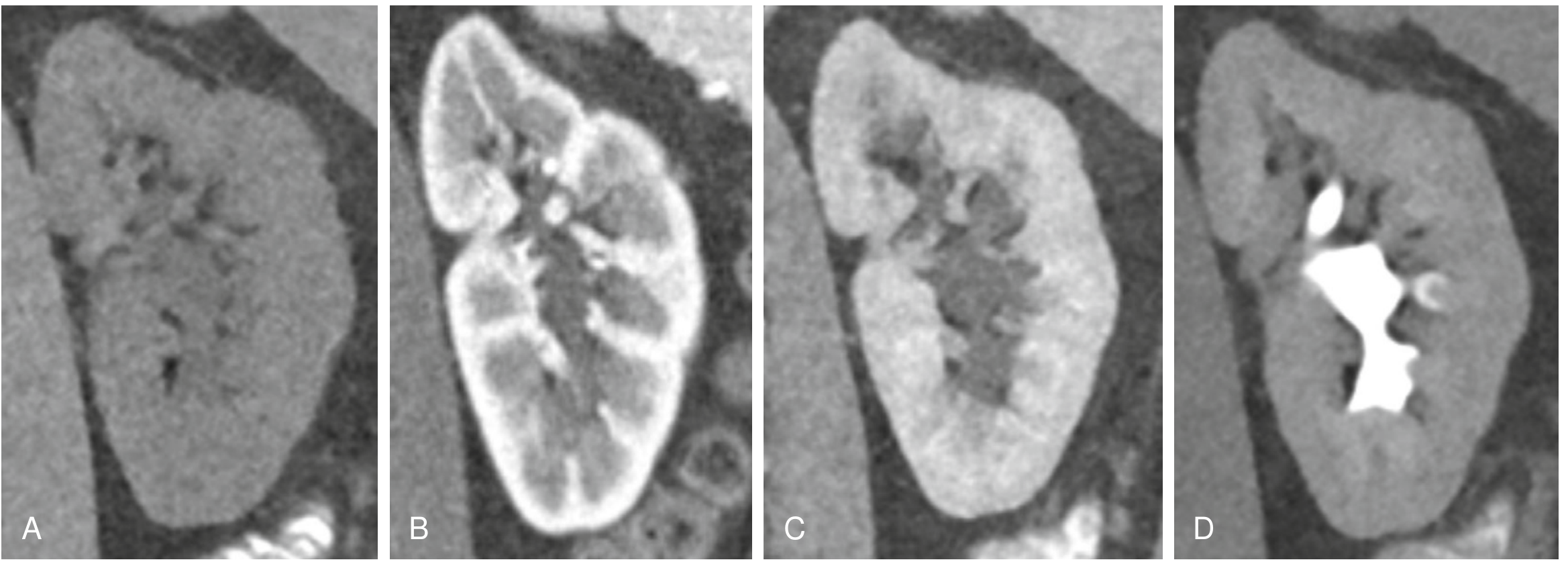

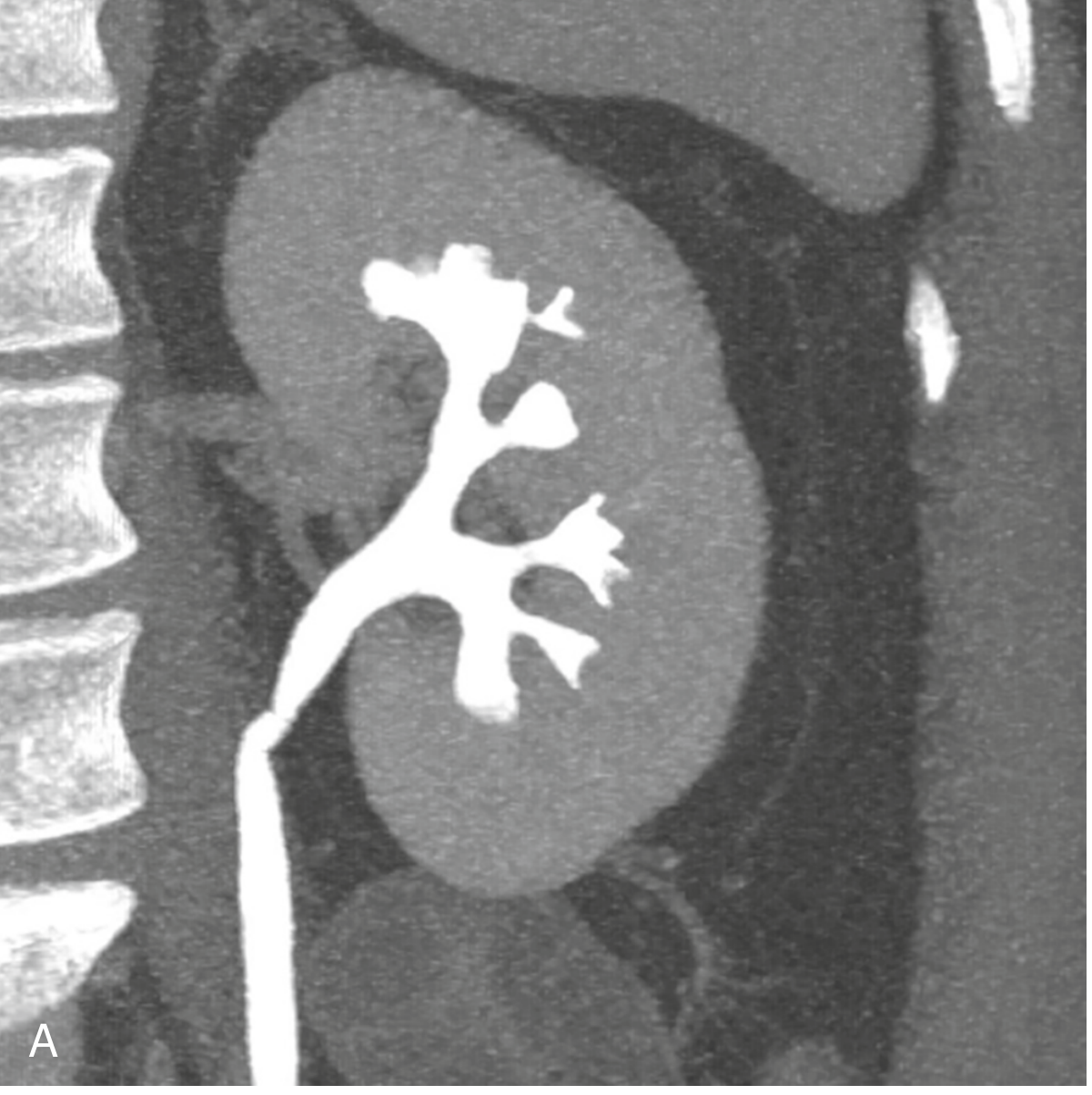

Fig. 6.4 (NKF Primer): CT of normal kidney in four phases - (A) Non-contrast: homogeneous, 30-60 HU; (B) Corticomedullary phase: dramatic cortex enhancement, low medulla; (C) Nephrographic phase: homogeneous equal cortex+medulla enhancement; (D) Excretory phase: bright white collecting system

Fig. 6.4 (NKF Primer on Kidney Diseases): Normal kidney CT in four phases - A: Non-contrast, B: Corticomedullary, C: Nephrographic, D: Excretory.

Phase	Timing Post-Injection	Kidney CT Appearance	Primary Use
Non-contrast (NECT)	Pre-injection	Homogeneous; 30-60 HU; no corticomedullary differentiation	Stones (calc. HU >100), fat (AML, -10 to -50 HU), hemorrhage (60-80 HU), baseline density for mass characterization
Arterial phase	12-25 sec	Renal arteries opacified; cortical blush beginning	Renal artery stenosis, aneurysm evaluation; rarely used alone
Corticomedullary phase (CMP)	30-70 sec	Cortex dramatically enhanced (100-200 HU); medullary pyramids remain low density → maximum corticomedullary differentiation (CMD)	Vascular anatomy; renal artery/vein relationship to tumor; venous anatomy; pre-op partial nephrectomy planning
Nephrographic phase (NGP)	80-120 sec	Cortex and medulla equally and homogeneously enhanced (~100-120 HU)	Best phase for renal mass/neoplasm detection; small masses best seen here; renal infarction; pyelonephritis
Excretory (pyelographic) phase	>3-5 min (5-15 min)	Collecting system, ureters, bladder opacified with high-density contrast	Collecting system anatomy; relationship of tumor to pelvis; CT urography (urothelial tumors); pre-op partial nephrectomy

Normal attenuation values: Pre-contrast renal parenchyma 30-60 HU → increases to 80-200 HU post-contrast depending on phase.

CT identification of retroperitoneal fascial spaces:

Space	CT Appearance	Pathology
Perirenal space	Fat surrounding kidney between two laminae of Gerota; soft-tissue strands (Kumin septa) = normal	"Perinephric stranding" (increased density) = infection/inflammation/trauma; perinephric fluid = urinoma/hematoma/abscess
Anterior pararenal space	Contains pancreas, duodenum, colon; surrounded by fat	Pancreatitis = fat stranding + fluid within APS; "dirty fat" bilaterally; peripancreatic necrosis
Posterior pararenal space	Pure fat posterior to Gerota; no organs	Retroperitoneal hemorrhage (AAA rupture can track here posterolaterally)

CT differentiation of perinephric fluid:

Content	HU	Appearance
Urinoma	0-20 HU (water density)	Simple fluid; tracks inferiorly along ureter
Hematoma (acute)	50-80 HU	High-density fluid; sentinel clot sign near laceration
Abscess	Variable; +/- gas	Complex fluid with gas bubbles; rim enhancement
Lymphocele	0-20 HU	Simple, well-defined; post-transplant

CT Excretory Phase — Normal Collecting System Anatomy

Fig. 6.2 (NKF Primer): Coronal CT urogram excretory phase showing normal kidney with opacified pelvicalyceal system and ureter descending alongside the vertebral column

Fig. 6.2 (NKF Primer): Coronal CT urogram in excretory phase — normal kidney with pelvicalyceal system and proximal ureter opacified with contrast. The collecting system has cupped minor calyces, funnel-shaped infundibula, and a smooth renal pelvis.

Normal collecting system on CT excretory phase:

Minor calyces: concave (cupped), sharp fornical angles, 10-14 per kidney
Major calyces: formed by union of 2-3 minor calyces
Renal pelvis: smooth, triangular; extrarenal or intrarenal
Three normal ureteric constrictions: UPJ, pelvic brim (crossing iliac vessels), UVJ
Normal ureteric course: along anterior psoas surface, within 1 cm of lateral margin of vertebral transverse processes

MRI Anatomy of the Retroperitoneum

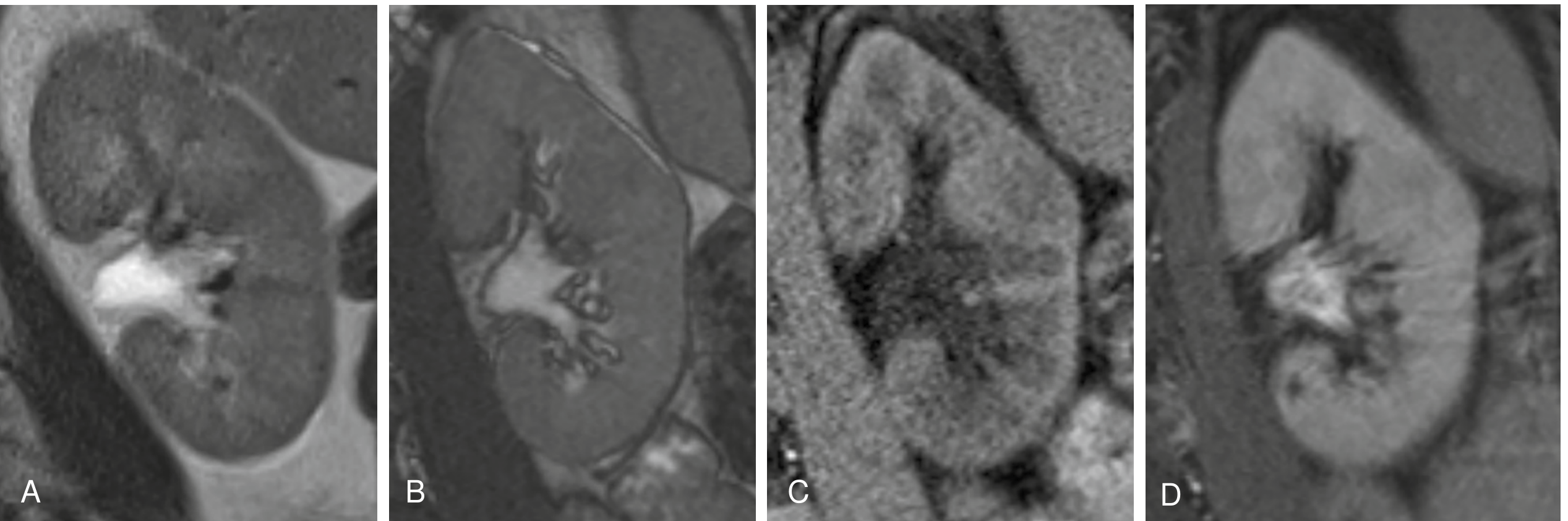

Fig. 6.7 (NKF Primer): Four coronal MRI sequences of normal kidney - (A) T2-weighted, (B) balanced SSFP, (C) T1-weighted showing cortex brighter than medulla, (D) Post-contrast T1-weighted gadolinium nephrographic phase

Fig. 6.7 (NKF Primer): Normal kidney MRI sequences - T2 (A), bSSFP (B), T1 (C), post-gadolinium T1 (D). Note: On T1, cortex is brighter than medulla. On T2, medulla becomes slightly brighter.

MRI Signal Characteristics

Sequence	Renal Cortex	Medullary Pyramids	Renal Sinus	Perirenal Fat
T1-weighted	Brighter (higher SI than medulla)	Lower signal	Hyperintense (fat)	Hyperintense
T2-weighted	Intermediate to low	Slightly brighter than cortex	Low (fibrous) / high (fat)	Low (fat signal persists unless fat-sat used)
Fat-suppressed T1	Intermediate	Low	Low (fat suppressed)	Low (fat suppressed)
Post-gadolinium T1	Strong enhancement (CMP); equal enhancement (NGP)	Enhances in NGP	Enhancement of renal vessels	No enhancement
DWI	Intermediate ADC	Higher ADC	Low signal (fat)	High ADC

Gerota fascia on MRI:

Seen as a thin low-signal line on T1 and T2 separating the higher-signal perinephric fat from the higher-signal paranephric fat (when both fat layers are present)
Fat-suppressed sequences null both fat compartments, making Gerota fascia less visible unless thickened

Corticomedullary differentiation (CMD) on MRI:

Visible without contrast on T1 (cortex brighter than medulla)
CMD disappears in chronic kidney disease (cortical fibrosis/atrophy makes cortex isointense to medulla)
Contrast-enhanced MRI: CMD at 60 sec; nephrographic phase at 90-120 sec

Perinephric fat MRI:

T1: Hyperintense (fat)
T2: Intermediate to hyperintense
STIR or fat-sat sequences: Fat signal nulled / suppressed → perinephric collections and edema become conspicuous

12. INTERFASCIAL PLANES AND COMMUNICATIONS

Space/Plane	Location	Communication / Clinical Significance
Space of Bogros	Between transversalis fascia and iliac fascia, lateral to iliac vessels in the pelvis	Posterior pararenal fat communicates inferiorly here; important for laparoscopic preperitoneal hernia repair
Space of Retzius (prevesical space)	Between pubic symphysis/anterior abdominal wall and bladder	Pelvic hematomas; laparoscopic prostatectomy access; urine extravasation from bladder rupture tracks here
Retrorectal space	Between rectum and sacrum	Pelvic surgery; presacral tumor access
Periureteric fascial tunnel	The inferior open cone of Gerota fascia descends around the ureter	Perinephric fluid tracks inferiorly along the ureter
Transperitoneal communication (controversial)	Below the renal hilum, perirenal spaces may communicate across midline	Bilateral perinephric collections possible from unilateral disease

13. ADRENAL GLAND ANATOMY IN THE RETROPERITONEUM

The adrenal (suprarenal) glands are enclosed within the perirenal space (within Gerota fascia), separated from the kidney by a thin connective tissue septum within the same space.

Right adrenal: posterior to IVC; between IVC and right crus of diaphragm; pyramidal/triangular shape
Left adrenal: medial to upper pole of left kidney; crescentic/semilunar shape
CT: inverted Y or V shape on axial; normal limb thickness <10 mm
MRI: T1 isointense to liver; T2 slightly hyperintense; pheochromocytoma: T2 very bright; adenoma: signal dropout on out-of-phase T1 (intracellular fat)

Vascular supply:

Three arterial sources: Superior suprarenal (from inferior phrenic); middle suprarenal (from aorta); inferior suprarenal (from renal artery)
Single vein: Left adrenal vein → left renal vein; Right adrenal vein → IVC directly (short, no tributaries - surgical danger)

14. SPREAD OF DISEASE — RETROPERITONEAL SPACE ANALYSIS

Disease	Primary Space	Mechanism of Spread
Acute pancreatitis	Anterior pararenal (pancreas in APS)	Enzymes spread bilaterally within APS; extend posteriorly into perirenal space; also spread along Toldt fascia to root of mesentery
Retroperitoneal hemorrhage (AAA rupture)	Typically posterior pararenal; also perirenal	May be contained by Gerota fascia initially; massive rupture fills all spaces
Renal trauma (Grade III-IV)	Perirenal space	Contained by Gerota fascia; tracks inferiorly → pelvis through open inferior cone
Ascending UTI / pyonephrosis	Perirenal space	Perinephric abscess; Gerota acts as barrier
Retroperitoneal fibrosis	Perirenal/anterior to IVC and aorta	Encases ureters → medial deviation ("ski-slope deformity" on IVU); must be distinguished from retroperitoneal malignancy
Retroperitoneal lymphoma / metastases	Para-aortic nodes	Displaces kidneys/ureters; wraps around vessels
Colonic carcinoma perforation	Anterior pararenal	Tracks along colonic mesentery within APS
Duodenal perforation (retroperitoneal)	Anterior pararenal	Gas and bile in right APS (Rigler sign absent; need CT)

SUMMARY DIAGRAM

CROSS-SECTION (Axial view, right side):

           PERITONEAL CAVITY
                  |
    Posterior parietal peritoneum
                  |
    ══════════════════════════════════
     ANTERIOR PARARENAL SPACE (APS)
     Contents: Ascending colon,
     duodenum 2nd/3rd parts, pancreas
    ══════════════════════════════════
         ↑ Ant. lamina of Gerota (Toldt)
    ══════════════════════════════════
           PERIRENAL SPACE
     Contents: Kidney, adrenal, ureter,
     perinephric fat, renal vessels,
     gonadal vessels, lymphatics
    (Open inferiorly → pelvis)
    ══════════════════════════════════
         ↓ Post. lamina of Gerota (Zückerkandl)
    ══════════════════════════════════
     POSTERIOR PARARENAL SPACE (PPS)
     Contents: FAT ONLY (pararenal fat)
    ══════════════════════════════════
         ↓ Transversalis fascia
    ══════════════════════════════════
     POSTERIOR ABDOMINAL WALL MUSCLES
     (Psoas, Quadratus lumborum, Erector spinae)
     + Lumbodorsal (thoracolumbar) fascia

Sources: Campbell Walsh Wein Urology, Chapter 75 — "Surgical, Radiographic, and Endoscopic Anatomy of the Retroperitoneum" (pp. 2212-2241); NKF Primer on Kidney Diseases 8e, Chapter 6 (pp. 70-75); Brenner & Rector's The Kidney (Chapter on Renal Imaging); Grainger & Allison's Diagnostic Radiology — Pancreas and Retroperitoneum chapters; Schwartz's Principles of Surgery 11e, Chapter 35.

This is a shared conversation. Sign in to Orris to start your own chat.
