I now have all the information needed for a thorough answer. Here is a comprehensive explanation of the pistol grip deformity in congenital pseudarthrosis of the tibia (CPT):

Pistol Grip Deformity in Congenital Pseudarthrosis of the Tibia (CPT)

What Is It?

The "pistol grip deformity" is the characteristic clinical and radiographic appearance of the lower leg in CPT, where the distal leg and foot angulate anteriorly relative to the proximal tibia - resembling the shape of a pistol when viewed from the side. It arises from the anterolateral bowing of the tibia that is the hallmark of CPT.
Specifically, the term describes the lateral radiograph appearance:
  • The tibia is the "barrel" of the pistol
  • The foot and ankle form the "grip," angulated sharply anteriorly and laterally at the pseudarthrosis or dysplastic zone in the distal half of the tibia

Pathoanatomy

CPT predominantly affects the distal half of the tibia (and frequently the ipsilateral fibula). The site of deformity is characterized by:
  • Hamartomatous fibrous tissue replacing normal bone at the pseudarthrosis site - this abnormal tissue has limited vascular ingrowth and poor healing potential, even after surgical intervention
  • Sclerosis and narrowing of the medullary canal at and around the lesion
  • Progressive anterolateral angulation through this weakened zone under weight-bearing forces
The resulting angular deformity - anterior bowing with lateral displacement of the distal segment - produces the pistol grip shape. The ankle and foot hang anteriorly, while the proximal tibia remains relatively straight. - Campbell's Operative Orthopaedics 15th Ed 2026

Radiographic Appearance

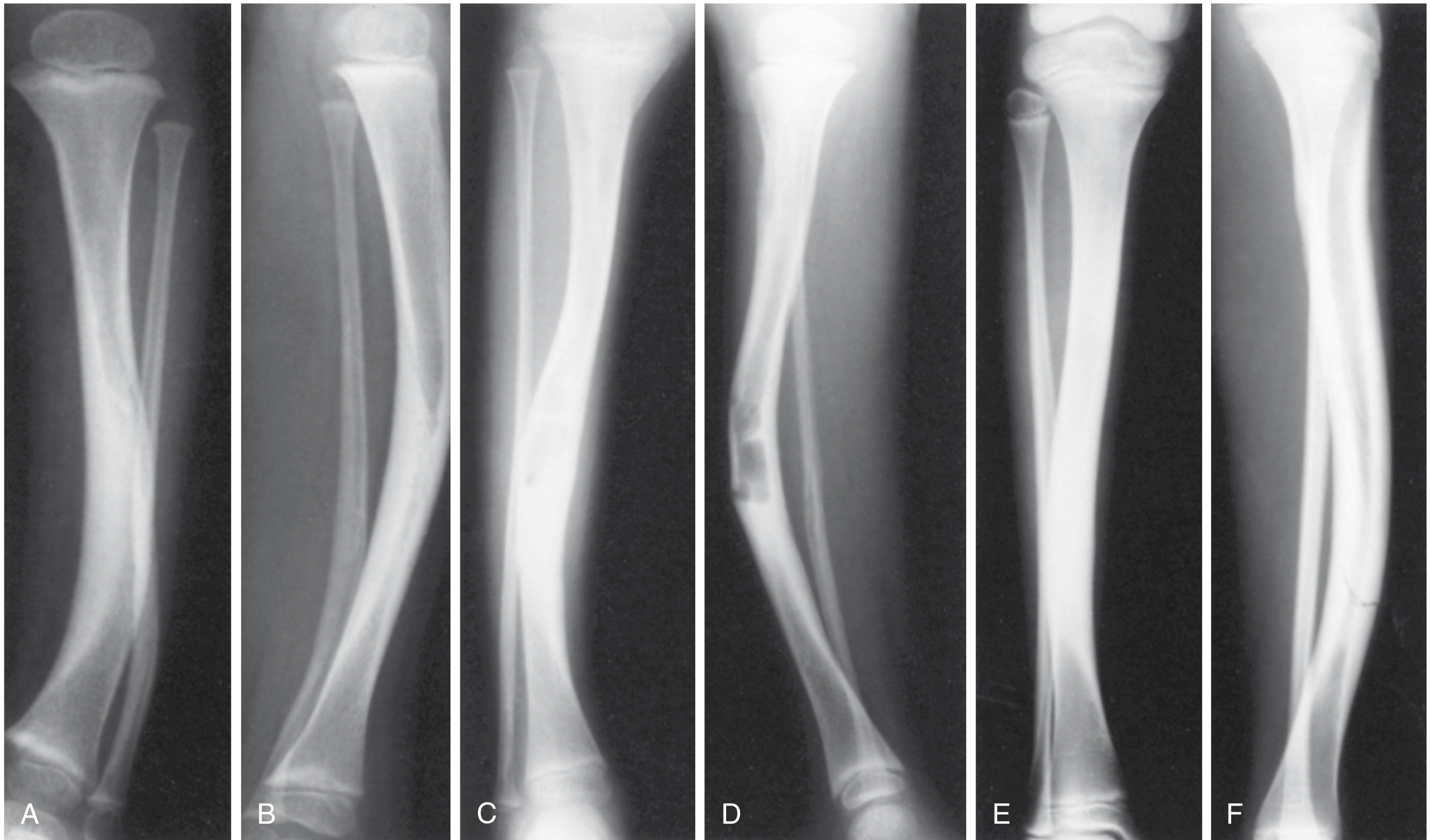

Three examples of CPT: A/B = anterolateral bowing without fracture; C/D = bowing with cystic formation; E/F = bowing with stress fracture
Campbell's Figure 31.57 - Three examples of congenital pseudarthrosis of tibia showing anterolateral bowing in various stages
The key radiographic features are:
  • Anterolateral bowing with apex directed anterolaterally (distinguishes CPT from posteromedial bowing and fibular hemimelia)
  • Sclerotic, narrow medullary canal at the apex (Crawford Type I/II)
  • Cystic or pre-fracture changes (Crawford Type III)
  • Established fracture/pseudarthrosis (Crawford Type IV)

Crawford Classification (Most Used)

TypeFindings
IAnterior bowing + increased cortical density, narrow medulla
IIAnterior bowing + sclerotic bone, narrow medulla (highest risk of fracture)
IIIAnterior bowing + cystic change / pre-fracture lesion
IVEstablished fracture and pseudarthrosis (fibula often involved)
The pistol grip appearance is most pronounced in Crawford Type III and IV, where the fracture/pseudarthrosis has allowed complete angular displacement.

Etiology and Associations

  • Incidence: ~1 in 250,000 live births
  • NF1 association: 50-90% of cases are associated with stigmata of neurofibromatosis type 1 (NF1) - cafe-au-lait spots, Lisch nodules, etc.
  • Exact cause is unknown; the hamartomatous tissue at the pseudarthrosis site is believed to be the primary pathological substrate
  • Bailey & Love notes: "the tibial bow has an anterolateral apex" - a key distinguishing feature vs. other tibial bowing conditions

Clinical Features

  • Usually unilateral
  • The pistol grip deformity may be present at birth (primary/neonatal form) or develop after the child begins walking (secondary form with pathological fracture)
  • Leg shortening from tibial bowing and decreased tibial growth
  • Progressive valgus deformity of the ankle if the fibula is also involved (proximal migration of lateral malleolus)
  • Once fractured, the tibia will NOT heal with casting alone - surgical treatment is mandatory

Treatment Principles

Since the pistol grip deformity progresses once walking begins, management targets:
  1. Pre-fracture (intact bowing): Clamshell orthosis/protective bracing until skeletal maturity. Guided growth of the distal lateral tibia (hemi-epiphysiodesis) can gradually correct the bow and potentially prevent fracture.
  2. Post-fracture/established pseudarthrosis: Three core principles:
    • Complete resection of the pseudarthrosis and surrounding hamartomatous tissue
    • Restoration of mechanical alignment (correcting the pistol grip angulation)
    • Intramedullary rodding - often crossing the ankle joint for very distal lesions; telescoping rods protect the bone through growth
  3. Augmented by: bone grafting, bone morphogenetic protein (BMP), Ilizarov/distraction osteogenesis, or free vascularized fibular graft (for gaps >3 cm)
  4. Amputation is rarely first-line but must be discussed early when: anticipated shortening >5-7.5 cm, multiple failed surgeries, or stiff/dysfunctional limb - Campbell's Operative Orthopaedics 15th Ed 2026

Key Distinguishing Points (Exam Focus)

FeatureCPT
Direction of bowAnterolateral (apex anterolateral)
NF1 association50-90%
SiteDistal 1/3 tibia most common
Healing with cast aloneNo - never heals after fracture
Eponym for deformityPistol grip deformity
Histology at siteHamartomatous fibrous tissue, poor vascularity
A recent CPAM-LRC consensus guideline (2025) (PMID 39764600) provides updated surgical recommendations, noting that intramedullary rodding combined with bone grafting remains the standard, with Ilizarov fixation and vascularized fibular grafts as adjuncts for complex or recurrent cases.

give me cilinical images of CPT

Finding Sources
Reading File
Loading Image
Loading Image
Loading Image
Loading Image
Reading File
Loading Image
Reading File
Here are all the clinical and radiographic images of CPT from Campbell's Operative Orthopaedics and Bailey & Love, organized by what they show:

Clinical Images of CPT

Image 1 - Established Pseudarthrosis: Pre-op, Intraoperative & Post-op Series

(Campbell's Fig. 31.55)

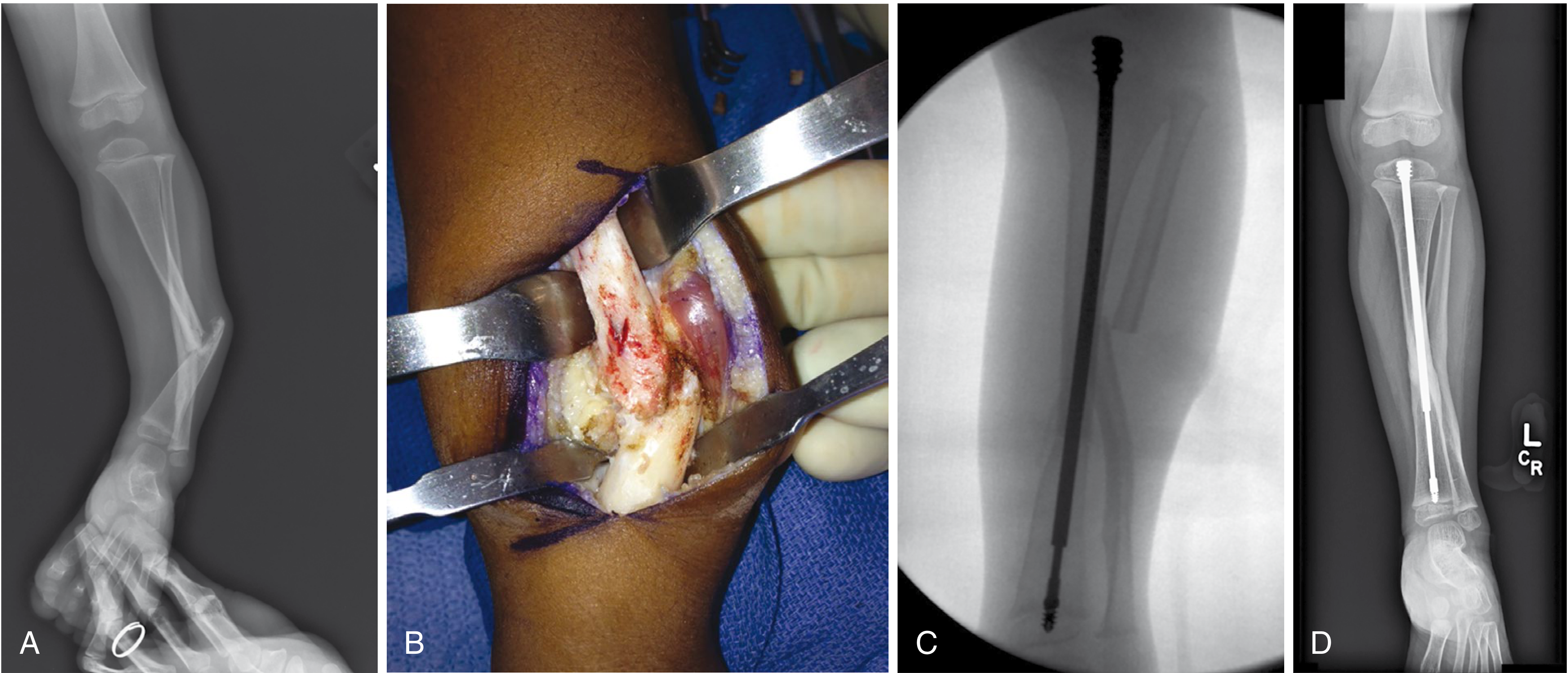

CPT - established nonunion in 3-year-old: lateral X-ray showing pistol grip bowing, intraoperative photo of hamartomatous tissue, post-op IM rod, and healed nonunion at 10 months
  • A - Lateral radiograph of a 3-year-old: classic pistol grip deformity with established nonunion present since birth - the sharp anterior angulation of the distal tibia is clearly visible
  • B - Intraoperative photo showing the hamartomatous fibrous tissue at the pseudarthrosis site (white, avascular, glistening tissue between bone ends - the pathological substrate of CPT)
  • C - Intraoperative fluoroscopy showing the telescoping intramedullary rod crossing the ankle joint after debridement + bone graft + BMP
  • D - Healed nonunion at 10 months postoperatively with the rod in situ

Image 2 - Crawford Classification Spectrum (Types I-IV)

(Campbell's Fig. 31.57)
Three examples of CPT: A/B anterolateral bowing without fracture; C/D bowing with cystic change; E/F bowing with stress fracture
  • A & B - Anterolateral bowing without fracture (Crawford Type I/II) - sclerotic bone, narrow medullary canal
  • C & D - Anterolateral bowing with cystic formation (Crawford Type III) - pre-fracture stage
  • E & F - Anterolateral bowing with stress fracture progressing to pseudarthrosis (Crawford Type IV)

Image 3 - Guided Growth Treatment for Anterolateral Bowing

(Campbell's Fig. 31.58)

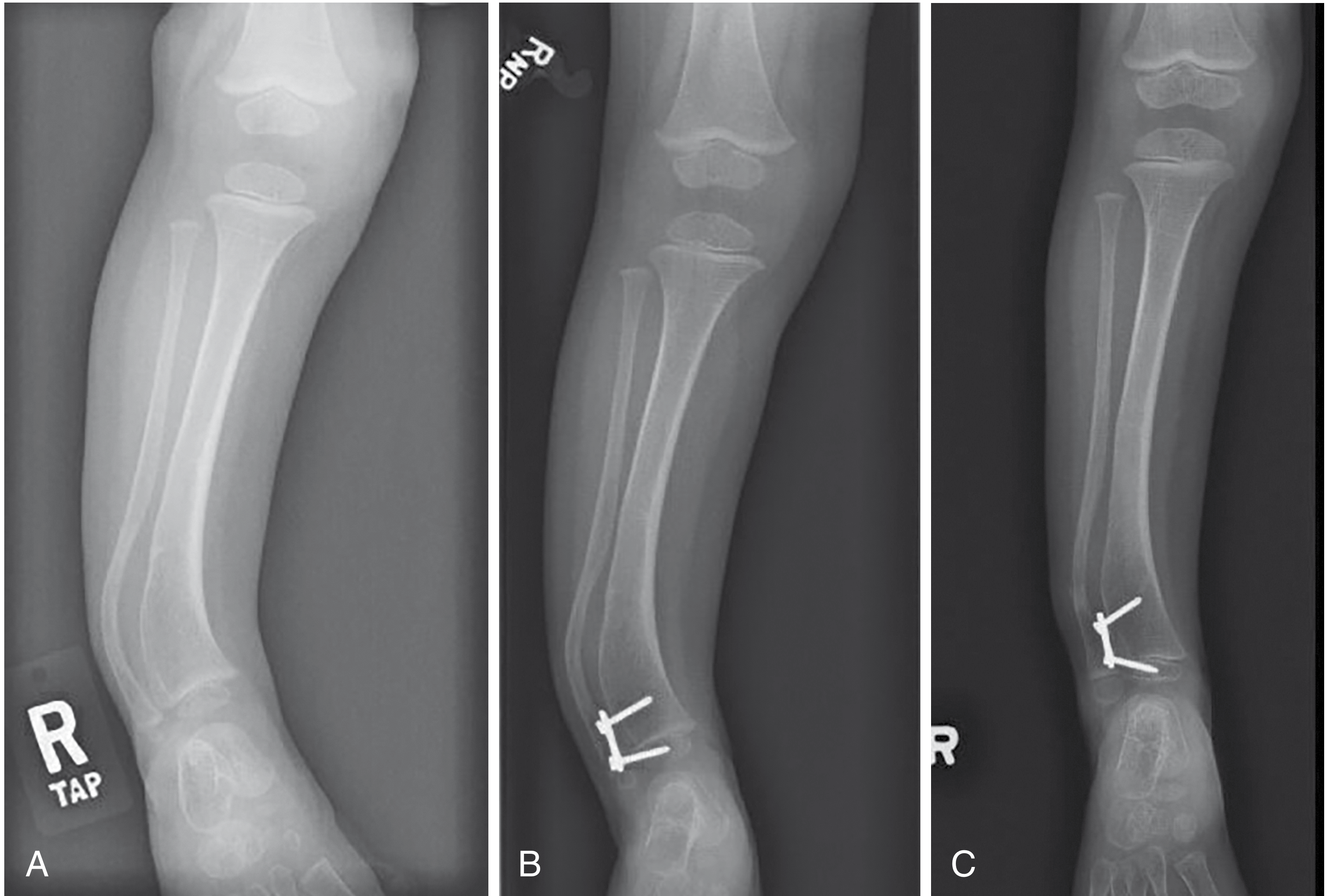

Anterolateral tibial bowing treated with distal lateral tibial growth modulation plate: pre-op AP, immediate post-op, and 18-month follow-up
  • A - Preoperative AP radiograph showing anterolateral bowing (pre-fracture intact tibia)
  • B - Immediate post-op: hemi-epiphysiodesis compression plate applied to the distal lateral tibia to gradually correct the bow via guided growth
  • C - 18-month follow-up showing progressive correction of the deformity

Image 4 - CPT with Fibular Involvement (Bailey & Love)

(Bailey & Love Fig. 44.28)

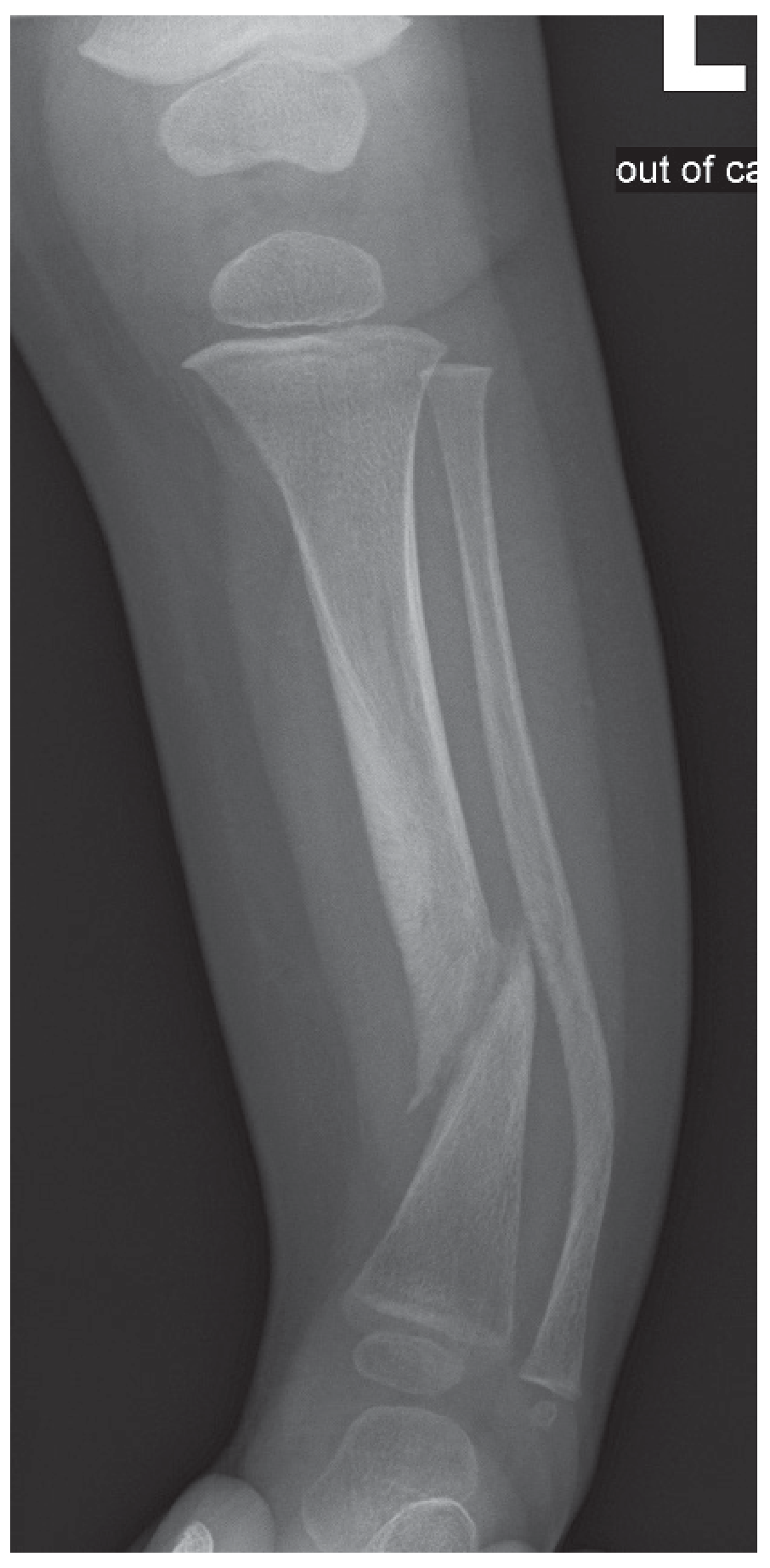

AP radiograph of a child with congenital tibial pseudarthrosis and abnormal fibula - child was born with bowed lower leg that subsequently fractured, family history of NF1
AP radiograph showing congenital tibial pseudarthrosis with fibular involvement. This child was born with a bowed lower leg that subsequently fractured. She has a family history of neurofibromatosis type 1 - demonstrating the common NF1 association.

Image 5 - Severe CPT: Pre-op and Post-op Intramedullary Rodding

(Campbell's Fig. 31.60 - Anderson technique)

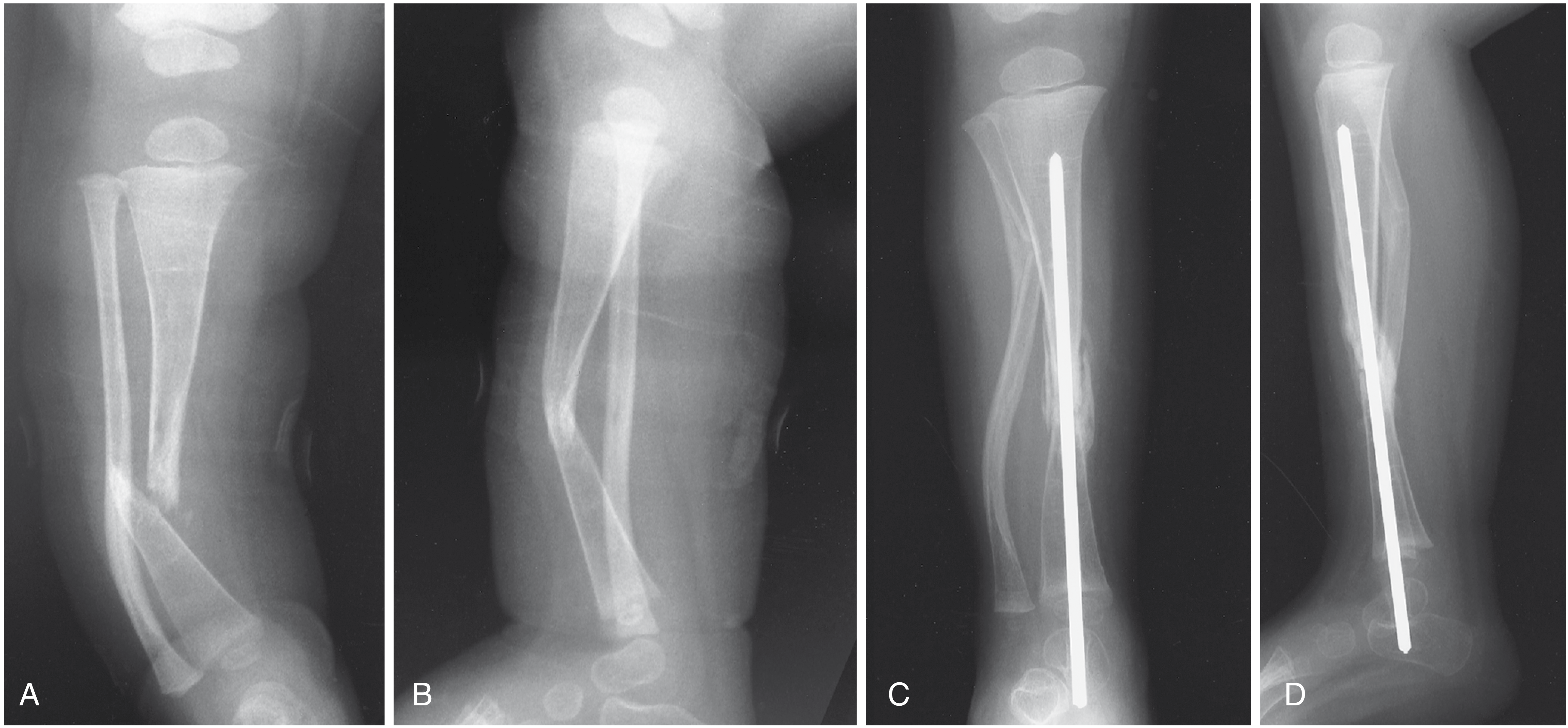

Four X-ray views: AP and lateral of type II CPT in 16-month-old, then post-op AP and lateral after Peter Williams IM rod insertion
  • A - AP view of Crawford Type II CPT in a 16-month-old: sclerotic distal tibia with anterolateral bow and fibular pseudarthrosis
  • B - Lateral view showing the pistol grip deformity in full - the sharp anterior apex angulation is the defining feature
  • C & D - Post-op AP and lateral: Peter Williams telescoping intramedullary rod crossing the ankle joint after pseudarthrosis excision and bone grafting, with restoration of tibial alignment
Key teaching point from all images: The pistol grip deformity is most dramatically visible on the lateral radiograph (Images 1A and 5B), where the distal tibia angulates sharply anteriorly, and the foot hangs forward like the grip of a pistol. The intraoperative photo (Image 1B) is one of the rare textbook images showing the actual pathological hamartomatous tissue that makes this condition so resistant to healing.
Source: Campbell's Operative Orthopaedics 15th Ed 2026; Bailey and Love's Short Practice of Surgery 28th Ed
