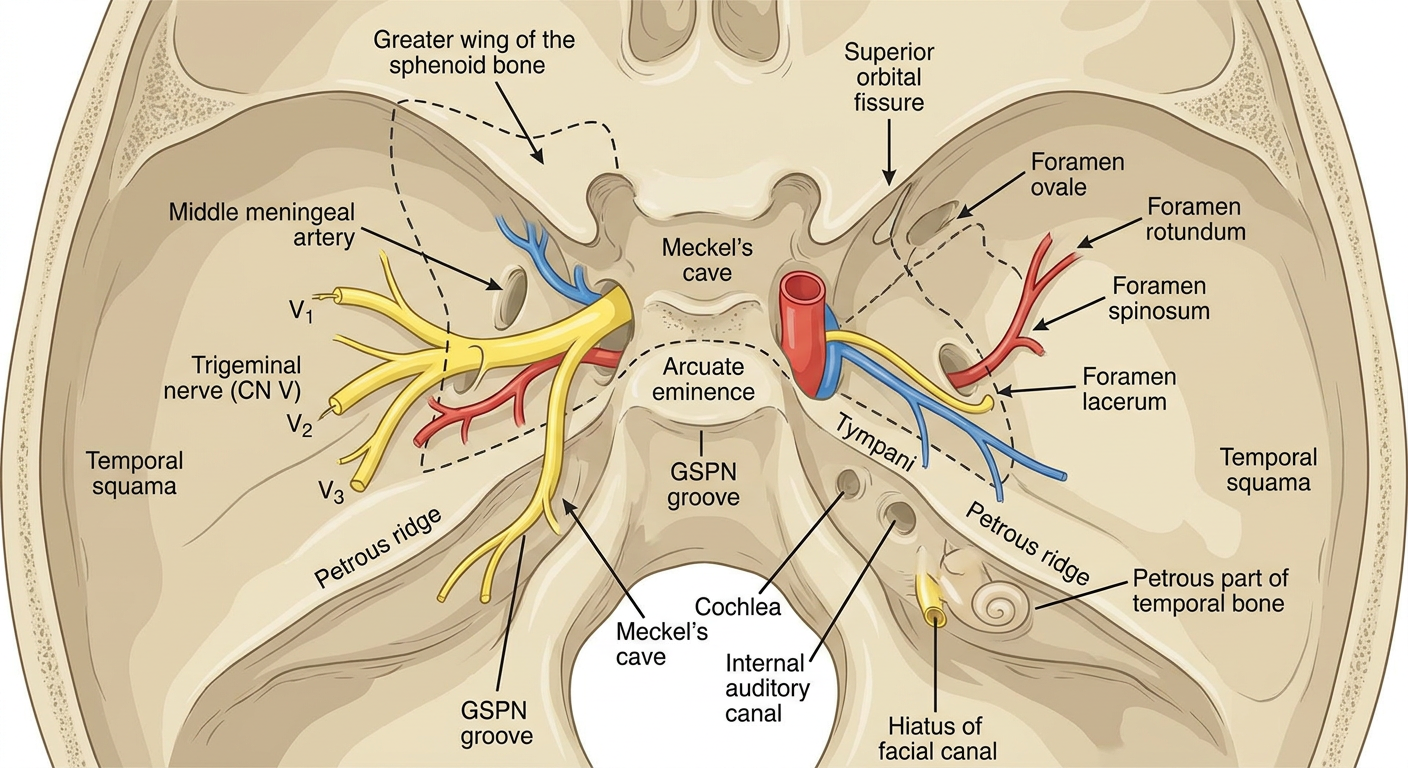

Detailed anatomical diagram of the middle cranial fossa showing surgical approaches and key landmarks. The image should include: - The bony floor of the middle cranial fossa with labeled bones: greater wing of sphenoid, temporal squama, petrous part of temporal bone - Foramina and fissures clearly labeled: foramen ovale (mandibular nerve V3), foramen rotundum (maxillary nerve V2), foramen spinosum (middle meningeal artery), foramen lacerum, superior orbital fissure (CN III, IV, V1, VI), foramen lacerum - Important structures passing through: trigeminal nerve (CN V) with its divisions, middle meningeal artery and vein, greater and lesser petrosal nerves, internal carotid artery in carotid canal - Surgical approach landmarks: arcuate eminence (superior semicircular canal), tegmen tympani, petrous ridge, GSPN (greater superficial petrosal nerve) groove - Middle fossa surgical approach corridor shown with dashed lines - Meckel's cave / trigeminal impression - Hiatus of facial canal - Key anatomical relations: cochlea position, internal auditory canal (IAC) location relative to arcuate eminence - Color coding: nerves in yellow, arteries in red, veins in blue, bone in tan/beige - Clean medical illustration style with crisp labels and anatomical accuracy
Foramina and Structures Passing Through
| Foramen / Opening | Structure(s) |
|---|---|
| Superior orbital fissure | CN III (oculomotor), CN IV (trochlear), CN V1 (ophthalmic), CN VI (abducens), ophthalmic veins |
| Foramen rotundum | CN V2 (maxillary nerve) |
| Foramen ovale | CN V3 (mandibular nerve), accessory meningeal artery |
| Foramen spinosum | Middle meningeal artery & vein |
| Foramen lacerum | Internal carotid artery (passes over it), greater petrosal nerve |
| Carotid canal | Internal carotid artery, sympathetic plexus |
| Hiatus of facial canal | Greater superficial petrosal nerve (GSPN) |
Key Surgical Landmarks (Middle Fossa Approach)
- Arcuate eminence - marks the superior semicircular canal; used to locate the IAC
- GSPN groove - leads to the geniculate ganglion and IAC
- Tegmen tympani - thin bone roof of the middle ear
- Petrous ridge - medial boundary of surgical corridor
- Meckel's cave - dural recess housing the trigeminal (Gasserian) ganglion
- Trigeminal impression - depression on the petrous apex for the trigeminal ganglion
Middle Fossa Surgical Approach (Kawase / House approach)
- Internal auditory canal (IAC) - acoustic neuroma, facial nerve tumors
- Petrous apex lesions
- Trigeminal neuralgia (Meckel's cave)
- Superior semicircular canal dehiscence repair
