Imaging Techniques for Heart Murmurs
Heart murmurs are investigated through a stepwise multimodality imaging strategy. The approach begins with non-invasive bedside and basic imaging, progressing to advanced cross-sectional modalities when needed. The goal is to determine: (1) which valvular or structural abnormality is present, (2) its severity, (3) the degree of ventricular impairment, and (4) whether coronary artery disease co-exists.
Echocardiographic Differential Diagnosis of a Murmur
The echocardiographic workup is organized anatomically, since the clinician often has limited auscultatory data at the time of referral:

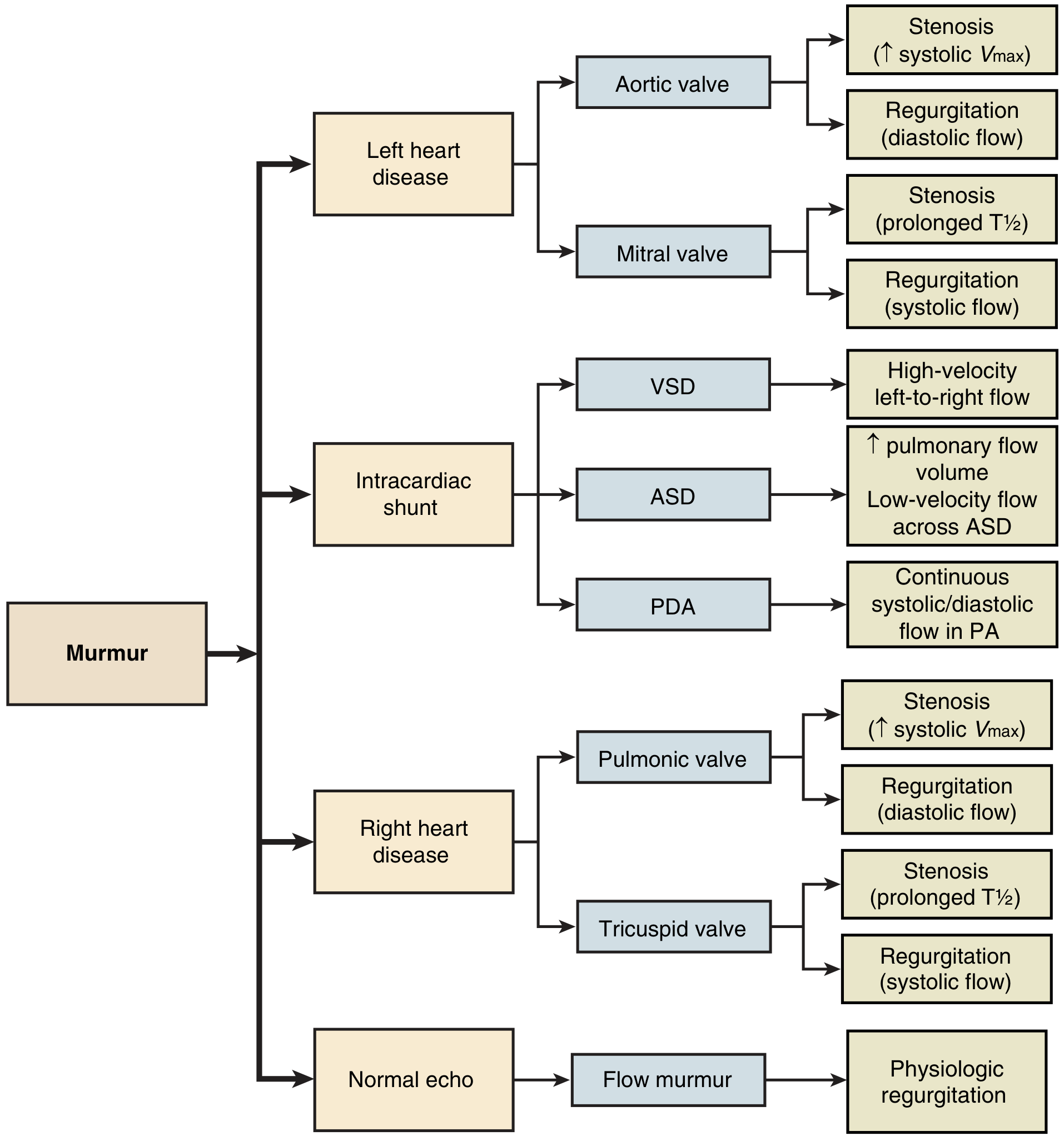

Echocardiographic differential diagnosis of a murmur — arranged by anatomy (left heart, intracardiac shunts, right heart, or normal echo). — Textbook of Clinical Echocardiography, Fig. 5.8
1. Chest Radiograph (CXR)
The first-line plain imaging study. It provides:
- Cardiac silhouette size — cardiomegaly suggests dilated cardiomyopathy or large pericardial effusion
- Pulmonary vascularity — increased flow in ASD/VSD; pulmonary venous congestion in mitral stenosis
- Calcification — calcified aortic valve or ductal calcification in older PDA patients
- Aortic root / ascending aorta dilation — seen in aortic stenosis or regurgitation
A systolic murmur grade ≥3, any diastolic murmur, or an abnormal CXR mandates echocardiography. — Harrison's Principles of Internal Medicine 22E, p. 291
2. Transthoracic Echocardiography (TTE) — Mainstay of Diagnosis
TTE is the primary diagnostic test for virtually all heart murmurs. It provides simultaneous anatomic and physiologic information. Common indications include:
| Clinical Setting | Role of TTE |
|---|---|
| New murmur (grade ≥3 or diastolic) | Initial evaluation of etiology and severity |
| Valve regurgitation | Routine reassessment every 6–12 months |
| Valve stenosis | Routine reassessment every 1–3 years |
| Suspected endocarditis | New murmur + fever/positive blood cultures |
| Prosthetic valve | Baseline postoperative study; reassessment for dysfunction |
TTE Modalities within Echocardiography
| Modality | What it shows |
|---|---|
| 2D imaging | Valve morphology, leaflet structure, chamber size, wall motion |
| M-mode | Precise timing of valve opening/closure, LV dimensions |
| Color flow Doppler | Direction and turbulence of regurgitant jets; shunt detection |
| Continuous-wave (CW) Doppler | Peak velocity and pressure gradient across stenotic valves |
| Pulsed-wave (PW) Doppler | Localization of flow disturbances; pulmonary venous patterns |
Key findings by etiology:
- Aortic stenosis → elevated systolic Vmax; reduced valve area by planimetry
- Aortic regurgitation → diastolic regurgitant flow on color Doppler; holodiastolic reversal in descending aorta
- Mitral stenosis → prolonged pressure half-time (T½); doming leaflets
- Mitral regurgitation → systolic color flow into LA; vena contracta width
- VSD → high-velocity left-to-right flow in interventricular septum
- ASD → increased pulmonary flow volume; low-velocity flow across the defect
- PDA → continuous systolic/diastolic flow in pulmonary artery
Important limitation: When the Doppler beam is not well aligned with the velocity jet, the severity of stenosis will be underestimated. — Fuster and Hurst's The Heart, 15th Ed.
Stress Echocardiography
Exercise or pharmacologic (dobutamine) stress echo reveals hemodynamically significant lesions that are equivocal at rest, particularly in low-gradient aortic stenosis with impaired LV function. — Textbook of Clinical Echocardiography
3. Transesophageal Echocardiography (TEE)
TEE is indicated when:
- TTE windows are limited (obesity, chest deformity, COPD)
- Posterior structures need superior resolution
- Endocarditis is suspected — TEE has convincingly superior sensitivity for paravalvular abscess detection
- Detailed mitral valve anatomy for repair planning
- Intraoperative guidance during valve surgery
TEE should not be reflexively ordered; its slight but definite procedural risk must be weighed against the incremental diagnostic yield. — Textbook of Clinical Echocardiography
4. Cardiac Magnetic Resonance (CMR) Imaging
CMR provides quantitative information not achievable by echo alone:
| Parameter | CMR Capability |
|---|---|
| Regurgitant volume and fraction | Precise phase-contrast velocity mapping |
| Regurgitant orifice area | Planimetry on cine images |
| LV/RV volumes and ejection fraction | Gold standard |
| Myocardial perfusion and fibrosis | Late gadolinium enhancement |
| Aortic valve leaflet number (bi- vs. tricuspid) | When TTE is ambiguous |
| Aortic root and ascending aortic anatomy | Pre-TAVI/pre-surgery planning |
| Shunt quantification | Qp:Qs ratio |
CMR has largely supplanted cardiac catheterization for invasive hemodynamic assessment when there is a discrepancy between clinical and echocardiographic findings in regurgitant valve disease (MR or AR). — Harrison's Principles of Internal Medicine 22E, p. 291
In aortic regurgitation, CMR permits precise assessment of regurgitant volume and assessment of the volume/function of the eccentrically hypertrophied LV — beyond what semiquantitative color Doppler provides. — Grainger & Allison's Diagnostic Radiology
5. Cardiac Computed Tomography (CT / CTA)
| Application | Details |
|---|---|
| Aortic valve anatomy | Leaflet count, calcification, annulus sizing for TAVI |
| Aortic root and ascending aorta | Aneurysm screening (especially with bicuspid valve — ~1/3 develop aortic aneurysm) |
| Coronary CT angiography (CCTA) | Exclude CAD before valve surgery in low-to-intermediate pretest probability patients |
| Paravalvular leak assessment | Post-TAVI evaluation |
Both CMR and cardiac CT provide aortic valve leaflet number assessment when TTE is uncertain about bi- vs. tricuspid morphology. Coronary CTA to exclude CAD prior to valve surgery has gained wide acceptance. — Harrison's Principles of Internal Medicine 22E, p. 291; Goldman-Cecil Medicine
6. Cardiac Catheterization and Invasive Hemodynamics
Now reserved for cases where non-invasive imaging is discordant with clinical findings or inconclusive. Questions addressed:
- Which valvular abnormality is hemodynamically dominant?
- What is the true severity of the lesion?
- What degree of ventricular impairment is present?
- Is there significant coronary artery disease?
Invasive angiography and hemodynamic assessment may still be required for a complete preoperative evaluation in select cases. — Morgan & Mikhail's Clinical Anesthesiology, 7e; Goldman-Cecil Medicine
Summary: Stepwise Imaging Approach
Murmur detected
│
├─ CXR + ECG (first-line)
│
├─ TTE with Doppler (mainstay — evaluates all 4 valves, shunts)
│ ├─ Diagnostic → graded follow-up per severity
│ └─ Non-diagnostic / limited windows
│ │
│ ├─ TEE (posterior structures, endocarditis)
│ ├─ CMR (quantitative regurgitation, shunts, LV/RV function)
│ └─ Cardiac CT (valve anatomy, aorta, coronary exclusion)
│
└─ Cardiac catheterization (if clinical–echo discordance persists)
Key references:
- Textbook of Clinical Echocardiography — TTE/TEE indications, Figs. 5.7–5.8
- Harrison's Principles of Internal Medicine 22E — Integrated murmur workup, pp. 284–291
- Goldman-Cecil Medicine — Valvular heart disease multimodality imaging
- Grainger & Allison's Diagnostic Radiology — CMR/CT in valvular and congenital heart disease
- Morgan & Mikhail's Clinical Anesthesiology, 7e — Preoperative murmur evaluation
