Bronchoscopy - A Camera's-Eye Tour Through the Lungs
Sources: Fischer's Mastery of Surgery 8e, Gray's Anatomy for Students, Murray & Nadel's Respiratory Medicine

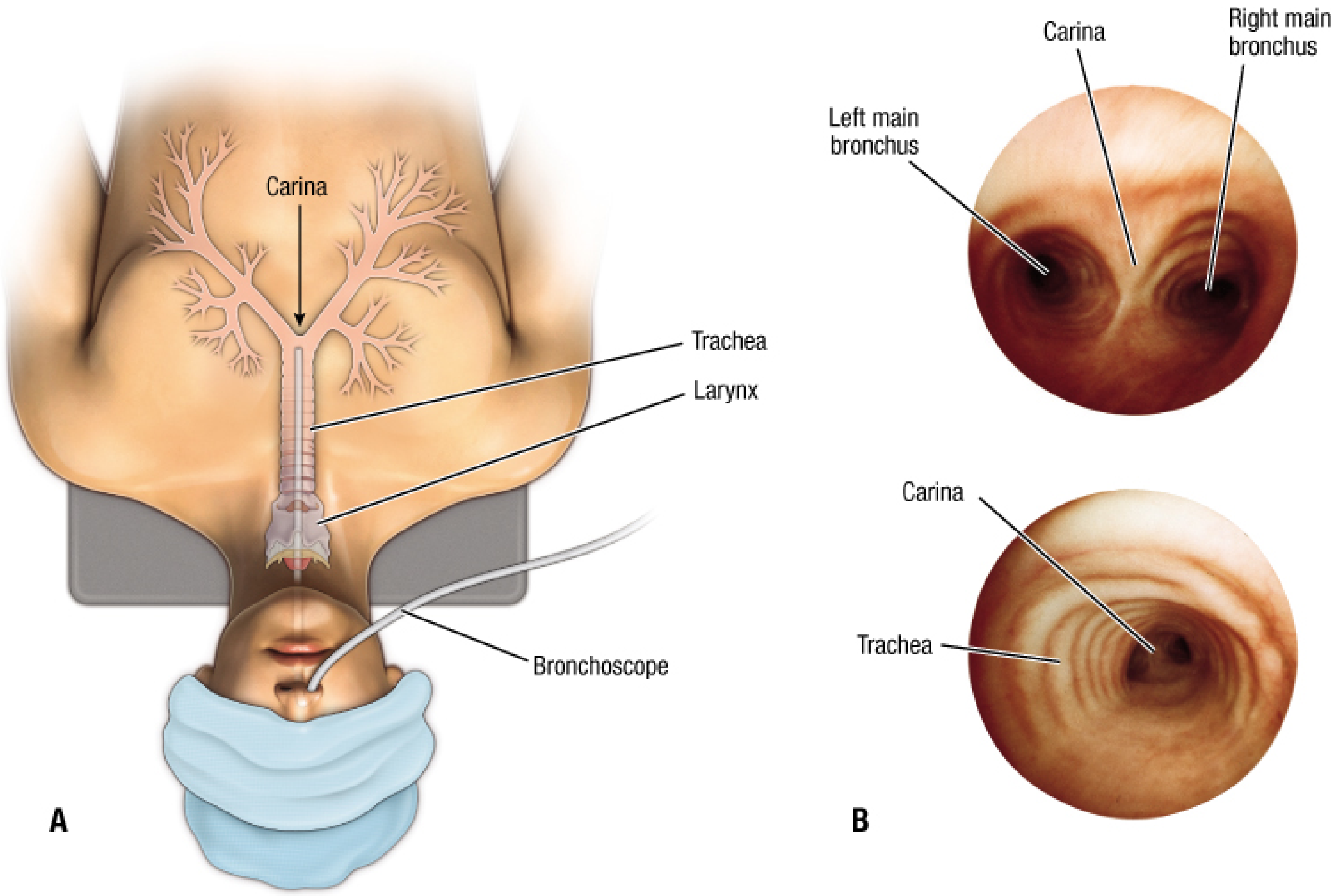

Step 1 - Entry and the Trachea
The bronchoscope enters through the nose (preferred - via the inferior nasal meatus, the widest passage) or orally through the mouth. In intubated ICU patients it passes through the endotracheal tube. The tip is angled 60-90 degrees caudally as it transitions from the nasal cavity into the nasopharynx.
As you glide through the larynx and past the vocal cords, you enter the trachea - about 11 cm long, 2-2.5 cm wide. Key landmarks to orient yourself:
- Anterior: C-shaped cartilaginous rings (hard, prominent)
- Posterior: Smooth membranous wall with longitudinal corrugations that become more prominent approaching the carina
- The trachea is narrowest at its very start (cricoid cartilage - the only complete ring)
Orientation tip: Always identify the tracheal rings first - they confirm you are anterior, which lets you distinguish left from right.
Step 2 - The Carina
Advancing distally, you reach the carina at the level of T4/5 (sternal angle). This is the single most important bronchoscopic landmark.
- It appears as a sharp, narrow, vertical ridge - like an upside-down keel of a boat
- It is widest anteriorly and narrows centrally
- The right main bronchus opens to your right; the left opens to your left
- A normal carina is sharp and pale; widening or blunting suggests subcarinal lymphadenopathy or malignancy
THE RIGHT LUNG - 3 Lobes, 10 Segments
Step 3 - Right Main Bronchus (RMB)
The right main bronchus is shorter and more vertical than the left - this is why misplaced endotracheal tubes preferentially enter here. As you enter, the mucosa looks similar to the trachea but the lumen narrows.
Step 4 - Right Upper Lobe (RUL) - 3 Segments
The RUL orifice opens laterally, typically 2-3 cm from the carina (occasionally directly opposite it). You angle your tip laterally to look inside. There you'll find three segmental orifices on a clock face:
| Segment | Bronchopulmonary | Clock Position |
|---|---|---|
| Apical | B1 | 4 o'clock |
| Anterior | B2 | 12 o'clock |
| Posterior | B3 | 8 o'clock |
The apical segment goes toward the apex (top) of the lung; anterior goes forward toward the chest wall; posterior goes backward.
Step 5 - Intermediate Bronchus
After the RUL takeoff, you re-enter the bronchus intermedius - a short segment (~2 cm) unique to the right side. It carries you toward the middle and lower lobes.
Step 6 - Right Middle Lobe (RML) - 2 Segments
Looking anteriorly in the intermediate bronchus, you'll see the RML orifice. Advance in and find two segments:
| Segment | Bronchopulmonary | Clock Position |
|---|---|---|
| Lateral | B4 | 3-6 o'clock |
| Medial | B5 | 9-12 o'clock |
The RML bronchus quickly bifurcates; these two orifices are relatively close together and can be subtle.
Step 7 - Right Lower Lobe (RLL) - 5 Segments
Returning from the RML and looking directly posterior (opposite the RML orifice) is the first RLL segment:
| Segment | Bronchopulmonary | Clock Position | Notes |
|---|---|---|---|
| Superior (apical) | B6 | 5 o'clock | Just past the middle lobe bronchus; directly POSTERIOR - opposite RML |
| Medial basal | B7 | 9 o'clock | Usually more proximal than other basal segments |
| Anterior basal | B8 | 1 o'clock | |
| Lateral basal | B9 | 3 o'clock | |
| Posterior basal | B10 | 6 o'clock |
Note: In more than half of patients, a subapical (subsuperior) segment is found - its bronchus arises posteriorly anywhere along the inferior lobe bronchus between B6 and the final basilar division.
THE LEFT LUNG - 2 Lobes, 8 Segments (American nomenclature)
Step 8 - Left Main Bronchus (LMB)
Return to the carina and now advance into the left main bronchus. It is:
- Longer than the right (~5 cm)
- Takes a more acute, horizontal angle (about 45-55 degrees from the trachea vs 20-30 on the right)
- Passes under the aortic arch - you may see pulsations transmitted through the wall
Step 9 - Left Upper Lobe (LUL) - 4 Segments (2 divisions)
The LUL orifice lies superior and slightly lateral to the LLL orifice. The LUL bronchus quickly bifurcates into two distinct divisions:
Upper Division (orifice at 8 o'clock):
| Segment | Bronchopulmonary | Notes |
|---|---|---|
| Apicoposterior | B1+3 | Fused on the left - no separate apical/posterior segments |
| Anterior | B2 |
Lingular Division (orifice at 2 o'clock - the "tongue"):
| Segment | Bronchopulmonary | Clock Position |
|---|---|---|
| Superior lingular | B4 | 10 o'clock |
| Inferior lingular | B5 | 2 o'clock |
The lingula is the left lung's analog to the right middle lobe. It's thin and tongue-like, projecting anteriorly. Lingular pneumonia is a common clinical entity.
Step 10 - Left Lower Lobe (LLL) - 4 Segments
The LLL orifice is inferior and slightly medial to the LUL. Advancing in:
| Segment | Bronchopulmonary | Clock Position | Notes |
|---|---|---|---|
| Superior (apical) | B6 | 6 o'clock | Just past origin of lower lobe; posterior |
| Anteromedial basal | B8+7 | 12 o'clock | Fused on left (no separate medial/anterior basal) |
| Lateral basal | B9 | 9 o'clock | |
| Posterior basal | B10 | 5 o'clock |

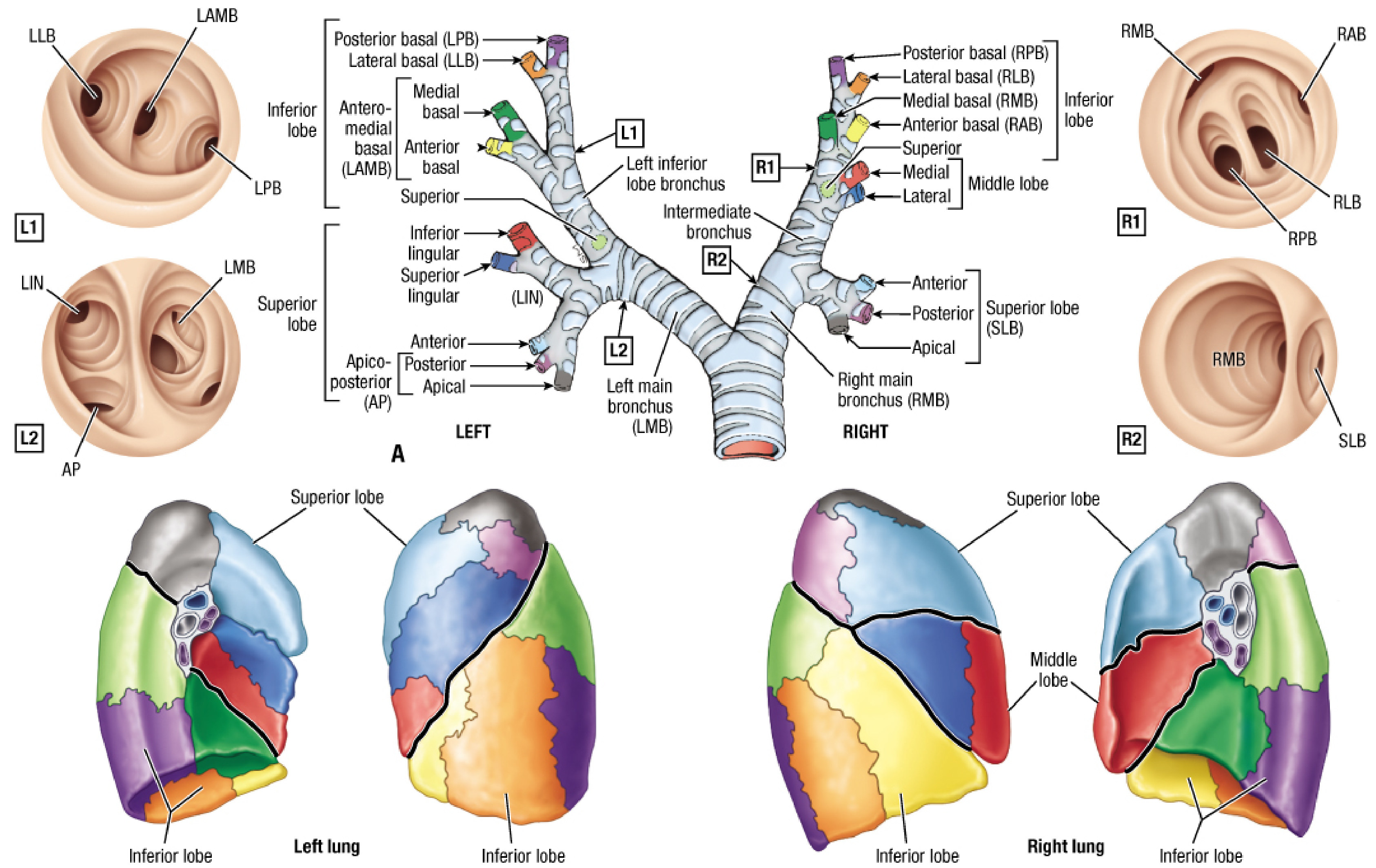

The Full Bronchopulmonary Map
Quick Reference: The Complete Route
NOSE/MOUTH → LARYNX → VOCAL CORDS → TRACHEA → CARINA
│
┌─────────────────────────────────────┼────────────────────────────────────────┐
│ │ │
RIGHT MAIN BRONCHUS LEFT MAIN BRONCHUS
│ │
┌─────────┴──────────┐ ┌───────────────┴──────────────┐
│ │ │ │
RUL Bronchus Intermedius LUL LLL
B1 (Apical) │ Upper Division B6 (Superior)
B2 (Anterior) ┌─────┴──────┐ B1+3 (Apicopost.) B7+8 (Anteromedial basal)
B3 (Posterior) │ │ B2 (Anterior) B9 (Lateral basal)
RML RLL Lingular Division B10 (Posterior basal)
B4 (Lateral) B6 (Superior) B4 (Sup. lingular)
B5 (Medial) B7 (Med. basal) B5 (Inf. lingular)
B8 (Ant. basal)
B9 (Lat. basal)
B10 (Post. basal)
Key Clinical Pearls from the Camera's Perspective
| Finding | Significance |
|---|---|
| Widened, blunted carina | Subcarinal lymph node enlargement (malignancy, sarcoidosis, TB) |
| RUL orifice directly at carina | Normal variant - don't mistake for pathology |
| Pulsating LMB wall | Normal - transmitted aortic pulsation |
| RMB shorter, more vertical | ETT misplacement goes here preferentially |
| B6 directly opposite RML | Classic "posterior sentinel" - never miss it |
| Peripheral lesions beyond segmentals | Not visible by camera - need radial EBUS, ENB, or robotic bronchoscopy |
| Mucosal irregularity/bleeding | Endobronchial malignancy - biopsy here |
The right lung has 10 segments; the left has 8 in American nomenclature (B1+B3 fused into B1+3, and B7+B8 fused into anteromedial basal) - though British literature recognizes 10 on the left as well.
- Fischer's Mastery of Surgery 8e, pp. 2055-2059
- Gray's Anatomy for Students, p. 218
- Murray & Nadel's Textbook of Respiratory Medicine, p. 558
