Anatomy of Internal Jugular (IJ) Catheterization for Hemodialysis

Why the IJ Vein is Preferred

The right internal jugular (IJ) vein is the first-choice site for hemodialysis catheter placement, favored by KDOQI and KDIGO guidelines. The right IJ provides a nearly straight path from the neck into the superior vena cava (SVC) and then to the right atrium, minimizing catheter tip malposition and dysfunction. The left IJ is a secondary option - it requires a longer catheter (the tip must cross the midline), and outcomes (dysfunction, infection) are generally inferior when tip depth is inadequate.

The preference hierarchy is: Right IJ > Femoral veins > Left IJ > Subclavian (last resort).

Subclavian access is actively avoided in dialysis patients because subclavian cannulation causes central vein stenosis at a higher rate than IJ catheters, which can permanently destroy the ipsilateral arm's options for future AV fistula/graft creation.

Brenner and Rector's The Kidney, p. 2820
Comprehensive Clinical Nephrology, 7th Ed., p. 1027

Relevant Anatomy

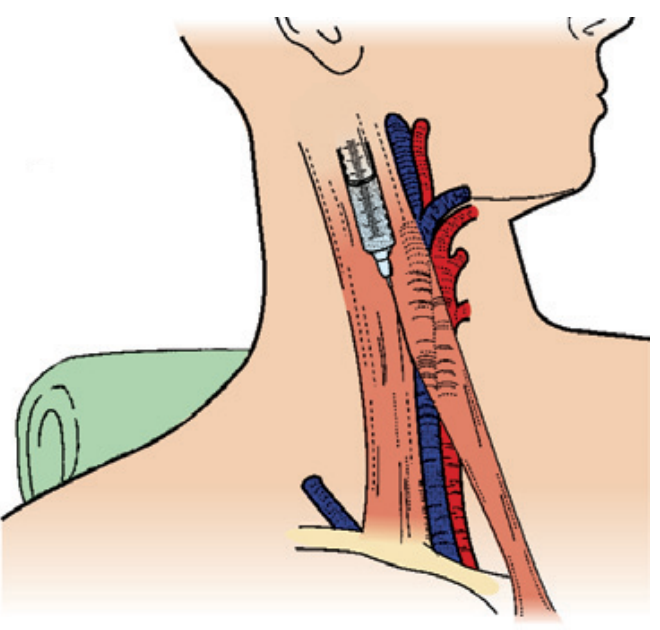

Needle approach to the internal jugular vein, showing the IJ vein lateral to the carotid artery within the SCM triangle

Figure: Needle approach to the IJ vein - note the IJ vein (blue) running lateral to the carotid artery (red), within the groove formed by the sternal and clavicular heads of the SCM muscle.

Key anatomical relationships:

The IJ vein emerges at the apex of the triangle formed by the two heads (sternal and clavicular) of the sternocleidomastoid (SCM) muscle as they diverge inferiorly
The IJ runs along the anterior border of the clavicular head of the SCM, just lateral to the common carotid artery
The IJ, carotid artery, and vagus nerve are all enclosed in the carotid sheath
At its lower end, the IJ joins the subclavian vein behind the sternoclavicular joint to form the brachiocephalic (innominate) vein
The brachiocephalic veins converge to form the SVC, which drains into the right atrium
The right IJ follows an almost straight, vertical course into the SVC - this is why it is anatomically preferred over the left

Structures at risk during IJ cannulation:

Structure	Location	Risk
Common carotid artery	Medial to IJ	Arterial puncture (most common complication)
Vagus nerve	Posterior in carotid sheath	Rare nerve injury
Recurrent laryngeal nerve	Deep/medial	Hoarseness
Phrenic nerve	Anterior to anterior scalene	Paralysis of ipsilateral hemidiaphragm
Brachial plexus	Posterior triangle	Neurological deficit
Thoracic duct (left only)	At left IJ-subclavian junction	Chylothorax
Apex of pleura	At base of neck	Pneumothorax (less common than subclavian)

Pfenninger and Fowler's Procedures for Primary Care, 3rd Ed.

Procedural Anatomy (Central Approach)

Patient positioning: Trendelenburg (15-30 degrees head-down) to distend the IJ vein, reduce air embolism risk, and bring the vein closer to the surface. Head is turned slightly to the contralateral side.

Insertion site: Just at, or slightly caudal to, the apex of the SCM triangle - the V-shaped groove formed between the sternal and clavicular heads of the SCM muscle. This is typically at or just above the level of the thyroid cartilage.

Needle angle and direction:

Insert at a 30-degree angle to the skin
Aim toward the ipsilateral nipple (or the ipsilateral anterior superior iliac spine in larger patients)
Return of dark, non-pulsatile blood confirms venous entry

Three classic approaches:

Approach	Entry Point	Direction
Central (most common)	Apex of SCM triangle	Toward ipsilateral nipple, 30° to skin
Anterior	Medial to SCM (at midpoint)	Lateral, toward IJ at 45°
Posterior	Behind SCM (posterior border)	Anteroinferior under SCM

The central approach is most commonly used for hemodialysis catheters because ultrasound easily targets the vein at this location.

Pfenninger and Fowler's Procedures for Primary Care, 3rd Ed., p. 1525-1542

Catheter Course and Tip Placement

Real-time ultrasound-guided access to the right internal jugular vein for tunneled hemodialysis catheter placement

Figure: Ultrasound-guided access to the right IJ vein for tunneled hemodialysis catheter placement.

For hemodialysis catheters, the tip must sit in a large, high-flow vessel to sustain blood flow rates of 300-400 mL/min without recirculation:

Optimal tip position: Atriocaval junction (junction of SVC and right atrium), or within the mid-to-lower right atrium
If the tip is too high (in the SVC proper), blood flow rates are suboptimal and dysfunction is more common

Catheter path for tunneled IJ catheters:

Vein entry at IJ (at the neck, above the clavicle)
A subcutaneous tunnel is created running lateral and inferior, under the clavicle, approximately 5-7 cm from the initial needle entry site
The tunnel exit (skin exit site) is typically in the infraclavicular region, roughly 1-2 cm below the clavicle, midway between the sternal and humeral heads of the clavicle
A Dacron cuff sits in the tunnel ~2 cm from the exit site - this anchors the catheter and creates a mechanical barrier against infection

Brenner and Rector's The Kidney, p. 2910

Catheter Length by Access Site

Using the Peres formula (from Comprehensive Clinical Nephrology, 7th Ed., p. 1027):

Access Site	Formula	Accuracy
Right internal jugular	Height (cm) / 10	90%
Left internal jugular	Height (cm) / 10 + 4 cm	94%
Right subclavian	Height (cm) / 10 - 2 cm	96%
Left subclavian	Height (cm) / 10 + 2 cm	97%

Standard catheter sizes: 14.5-16 French, lengths of 24 cm (right IJ), 28 cm (left IJ), and 36-42 cm (femoral).

Ultrasound Guidance

Real-time ultrasound is strongly recommended (Grade 1A recommendation per SCCM guidelines) for IJ cannulation. Ultrasound:

Confirms vein compressibility (differentiating it from the non-compressible carotid artery)
Identifies anatomical variants (IJ sitting medial to carotid in ~5% of patients)
Reduces arterial puncture and first-pass failure
Particularly important in patients with obesity, short necks, prior neck surgery, or prior IJ catheters

Ultrasound views:

Short-axis (transverse): See the IJ as a round, compressible, non-pulsatile vessel lateral to the pulsatile carotid; needle appears as a bright dot
Long-axis: Shows the needle tip coursing into the vein in real time - reduces "posterior wall" puncture
Miller's Anesthesia, 10e; Fischer's Mastery of Surgery, 8e

Complications Specific to IJ Access for HD

Complication	Notes
Arterial puncture (carotid)	Most common; managed with direct compression
Pneumothorax	Less common than subclavian; risk is low with IJ approach
IJ thrombosis	~25% of tunneled catheters (usually asymptomatic)
Catheter dysfunction	Due to fibrin sheath, intraluminal clot, or tip malposition
Exit site / tunnel infection	Risk reduced by Dacron cuff in tunneled catheters
Catheter-related bacteremia	Major long-term morbidity; lower with tunneled vs. non-tunneled
Central vein stenosis	Less common with IJ than subclavian access
Air embolism	Prevented by Trendelenburg positioning during insertion

The right IJ has a lower dysfunction rate than the left IJ, largely due to its straighter course into the SVC without requiring the catheter to traverse a more tortuous angle.

Brenner and Rector's The Kidney; Comprehensive Clinical Nephrology, 7th Ed.
