Structure of the Hip Joint for Biomechanics

Per Levangie & Norkin - Joint Structure and Function: A Comprehensive Analysis (4th/5th ed.), Chapter 10: The Hip Complex

Overview

1. Proximal Articular Surface - The Acetabulum

Formation

Articular Surface

• The lunate surface (horseshoe-shaped) is the true articular area, lined with hyaline cartilage
• The acetabular fossa is the non-articular central depression, filled with the fat pad and housing the ligamentum teres attachment
• The acetabulum is deficient inferiorly at the acetabular notch, bridged by the transverse acetabular ligament

Center Edge (CE) Angle of Wiberg

• Normal adults: ~38° in men, ~35° in women (range 22°-42°)
• A decreased CE angle = shallow acetabulum = less coverage = greater instability risk and predisposition to hip dysplasia

Acetabular Anteversion

Acetabular Labrum

• A fibrocartilaginous rim attached to the bony acetabular margin
• Deepens the acetabulum and increases the surface area contacting the femoral head
• Acts as a gasket/seal, creating negative intra-articular pressure that contributes significantly to hip stability (Norkin notes that atmospheric pressure in hip flexion plays a stronger stabilizing role than capsuloligamentous structures)
• Enhances joint lubrication when properly fitted to the femoral head
• The transverse acetabular ligament is considered part of the labrum (inferiorly), though it contains no cartilage cells; it protects blood vessels traversing the acetabular notch

2. Distal Articular Surface - The Femoral Head and Neck

Femoral Head

• Represents approximately two-thirds of a sphere
• Covered with hyaline cartilage except at the fovea capitis (small pit for ligamentum teres attachment)
• Faces superiorly, medially, and anteriorly

Angle of Inclination (Neck-Shaft Angle)

• Normal adult: ~125° (range 115°-140°)
• At birth: ~150° - decreases with weight-bearing during childhood
• Coxa valga: angle >125° - brings weight-bearing line closer to the femoral shaft, reduces bending stress on neck, but decreases abductor muscle moment arm, requiring greater abductor force for pelvic stabilization; also reduces acetabular coverage, predisposing to dislocation
• Coxa vara: angle <115° - increases bending stress on the femoral neck (greater shear force), but increases abductor moment arm (mechanically more efficient abductors)

Angle of Anteversion (Femoral Torsion)

• Normal adult: ~15°-20° anterior (anteversion)
• Newborn: ~31°; decreases ~1.5°/year until ~age 15
• Increased anteversion (>20°): femoral head faces more anteriorly than the acetabulum - joint incongruence; leads to toe-in gait, risk of anterior impingement and OA
• Retroversion (<15° or posterior): head faces posteriorly, risk of posterior instability
• The neck-shaft angle offsets the femoral shaft laterally from the pelvis, giving the hip abductor muscles their working moment arm

3. Articular Congruence

• Maximum congruence: occurs with combined flexion, abduction, and lateral rotation - this matches the fetal/infant position and is the position of maximum joint surface contact
• Close-packed position: hip extension with slight abduction and medial rotation - ligaments wind tightly around femoral head/neck, drawing the head into the acetabulum, giving maximum capsuloligamentous stability
• When the hip is neither maximally congruent nor close-packed (e.g., flexion + adduction), it is most vulnerable to traumatic dislocation

4. Hip Joint Capsule and Ligaments

Capsule

• Attaches proximally to the entire acetabular periphery (beyond the labrum)
• Thickened anterosuperiorly where predominant weight-bearing stresses occur
• Thin and loosely attached posteroinferiorly
• Contains longitudinal and oblique fibers; circumferential fibers near the proximal attachment form the zona orbicularis - a locking ring around the femoral neck that resists distraction forces

Three Extracapsular Ligaments

• Each hip motion is checked by at least one portion of one ligament
• All ligaments and the capsule tighten maximally with full hip extension
• Anterior ligaments (especially iliofemoral) are stronger/stiffer than posterior

Intracapsular Ligament

• Ligamentum teres (ligament of the femoral head): runs from the acetabular fossa/transverse ligament to the fovea capitis; encloses the artery to the femoral head (branch of obturator artery); plays a minor mechanical role in adults but provides a proprioceptive function and is a minor stabilizer in extreme positions

5. Structural Adaptations to Weight-Bearing

Trabecular Architecture of the Proximal Femur

• Principal compressive group: runs from the medial femoral cortex superiorly to the femoral head - resists compressive loads
• Principal tensile group: runs from the lateral cortex, arching superiorly to the femoral head - resists tensile/bending loads
• Ward's triangle: a relatively weak area between the two principal groups; site of susceptibility to femoral neck fractures
• The greater trochanteric group reinforces the region of abductor force transmission

Acetabular Weight-Bearing

• The superior dome of the acetabulum bears the predominant compressive load in standing
• In bilateral stance: joint reaction force ≈ 1/3 body weight per hip
• In unilateral stance (single-leg stance during gait): abductor muscles must contract vigorously to prevent contralateral pelvic drop (Trendelenburg), generating a total joint reaction force of approximately 3× body weight (and up to 6× BW during running)
• Norkin calculates that ~2/3 of the total hip abductor force (~917 N) acts vertically downward on the pelvis; ~1/3 (~454 N) pulls the pelvis laterally into the femoral head, producing a net compressive force of ~1605 N through the primary weight-bearing area

6. Summary: Form Follows Function

"The mature shape of the head of the femur and the acetabulum is determined by the functional interaction between these two structures."

• Normal loading during infancy and childhood is required for the acetabulum to develop its correct depth and the femoral head its spherical shape
• Disruption (e.g., developmental dysplasia of the hip) causes a shallow acetabulum, reduced CE angle, poor coverage, and biomechanically inefficient abductor moment arms
• Every structural angle (CE angle, neck-shaft angle, anteversion) has direct biomechanical consequences for force distribution, muscle efficiency, and stability

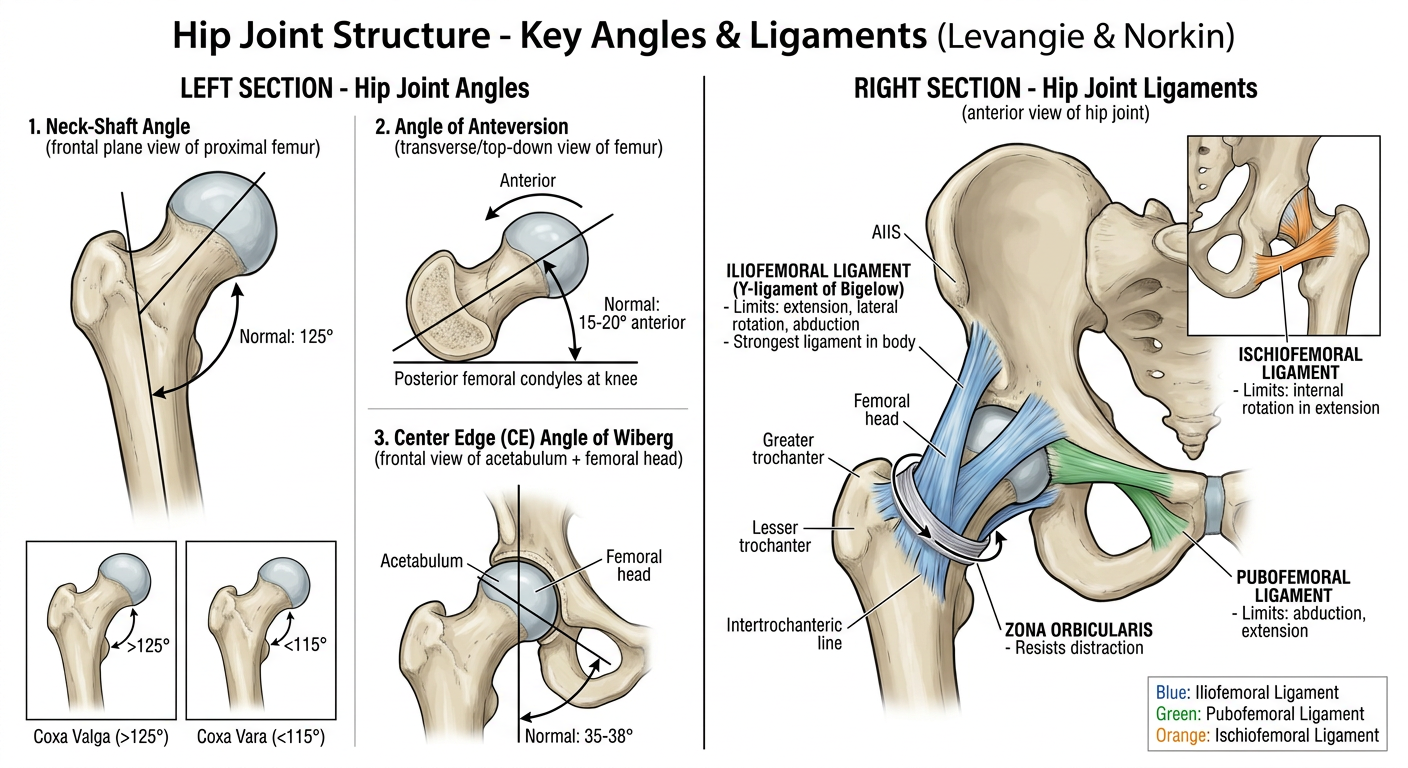

• Neck-Shaft Angle (frontal plane): Normal 125°, with coxa valga (>125°) and coxa vara (<115°) variants
• Angle of Anteversion (transverse plane): Normal 15-20° anterior twist of femoral neck relative to knee condyle axis
• Center Edge (CE) Angle of Wiberg: Normal 35-38°, measuring acetabular coverage/roof over the femoral head

• Iliofemoral (Y-ligament of Bigelow) - blue: the strongest ligament in the body; limits extension, lateral rotation, abduction
• Pubofemoral - green: limits abduction and extension
• Ischiofemoral - orange (posterior): limits internal rotation in extension
• Zona orbicularis: circular fibers around femoral neck resisting distraction

🦴 Structure of the Hip Joint for Biomechanics

(Levangie & Norkin - Joint Structure and Function)

1. OVERVIEW

• Ball-and-socket (spheroidal) synovial joint
• Formed by: femoral head (ball) + acetabulum (socket)
• Must balance two demands: stability (weight-bearing) + mobility (locomotion)
• Connects axial skeleton to lower extremity

2. PROXIMAL ARTICULAR SURFACE - The Acetabulum

• Formed by 3 bones meeting at the triradiate cartilage:
  • Ilium (superior)
  • Ischium (posteroinferior)
  • Pubis (anteroinferior)
• Triradiate cartilage fuses by age 20-25 years

• Lunate surface = horseshoe-shaped, lined with hyaline cartilage = true articular area
• Acetabular fossa = central non-articular depression; contains fat pad + ligamentum teres attachment
• Acetabular notch = inferior gap; bridged by transverse acetabular ligament

• Acetabulum faces laterally + inferiorly + anteriorly

3. CENTER EDGE (CE) ANGLE OF WIBERG

• Formed between:
  • A vertical line through the center of the femoral head
  • A line from the center of femoral head to the lateral rim of the acetabulum
• Measures the amount of acetabular coverage / "roof" over the femoral head
• Normal values:
  • Men: ~38°
  • Women: ~35°
  • Range both sexes: 22°-42°
• Decreased CE angle = shallow acetabulum = less coverage = instability + dysplasia risk

4. ACETABULAR ANTEVERSION

• Acetabulum faces slightly anteriorly (anteversion)
• Normal: ~17°
• Works in combination with femoral anteversion to determine joint congruence
• Mismatch between femoral and acetabular anteversion → incongruence → OA risk

5. ACETABULAR LABRUM

• Fibrocartilaginous rim attached to bony acetabular margin
• Functions:
  • Deepens the acetabulum → increases surface contact area
  • Creates a gasket/seal → generates negative intra-articular pressure
  • Negative pressure contributes MORE to stability than capsuloligamentous structures (especially in hip flexion)
  • Enhances joint lubrication
• Transverse acetabular ligament = inferior portion of labrum (no cartilage cells); protects blood vessels at acetabular notch

6. DISTAL ARTICULAR SURFACE - Femoral Head & Neck

• Represents approximately 2/3 of a sphere
• Covered with hyaline cartilage except at the fovea capitis (attachment of ligamentum teres)
• Faces superiorly + medially + anteriorly

7. ANGLE OF INCLINATION (Neck-Shaft Angle)

• Angle between femoral neck axis and femoral shaft in the frontal plane
• Normal adult: ~125° (range 115°-140°)
• At birth: ~150° → decreases as child starts weight-bearing

8. ANGLE OF ANTEVERSION (Femoral Torsion)

• Angle of femoral neck relative to femoral shaft in the transverse plane
• Measured between: line through knee condyles vs. line through femoral head/neck
• Normal adult: ~15°-20° anterior
• Developmental change:
  • Newborn: ~31°
  • Decreases ~1.5°/year until age 15
• Deviations:

9. ARTICULAR CONGRUENCE

• Maximum congruence (maximum surface contact):
  • Position = Flexion + Abduction + Lateral rotation
  • Matches fetal/infant position
• Close-packed position (maximum ligamentous stability):
  • Position = Extension + slight Abduction + Medial rotation
  • Ligaments wind tightly around femoral neck, drawing head into acetabulum
• Most vulnerable position (neither congruent nor close-packed):
  • Flexion + Adduction → highest dislocation risk

10. HIP JOINT CAPSULE

• Far more substantial and stronger than the shoulder capsule
• Structure: dense irregular fibrous tissue with longitudinal + oblique fibers
• Proximal attachment: entire acetabular periphery, beyond the labrum
• Thickened anterosuperiorly → where predominant weight-bearing stresses occur
• Thin posteroinferiorly → relatively weak area
• Zona orbicularis: circular deep fibers encircling femoral neck like a ring → resists distraction forces

11. HIP JOINT LIGAMENTS

a) Iliofemoral Ligament (Y-Ligament of Bigelow)

• Origin: Anterior inferior iliac spine (AIIS) + acetabular rim
• Insertion: Intertrochanteric line (two bands = inverted Y-shape)
• Strongest ligament in the human body
• Limits: Extension, lateral rotation, abduction

b) Pubofemoral Ligament

• Origin: Superior pubic ramus
• Insertion: Anterior intertrochanteric fossa (blends with iliofemoral)
• Limits: Abduction + extension

c) Ischiofemoral Ligament

• Origin: Ischial portion of acetabular rim (posterior)
• Insertion: Posterior femoral neck / greater trochanter
• Limits: Internal rotation in extension

Key points about all ligaments:

• Every hip motion is checked by at least one ligament
• All ligaments tighten maximally with full hip extension
• Anterior ligaments (especially iliofemoral) are stronger/stiffer than posterior

d) Ligamentum Teres (Intracapsular)

• Runs from acetabular fossa to fovea capitis of femoral head
• Encloses: artery to femoral head (branch of obturator artery)
• Minor mechanical role in adults
• Provides proprioceptive function + minor stabilizer in extreme positions

12. STRUCTURAL ADAPTATIONS TO WEIGHT-BEARING

Trabecular Architecture (Wolff's Law)

• Cancellous bone organizes along lines of stress:
  • Principal compressive group: medial cortex → femoral head (resists compression)
  • Principal tensile group: lateral cortex → arches to femoral head (resists bending)
  • Ward's triangle: weak area between groups → common fracture site
  • Greater trochanteric group: reinforces abductor force transmission zone

Joint Reaction Forces

Abductor Muscle Role in Unilateral Stance

• Abductors (gluteus medius + minimus) must contract to prevent contralateral pelvic drop (Trendelenburg)
• ~2/3 of abductor force (~917 N) acts vertically downward on pelvis
• ~1/3 of abductor force (~454 N) pulls pelvis laterally into femoral head
• Net compressive force through weight-bearing area: ~1605 N (>360 lb)

13. KEY NORKIN PRINCIPLE - Form Follows Function

"The mature shape of the femoral head and acetabulum is determined by the functional interaction between these two structures."

• Normal mechanical loading during infancy/childhood → correct acetabular depth + spherical femoral head
• Disrupted loading (e.g., developmental dysplasia) → shallow acetabulum, reduced CE angle, poor coverage, inefficient abductor moment arms
• Every structural angle (CE, neck-shaft, anteversion) has direct biomechanical consequences for force distribution, muscle efficiency, and joint stability
