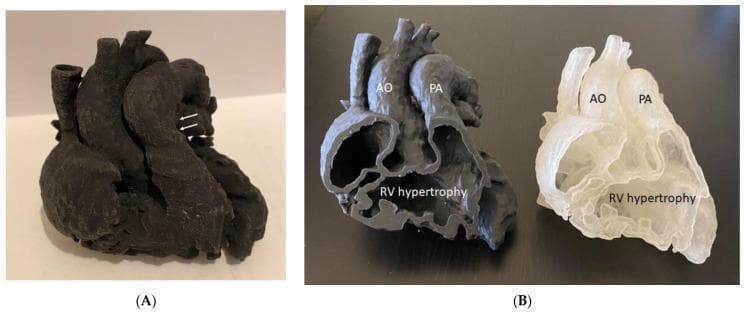

This educational image displays 3D-printed heart models used to demonstrate the complex anatomy of Tetralogy of Fallot (ToF). Panel A shows a monolithic, dark-colored model from an external perspective; white arrows point to the pulmonary artery, highlighting pulmonary artery stenosis. Panel B illustrates the same heart model printed in two sagittal halves using different material colors (opaque dark grey and translucent white). This cross-sectional view provides a detailed internal anatomical study of the four hallmark features of ToF: the overriding aorta (labeled AO), pulmonary artery stenosis (labeled PA), and significant right ventricular hypertrophy (labeled RV hypertrophy). The sectioned view allows for clear visualization of the thickened right ventricular myocardial wall and the spatial relationship between the great vessels and the ventricular chambers. These models serve as high-fidelity educational tools for surgical planning and understanding congenital heart disease (CHD) manifestations.

This educational image displays 3D-printed heart models used to demonstrate the complex anatomy of Tetralogy of Fallot (ToF). Panel A shows a monolithic, dark-colored model from an external perspective; white arrows point to the pulmonary artery, highlighting pulmonary artery stenosis. Panel B illustrates the same heart model printed in two sagittal halves using different material colors (opaque dark grey and translucent white). This cross-sectional view provides a detailed internal anatomical study of the four hallmark features of ToF: the overriding aorta (labeled AO), pulmonary artery stenosis (labeled PA), and significant right ventricular hypertrophy (labeled RV hypertrophy). The sectioned view allows for clear visualization of the thickened right ventricular myocardial wall and the spatial relationship between the great vessels and the ventricular chambers. These models serve as high-fidelity educational tools for surgical planning and understanding congenital heart disease (CHD) manifestations.

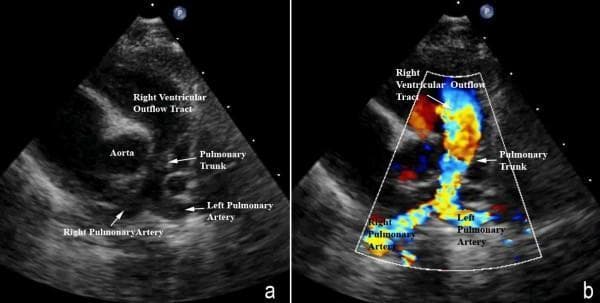

Two-panel diagnostic ultrasound image demonstrating Tetralogy of Fallot anatomy and hemodynamics. Panel (a) is a 2D grayscale echocardiogram in a modified parasternal short-axis view showing the right ventricular outflow tract (RVOT), the aorta, and the pulmonary arteries. There is significant hypoplasia of the pulmonary trunk and the right and left pulmonary arteries, resulting from the antero-cephalad deviation of the outlet septum. The pulmonary valve leaflets are not clearly visualized. Panel (b) utilizes color Doppler imaging to map blood flow through the same structures. It reveals marked turbulence and flow acceleration, represented by a mosaic of red, yellow, and blue colors, beginning at the level of the deviated outlet septum in the RVOT. This high-velocity turbulent flow continues through the stenotic, hypoplastic pulmonary trunk into the pulmonary artery branches. This clinical imaging is essential for assessing the severity of subpulmonary obstruction and hypoplasia in congenital heart disease management.

Two-panel diagnostic ultrasound image demonstrating Tetralogy of Fallot anatomy and hemodynamics. Panel (a) is a 2D grayscale echocardiogram in a modified parasternal short-axis view showing the right ventricular outflow tract (RVOT), the aorta, and the pulmonary arteries. There is significant hypoplasia of the pulmonary trunk and the right and left pulmonary arteries, resulting from the antero-cephalad deviation of the outlet septum. The pulmonary valve leaflets are not clearly visualized. Panel (b) utilizes color Doppler imaging to map blood flow through the same structures. It reveals marked turbulence and flow acceleration, represented by a mosaic of red, yellow, and blue colors, beginning at the level of the deviated outlet septum in the RVOT. This high-velocity turbulent flow continues through the stenotic, hypoplastic pulmonary trunk into the pulmonary artery branches. This clinical imaging is essential for assessing the severity of subpulmonary obstruction and hypoplasia in congenital heart disease management.

Searching PubMed

"tetralogy of fallot"[MeSH Terms] AND management

Reading File
Reading File
Reading File
Reading File
Reading File
Reading File
Loading Image
Loading Image
Reading File
Loading Image
Loading Image
I now have comprehensive, authoritative information from multiple textbooks along with excellent diagrams. I have everything needed for a thorough response.

Tetralogy of Fallot (TOF) - A Comprehensive Overview

What Is It?

Tetralogy of Fallot is the most common cyanotic congenital heart defect, accounting for approximately 5% of all congenital cardiac malformations. It is defined by a classic group of four anatomical abnormalities, all arising from a single embryological error. - Robbins & Kumar Basic Pathology, p. 273

The Four Defects (The "Tetrad")

Classic Tetralogy of Fallot - Robbins diagram showing VSD, overriding aorta, RV hypertrophy, and pulmonic stenosis
#DefectDetails
1Ventricular Septal Defect (VSD)Large, unrestrictive, misaligned defect near the membranous portion of the interventricular septum
2Right Ventricular Outflow Tract (RVOT) ObstructionSubpulmonary (infundibular) stenosis is most common; pulmonary valve stenosis can also contribute; in extreme cases, pulmonary atresia
3Overriding AortaThe aortic root straddles the VSD and receives blood from both ventricles
4Right Ventricular Hypertrophy (RVH)Secondary to the pressure load imposed by RVOT obstruction

Embryological Basis

All four features arise from a single embryological event: anterosuperior (anterocephalad) displacement of the infundibular (outlet) septum. This leads to:
  • Abnormal septation between the pulmonary trunk and the aortic root
  • Unequal division of the truncus arteriosus - the pulmonary side becomes stenotic/small while the aorta enlarges
  • The VSD is a direct consequence of the malaligned septum failing to meet the rest of the interventricular septum
  • The Developing Human: Clinically Oriented Embryology, p. 847
  • Robbins & Kumar Basic Pathology, p. 283

Gross Morphology (Pathological Anatomy)

  • The heart is enlarged and boot-shaped ("coeur en sabot") - a classic X-ray finding - due to right ventricular hypertrophy
  • The proximal aorta is dilated; the pulmonary trunk is hypoplastic
  • Left-sided chambers are normal in size
  • The right ventricular wall is markedly hypertrophied - sometimes exceeding the thickness of the left ventricle
  • The VSD is large, near the membranous septum, with the aortic valve immediately overriding it
  • RVOT obstruction is most commonly infundibular (subpulmonic), but can also be valvular or combined
  • Robbins & Kumar Basic Pathology, p. 288-290

Associated Anomalies

  • Right aortic arch: present in ~25% of patients
  • Anomalous coronary arteries: most commonly the left anterior descending (LAD) arises from the right coronary artery (RCA) and crosses the RVOT - has important surgical implications
  • ASD (creating a pentalogy of Fallot)
  • Pulmonary artery hypoplasia: reported in up to 50%
  • Down syndrome (Trisomy 21): can coexist with AVSD variant
  • MAPCAs (Major Aortopulmonary Collateral Arteries): present in ~15% - an extreme TOF variant (TOF with pulmonary atresia) where no direct heart-to-pulmonary artery connection exists
  • Braunwald's Heart Disease, p. 2776-2778

Pathophysiology

Right-to-Left Shunt

TOF right-to-left shunt diagram
The degree of cyanosis depends almost entirely on how severe the RVOT obstruction is:
  • Mild RVOT obstruction: high left-sided pressure causes a left-to-right shunt - patient is acyanotic ("Pink Tet" or "acyanotic TOF"). Clinically resembles an isolated VSD.
  • Severe RVOT obstruction: deoxygenated blood from the RV is forced right-to-left across the VSD into the overriding aorta - producing cyanosis
  • This causes: decreased pulmonary blood flow + increased aortic volumes of mixed (deoxygenated) blood
  • Robbins & Kumar Basic Pathology, p. 292; Rosen's Emergency Medicine, p. 1384

Clinical Features

In Infants and Children

FeatureDetails
CyanosisVaries - may be absent at birth; worsens with crying and feeding; progressive with age
ClubbingFingers and toes - from chronic hypoxemia
PolycythemiaCompensatory response to chronic hypoxia
Systolic ejection murmurAlong the left sternal border (from RVOT obstruction - not from VSD itself)
Single S2Soft or absent pulmonary component due to low PA pressure
Squatting postureOlder children squat after exertion - increases SVR, reduces right-to-left shunt

In Adults with Repaired TOF

  • Shortness of breath on exertion
  • Palpitations and syncope
  • Diastolic to-and-fro murmur in the pulmonary area = pulmonary regurgitation
  • RV heave + single S2 when PR is severe
  • Overt right heart failure (hepatomegaly, elevated JVP, edema) is uncommon
  • Braunwald's Heart Disease, p. 2787-2789; Rosen's Emergency Medicine, p. 1384-1388

The "Tet Spell" (Hypercyanotic / Hypoxic Spell)

This is a potentially life-threatening emergency, most common in infants aged 2-4 months.

Mechanism (Vicious Cycle):

Tet spell pathophysiology flowchart
Any trigger (crying, defecation, fever, hypovolemia, tachycardia) that lowers SVR or increases infundibular spasm → increased right-to-left shunting → ↓PaO₂ + ↑PCO₂ + ↓pH → stimulates hyperpnea → increased negative intrathoracic pressure → increased venous return to RV → more blood shunted right-to-left → worsening hypoxia (self-perpetuating cycle).

Emergency Management of Tet Spell:

StepInterventionRationale
1Knee-to-chest positionIncreases SVR → reduces R→L shunt
2Supplemental O₂Limited value alone, but helpful
3Morphine 0.1-0.2 mg/kg IV/IMReduces hyperpnea and infundibular spasm
4Fentanyl 1 μg/kg IV/IM (or 1.5-2 μg/kg intranasal)Alternative to morphine
5Sodium bicarbonate 1 mEq/kg IVIf acidosis documented or suspected
6Ketamine 1-2 mg/kg IV or 3-5 mg/kg IMIncreases SVR, provides sedation
7Propranolol 0.1-0.2 mg/kgReduces infundibular spasm
8Phenylephrine 0.01-0.02 mg/kg IVPure alpha agonist - rapidly raises SVR
  • Rosen's Emergency Medicine, Box 165.8, p. 1414-1436

Investigations

Chest X-Ray

  • Boot-shaped heart (coeur en sabot) - from RVH with uplifted apex
  • Decreased pulmonary vascular markings
  • Right aortic arch in 25%
  • Normal heart size

ECG

  • Right ventricular hypertrophy (tall R in V1, deep S in V5-V6)
  • Right axis deviation
  • Complete right bundle branch block (RBBB) - common in surgically repaired patients

Echocardiography

  • Gold standard for diagnosis
  • Identifies all four components of the tetrad
  • Assesses severity of RVOT obstruction, VSD size, aortic override degree
  • Color Doppler shows direction and magnitude of shunt
  • Monitors pulmonary regurgitation and RV function post-repair

Cardiac MRI (CMR)

  • Best for quantifying RV volume and function post-repair
  • Measures pulmonary regurgitant fraction (significant PR = regurgitant fraction ≥40%)
  • Assesses branch pulmonary arteries, RVOT aneurysms, and coronary anatomy
  • Late gadolinium enhancement correlates with adverse outcomes

Cardiac Catheterization

  • Rarely needed for diagnosis
  • Used pre-operatively in complex cases (TOF with pulmonary atresia, MAPCAs assessment)
  • Braunwald's Heart Disease, p. 2793-2807

Surgical Management

Braunwald's diagram - Native TOF anatomy (A) and post-repair anatomy with potential sequelae (B)

Primary Repair (Definitive)

Since its introduction in the 1950s, complete surgical repair offers >90% survival beyond 40 years from repair. The repair involves:
  1. VSD closure with a patch
  2. RVOT reconstruction - resection of RV muscle bundles; may include pulmonary valvotomy or transannular patch
  3. Goal: avoid transannular patch where possible to preserve pulmonary valve integrity (reduces long-term pulmonary regurgitation)
Recent meta-analyses (PMID 39444206, PMID 40659877) confirm that early primary repair is now favored over staged repair even in symptomatic neonates.

Staged Repair (Historical / Selected Cases)

  • Blalock-Taussig-Thomas (BTT) shunt: subclavian artery to pulmonary artery - palliative, increases pulmonary blood flow
  • Still used in very small or complex anatomy cases before definitive repair
  • TOF with pulmonary atresia + MAPCAs: requires unifocalization of MAPCAs + VSD closure + RV-to-PA conduit

Transcatheter Pulmonary Valve Replacement

A recent systematic review (PMID 40122137) compares surgical pulmonary valve redo vs. transcatheter pulmonary valve replacement (TPVR) - TPVR is increasingly a viable alternative for adults with dysfunctional RVOT conduits.

Long-Term Complications After Repair

ComplicationDetails
Pulmonary regurgitation (PR)Most common sequela, especially after transannular patch repair
RV dilatation and dysfunctionConsequence of chronic PR - leads to arrhythmia, heart failure
RVOT aneurysmAkinetic areas at repair site
Residual VSDAt patch edges
Aortic root dilatation + aortic regurgitationProgressive in adults
ArrhythmiasAtrial and ventricular tachyarrhythmias; sustained VT risk increases with RV dilatation
Sudden cardiac death (SCD)~2% over 20 years post-repair; associated with VT, large RV, QRS duration >180 ms
EndocarditisLifelong risk
Pulmonary valve replacementIndicated when RV ESV index >80 mL/m² or symptomatic severe PR
  • Braunwald's Heart Disease, p. 2823-2835

Prognosis

  • Without surgery: ~25% die in the first year, ~40% by age 3, ~70% by age 10
  • With timely surgical repair: life expectancy is near-normal for uncomplicated anatomy
  • All patients require lifelong follow-up at ACHD (Adult Congenital Heart Disease) centers
  • BNP level is predictive of mortality in adults with repaired TOF

Quick Summary Table

FeatureKey Point
Most common cyanotic CHDYes (beyond infancy)
Prevalence~5% of all CHD
Root causeAnterocephalad deviation of outlet septum
Degree of cyanosis depends onSeverity of RVOT obstruction
"Pink Tet"Mild RVOT obstruction - acyanotic
Classic CXRBoot-shaped heart, decreased pulmonary markings
Tet spell triggerDrop in SVR (crying, defecation)
First-line tet spell maneuverKnee-to-chest position
Definitive treatmentComplete surgical repair (VSD patch + RVOT reconstruction)
Most common post-repair complicationPulmonary regurgitation
Sources:
  • Braunwald's Heart Disease: A Textbook of Cardiovascular Medicine (10e), Chapter 82
  • Robbins & Kumar Basic Pathology, Chapter 9
  • Rosen's Emergency Medicine, Chapter 165
  • The Developing Human: Clinically Oriented Embryology
  • Recent meta-analyses: PMID 39444206, PMID 40659877, PMID 40122137
