Clinical Importance of the Thorax - 1st Year Medical Student Guide
The thorax is arguably the most clinically significant region you will study in your first year. Nearly every structure within it has direct relevance to physical examination, bedside procedures, imaging, and life-threatening emergencies. Below is a systematic breakdown organized by structure.
1. Surface Anatomy and Rib Counting - The Foundation of Physical Examination
Before you can examine anything in the thorax, you must be able to locate structures on the surface.

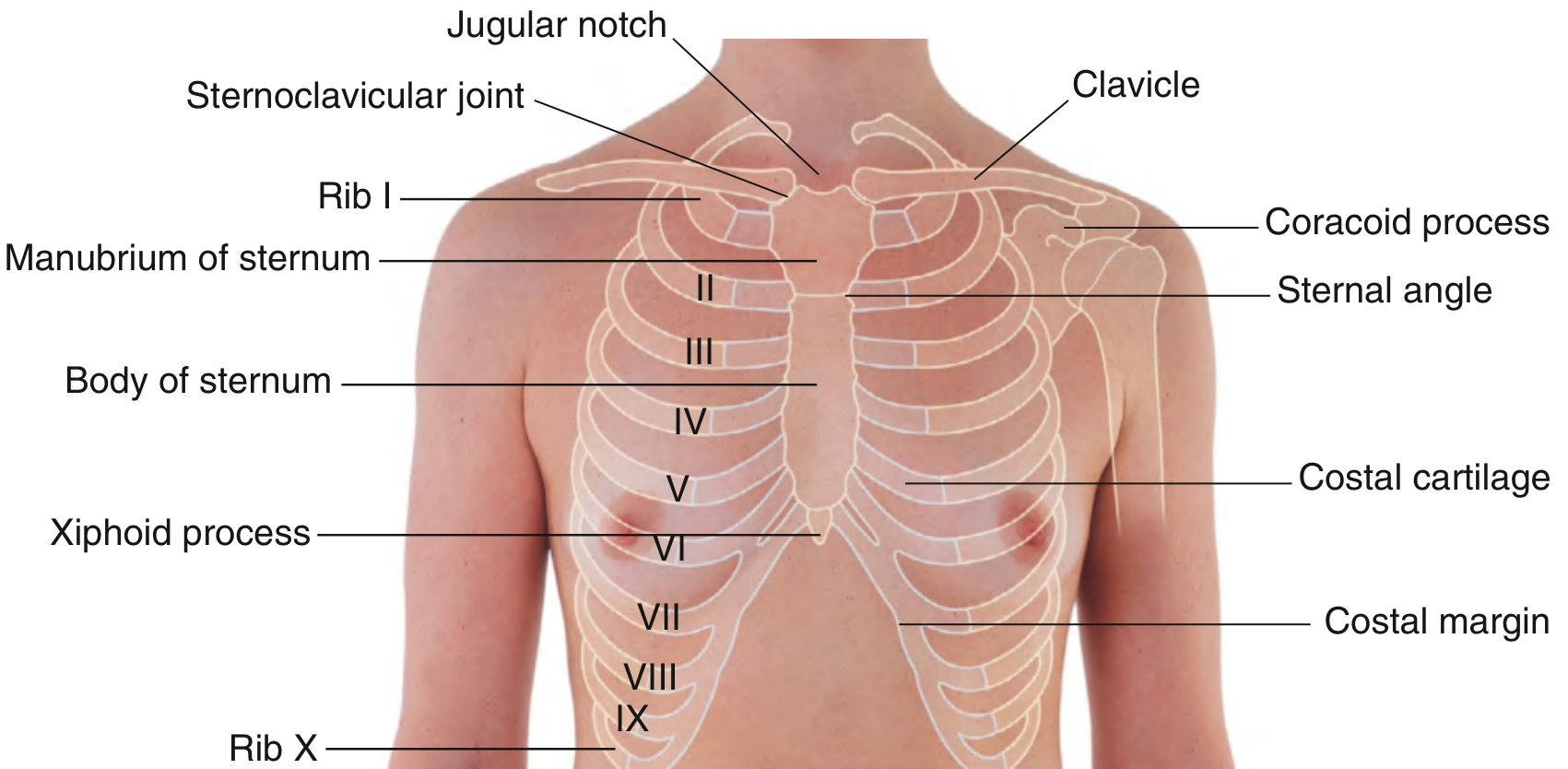

The sternal angle (angle of Louis) is your single most important bony landmark. It marks the articulation between the manubrium and body of the sternum, and the costal cartilage of rib II attaches here. From rib II, you count downward and laterally to identify all other ribs. This matters because:
- The 4th intercostal space (left, mid-clavicular line) is where you auscultate the mitral valve
- The 2nd intercostal space (right sternal border) is where you auscultate the aortic valve
- The cardiac apex (formed by the left ventricle) lies deep to the left 5th intercostal space, 8-9 cm from the midsternal line - this is where you palpate the apex beat
- The 4th or 5th intercostal space, anterior/mid-axillary line is the safe zone for inserting a chest drain
"The ability to visualize how anatomical structures in the thorax are related to surface features is fundamental to a physical examination." - Gray's Anatomy for Students
2. The Thoracic Wall - Rib Fractures and Flail Chest
Single rib fractures are extremely painful but of little immediate physiological consequence. However, when ribs are broken in two or more places on multiple ribs, a flail segment is created. This loose segment moves paradoxically - inward during inspiration instead of outward - because it is no longer mechanically coupled to the rest of the chest wall. This severely impairs ventilation and may require assisted ventilation until healing occurs.
Key clinical point: Always suspect underlying pneumothorax or haemothorax with rib fractures.
3. The Intercostal Neurovascular Bundle - Why "Above the Rib" Matters
The neurovascular bundle (intercostal vein, artery, nerve - VAN from superior to inferior) runs in the costal groove on the inferior surface of each rib. This means:
- When inserting a needle into the pleural space (thoracocentesis, chest drain, intercostal nerve block), you always enter over the superior border of the lower rib to avoid the bundle
- Violating this rule risks haemothorax, iatrogenic pneumothorax, or nerve injury
Intercostal nerve blocks (T1-T11) produce excellent analgesia after chest trauma, thoracotomy, mastectomy, or upper abdominal surgery. The anesthetic is injected near the subcostal groove under ultrasound guidance.
4. The Pleura and Pleural Space - Pneumothorax and Effusions
The parietal pleura lines the inner thoracic wall; the visceral pleura covers the lung. Between them is the pleural cavity containing a small film of fluid allowing frictionless breathing movements.
Pneumothorax - air in the pleural space - collapses the lung. It can be:
- Spontaneous (tall, thin young men - rupture of a pleural bleb)
- Traumatic (rib fracture, stab wound)
- Iatrogenic (from intercostal nerve block, central line insertion, lung biopsy)
Chest drain insertion (thoracostomy tube): Placed in the 4th-5th intercostal space, anterior to mid-axillary line, passed over the superior rib border. Under ultrasound guidance, the clinician can assess whether a pleural effusion is simple/free-flowing or loculated before committing to a drain site.
5. The Lungs - Lobes, Fissures, and Auscultation
- Right lung: 3 lobes (upper, middle, lower), separated by the horizontal and oblique fissures
- Left lung: 2 lobes (upper and lower), separated by the oblique fissure only, with a tongue-like lingula projecting over the cardiac notch
Why fissures matter for auscultation: Because the oblique fissure runs steeply (from T3/T4 posteriorly to rib VI anteriorly), the posterior chest is dominated by the lower lobes, not the upper lobes. A student who only listens anteriorly will miss the majority of lower lobe pathology (e.g., pneumonia, effusion).
The right lung relates medially to the SVC, IVC, azygos vein, heart, and esophagus. The left lung relates to the heart, aortic arch, thoracic aorta, and esophagus. This explains why mediastinal masses can compress and cause lung collapse.

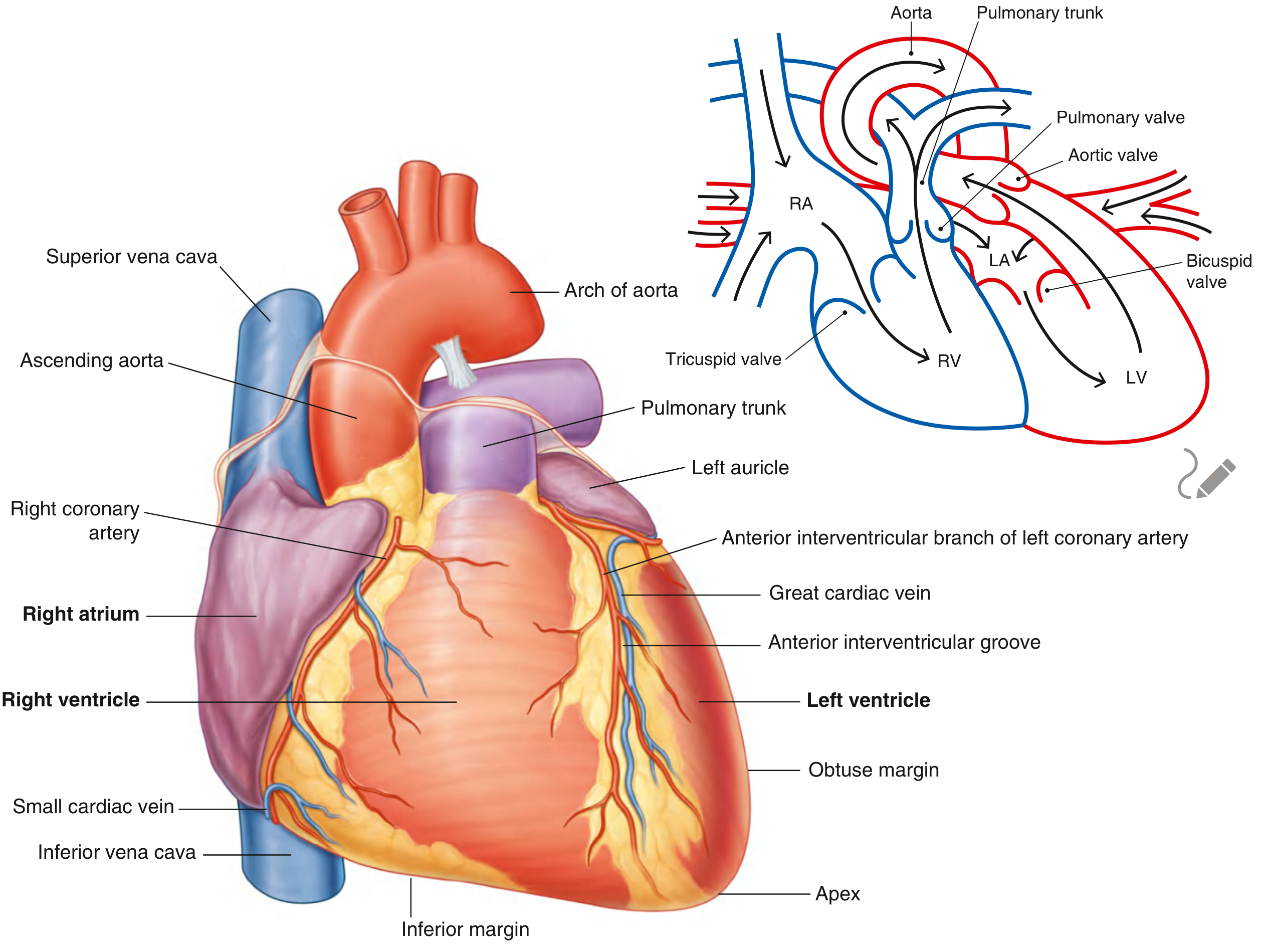

6. The Heart - Chambers, Valves, and Coronary Arteries
Surface projections of cardiac valves (used for auscultation):
| Valve | Anatomical position | Best heard at |
|---|---|---|
| Pulmonary | Left 2nd intercostal space | Left 2nd ICS, sternal border |
| Aortic | Right 2nd intercostal space | Right 2nd ICS, sternal border |
| Tricuspid | Left lower sternal border | Left 4th-5th ICS |
| Mitral | Left 5th ICS, mid-clavicular | Apex (cardiac apex beat) |
The anterior surface of the heart is mostly right ventricle - this is why blunt trauma to the sternum (steering wheel injuries) most commonly causes right ventricular contusion.
7. Coronary Arteries - Heart Attack Anatomy
The left coronary artery divides into:
- Left anterior descending (LAD) / anterior interventricular artery - supplies the anterior wall of the left ventricle and the anterior two-thirds of the interventricular septum
- Circumflex branch - supplies the left atrium and posterior left ventricle
The right coronary artery (RCA) supplies the right atrium, right ventricle, and in most people (right-dominant) the posterior interventricular branch (PDA), supplying the SA and AV nodes.
Clinical correlation: LAD occlusion ("widow maker") causes anterior MI and is the most common and most lethal. RCA occlusion can cause inferior MI and heart block (since the AV node is supplied by the RCA in ~90% of people).
In percutaneous coronary intervention (PCI), a catheter is passed from the femoral or radial artery up through the aorta to the coronary ostia to treat blockages - knowledge of this arterial route is fundamental anatomy.
8. Cardiac Innervation - Referred Pain and Autonomic Control
Sympathetic stimulation increases heart rate and force of contraction. Parasympathetic (vagal) stimulation decreases heart rate, reduces contractility, and constricts coronary arteries.
Visceral afferents from the heart travel back to the spinal cord via the T1-T4 cardiac nerves (sympathetic pathways). This explains referred pain in myocardial infarction:
- Pain is felt in the left arm, jaw, neck, and shoulder because these dermatomes share the same spinal cord segments as the cardiac afferents (T1-T4)
- This is called convergent referred pain and it is why an MI does not always present as "chest pain"
9. The Sternum - Bone Marrow Biopsy
Because the sternum is subcutaneous and accessible, a needle can be passed through its hard cortex into the medullary cavity to aspirate bone marrow. Sternal bone marrow biopsy helps diagnose leukaemia and other haematological disorders - a procedure made possible by thoracic surface anatomy.
10. The Mediastinum - Mass Lesions and Surgical Anatomy
The mediastinum is divided by the sternal angle plane into superior and inferior. The inferior is further divided into anterior, middle (pericardial sac), and posterior compartments.
Why it matters clinically:
- Anterior mediastinum masses: Thymoma (associated with myasthenia gravis), teratoma, lymphoma, thyroid goitre ("4 T's")
- Middle mediastinum masses: Pericardial cysts, lymphoma
- Posterior mediastinum masses: Neurogenic tumours (schwannoma), aortic aneurysm
The thymus in the anterior mediastinum is relevant because ectopic parathyroid glands from the 3rd pharyngeal pouch can be found within it - relevant to persistent hyperparathyroidism after surgery.
11. The Diaphragm - Breathing and Referred Pain
The diaphragm is innervated by the phrenic nerve (C3, C4, C5) - "C3, C4, C5 keep the diaphragm alive." Irritation of the diaphragm (e.g., by subphrenic abscess, ruptured ectopic pregnancy, blood under the diaphragm) causes referred pain to the shoulder tip because the phrenic nerve shares its origin with the supraclavicular nerves.
Three key openings and their vertebral levels (essential for OSCE and clinical clerking):
- T8 - IVC and right phrenic nerve (caval hiatus)
- T10 - oesophagus + vagus nerves (oesophageal hiatus)
- T12 - aorta + thoracic duct (aortic hiatus)
A mnemonic: I (8) Eat (10) Aorta (12) or I 8 (ate) 10 eggs At 12.
Summary Table for Revision
| Structure | Key Clinical Point |
|---|---|
| Sternal angle | Identifies rib II; landmark for all rib counting |
| Rib fractures | Multiple = flail chest = paradoxical breathing |
| Neurovascular bundle | Always insert needle ABOVE the rib (below = danger) |
| Pleural space | Pneumothorax, effusion - drain via 4th/5th ICS |
| Lung lobes/fissures | Posterior chest = lower lobes; auscultate accordingly |
| Cardiac apex | Left 5th ICS, 8-9 cm from midsternal line |
| LAD artery | Most common site of lethal MI |
| Cardiac afferents (T1-T4) | Explains referred pain to arm/jaw in MI |
| Sternal bone marrow | Accessible for biopsy; diagnoses leukaemia |
| Phrenic nerve (C3,4,5) | Diaphragm innervation; shoulder tip referred pain |
| T8/T10/T12 | IVC / oesophagus / aorta pass through diaphragm |
All content sourced from Gray's Anatomy for Students, Chapter 3 (Thorax), which remains the gold-standard reference for 1st year thoracic anatomy with clinical correlates.
Your explanation so mature please tell me as a bigeninner
No problem! Let me break it down in simple, everyday language - like explaining it to someone who just walked into their very first anatomy class.
The Thorax (Chest) - Explained Simply 🫁❤️
First, What Even IS the Thorax?
The thorax = your chest. Simple as that.
It's the area between your neck and your belly button region. It's like a protective cage that holds your most important organs:
- Your heart (pumps blood)
- Your lungs (breathe air)
- Big blood vessels (the highways blood travels through)
Why Should You Care About It as a Medical Student?
Because almost every patient you will ever see will have something to do with the chest - chest pain, difficulty breathing, heart attack, pneumonia. If you don't understand the chest, you can't be a doctor.
Let's Start With the Bones - The "Cage"
Think of the chest like a bird cage protecting the organs inside.
The cage is made of:
- Ribs - 12 pairs of curved bones
- Sternum - the flat bone in the middle of your chest (you can feel it right now if you press the center of your chest)
- Vertebrae - the spine at the back
The ONE landmark you must know: The Sternal Angle
Run your finger down the middle of your chest. You'll feel a small bump/ridge - that's the sternal angle.
Why does it matter? Because rib 2 attaches right there. From rib 2, you count down to find any other rib. Doctors use this every single day when examining patients.
The Intercostal Spaces - Gaps Between the Ribs
Between each pair of ribs is a gap called an intercostal space.
Inside each gap there are 3 things (a bundle):
- A vein
- An artery
- A nerve
They sit at the bottom edge of the upper rib (like hiding under an umbrella).
Why does this matter?
When a doctor needs to insert a needle into the chest (to drain fluid or air), they ALWAYS go just above the lower rib - NOT below the upper rib - because going below the upper rib means hitting the blood vessel and nerve.
Simple rule: "Go over the top of the lower rib" - always!
The Lungs - Two Balloons in Your Chest
You have two lungs - one on each side.
- Right lung - has 3 sections (lobes)
- Left lung - has 2 sections (lobes) - it's slightly smaller because the heart takes up some space on the left side
Why does this matter?
When a doctor listens to your lungs with a stethoscope, they need to know where to place it to hear each lobe. Most of the lower lobes are actually heard from the back, not the front. That's why doctors always listen to your back too.
The Heart - Your Body's Pump
The heart sits slightly to the left side of your chest (not dead center like people think).
It has 4 rooms (chambers):
- Top left and right = Atria (receiving chambers - blood comes in)
- Bottom left and right = Ventricles (pumping chambers - blood goes out)
4 Valves = 4 Doors
Between the chambers there are valves - like one-way doors that stop blood flowing backwards.
Doctors can listen to each valve using a stethoscope placed at specific spots on the chest. Abnormal sounds = a problem with that valve.
The Coronary Arteries - The Heart's Own Blood Supply
Here's something surprising: the heart needs its own blood supply. It can't just use the blood passing through it.
Two main arteries supply the heart:
- Left coronary artery - supplies the main pumping muscle (left ventricle)
- Right coronary artery - supplies the right side and the heart's electrical system
Heart Attack - Explained Simply
A heart attack happens when one of these arteries gets blocked (usually by a fatty clot). The muscle that artery was feeding starts to die because it's not getting oxygen.
The most famous one is a blockage in the LAD (left anterior descending) artery - nicknamed the "widow maker" because it's the most dangerous.
Why Does a Heart Attack Cause Arm/Jaw Pain?
This is one of the coolest things in medicine and it confuses everyone at first.
The pain signals from the heart travel to the same area of the spinal cord as the signals from your left arm and jaw. The brain gets confused - it thinks the pain is coming from the arm/jaw.
That's why heart attack patients often say:
- "My left arm feels heavy"
- "My jaw hurts"
- NOT always "my chest hurts"
This is called referred pain and it can save lives if you know about it.
The Pleural Space - The Lung's "Wrapper"
Each lung is wrapped in a thin cover called the pleura - like cling wrap around a sandwich.
Between the two layers of this wrap is a tiny space. Normally it's just a potential space with a thin film of fluid.
Two big problems:
1. Pneumothorax (collapsed lung)
Air gets into that space. Now the lung has no grip on the chest wall and it collapses like a deflated balloon. The patient feels sudden chest pain and can't breathe properly.
2. Pleural Effusion
Fluid (blood, infection fluid, etc.) collects in that space. It squashes the lung from outside.
The fix: Chest Drain
A tube is inserted between the ribs to let the air or fluid out. Inserted in the 4th or 5th intercostal space at the side of the chest - and yes, always above the lower rib (remember that rule!).
The Diaphragm - Your Breathing Muscle
The diaphragm is a dome-shaped muscle at the bottom of the chest. It separates the chest from the belly.
When it contracts (pulls down) → chest gets bigger → air rushes into the lungs.
When it relaxes (moves back up) → chest gets smaller → air rushes out.
Every single breath you take is powered by the diaphragm.
It's controlled by the phrenic nerve (comes from the neck, levels C3, C4, C5).
Easy memory trick: "C3, 4, 5 - keeps the diaphragm alive"
Weird fact about referred pain:
If something irritates the bottom of the diaphragm (like blood collecting under it), the pain is felt in the shoulder tip - not the belly. Again, that's referred pain. Knowing this stops doctors from missing diagnoses.
The Sternum - More Than Just a Bone
The sternum isn't just part of the cage. Because it's very close to the surface and easy to reach, doctors can push a needle into it to collect bone marrow (the soft stuff inside bones that makes blood cells).
This helps diagnose blood cancers like leukaemia.
The Big Summary - Why Every Part Matters
| Structure | Think of it as... | Why it matters |
|---|---|---|
| Ribs + sternum | A protective cage | Fractures = breathing problems |
| Sternal angle | Your compass | Counts ribs = finds organs |
| Neurovascular bundle | Hidden pipes under ribs | Stay ABOVE the rib with needles |
| Lungs | Two balloons | Different lobes = different listening spots |
| Heart | A 4-room pump | Each room/valve examined from specific chest spot |
| Coronary arteries | Heart's own fuel pipes | Blocked = heart attack |
| Referred pain | Brain getting confused | Arm/jaw pain can mean heart attack |
| Pleural space | Lung's wrapping gap | Can fill with air/fluid = emergency |
| Diaphragm | Breathing engine | Phrenic nerve = C3, 4, 5 |
The key message is this: every piece of thorax anatomy connects to something you'll actually do with a patient - listening, examining, treating, or recognizing an emergency. That's what makes it so important from day one. 😊
