20 Diseases and Their ECG Changes

Here is a detailed, exam-ready reference of 20 conditions with their characteristic ECG findings, sourced from authoritative textbooks including Harrison's, Braunwald's, Rosen's, and others.

1. Acute Myocardial Infarction (STEMI)

PhaseECG Finding
Hyperacute (minutes)Tall, peaked (hyperacute) T waves
Early (hours)ST elevation (convex/tombstone), loss of R wave
EstablishedPathological Q waves (>1 mm wide, >25% of R height)
Reperfusion/oldT-wave inversion, persistent Q waves
  • ST elevation in contiguous leads: inferior (II, III, aVF), anterior (V1-V4), lateral (I, aVL, V5-V6)
  • Reciprocal ST depression in mirror leads
Rosen's Emergency Medicine, differential of ST elevation listed as the classic template

2. Non-STEMI / Unstable Angina

  • ST depression (horizontal or downsloping) in affected territory
  • T-wave inversion (deep, symmetric "Wellens' pattern" in V2-V3 = critical LAD stenosis)
  • No pathological Q waves
  • May have no ECG changes at all

3. Acute Pericarditis

Classic 4-stage evolution:
StageECG Finding
Stage IDiffuse concave ST elevation (saddle-shaped) in most leads; PR depression (especially lead II); PR elevation in aVR
Stage IIST returns to baseline; T waves flatten
Stage IIIDiffuse T-wave inversion
Stage IVNormalization
Key distinguishing features from MI: diffuse (not lead-specific), no reciprocal changes, PR depression, no Q waves.
Goldman-Cecil Medicine; Braunwald's Heart Disease

4. Hyperkalemia

Progressive ECG changes correlating with serum K+ level:
K+ LevelECG Finding
5.5-6.5 mEq/LTall, symmetric, narrow peaked T waves (best in precordial leads)
6.5-7.5 mEq/LPR interval prolongation; P wave flattening/loss
7.0-8.0 mEq/LQRS widening (sine-wave pattern)
>8.0 mEq/LVentricular fibrillation / asystole
Also seen in Addison's disease (adrenal insufficiency) which causes hyperkalemia.
Harrison's 22nd edition; Morgan & Mikhail's Clinical Anesthesiology

5. Hypokalemia

  • Flattening or inversion of T waves
  • Prominent U waves (best seen in V2-V3; U wave > T wave = significant)
  • ST segment depression
  • Prolonged QU interval (mistaken for prolonged QT)
  • Severe: prolonged PR, widened QRS, decreased voltage
  • Risk of ventricular arrhythmias and Torsades de Pointes
Washington Manual; Rosen's Emergency Medicine (with ECG image)

6. Hypercalcemia

  • Shortened QT interval (most classic finding - shortens the ST segment)
  • Prolonged PR interval
  • Prolonged QRS
  • T-wave flattening and widening
  • Can progress to AV block, complete heart block, and cardiac arrest
  • Osborn J waves can occasionally be seen
Schwartz's Surgery; Harrison's; Rosen's Emergency Medicine

7. Hypocalcemia

  • Prolonged QT interval (specifically prolonged ST segment / QTc)
  • May have T-wave inversion
  • Risk of ventricular arrhythmias including Torsades de Pointes
  • Seen in hypoparathyroidism, vitamin D deficiency, post-thyroidectomy
Comprehensive Clinical Nephrology; Harrison's; Miller's Review of Orthopaedics

8. Pulmonary Embolism (PE)

Classic but insensitive findings:
  • S1Q3T3: Deep S wave in lead I, Q wave in lead III, T-wave inversion in lead III
  • Sinus tachycardia (most common finding)
  • New right bundle branch block (complete or incomplete)
  • P pulmonale (peaked P waves)
  • Right axis deviation
  • T-wave inversions in V1-V4 (right heart strain)
  • Atrial fibrillation
Rosen's Emergency Medicine

9. Hypothermia

  • Osborn wave (J wave): Positive deflection at the J point (junction of QRS and ST), best seen in V4-V6 and inferior leads. Classic for hypothermia.
  • Bradycardia (often the first sign)
  • PR, QRS, and QT prolongation (all intervals widen)
  • Atrial fibrillation
  • Shivering artifact
  • Risk of ventricular fibrillation <28°C

10. Hypertrophic Cardiomyopathy (HCM)

  • Left ventricular hypertrophy (LVH) pattern (high voltage: Sokolow-Lyon criteria: S in V1 + R in V5/V6 >35 mm)
  • Asymmetric septal hypertrophy: deep, narrow Q waves ("dagger" Q waves) in lateral leads (I, aVL, V5-V6) and inferior leads - these mimic infarction but without ST changes
  • ST depression and T-wave inversions
  • Left axis deviation
  • P mitrale (bifid P waves) if left atrial enlargement

11. Dilated Cardiomyopathy

  • Sinus tachycardia
  • Left bundle branch block (LBBB) is common
  • LVH pattern
  • Non-specific ST-T changes
  • Left axis deviation
  • Q waves (fibrosis mimicking infarction)
  • Atrial fibrillation
  • Ventricular ectopy

12. Wolff-Parkinson-White (WPW) Syndrome

  • Short PR interval (<120 ms)
  • Delta wave: slurred upstroke of the QRS (pre-excitation)
  • Wide QRS (>120 ms total due to delta wave fusion)
  • Pseudo-ST changes and pseudo-Q waves (secondary to pre-excitation)
  • Paroxysmal supraventricular tachycardia (PSVT) on rhythm strip
  • Risk: atrial fibrillation with rapid conduction to ventricles -> VF

13. Complete Heart Block (3rd Degree AV Block)

  • Dissociation of P waves and QRS complexes (no relationship between them)
  • P-P interval regular; R-R interval regular - but independent of each other
  • Bradycardia
  • Wide QRS if ventricular escape rhythm (junctional = narrow QRS ~40-60 bpm; ventricular = wide QRS ~20-40 bpm)

14. Atrial Fibrillation

  • Absent P waves - replaced by fine irregular fibrillatory baseline (f waves)
  • Irregularly irregular R-R intervals (hallmark)
  • Ventricular rate variable (controlled vs. uncontrolled)
  • QRS usually narrow unless aberrant conduction

15. Digoxin Toxicity / Effect

Digoxin effect (therapeutic):
  • "Reverse tick" or "Salvador Dali mustache" ST depression - downsloping ST with upward curve
  • Shortened QT interval
  • T-wave flattening or inversion
  • PR prolongation (enhanced vagal tone)
Digoxin toxicity:
  • Any arrhythmia, especially PAT with block (paroxysmal atrial tachycardia with AV block - pathognomonic)
  • Bidirectional ventricular tachycardia
  • VF
  • Regularization of AF (if previously in AF - suspect dig toxicity)

16. Long QT Syndrome (congenital or acquired)

  • Prolonged QTc interval (QTc >440 ms in men, >460 ms in women)
  • T-wave morphology abnormalities (notched, bifid, or broad T waves depending on subtype)
  • Risk of Torsades de Pointes (polymorphic VT with twisting QRS axis)
  • Causes: congenital (LQTS1-3), drugs (quinidine, amiodarone, antipsychotics), electrolyte disturbances (hypokalemia, hypomagnesemia, hypocalcemia)

17. Brugada Syndrome

  • Coved-type ST elevation (>2 mm, downsloping) in V1-V2 (Type 1 - diagnostic)
  • Type 2: Saddleback ST elevation in V1-V2 (not diagnostic alone)
  • Normal QT
  • Right bundle branch block pattern
  • Risk of sudden cardiac death from VF (typically during sleep/fever)
  • Sodium channelopathy (SCN5A mutation)

18. Sarcoidosis (Cardiac)

  • Complete heart block (most common life-threatening manifestation)
  • Bundle branch blocks (RBBB or LBBB)
  • Ventricular arrhythmias
  • Pathological Q waves (granulomas mimicking infarction)
  • ST-T wave changes
  • Atrial arrhythmias
  • Sustained ventricular tachycardia

19. Subarachnoid Hemorrhage (SAH) / Intracranial Events

  • Deep, diffuse T-wave inversions (broad, symmetric - "CVA T waves")
  • Markedly prolonged QT interval
  • Prominent U waves
  • ST changes (elevation or depression)
  • Sinus bradycardia or tachycardia
  • These changes are due to catecholamine surge and myocardial injury (neurogenic stunned myocardium)
  • Can mimic STEMI ("neurogenic ECG changes")
Harrison's 22nd Edition specifically mentions subarachnoid hemorrhage pattern

20. Hypothyroidism

  • Sinus bradycardia (most common)
  • Low voltage QRS across all leads
  • Flat or inverted T waves
  • Prolonged QT interval
  • PR interval prolongation
  • Non-specific ST-T changes
  • Can have complete heart block in severe cases
  • Pericardial effusion -> electrical alternans if large

Quick-Reference Summary Table

#DiseaseKey ECG Signature
1Acute STEMIST elevation + Q waves + hyperacute T
2NSTEMI/UAST depression, T-wave inversion
3Acute PericarditisDiffuse saddle ST elevation + PR depression
4HyperkalemiaPeaked T waves -> wide QRS -> sine wave
5HypokalemiaFlat T + prominent U waves
6HypercalcemiaShort QT interval
7HypocalcemiaProlonged QT interval
8Pulmonary EmbolismS1Q3T3, sinus tach, RBBB
9HypothermiaOsborn (J) waves
10HCMLVH + dagger Q waves in lateral leads
11Dilated CardiomyopathyLBBB, LVH, non-specific ST-T changes
12WPW SyndromeShort PR + delta wave + wide QRS
13Complete Heart BlockP-QRS dissociation, bradycardia
14Atrial FibrillationNo P waves, irregularly irregular
15Digoxin ToxicityPAT with block, bidirectional VT, short QT
16Long QT SyndromeProlonged QTc, Torsades de Pointes
17Brugada SyndromeCoved ST elevation V1-V2
18Cardiac SarcoidosisHeart block, LBBB/RBBB, VT, Q waves
19Subarachnoid HemorrhageDeep T inversions, long QT ("CVA T waves")
20HypothyroidismBradycardia, low voltage, flat T, long QT
Sources: Harrison's Principles of Internal Medicine 22e, Braunwald's Heart Disease 12e, Goldman-Cecil Medicine, Rosen's Emergency Medicine, Washington Manual, Morgan & Mikhail's Clinical Anesthesiology, Schwartz's Surgery

Search for clinical ECG images showing these 20 patterns

Finding Sources
Finding Sources
Finding Sources
Reading File
Reading File
Reading File
Reading File
Finding Sources
Finding Sources
Finding Sources
Finding Sources
Reading File
Reading File
Reading File
Reading File
Finding Sources
Finding Sources
Finding Sources
Reading File
Reading File
Reading File
Reading File
Reading File
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
Loading Image
All images retrieved. Here is the complete clinical ECG image reference for all 20 patterns:

Clinical ECG Images: 20 Disease Patterns

All images sourced directly from authoritative medical textbooks in the library.

1. Anterior STEMI (Distal LAD Occlusion)

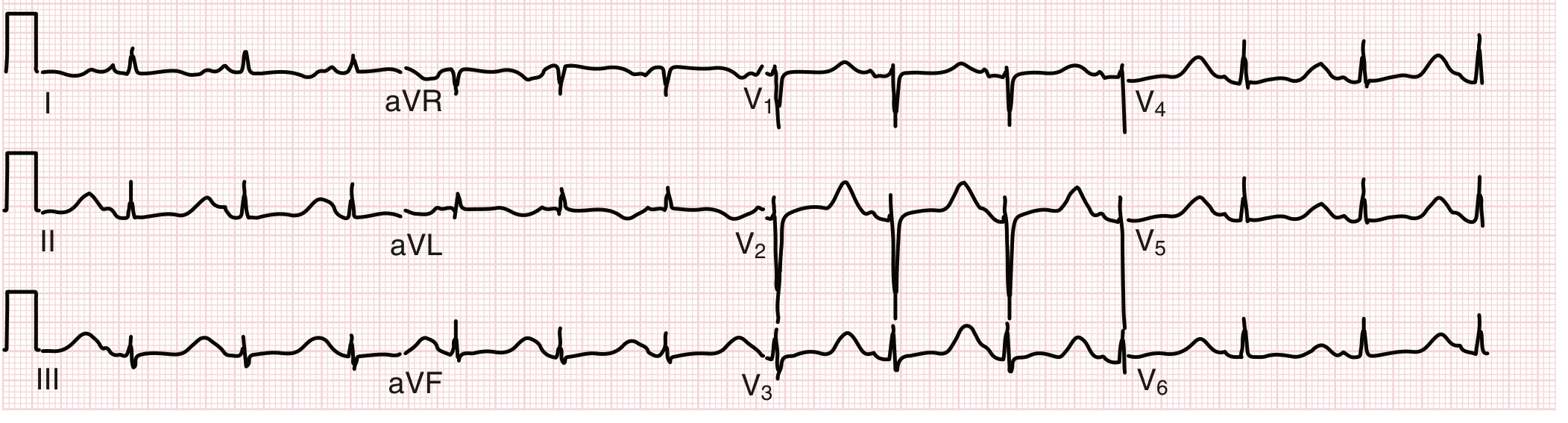

Anterior STEMI ECG - ST elevation in V1-V3
Key findings: ST elevation in leads I, V1, V2, V3. Absence of reciprocal ST depression in II, III, aVF. This is from a 52-year-old with 100% occlusion of the distal LAD. Tintinalli's Emergency Medicine

2. Anterior STEMI (Proximal LAD Occlusion)

Anterior STEMI proximal LAD - ST elevation with reciprocal changes
Key findings: ST elevation in V1-V3 with >1 mm ST depression in leads II, III, and aVF (reciprocal changes). This distinguishes proximal from distal LAD occlusion. Patient had 100% proximal LAD occlusion. Tintinalli's Emergency Medicine

3. Acute Pericarditis - Stage I (Fuster's Heart, 15th Ed.)

Acute pericarditis Stage I ECG - diffuse ST elevation + PR depression
Key findings: Diffuse, non-territory-specific concave ST elevation across multiple leads. PR depression (best seen in II, V4-V6). Lead aVR shows ST depression with PR elevation (the mirror image). No Q waves, no reciprocal ST depression. Fuster and Hurst's The Heart, 15th Edition

4. Acute Pericarditis - Classic Pattern (Braunwald's)

Acute pericarditis ECG from Braunwald's - diffuse ST elevation and PR depression
Key findings: Diffuse ST elevation with concurrent PR segment depression visible across multiple leads. Classic saddle-shaped (concave up) ST morphology. Braunwald's Heart Disease, 12th Edition

5. Hyperkalemia - Progressive ECG Changes (Table)

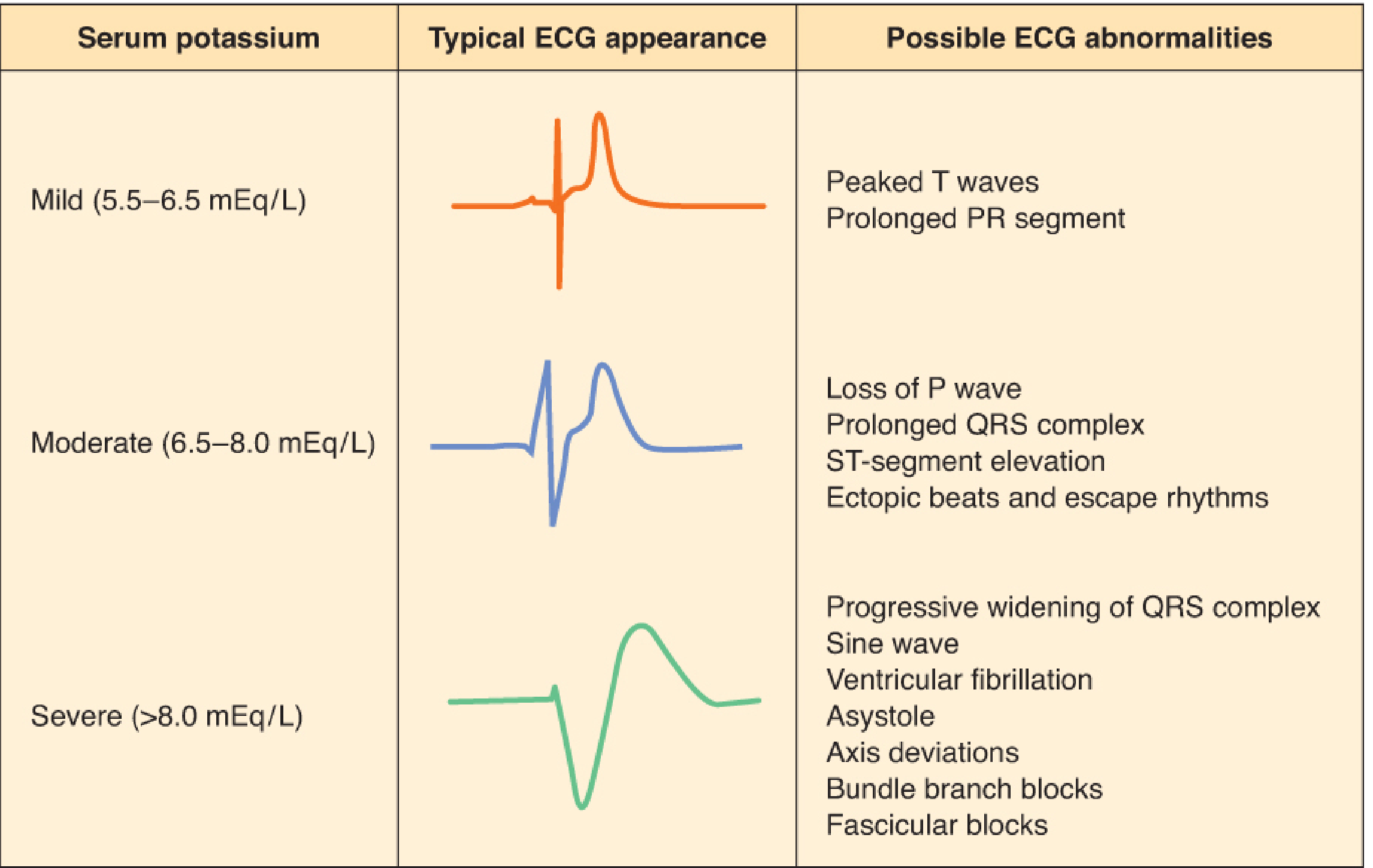

Hyperkalemia ECG progression table - peaked T waves to sine wave
Key findings displayed by severity:
  • Mild (5.5-6.5 mEq/L): Tall peaked T waves, prolonged PR
  • Moderate (6.5-8.0 mEq/L): Loss of P wave, widened QRS, ST elevation, escape rhythms
  • Severe (>8.0 mEq/L): Sine wave pattern, VF, asystole, bundle branch blocks
Barash's Clinical Anesthesia, 9th Edition

6. Hypokalemia - Full 12-Lead ECG

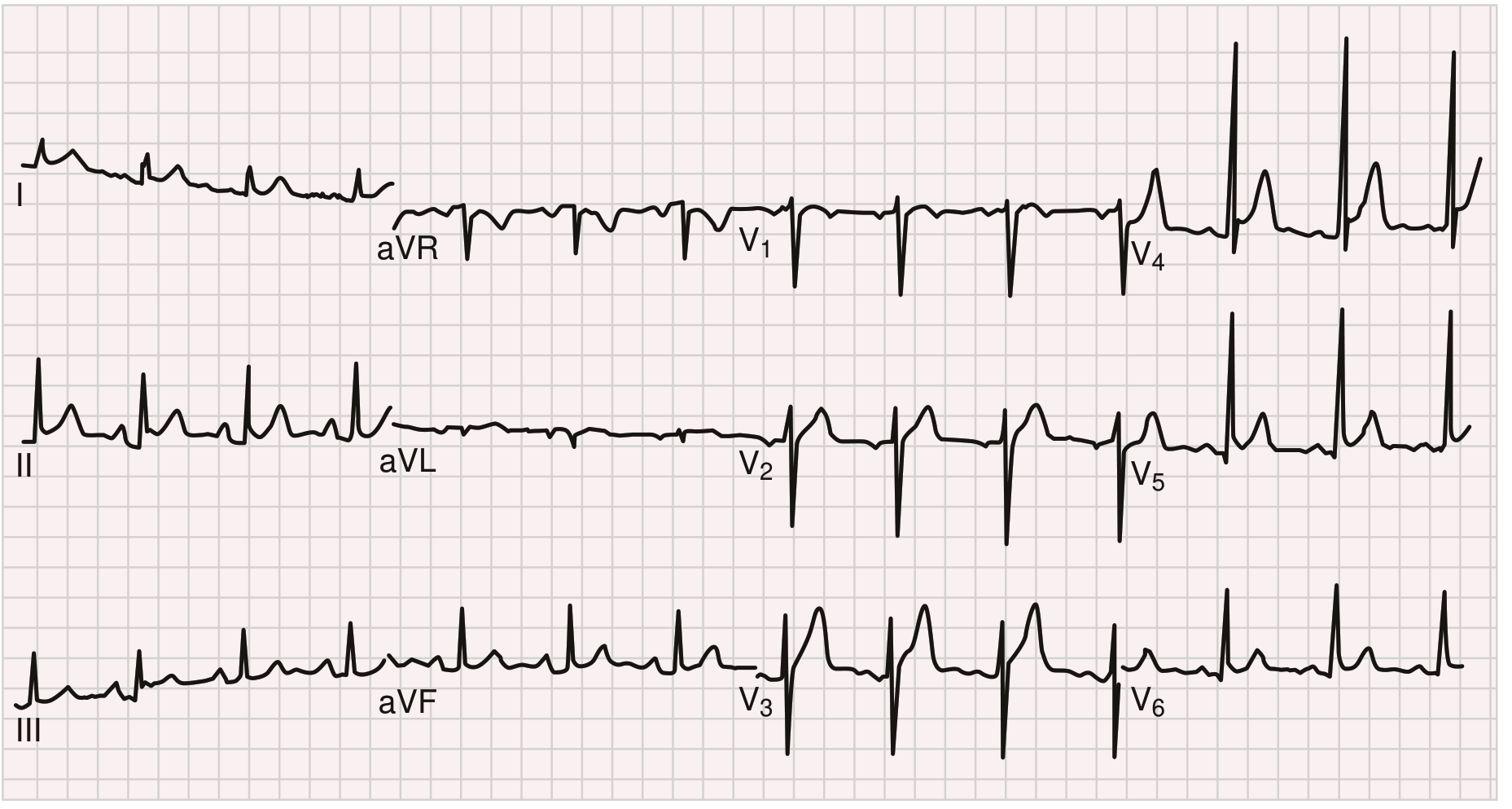

Hypokalemia ECG - flattened T waves, prominent U wave, prolonged QT
Key findings: Flattened T waves throughout, prominent U waves (visible after T wave, marked with arrow), nonspecific ST changes, prolonged QT interval. The 12-lead format clearly shows these changes are diffuse. Rosen's Emergency Medicine

7. Hypothermia - Osborn (J) Wave

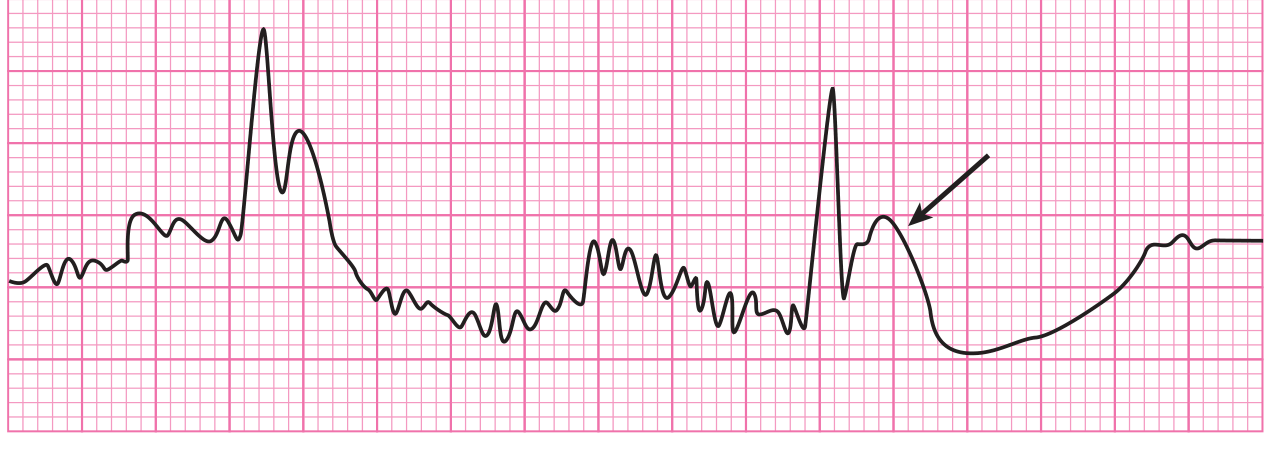

Hypothermia ECG - Osborn J wave with AF and shivering artifact
Key findings: The prominent Osborn (J) wave is marked with an arrow - the positive deflection at the J point immediately after QRS. Also visible: shivering artifact (irregular baseline tremor), atrial fibrillation with slow ventricular response. Patient's core temperature was 25°C (77°F). Tintinalli's Emergency Medicine

8. Brugada Syndrome - Coved Pattern in V1-V2

Brugada syndrome ECG - coved ST elevation in V1
Key findings: Classic Type 1 "coved" pattern - downsloping ST elevation (>2 mm) in V1 with a negative T wave. Note the RBBB-like morphology. This is the only diagnostic pattern for Brugada syndrome. High risk for ventricular fibrillation and sudden cardiac death. Goldman-Cecil Medicine

9. Long QT Syndrome (LQTS)

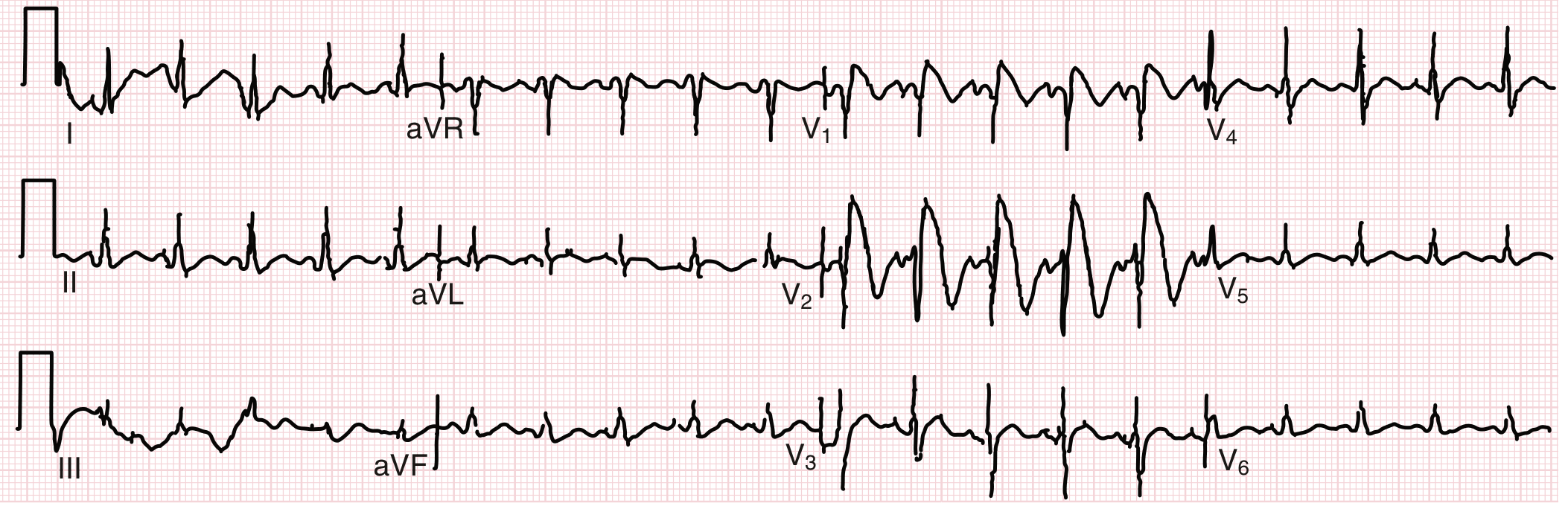

LQTS ECG - markedly prolonged QT interval of 640ms
Key findings: Markedly prolonged QT interval of 640 ms - the terminal portion of the T wave merges with the following P wave. Broad, abnormal T-wave morphology. This was from a woman with congenital LQTS. Goldman-Cecil Medicine

10. WPW Syndrome - Pre-excitation Pattern

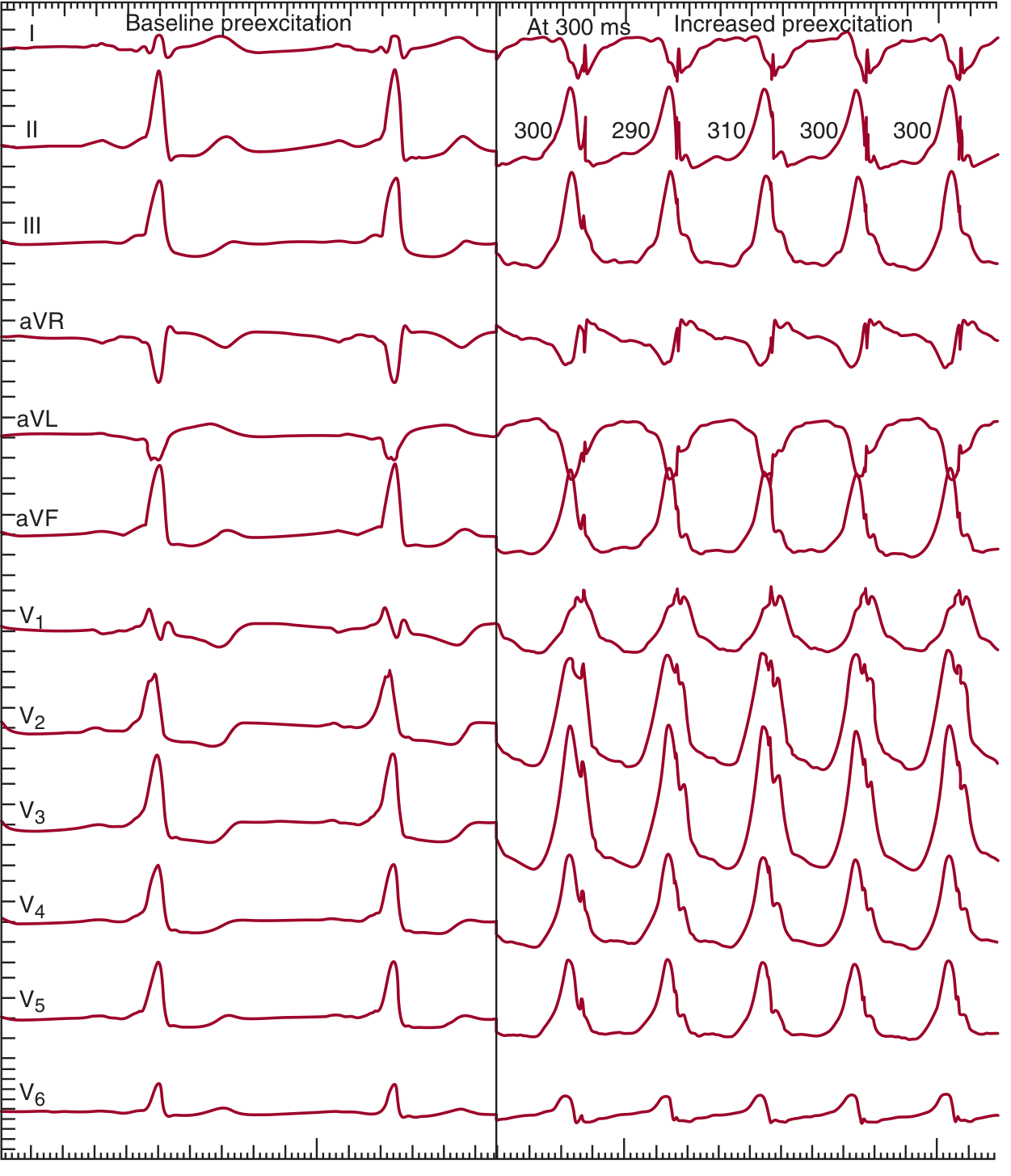

WPW syndrome 12-lead ECG - delta wave and short PR at baseline vs increased preexcitation with atrial pacing
Key findings: Left panel (baseline sinus rhythm): Short PR interval, slurred delta wave onset, wide QRS from fusion of delta wave + normal conduction. Right panel (atrial pacing at 300 ms): Dramatically increased preexcitation as AV node is overridden - QRS is almost entirely from accessory pathway conduction, producing a bizarre maximally wide QRS. This illustrates the risk of rapid accessory pathway conduction during AF. Fuster and Hurst's The Heart, 15th Edition

Summary of Remaining 10 Patterns (Images Not Available in Library)

For the following conditions, images were not directly available in the textbook library, but the key patterns are described below:
#DiseaseKey ECG Pattern
11Inferior STEMIST elevation in II, III, aVF; reciprocal ST depression in I, aVL
12NSTEMI/Wellens'Deep symmetric T-wave inversions in V2-V3 (Wellens' A/B pattern)
13Pulmonary EmbolismS1Q3T3, sinus tachycardia, new RBBB, T-wave inversion V1-V4
14HypercalcemiaShort QT interval (shortened ST segment)
15HypocalcemiaProlonged QT interval (prolonged ST segment)
16Atrial FibrillationNo P waves, irregularly irregular R-R, fibrillatory baseline
17Complete Heart BlockP-QRS dissociation, regular slow ventricular escape rhythm
18Digoxin Effect"Reverse tick" ST depression, short QT, PR prolongation
19Subarachnoid HemorrhageDeep diffuse T-wave inversions, prolonged QT ("CVA T-waves")
20HypothyroidismSinus bradycardia, low voltage, flat T waves, prolonged QT
Sources: Tintinalli's Emergency Medicine, Fuster and Hurst's The Heart (15th Ed.), Braunwald's Heart Disease (12th Ed.), Goldman-Cecil Medicine, Barash's Clinical Anesthesia (9th Ed.), Rosen's Emergency Medicine
This is a shared conversation. Sign in to Orris to start your own chat.
