Hand-Shoulder Syndrome (Shoulder-Hand Syndrome / Complex Regional Pain Syndrome Type I)
1. Introduction
- Disproportionate, intractable burning pain involving both the hand and shoulder
- Autonomic dysregulation (vasomotor and sudomotor dysfunction)
- Trophic changes progressing to contracture and osteoporosis
- Campbell's Operative Orthopaedics 15th Ed 2026, p. 3843
- Adams and Victor's Principles of Neurology 12th Ed, p. 1371
2. History
- 1864 - Weir Mitchell first described "causalgia" in Civil War soldiers with peripheral nerve injuries
- 1900 - Paul Sudeck described post-traumatic bone atrophy ("Sudeck's atrophy")
- 1947 - Steinbrocker & Argyros coined "shoulder-hand syndrome" for the hand-shoulder variant
- 1979 - Excellent review by Genant covering stages and importance of early treatment
- 1994 - IASP taxonomy committee replaced RSD/causalgia with CRPS Type I and II
- 2003 - Budapest diagnostic criteria validated by Harden et al., now the gold standard
- 2010s-present - Central sensitization, neuroplasticity, and cortical reorganization recognized as key mechanisms

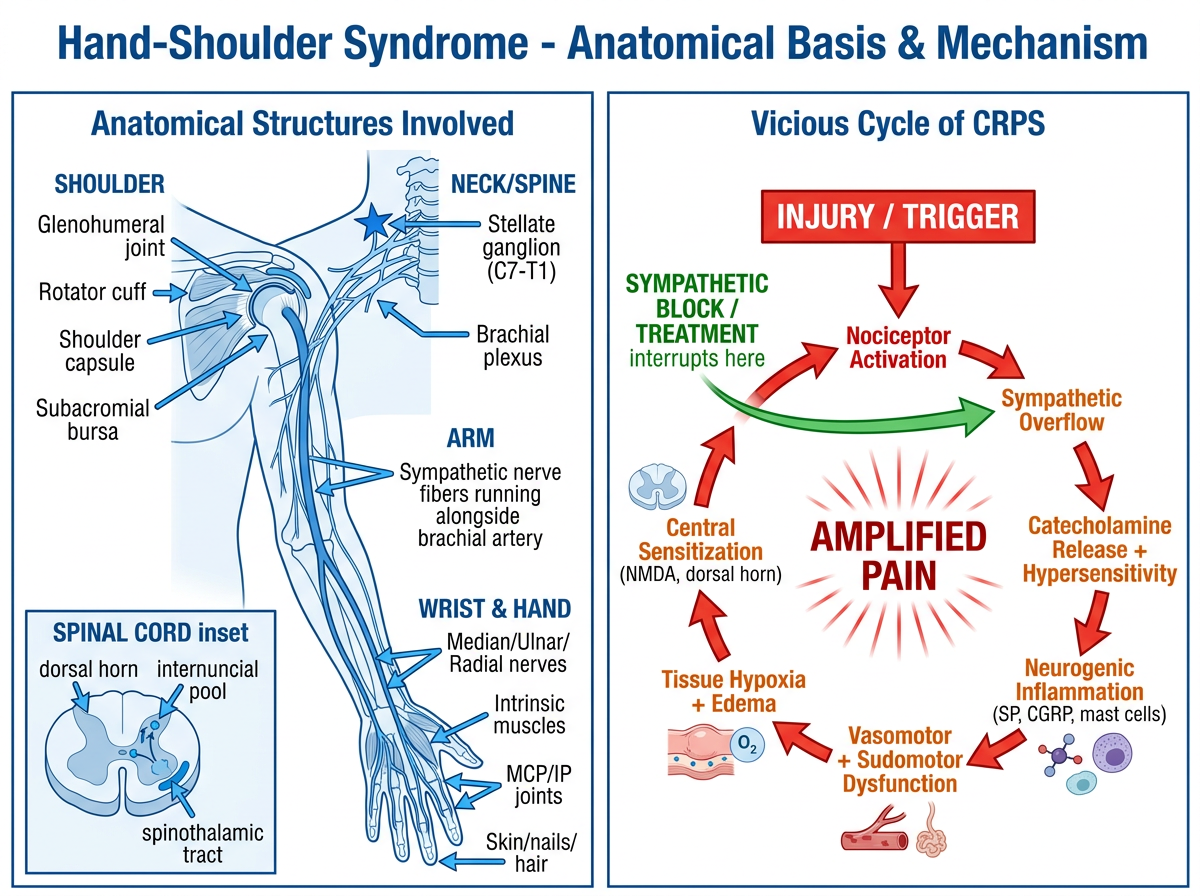

3. Anatomy
- Sympathetic efferent fibers traveling with the brachial plexus and peripheral nerves (median, ulnar, radial) to the hand
- Somatic afferent nociceptive C-fibers and A-delta fibers
- Stellate ganglion (C7-T1) - key sympathetic relay for the upper limb
- Glenohumeral joint, rotator cuff, shoulder capsule, acromioclavicular and sternoclavicular joints
- Subacromial bursa - commonly involved in trophic changes
- Intrinsic muscles of the hand, finger flexors/extensors
- Metacarpophalangeal and interphalangeal joints
- Skin, subcutaneous tissue, nails, hair follicles - all affected by trophic changes
- Internuncial pool (Stage 2 short-circuiting)
- Ascending spinothalamic tracts
- Descending cortical modulation (thalamic centers in Stage 3)
- Dorsal horn NMDA receptors - central sensitization site
4. Etiology
| Category | Specific Causes |
|---|---|
| Trauma (most common) | Fracture of distal radius (Colles'), crush injury, soft tissue injury (~40%), fracture (~25%) |
| Cardiac | Myocardial infarction (~12%), cardiac surgery |
| Neurological | Stroke (hemiplegia), cervical disc disease, brachial plexus injury |
| Iatrogenic | Post-operative (any UL surgery), IV/arterial cannulation, shoulder surgery |
| Metabolic/Systemic | Diabetes mellitus (diabetic hand-shoulder syndrome), chemical/electrical burns |
| Infective | Postherpetic neuralgia |
| Immobilization | Prolonged cast, splint, or postoperative immobilization |
| Idiopathic | Up to 10-15% - no identifiable cause |
- Female sex (female predominance)
- Smoking
- Emotional/psychological distress at time of onset
- Anxiety and catastrophizing personality traits

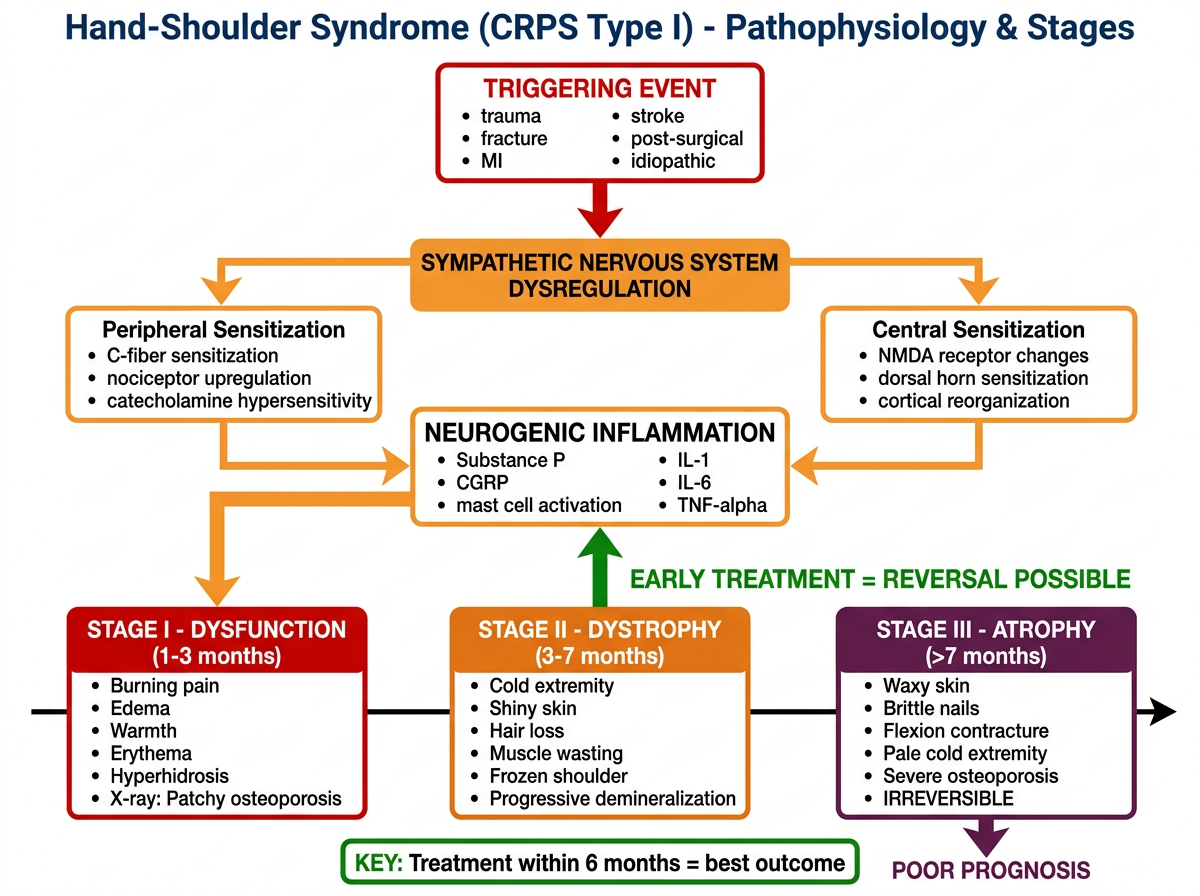

5. Mechanism / Pathophysiology
A. Sympathetic Overflow Theory (Classic)
- Peripheral injury causes abnormal reflex arc through the sympathetic nervous system
- Sympathetic overflow leads to vasomotor instability, edema, and pain amplification
B. Catecholamine Hypersensitivity
- Decreased sympathetic outflow to the affected limb paradoxically causes upregulation of adrenergic receptors on nociceptors
- Circulating or locally secreted catecholamines trigger abnormal afferent pain activity
C. Ephaptic Transmission (Short-Circuiting)
- Abnormal direct electrical coupling between efferent sympathetic fibers and somatic afferent pain fibers at the nerve injury site
- Stage 1: Peripheral short-circuiting
- Stage 2: Short-circuiting at the internuncial pool in spinal cord
- Stage 3: Higher thalamic center involvement
D. Central Sensitization (Modern View)
- Sustained nociceptive bombardment sensitizes central sensory structures
- Molecular changes at dorsal horn: NMDA receptor alterations, cyclooxygenase/prostaglandin induction, changes in GABAergic inhibition
- Maladaptive neuroplasticity - cortical reorganization with expansion of pain representation map
- Explains nondermatomal, nonsclerotomal distribution of symptoms
E. Inflammatory Mediators
- Release of pro-inflammatory neuropeptides (substance P, CGRP)
- Mast cell degranulation
- Neurogenic inflammation perpetuates the vicious cycle
6. Pathology
- Early: Soft tissue edema, erythema, warmth
- Late: Shiny, smooth, atrophic skin; thin, brittle nails; hair loss; waxy appearance; flexion contractures
- Fibrosis of joint capsule and periarticular soft tissues (similar to but more severe than disuse atrophy)
- Periarticular demineralization of bone (juxtaarticular osteoporosis)
- Synovial tissue: lymphocytic infiltration and fibrosis in late stages
- Skin: Epidermal thinning, dermal fibrosis, decreased hair follicles and sweat glands
- Progressive periarticular bone resorption and osteopenia
- Medullary bone involvement in later stages
- Changes driven by inflammatory cytokines stimulating osteoclast activity
7. Clinical Features
Symptom Complex (Four Domains - Budapest Criteria)
| Domain | Symptoms | Signs |
|---|---|---|
| Sensory | Hyperesthesia, allodynia, burning/throbbing pain | Hyperalgesia to pinprick, allodynia to light touch |
| Vasomotor | Temperature asymmetry, skin color changes | Temperature difference >1°C, mottling/cyanosis/erythema |
| Sudomotor/Edema | Altered sweating, swelling | Edema, hyperhidrosis or anhidrosis |
| Motor/Trophic | Weakness, stiffness, decreased ROM | Tremor, dystonia, trophic changes in hair/nails/skin |
Three Classical Stages (Bonica / Bradley Classification)
- Severe diffuse burning pain, often described as throbbing
- Pain exceeds what the injury would normally produce
- Localized edema of hand and wrist
- Vasomotor disturbances: skin erythema, warmth, increased sweating
- Limitation of shoulder movement with periarthritis
- Radiograph: early patchy osteoporosis
- Progression of soft tissue edema
- Thickening of skin and articular soft tissues; muscle wasting
- Vasomotor shift: extremity becomes cold, cyanotic
- Skin becomes shiny, smooth, devoid of hair
- Shoulder progressively stiffens ("frozen shoulder")
- Pain remains severe and intractable
- Radiograph: progression of periarticular demineralization
- Irreversible trophic changes: waxy skin, brittle ridged nails, severe muscle atrophy
- Flexion contracture of digits and wrist - "intrinsic minus" hand
- Frozen shoulder (complete loss of glenohumeral motion)
- Extremity is pale, cold, and painful
- Lymphedema
- Radiograph: severe demineralization
- Loss of employment and social relationships
- Depression, suicidal ideation
- Orthostatic hypotension, hypertension
- Unnecessary repeated surgeries
8. Investigations
| Investigation | Finding | Utility |
|---|---|---|
| Plain X-ray | Periarticular osteoporosis, demineralization | Staging, baseline |
| Triple-phase bone scan | Most sensitive early test | Confirmatory |
| Thermography | Skin temperature asymmetry >1°C | Sympathetic dysfunction |
| Autonomic testing | QSART (quantitative sudomotor axon reflex test) | Sympathetic dysfunction |
| MRI | Bone marrow edema, muscle edema, interstitial edema | Differential diagnosis |
| Limb volume measurement | Submersion testing | Edema quantification |
| CBC, ESR, CRP | Normal or mildly elevated | Exclude infection/inflammatory |
| Blood glucose, HbA1c | Exclude diabetic cheiroarthropathy | |
| EMG/NCS | Differentiate CRPS I from CRPS II (nerve injury) |
9. Radiograph (Plain X-ray)
- Early (Stage I): Subtle periarticular osteopenia, patchy "spotty" rarefaction most marked in juxtaarticular regions
- Progressive: Diffuse osteoporosis extending through the hand, wrist, and shoulder
- Late (Stage III): Severe demineralization, cortical thinning, subperiosteal bone resorption
- Pattern: Predominantly juxta-articular, affecting metacarpal heads, carpal bones, distal radius/ulna, proximal humerus
- Subchondral bone lucency (not erosion - distinguishes from RA)
- "Sudeck's atrophy" pattern: Characteristic mottled, "moth-eaten" appearance of bones of the hand
10. CT Scan
- Characterizing fracture patterns that may have precipitated CRPS
- Differentiating from bone tumors when malignancy is suspected
- CT arthrography of shoulder: Evaluating capsular adhesions, labral pathology in frozen shoulder component
- Documenting the extent of periarticular osteoporosis more precisely than plain film
- Not superior to bone scan or MRI for primary diagnosis of CRPS
11. MRI
| Finding | Significance |
|---|---|
| Bone marrow edema (high T2, low T1) | Periarticular and diffuse - reflects hyperemia and inflammatory mediators |
| Soft tissue edema | Periarticular and subcutaneous - diffuse T2 hyperintensity |
| Muscle edema | Interstitial edema on STIR/T2 sequences |
| Synovitis | Enhancement on contrast (Gadolinium) |
| Joint effusion | Glenohumeral or hand joints |
| Skin thickening | Late trophic changes |
- More sensitive than plain X-ray for early changes
- Demonstrates diffuse signal abnormalities distinguishing CRPS from focal lesions (tumor, infection)
- Still not very sensitive or specific for CRPS diagnosis (Campbell's, p. 3845)
- Most useful for differential diagnosis - ruling out AVN, osteomyelitis, neoplasm
- Bone marrow edema pattern seen before radiographic osteoporosis
12. Classification
A. IASP Classification (Current Standard)
| Type | Former Name | Definition |
|---|---|---|
| CRPS Type I | Reflex Sympathetic Dystrophy (RSD) | Same clinical features BUT without evidence of a defined nerve injury |
| CRPS Type II | Causalgia | Same clinical features WITH evidence of a defined peripheral nerve injury |
B. Subtypes by Sympathetic Mediation
- Sympathetically Maintained Pain (SMP): Responds to sympathetic blockade - warm subtype (early), erythematous, hyperhidrotic
- Sympathetically Independent Pain (SIP): No response to sympathetic blockade - cold subtype (late), pale, atrophic
C. Bonica's Staging (Temporal/Clinical)
- Stage 1 (Dysfunction): Acute - 1-3 months
- Stage 2 (Dystrophy): Subacute - 3-7 months
- Stage 3 (Atrophy): Chronic - >7 months
- Stage 4: Advanced - social/systemic consequences

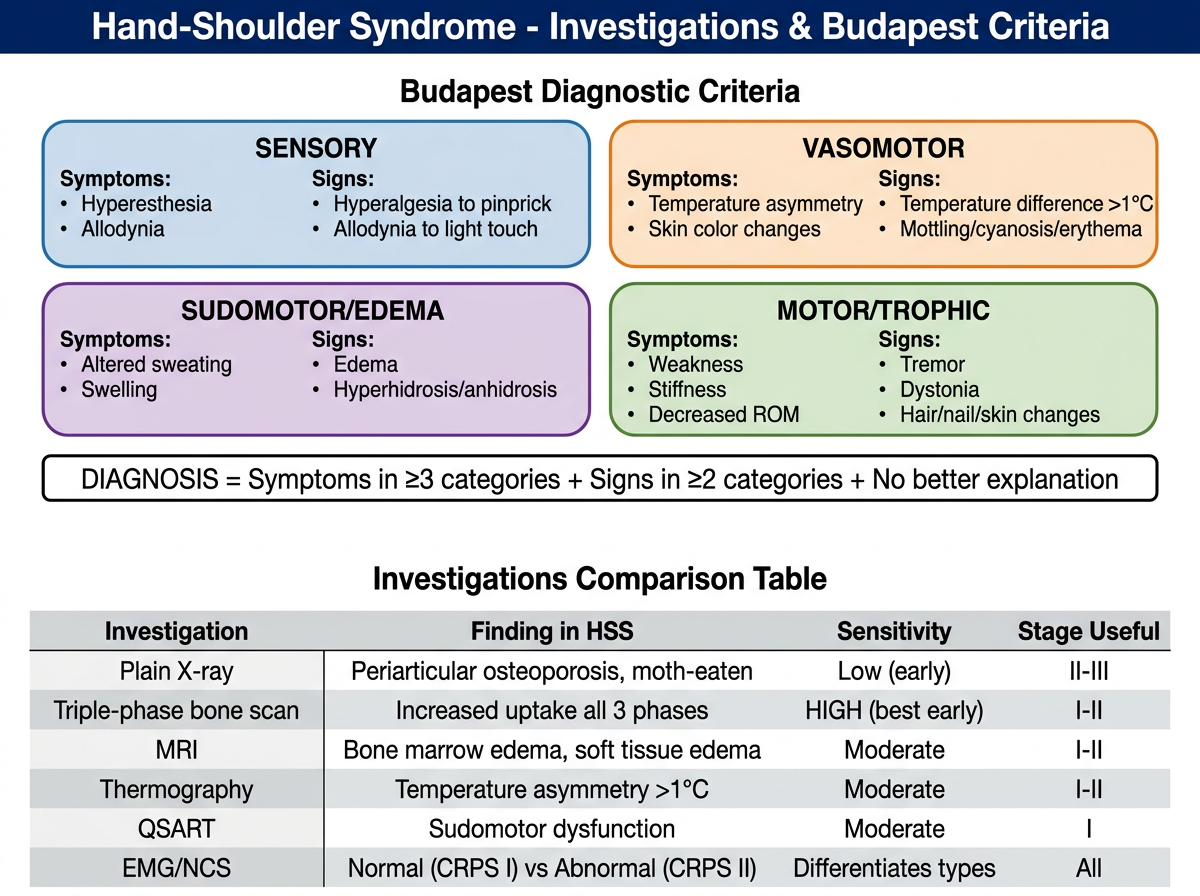

D. Budapest Diagnostic Criteria (2003/2007 - Harden et al.)
- Continued pain disproportionate to any inciting event
- At least one symptom in 3 of 4 categories (sensory, vasomotor, sudomotor/edema, motor/trophic)
- At least one sign at time of diagnosis in 2 or more categories
- No other diagnosis better explains the signs and symptoms

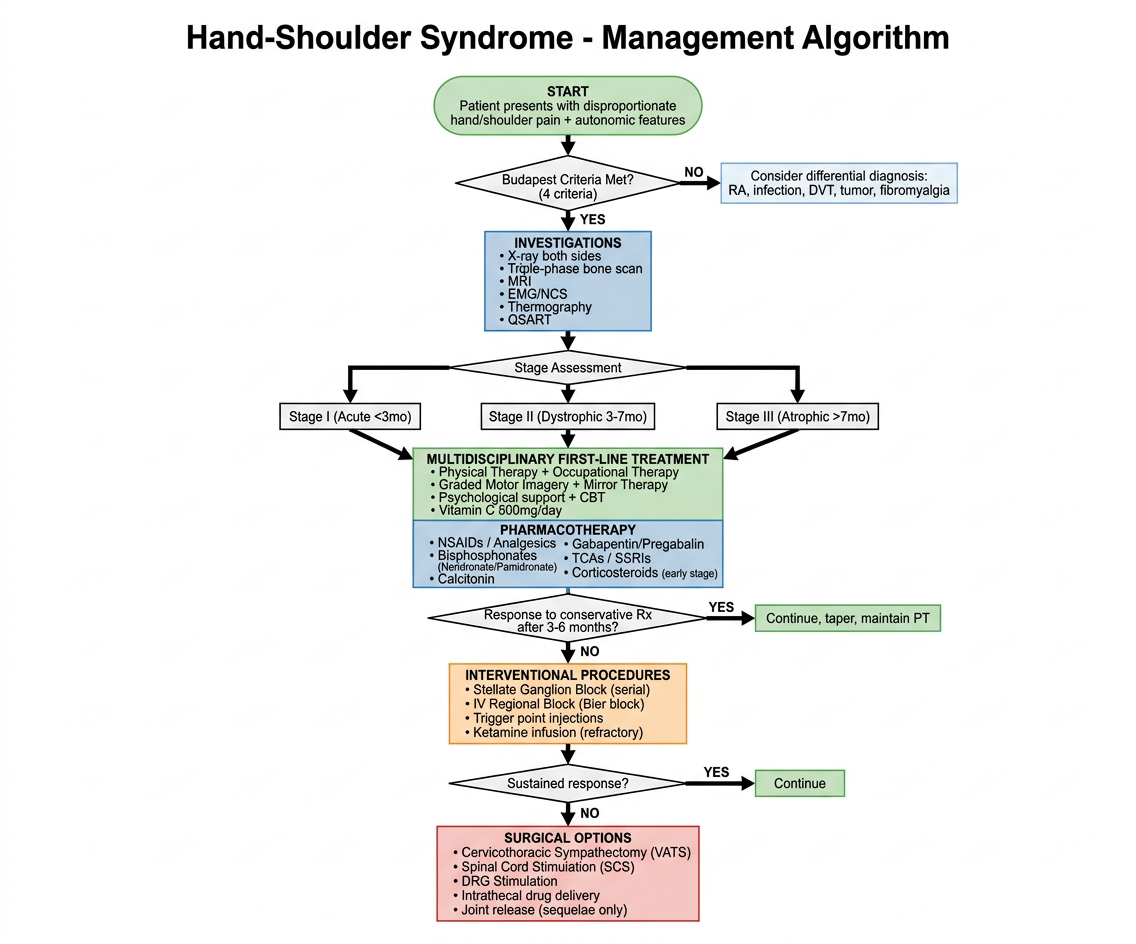

13. Treatment
A. Non-Operative Treatment
1. Physical and Occupational Therapy (First-line)
- Active function-oriented program - most important element
- Graded motor imagery (GMI): mental rehearsal of limb movements before actual use
- Mirror therapy: mirror-assisted movement patterns
- Desensitization techniques
- Edema control: elevation, retrograde massage, compressive gloves
- TENS (Transcutaneous Electrical Nerve Stimulation)
- Hydrotherapy
- Shoulder mobilization to prevent/treat frozen shoulder
- Pediatric patients: high-intensity PT alone shows favorable responses
2. Pharmacological Treatment
| Drug Class | Examples | Mechanism/Role |
|---|---|---|
| NSAIDs | Ibuprofen, naproxen | Anti-inflammatory, analgesic |
| Bisphosphonates | Alendronate, pamidronate, neridronate | Inhibit bone resorption, analgesic; strong evidence |
| Calcitonin | Intranasal or SC | Anti-osteoclastic, analgesic effect via CNS |
| Corticosteroids | Prednisolone | Reduce neurogenic inflammation; useful in early acute stage |
| Tricyclic antidepressants | Amitriptyline, nortriptyline | Central pain modulation, neuropathic pain |
| SSRIs / SNRIs | Duloxetine | Descending pain modulation |
| Anticonvulsants | Gabapentin, pregabalin | Neuropathic pain, reduces central sensitization |
| Alpha-blockers | Prazosin, phenoxybenzamine | Sympathetically mediated pain |
| Calcium channel blockers | Nifedipine, verapamil | Vasomotor symptoms |
| Beta-blockers | Propranolol | Sympathetic modulation |
| Guanethidine | IV regional (Bier block) | Peripheral sympatholytic |
| Ketamine infusion | Sub-anesthetic dose IV | NMDA receptor antagonist; use in refractory cases |
| Vitamin C | 500 mg/day perioperatively | Prophylactic - reduces CRPS after distal radius fracture |
| Free radical scavengers | DMSO topical | Anti-inflammatory |
3. Sympathetic Nerve Blocks (Procedural/Non-Surgical)
- Stellate Ganglion Block (SGB): Most important procedure for upper extremity CRPS/HSS
- Sequential series of blocks combined with physical therapy
- 80-93% success rate reported in published series (Campbell's)
- Can be repeated if successful
- Also serves as a diagnostic test for sympathetically maintained pain
- Intravenous Regional Block (Bier Block): Lidocaine ± guanethidine ± corticosteroid
- Poplawski et al.: best predictor of success = treatment onset <6 months
- Trigger point injections: For associated myofascial pain around shoulder
- Intra-articular shoulder injection: Corticosteroid for frozen shoulder component
4. Psychological Support
- Cognitive behavioral therapy (CBT)
- Pain coping strategies, relaxation techniques
- Address secondary gain issues
- Management of depression and emotional lability
B. Operative Treatment
1. Surgical Sympathectomy
- Indication: CRPS with documented response to sympathetic nerve blocks that is not sustained
- Procedure: Cervicothoracic sympathectomy (C7-T2 ganglia excision)
- Open: posterior approach or anterior supraclavicular approach
- Endoscopic/Video-assisted thoracoscopic sympathectomy (VATS) - modern preferred approach
- Results: Reported improvement in patients who had prior temporary response to sympathetic blockade
- Complications: Horner's syndrome, compensatory hyperhidrosis, pneumothorax (VATS)
2. Spinal Cord Stimulation (SCS) / Dorsal Column Stimulation
- Indication: Refractory CRPS not responding to conservative measures and sympathetic blocks
- Electrodes placed epidurally at C5-C7 for upper extremity HSS
- Mechanism: Gate control theory, inhibition of ascending pain pathways
- Evidence: Provides pain relief and improved function in select patients
- Newer systems: Burst stimulation, high-frequency (10 kHz) stimulation may be superior to conventional tonic SCS
3. Intrathecal Drug Delivery
- Implanted intrathecal pump for opioids, baclofen (for dystonia component), clonidine, or ziconotide
- Reserved for severe refractory cases
- Baclofen particularly useful when CRPS-dystonia syndrome is present
4. Peripheral Nerve Ablation/Neurolysis
- Selective ablation of identified peripheral nerve branches
- Limited evidence; not a primary surgical option
5. Joint Procedures for Sequelae
- Shoulder manipulation under anaesthesia (MUA) or arthroscopic capsular release for fixed frozen shoulder (Stage III)
- Digital joint contracture release - reserved for irreversible flexion contractures
- Note: Surgery should be done with extreme caution as it can worsen CRPS
14. Recent Advances
A. Pathophysiology
- Central sensitization and cortical reorganization: Cortical remapping using fMRI shows altered somatosensory and motor cortex representation - basis for mirror therapy and GMI
- Autoimmune hypothesis: IgM autoantibodies against nervous tissue antigens found in CRPS patients; IVIG trials underway
- Neuro-inflammation: Role of mast cells, TNF-alpha, IL-1, IL-6, and CGRP in perpetuating peripheral sensitization
B. Diagnostic Advances
- Quantitative sensory testing (QST): Systematic detection of thermal and mechanical sensory thresholds
- Infrared thermography: Digital asymmetry mapping for objective temperature measurement
- Skin biopsy: Intraepidermal nerve fiber density (IENFD) assessment to differentiate small fiber neuropathy
C. Treatment Advances
Graded Motor Imagery (GMI)
- Three-step progressive program: Laterality recognition → Motor imagery → Mirror therapy
- Targets cortical reorganization directly
- Evidence 2023 supports GMI as first-line adjunct
Bisphosphonates - Strong Evidence
- Neridronate (IV) has shown best evidence in RCTs for CRPS (Varenna et al.)
- Pamidronate IV and alendronate also used
Ketamine Infusion Protocol
- Sub-anesthetic ketamine (0.1-0.5 mg/kg/hr IV) as NMDA receptor antagonist
- Reference consensus protocol published
- Used for refractory CRPS; evidence remains moderate quality
Stellate Ganglion Block - Meta-analysis Evidence
- 2024 systematic review and meta-analysis (PMID: 38805523) confirmed efficacy of SGB for CRPS with significant pain reduction
Spinal Cord Stimulation Advances
- Burst SCS and High-frequency (10 kHz) SCS superior to conventional tonic stimulation
- Dorsal Root Ganglion (DRG) Stimulation - more targeted stimulation for CRPS; promising results in upper extremity involvement
- Closed-loop SCS systems with real-time feedback being trialed
Low-Level Laser Therapy (LLLT)
- Emerging evidence for pain reduction and improved function in early CRPS
Virtual Reality (VR) / Augmented Reality
- VR-based mirror therapy and body illusions for cortical reorganization
- Early phase trials showing promise
Intravenous Immunoglobulin (IVIG)
- Based on autoimmune hypothesis
- Small RCTs show benefit in refractory CRPS; larger trials needed
Vitamin C Prophylaxis
- Strong evidence for 500 mg/day for 50 days post distal radius fracture reducing CRPS incidence (Zollinger et al.)
Summary Table
| Feature | Details |
|---|---|
| Eponym | Steinbrocker's shoulder-hand syndrome (1947) |
| Modern term | CRPS Type I |
| Pathology | Sympathetic/central sensitization dysregulation |
| Most common trigger | Trauma (fracture, soft tissue injury, post-surgical) |
| Key clinical triad | Pain + autonomic features + trophic changes |
| Best diagnostic test | Triple-phase bone scan (early); Budapest criteria (clinical) |
| Best imaging for differentiation | MRI (bone marrow edema, excludes other diagnoses) |
| Stages | I: Dysfunction → II: Dystrophy → III: Atrophy |
| Key prognostic factor | Treatment within 6 months of onset |
| First-line treatment | Multidisciplinary PT + pharmacotherapy + SGB |
| Surgical option | Cervicothoracic sympathectomy (VATS); SCS |
| Recent advance | DRG stimulation; IVIG; ketamine protocol; GMI |
- Campbell's Operative Orthopaedics 15th Ed 2026, Chapter 67 (p. 3843-3846)
- Adams and Victor's Principles of Neurology 12th Ed (p. 1365-1375)
- Bradley and Daroff's Neurology in Clinical Practice (p. 551)
- Firestein & Kelley's Textbook of Rheumatology (p. 9091-9132)
- Rheumatology 2-Volume Set, Elsevier 2022 (p. 3584-3607)
- Harrison's Principles of Internal Medicine 22E 2025 (p. 823)
- Grainger & Allison's Diagnostic Radiology (p. 2563)
- Limerick G et al. Curr Pain Headache Rep 2023
- Abd-Elsayed A et al. Ann Med 2024
- Candan B & Gungor S. Diagnostics 2025
- Tian Y et al. Pain Physician 2024 - SGB meta-analysis PMID: 38805523
Provide flow chart and diagram of present
Medical flowchart titled "Hand-Shoulder Syndrome (CRPS Type I) - Pathophysiology & Stages" on white background. Professional medical diagram style with clean boxes and arrows. Show: TOP: "TRIGGERING EVENT" box (trauma/fracture/MI/stroke/post-surgical/idiopathic) with red border Arrow down to: "SYMPATHETIC NERVOUS SYSTEM DYSREGULATION" in orange box Two branches: Left: "Peripheral Sensitization" (C-fiber sensitization, nociceptor upregulation, catecholamine hypersensitivity) Right: "Central Sensitization" (NMDA receptor changes, dorsal horn sensitization, cortical reorganization) Both arrows converge to: "NEUROGENIC INFLAMMATION" (Substance P, CGRP, mast cell activation, IL-1, IL-6, TNF-alpha) Arrow down to THREE STAGE progression shown as horizontal timeline with boxes: STAGE I - DYSFUNCTION (1-3 months): Red box - Burning pain, Edema, Warmth, Erythema, Hyperhidrosis, X-ray: Patchy osteoporosis STAGE II - DYSTROPHY (3-7 months): Orange box - Cold extremity, Shiny skin, Hair loss, Muscle wasting, Frozen shoulder, Progressive demineralization STAGE III - ATROPHY (>7 months): Dark purple box - Waxy skin, Brittle nails, Flexion contracture, Pale cold extremity, Severe osteoporosis, IRREVERSIBLE Arrow pointing up from stages labeled "EARLY TREATMENT = REVERSAL POSSIBLE" Arrow pointing down from Stage III labeled "POOR PROGNOSIS" Bottom note box: "KEY: Treatment within 6 months = best outcome" in green Clean arrows, color-coded stages, medical illustration style, highly readable text, 1200x900 resolution
Medical treatment algorithm flowchart titled "Hand-Shoulder Syndrome - Management Algorithm" on clean white background. Professional clinical flowchart with decision diamonds and process boxes. START (green oval): "Patient presents with disproportionate hand/shoulder pain + autonomic features" Arrow down to DIAMOND: "Budapest Criteria Met? (4 criteria)" - NO branch right → "Consider differential diagnosis: RA, infection, DVT, tumor, fibromyalgia" - YES branch down Arrow down to BOX: "INVESTIGATIONS" (blue): X-ray both sides | Triple-phase bone scan | MRI | EMG/NCS | Thermography | QSART Arrow down to DIAMOND: "Stage Assessment" Three branches: LEFT: "Stage I (Acute <3mo)" CENTER: "Stage II (Dystrophic 3-7mo)" RIGHT: "Stage III (Atrophic >7mo)" From ALL THREE stages → converge to: "MULTIDISCIPLINARY FIRST-LINE TREATMENT" (green box): • Physical Therapy + Occupational Therapy • Graded Motor Imagery + Mirror Therapy • Psychological support + CBT • Vitamin C 500mg/day Below that, parallel box: "PHARMACOTHERAPY" (blue): • NSAIDs / Analgesics • Bisphosphonates (Neridronate/Pamidronate) • Calcitonin • Gabapentin/Pregabalin • TCAs / SSRIs • Corticosteroids (early stage) Arrow down to DIAMOND: "Response to conservative Rx after 3-6 months?" YES → "Continue, taper, maintain PT" (green) NO → Arrow down "INTERVENTIONAL PROCEDURES" (orange box): • Stellate Ganglion Block (serial) • IV Regional Block (Bier block) • Trigger point injections • Ketamine infusion (refractory) DIAMOND: "Sustained response?" YES → Continue (green) NO → Arrow down to "SURGICAL OPTIONS" (red box): • Cervicothoracic Sympathectomy (VATS) • Spinal Cord Stimulation (SCS) • DRG Stimulation • Intrathecal drug delivery • Joint release (sequelae only) Clean professional design, color coded boxes, decision diamonds, readable fonts, 1200x1000 resolution
Medical anatomy and mechanism diagram titled "Hand-Shoulder Syndrome - Anatomical Basis & Mechanism" on white background. Split into two panels side by side. LEFT PANEL - "Anatomical Structures Involved": Draw a simple outline of upper limb from shoulder to hand. Label with arrows: - SHOULDER: Glenohumeral joint, Rotator cuff, Shoulder capsule, Subacromial bursa - NECK/SPINE: Stellate ganglion (C7-T1) shown as star symbol, Brachial plexus - ARM: Sympathetic nerve fibers running alongside brachial artery - WRIST & HAND: Median/Ulnar/Radial nerves, Intrinsic muscles, MCP/IP joints, Skin/nails/hair - SPINAL CORD inset: dorsal horn, internuncial pool, spinothalamic tract RIGHT PANEL - "Vicious Cycle of CRPS" shown as circular diagram with arrows going clockwise: 1. "INJURY / TRIGGER" (top, red) → 2. "Nociceptor Activation" → 3. "Sympathetic Overflow" → 4. "Catecholamine Release + Hypersensitivity" → 5. "Neurogenic Inflammation (SP, CGRP, mast cells)" → 6. "Vasomotor + Sudomotor Dysfunction" → 7. "Tissue Hypoxia + Edema" → 8. "Central Sensitization (NMDA, dorsal horn)" → back to "AMPLIFIED PAIN" in center of circle (red bold text) Breaking the cycle labeled with green arrow: "SYMPATHETIC BLOCK / TREATMENT interrupts here" Color scheme: blue for anatomy, red/orange for pain pathway, green for treatment arrows. Professional medical illustration, clear labels, 1200x900
Medical investigation and classification summary diagram for "Hand-Shoulder Syndrome - Investigations & Budapest Criteria" on clean white background. Two sections: TOP HALF - "Budapest Diagnostic Criteria" shown as a 2x2 grid of colored boxes: Box 1 (SENSORY - blue): Symptoms: Hyperesthesia, Allodynia | Signs: Hyperalgesia to pinprick, Allodynia to light touch Box 2 (VASOMOTOR - orange): Symptoms: Temperature asymmetry, Skin color changes | Signs: Temperature difference >1°C, Mottling/cyanosis/erythema Box 3 (SUDOMOTOR/EDEMA - purple): Symptoms: Altered sweating, Swelling | Signs: Edema, Hyperhidrosis/anhidrosis Box 4 (MOTOR/TROPHIC - green): Symptoms: Weakness, Stiffness, Decreased ROM | Signs: Tremor, Dystonia, Hair/nail/skin changes Below the grid, rule box: "DIAGNOSIS = Symptoms in ≥3 categories + Signs in ≥2 categories + No better explanation" BOTTOM HALF - "Investigations Comparison Table" as a clean table: Column headers: Investigation | Finding in HSS | Sensitivity | Stage Useful Row 1: Plain X-ray | Periarticular osteoporosis, moth-eaten | Low (early) | II-III Row 2: Triple-phase bone scan | Increased uptake all 3 phases | HIGH (best early) | I-II Row 3: MRI | Bone marrow edema, soft tissue edema | Moderate | I-II Row 4: Thermography | Temperature asymmetry >1°C | Moderate | I-II Row 5: QSART | Sudomotor dysfunction | Moderate | I Row 6: EMG/NCS | Normal (CRPS I) vs Abnormal (CRPS II) | Differentiates types | All Color coded rows alternating light grey/white, bold headers, professional medical table style, 1200x900 resolution
Diagram 1 - Pathophysiology & Three-Stage Progression
Diagram 2 - Management Algorithm (Complete Treatment Flowchart)
Diagram 3 - Anatomical Basis & Vicious Cycle Mechanism
Diagram 4 - Budapest Criteria & Investigations Summary
| Diagnosis | Budapest criteria: symptoms ≥3 domains + signs ≥2 domains |
| Best early investigation | Triple-phase bone scan |
| Critical intervention window | <6 months from onset |
| First-line Rx | PT + Mirror therapy + Bisphosphonates + Stellate Ganglion Block |
| Surgical escalation | VATS sympathectomy → SCS → DRG stimulation |
| Break the cycle | Sympathetic block interrupts the vicious cycle at the autonomic overflow step |
