Sialogram (Sialography)

Definition

Indications

"Although rarely needed, conventional sialography remains the best radiographic method for evaluating duct anatomy in obstructive, inflammatory, and autoimmune salivary gland diseases." — Cummings Otolaryngology, Diagnostic Imaging chapter

Contraindications

1. Acute sialadenitis — the procedure may exacerbate symptoms or cause ascending infection
2. Iodine contrast allergy — water-soluble contrast agents are iodine-based
3. Stones in the oral portion of the Wharton duct — active inflammation
4. Uncooperative patients (especially children) — requires duct cannulation
5. Sublingual glands — rarely performed due to the multiple small ducts of Rivinus that open directly into the floor of the mouth, making overview difficult

Relevant Anatomy

Stensen Duct (Parotid)

• Orientation: Horizontally oriented
• Length: 6–7 cm
• Caliber: ~1–2 mm
• Opens opposite the upper second molar in the buccal mucosa

Wharton Duct (Submandibular)

• Orientation: Angles downward and laterally at ~45° relative to both sagittal and axial planes
• Length: ~5 cm
• Caliber: 1–3 mm
• Papilla is small, more difficult to cannulate
• More prone to perforation than the parotid duct

Equipment

• Blunt-tipped sialographic cannula with attached tubing
• Lacrimal dilators — may be necessary to enter the papilla
• Water-soluble contrast agent — diatrizoate meglumine (e.g., Gastrografin) provides excellent ductal opacification with no reported adverse effects following duct perforation
• Fluoroscopy unit

Technique (Step-by-Step)

1. Preparation: Dry the mucosa around the papilla; massage the gland to produce saliva (or use a secretagogue — e.g., lemon juice — placed under the tongue to stimulate salivary flow and identify the papilla)
2. Cannulation: A blunt-tipped sialographic cannula is introduced into the ductal orifice. Lacrimal dilators may be needed to widen the papilla
3. Contrast injection:
   • Stensen duct: ~1 mL of water-soluble contrast
   • Wharton duct: ~0.5 mL (smaller caliber)
   • Injection should be slow and under fluoroscopic observation; stop when the patient feels slight pressure
4. Phases:
   • Ductal (filling) phase: Main duct and its branches are opacified
   • Acinar (parenchymal) phase: Contrast fills into terminal acini — maximizes parenchymal opacification and silhouettes mass lesions
5. Imaging projections: Anteroposterior (AP), lateral, and oblique views are obtained to optimize visualization of the ductal system
6. Post-sialographic CT: May be helpful in assisting localization of abnormalities within the gland following conventional sialography (CT-sialography). If CT is performed, the catheter is left in place and the gland is reinjected during scanning

Sialogram Technique Image

Bilateral sialography: Clinical photographs show cannulation of the Stensen duct orifice (left panels), and lateral skull radiographs (right panels) display the opacified ductal systems with main duct and intraglandular arborization.

Normal Findings

• Stensen duct: Smooth, continuous radiopaque column from papilla to the gland hilum, with uniform tapering into intraglandular branches
• Branching pattern: Progressive branching into secondary and tertiary ducts within the gland parenchyma (arborization pattern)
• No filling defects, strictures, or areas of non-filling

3D CBCT sialography showing normal Stensen duct anatomy: the duct traverses the masseter muscle with minor intraglandular tributaries branching from the main duct.

Pathological Findings

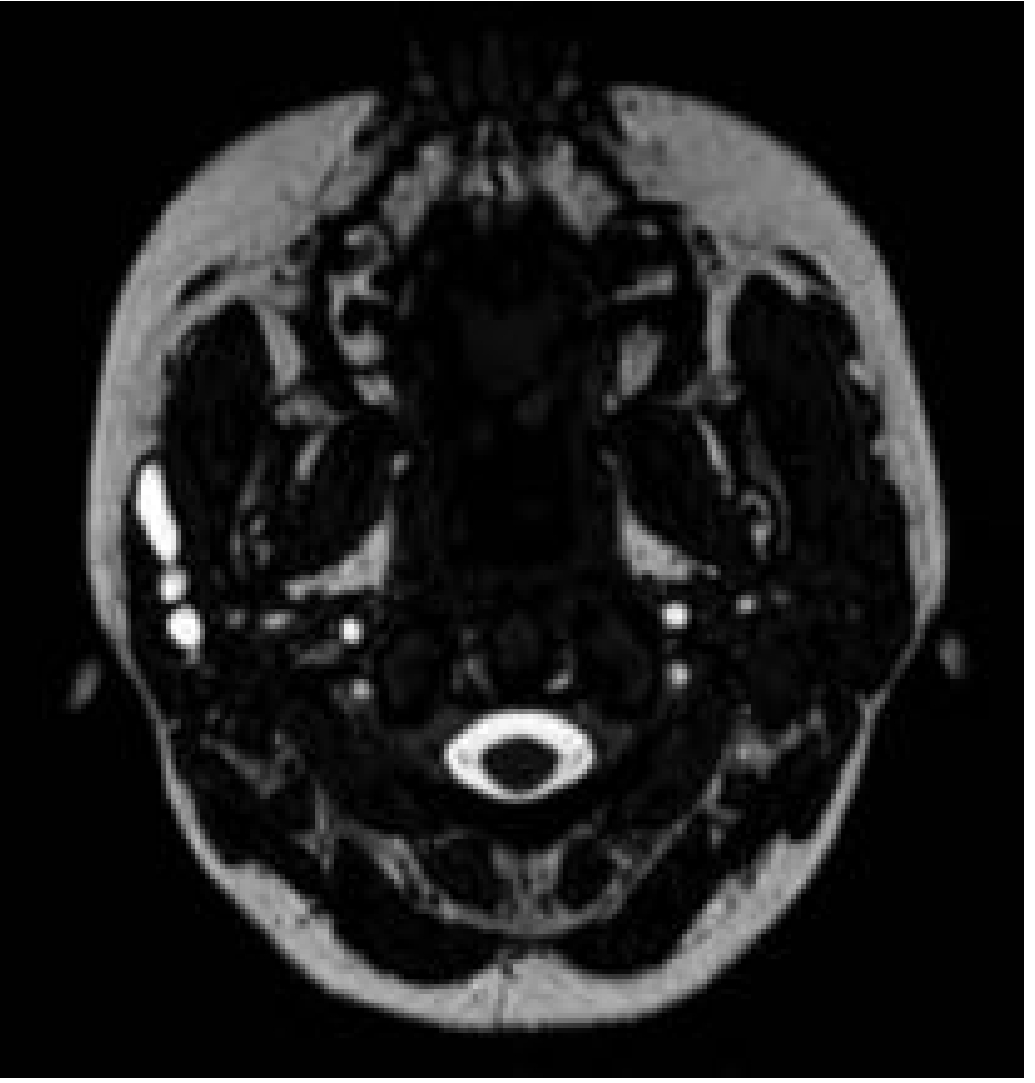

MR Sialogram — Sjögren Syndrome

MR Sialography — Parotid Duct Stenosis

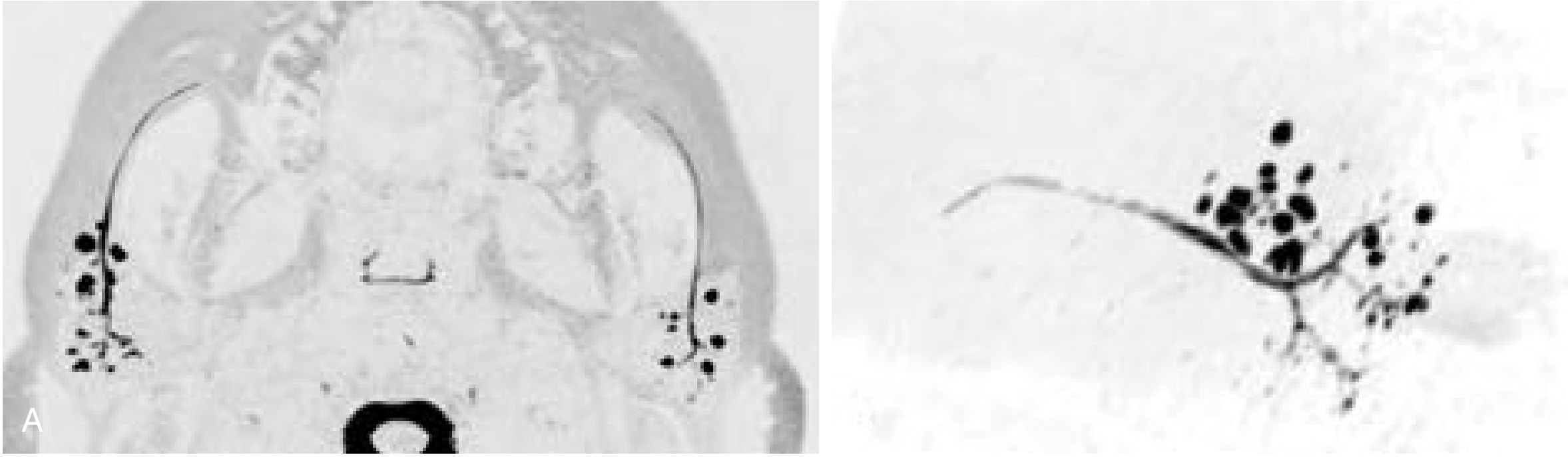

Sialography Showing Sialocele / Obstruction

Lateral oblique sialography of the left parotid gland showing contrast pooling into a large sialocele (~4.8 × 3.0 cm), representing complete ductal obstruction/discontinuity.

Complications

CT-Sialography

• Water-soluble or fat-soluble contrast is injected intraductally before CT acquisition
• The catheter is left in place and the gland is reinjected during CT
• Plane of study should be angled to avoid dental filling artifacts
• Caution: Concentrated sialographic contrast collecting in dilated ducts, acini, or large pools can cause significant streak artifacts that obscure small masses
• For optimal results, injection is extended into the acinar (parenchymal) phase to maximize parenchymal opacification and silhouette mass lesions

MR Sialography

Digital Subtraction Sialography

• Lessens interference of surrounding bony structures
• Can detect radiolucent stones with reported sensitivity of 95–100%
• Provides better detail than plain film sialography for fine ductal pathology

Current Role and Comparison with Other Modalities

"Conventional sialography is the gold standard for evaluating the ductal system in the salivary glands; magnetic resonance sialography has been shown to perform well in evaluating the intraglandular and extraglandular ductal system in the setting of Sjögren syndrome, ductal stenosis, and post-radiation xerostomia. Advances in CT and MRI make these cross-sectional modalities superior for the evaluation of most salivary lesions, both neoplastic and inflammatory." — Cummings Otolaryngology — Head and Neck Surgery

Sialoendoscopy (Sialendoscopy)

Definition

"This innovative method may become the gold standard for the investigation and treatment of many salivary gland pathologies." — Cummings Otolaryngology

Indications

In a systematic review of pediatric sialendoscopy: JRP was the most frequent indication (68.9%), followed by sialolithiasis (14.7%).

Contraindications

• Active infection / acute sialadenitis — risk of spreading infection
• Inability to cooperate (relative; can be managed with GA)

Instrumentation

Types of Sialendoscopes

The Erlangen (Karl Storz) Sialendoscope

Instruments Passed Through the Working Channel

• Microdrill — fragments larger stones mechanically
• Holmium laser fiber — endoscopic lithotripsy for large/hard stones
• Pneumatic (intraductal) lithotripsy probe — newer modality for stone fragmentation
• Wire basket (Dormia-type) — for stone fragment extraction
• Balloon dilator — for ductal stenosis dilation
• Stent — to maintain ductal patency after dilation (kept for up to 4 weeks)

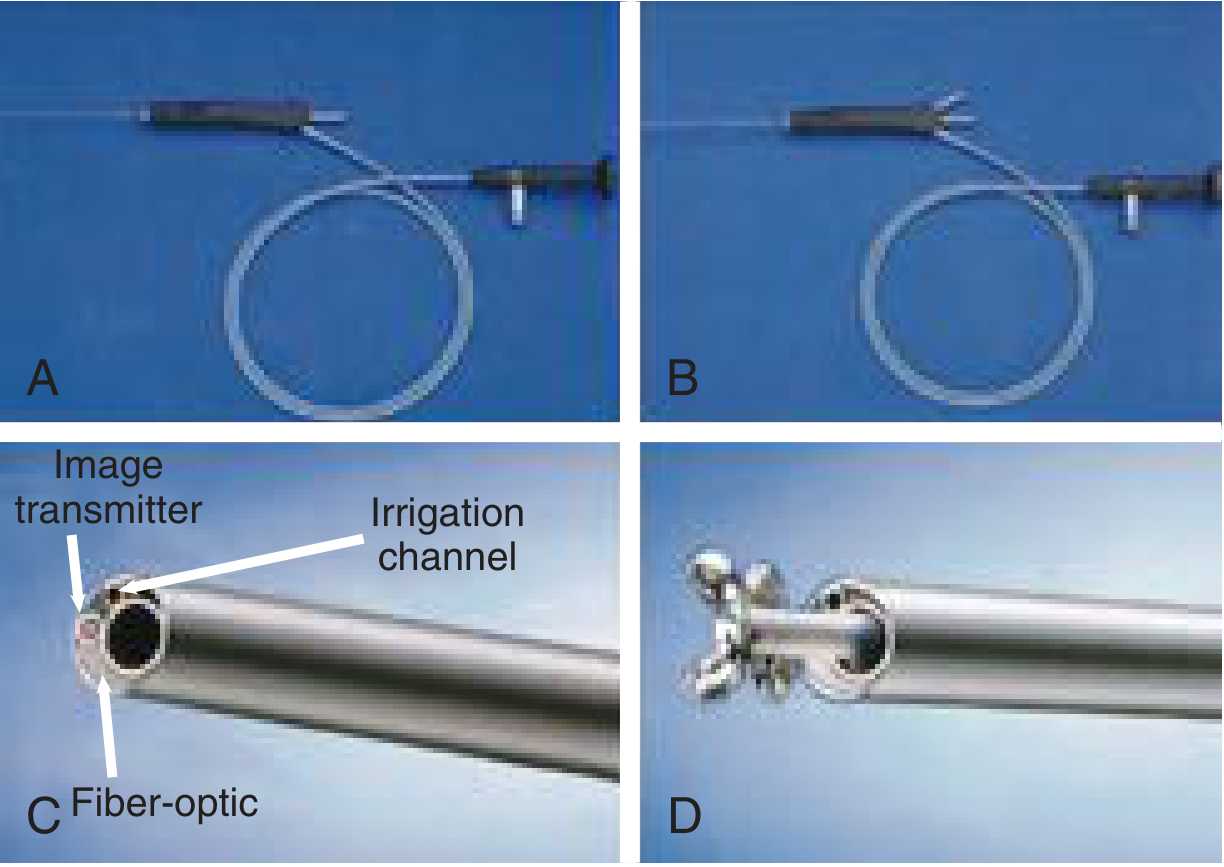

Fig. 205.11 — Modular sialendoscope showing image transmitter, irrigation channel, and fiber-optic components.

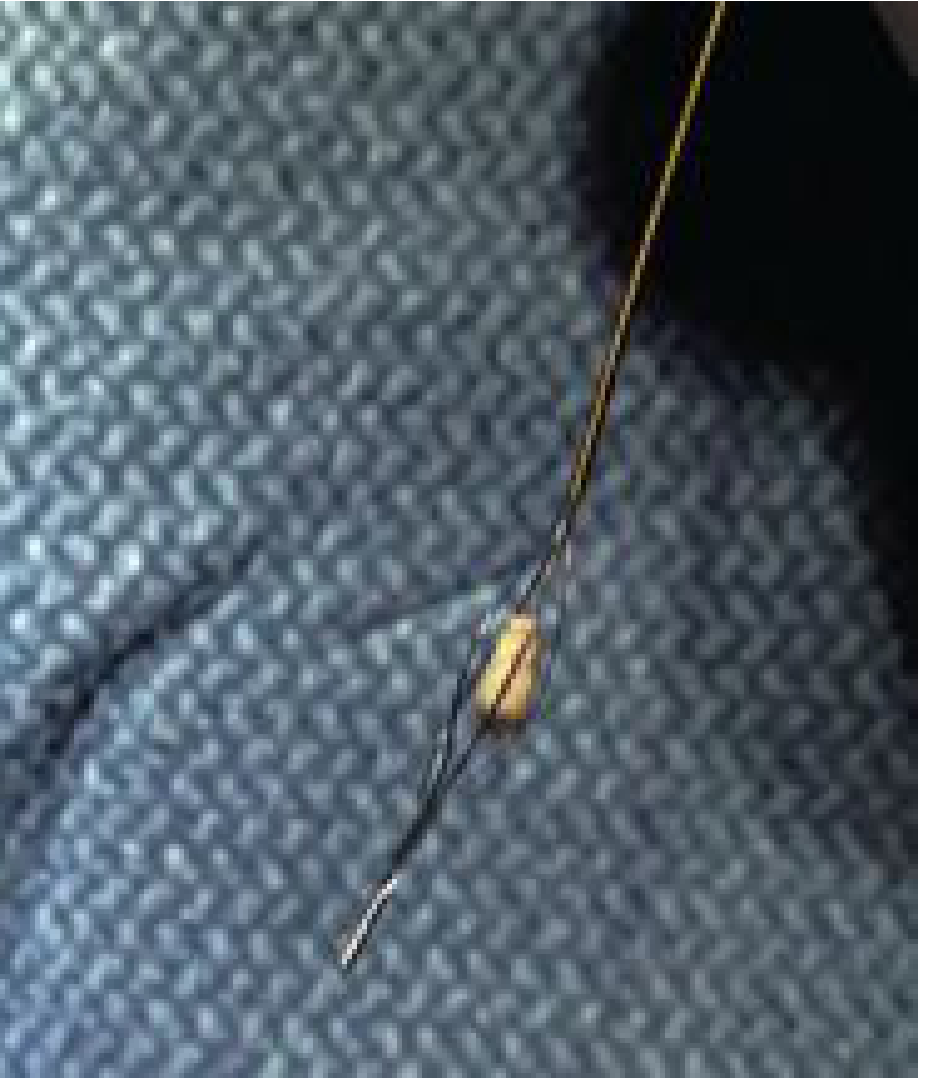

Fig. 205.12 — Stone-extractor wire basket containing a submandibular stone removed by sialendoscopy.

Anesthesia

• General anesthesia — standard; required for younger children and uncooperative patients
• Local anesthesia — possible in children aged >8 years who can cooperate, and in adults

Technique (Step-by-Step)

1. Patient Positioning and Setup

• Appropriate bite block placed on the contralateral side to access the papilla

2. Papilla Identification

• The ductal papilla of Stensen (parotid) or Wharton (submandibular) duct is identified
• Secretagogue (lemon juice) or gentle massage helps identify the papilla by inducing salivary flow

3. Serial Dilation

• Salivary duct probes and dilators are used sequentially to progressively widen the papilla
• Lacrimal dilators may be used as an adjunct

4. Scope Introduction

• The sialendoscope (attached to a camera and monitor) is introduced into the duct via the dilated orifice
• Continuous saline irrigation is maintained throughout to:
  • Maintain visualization
  • Provide hydraulic dilation
  • Flush out mucus, debris, and small stone fragments

5. Ductal Exploration

• The scope is advanced to the first branching point of the main duct
• Each branch is examined as far as the scope can comfortably pass
• The ductal mucosa, caliber, and any filling defects are systematically assessed

6. Therapeutic Interventions (as needed)

Endoscopic Views

Endoscopic Stone Identification and Basket Retrieval

Sialendoscopy for sialolithiasis: (A) yellowish obstructive stone impacting ductal lumen; (B) wire basket positioned; (C) basket capturing stone; (D) exteriorization through ductal incision; (E) retrieved 4 mm sialolith.

Endoscopic views: yellowish-white sialolith obstructing ductal lumen (left), and wire mini-basket capturing the stone (right). Ductal mucosa is pale pink and smooth, without acute sialadenitis.

Endoscopic Findings

Role in Specific Conditions

Juvenile Recurrent Parotitis (JRP)

• Most common pediatric indication
• Sialendoscopy provides:
  • Ductal washout with saline
  • Hydrostatic dilation of peripheral ducts
  • Intraglandular corticosteroid instillation (triamcinolone)
  • Dilation of strictures
• Sialography (with iodinated oil) may also serve both diagnostic and therapeutic roles in JRP — the antiseptic solution lingers in the duct for days/weeks
• Virtually all cases of JRP resolve spontaneously at puberty

Sjögren Syndrome

• Sialendoscopy dilates and washes out affected ducts
• MR sialography or sialography can help stage disease
• A multidisciplinary approach (salivary endoscopist + rheumatologist) is recommended

Radioiodine-Induced Sialadenitis

• Gland washout, removal of debris and mucus plugs, dilation ± stenting
• Reported symptomatic success rates: 50–100%

Sialolithiasis

• Sialendoscopy is now first-line for gland-preserving stone removal
• Digital subtraction sialography: 95–100% sensitivity for radiolucent stones
• Ultrasound: first-line, detects >90% of stones >2 mm
• Combined endoscope + external approach for large/distal stones

Combined Approach (Endoscope-Assisted External Surgery)

1. Sialendoscope localizes the stone and transilluminates the overlying mucosa/skin
2. A small intraoral or external incision is made directly over the stone
3. Stone is extracted via sialoductotomy
4. Gland is preserved; the duct is repaired

Advantages Over Conventional Surgery

Complications

Summary: Diagnostic vs. Therapeutic Sialendoscopy

"Sialendoscopic techniques include endoscopic visualization of stenosis or calculi, balloon dilatation of stenoses, fragmentation of large stones with Holmium laser, and ensnarement of stones with a wire basket." — Cummings Otolaryngology

Facial Nerve Identification and Preservation in Parotid Surgery

Surgical Anatomy — Brief Review

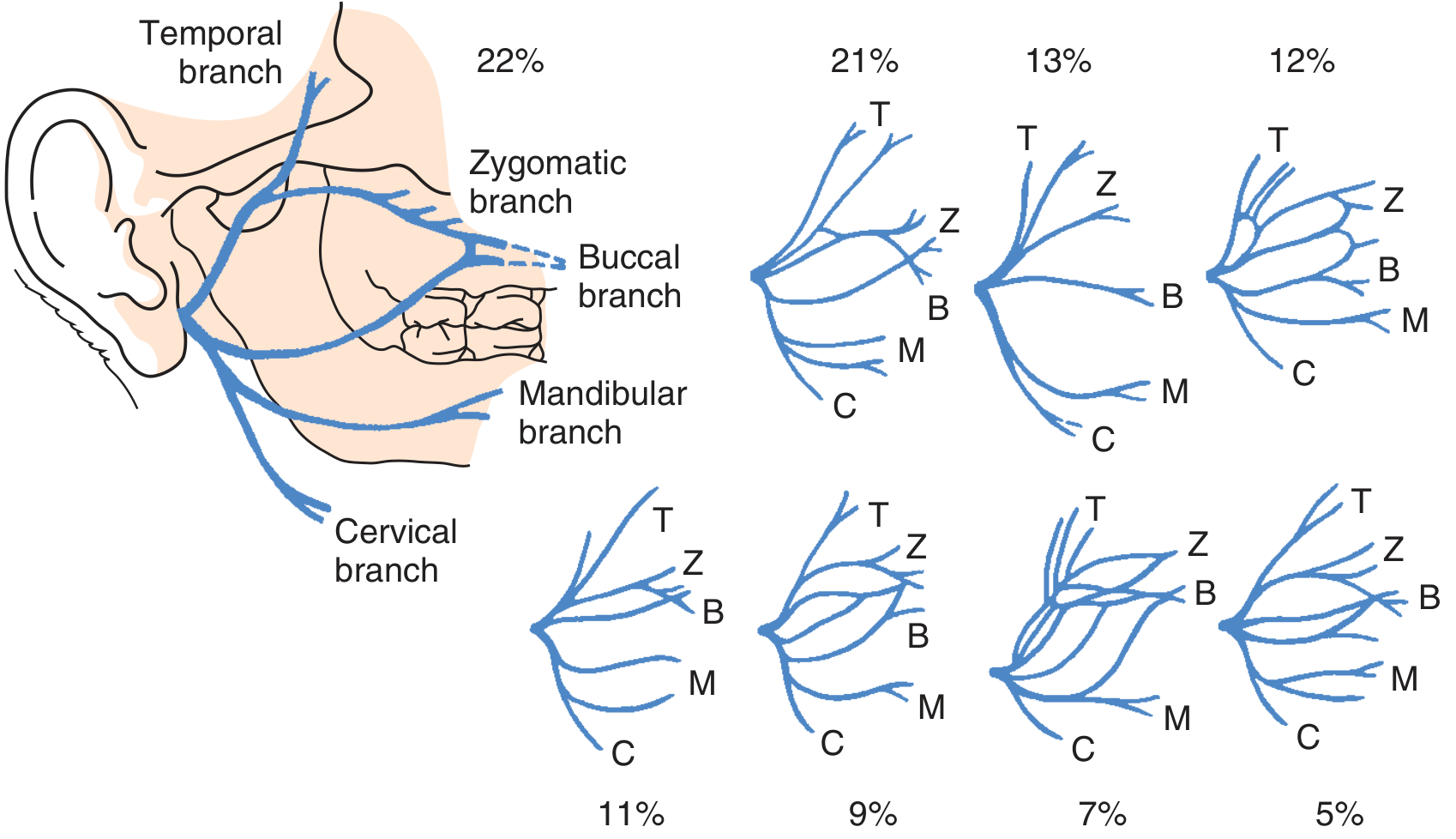

Fig. 85.12 — Variations of facial nerve branching in the parotid gland. T = temporal, Z = zygomatic, B = buccal, M = marginal mandibular, C = cervical. (From Davis RA et al., 1956)

A. Methods of Identification of the Facial Nerve

1. Antegrade (Anterograde) Approach — Identification at the Main Trunk

Landmark 1: Tragal Pointer (Most Common Method)

• The medial tip of the tragal cartilage — the "pointer" — points directly toward the facial nerve
• The main trunk is located ~1 to 1.5 cm deep and inferior to the tragal pointer
• The parotid tissue is elevated off the anterior surface of the tragal cartilage; retraction anteriorly exposes the pointer

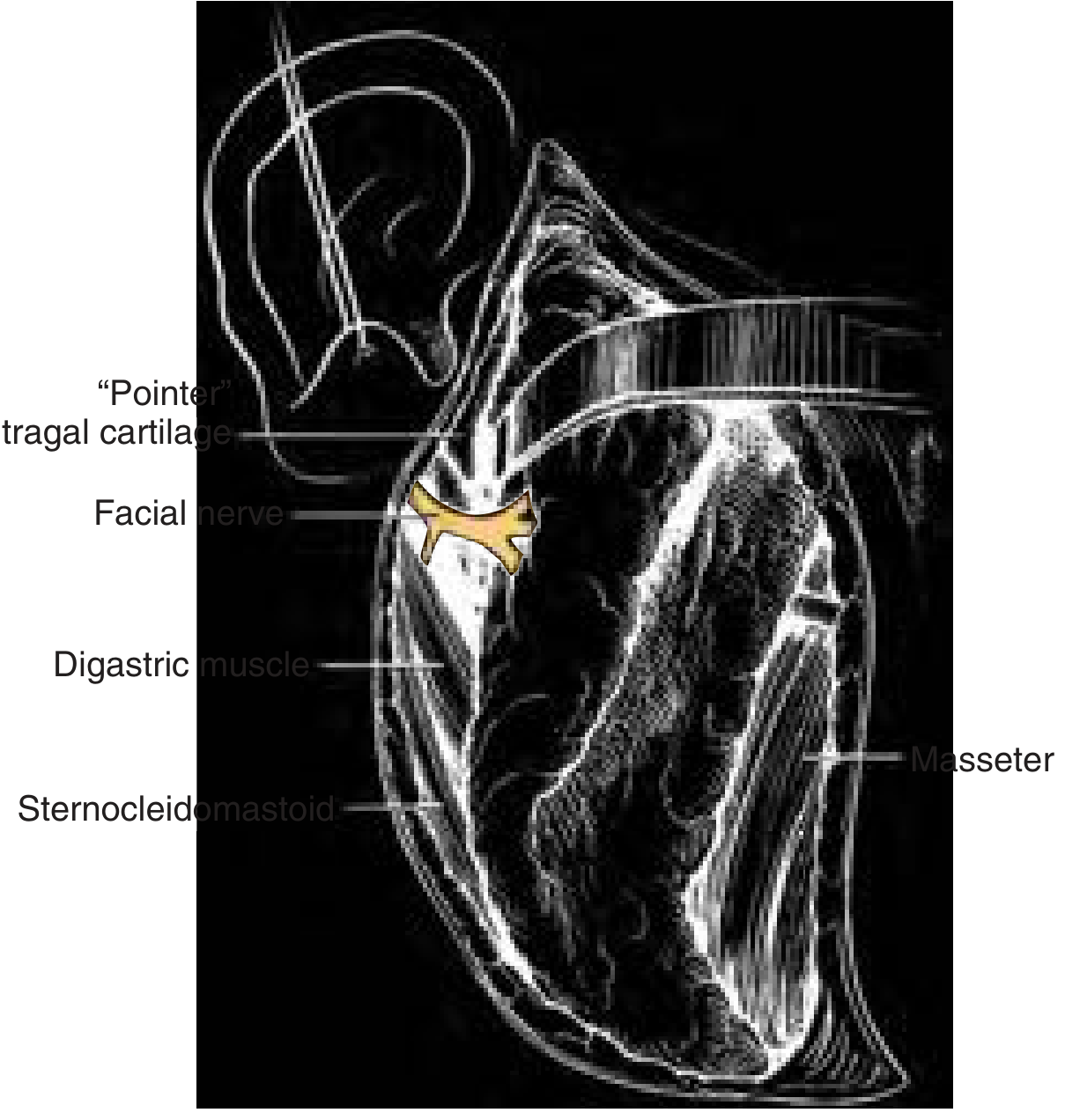

Fig. 85.14 — Identification of the facial nerve main trunk: ~1 cm medial and anteroinferior to the tragal pointer, at the level of the digastric muscle.

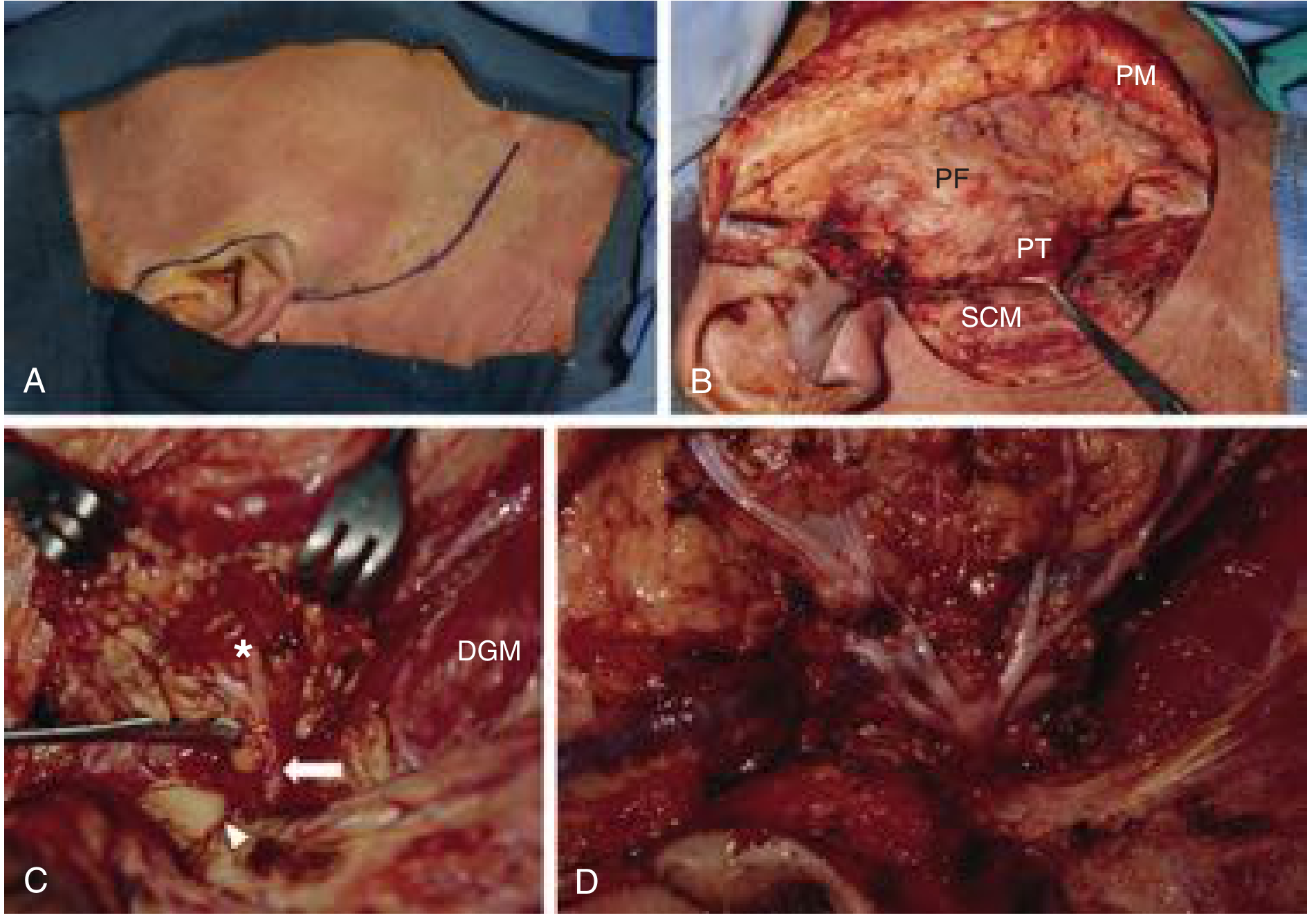

Fig. 84.25 — Right superficial parotidectomy: (C) main trunk of facial nerve (white arrow) between the tragal pointer (white arrowhead) and digastric muscle (DGM); (D) complete dissection revealing the pes anserinus.

Landmark 2: Tympanomastoid Suture Line

• The tympanomastoid suture (junction of the tympanic bone and mastoid) is followed medially
• The facial nerve lies 6–8 mm deep to the tympanomastoid suture
• Described as a more constant landmark than the tragal pointer
• The parotid gland is dissected proceeding deep to the tympanic and mastoid bones along this suture line

Landmark 3: Posterior Belly of the Digastric Muscle

• The posterior belly of the digastric muscle is exposed at its attachment to the mastoid bone
• The facial nerve lies in the tissue plane between the tragal pointer and the attachment of the digastric to the mastoid
• The digastric serves as the inferior boundary of the nerve's expected location
• The tissue between these two landmarks is carefully divided to expose the nerve

Stylomastoid Artery

• The stylomastoid artery (a branch of the posterior auricular artery) runs in close association with the facial nerve at the stylomastoid foramen
• Its identification can guide the surgeon to the nerve — listed as a named landmark in K.J. Lee's

2. Retrograde (Peripheral → Central) Approach

• Tumor overlies the region of the main trunk
• Recurrent tumors with significant scarring at the main trunk
• Previous surgery has distorted normal anatomy

Via the Marginal Mandibular Branch

• Most commonly used peripheral branch for retrograde identification
• Located below the lower border of the mandible, crossing the superficial branch of the facial vessels in the plane immediately beneath the deep cervical fascia
• Identified by following the posterior facial vein superiorly — the marginal mandibular branch crosses this vein
• Once identified, it is traced proximally and retrograde back to the main trunk

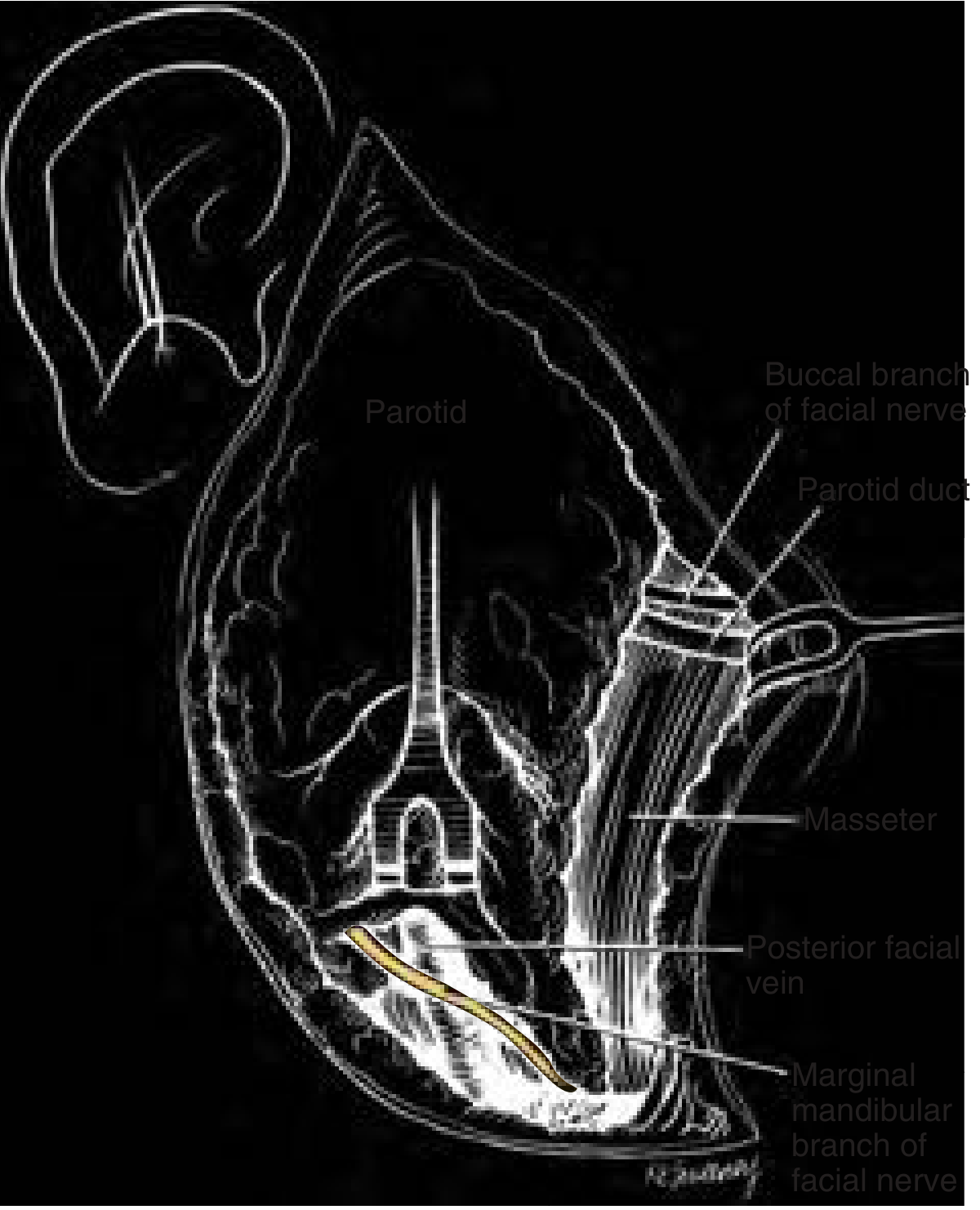

Fig. 85.15 — Marginal mandibular branch of the facial nerve identified by tracing superiorly along the posterior facial vein; useful when the tumor obstructs access to the main trunk.

Via the Buccal Branch

• Found beneath the parotidomasseteric fascia, coursing parallel to the parotid duct
• Can be identified and traced back to the pes anserinus and main trunk

Via the Temporal Branch

• Can be identified in the preauricular region and traced posteriorly

3. Mastoid (Proximal/Intratemporal) Approach

• Extensively scarred fields (e.g., prior surgery, malignancy with perineural invasion requiring proximal margin)
• When tumor extends to or invades the facial nerve requiring resection to negative margins at the stylomastoid foramen or within the mastoid
• Requires mastoidectomy to expose the vertical segment of the facial nerve within the mastoid
• Nerve is identified within the mastoid and followed distally into the parotid
• Nerve mobilization after mastoidectomy is required to minimize tension on any reconstruction anastomosis

4. Electrical Nerve Stimulation / Intraoperative Facial Nerve Monitoring

• A nerve stimulator probe is used to identify suspected neural tissue by observing twitching of the ipsilateral facial musculature
• Intraoperative electromyographic (EMG) monitoring with needle electrodes in the facial muscles provides real-time feedback
• Particularly important when: normal anatomy is distorted, patient has had prior surgery, tumor is large, or revision cases
• Critically: Neuromuscular blocking agents (NMBs) must be avoided or reversed before and during dissection to allow nerve stimulation to function — the anesthesiologist must be informed
• Spontaneous EMG activity alerts the surgeon to proximity of the nerve even without direct stimulation

B. Methods of Preserving the Facial Nerve During Parotidectomy

1. Systematic Anterograde Dissection

1. The overlying parotid tissue is elevated off the nerve with a fine clamp — blades of the clamp straddle the nerve, and the intervening bridge of tissue is carefully divided
2. Dissection proceeds distally from the main trunk to the first division (pes anserinus), then to each branch sequentially
3. Each division and branch is individually and meticulously dissected in the same anterograde fashion
4. The parotid tissue lateral to the nerve plane is progressively removed until the entire superficial lobe is delivered

2. Atraumatic Technique Principles

3. Avoidance of Neuromuscular Blockade

• As above, NMBs are omitted or avoided so the nerve can be identified by electrical stimulation
• If NMB was used for induction, adequate reversal is confirmed before dissection begins

4. Preservation of Greater Auricular Nerve

• The greater auricular nerve is identified and traced inferiorly during flap elevation
• It is divided as distally as possible — preserving maximum length
• The posterior branch of the greater auricular nerve can often be preserved, reducing post-operative auricular numbness
• The proximal portion is preserved as a potential cable graft donor if the facial nerve requires reconstruction

5. Management When Tumor Abuts/Displaces the Nerve

• If the tumor abuts but does not invade the nerve, careful sharp dissection in the peritumoral plane is used
• The facial nerve can be gently mobilized off of deep lobe tumors (see deep lobe parotidectomy)
• If preoperative facial nerve function is fully intact → nerve most likely not invaded → all attempts made to preserve
• If preoperative evaluation reveals paresis or paralysis → nerve likely invaded → proceed with resection to negative margins (frozen sections guide extent)

6. Deep Lobe / Total Parotidectomy — Nerve Elevation Technique

• After complete superficial lobe removal with nerve dissection, the main trunk and all branches are carefully elevated off the underlying deep lobe tissue
• Multiple intraglandular and periglandular vessels must be controlled (branches of external carotid, retromandibular vein)
• The facial nerve is mobilized over the tumor surface using a plane of dissection immediately on the nerve surface
• The gland/tumor deep to the nerve is then dissected off deep musculature, mandible, and temporal bone

7. When Facial Nerve Must Be Sacrificed — Reconstruction

• Resection proceeds until proximal and distal margins are histologically negative (frozen section)
• May require mastoidectomy to achieve negative proximal margin
• Reconstruction options:

8. Defect Reconstruction to Prevent Complications

• Sialocele
• Frey syndrome (gustatory sweating)
• Cosmetic depression

• Abdominal fat graft
• AlloDerm (acellular dermal matrix)
• SMAS (superficial musculoaponeurotic system) flap
• Sternocleidomastoid (SCM) transposition flap
• Free tissue transfer (for large defects)

Summary Table: Methods of Facial Nerve Identification

Recent Advances in Investigation and Management of Salivary Gland Disease

I. ADVANCES IN INVESTIGATION

1. Imaging

A. Ultrasound — Salivary Gland Elastography (Novel)

• Measures tissue stiffness by assessing shear wave velocity or strain — fibrotic/inflamed salivary glands (as in Sjögren syndrome) are stiffer than normal
• Two main techniques: strain elastography and shear wave elastography (SWE)
• A 2024 systematic review and meta-analysis (Dai et al., Eur Radiol, PMID 37658892) across 15 studies (816 pSS patients) showed:
  • Pooled sensitivity: 80% | Pooled specificity: 87% for primary Sjögren syndrome (pSS)
  • Better performance in patients aged ≤51 years
  • SWE technique and measurement location are key determinants of performance
• A non-invasive, cost-effective technique that can differentiate pSS from healthy/disease controls without minor salivary gland biopsy
• A separate 2024 systematic review (Kise et al., Oral Radiol, PMID 38308723) also confirmed a role for USE in pSS diagnosis
• Point-of-care ultrasound (POCUS) is increasingly being integrated into rheumatology and ENT clinics for real-time salivary gland assessment

B. MRI with Advanced Sequences

• MRI is the primary modality for characterising salivary gland tumours
• Required sequences include:
  • Diffusion-weighted imaging (DWI) — apparent diffusion coefficient (ADC) maps help differentiate benign from malignant lesions; malignant lesions have restricted diffusion (low ADC)
  • Dynamic contrast-enhanced (DCE) MRI — perfusion curves distinguish Warthin tumour (type III washout) from pleomorphic adenoma and malignancies
  • MR Sialography — heavily T2-weighted; non-invasive ductal mapping; validated for Sjögren syndrome, ductal stenosis, and post-radiation xerostomia
• For malignancy: CT neck + chest for lymph node and metastasis assessment
• FDG-PET — not currently recommended in routine salivary gland tumour management (high false-positive rate from parotitis)

C. Cone Beam CT (CBCT) Sialography

• CBCT sialography provides 3D reconstruction of the ductal system with lower radiation than conventional CT
• Comparable to MR sialography for detecting sialoceles and sialoliths
• Allows virtual salivary endoscopy from 3D reconstructions in complex cases

D. Endosonography

• Emerging application of intraductal ultrasound during sialendoscopy — the endoscopic probe provides high-resolution intraluminal sonographic assessment of duct walls and periluminal structures (Brandt et al., Ultraschall Med, 2025, PMID 39706218)

2. Tissue Sampling — Core Needle Biopsy vs. FNA

• CNB shortens time-to-diagnosis, reduces repeat visits, and improves surgical planning
• Performed under ultrasound guidance with 18–22G needles
• Early meta-analyses had suggested increased risk of facial nerve damage and tumour seeding — but no major complications (nerve injury, tumour seeding) have been confirmed in current meta-analyses

3. Molecular Profiling and Biomarkers

• International guidelines (ESMO, NCCN) now urge routine testing of:
  • Androgen receptor (AR) — in salivary duct carcinoma
  • HER2 (ERBB2) — by IHC/FISH, particularly in salivary duct carcinoma
  • NTRK gene fusions — in all non-adenoid cystic SGC eligible for systemic therapy
  • MYB/MYBL1 rearrangements — pathognomonic for adenoid cystic carcinoma (AdCC)
  • CRTC1/3::MAML2 fusion — diagnostic for mucoepidermoid carcinoma (MEC)
• Advanced panels (NGS) also identify actionable mutations: NOTCH1/2, PI3KCA, BRAF, EGFR, FGFR

• Saliva is rich in proteins, metabolites, RNA, and cell-free DNA
• Salivary metabolomics may detect oral and systemic disease biomarkers (Garcia et al., Clin Oral Investig, 2024, PMID 39377832)
• Circulating tumour DNA (ctDNA) in saliva holds promise for early malignancy detection

• Novel IHC markers now used diagnostically: NR4A3 (nuclear receptor — acinic cell carcinoma), p63/p40, SOX10, GATA3, INSM1, PLAG1 (pleomorphic adenoma)
• These improve classification in diagnostically challenging cases

II. ADVANCES IN MANAGEMENT

1. Sialendoscopy — Expanded Role and Evidence Base

• Intraductal pneumatic lithotripsy — newer addition alongside Holmium laser for fragmentation of hard/large stones
• Holmium laser lithotripsy — now used safely for most stones regardless of size
• Balloon dilation + stenting — for ductal stenosis; stents kept 4 weeks to prevent re-stenosis
• Steroid irrigation — A 2026 systematic review (Teng et al., Clin Otolaryngol, PMID 41501981) found symptomatic relief irrespective of steroid type/dose; however, evidence is insufficient to determine whether benefit is from steroid or mechanical flushing alone

2. Transoral Robotic Surgery (TORS) for Salivary Gland Disease

• TORS has been applied to submandibular sialolithiasis and parapharyngeal space tumours
• A 2025 systematic review and meta-analysis (Lazzeroni et al., Am J Otolaryngol, PMID 40311492) — 23 studies, 2,520 patients:
  • TORS success rate: 95.7% vs conventional transoral: 92.6%
  • Transient lingual nerve neuropraxia: more common with TORS (15.8% vs 8.1%)
  • No permanent lingual nerve injuries in either group
  • Conclusion: TORS is a valid option; high cost mandates strict patient selection

3. Targeted Molecular Therapy — Salivary Gland Malignancies

4. Adenoid Cystic Carcinoma (AdCC) — New Molecular Insights

• MYB::NFIB and MYBL1::NFIB fusions — present in ~60–80% of AdCC; ongoing therapeutic targeting
• NOTCH1 mutations — present in high-grade transformation cases; NOTCH inhibitors under trial
• Epigenetic modifications (DNMT3A, KDM6A) — potential therapeutic targets
• AdCC is characterised by indolent but relentless progression; targeted therapy offers hope for unresectable/metastatic disease (Zupancic et al., Anticancer Res, 2024, PMID 38537991)

5. Management of Cancer Therapy-Related Salivary Dysfunction

6. Radioiodine-Induced Sialadenitis (RAIS)

• Sialendoscopy (washout, mucus plug removal, dilation, stenting) has success rates of 50–100%
• Amifostine and vitamin E have been explored as protective agents with limited evidence
• Botulinum toxin injection into the parotid pre-radioiodine therapy has been studied as a protective measure (reduces salivary gland uptake)
• Intensity-modulated proton therapy — avoidance of salivary glands in thyroid cancer treatment planning

7. Sjögren Syndrome — Advances in Management

• Rituximab (anti-CD20, B-cell depletion) — used for systemic manifestations; TRACTISS and TEARS trials showed limited benefit for glandular symptoms; role still debated
• Belimumab and abatacept — under active clinical investigation
• Sialendoscopy with steroid irrigation for recurrent sialadenitis episodes (multidisciplinary salivary endoscopist + rheumatologist model)
• Salivary gland ultrasonography (B-mode + elastography) is now being integrated into 2022 ACR/EULAR classification criteria revisions and monitoring protocols

8. Surgical Advances

• Partial (extracapsular) parotidectomy — growing evidence that partial superficial parotidectomy for benign tumours has lower rates of facial nerve dysfunction and Frey syndrome compared to complete superficial parotidectomy, with no higher recurrence rates (K.J. Lee)
• Facelift (retrotragal) incision — adopted for improved cosmesis in benign disease
• Intraoperative nerve monitoring (EMG) — now standard in many centres, especially revision surgery and malignancy
• 3D virtual planning and surgical navigation for complex deep-lobe and parapharyngeal tumours

Summary of Key Recent Evidence

Chapter 45 — Oesophageal Disorders in Children 🎭

A Creative, Story-Based, Mnemonic-Rich Master Guide

🗺️ THE BIG MAP — Chapter at a Glance

OESOPHAGEAL DISORDERS IN CHILDREN
│
├── CONGENITAL (born with it)
│   ├── OA ± TOF ⭐ (most important)
│   ├── Congenital Oesophageal Stenosis
│   ├── Oesophageal Webs & Rings
│   ├── Duplication Cysts & Bronchogenic Cysts
│   ├── Oesophageal Diverticula
│   ├── Oesophageal Bronchus
│   └── Congenital Short Oesophagus
│
└── ACQUIRED (happens after birth)
    ├── Achalasia of the Cardia
    ├── Swallowed Foreign Bodies
    ├── Caustic Injury
    ├── Drug-Induced Injury
    ├── Radiation-Induced Injury
    ├── Mallory-Weiss Tear
    └── Oesophageal Perforation & Rupture

🎬 PART 1 — CONGENITAL ABNORMALITIES

🌟 THE STAR: Oesophageal Atresia (OA) ± TOF

🏙️ THE CITY METAPHOR

Imagine the oesophagus is a highway from the mouth (city centre) down to the stomach (a port). TOF is an illegal bypass road connecting this highway to the airways (another highway). OA means the main highway is simply broken — it doesn't reach the port.

📊 THE FIVE TYPES — "ABCDE of Atresia"

🧠 MNEMONIC: "A Big Cat Does Everything"

A=85%, B=8%, C=4%, D=2%, E=<1%

🔍 DIAGNOSIS — The Detective's Toolkit

🤰 "Mum's belly is too full of water" = Polyhydramnios (baby can't swallow amniotic fluid because oesophagus is blocked) — affects ~50% of OA pregnancies

🫧 Choking | 🌊 Coughing | 🔵 Cyanosis Plus: Frothing at mouth, respiratory distress

"Can't pass the tube?" = VIRTUALLY DIAGNOSTIC of OA

• Use at least 10 Fr (large bore) — thin tubes curl up and fool you!
• See it coiled in upper pouch on chest X-ray = confirmed!

• Tube coiled in upper pouch (Fig 45.3)
• Gas in abdomen → TOF is present (gas going stomach via fistula)
• No gas in abdomen → pure OA, no TOF

Vertebral | Anorectal | Cardiac | Tracheo-Esophageal | Renal/Radial | Limb

⚕️ EARLY MANAGEMENT — "SNAB"

⚠️ PPV danger: Gas trapped in bowel → distension → impaired ventilation → hypoxia, hypercapnia, acid-base upset → GI perforation!

🔧 SURGICAL REPAIR

• Single-layer all-coats anastomosis over a transanastomotic feeding tube
• Approach: Open extrapleural thoracotomy OR Thoracoscopic (minimal access)

Option 1: Ligation TOF + gastrostomy → WAIT → delayed primary repair
Option 2: Oesophagostomy (spit fistula) → allows sham feeding → later repair
Option 3: FOKER technique → traction sutures on both ends → gradual lengthening
Option 4: Oesophageal replacement (colon/jejunum/gastric interposition)

Anastomotic leak | Refistulation | Gastro-oesophageal reflux | Stricture (anastomotic)

💡 If fistula not sutured flush with trachea → blind-ending pouch left behind → intermittent airway obstruction!

🎯 CONGENITAL OESOPHAGEAL STENOSIS

🌡️ The Spectrum Story

"Imagine a rubber pipe being slowly squeezed shut during manufacture — mild squeeze = mild stenosis, severe squeeze = near-complete blockage."

1. Cartilaginous remnants
2. Fibromuscular thickening
3. Membranous webbing

❌ Dilatation rarely works (especially if cartilage present) ✅ Surgical resection of narrowed segment = treatment of choice ✅ Minimally invasive approaches increasingly used

🕸️ OESOPHAGEAL WEBS AND RINGS

The "Incomplete Membrane" Story

A curtain drawn halfway across the oesophageal corridor — if fully drawn (complete), nothing passes. If half-drawn (incomplete), only symptoms later.

• Complete membrane = indistinguishable from OA; may be associated with TOF
• Incomplete membrane = presents later; diagnosed on contrast swallow or upper GI endoscopy

• Complete: Thoracotomy resection
• Incomplete: Dilatation OR endoscopic incision (cautery/laser ± balloon dilatation)
• Associated GOR needs vigorous treatment to prevent stricture!

🫧 DUPLICATION CYSTS & BRONCHOGENIC CYSTS

🧬 The "Developmental Glitch" Story

During development, the oesophagus and trachea separate like two roads diverging from one path. If some tissue gets "left behind" or "pinched off," a cyst forms.

• Lined by gastrointestinal epithelium
• Well-developed smooth muscle wall
• Attached to normal GI tract at some point
• Location: Posterior mediastinum
• Embryology: Split notochord theory — abnormal adhesion between ectoderm and endoderm prevents notochordal fusion

• From tracheobronchial tree budding process
• 70% within lung parenchyma; 30% mediastinal masses
• Common embryological origin as duplication cysts

• Neonatal: Respiratory distress (cyst compresses lungs/airways)
• Older child: Dysphagia
• Asymptomatic → found incidentally
• ⚠️ Bleeding if gastric mucosa lining the cyst secretes acid!

• Excision = most appropriate (both types)
• Thoracoscopic approach preferred
• Percutaneous drainage if severe neonatal respiratory distress

📦 OESOPHAGEAL DIVERTICULA

True vs False — The Wall Story

True = all layers of the wall herniate outward (rare) False (pulsion) = only mucosa herniates through defects in muscle wall (more common)

🫁 OESOPHAGEAL BRONCHUS

"A bronchus taking its origin from the oesophagus rather than the trachea"

• Most common congenital bronchopulmonary foregut malformation
• Often associated with OA and TOF
• Presents with: Recurrent sepsis | collapsed/consolidated lung | found incidentally

• CXR opacity → contrast/radioisotope study (contrast/tracer in lung)
• Upper GI endoscopy reveals fistula (mid/lower oesophagus)
• Bronchoscopy: absence of major bronchus
• Angiography: confirm appropriate blood supply to associated lung

📏 CONGENITAL SHORT OESOPHAGUS

"The oesophagus never fully descended — stomach sits in the chest"

• First described 1958; controversial whether true entity or congenital hiatus hernia
• Presents: Failure to thrive in first few months of life
• Treatment: Very limited; technically challenging surgical management

🎬 PART 2 — ACQUIRED DISORDERS

🌀 ACHALASIA OF THE CARDIA

🚪 The Locked Door Metaphor

"The Lower Oesophageal Sphincter (LOS) is a door that refuses to open. Food builds up in the corridor above it, and the corridor (oesophagus) stretches into a giant bag."

Vomiting | Weight loss | Regurgitation (night) | Swallowing difficulty (starts solids → progresses to liquids) | Chest pain

• Bad breath

• UGI contrast → "Rat-tail / bird-beak" appearance — dilated baggy oesophagus with beaked lower end
• Upper GI endoscopy → baggy, dilated oesophagus + food debris; exclude other conditions
• Manometry → high resting LOS pressure + failure to relax + poor peristalsis

Drugs (anticholinergics, CCBs, nitrates) → Poor results in children; high side effects
        ↓
Pneumatic balloon dilatation (repeated) → Complications: oesophageal rupture!
        ↓
Botulinum toxin injection → Successful in several centres
        ↓
SURGERY = Heller cardiomyotomy + partial fundoplication
         (Laparoscopic — standard)
         (POEM — peroral endoscopic myotomy — comparable results, more recent)

🧠 Mnemonic for treatment: "Don't Be Bothered, Heller Knows" D=Drugs (fail) | B=Balloon | Bo=Botox | H=Heller+fundoplication

🪙 SWALLOWED FOREIGN BODIES

👶 Age-Based Pattern

Infants/young: coins, batteries, small toys (whole objects) Older children: inadequately chewed food (especially if underlying OA repair, peptic stricture) Special risk: learning/behavioural difficulties

🗺️ Location Matters — The 4 Danger Zones

1. THORACIC INLET → airway obstruction
2. CRICOPHARYNGEUS → lodges here
3. MID-OESOPHAGUS behind heart (aortic arch level)
4. OESOPHAGOGASTRIC JUNCTION → perforation/mediastinitis risk

• Coin in oesophagus = en-face on AP view (Fig 45.8)
• Coin in trachea = on edge (AP view shows its edge)
• Metal detector can locate coins!

⚡ THE BUTTON BATTERY — EMERGENCY!

"A tiny bomb in the oesophagus"

• Electrical current + alkaline leakage = rapid, severe ulceration
• Risk of catastrophic erosion of mediastinal great vessels
• NHS England Patient Safety Alert specifically for this!
• Remove as matter of URGENCY

🔧 Treatment

• Rigid or flexible oesophagoscopy under GA + endotracheal intubation = preferred
• Graspers and basket devices for coins
• Batteries: difficult (smooth edges) — balloon catheter sometimes works
• Safety pins: push to stomach with open end proximal → in stomach, grasp hinge end → remove with oesophageal overtube
• Items in stomach: usually pass spontaneously (except magnets/button batteries!)

⚠️ Multiple magnets → adhere across bowel loops → fistulisation + perforation!

☠️ CAUSTIC INJURY

🧪 The Chemistry Disaster Story

"A child swallows a cleaning product. The alkali doesn't just burn — it liquefies everything it touches, layer by layer."

• Household cleaners, lemon-bottle agents, liquitabs (Fig 45.9), dishwashing tablets
• Risk factors: Impulsive behaviour, ADHD

IMMEDIATE:   Crying, spitting, coughing, stridor
             ↓
EARLY:       Chest pain, dysphagia, vomiting
             Signs of burn on lips/mouth
             ⚠️ Absence of oral signs does NOT exclude ingestion!
CONCERNING:  Fever, tachycardia, laryngeal/airway oedema

1. Do NOT wash the caustic away — exothermic reaction makes it worse!
2. Do NOT neutralise — if pH unknown, another exothermic reaction possible!
3. Do NOT pass NG tube blindly — contraindicated!
4. NG tube placed during endoscopy to maintain oesophageal lumen + facilitate enteral nutrition
   • Cut off the blind end of NG tube to allow guidewire passage for future

Admit → Fast → IV fluids
       ↓
Early endoscopy (assess depth/extent)
       ↓
Antibiotics + Steroids (controversial — conflicting evidence)
       ↓
NG tube in situ (during endoscopy)
       ↓
Serial balloon dilatations for fibrous strictures
       ↓
Oesophageal resection + colonic/gastric replacement (severe/resistant strictures)

🧠 "Alkali attacks the oesophagus, Acid attacks the stomach/pylorus" Alkali = more damaging to oesophagus (liquefactive necrosis) Acid = more damaging to stomach and pylorus

💊 DRUG-INDUCED INJURY

"Rare in children; always has underlying structural abnormality" Tablet/capsule gets stuck above a stricture → releases active agent → injury

☢️ RADIATION-INDUCED INJURY

Rare; when radiotherapy needed for thoracic tumours; worse with concurrent chemotherapy Symptoms: Dysphagia + chest pain Endoscopy: mucosal oedema + aphthous ulceration Treatment: Largely symptomatic

🩸 MALLORY-WEISS TEAR

💡 The "Repeated Vomiting Splits the Wall" Story

"Forceful vomiting creates pressure waves that tear the oesophagogastric junction mucosa — it bleeds."

• Not common in children; increasingly recognised due to more UGI endoscopy in paediatrics
• Classic presentation: Prolonged vomiting → haematemesis
• Bleeding is usually self-limiting

• Acid suppression (PPI / H2 blocker)
• Severe cases (especially with coagulopathy): oesophageal balloon tamponade or pharmacological haemostasis

💥 OESOPHAGEAL PERFORATION & RUPTURE

Fast + IV antibiotics + antifungals
↓
Parenteral nutrition
↓
CT/contrast imaging (assess extent)
↓
Most heal WITHOUT surgery (remove foreign body if present)

🧠 MASTER MNEMONICS SUMMARY

1. OA Types: "A Big Cat Does Everything"

2. VACTERL: V-A-C-T-E-R-L

3. OA Early Management: "SNAB"

4. OA Complications: "ARGS"

5. Achalasia Treatment: "Don't Be Bothered, Heller Knows"

6. Caustic Rules: "Don't Wash, Don't Neutralise, Don't Blindly Tube"

7. Alkali vs Acid: "Alkali Attacks Above (oesophagus), Acid Assaults Below (stomach)"

8. Foreign Body Danger Zones: "TCA-OG"

⚡ RAPID-FIRE HIGH-YIELD FACTS

🎭 THE BIG STORY RECAP

Scene 1 (Delivery room): Baby born, can't pass NG tube → coils on X-ray → no gas in belly → Pure OA, Type B! | Gas in belly → OA + TOF, Type A!

Scene 2 (NICU): Nurse prone, Replogle in upper pouch, avoid PPV. Rush to theatre. Divide fistula, join the two ends. Long gap? Use Foker sutures. Too long? Give gastrostomy, come back later.

Scene 3 (Toddler, 18 months): Mum finds child holding an empty dishwasher tablet — caustic alkali swallowed. Crying, frothing, stridor. Airway first! Don't wash! Don't neutralise! Endoscopy, NG in situ, antibiotics, PPI. Wait, then serial dilations.

Scene 4 (Toddler, 2 years): Parents bring in screaming child — swallowed a button battery. X-ray shows round opacity in oesophagus. Emergency endoscopy NOW — no waiting, no watching.

Scene 5 (Teenager): 14-year-old who can't swallow solids, then liquids, vomiting at night, weight loss. Barium swallow → bird-beak. Manometry → failed LOS relaxation. → Achalasia. Heller + fundoplication.

📝 SELF-TEST QUESTIONS

1. What is the most common type of OA and what percentage does it account for?
2. What is the VACTERL association? List all components.
3. Why is PPV dangerous in OA + TOF?
4. What NG tube bore is recommended and why?
5. What is the Foker technique?
6. What are the 3 types of congenital oesophageal stenosis?
7. What is the embryological theory behind oesophageal duplication cysts?
8. Name the 4 danger zones where foreign bodies lodge in the oesophagus.
9. Why are button batteries a surgical emergency?
10. What are the two rules about caustic ingestion you must NEVER forget?
11. What is the radiological sign of achalasia?
12. What is POEM and when is it used?
13. In caustic injury — which damages oesophagus more, alkali or acid? Which damages the stomach more?
14. What is Mallory-Weiss tear and what triggers it in children?
15. What is the most common cause of oesophageal perforation in neonates?

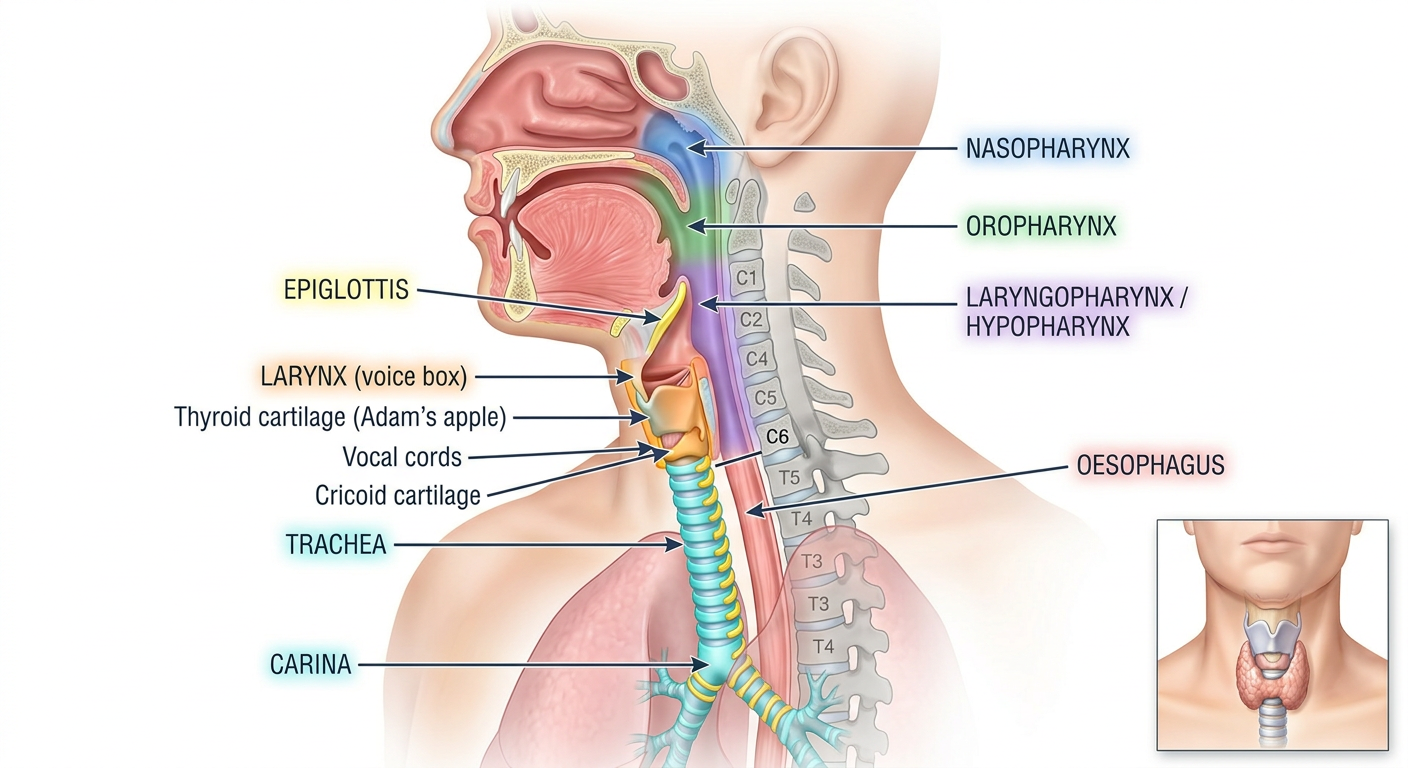

How to Read This Image — The Complete Story

🔵 The AIRWAY (blue/cyan path — front)

Nasal cavity
    ↓
NASOPHARYNX (behind nose, above soft palate — C1/C2 level)
    ↓
OROPHARYNX (behind mouth, soft palate → epiglottis — C2/C3 level)
    ↓
LARYNGOPHARYNX / HYPOPHARYNX (behind larynx, epiglottis → C6 level)
    ↓ splits at C6 ↓
LARYNX → TRACHEA (anterior tube, C-rings, bifurcates at T4–T5 = carina)

🩷 The FOOD PASSAGE (pink path — behind)

Oral cavity (mouth)
    ↓
OROPHARYNX (shared space — air and food pass through here)
    ↓
LARYNGOPHARYNX (epiglottis flap directs food BACKWARD)
    ↓ splits at C6 ↓
OESOPHAGUS (posterior to trachea, soft muscular tube, descends through chest)

🔑 The Three Key Relationships to Memorise

🎯 The Split at C6 — Most Important Point

At C6 (cricoid cartilage level), the single pharyngeal tube FORKS:

• FRONT fork → Larynx → Trachea (air)
• BACK fork → Oesophagus (food)

The epiglottis is the traffic controller — swings back during swallowing to close the airway and direct food into the oesophagus.

📐 Trachea vs Oesophagus — Side by Side
