Isolation of Cells from Amniotic Fluid: Detailed Procedure and Applications

Background

---

Step 1: Collection of Amniotic Fluid (Amniocentesis)

Pre-procedure Preparation

• Fetal viability and gestational age (using biometric parameters: head circumference, abdominal circumference, femur length)
• Number of fetuses
• Volume of amniotic fluid
• Fetal anatomic structures
• Position of the fetus and placenta - to select the optimal needle entry site

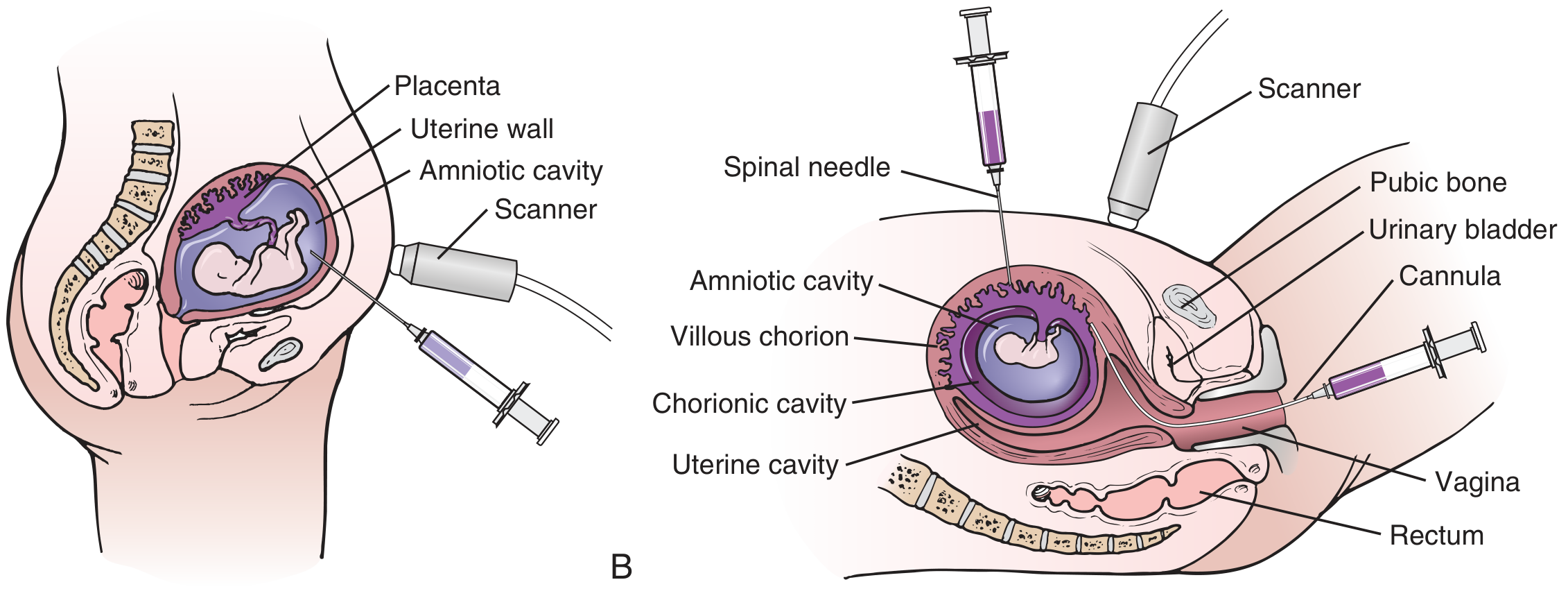

The Amniocentesis Procedure

1. Gestational timing: Performed from 15 weeks of gestation onwards; optimally at 15-20 weeks (when sufficient desquamated fetal cells are present). Early amniocentesis at 10-14 weeks is possible but less preferred.
2. Needle selection: A 20- or 22-gauge needle is used.
3. Insertion: Under continuous ultrasound guidance, the needle is inserted transabdominally (percutaneously) into an unoccupied area of the amniotic cavity. The first few drops of fluid may contain maternal cells from the needle tract and should be discarded before collecting the sample for cytogenetic studies.
4. Volume withdrawn: Approximately 1 mL per gestational week (e.g., ~17 mL at 17 weeks; typically ~20 mL total). This volume is safe and does not endanger the fetus.
5. Post-collection: The fluid is transferred immediately to a sterile container and transported to the cytogenetics/cell culture laboratory. Maintaining proper transport conditions is essential as the cell culture is fragile.

---

Step 2: Cell Isolation from Amniotic Fluid

A. For Cytogenetic Analysis (Traditional Method)

1. Centrifugation: The amniotic fluid sample is centrifuged at low speed (typically 300-400 x g for 10 minutes) to pellet the cells and remove most of the fluid supernatant.
2. Resuspension: The cell pellet is resuspended in a small volume of culture medium.
3. Cell culture setup: Cells are seeded into culture flasks/dishes. Chang medium (alpha-MEM + 18% Chang B + 2% Chang C) or DMEM supplemented with fetal bovine serum (FBS) and antibiotics is commonly used.
4. Incubation conditions: Cultures are maintained at 37°C in 5% CO₂ atmosphere.
5. Culture duration: Cells require 2-3 weeks of culture to grow to sufficient numbers (amniocytes are slow-growing). Cells in the culture are synchronized in metaphase for chromosomal analysis.
6. G-banding (Giemsa staining): After culture, cells are harvested during metaphase, spread on slides, and stained for karyotyping - this is the gold standard for chromosomal analysis.

B. For Mesenchymal Stem Cell (MSC) Isolation

1. Filtration: The fluid is first passed through a 40-micrometer cell strainer to remove tissue debris.
2. Centrifugation: Filtered fluid is centrifuged to collect the cell pellet.
3. Primary culture (Step 1): The pelleted cells are plated in alpha-MEM medium + 18% Chang B + 2% Chang C. After 5-7 days, non-adherent cells are washed away; adherent cells remain attached to the flask surface. This exploits the adhesion property of MSCs.
4. Subculture (Step 2): Adherent cells are passaged and expanded further. This step selects for a homogeneous MSC population.
5. Alternatively - Immunoselection: Pioneered by De Coppi et al. (2007), targeting the CD117 (c-KIT) tyrosine kinase receptor - allows isolation of a specific population of amniotic fluid stem cells (AFSCs) that express both embryonic and adult stem cell markers.

C. For DNA Extraction (Without Prior Culture)

• Cells are pelleted by centrifugation
• Standard DNA extraction protocols (phenol-chloroform or commercial kits) are applied
• The extracted DNA is used for PCR-based gene sequencing, microarray analysis (CMA), or whole exome sequencing

---

Step 3: Cell Types Obtained

---

Applications

1. Prenatal Genetic Diagnosis

• Karyotyping (G-banded chromosomes after culture): detects trisomies (Down syndrome - trisomy 21, Edwards - trisomy 18, Patau - trisomy 13), sex chromosome abnormalities
• Chromosomal Microarray Analysis (CMA): detects copy number variants (deletions, duplications) at higher resolution than karyotyping
• Single-gene disorder testing: sequencing of specific genes or gene panels for known familial mutations
• Fetal exome sequencing: for undiagnosed fetal anomalies on ultrasound
• Fetal sex determination: particularly for X-linked disorders

2. Neural Tube Defect Screening

• Amniotic fluid AFP (AFAFP) measured by immunoassay: elevated levels suggest open neural tube defects (spina bifida, anencephaly). Combined with 18-19 week ultrasound, ~99% of open spina bifida cases are identified.

3. Fetal Lung Maturity Assessment (Historical)

4. Detection of Fetal Infections

• Toxoplasma gondii: amniotic fluid inoculated into cell culture for isolation confirmation
• Parvovirus B19: qualitative PCR on amniotic fluid for hydrops fetalis
• Rubella, CMV: cell culture or PCR from amniotic fluid samples

5. Metabolic and Biochemical Disorders

• Fetal enzyme deficiency states can be diagnosed by measuring enzyme activity in cultured amniocytes (e.g., lysosomal storage diseases such as Tay-Sachs)
• Amino acid profiles, hormone levels, and other metabolites can be assayed from the fluid

6. Stem Cell Research and Regenerative Medicine

• Have trilineage mesenchymal differentiation potential (adipogenic, osteogenic, chondrogenic)
• Express neurogenic markers - can be guided into neuronal cells
• Have immunomodulatory properties through paracrine mechanisms
• Do not form teratomas (unlike embryonic stem cells) and raise no ethical concerns
• Maintain normal karyotype even after >250 population doublings

• Diaphragmatic reconstruction: autologous tendon engineering from mesenchymal amniocytes
• Cardiac repair: reprogramming to induced pluripotent stem cells (iPSCs) then to cardiomyocytes (for congenital heart defects such as hypoplastic left heart syndrome)
• Pulmonary hypoplasia: autologous AFSC transplantation to augment lung growth
• In utero stem cell transplantation: for fetal genetic disorders; AFSCs from bone marrow, placenta, or amniotic fluid take advantage of the fetal immune system's immature state for better engraftment
• In utero gene therapy: accessible stem cells in amniotic fluid can serve as gene delivery vehicles

7. Rh Isoimmunization Monitoring (Historical)

8. Evaluation for Amnionitis

---

Complications of Amniocentesis (for Cell Isolation)

---

Summary

• Thompson & Thompson Genetics and Genomics in Medicine, 9th ed.
• Tietz Textbook of Laboratory Medicine, 7th ed.
• Pfenninger and Fowler's Procedures for Primary Care, 3rd ed.
• Sabiston Textbook of Surgery, 21st ed.
• Basic Medical Biochemistry: A Clinical Approach, 6th ed.
• Amniotic Fluid Stem Cells - PMC Review (PMC3850304)

---

Isolation of Cells from the Placenta: Principles, Procedure, and Applications

Introduction

---

Anatomy Relevant to Cell Isolation

---

Principles of Cell Isolation

1. Mechanical Disaggregation

2. Enzymatic Digestion

• Collagenase I/IV - cleaves collagen fibers of the stroma; the principal enzyme used for placental tissue
• Dispase - a neutral protease that cleaves fibronectin and laminin; used in combination with collagenase for more complete dissociation
• Trypsin-EDTA - used for fetal membrane layers; EDTA chelates Ca²⁺ and Mg²⁺, disrupting cell-cell adhesion

3. Density Gradient Centrifugation

• Ficoll-Paque (density 1.077 g/mL) gradient centrifugation separates mononuclear cells (MSCs, trophoblasts) from erythrocytes, dead cells, and granulocytes based on buoyant density
• Mononuclear cells accumulate at the interface (buffy coat) and are collected by aspiration

4. Selective Adhesion (Plastic Adherence)

5. Immunomagnetic Selection (MACS)

• CD34 - hematopoietic progenitor cells
• CD117 (c-KIT) - a subpopulation of amniotic fluid/placental stem cells (AFSC)
• Negative selection for lineage markers (CD45, CD34) depletes hematopoietic cells while enriching MSCs
• Labeled cells are passed through a magnetic column; retained or non-retained cells are collected depending on the strategy

6. Flow Cytometric Sorting (FACS)

---

Detailed Procedure for Placental MSC Isolation

Phase 1: Collection

1. Obtain informed consent and ethical approval before collection
2. Collect the placenta via caesarean section under aseptic surgical conditions; package in a sterile bag for transport
3. Transport at room temperature or 4°C; process within 6 hours (cell culture performance declines beyond this)
4. Wear full PPE; work in a biological safety cabinet throughout

Phase 2: Dissection of Tissue Compartments

1. Turn the placenta to the fetal (shiny) side
2. Peel back the amniotic membrane (thin, transparent layer)
3. Using sterile scissors/scalpel, dissect a fragment (~10 g) of the exposed chorionic plate tissue, avoiding large blood vessels

1. With the CP removed, dissect CV tissue (~1 cm² x 0.5-1 cm deep) from the interior of the placenta
2. Harvest from the region closest to the umbilical cord insertion site, staying ≥1 cm from the maternal (decidual) surface
3. Place tissue pieces in Hank's Balanced Salt Solution (HBSS) in a Petri dish to keep hydrated during dissection

1. Scrape/dissect the dark, rough maternal surface tissue separately

Phase 3: Mincing

1. Transfer tissue to a Petri dish containing HBSS
2. Mince with scissors or scalpel into fine pieces (1-2 mm fragments)
3. Transfer minced tissue (to fill a 50 mL tube to the 10 mL mark, approximately 10 g of tissue)

Phase 4: Enzymatic Digestion

1. Add digest medium: dispase (1 U/mL) + collagenase I (200 U/mL) in HBSS, sufficient to cover tissue
2. Incubate at 37°C with shaking at 250 rpm for 1 hour (or 1.5-2 hours with manual shaking every 30 min)
3. Monitor until tissue is visibly digested and the suspension appears turbid with released cells

Phase 5: Cell Separation from Debris

1. Pulse centrifugation: allow centrifuge to briefly reach 340 × g for ~5 seconds, then stop immediately. This pellets large undigested fibrous debris while mononuclear cells remain in suspension. (Extended centrifugation would also pellet the target cells - a critical technical point)
2. Transfer the supernatant (containing mononuclear cells) to a new 50 mL tube
3. Pass through a 100 μm cell strainer to remove remaining tissue fragments
4. Centrifuge the filtered supernatant at 300-400 × g for 10 min to pellet the cells
5. Aspirate and discard supernatant; resuspend pellet in PBS or culture medium

Phase 6: (Optional) Density Gradient Enrichment

1. Layer the cell suspension over Ficoll-Paque in a 15 mL or 50 mL tube
2. Centrifuge at 400 × g for 30-40 min at room temperature (brake off)
3. Carefully aspirate the mononuclear cell layer at the interface; transfer to a clean tube
4. Wash twice with PBS (centrifuge at 300 × g for 10 min) to remove Ficoll

Phase 7: Culture and Expansion

1. Resuspend pelleted cells in culture medium:
   • For MSCs: DMEM-low glucose or alpha-MEM + 10-20% FBS + L-glutamine + antibiotics (penicillin/streptomycin)
   • Optional enrichment media: Chang medium (alpha-MEM + 18% Chang B + 2% Chang C) - used for amniocyte cultures
2. Seed at a density of 10,000-50,000 cells/cm² into T-75 flasks
3. Incubate at 37°C in 5% CO₂
4. After 24-48 hours, remove non-adherent cells by media change - MSCs remain firmly attached
5. Continue with media changes every 2-3 days; colonies of spindle-shaped adherent cells (MSC morphology) should be visible within 5-7 days
6. Passage when ~80% confluent using trypsin-EDTA, typically at passages 2-5 for optimal quality

---

Trophoblast Differentiation Pathway

---

Cell Types Obtained and Their Surface Markers

---

Immunophenotype Verification

1. Plastic-adherent growth in standard culture conditions
2. Expression of CD73, CD90, CD105 (≥95% positive)
3. Absence of CD45, CD34, CD14/CD11b, CD79α/CD19, HLA-DR (≤2% positive)
4. Trilineage differentiation capacity: adipogenesis, osteogenesis, chondrogenesis

---

Applications

1. Prenatal Genetic Diagnosis (Chorionic Villus Sampling - CVS)

• Cultured for karyotyping (direct preparation of cytotrophoblasts, or long-term culture of fibroblasts from villous stroma)
• Used for DNA extraction - chromosomal microarray, single-gene disorder testing, whole-exome sequencing
• Tested for enzyme activity in metabolic/biochemical disorders

2. In Utero Stem Cell Transplantation

• Hemoglobinopathies (sickle cell disease, thalassemia): placental/BM-HSCs transplanted in utero establish chimerism, potentially curing the disorder without postnatal myeloablation
• Osteogenesis imperfecta: placental MSCs engraft at sites of bone injury and repopulate damaged tissue with healthy collagen-producing cells - two clinical cases in Singapore showed remarkable benefit
• Spina bifida: the FDA has approved a Phase I clinical trial of placental-derived MSCs for in utero spina bifida repair (Mulholland & Greenfield's Surgery, 7th ed.; Sabiston Textbook of Surgery, 21st ed.)

3. Regenerative Medicine and Cell Therapy

• Higher proliferation rate and longer culture lifespan
• Greater pluripotent potential - express embryonic stem cell markers
• Trilineage differentiation: adipogenic, osteogenic, chondrogenic
• Neurogenic differentiation: potential for neurological conditions
• Hepatogenic differentiation: chorionic plate-derived MSCs express higher levels of hepatocyte growth factor after induction - relevant to liver regeneration
• Pancreatic differentiation: under investigation for diabetes cell therapy

4. Immunotherapy and Immune Modulation

• Trophoblasts express non-classical MHC molecules (HLA-E, HLA-F, HLA-G) that inhibit NK cell activity and T lymphocyte proliferation
• Placental MSCs suppress T-cell proliferation through paracrine mechanisms (IDO, PGE2, TGF-β secretion)
• Application in autoimmune diseases, graft-versus-host disease (GvHD), inflammatory bowel disease, and COVID-19 pneumonia (COVID trials using placental MSCs)

5. Trophoblast Research and Obstetric Pathology

• Implantation mechanisms and causes of recurrent miscarriage
• Preeclampsia pathogenesis - inadequate EVT invasion of spiral arteries
• Gestational trophoblastic disease (hydatidiform mole, choriocarcinoma)
• Drug transport and placental pharmacokinetics (relevance to drug safety in pregnancy)

6. Extracellular Vesicle (EV) Production

• Acute kidney injury treatment
• Diabetes and diabetic complications
• As cell-free alternatives to MSC transplantation

7. Tissue Engineering

• Diaphragmatic reconstruction using tendon-engineered mesenchymal amniocytes
• Cardiac tissue engineering - differentiation into cardiomyocytes for congenital heart defects
• Pulmonary hypoplasia - AFSC-derived cells to augment lung growth
• Bone and cartilage regeneration using osteogenic/chondrogenic placental MSCs

---

Comparison: Placental Cell Sources

---

Key Advantages of Placental Cells Over Other Stem Cell Sources

1. No ethical controversy - placenta is discarded post-delivery
2. No donor invasiveness - collection at time of delivery
3. Large supply - sufficient tissue for multiple downstream applications
4. Immune privilege - low immunogenicity; suitable for allogeneic use
5. Non-tumorigenic - unlike embryonic stem cells, no teratoma formation
6. Superior proliferation - faster growth and longer lifespan than adult bone marrow MSCs
7. Young cells - fetal origin means minimal age-related epigenetic modifications

---

• Creasy & Resnik's Maternal-Fetal Medicine, 9th ed.
• The Developing Human: Clinically Oriented Embryology, 11th ed.
• Sabiston Textbook of Surgery, 21st ed.
• Mulholland & Greenfield's Surgery: Scientific Principles and Practice, 7th ed.
• Pelekanos et al. - Placental MSC Isolation Protocol, PMC4927767
• Placental-derived stem cells: Culture, differentiation and challenges, PMC4444616

---

Trypan Blue Exclusion Assay for Cell Counting

Introduction

---

Principle

Molecular Basis

• Possess an intact, selectively permeable plasma membrane
• Actively pump out or simply exclude the large, charged trypan blue molecule
• Appear clear/bright/unstained (colorless cytoplasm) under the microscope
• This is the "exclusion" principle: the dye is excluded

• Have a compromised plasma membrane - pores and disruptions allow passive entry of the dye
• Trypan blue enters and binds to intracellular proteins throughout the cytoplasm
• Appear dark blue under the microscope
• Cannot actively pump the dye out

---

The Hemocytometer (Neubauer Chamber)

Structure

• A thick glass slide with two counting chambers, each a precisely machined depression of known depth
• A specially ground coverslip sits on raised supports, creating a counting chamber of exactly 0.1 mm depth
• Each chamber contains a grid ruled with a specific pattern

The Improved Neubauer Grid

• Area = 1 mm × 1 mm = 1 mm²
• Depth = 0.1 mm
• Volume = 1 × 1 × 0.1 = 0.1 mm³ = 0.1 μL

---

Materials Required

Important: Resuspend cells in serum-free solution. Serum proteins bind trypan blue and produce misleading background staining, falsely increasing the apparent dead-cell count.

---

Detailed Step-by-Step Procedure

Step 1: Prepare the Hemocytometer

1. Clean the hemocytometer and coverslip with 70% ethanol; wipe dry with lint-free tissue
2. Place the coverslip flat onto the raised side supports of the counting chamber
3. Verify proper placement: Newton's rings (faint rainbow interference patterns) should be visible where the coverslip contacts the supports - this confirms the correct gap depth of 0.1 mm

Step 2: Prepare the Cell Suspension

1. Ensure cells are in a single-cell suspension - if clumped, pass through a 40 μm cell strainer
2. Centrifuge cells and resuspend the pellet in 1 mL sterile PBS (serum-free)
3. Aim for an ideal cell density of 2×10⁵ to 1×10⁶ cells/mL before trypan blue addition (too dense = difficult counting; too sparse = inaccurate)
4. If cell concentration is unknown, make a rough dilution first

Step 3: Mix with Trypan Blue

1. In a microcentrifuge tube or microtiter well, combine:
   • 10-20 μL of cell suspension + 10-20 μL of 0.4% trypan blue (a 1:1 ratio = 2× dilution)
2. Mix gently by pipetting; avoid vigorous vortexing which can damage cells
3. Incubate for ~3 minutes at room temperature
4. Count within 3-5 minutes total - do not wait longer, as prolonged trypan blue exposure is itself toxic and will falsely increase the dead-cell count

Step 4: Load the Hemocytometer

1. Draw ~10-15 μL of the trypan blue + cell mixture into the pipette tip
2. Touch the pipette tip to the V-shaped notch at the edge of the counting chamber
3. Allow the sample to fill by capillary action - do not press or blow; the chamber fills to the correct volume automatically
4. Avoid overfilling (causes cells to float irregularly) or underfilling (incomplete chamber coverage)
5. Allow cells to settle for 1-2 minutes before counting

Step 5: Count the Cells

1. Place the loaded hemocytometer on the microscope stage; focus at 10× magnification
2. Identify the four large corner squares of the grid (each 1 mm × 1 mm)
3. Count all cells in all four corner squares:
   • Unstained (clear/bright) cells = viable cells ✓
   • Blue-stained cells = non-viable (dead) cells ✗
4. Apply the boundary rule consistently: count cells touching the top and left lines of a square; exclude cells touching the bottom and right lines (prevents double-counting)
5. If a cell is in the center square (not a corner square), do not count it
6. Record:
   • N_viable = total unstained cells counted across 4 squares
   • N_dead = total blue-stained cells counted across 4 squares
   • N_total = N_viable + N_dead

Optimal count range: 100-400 total cells across the 4 squares. If fewer than 100 cells are seen, the suspension is too dilute (concentrate before re-counting). If more than 400, dilute further.

Step 6: Clean Up

• Immediately clean the hemocytometer and coverslip with 70% ethanol after use; allow to dry fully before storage

---

Calculations

Key Formula Components

---

Formula 1: Total Cell Concentration

• N_total / 4 = average cell count per large square
• Dilution Factor = 2 (for 1:1 trypan blue mix) × any pre-dilutions
• 10⁴ = conversion factor (since each square = 10⁻⁴ mL, so 1/10⁻⁴ = 10⁴)

---

Formula 2: Viable Cell Concentration

---

Formula 3: Cell Viability (%)

---

Formula 4: Total Cell Count in a Known Volume

---

Worked Example

• Unstained (viable) cells: Q1=48, Q2=52, Q3=45, Q4=55 → N_viable = 200
• Blue-stained (dead) cells: Q1=5, Q2=3, Q3=6, Q4=4 → N_dead = 18
• N_total = 218
• Trypan blue mixed 1:1 with cells (DF = 2); cells were pre-diluted 1:5 before this (DF_pre = 5)
• Total DF = 2 × 5 = 10
• Volume of original suspension = 5 mL

---

Simple Example (No Pre-dilution, DF = 2 Only)

• N_viable = 386, N_dead = 29 across 4 squares
• N_total = 415

---

Interpreting Results

---

Variations and Alternative Methods

The Lymphocyte Microlymphotoxicity Assay used in HLA typing similarly uses trypan blue (or eosin) as the vital dye readout - antibody + complement-lysed target cells take up the dye, allowing grading of cell death percentages. (Henry's Clinical Diagnosis & Management, 24th ed.)

---

Limitations of Trypan Blue Exclusion

1. Overestimates viability - cells in early apoptosis have intact membranes and appear viable despite being functionally compromised
2. Time-sensitive - cells die in the presence of trypan blue over time; must count within 3-5 minutes
3. Serum interference - serum proteins bind the dye; must use serum-free medium
4. Observer bias - subjective boundary between "blue" and "clear" cells; automated systems reduce this
5. Clumped cells - aggregates cannot be counted accurately
6. Not suitable for very small cells (e.g., platelets) or cells without contrast against the dye
7. Membrane integrity ≠ viability - some metabolically inactive cells may still have intact membranes temporarily

---

Summary Flowchart

Cell suspension (serum-free)
        ↓
  Mix 1:1 with 0.4% Trypan Blue
        ↓
  Incubate 3 min at RT
        ↓
  Load hemocytometer
        ↓
  Count 4 large corner squares
  (unstained = viable; blue = dead)
        ↓
  Calculate:
  • Concentration = (avg cells/square) × DF × 10⁴
  • Viability (%) = (viable/total) × 100

---

• Henry's Clinical Diagnosis and Management by Laboratory Methods, 24th ed.
• Trypan Blue Exclusion Test of Cell Viability - Current Protocols, PMC6716531
• INTEGRA Biosciences: Hemocytometer Cell Counting
• Thermo Fisher: Trypan Blue Exclusion Protocol
• STEMCELL Technologies: Hemocytometer Protocol

---

MTT Assay for Cell Viability Assessment

Introduction

---

Principle

The Core Biochemical Reaction

MTT (yellow, soluble)  ──[mitochondrial dehydrogenases + NADH/NADPH]──→  Formazan (purple, insoluble crystals)

• Active mitochondria with functional electron transport chains
• NADH or NADPH as reducing equivalents
• Enzymes: succinic dehydrogenase (Complex II), NADH dehydrogenase, and other oxidoreductases

Key Principles

1. Only metabolically active (viable) cells perform this reduction - dead or severely damaged cells with non-functional mitochondria cannot reduce MTT
2. The quantity of formazan produced is directly proportional to the number of viable, metabolically active cells
3. The formazan crystals must be solubilized (dissolved) before measurement, because they are insoluble in aqueous solution
4. The dissolved formazan solution is quantified by spectrophotometry at 500-600 nm (typically 540-570 nm); absorbance correlates linearly with cell number within a defined range
5. This is a metabolic activity assay, not a membrane integrity assay - it measures what living cells do (metabolism) rather than what dead cells fail to do (exclude dye)

Important distinction from Trypan Blue: MTT measures metabolic/mitochondrial activity. Trypan Blue measures membrane integrity. A cell can have an intact membrane but be metabolically inactive (apoptotic), and vice versa. These assays therefore complement each other.

---

Materials Required

---

Detailed Step-by-Step Protocol

Day 0 - Cell Seeding

1. Trypsinize and count cells from a healthy, actively growing culture (viability >90%)
2. Seed 5,000-10,000 cells per well in a flat-bottomed 96-well plate in 100 μL of complete growth medium per well
   • Cell density varies by cell type; larger/faster-growing cells need fewer per well
3. Plate layout - plan your plate carefully:
   • Experimental wells: cells + treatment
   • Control wells (vehicle control): cells + vehicle only (e.g., DMSO at the same volume)
   • Blank wells: medium only, no cells (for background absorbance subtraction)
   • Run each condition in triplicates minimum (preferably 6 replicates)
4. Incubate at 37°C, 5% CO₂ for 24 hours to allow cells to attach and equilibrate

Day 1 - Drug/Treatment Addition

1. Prepare serial dilutions of the test compound in culture medium (typically 6-8 concentrations spanning 3-4 log units, e.g., 0.001, 0.01, 0.1, 1, 10, 100 μg/mL)
2. Remove existing medium from wells (carefully aspirate, especially for adherent cells)
3. Add 100 μL of treatment medium per well (with test compound at desired concentration)
4. Add vehicle-only medium to control wells
5. Incubate for 24-72 hours (drug exposure time; 48 hours is most common for IC50 determination)

Day 2/3 - MTT Addition

1. Prepare working MTT solution: dilute MTT stock to 0.5 mg/mL in serum-free culture medium or PBS
2. Remove culture medium from all wells by careful aspiration
   • For suspension cells: centrifuge the plate at 1,000 × g for 5 min first, then aspirate
3. Add 50-100 μL of MTT working solution (0.5 mg/mL) to each well, including blanks
4. Incubate at 37°C in the CO₂ incubator for 3-4 hours
   • Protect from light (wrap plate in foil)
   • Purple/dark needle-shaped formazan crystals will be visible under an inverted microscope in viable wells
   • Blank and dead-cell wells remain yellow or pale

Solubilization Step

1. Carefully aspirate the MTT-containing medium without disturbing the formazan crystals (which adhere to well bottom)
2. Add 100-150 μL of DMSO per well to dissolve the formazan crystals
3. Seal the plate with adhesive film or wrap in foil
4. Shake on an orbital shaker at low speed for 15-20 minutes at room temperature until all crystals are completely dissolved - solution should be uniformly purple
5. If crystals persist, gentle pipetting up and down will help; can also warm briefly to 37°C

Absorbance Reading

1. Read the plate on a microplate reader (ELISA reader):
   • Test wavelength: 540-570 nm (most commonly 570 nm)
   • Reference wavelength: 630-690 nm (subtracting this background corrects for non-specific absorbance)
2. Read absorbance of all wells including blanks
3. Record all values in triplicate and calculate means ± SD

---

Calculations

Step 1: Blank Correction

Step 2: Cell Viability Percentage

• OD_treated = absorbance of wells with cells + drug
• OD_control = absorbance of untreated control wells (cells + vehicle only)
• OD_blank = absorbance of medium-only wells (no cells)

Step 3: Cytotoxicity Percentage

Step 4: IC50 Calculation

• Plot Cell Viability (%) on the Y-axis vs. Log[Drug Concentration] on the X-axis
• The curve follows a sigmoidal (S-shaped) dose-response relationship
• Read the concentration corresponding to 50% viability directly from the curve

---

Worked Example

---

96-Well Plate Layout (Standard Template)

        1      2      3      4      5      6      7      8      9      10     11     12
  A   [BLK]  [BLK]  [CTL]  [CTL]  [CTL]  [1μg] [1μg] [1μg] [10μg][10μg][10μg][100μg]
  B   [BLK]  [BLK]  [CTL]  [CTL]  [CTL]  [1μg] [1μg] [1μg] [10μg][10μg][10μg][100μg]
  C  [100μg][100μg][100μg][1000μg][1000μg][1000μg]...
  ...

BLK = blank (medium only); CTL = untreated control cells

---

Applications

1. Cancer Drug Screening

2. Natural Product Research

3. Nanoparticle Toxicity Assessment

4. Antimicrobial Agent Cytotoxicity

5. Pharmaceutical Quality Control

6. Proliferation Assays

• Cytostatic agents: viability maintained but proliferation halted
• Cytotoxic agents: progressive decline in viable cell number

7. Growth Factor and Cytokine Activity

8. Oxidative Stress Studies

9. Radiation Biology

10. Immunology - Lymphocyte Cytotoxicity

---

MTT vs. Related Tetrazolium Assays

---

Limitations and Important Pitfalls

---

Comparison: MTT vs. Trypan Blue Exclusion

---

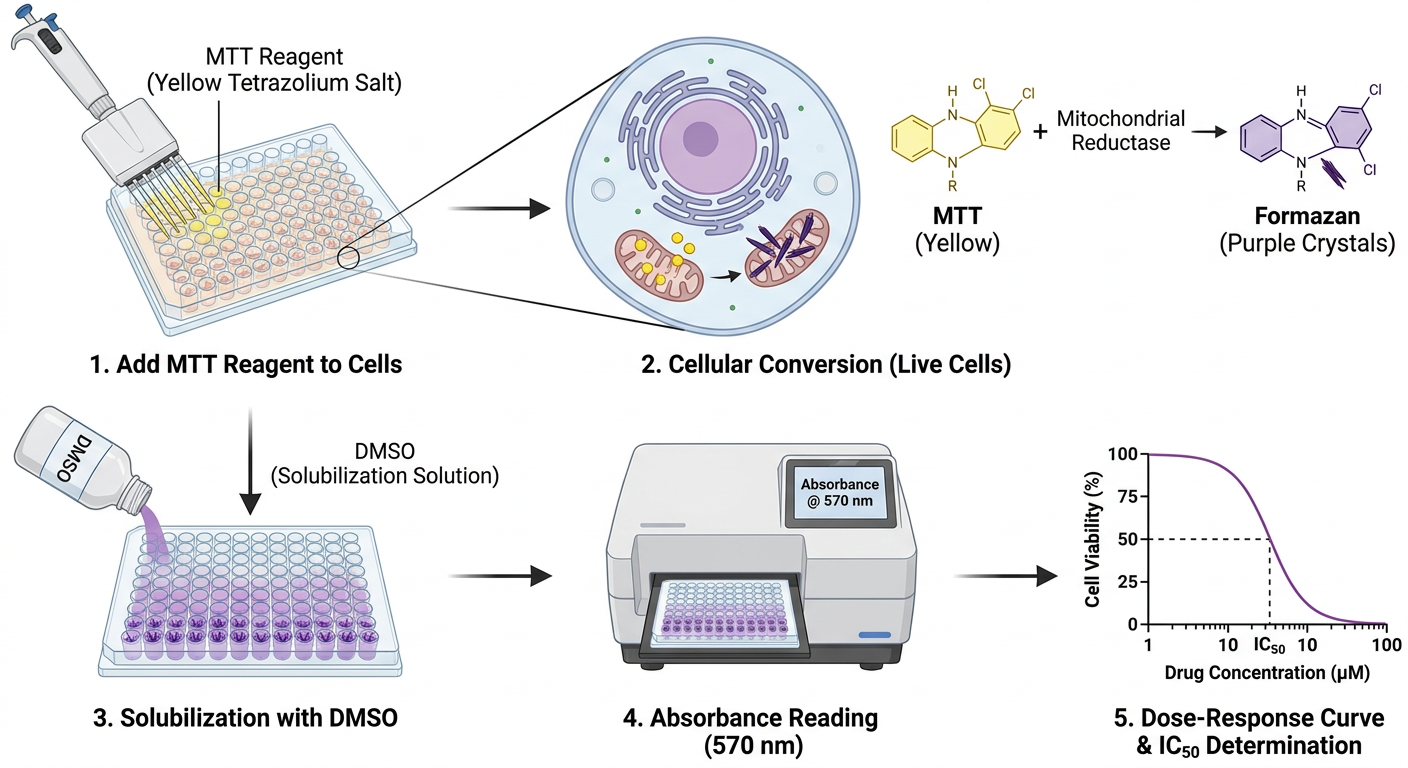

Summary of Assay Workflow

Seed cells (5,000-10,000/well, 96-well plate)
             ↓ 24 h at 37°C / 5% CO₂
Add test compound (serial dilutions)
             ↓ 24-72 h incubation
Remove medium; add 0.5 mg/mL MTT (50-100 μL/well)
             ↓ 3-4 h at 37°C (protect from light)
Purple formazan crystals form in viable wells
             ↓
Aspirate MTT; add DMSO (100-150 μL/well)
             ↓ Shake 15-20 min (crystals dissolve)
Read absorbance at 570 nm (ref: 630-690 nm)
             ↓
Calculate:
  % Viability = (OD_treated − OD_blank)/(OD_control − OD_blank) × 100
  IC50 from sigmoidal dose-response curve

---

• Merck Millipore: MTT Assay Protocol for Cell Viability and Proliferation
• Springer Nature Experiments: Cytotoxicity MTT Assay Protocols
• BroadPharm: Protocol for Cell Viability Assays
• PMC8657538 - The MTT Assay: Utility, Limitations, Pitfalls, and Interpretation
• PMC11859577 - Assessment of Cell Viability in Drug Therapy: IC50
• Henry's Clinical Diagnosis and Management by Laboratory Methods, 24th ed.
• Mosmann T. (1983). Journal of Immunological Methods - original description of the MTT assay

---

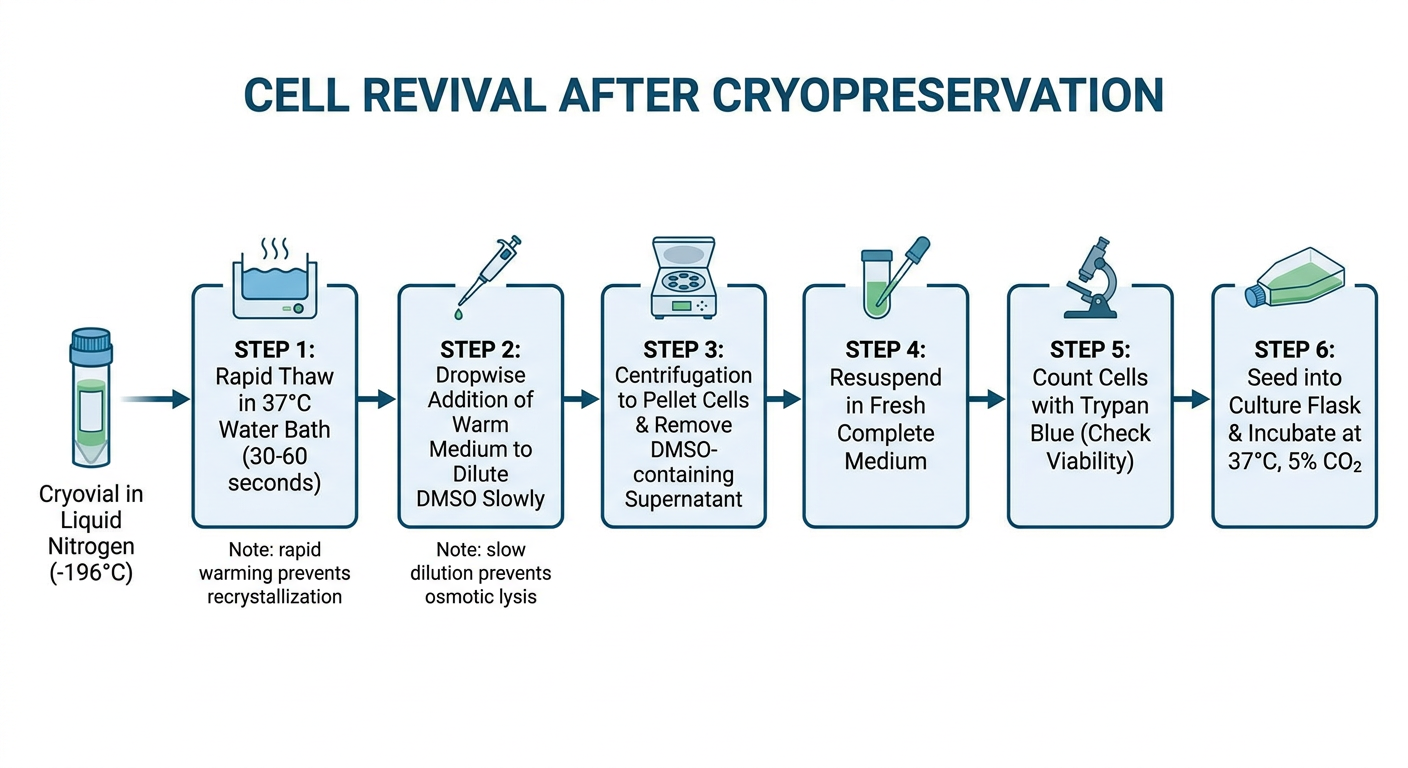

Cell Revival After Cryopreservation: Principles and Procedure

Introduction

---

Part 1: Biophysical Principles

1.1 What Happens to Cells During Freezing

• Ice nucleation begins in the extracellular compartment first (extracellular fluid freezes before intracellular fluid due to lower solute concentration)
• As extracellular ice forms and enlarges, the osmotic pressure of the interstitium increases
• This draws water out of cells into the interstitium
• Cells shrink and become hyperosmolar, disrupting enzyme function and membrane architecture

• Intracellular ice crystals form directly - these are sharply angular and physically puncture organelle membranes, the nucleus, and the plasma membrane
• This causes immediate, irreversible cell death - the "ice blade" effect

• Excessive extracellular solute concentration causes severe osmotic dehydration
• Prolonged exposure to high salt/solute concentrations is chemically toxic ("solution effect")

1.2 Role of Cryoprotectants (Relevance to Revival)

• Penetrating cell membranes and replacing intracellular water, reducing ice crystal formation
• Lowering the freezing point of the solution (colligative effect)
• Buffering osmotic changes between intracellular and extracellular compartments during thawing

1.3 Dangers During Thawing (The "Rewarming Injury")

1. Thaw FAST - to prevent recrystallization (which requires slow warming to propagate)
2. Dilute DMSO SLOWLY - to prevent osmotic shock from the sudden concentration drop

---

Part 2: Storage Conditions Prior to Revival

Safety warning: Cryovials stored in liquid-phase nitrogen can absorb liquid nitrogen into any micro-cracks. Upon removal, this nitrogen rapidly volatilizes and can explosively shatter the vial. Always use a face shield and cryogenic gloves when handling liquid-phase stored vials.

---

Part 3: Materials Required for Revival

---

Part 4: Detailed Step-by-Step Revival Procedure

Step 1: Pre-Warming Preparations (Before Removing Vial)

1. Pre-warm complete growth medium to 37°C in a water bath - use at least 9 mL (for subsequent dilution steps)
2. Pre-warm the water bath to 37°C and verify with a thermometer
3. Prepare the biosafety cabinet: spray with 70% ethanol, allow to evaporate
4. Label your culture flask with cell line, passage number, date, and operator
5. Put on cryogloves and face shield before approaching the liquid nitrogen tank

Step 2: Retrieving the Cryovial

1. Locate the cryovial in the inventory log; retrieve it from the liquid nitrogen dewar
2. Immediately transfer to dry ice if there is any delay before thawing - do not allow warming
3. Spray the outside of the cryovial with 70% ethanol; wipe dry with sterile gauze
4. Keep upright and on ice/dry ice until placing in the water bath

Step 3: Rapid Thawing (The Most Critical Step)

1. Partially submerge the cryovial in the 37°C water bath, holding it between your fingers
2. Swirl the vial continuously in the water bath - rapid agitation transfers heat faster
3. Thaw completely in 60-90 seconds - the goal is to pass through the temperature range of recrystallization (0°C to -10°C) as fast as possible
4. Stop when a small sliver of ice remains (~80-90% thawed) - do not allow the vial to warm to room temperature (DMSO toxicity increases)
5. Wipe the vial with 70% ethanol immediately upon removal; transfer into the biosafety cabinet

Principle: Rapid thaw is essential to prevent recrystallization - the growth of existing small ice crystals into larger, more destructive ones that occurs during slow warming.

Step 4: Slow, Dropwise Dilution of Cryoprotectant (Second Most Critical Step)

1. With a pipette, transfer the thawed cell suspension (typically ~1 mL) into a 15 mL conical tube
2. Add pre-warmed complete medium drop by drop while gently swirling:
   • Add 1 mL over ~1 minute, swirling after each drop
   • Wait 1 minute; then add 2 mL dropwise
   • Wait 1 minute; then add the remaining 6 mL
   • Total final volume: ~10 mL

Principle: Abrupt dilution would change osmolarity from ~450-500 mOsm (DMSO-containing cryomedia) to ~290 mOsm (normal medium) instantaneously, causing rapid osmotic water influx and cell swelling/lysis. Dropwise, gradual addition allows cells to equilibrate osmotically at each step, preventing osmotic shock.

Step 5: Centrifugation (DMSO Removal)

1. Centrifuge the diluted cell suspension at 200-400 × g for 5-10 minutes at room temperature
2. Carefully aspirate the supernatant (which contains DMSO) - do not disturb the cell pellet
3. Resuspend the pellet gently in 1 mL of fresh, pre-warmed complete medium by pipetting up and down gently (avoid bubbles and shear stress)

Important clinical note: For hematopoietic progenitor cell (HPC) grafts, washing after thawing to remove DMSO caused significant loss of progenitor cells in clinical studies. Therefore, for HPC products in bone marrow transplantation, cells are often infused without washing (DMSO and all) - traded for the risk of DMSO-related infusion reactions (nausea, chills, vomiting, hypotension, rarely cardiac arrest). Some programs do wash HPCs for high-risk patients (e.g., neonates). (Henry's, 24th ed.)

Step 6: Cell Counting and Viability Assessment

1. Take a small aliquot; perform Trypan Blue exclusion counting on a hemocytometer
2. Calculate:
   • Total cell concentration (cells/mL)
   • % Viability = (viable cells / total cells) × 100
3. Acceptable post-thaw viability: ≥70% is generally acceptable; >80% is considered good recovery
4. Note: Viability commonly reaches a nadir at approximately 24 hours post-thaw due to delayed apoptosis triggered by cryopreservation stress - initial post-thaw counts may underestimate eventual cell loss
5. If viability is <50%, the cells may not recover adequately - consider using a fresh stock

Step 7: Seeding into Culture Flask

1. Calculate the seeding density based on cell count and recommended density for the cell type:
   • Most adherent cells: 5,000 - 50,000 cells/cm²
   • Seed at a higher density than normal subculture to compensate for post-thaw stress
2. Dilute cell suspension to the appropriate volume in complete medium; transfer to the culture flask
3. Incubate at 37°C, 5% CO₂

Step 8: Post-Revival Monitoring and Media Change

1. Do NOT disturb, centrifuge, or change medium within the first 24-48 hours - damaged cells release survival factors into the medium that help recovering cells
2. Check at 24 hours: observe under microscope
   • Adherent cells: look for cell attachment and spreading; expect some debris from dead cells
   • Suspension cells: check for viability; expect a nadir of viability at this point
3. At 48-72 hours: if viability is recovering and cells are at <80% confluence, perform a full medium change to remove dead cell debris, residual DMSO, and apoptotic signals
4. If adherent cells reach 80% confluence: proceed with normal passage; if sparse, continue cultivation and change medium at 48 hours without passaging
5. Typically cells require 1-2 passages to fully re-equilibrate to normal growth kinetics after cryopreservation

---

Part 5: Factors Affecting Post-Revival Viability

---

Part 6: Special Considerations for Different Cell Types

---

Part 7: Adverse Reactions in Clinical Settings (HPC Transplantation)

---

Part 8: Troubleshooting Revival Problems

---

Summary: Key Principles of Revival

RAPID THAW (37°C, 60-90 sec)
    → Prevents recrystallization (ice crystals enlarging during slow warming)

SLOW DMSO DILUTION (dropwise, with warm medium)
    → Prevents osmotic shock (sudden water influx from rapid concentration drop)

CENTRIFUGATION (200-400 × g, 5-10 min)
    → Removes cytotoxic DMSO from cell suspension

RESUSPEND IN WARM FRESH MEDIUM
    → Restores normal osmotic and nutritional environment

SEED AT HIGHER DENSITY THAN NORMAL
    → Compensates for post-thaw cell loss and stress

DO NOT CHANGE MEDIUM FOR 24-48 HOURS
    → Preserves recovery-supporting paracrine factors

EXPECT VIABILITY NADIR AT ~24 HOURS
    → Due to delayed apoptosis; cells recover and enter exponential growth after this

---

• Henry's Clinical Diagnosis and Management by Laboratory Methods, 24th ed. - Cryopreservation of HPCs, DMSO, controlled-rate freezing
• Mulholland & Greenfield's Surgery, 7th ed. - Ice crystal formation and freeze-thaw injury mechanisms
• Dermatology 2-Volume Set, 5th ed. (Bolognia) - Cryosurgery mechanisms of injury
• ATCC - Reviving Cells
• Thermo Fisher Scientific - Thawing Cells Protocol
• Procell System: Cryopreservation and Recovery of Cells
• Optimisation of cryopreservation revival methods - Springer Link

---

Cryopreservation Techniques and Cell Banking

Introduction

"The goal of all cryopreservation techniques is to extend the usable storage period of the material being frozen by reducing the metabolic demand of cells at lower temperatures with no loss of viability due to the freezing or thawing procedures."

• Henry's Clinical Diagnosis and Management by Laboratory Methods, 24th ed.

---

Part 1: Biophysical Basis of Cryopreservation

1.1 The Freezing Dilemma

1.2 The Heat of Fusion Problem

1.3 Role of Cryoprotectant Agents (CPAs)

---

Part 2: Cryopreservation Techniques

Technique 1: Controlled-Rate (Slow) Freezing

Principle

Equipment

• Programmable controlled-rate freezer (e.g., Planer Kryo 560, BioArchive)
• Liquid nitrogen supply
• Insulated transfer container
• Cryovials (1.2-1.8 mL, externally-threaded polypropylene)

Standard Freezing Protocol (HPC/Cell Line)

Simple Laboratory Method (Isopropanol Freezing Container - "Mr. Frosty")

1. Fill isopropanol-containing freezing container (e.g., Nalgene CoolCell, Mr. Frosty) - the isopropanol absorbs heat at ~1°C/min at -80°C
2. Place loaded cryovials into the container
3. Place in -80°C mechanical freezer for minimum 4 hours, preferably overnight
4. Transfer to liquid nitrogen for long-term storage

Limitation: Isopropanol containers do not compensate for the heat of fusion - less reproducible, but acceptable for most robust cell lines.

Post-Freezing Storage

---

Technique 2: Vitrification

Principle

How Vitrification Differs from Slow Freezing

CPA Combinations Used in Vitrification

• DMSO + ethylene glycol (most common for oocytes/embryos)
• Propylene glycol + DMSO
• Supplemented with sucrose or trehalose as extracellular osmotic agents

Vitrification Carriers

• Open pulled straws (OPS): thin straw, extremely high surface area-to-volume ratio; plunged directly into LN₂
• Cryoloops / Cryotops: mesh or fiber devices; sample sits as a thin film
• Electron microscope grids: for research-grade ultra-rapid cooling
• Closed carrier systems (safer from contamination): Cryopette, CryoBioSystem

Comparison of Vitrification Recovery Rates

---

Technique 3: Isopropanol-Cooled Passive Freezing

---

Technique 4: Lyophilization (Freeze-Drying)

• Tissue is first frozen, then subjected to vacuum - ice sublimes directly to vapor without passing through liquid phase
• Results in dry product at room temperature with indefinite shelf life
• Some freeze-dried tissues stored indefinitely; structural properties maintained but viability lost
• Used for: structural bone grafts, amnion/chorion tissue, lyophilized platelet products

---

Technique 5: Droplet Vitrification

---

Part 3: Concept of Cell Banking

3.1 Why Cell Banking?

• Genetic drift - accumulation of mutations over generations
• Phenotypic instability - altered expression profiles, loss of differentiation markers
• Contamination risk - mycoplasma, bacteria, viruses
• Passage-dependent changes - loss of original characteristics

---

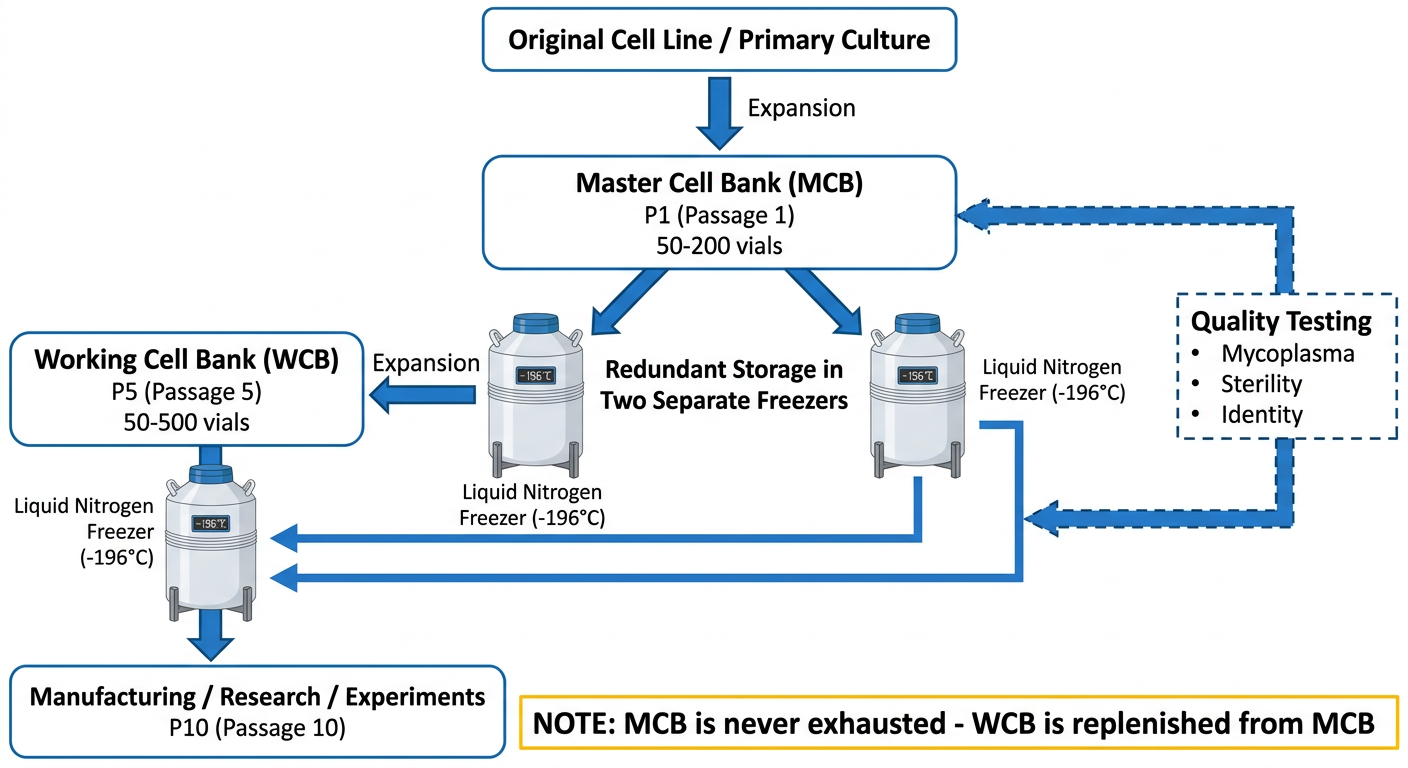

3.2 The Two-Tier Cell Banking System

---

Tier 1: Master Cell Bank (MCB)

The MCB is the "gold standard" - if ever in doubt about a cell line's identity or contamination, the MCB is the definitive reference that can regenerate the entire cell banking system.

---

Tier 2: Working Cell Bank (WCB)

---

The Passage Window Concept

MCB (P5) → WCB (P6-P8) → Manufacturing/Research (P9-P15) → Discard
                                                    ↑
                              [This is the validated passage window]

---

3.3 Cell Bank Establishment Procedure

• Obtain authenticated cells from a reputable cell repository (ATCC, ECACC, DSMZ) or from internal development
• Verify identity by STR (short tandem repeat) profiling; confirm species by isoenzyme analysis or DNA barcoding
• Test for mycoplasma and sterility at receipt

• Expand under defined, documented conditions (medium, serum lot, passage number)
• Maintain aseptic technique; use validated passage number

• Cells should be in log-phase growth (70-80% confluency for adherent; exponential phase for suspension)
• Viability must be ≥90% before freezing
• Count and record total cell number; adjust to target freeze density (5×10⁶ to 1×10⁷ cells/mL typical)

• Standard: culture medium + 10% DMSO + 10-20% FBS (serum proteins protect membrane)
• Chill the cryopreservation medium on ice - DMSO is exothermic when mixed with aqueous media; cold mixing prevents heat shock
• Add cryopreservation medium dropwise to the cell pellet on ice while gently mixing

• Dispense 1 mL per cryovial (standard)
• Label each vial with: cell line name, passage number, date, cell concentration, operator
• Use externally-threaded cryovials to avoid contamination from liquid nitrogen entering the cap

• Place vials in CRF or isopropanol container; execute the freezing program
• Transfer to -80°C freezer (4-24 hours) then to liquid nitrogen for permanent storage

---

3.4 Types of Cell Banks by Application

---

3.5 Regulatory Framework for Cell Banking

---

3.6 Clinical Cell Banking Examples

Cord Blood Banking

• Acute leukemia, lymphoma, myelodysplastic syndromes
• Aplastic anemia, sickle cell disease, thalassemia, SCID
• Neuroblastoma, Ewing sarcoma, Rhabdomyosarcoma

Sperm Banking

• Medical indications: before chemotherapy, radiation, vasectomy, high-risk surgery
• Donor banking: anonymous donors screened for genetic diseases (Tay-Sachs, CF, sickle cell, thalassemia, karyotype); quarantined 180 days and re-tested monthly for HIV, CMV, gonorrhea, chlamydia before release (Henry's, 24th ed.)
• Cryoprotectant: glycerol (not DMSO)

Oocyte and Embryo Banking

• Vitrification has replaced slow freezing as the dominant technique for oocytes - post-thaw survival 93% vs 76% (Berek & Novak's Gynecology)
• IVF embryo banking offered before cancer treatment, for couples with genetic diseases (enables preimplantation genetic diagnosis)
• Ovarian tissue cryopreservation for pre-pubertal patients or urgent fertility preservation

---

Summary Comparison of Cryopreservation Techniques

---

• Henry's Clinical Diagnosis and Management by Laboratory Methods, 24th ed. - Cryopreservation, skin banking, reproductive tissue, HPC banking
• Berek & Novak's Gynecology - Embryo and oocyte cryopreservation; vitrification
• Cell bank system, establishment and application - PMC12409320
• Fundamental principles of cryopreservation and stem cell banking - Florence Nightingale Journal
• Understanding the Role of Cryopreservation in Mammalian Cell Bank Stability - Precision Antibody
• Leinco: Master Cell Banking
• ICH Q5D Guidelines for Derivation and Characterisation of Cell Substrates

---

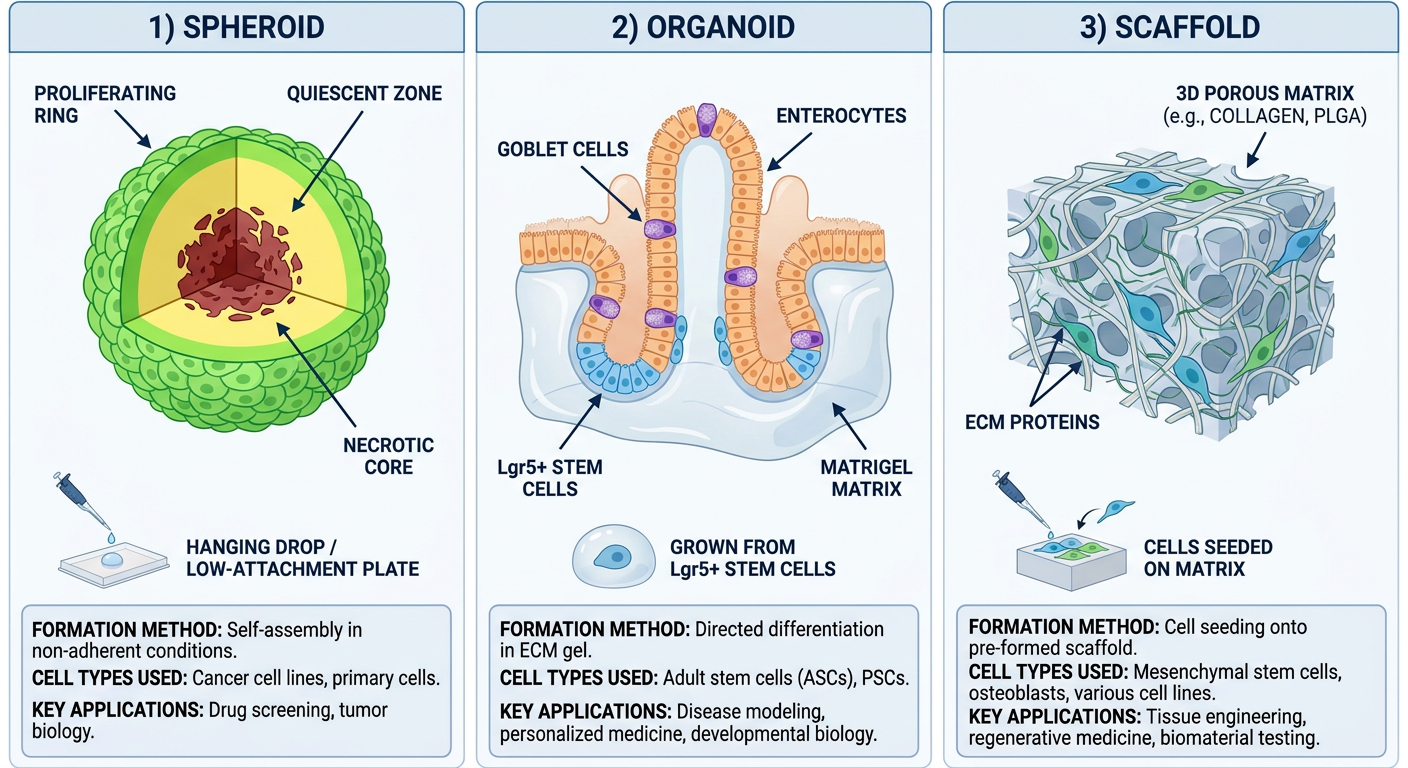

Three-Dimensional (3D) Cell Culture Systems: Spheroids, Organoids, and Scaffolds

Introduction: Why 3D Culture?

---

---

Section 1: Spheroids

1.1 Definition and Concept

1.2 Internal Zonation of Tumor Spheroids

              ┌─────────────────────────────────┐
              │   OUTER PROLIFERATING ZONE       │ ← Full O₂/nutrients; dividing cells
              │    ┌────────────────────────┐    │
              │    │  QUIESCENT/ARRESTED    │    │ ← Hypoxic; cells alive but non-dividing
              │    │  ZONE                  │    │
              │    │   ┌────────────────┐   │    │
              │    │   │  NECROTIC CORE │   │    │ ← Anoxic; dead/dying cells
              │    │   └────────────────┘   │    │
              │    └────────────────────────┘    │
              └─────────────────────────────────┘

1.3 Methods of Spheroid Formation

A. Hanging Drop Method

• Cells seeded in droplets (15-30 μL) hanging from the underside of an inverted lid
• Gravity draws cells to the drop's nadir where they aggregate
• Forms uniform, size-controlled spheroids
• Advantage: Very uniform size; no scaffold needed
• Disadvantage: Low throughput; fragile; media changes difficult

B. Ultra-Low Attachment (ULA) Surfaces

• Culture plates coated with a hydrophilic, non-ionic hydrogel (e.g., polyHEMA) that prevents cell adhesion to plastic
• Cells aggregate spontaneously in the medium; centrifugation can accelerate initial aggregation
• Advantage: Scalable to 96-well and 384-well formats; high throughput
• Disadvantage: Spheroid size less uniform; heterogeneous populations

C. Spinner Flasks / Bioreactors

• Cells in suspension in continuously stirred media
• Dynamic fluid flow promotes cell-cell contact and aggregation while providing oxygen and nutrient delivery
• Produces large quantities of spheroids
• Advantage: Scalable; good oxygenation
• Disadvantage: Shear stress can damage sensitive cells

D. Pellet Culture (Centrifugation Method)

• Cell suspension centrifuged (300-400 × g) to form a compact pellet
• Centrifugal force promotes cell-cell contact and adhesion
• Spheroid forms in the pellet
• Advantage: Simple; good for chondrogenesis and MSC differentiation studies
• Disadvantage: Large, variable diameter; shear stress from centrifugation

E. Microfluidic / Microwell Platforms

• Arrays of microwells (50-500 μm diameter) physically confine a defined number of cells into each well, forcing uniform spheroid formation
• Highest uniformity and throughput
• Advantage: Highly uniform size; compatible with high-content imaging

1.4 Applications of Spheroids

• Cancer drug screening - tumor spheroids model drug penetration resistance and hypoxia-driven resistance better than 2D; IC50 values from spheroids correlate better with clinical outcomes
• Radiation biology - oxygen-dependent radiosensitivity, tumor microenvironment
• Invasion and metastasis assays - spheroid can be embedded in ECM to study invasion
• Co-culture models - tumor cells + immune cells + stromal cells in same spheroid
• Liver toxicology - hepatocyte spheroids maintain cytochrome P450 activity longer than monolayers (better for drug metabolism studies)
• Chondrogenesis - MSC pellet cultures for cartilage formation studies

---

Section 2: Organoids

2.1 Definition and Concept

• Contain multiple differentiated cell types characteristic of the parent organ
• Show spontaneous spatial patterning - cells self-organize into tissue-like compartments
• Are grown from stem cells (embryonic, iPSC-derived, or adult tissue-resident stem cells)
• Can be maintained and expanded long-term and cryopreserved
• Histologically and genetically resemble the original tissue they model

2.2 The Intestinal Organoid - The Prototype

• R-spondin 1 (Rspo1) - secreted Wnt activator; ligand for Lgr5 receptor
• EGF - strong mitogen for crypt stem and transit-amplifying cells
• Noggin - BMP inhibitor; creates a "crypt-permissive" environment
• For colon organoids: Wnt ligand must be added (colonic epithelium produces little Wnt itself)

• Basal Lgr5+ stem cells in crypts
• Transit-amplifying zone above
• Villus-like central lumen lined by differentiated cells

"The architecture of these 3D organotypic structures is remarkably similar to that of the normal intestinal epithelium." - Yamada's Textbook of Gastroenterology

2.3 Other Major Organoid Types

2.4 Kidney Organoids - A Key Example

• Contain at least three nephron segments: proximal tubules, distal tubules, and podocytes
• These segments appear in proximal-to-distal order matching the nephron
• When treated with nephrotoxins (cisplatin, gentamicin), show dose-dependent tubular injury and express KIM-1 (kidney injury molecule-1)
• Tubular segments absorb specific cargoes typical of kidney tubules
• Can be generated from any individual's iPSCs for personalized disease modeling

2.5 Brain Organoids and Alzheimer's Disease

• Promoted aggregation of β-amyloid into plaques
• Recapitulated neurofibrillary tangles (NFTs) and neuritic plaques
• Better modeled the full pathological cascade of AD

2.6 Organoid Generation Procedure (General)

1. Source cells: adult tissue biopsy (intestinal crypts, liver ductal cells) or iPSC differentiation
2. Single-cell dissociation or crypt isolation by EDTA chelation
3. Embedding in Matrigel (kept on ice; solidifies at 37°C): mix cells with cold Matrigel at ~50:50; plate domes in pre-warmed wells
4. Add growth factor cocktail in medium appropriate to organ type
5. Incubate at 37°C, 5% CO₂ - organoids form over 3-14 days
6. Passage: mechanically disrupt organoids (pipetting, cold PBS dissociation); re-embed in fresh Matrigel; re-grow
7. Cryopreservation: organoids can be cryopreserved in standard freeze medium + DMSO for long-term biobanking

2.7 Patient-Derived Organoid Biobanks

• Cryopreserved in living biobanks for long-term storage
• Used to test chemotherapy, radiotherapy, and immunotherapy responses before treating the patient
• A platform for personalized/precision oncology - tailoring treatment to the individual's tumor

---

Section 3: Scaffold-Based 3D Culture Systems

3.1 Definition and Concept

3.2 Types of Scaffolds

A. Natural / Biological Scaffolds

B. Synthetic Scaffolds

C. Hybrid Scaffolds

3.3 Scaffold Architecture and Fabrication Methods

3.4 Key Properties of an Ideal Scaffold

1. Biocompatible - non-toxic, non-immunogenic
2. Biodegradable at a controlled rate that matches tissue ingrowth
3. Porous - interconnected pores (>100 μm for cell ingrowth and vascularization)
4. Mechanically appropriate - matches stiffness of target tissue (brain ~1 kPa; cartilage ~1 MPa; bone ~20 GPa)
5. Cell-adhesive - presents RGD and other integrin-binding sequences
6. Sterilizable without loss of properties
7. Supports nutrient/oxygen diffusion

3.5 Scaffold Applications in Tissue Engineering

• Cartilage engineering: Autologous cartilage stem cells from nasal septum biopsies seeded on shaped scaffolds → successfully used for nasal reconstruction (Scott-Brown's Otorhinolaryngology)
• Skin replacement: Epidermal stem cells from small biopsies expanded as epithelial sheets (scaffold + keratinocytes) for burn wound coverage - a well-established clinical technique
• Tympanic membrane repair: Matrices populated with autologous chondrocytes and epithelial cells
• Bioartificial kidney: Renal tubular cells grown on 3D hollow-fiber scaffolds recreating nephron transport functions better than monolayer culture (Brenner & Rector's The Kidney)
• Cochlear regeneration: 3D scaffolds seeded with inner ear progenitor cells
• Bone regeneration: PLGA scaffolds seeded with osteogenic MSCs
• Vascular grafts: Electrospun PCL/collagen tubular scaffolds seeded with endothelial and smooth muscle cells

---

Section 4: Comparative Analysis

4.1 Side-by-Side Comparison

4.2 Limitations

---

Section 5: Advanced and Emerging Systems

Organ-on-a-Chip

Assembloids

4D Bioprinting

Co-culture Spheroids / Heterotypic Organoids

---

Summary

2D Monolayer ──→ Simplest, cheapest; poor in vivo relevance
      ↓
Spheroids ──→ 3D aggregates; drug gradients; tumor models; high throughput
      ↓
Organoids ──→ Multi-cell type; self-organizing; organ-specific; disease models
      ↓
Scaffolds ──→ Bioengineered matrices; tissue engineering; regenerative medicine
      ↓
Organ-on-chip / Assembloids ──→ Maximum physiological complexity

---

• Goodman & Gilman's The Pharmacological Basis of Therapeutics - organoids as "clinical trials in a dish"
• Harrison's Principles of Internal Medicine, 22nd ed. - cerebral organoids in Alzheimer's disease
• Yamada's Textbook of Gastroenterology, 7th ed. - intestinal organoids, Lgr5+ stem cells, Matrigel culture
• Brenner & Rector's The Kidney, 10th ed. - kidney organoids, bioartificial kidney scaffolds
• Scott-Brown's Otorhinolaryngology Head & Neck Surgery - scaffold-based tissue engineering, cartilage, cochlea
• Organoid and Spheroid Tumor Models - PMC7922036
• ibidi: Spheroids, Organoids, 3D Cell Culture
• Corning: Organoid vs. Spheroid
