Intraoperative Nerve Monitoring in ENT Surgery

Intraoperative nerve monitoring (IONM) is an electrophysiological technique used during ENT/head-and-neck surgery to continuously assess the functional integrity of nerves at risk, allowing the surgeon to identify nerve location, avoid inadvertent injury, and predict postoperative function. The cornerstone modality is electromyography (EMG), supplemented by auditory evoked potentials for cochlear/auditory nerve monitoring.

1. Nerves Monitored in ENT

NerveSurgeryMonitoring Method
Facial nerve (CN VII)Parotidectomy, mastoidectomy, CPA tumor, cochlear implantFree-run EMG + triggered EMG
Cochlear nerve (CN VIII)Vestibular schwannoma, posterior fossaABR, DENM, electrocochleography
Recurrent laryngeal nerve (RLN)Thyroid, parathyroid surgeryEndotracheal tube EMG
Superior laryngeal nerve (SLN)Thyroid surgeryETT EMG
Trigeminal nerve (CN V)CPA/Meckel's cave tumorsMasseter/temporalis EMG
Glossopharyngeal (CN IX), Vagus (CN X)Jugular foramen tumorsCricothyroid EMG, CoMEP
Spinal accessory (CN XI)Neck dissection, CPATrapezius needle EMG
Hypoglossal (CN XII)Skull base surgeryTongue needle EMG

2. Facial Nerve Monitoring (CN VII)

Why It Matters

Facial nerve injury is a feared complication in ear surgery, parotid surgery, and CPA tumor resection. IONM is now standard in these operations - [Scott-Brown's Otorhinolaryngology, Vol 2] notes it is "particularly helpful for identification of the nerve at the brainstem, its displacement and distortion around the tumour, where it can be almost invisible."

EMG Modalities

Three acquisition formats are used simultaneously or separately - Shambaugh Surgery of the Ear:
  1. Free-run EMG (FEMG) - Continuous real-time recording with sweep durations of 200 ms to 5 seconds. Captures spontaneous activity triggered by mechanical, thermal, or electrical irritation.
  2. Triggered EMG (TEMG) - Records and saves spontaneous responses that exceed a preset voltage (typically 100 µV), with an audible alarm alerting the surgeon.
  3. Stimulated EMG (SEMG) - Records evoked responses to a hand-held monopolar or bipolar stimulating probe. Used for nerve identification and integrity testing.

Electrode Configuration

  • Monopolar: Active needle electrodes placed in target facial myotomes (orbicularis oculi for temporal/zygomatic branch; orbicularis oris/mentalis for buccal/marginal mandibular branch) with a neutral reference electrode on the contralateral forehead.
  • Bipolar: Both active and reference electrodes placed within the same muscle - less noise, more specificity.
Recording sites cover all major facial branches:
  • Frontalis (temporal branch)
  • Orbicularis oculi (zygomatic branch)
  • Orbicularis oris (buccal branch)
  • Mentalis/depressor anguli oris (marginal mandibular branch)

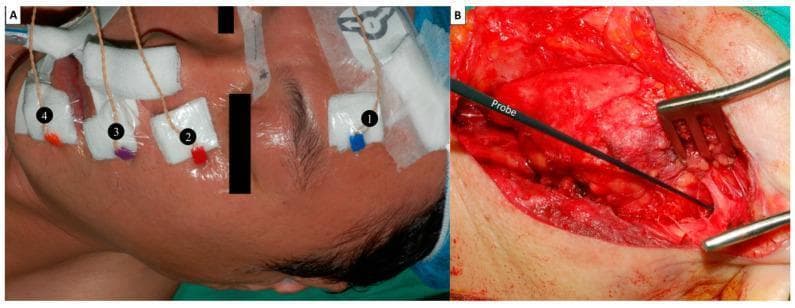

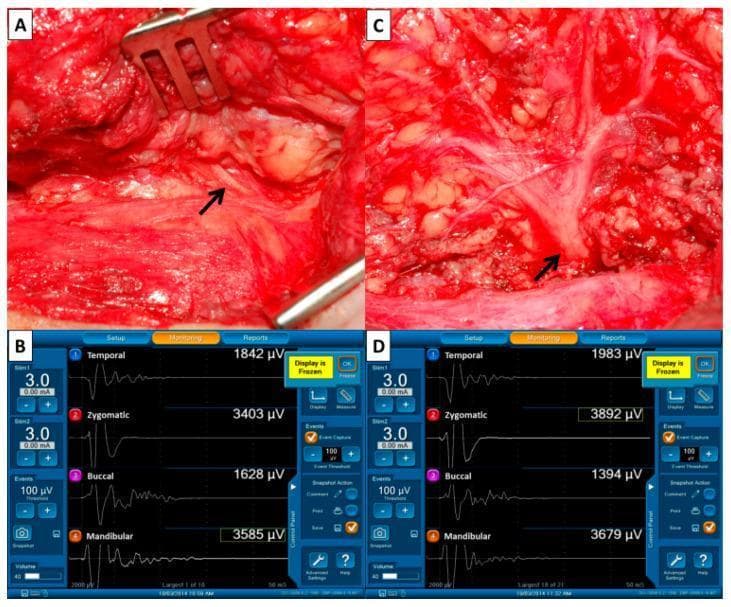

Intraoperative facial nerve monitoring setup showing needle electrode placement and EMG monitoring during parotid surgery

Commercial Systems

The NIM-2 (Xomed/Medtronic) and Neurosign (Magstim) are the most widely used. Both deliver visual (waveform/bar chart display) and audible feedback. The audible output is critical for the surgeon who cannot watch the screen during dissection - Scott-Brown's, Vol 1.

Nerve Stimulation for Mapping

In CPA surgery (Cummings Otolaryngology):
  • Smaller tumors (CPA component ≤1 cm): Start at brainstem entry zone and stimulate at 3× threshold across tumor surface before dissection.
  • Larger tumors: Sweep at 0.3 mA, then 0.5 mA, then 1.0 mA. No response at 1.0 mA = nerve not on exposed surface; safe to dissect.
  • Once response obtained: Reduce to 0.1-0.2 mA to narrow the nerve location precisely.

Corticobulbar Motor-Evoked Potentials (CoMEP)

CoMEP is a newer adjunct to EMG for CPA tumor surgery. It continuously assesses facial nerve function and helps predict postoperative outcome. A single transcranial stimulus followed by a short train of 5 pulses (2 ms interstimulus interval) is delivered; CoMEPs are recorded from facial/laryngeal muscles. Amplitude drops alert the surgeon to traction injury before it becomes permanent - Cummings Otolaryngology.
Multi-panel EMG and CoMEP recordings from cricothyroid muscle during jugular glomus tumor resection

Ephaptic Response (for Hemifacial Spasm)

In microvascular decompression (MVD) for hemifacial spasm, the ephaptic response (ER) is monitored. Stimulating current (7-20 mA) via the temporal or mandibular branch generates antidromic crossover activity recorded by EMG. The ER immediately extinguishes when the offending vessel is successfully decompressed from the facial nerve root entry zone. This confirms adequacy of decompression and is associated with improved cure rates - Shambaugh Surgery of the Ear.

Anesthesia Considerations

Neuromuscular blocking agents (NMBAs) must be avoided throughout the monitoring period. A short-acting NMBA may be used only for induction, but full motor recovery must be confirmed - ideally with train-of-four testing - before facial nerve dissection begins. A diffuse increase in EMG activity across multiple muscle groups may indicate lightening of anesthesia depth, not nerve stimulation - Shambaugh Surgery of the Ear.

3. Indications for Facial Nerve Monitoring

SettingEvidence/Recommendation
CPA tumor (acoustic neuroma) surgeryStandard of care; reduces complete permanent paralysis; CMAP amplitude after resection correlates with immediate postoperative function
Revision mastoidectomyEstablished; distorted anatomy increases risk
Parotidectomy (especially malignancy, revision)Useful for nerve identification; may reduce temporary palsy even if permanent palsy rates unchanged
Cochlear implantationWidely practiced
Congenital ear abnormalitiesEstablished
Middle ear/primary mastoidectomyRecommended; cost-effective; monitoring both primary and revision surgeries has greatest effectiveness and lowest cost (Wilson et al.)
Scott-Brown's notes that although no prospective randomized trials have proven a reduction in facial nerve paralysis rate, "there is little doubt that intraoperative nerve monitoring makes the trainees' learning curve safer for the patient," and medico-legal implications arise when a monitor was available but not used.

4. Recurrent Laryngeal Nerve (RLN) Monitoring

Technique

RLN monitoring uses EMG recordings via endotracheal tube surface electrodes positioned at the level of the true vocal cords (vocalis muscle). A commercially available NIM endotracheal tube (Medtronic) or a specially designed tube with built-in surface electrodes is used. The surgeon probes the RLN with a hand-held monopolar or bipolar stimulating probe; a response confirms nerve continuity - Current Surgical Therapy, 14e.
Alternatively, the Checkpoint Nerve Monitor (Checkpoint Surgical) uses a biphasic balanced stimulus with direct laryngeal muscle palpation, bypassing the need for ETT electrodes and reducing fatigue from repeated stimulation.

Clinical Value

  • Provides real-time assessment of nerve function during thyroid/parathyroid surgery.
  • Facilitates intraoperative nerve identification - reduces inadvertent injury risk.
  • Guides decision-making for contralateral exploration when ipsilateral RLN signal is lost.
  • Loss of IONM signal has variable positive predictive value (10-90%) for postoperative vocal cord palsy, and signal loss does not always correlate to permanent dysfunction.
  • Continuous (C-IONM) vs. intermittent (I-IONM): Continuous monitoring allows real-time detection of traction injury as it develops, not just after the fact.

Limitations

  • Requires general anesthesia and specialized equipment.
  • NMBA must be avoided (same rule as for facial nerve monitoring).
  • Endotracheal tube must be positioned precisely - rotation can cause false-negative results.
  • Evidence unequivocally demonstrating reduction in permanent RLN palsy rate is still limited by study heterogeneity.

5. Cochlear / Auditory Nerve (CN VIII) Monitoring

Cochlear nerve monitoring is used in vestibular schwannoma surgery, posterior fossa meningioma resection, vestibular neurectomy, and microvascular decompression - Cummings Otolaryngology.

Methods (in order of increasing proximity to nerve):

  1. Auditory Brainstem Response (ABR) - Most commonly used. Click or tone stimulus via insert earphone; Wave V latency and amplitude tracked. Described since 1971; easy to apply, low cost, good localization. Wave V prolongation or loss warns of cochlear nerve compromise.
  2. Direct Eighth Nerve Monitoring (DENM) / Direct nerve action potential - Electrode placed on the cochlear nerve or within the internal auditory canal. More sensitive than ABR; identifies neural continuity even when ABR is absent.
  3. Cochlear Nucleus Surface Recordings - Electrode on cochlear nucleus in brainstem; useful in rare circumstances.
  4. Electrocochleography (ECoG) - Electrode as close to cochlea as possible; records compound action potential from most distal cochlear nerve activity.
  5. Evoked Otoacoustic Emissions (OAEs) - Proposed as an adjunct; less commonly used intraoperatively.
ABR from the contralateral ear may be useful when large tumors compress the brainstem, even without residual hearing on the operated side.

6. Other Cranial Nerve Monitoring (Jugular Foramen / Skull Base)

For tumors of the jugular foramen (glomus jugulare), low CPA, or foramen magnum - Shambaugh Surgery of the Ear:
  • CN V (trigeminal - motor): Needle electrodes in masseter or temporalis.
  • CN X (vagus): Direct laryngoscopy for vocalis muscle needle placement, or ETT surface electrodes. CoMEP from cricothyroid muscle.
  • CN XI (spinal accessory): Needle electrodes in trapezius.
  • CN XII (hypoglossal): Needle electrodes in tongue.
  • Direct nerve monitoring: A C-shaped electrode secured around vagus, spinal accessory, or hypoglossal nerve in the neck provides direct nerve action potential recording - used for skull base tumors.

7. Key Technical Pitfalls and Caveats

PitfallSolution
Electrocautery artifactCease monitoring briefly during cautery near nerve; use bipolar cautery
NMB not reversedConfirm train-of-four recovery before beginning nerve dissection
False-negative stimulationAlways confirm system is working at start (stimulate a known structure)
ETT rotation (RLN monitoring)Reposition and confirm electrode contact before relying on signals
Reduced anesthesia depthDiffuse multi-channel EMG increase = anesthesia issue, not nerve stimulation
Repetitive vs. non-repetitive responsesRepetitive = nerve irritability/thermal injury; non-repetitive = direct mechanical stimulation

8. Evidence Summary and Current Status

  • IONM is standard for CPA tumor surgery and increasingly routine for thyroid, parotid, and otologic procedures.
  • The 2021 Laryngoscope Best Practices guideline recommends routine FNM for otologic surgery as cost-effective and safety-improving.
  • A 2024 review in J Clin Med (PMID 38673494) by Brunet et al. confirms IONM is well-established for thyroid/parathyroid surgery and expanding evidence supports its use in esophageal and tracheal surgery for RLN preservation.
  • No RCT has definitively proven reduction in permanent facial nerve or RLN palsy rates, but retrospective and cohort data consistently support the technique for nerve identification, trainee safety, and medico-legal protection.
Sources: Shambaugh Surgery of the Ear; Cummings Otolaryngology Head and Neck Surgery; Scott-Brown's Otorhinolaryngology Head & Neck Surgery Vol 1 & 2; Current Surgical Therapy 14e; Brunet et al. J Clin Med 2024.
