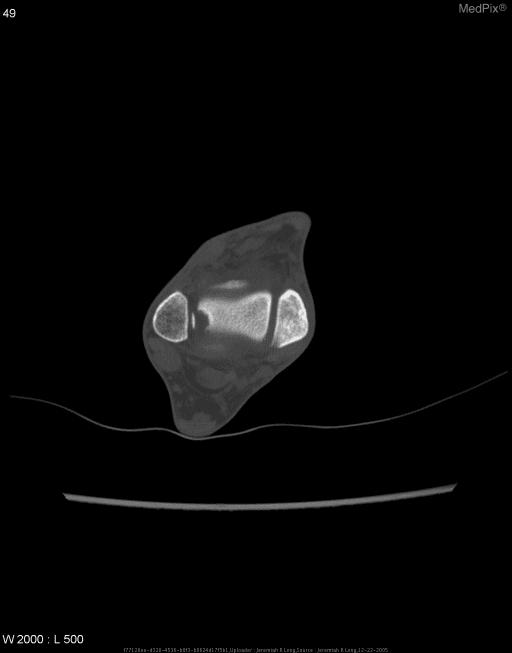

**Imaging Modality:** Computed Tomography (CT), bone window settings.

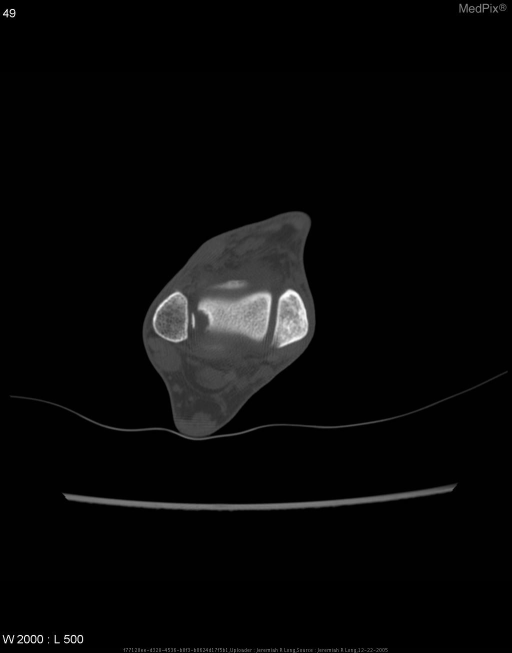

**Imaging Modality:** Computed Tomography (CT), bone window settings.

Reading File
Reading File
Reading File
Finding Sources
Excellent - found a dedicated anatomy atlas section. Let me read both sources:
Reading File
Reading File
Reading File
I now have rich content from the anatomy atlas. Let me fetch the key textbook image of the ankle ligament anatomy diagram for visual illustration:
Loading Image
Loading Image
I now have comprehensive content from authoritative sources. Let me compile the full, detailed answer.

Ankle Joint Anatomy

The ankle joint (also called the talocrural joint or tibiotalar joint) is a synovial hinge joint formed by three bones and stabilized by multiple ligament complexes and crossing tendons.

Joint Type and Overview

The ankle is a hinge (ginglymoid) synovial joint. Its primary motions are:
  • Dorsiflexion (~20°) - bringing the foot up
  • Plantar flexion (~45°) - pointing the foot down
It is classically compared to a mortise-and-tenon model: the distal tibia and fibula together form the "mortise," while the articular dorsal surface of the talus (the talar trochlea, or "tenon") fits within it. The talus is wider anteriorly than posteriorly, so the tibia-fibula pincer must dynamically adapt during motion - it widens slightly during dorsiflexion. - Imaging Anatomy Text and Atlas, Vol. 3

Bones and Articular Surfaces

Tibia

  • The inferior articular surface articulates with the dorsal talus (talar trochlea)
  • Concave in the sagittal plane, slightly convex in the coronal plane
  • A smooth ridge divides it into a wider lateral and narrower medial segment
  • The medial segment is continuous with the articular surface of the medial malleolus
  • The medial malleolus has an anterior colliculus, posterior colliculus, and an intercollicular groove
  • The posterior tibial border projects lower than the anterior border

Fibula

  • The lateral malleolus extends further distally than the medial malleolus, reaching lower on the talus
  • Its medial articular surface contacts the lateral facet of the talus (triangular shape)
  • The malleolar fossa on the posterior fibula serves as the insertion point for the posterior talofibular ligament
  • The fibula also forms part of the distal tibiofibular joint

Talus

  • The talar trochlea (superior articular surface) is wider anteriorly - this is why the ankle is most stable in dorsiflexion (wider part locked in the mortise)
  • The medial articular surface is comma-shaped; the lateral surface is triangular
  • The malleoli of both tibia and fibula "envelop" the talus, providing medial and lateral stability - Firestein & Kelley's Textbook of Rheumatology

Ankle Ligament Anatomy

Ankle joint ligaments - anterior and lateral views showing ATFL, CFL, deltoid, tibiofibular ligaments

Medial (Deltoid) Ligament Complex

The deltoid ligament is the only ligament on the medial side. It is a broad, triangular, fan-shaped fibrous band. It:
  • Originates from the medial malleolus
  • Resists eversion of the foot
  • Is torn in eversion sprains
  • Has both superficial and deep components attaching to the talus, navicular, and calcaneus

Lateral Ligament Complex

Three distinct bands form the lateral collateral ligament complex:
LigamentOriginInsertionFunction
ATFL (Anterior Talofibular Ligament)Anterior fibula (lateral malleolus)Lateral talar neckResists internal rotation & inversion in plantar flexion - most commonly injured
CFL (Calcaneofibular Ligament)Fibular tipLateral calcaneus (diagonal course)Resists inversion; bridges both talocrural and subtalar joints
PTFL (Posterior Talofibular Ligament)Malleolar fossa of fibulaPosterior talus (lateral tubercle)Resists posterior displacement; strongest of the three
All three may be injured in inversion sprains of the ankle.

Syndesmotic (Distal Tibiofibular) Ligament Complex

Binds the distal tibia and fibula together to form the mortise:
  • Anterior inferior tibiofibular ligament (AITFL)
  • Posterior inferior tibiofibular ligament (PITFL)
  • Inferior transverse tibiofibular ligament (part of PITFL complex)
  • Interosseous membrane (most proximal, continues the length of the leg)
These ligaments are injured in high ankle sprains and Maisonneuve fractures.

Joint Capsule and Synovium

  • The articular capsule is lax anteriorly and posteriorly, permitting dorsiflexion and plantar flexion
  • It is tightly bound medially and laterally by the ligament complexes
  • The synovial membrane lines the interior and does not communicate with adjacent joints, bursae, or tendon sheaths under normal conditions
  • Synovial swelling tends to bulge anteriorly or anterolaterally (where the capsule is most lax) - Firestein & Kelley's Textbook of Rheumatology

Tendons Crossing the Ankle

All tendons crossing the ankle lie superficial to the articular capsule, each enclosed in a synovial sheath:

Anterior Compartment

TendonAction
Tibialis anteriorDorsiflexion + inversion
Extensor hallucis longusExtends great toe + dorsiflexes
Extensor digitorum longusExtends toes + dorsiflexes
Peroneus tertiusDorsiflexion + eversion

Medial (Posterior to Medial Malleolus) - "Tom, Dick, And Nervous Harry"

TendonAction
Tibialis posteriorPlantar flexion + inversion (supination)
Flexor Digitorum longusFlexes toes + plantar flexes
(Posterior tibial Artery + Nerve)Neurovascular
Flexor Hallucis longusFlexes great toe (lies most posteriorly, under Achilles)
All three medial tendons plantar flex and supinate the foot.

Lateral (Posterior to Lateral Malleolus)

TendonAction
Peroneus longusPlantar flexion + eversion
Peroneus brevisEversion (inserts on 5th metatarsal base)
These extend (plantar flex) and evert (pronate) the foot.

Posterior

  • Achilles tendon - the common tendon of gastrocnemius and soleus, inserting on the calcaneal tuberosity; the strongest tendon in the body, withstanding loads >12× body weight during running; its vascular watershed zone lies 2-6 cm above the calcaneal insertion

Neurovascular Supply

  • Anterior tibial artery / dorsalis pedis supplies the anterior joint
  • Posterior tibial artery passes behind the medial malleolus
  • Peroneal artery contributes laterally
  • Deep peroneal nerve (anterior) and tibial nerve (posterior medial malleolus) cross the joint
  • Sural nerve runs laterally near the Achilles

Range of Motion Summary

MotionPrimary JointNormal Range
DorsiflexionTalocrural~20°
Plantar flexionTalocrural~45°
InversionSubtalar + intertarsal~30°
EversionSubtalar + intertarsal~20°
Inversion and eversion primarily occur at the subtalar (talocalcaneal) joint, not the ankle itself.

Clinical Correlations

  • Lateral ankle sprains (inversion injuries) - ATFL is torn first (most vulnerable), then CFL, then PTFL
  • Deltoid ligament tear - eversion mechanism; often associated with fibular fractures
  • High ankle sprain - syndesmotic injury (AITFL/PITFL); longer recovery than lateral sprains
  • Maisonneuve fracture - fibular fracture at the proximal shaft from syndesmotic disruption
  • Achilles tendon rupture - most common at the watershed zone 2-6 cm proximal to insertion
  • Ankle stability is greatest in dorsiflexion (wider talus locked in mortise) and least in plantar flexion (narrow posterior talus in mortise) - this is why sprains commonly occur with a plantar-flexed foot
Sources: Imaging Anatomy Text and Atlas Volume 3 - Bones, Joints, Vessels and Nerves; Firestein & Kelley's Textbook of Rheumatology; ROSEN's Emergency Medicine; Firestein & Kelley's Textbook of Rheumatology

Erbs point

Erb's point has two main clinical meanings: (1) a location on the brachial plexus (C5-C6 junction) where upper trunk injuries cause "waiter's tip" deformity, and (2) a cardiac auscultation point at the left sternal border, 3rd intercostal space, where aortic regurgitation is best heard.
Searching sources...
Finding Sources
Searching Images

Erb's point brachial plexus C5 C6 upper trunk anatomy

Finding Sources
Searching Images

Erbs point brachial plexus upper trunk C5 C6 nerve roots

Reading File
Reading File
Finding Sources
Finding Sources
Reading File
Reading File
Finding Sources
Searching Images

brachial plexus anatomy diagram roots trunks divisions cords C5 C6 C7 C8 T1

Reading File
Reading File
I now have comprehensive, authoritative content from multiple textbooks. Here is the complete answer:

Erb's Point

"Erb's point" actually refers to two distinct anatomical landmarks, both named after the German neurologist Wilhelm Heinrich Erb (1840-1921). They are numbered separately in anatomy atlases.

Erb's Point 1 - Cardiac Auscultation Point

Location: Left parasternal region, 3rd intercostal space (left sternal border), in the plane of the cardiac valves.
Clinical use: This is an additional auscultation site used in cardiac examination. It lies in the projection plane of the aortic and pulmonic valves, so it is particularly useful for:
  • Hearing aortic regurgitation (early diastolic murmur radiates here)
  • Detecting both aortic and pulmonary valve murmurs that may not be loudest at their "standard" areas
  • Complements the four classic auscultation areas (aortic, pulmonary, tricuspid, mitral/apex)
  • Color Atlas of Human Anatomy, Vol. 1 - Trunk

Erb's Point 2 - Brachial Plexus Point

Location: In the posterior triangle of the neck - 2 to 3 cm above the clavicle, 1 to 2 cm posterior to the posterior border of the sternocleidomastoid muscle (SCM).
This is the point where the C5 and C6 nerve roots unite to form the upper trunk of the brachial plexus, along with the emergence of two important nerves:
  • The suprascapular nerve
  • The nerve to the subclavius
  • Color Atlas of Human Anatomy, Vol. 1; Campbell's Operative Orthopaedics 15th Ed

Why it matters clinically:

1. Erb-Duchenne Palsy (Erb's Palsy)

Injury at Erb's point produces the classic upper brachial plexus palsy (C5, C6), the most common brachial plexus injury (90% of cases).
Mechanism:
  • Neonatal: excessive lateral traction on the infant's head during delivery (shoulder dystocia)
  • Adults: forced shoulder depression with contralateral neck flexion (e.g., motorcycle accident, "stinger" injury in contact sports - compression between shoulder pad and superior medial scapula)
Muscles paralyzed (C5, C6 innervated):
Muscle GroupMuscleEffect
Shoulder abductorsDeltoid, supraspinatusArm cannot be abducted
Lateral rotatorsInfraspinatus, teres minorArm internally rotates
Elbow flexorsBiceps, brachialis, brachioradialisElbow cannot flex
Forearm supinatorsBiceps, supinatorForearm fully pronated
Wrist extensorsExtensor carpi radialisWrist drops
Classic deformity: "Waiter's tip" (or "policeman receiving a tip" sign)
  • Arm hangs at the side
  • Internally rotated at shoulder
  • Elbow extended
  • Forearm pronated
  • Wrist flexed
Prognosis: Best prognosis among brachial plexus injuries - most cases (especially neonatal) recover spontaneously. C4 involvement may cause hemidiaphragm paralysis.
  • S Das Manual on Clinical Surgery; Harriet Lane Handbook; Bradley & Daroff's Neurology in Clinical Practice

Comparison with other brachial plexus injuries:

InjuryRootsFeaturesPrognosis
Erb-DuchenneC5, C6 (±C4)Waiter's tip; shoulder + elbow affectedBest
Total palsyC5-T1Entire arm + hand; Horner if T1Worst
KlumpkeC8, T1 (±C7)Claw hand; Horner syndrome (T1)Poor
  • Miller's Review of Orthopaedics 9th Ed

2. Erb's Point as a Neurophysiology Electrode Site

In somatosensory evoked potential (SEP) testing, an electrode placed over Erb's point (labeled "EP" in recordings) captures the afferent sensory volley as it passes through the brachial plexus after median nerve stimulation at the wrist. The Erb's point potential serves as a critical reference:
  • A delay between stimulus site and Erb's point = peripheral nerve disease
  • A delay from Erb's point to C2 = nerve root or posterior column abnormality
  • Preserved Erb's point potential but absent cortical potential = central (spinal cord/brainstem/cortex) lesion
This makes it indispensable for localizing lesions in demyelinating diseases (e.g., multiple sclerosis), spinal cord pathology, and peripheral neuropathy. - Adams & Victor's Principles of Neurology 12th Ed; Bradley & Daroff's Neurology in Clinical Practice

Summary Table

Erb's Point 1Erb's Point 2
LocationLeft sternal border, 3rd ICS2-3 cm above clavicle, posterior to SCM
DomainCardiology (auscultation)Neurology / Anatomy
SignificanceAortic regurgitation murmurC5-C6 upper trunk of brachial plexus
Clinical relevanceCardiac valve murmursErb's palsy; SEP electrode site
