Motor Action of the Trigeminal Nerve (CN V)
1. Motor Nucleus and Origin
- The trigeminal motor nucleus lies in the upper-to-mid pons, medial to the main sensory nucleus, near the floor of the fourth ventricle.
- It receives bilateral (predominantly crossed and uncrossed) corticobulbar input from the lower third of the precentral gyrus (motor cortex). These fibers travel through the corona radiata, internal capsule, and cerebral peduncle, decussating in the pons before reaching the nucleus.
- Because the cortical control is bilateral, a unilateral upper motor neuron lesion (e.g., one-sided stroke) usually causes no significant jaw weakness. Bilateral corticobulbar lesions, however, can produce a hyperactive jaw jerk reflex.
2. Course of the Motor Root (Portio Minor)
- Motor fibers exit the pons as a small motor root (portio minor), separate from and medial to the much larger sensory root (portio major).
- It runs forward, passes through the posterior and middle cranial fossa beneath the trigeminal (Gasserian) ganglion in Meckel's cave, without synapsing in the ganglion (motor fibers bypass the sensory ganglion).
- It exits the skull through the foramen ovale, joining the mandibular division (V3) almost immediately outside the skull.
- From there it travels with V3 to reach its target muscles.
3. Muscles Supplied (Branchial Motor / Special Visceral Efferent)
- Muscles of mastication: masseter, temporalis, medial pterygoid, lateral pterygoid (these elevate, retrude/protrude, and move the jaw side to side)
- Tensor tympani (dampens ossicular movement in the middle ear)
- Tensor veli palatini (tenses the soft palate)
- Mylohyoid
- Anterior belly of the digastric
4. Clinical Testing
- Ask the patient to clench the jaw while you palpate the masseter and temporalis for bulk and strength.
- Ask the patient to open the jaw and move it side to side against resistance (pterygoids); with a unilateral lower motor neuron lesion, the jaw deviates toward the weak side because the intact contralateral pterygoid muscles push the jaw over.
- The jaw jerk reflex (tap the chin with mouth slightly open) tests the motor nucleus and its afferent limb (via the mesencephalic nucleus, which carries proprioception from the muscles of mastication) - it is normally absent or minimal but becomes brisk with bilateral UMN lesions.

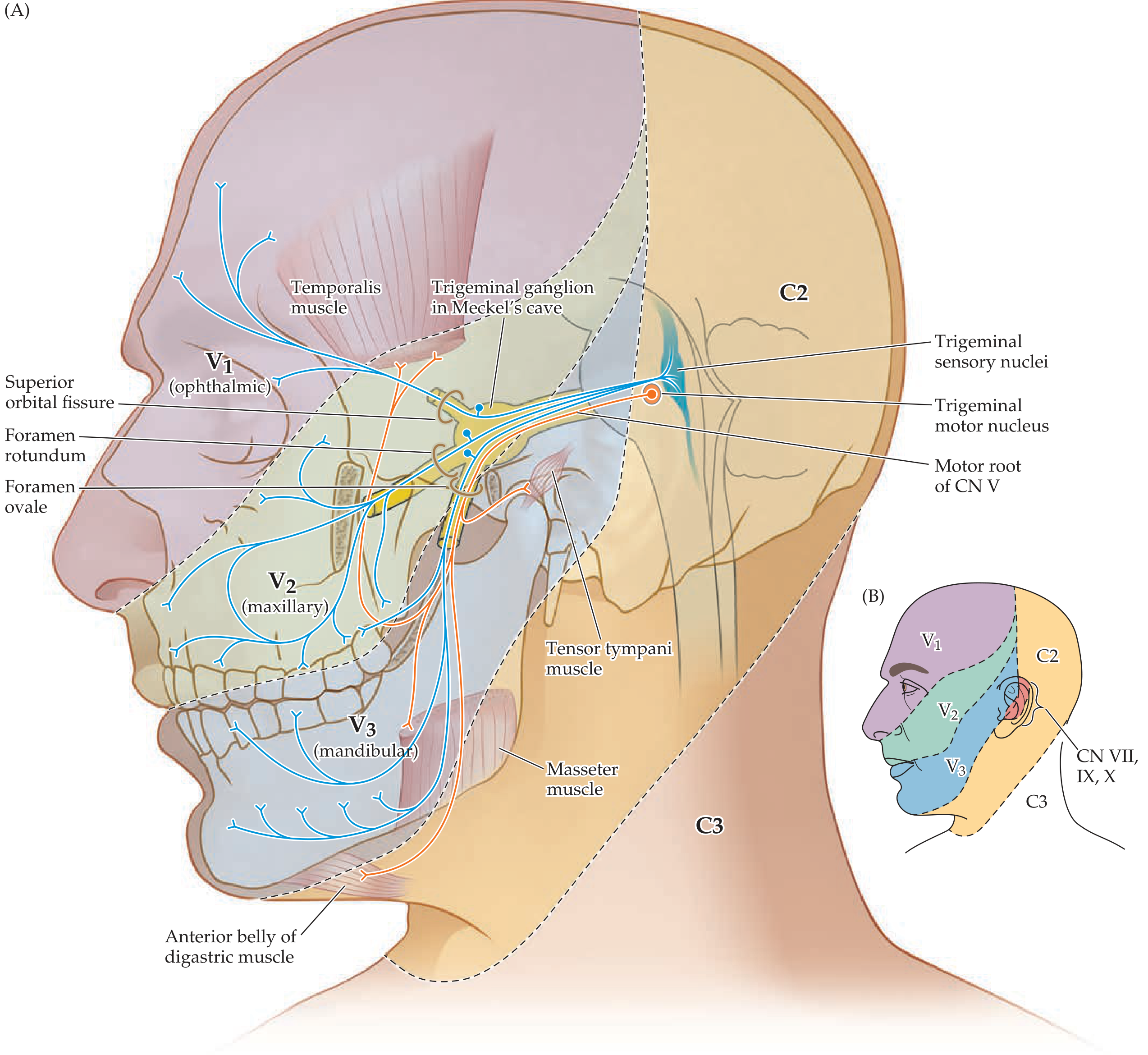

Diagram
- Neuroanatomy through Clinical Cases, 3rd ed., Fig 12.7, p. 535-536
- Localization in Clinical Neurology, 8th ed., p. 739-740
- Gray's Anatomy for Students, p. 1037
Search for clinical images of trigeminal nerve lesions
trigeminal nerve lesion clinical presentation

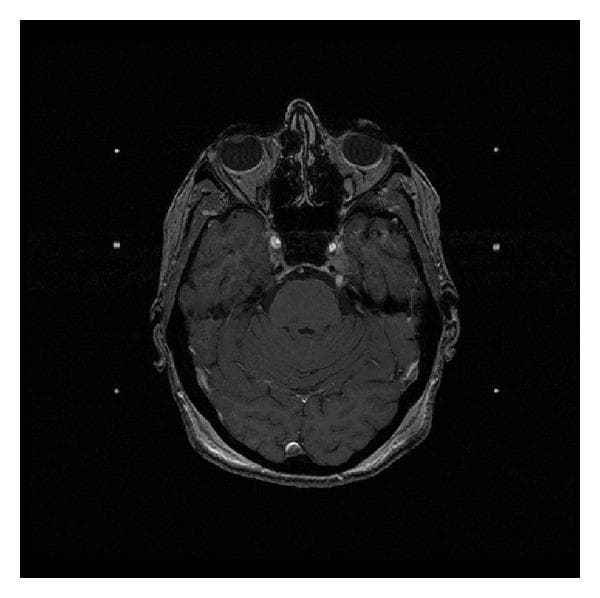

This diagnostic image is an axial T1-weighted post-gadolinium enhanced MRI of the head at the level of the skull base and brainstem. The image displays a well-circumscribed, hyperintense (brightly enhancing) mass located along the course of the left trigeminal nerve. The lesion involves the preganglionic segment and extends toward the cavernous sinus region. This enhancement pattern suggests high vascularity or a breach in the blood-nerve barrier, characteristic of a trigeminal schwannoma or similar neoplastic process. Surrounding anatomical landmarks are visible, including the pons, cerebellum, bilateral temporal lobes, orbits, and paranasal sinuses. The brain parenchyma shows normal signal intensity relative to the enhancing lesion. This image serves as a clinical example for neuro-oncology and radiology, illustrating the typical presentation of a cranial nerve sheath tumor and its anatomical relationship to the brainstem and middle cranial fossa.

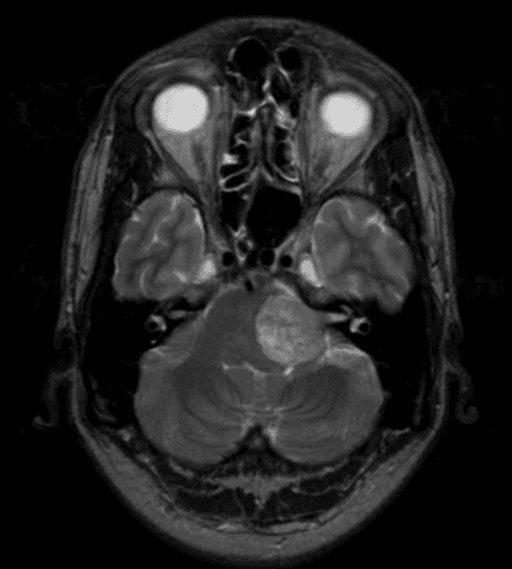

**Imaging Modality:** Magnetic Resonance Imaging (MRI), T2-weighted axial sequence.

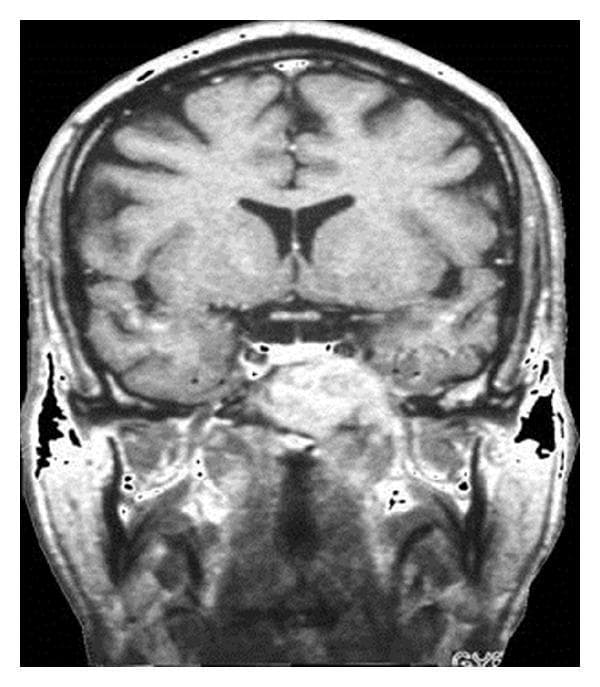

This diagnostic image is a coronal T1-weighted cranial MRI scan showing the brain and skull base. The image demonstrates a large, hyperintense, well-demarcated lesion localized in the left cranial base, measuring approximately 4 cm. The mass involves the region of the sphenoid sinus and extending toward the foramina lacerum and ovale, causing visible anatomical distortion and bone destruction compared to the contralateral side. Superiorly, the cerebral hemispheres, lateral ventricles, and interhemispheric fissure appear intact but the lesion lies in close proximity to the temporal lobe and pituitary region. The clinical significance of this finding represents Langerhans cell histiocytosis (eosinophilic granuloma) of the cranial base, which in this case presented with fifth cranial nerve (trigeminal nerve) hypesthesia. The image serves as a baseline for radiotherapy planning and illustrates the typical aggressive local presentation of histiocytic lesions in adult patients within the neurosurgical and oncological specialty.

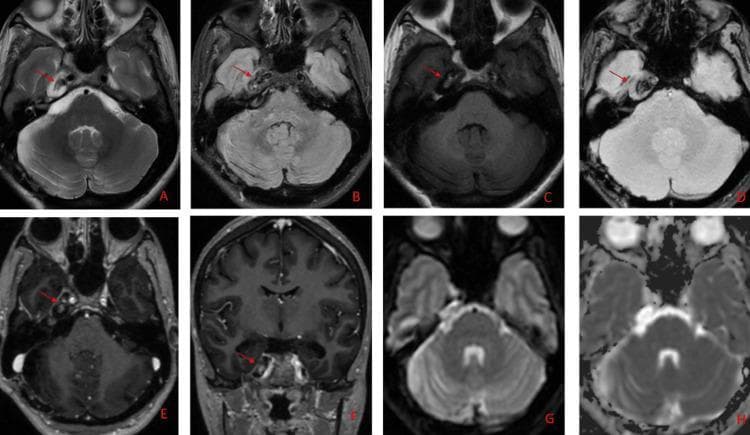

A multi-paneled figure (A-H) displaying post-operative MRI sequences of the brain in axial and coronal planes, demonstrating a residual extra-axial lesion in the right Meckel’s cave. Panel A (T2), B (FLAIR), and D (Gradient/GRE) show the lesion as hypointense relative to gray matter. Panel C (T1-weighted) reveals intrinsic hyperintensity, suggesting high protein, melanin, or paramagnetic content. Axial (E) and coronal (F) post-gadolinium sequences demonstrate minimal contrast enhancement. Diffusion-weighted imaging (G) and corresponding ADC map (H) show no restricted diffusion. Anatomically, the lesion (red arrows) is localized to the right trigeminal cistern, abutting the cavernous segment of the internal carotid artery and the vestibulocochlear-facial (VII/VIII) nerve complex. The presentation is consistent with heavily pigmented neurovascular pathologies, such as melanotic neoplasms. This imaging serves as a clinical example for neuro-oncology and neuroradiology, emphasizing the multi-sequence signal analysis of posterior fossa and skull base lesions.
This clinical photograph displays a large, unilateral capillary malformation, commonly known as a port-wine stain (nevus flammeus), on the right side of a patient's face. The lesion is characterized by a deep purple to violaceous hue, with areas of lighter red towards the midline. Its distribution follows the V1 (ophthalmic) and V2 (maxillary) branches of the trigeminal nerve, covering the forehead, periorbital region, right nasal ala, and cheek. The lesion appears congestive and lacks sharply defined borders, blending into the surrounding skin. Additionally, the image shows intraoral manifestations: significant gingival hyperplasia is visible on the right side of the maxillary arch, appearing as bright red, bulbous overgrowths of the gingival tissue. The combination of a facial port-wine stain in the V1/V2 distribution and ipsilateral gingival vascular involvement is a classic clinical presentation of Sturge-Weber syndrome (encephalotrigeminal angiomatosis). This visual is essential for identifying vascular phakomatoses and understanding their dermatological and oral surgical implications.
This clinical photograph series displays three views (frontal, 45° lateral, and 90° lateral) of a male patient presenting with a prominent facial capillary malformation, commonly referred to as a port-wine stain. The lesion is strictly unilateral, affecting the right side of the face. It involves the distribution of the first (ophthalmic) and second (maxillary) divisions of the trigeminal nerve, extending from the forehead and periorbital region across the cheek and nasal sidewall to the upper cutaneous lip and preauricular area. The lesion exhibits a characteristic dark red to 'grape-colored' erythema with irregular but well-defined borders. Visually, the affected skin shows signs of hypertrophy and textural changes, including areas of thickening and a slightly cobble-stoned or flaky surface. This presentation is a hallmark cutaneous sign often associated with neurocutaneous syndromes such as Sturge-Weber syndrome. The images demonstrate the significant facial asymmetry caused by the vascular malformation and are used for clinical diagnosis and documentation of disease extent.
This set of clinical photographs illustrates the varied presentation of Port-Wine Stains (PWS), a congenital vascular malformation of the dermal capillaries. Image (a) depicts a large, confluent, reddish-purple macule on the face, following a distribution that involves the ophthalmic (V1) and maxillary (V2) branches of the trigeminal nerve. Small nodular elevations within the patch suggest early soft tissue or vascular hypertrophy. Image (b) shows smaller, lighter-colored erythematous patches on the neck with less defined borders. Images (c) and (d) demonstrate PWS on the extremities; the arm and hand show dark, irregularly shaped, and partially interconnected plaques, while the leg displays more discrete, scattered patches. The lesions are non-blanching and represent classic dermatological manifestations of capillary malformations, which may be isolated or associated with systemic syndromes like Sturge-Weber. These images serve as educational references for identifying lesion morphology, color intensity, and anatomical distribution across different body regions.
This clinical photograph comparison displays two presentations of port-wine stains (PWS), or nevus flammeus, which are congenital capillary malformations. Image A shows a diffuse facial PWS on a female patient, primarily involving the left maxillary (V2) and mandibular (V3) dermatomes of the trigeminal nerve. The lesion presents as a confluent, mottled area of pink, red, and dusky purple discoloration extending across the cheek, chin, upper lip, and nose. Image B shows a more localized PWS on the shin of a different individual. This presentation consists of discrete, irregularly shaped, light-red to purple-tan patches arranged in a linear distribution against unaffected skin. These images illustrate the phenotypic variability of PWS in different anatomical locations and their potential association with somatic mutations, such as GNAQ variants. The educational focus is on clinical morphology, dermatomal distribution, and the distinction between confluent facial lesions and localized extremity lesions in pediatric and adult dermatology.
A three-panel figure demonstrating the clinical presentation and anatomical context of varicella-zoster virus (VZV) infections. Panel (a) is a clinical photograph of a patient's back showing a generalized rash characterized by polymorphous lesions, including erythematous papules, vesicles on an erythematous base (the 'dewdrop on a rose petal' appearance), and crusts in various stages of evolution, typical of primary varicella (chickenpox). Panel (b) shows a clinical photograph of a localized, painful rash on the neck and upper chest of another patient, featuring clustered vesicles and confluent crusting on an erythematous background, following a dermatomal distribution. Panel (c) is an anatomical diagram of the human torso and head mapping the cervical (C2-C8), thoracic (T1-T12), lumbar (L1-L5), and sacral (S2) dermatomes, as well as the trigeminal nerve distribution. This figure illustrates the clinical distinction between primary varicella and herpes zoster (shingles) based on lesion morphology and dermatomal versus generalized distribution.
Clinical photograph of a patient's face displaying a large port-wine stain (PWS), a congenital capillary malformation. The lesion exhibits characteristic deep red to purple discoloration with a predominant distribution on the left side of the face. Anatomically, the stain involves the dermatomes associated with the ophthalmic (V1) and maxillary (V2) divisions of the trigeminal nerve on the left, while also crossing the midline to involve the maxillary division on the right side. The affected areas include the forehead, periorbital regions, bilateral cheeks, nose, upper lip, and chin. Visually, the PWS demonstrates varying color intensity and textural irregularities, including subtle surface nodularity and enlarged pores, which are typical of aging vascular lesions. Notably, there is a distinct midline demarcation on the forehead. This clinical presentation is highly suggestive of Sturge-Weber syndrome, especially when associated with neurological or ocular findings. This image is an educational example of segmental vascular malformations and their dermatomal correlations.
Trigeminal Neuralgia (most common CN V disorder)
Mass Lesions Compressing the Nerve
Motor Root Disorders (Masticatory Muscles)
Sensory Dermatome-Related Skin Lesions (V1/V2/V3 distribution)
Notes on interpretation
- Sensory lesions (numbness, neuralgia) dominate the clinical picture because the sensory root is much larger than the motor root - this is reflected in most available clinical imagery being MRI/tractography of the sensory/trigeminal ganglion region rather than photographs of motor deficits.
- Pure motor deficits (masseter/temporalis wasting, jaw deviation) are uncommon in isolation since most lesions affecting CN V (schwannoma, neuralgia, zoster) preferentially involve the sensory root or ganglion; isolated motor involvement points more toward a pontine lesion at the motor nucleus or a mandibular nerve (V3) lesion distal to where the motor root joins it.
- Images sourced from PMC Clinical VQA / MedPix collections in the medical image library.
