👁️ ANATOMY OF THE EYE - Complete Optha Prep Guide

1. OVERALL CROSS-SECTION OF THE EYE

Cross-section of the human eye showing all major structures

Schematic of the anatomy of the eye - Ganong's Review of Medical Physiology

2. COATS OF THE EYEBALL - Flowchart

┌─────────────────────────────────────────────────────────────┐
│                   THREE COATS OF THE EYE                    │
└────────────────┬─────────────────────┬──────────────────────┘
                 │                     │                      │
         OUTER COAT             MIDDLE COAT            INNER COAT
         (Fibrous)               (Uveal)                (Nervous)
                 │                     │                      │
    ┌────────────┴────┐     ┌──────────┴───────┐    ┌────────┴────────┐
    │                 │     │                  │    │                 │
  SCLERA           CORNEA  IRIS           CHOROID  RETINA       (RPE)
  (5/6 posterior) (1/6    CILIARY BODY   (Vascular)(Neural      (Pigment
  Opaque, white   anterior Anterior       layer)   tissue)      Epithelium)
  collagen)       Transparent            Nourishes
                  Avascular              outer retina

3. LAYERS OF THE CORNEA (High-Yield for Exams)

ANTERIOR → POSTERIOR

┌─────────────────────────────────────┐
│  1. EPITHELIUM (5-6 cell layers)    │  ← Non-keratinized squamous
│     Stratified squamous             │     Rapid regeneration
├─────────────────────────────────────┤
│  2. BOWMAN'S LAYER                  │  ← Acellular condensed stroma
│     (Anterior limiting membrane)    │     Does NOT regenerate
├─────────────────────────────────────┤
│  3. STROMA (90% of corneal          │  ← Regular collagen lamellae
│     thickness)                      │     Keratocytes between lamellae
├─────────────────────────────────────┤
│  4. DUA'S LAYER                     │  ← Newly described pre-Descemet's
│     (Pre-Descemet's layer)          │     Acellular, strong
├─────────────────────────────────────┤
│  5. DESCEMET'S MEMBRANE             │  ← BM of endothelium
│     (Posterior limiting membrane)   │     Regenerates
├─────────────────────────────────────┤
│  6. ENDOTHELIUM                     │  ← Single layer
│     (Single layer of flat cells)    │     Pumps water out → keeps
│                                     │     cornea transparent
│                                     │     Does NOT regenerate
└─────────────────────────────────────┘

KEY FACTS:
• Cornea = most powerful refracting surface (+43 D)
• Avascular (nourished by aqueous humor + tear film)
• Sensory supply: Ophthalmic branch of CN V (trigeminal)
• Transparency maintained by: regular collagen lamellae +
  relative dehydration (endothelial pump)

4. THE UVEAL TRACT (Iris + Ciliary Body + Choroid)

                    UVEAL TRACT
                         │
         ┌───────────────┼──────────────┐
         │               │              │
       IRIS          CILIARY BODY    CHOROID
         │               │              │
    ┌────┴────┐     ┌─────┴──────┐   ┌──┴───────────┐
    │         │     │            │   │               │
 Sphincter  Dilator  Ciliary     Ciliary  Vessels    Bruch's
 pupillae   pupillae  muscle    processes (nourish   Membrane
    │         │        │            │     outer
 Parasym-  Sympathe-  Accommo-   Aqueous  retina)
 pathetic   tic        dation      humor
 (CN III)  (Sympath)   (near       formed
            NE via     reflex)      here
            dilator

Iris Muscles - Autonomic Control

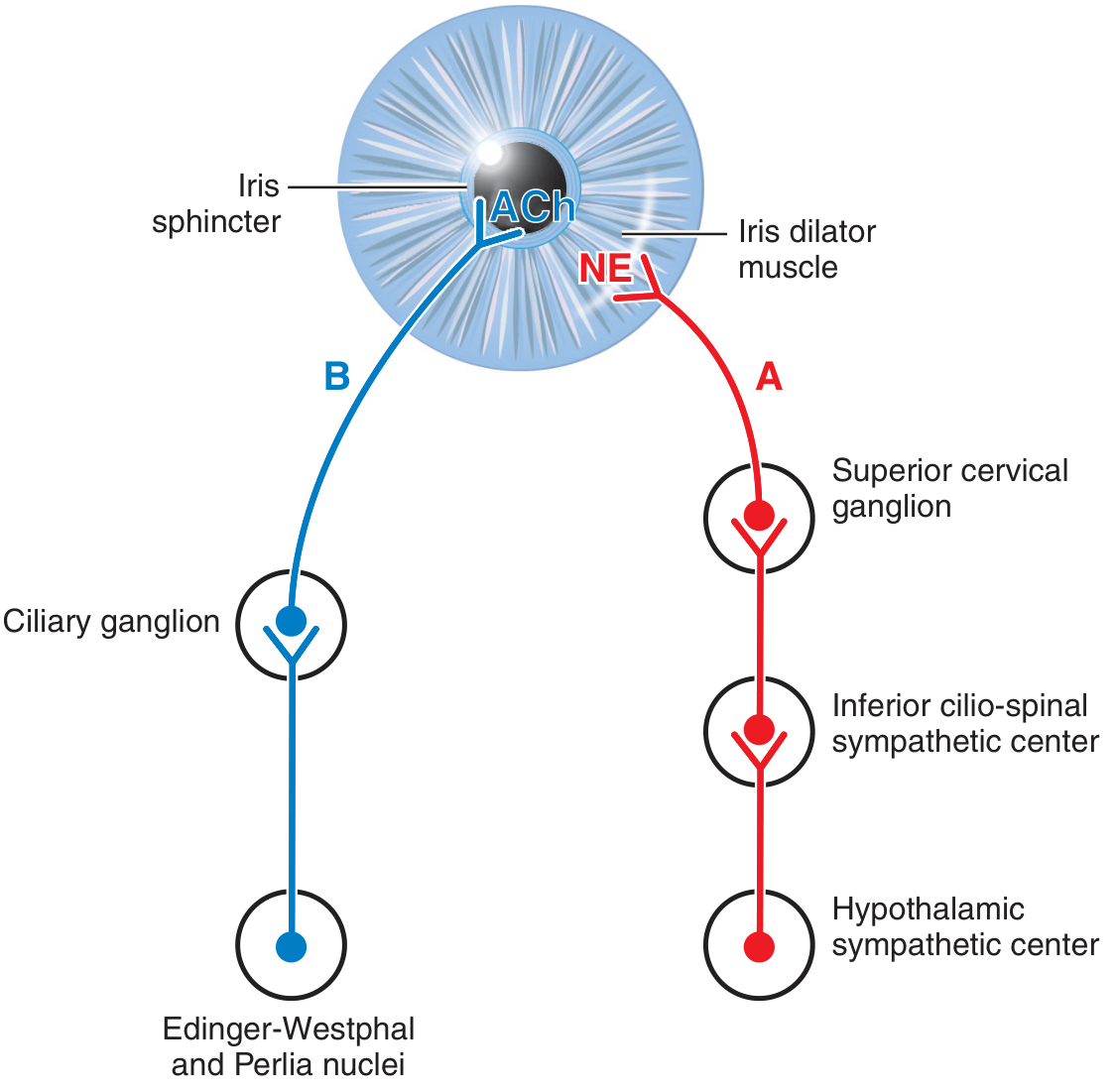

Sympathetic and parasympathetic control of iris

Efferent pathways of pupil dilation and constriction - Goodman & Gilman's

PARASYMPATHETIC (Miosis - Constriction):
Edinger-Westphal nucleus → CN III → Ciliary ganglion
→ Short ciliary nerves → Iris SPHINCTER
Neurotransmitter: ACh (muscarinic M3)

SYMPATHETIC (Mydriasis - Dilation):
Hypothalamus → Ciliospinal centre of Budge (C8-T2)
→ Superior cervical ganglion → Iris DILATOR
Neurotransmitter: Norepinephrine (α1 receptors)

CLINICAL:
• Horner's syndrome = loss of sympathetics → miosis + ptosis + anhidrosis
• CN III palsy = loss of parasympathetics → fixed dilated pupil
• Pilocarpine → Miosis (parasympathomimetic)
• Atropine → Mydriasis (parasympatholytic)

5. AQUEOUS HUMOR - Formation & Drainage

Formation (Ciliary Processes):

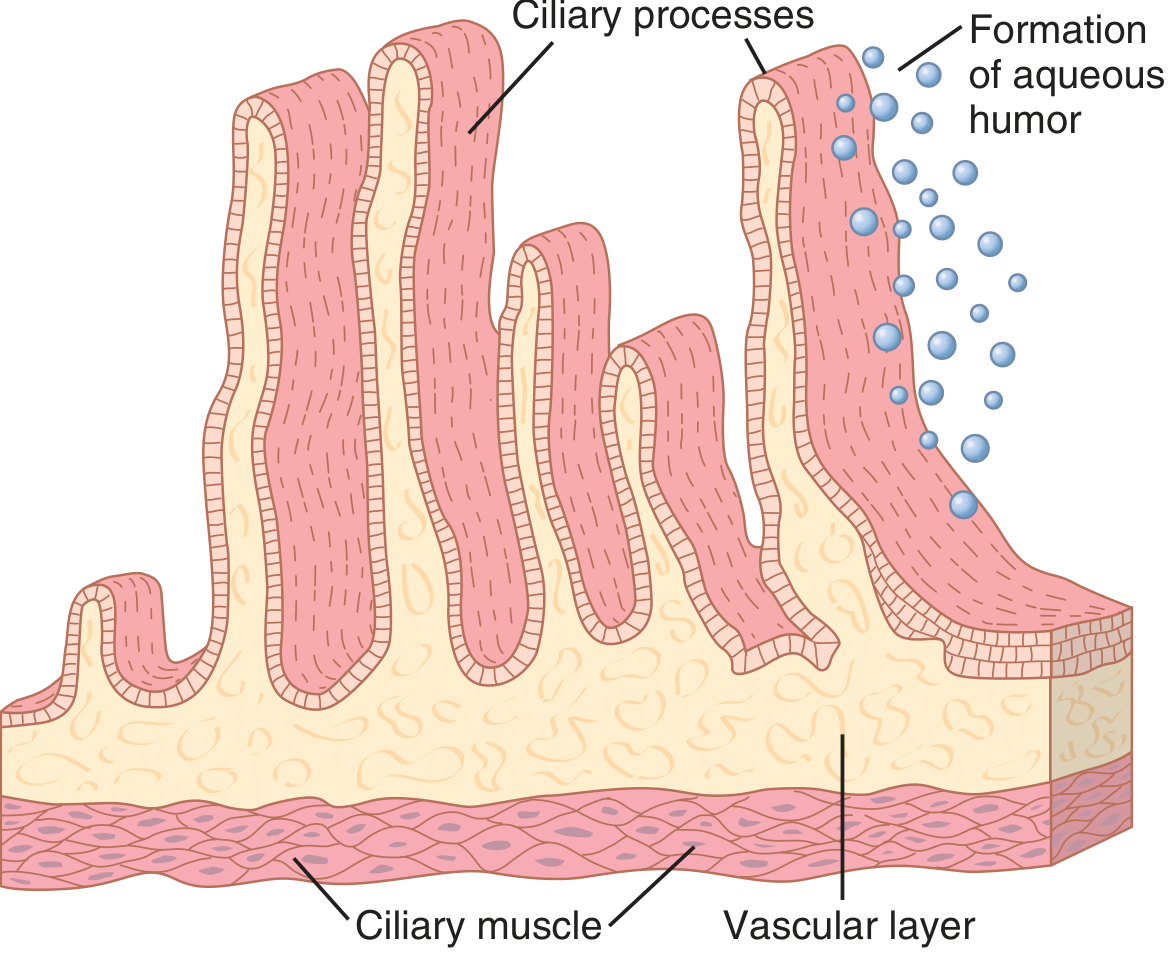

Anatomy of the ciliary processes - Guyton & Hall Medical Physiology

Drainage (Iridocorneal Angle):

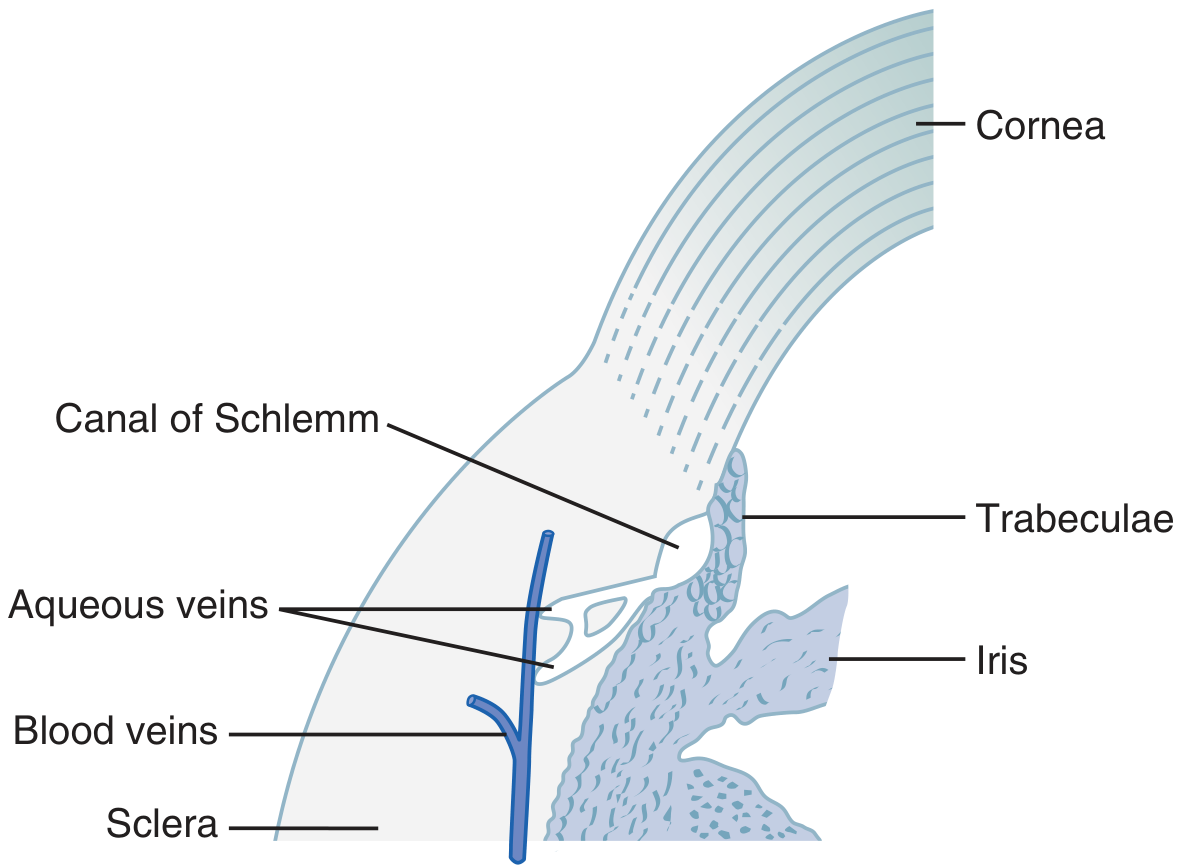

Iridocorneal angle - outflow system for aqueous humor - Guyton & Hall

Aqueous Humor Flow - Flowchart:

FORMATION:
Ciliary Processes (diffusion + active transport from plasma)
            │
            ▼
    POSTERIOR CHAMBER
    (between iris, zonule, lens)
            │
            ▼ (through pupil)
    ANTERIOR CHAMBER
    (between cornea and iris)
            │
            ▼
    Trabecular Meshwork
    (at iridocorneal angle)
            │
            ▼
    CANAL OF SCHLEMM
    (circumferential venous channel)
            │
            ▼
    Aqueous Veins → Episcleral Veins → Systemic Circulation

NORMAL IOP: 12-20 mmHg (avg ~15 mmHg)

If outflow blocked → ↑IOP → GLAUCOMA

6. THE LENS

STRUCTURE:
┌────────────────────────────────────────┐
│  Anterior capsule (thicker)            │
│  ↓                                     │
│  Anterior epithelium (single layer)    │
│  ↓ (mitosis here - equatorial zone)    │
│  Lens fibers (packed with crystallins) │
│  (anucleate, metabolically inert)      │
│  ↓                                     │
│  Posterior capsule (thinner)           │
└────────────────────────────────────────┘

Held by: Zonular fibers (suspensory ligament)
         attached to ciliary body

ACCOMMODATION (Near Reflex):
Ciliary muscle CONTRACTS
→ Zonules RELAX (go slack)
→ Lens becomes MORE CONVEX (rounder)
→ Increased refractive power (+)
→ Focus on near objects

Ciliary muscle RELAXES
→ Zonules TAUT
→ Lens becomes FLATTER
→ Less refractive power
→ Focus on distant objects

PRESBYOPIA = loss of accommodation with age
(lens loses elasticity, NOT ciliary muscle)

7. RETINAL LAYERS - High Yield

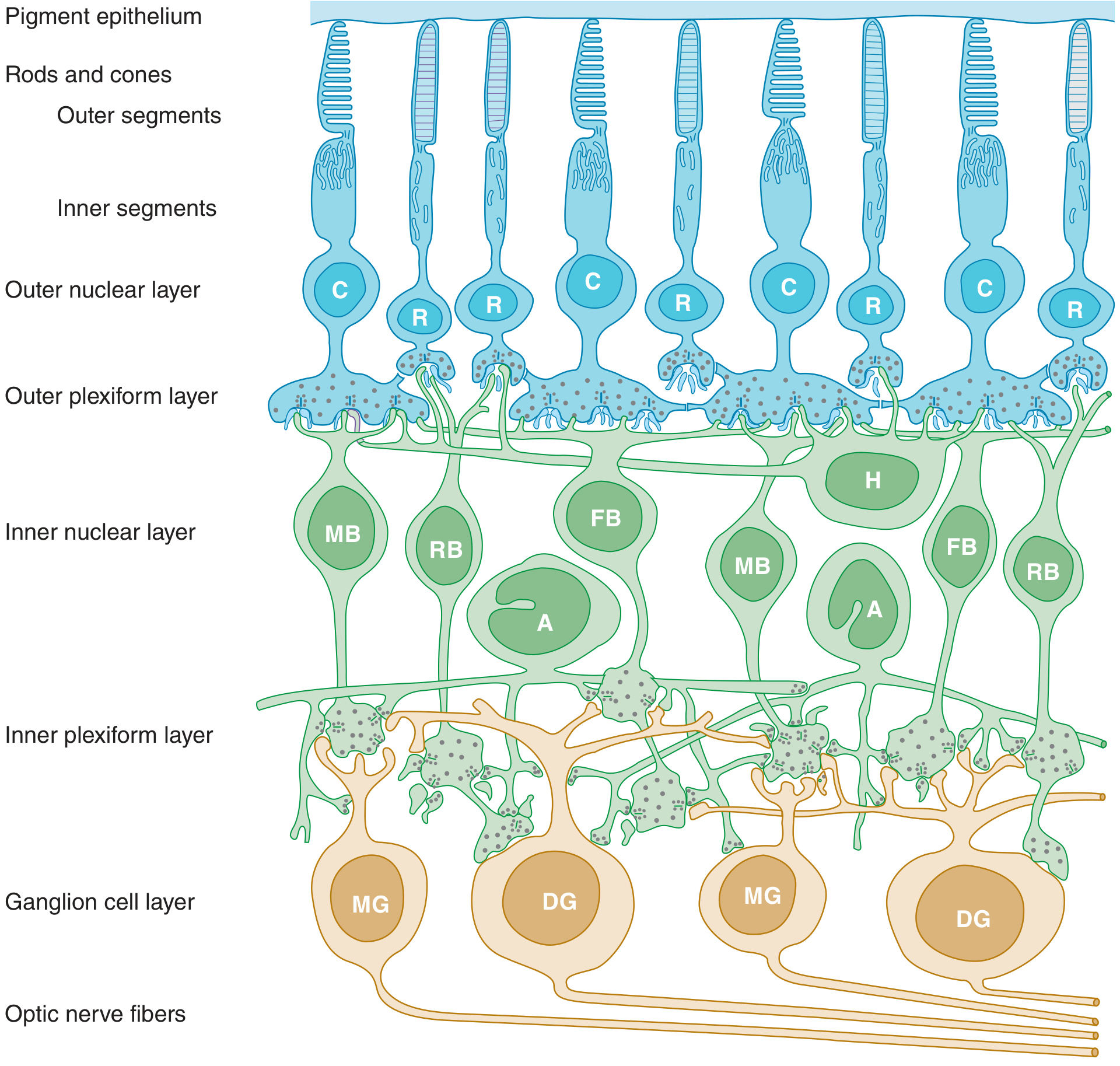

Retinal layers showing rods, cones, bipolar cells, ganglion cells

Neural components of the retina - Ganong's Review of Medical Physiology

Retinal Layers (Outside → Inside / Choroid to Vitreous):

FROM OUTSIDE (CHOROID SIDE) → INSIDE (VITREOUS SIDE):

Layer 1:  RPE (Retinal Pigment Epithelium)
             ↓ absorbs stray light, vit A metabolism
Layer 2:  Photoreceptors (Rods & Cones) - OUTER SEGMENTS
Layer 3:  External Limiting Membrane
Layer 4:  OUTER NUCLEAR LAYER (nuclei of rods & cones)
Layer 5:  OUTER PLEXIFORM LAYER (synapses: photoreceptors ↔ bipolars)
Layer 6:  INNER NUCLEAR LAYER
             (Bipolar cells + Horizontal cells + Amacrine cells + Müller cells)
Layer 7:  INNER PLEXIFORM LAYER (synapses: bipolars ↔ ganglion cells)
Layer 8:  GANGLION CELL LAYER (output neurons of retina)
Layer 9:  NERVE FIBER LAYER (axons → optic nerve)
Layer 10: Internal Limiting Membrane (ILM)

MNEMONIC: "Pretty Photographs Occasionally Obstruct
            Individuals In Gaining Normal Lives"
(P=Pigment epithelium, P=Photoreceptors, O=Outer limiting membrane,
O=Outer nuclear, I=Inner plexiform... etc.)

Rods vs. Cones:

┌────────────────┬──────────────────┬──────────────────┐
│  FEATURE       │     RODS         │     CONES        │
├────────────────┼──────────────────┼──────────────────┤
│ Number         │ ~120 million     │ ~6 million       │
│ Distribution   │ Periphery        │ Macula/Fovea     │
│ Fovea          │ Absent           │ Only cones       │
│ Function       │ Scotopic (dim)   │ Photopic (bright)│
│ Color vision   │ No               │ Yes (3 types)    │
│ Acuity         │ Low              │ High             │
│ Photopigment   │ Rhodopsin        │ Iodopsin         │
│ Convergence    │ High (many→1)    │ Low (1→1 fovea) │
└────────────────┴──────────────────┴──────────────────┘

8. CHAMBERS OF THE EYE

┌──────────────────────────────────────────────────────────┐
│                   THREE CHAMBERS                         │
├──────────────┬───────────────────────┬───────────────────┤
│  ANTERIOR    │    POSTERIOR          │   VITREOUS        │
│  CHAMBER     │    CHAMBER            │   CHAMBER         │
├──────────────┼───────────────────────┼───────────────────┤
│ Between:     │ Between:              │ Between:          │
│ Cornea       │ Iris/pupil            │ Lens &            │
│ (anterior)   │ (anterior) &          │ Retina            │
│ & Iris/lens  │ Lens (posterior)      │                   │
│ (posterior)  │                       │                   │
├──────────────┼───────────────────────┼───────────────────┤
│ Contents:    │ Contents:             │ Contents:         │
│ Aqueous      │ Aqueous humor         │ Vitreous humor    │
│ humor        │                       │ (gel - hyaluronic │
│              │                       │  acid + collagen) │
├──────────────┼───────────────────────┼───────────────────┤
│ Volume:      │ Very narrow space     │ ~4 mL             │
│ ~250 µL      │                       │ 80% of eye volume │
└──────────────┴───────────────────────┴───────────────────┘

NOTE: "Anterior cavity" = Anterior + Posterior chambers
      (both contain aqueous humor)

9. EXTRAOCULAR MUSCLES - Summary

SIX EXTRAOCULAR MUSCLES:
┌────────────────────┬──────────────┬──────────────┬──────────────┐
│  MUSCLE            │  NERVE       │  PRIMARY     │  SECONDARY   │
│                    │              │  ACTION      │  ACTIONS     │
├────────────────────┼──────────────┼──────────────┼──────────────┤
│ Medial Rectus      │ CN III       │ Adduction    │ -            │
│ Lateral Rectus     │ CN VI        │ Abduction    │ -            │
│ Superior Rectus    │ CN III       │ Elevation    │ Intorsion,   │
│                    │              │              │ Adduction    │
│ Inferior Rectus    │ CN III       │ Depression   │ Extorsion,   │
│                    │              │              │ Adduction    │
│ Superior Oblique   │ CN IV        │ Intorsion    │ Depression,  │
│                    │              │              │ Abduction    │
│ Inferior Oblique   │ CN III       │ Extorsion    │ Elevation,   │
│                    │              │              │ Abduction    │
└────────────────────┴──────────────┴──────────────┴──────────────┘

MNEMONIC for Nerve Supply:
"LR6 SO4 rest CN3"
(Lateral Rectus → CN VI, Superior Oblique → CN IV,
 all others → CN III)

Levator Palpebrae Superioris → CN III (raises upper lid)
Müller's muscle (superior tarsal) → Sympathetic supply

10. BLOOD SUPPLY OF THE EYE

OPHTHALMIC ARTERY (branch of Internal Carotid)
         │
    ┌────┴───────────────────────────┐
    │                                │
CENTRAL ARTERY              POSTERIOR CILIARY
OF RETINA                   ARTERIES
    │                                │
Supplies inner            SHORT: Supplies choroid +
layers of retina          optic nerve head
(end artery -             LONG: Supplies anterior uvea,
no collaterals)           ciliary body, iris
    │
No anastomosis
→ CRAO = sudden
  painless vision loss
  (cherry red spot)

VENOUS DRAINAGE:
Central Retinal Vein
→ Superior Ophthalmic Vein
→ Cavernous Sinus

CLINICAL: Cavernous sinus thrombosis → ophthalmoplegia
          CRVO → flame-shaped haemorrhages all 4 quadrants

11. NERVE SUPPLY OF THE EYE - Summary Flowchart

SENSORY: CN V1 (Ophthalmic division of Trigeminal)
  → Nasociliary nerve → Long ciliary nerves → Cornea, iris, ciliary body
  → Lacrimal, frontal branches → Eyelids, conjunctiva

MOTOR:
  CN III (Oculomotor) → SR, IR, MR, IO, Levator palpebrae
                      → Preganglionic parasympathetic → Ciliary ganglion
                      → Short ciliary nerves → Iris sphincter + Ciliary muscle

  CN IV (Trochlear) → Superior Oblique only

  CN VI (Abducens) → Lateral Rectus only

  CN VII (Facial) → Orbicularis oculi (closes eye)

SYMPATHETIC → Dilator pupillae + Müller's muscle
  Origin: Hypothalamus → Cilio-spinal centre (C8-T2) →
  Superior Cervical Ganglion → Long ciliary nerves

AUTONOMIC GANGLIA NEAR EYE:
  • Ciliary ganglion: Parasympathetic relay for iris sphincter
  • Pterygopalatine ganglion: Parasympathetic relay for lacrimal gland

12. LACRIMAL APPARATUS

LACRIMAL GLAND
(Parasympathetic: CN VII → Greater Petrosal nerve
→ Pterygopalatine ganglion → Lacrimal nerve → Gland)
       │
       ▼
   TEAR FILM (3 layers)
   ┌──────────────────┐
   │ LIPID (outer)    │ ← Meibomian glands (eyelid)
   │ AQUEOUS (middle) │ ← Lacrimal gland (main layer)
   │ MUCIN (inner)    │ ← Goblet cells of conjunctiva
   └──────────────────┘
       │
DRAINAGE PATH:
Lacrimal puncta (upper + lower eyelid)
→ Lacrimal canaliculi
→ Lacrimal sac (in lacrimal fossa)
→ Nasolacrimal duct
→ Inferior meatus of nose

CLINICAL: Blockage of nasolacrimal duct
→ Epiphora (watering eye)
→ Dacryocystitis (infection of lacrimal sac)

13. VISUAL PATHWAY - Key Anatomy

RETINA (Ganglion cells)
    │
    ▼
OPTIC NERVE (CN II)
    │
    ▼
OPTIC CHIASM
(Nasal fibers CROSS; Temporal fibers stay ipsilateral)
    │
    ▼
OPTIC TRACT
    │
  ┌─┴──────────────┐
  │                │
LATERAL         PRETECTAL
GENICULATE      NUCLEUS
NUCLEUS (LGN)   (Pupillary light reflex)
  │
  ▼
OPTIC RADIATION
  │
  ├── Upper fibers (parietal) → Inferior visual field
  └── Meyer's loop (temporal) → Superior visual field
       (first loops around temporal horn of lat. ventricle)
  │
  ▼
PRIMARY VISUAL CORTEX
(Calcarine cortex, Area V1, Occipital lobe)

VISUAL FIELD DEFECTS (High Yield):
• Optic nerve lesion → Monocular blindness
• Optic chiasm (pituitary tumor) → Bitemporal hemianopia
• Optic tract → Contralateral homonymous hemianopia
• Meyer's loop → Upper quadrantanopia ("pie in the sky")
• Parietal radiation → Lower quadrantanopia ("pie on the floor")
• Complete occipital cortex → Complete homonymous hemianopia
  (macular sparing if PCA & MCA both supply macula)

14. SCLERA & CHOROID

SCLERA:
• Outer fibrous coat (5/6 posterior globe)
• Opaque white collagen
• Tendons of 6 extraocular muscles insert here
• Emissaria = channels where vessels/nerves pierce sclera
• Lamina cribrosa = sieve-like area where optic nerve exits
  (weakest point → cups in glaucoma)

CHOROID:
• Vascular layer between sclera and retina
• Supplies outer retina (photoreceptors via diffusion)
• Contains:
  - Suprachoroidal space (potential)
  - Choroidal stroma (large vessels, Haller's layer)
  - Choriocapillaris (capillary layer adjacent to RPE)
  - Bruch's membrane (innermost layer, BM of RPE)
• Target of anti-VEGF therapy (wet AMD)

QUICK REVISION TABLE - High-Yield Facts

Structure	Key Point	Clinical Link
Cornea	Most powerful refracting surface (+43 D)	Keratoconus → irregular astigmatism
Lens	+18-20 D, changes with accommodation	Cataract → opacification
Bowman's layer	Does NOT regenerate	Corneal scar after injury
Endothelium	Does NOT regenerate	Fuchs' dystrophy
Fovea centralis	Only cones, highest acuity	Macular degeneration
Canal of Schlemm	Aqueous outflow	Blocked → Glaucoma
Ciliary muscle	Contraction → accommodation	Cycloplegics paralyze it
CN IV	Only CN to exit dorsally, longest intracranial course	Most vulnerable in head trauma
Lamina cribrosa	Optic nerve exits here	Glaucomatous cupping
Short ciliary arteries	End arteries to optic nerve head	Ischaemic optic neuropathy
Meyer's loop	Loops into temporal lobe	Temporal lobe surgery → "pie in sky"

Sources: Kanski's Clinical Ophthalmology 10th Ed. | Ganong's Review of Medical Physiology 26th Ed. | Guyton & Hall Medical Physiology | Goodman & Gilman's Pharmacological Basis of Therapeutics

Good luck with your ophthalmology preparation! Would you like me to build a similar detailed guide for any specific topic next - such as glaucoma, retinal disorders, lens pathology, or ocular pharmacology?

Flow chart are difficult decode There are not properly aligned can you come up with different pattern or image based flow chart

I'll generate all the key flowcharts as proper visual images simultaneously!

Generating Image

Medical education flowchart diagram titled "THREE COATS OF THE EYE" for ophthalmology students. Clean white background, professional medical illustration style. Show a top-level box labeled "THREE COATS OF THE EYE" branching down into three colored columns: LEFT column in blue labeled "OUTER COAT (Fibrous)" with two boxes below: "SCLERA - Posterior 5/6, Opaque white, Collagen fibers, Contains Lamina Cribrosa" and "CORNEA - Anterior 1/6, Transparent, Avascular, Most powerful refracting surface +43D"; MIDDLE column in orange labeled "MIDDLE COAT (Uveal Tract)" with three boxes: "IRIS - Sphincter pupillae (Parasympathetic CN III) + Dilator pupillae (Sympathetic)", "CILIARY BODY - Ciliary muscle (Accommodation) + Ciliary processes (Aqueous humor)", "CHOROID - Vascular layer, Nourishes outer retina, Contains Bruch membrane"; RIGHT column in green labeled "INNER COAT (Nervous)" with two boxes: "RETINA - Neural tissue, Contains photoreceptors, Rods and Cones" and "RPE - Retinal Pigment Epithelium, Absorbs stray light, Vitamin A metabolism". Use colored arrows connecting boxes, bold headings, clean modern style suitable for medical exam preparation.

Generating Image

Medical education diagram titled "LAYERS OF THE CORNEA" for ophthalmology exam preparation. Clean white background. Show a vertical cross-section diagram of the cornea on the LEFT side, with 6 distinct colored horizontal layers stacked from top to bottom, each a different color. On the RIGHT side, show a corresponding vertical flowchart with 6 numbered boxes connected by downward arrows, one for each layer. Layer 1 (pink): "EPITHELIUM - 5-6 cell layers, Non-keratinized stratified squamous, Rapid regeneration (24-48 hrs)". Layer 2 (yellow): "BOWMAN'S LAYER - Acellular condensed stroma, Does NOT regenerate, Scar forms if damaged". Layer 3 (blue): "STROMA - 90% of corneal thickness, Regular collagen lamellae (Type I), Keratocytes between lamellae, Transparency depends on this". Layer 4 (light purple): "DUA'S LAYER - Pre-Descemet layer, Newly discovered, Acellular, very strong". Layer 5 (orange): "DESCEMET'S MEMBRANE - Basement membrane of endothelium, Regenerates after injury". Layer 6 (green): "ENDOTHELIUM - Single layer of flat cells, Fluid pump keeps cornea dehydrated, Does NOT regenerate, Loss = corneal oedema". Add labels "ANTERIOR" at top and "POSTERIOR" at bottom. Bold red text for key facts like "Does NOT regenerate". Professional clean medical infographic style.

Generating Image

Medical education flowchart titled "AQUEOUS HUMOR - Formation and Drainage" for ophthalmology students. Clean white background, colorful and clear. Show a step-by-step vertical flowchart with numbered steps using colored boxes and thick downward arrows. Step 1 (blue box): "CILIARY PROCESSES produce Aqueous Humor by Diffusion + Active Transport from Plasma". Arrow down. Step 2 (light blue box): "POSTERIOR CHAMBER - Narrow space between Iris, Zonule and Lens". Arrow down labeled "flows through PUPIL". Step 3 (green box): "ANTERIOR CHAMBER - Between Cornea (front) and Iris/Lens (back)". Arrow down. Step 4 (yellow box): "TRABECULAR MESHWORK at the Iridocorneal Angle (Filtration Angle)". Arrow down. Step 5 (orange box): "CANAL OF SCHLEMM - Circumferential venous channel around the eye". Arrow down. Step 6 (red box): "AQUEOUS VEINS → EPISCLERAL VEINS → SYSTEMIC CIRCULATION". At the bottom add a highlighted box: "NORMAL IOP = 12-20 mmHg (avg 15 mmHg). If outflow BLOCKED → ↑IOP → GLAUCOMA". On the right side, add a separate small box showing "UVEOSCLERAL PATHWAY = 10-15% of outflow (alternative route)". Use large bold text, clean arrows, professional medical infographic style.

Flow chart are difficult decode There are not properly aligned can you come up with different pattern or image based flow chart

I'll generate all the key eye anatomy flowcharts as proper visual images now — all in parallel!

Generating Image

Medical education infographic titled "THREE COATS OF THE EYE" for ophthalmology exam prep. Clean white background. Three tall vertical colored columns side by side with a shared header box at top. LEFT column (sky blue): Header "OUTER COAT (Fibrous)" then two rounded boxes stacked: Box 1 "SCLERA" with bullet points: posterior 5/6, opaque white, collagen, contains lamina cribrosa; Box 2 "CORNEA" with bullets: anterior 1/6, transparent, avascular, +43D refracting power. MIDDLE column (warm orange): Header "MIDDLE COAT (Uveal Tract)" then three boxes stacked: "IRIS" with bullets: sphincter pupillae parasympathetic, dilator pupillae sympathetic; "CILIARY BODY" with bullets: ciliary muscle accommodation, ciliary processes form aqueous humor; "CHOROID" with bullets: vascular layer, nourishes outer retina, contains Bruch membrane. RIGHT column (sage green): Header "INNER COAT (Nervous)" then two boxes: "RETINA" with bullets: neural tissue, rods and cones, 10 layers; "RPE" with bullets: absorbs stray light, vitamin A metabolism, phagocytosis rod outer segments. Each column has a distinct pastel background fill. Bold title at top in dark navy. Clean modern medical infographic style, no clutter.

Generating Image

Medical education diagram titled "LAYERS OF THE CORNEA - Anterior to Posterior" for ophthalmology students. Clean white background. Show a large vertical stack of 6 wide horizontal colored bands like a layered sandwich cross-section, each band clearly labeled with a number and name on the left, and key facts on the right. Band 1 (soft pink, top): "1. EPITHELIUM" — 5-6 cell layers, non-keratinized stratified squamous, REGENERATES in 24-48 hrs. Band 2 (pale yellow): "2. BOWMAN'S LAYER" — acellular condensed collagen, does NOT regenerate, scar forms if damaged. Band 3 (light blue, thickest band): "3. STROMA" — 90% of corneal thickness, regular Type I collagen lamellae, keratocytes present. Band 4 (lavender): "4. DUA'S LAYER" — pre-Descemet, acellular, strong, newly described. Band 5 (peach): "5. DESCEMET'S MEMBRANE" — basement membrane of endothelium, REGENERATES after damage. Band 6 (mint green, bottom): "6. ENDOTHELIUM" — single flat cell layer, fluid pump maintains transparency, does NOT regenerate. Red warning icons next to layers that do not regenerate. Arrow on left pointing down labeled "ANTERIOR to POSTERIOR". Bold clear fonts, clean modern medical style.

Generating Image

Medical education flowchart titled "AQUEOUS HUMOR FLOW" for ophthalmology students. Clean white background. Vertical step-by-step flowchart with 6 large rounded rectangle boxes connected by thick blue downward arrows, numbered 1 to 6. Box 1 (deep blue, top): "1. CILIARY PROCESSES — Produce aqueous by diffusion + active transport". Arrow down. Box 2 (medium blue): "2. POSTERIOR CHAMBER — Between iris, zonule and lens". Arrow labeled "through PUPIL". Box 3 (sky blue): "3. ANTERIOR CHAMBER — Between cornea and iris". Arrow down. Box 4 (teal): "4. TRABECULAR MESHWORK — At iridocorneal filtration angle". Arrow down. Box 5 (green): "5. CANAL OF SCHLEMM — Circumferential venous channel". Arrow down. Box 6 (dark green): "6. AQUEOUS VEINS → EPISCLERAL VEINS → SYSTEMIC CIRCULATION". Below everything, a large red highlighted warning box: "NORMAL IOP = 12-20 mmHg. BLOCKAGE of outflow → RAISED IOP → GLAUCOMA". On right side a small side branch from Box 3 labeled "UVEOSCLERAL ROUTE (10-15%)". Clean bold fonts, professional medical infographic style, easy to read.

I think image generation not possible just use different pattern

Got it! I'll use clean table-based, emoji-aided, and indented tree patterns that render perfectly in any chat interface.

👁️ EYE ANATOMY - Visual Study Guide (Redesigned)

🏛️ 1. THREE COATS OF THE EYE

	🔵 OUTER COAT (Fibrous)	🟠 MIDDLE COAT (Uveal)	🟢 INNER COAT (Nervous)
Structures	Sclera + Cornea	Iris + Ciliary Body + Choroid	Retina + RPE
Sclera	Posterior 5/6, opaque, white collagen	-	-
Cornea	Anterior 1/6, transparent, avascular, +43D	-	-
Iris	-	Sphincter (parasym) + Dilator (sym)	-
Ciliary Body	-	Accommodation + Aqueous production	-
Choroid	-	Vascular, nourishes outer retina	-
Retina	-	-	10 layers, rods & cones
RPE	-	-	Vit A metabolism, phagocytosis

🔬 2. LAYERS OF THE CORNEA (Anterior → Posterior)

#	Layer	Key Facts	Regenerates?
1	Epithelium	5-6 cell layers, non-keratinized stratified squamous	✅ Yes (24-48 hrs)
2	Bowman's Layer	Acellular condensed collagen, anterior limiting membrane	❌ NO - scar forms
3	Stroma	90% thickness, regular Type I collagen lamellae, keratocytes	✅ Partial
4	Dua's Layer	Pre-Descemet, acellular, very strong, newly described	✅ Yes
5	Descemet's Membrane	Basement membrane of endothelium, posterior limiting membrane	✅ Yes
6	Endothelium	Single flat cell layer, fluid pump → keeps cornea transparent	❌ NO - oedema if lost

⚠️ Exam Tip: Bowman's + Endothelium do NOT regenerate. Loss of endothelium → corneal oedema (Fuchs' dystrophy)

💧 3. AQUEOUS HUMOR FLOW

① CILIARY PROCESSES
   (Diffusion + Active transport from plasma)
         ↓
② POSTERIOR CHAMBER
   (Between iris / zonule / lens)
         ↓  ← through PUPIL
③ ANTERIOR CHAMBER
   (Between cornea and iris)
         ↓                    ↘ (10-15%) Uveoscleral route
④ TRABECULAR MESHWORK
   (Iridocorneal filtration angle)
         ↓
⑤ CANAL OF SCHLEMM
   (Circumferential venous channel around eye)
         ↓
⑥ AQUEOUS VEINS → EPISCLERAL VEINS → SYSTEMIC CIRCULATION

Parameter	Value
Normal IOP	12-20 mmHg (avg 15 mmHg)
Outflow blocked	→ ↑ IOP → Glaucoma
Produced by	Ciliary processes
Main drainage	Canal of Schlemm (85-90%)
Alternative drainage	Uveoscleral route (10-15%)

🧠 4. RETINAL LAYERS (Outside → Inside)

Order	Layer	Key Cells / Notes
1 (outermost)	RPE	Absorbs light, Vit A, phagocytosis of rod tips
2	Photoreceptor layer	Outer segments of rods & cones
3	External Limiting Membrane	Junctions of Müller cells
4	Outer Nuclear Layer (ONL)	Nuclei of rods & cones
5	Outer Plexiform Layer (OPL)	Synapse: photoreceptors ↔ bipolars
6	Inner Nuclear Layer (INL)	Bipolar + Horizontal + Amacrine + Müller cells
7	Inner Plexiform Layer (IPL)	Synapse: bipolars ↔ ganglion cells
8	Ganglion Cell Layer (GCL)	Output neurons → optic nerve
9	Nerve Fiber Layer (NFL)	Axons of ganglion cells
10 (innermost)	Internal Limiting Membrane	Basement membrane of Müller cells

🔴 Rods vs 🔵 Cones

Feature	🔴 Rods	🔵 Cones
Number	~120 million	~6 million
Location	Periphery	Macula / Fovea
At Fovea	❌ Absent	✅ Only cones
Function	Scotopic (dim light)	Photopic (bright/color)
Photopigment	Rhodopsin	Iodopsin (3 types)
Acuity	Low	High
Convergence	Many → 1 ganglion	1 → 1 (fovea)

👁️ 5. CHAMBERS OF THE EYE

Chamber	Location	Contents	Volume
Anterior	Between cornea & iris/lens	Aqueous humor	~250 µL
Posterior	Between iris & lens	Aqueous humor	Narrow
Vitreous	Between lens & retina	Vitreous humor (hyaluronic acid + collagen)	~4 mL (80% of eye)

📌 Anterior cavity = Anterior + Posterior chambers (both have aqueous humor)

🎯 6. EXTRAOCULAR MUSCLES

Muscle	Nerve	Primary Action	Secondary Actions
Medial Rectus	CN III	Adduction	-
Lateral Rectus	CN VI	Abduction	-
Superior Rectus	CN III	Elevation	Intorsion, Adduction
Inferior Rectus	CN III	Depression	Extorsion, Adduction
Superior Oblique	CN IV	Intorsion	Depression, Abduction
Inferior Oblique	CN III	Extorsion	Elevation, Abduction
Levator Palpebrae	CN III	Raises upper lid	-
Müller's muscle	Sympathetic	Assists lid elevation	-

🧠 Mnemonic: LR₆ SO₄ rest III — Lateral Rectus = CN6, Superior Oblique = CN4, all others = CN3

🔴🔵 7. PUPILLARY CONTROL (Autonomic)

	MIOSIS (Constriction)	MYDRIASIS (Dilation)
Muscle	Sphincter pupillae	Dilator pupillae
Division	Parasympathetic	Sympathetic
Origin	Edinger-Westphal nucleus	Hypothalamus
Pathway	→ CN III → Ciliary ganglion → Short ciliary nerves	→ Ciliospinal centre (C8-T2) → Sup. cervical ganglion → Long ciliary nerves
NT	ACh (muscarinic M3)	Norepinephrine (α1)
Drugs causing it	Pilocarpine, opioids	Phenylephrine, cocaine
Lesion causing it	CN III palsy (fixed dilated pupil)	Horner's syndrome (miosis + ptosis + anhidrosis)

🛤️ 8. VISUAL PATHWAY - Lesion Localization

Site of Lesion	Visual Field Defect
Optic nerve	Monocular blindness (same eye)
Optic chiasm (e.g. pituitary tumour)	Bitemporal hemianopia
Optic tract	Contralateral homonymous hemianopia
Meyer's loop (temporal lobe)	Contralateral UPPER quadrantanopia "Pie in the sky"
Parietal radiation	Contralateral LOWER quadrantanopia "Pie on the floor"
Occipital cortex	Contralateral homonymous hemianopia + macular sparing

Retina → Optic Nerve → Optic Chiasm → Optic Tract
                              ↓
                       LGN (Thalamus)
                              ↓
                      Optic Radiations
                    ↙               ↘
           Parietal lobe        Meyer's loop
         (lower visual field)  (upper visual field)
                    ↘               ↙
               Primary Visual Cortex (V1)
                    Calcarine fissure

🩸 9. BLOOD SUPPLY - Quick Reference

Artery	Origin	Supplies
Ophthalmic artery	Internal carotid	Main supply to eye
Central retinal artery	Ophthalmic	Inner retina (END artery - no collaterals)
Short posterior ciliary	Ophthalmic	Choroid + optic nerve head
Long posterior ciliary	Ophthalmic	Iris + ciliary body (anterior uvea)
CRAO	Occlusion of CRA	Sudden painless monocular blindness + cherry red spot
CRVO	Occlusion of CRV	Flame haemorrhages all 4 quadrants, disc oedema

🚨 HIGH-YIELD EXAM FACTS - Summary Table

Structure	Key Fact	Clinical Pearl
Cornea	Avascular, supplied by aqueous + tears	Contact lens → hypoxia → neovascularisation
Bowman's layer	Does NOT regenerate	Permanent scar after deep abrasion
Endothelium	Does NOT regenerate, 2500 cells/mm²	Fuchs' dystrophy, post-surgical bullous keratopathy
Lens	Transparent, no blood supply, anaerobic metabolism	Cataract = opacity
Fovea	Only cones, no rods, highest visual acuity	AMD affects fovea → central scotoma
Lamina cribrosa	Weakest part of sclera	Glaucomatous cupping of optic disc
CN IV	Exits dorsally, longest intracranial course	Most vulnerable in closed head trauma → vertical diplopia
Ciliary ganglion	Relay for parasympathetic	Adie's pupil (tonic pupil)
Canal of Schlemm	Aqueous outflow	Blocked → ↑IOP → Glaucoma
Meyer's loop	Temporal lobe, loops around temporal horn	Temporal lobectomy → "pie in sky" defect

These tables and numbered step formats should be much cleaner to read! Would you like me to continue with specific topics like:

🟣 Glaucoma anatomy & pathways
🔴 Retinal vascular disorders
🟡 Lens & cataract anatomy
🟢 Optic nerve & papilloedema vs glaucoma

In meanwhile try generating images

Let me try generating all the key flowcharts as images simultaneously!

Generating Image

Clean medical education infographic showing "THREE COATS OF THE EYE" for ophthalmology students. White background. Three vertical colored columns side by side. Left column in blue: title "OUTER COAT Fibrous" with two boxes below - "SCLERA: posterior 5/6, opaque white, collagen, lamina cribrosa" and "CORNEA: anterior 1/6, transparent, avascular, plus 43 diopters". Middle column in orange: title "MIDDLE COAT Uveal Tract" with three boxes - "IRIS: sphincter parasympathetic, dilator sympathetic", "CILIARY BODY: accommodation, aqueous humor production", "CHOROID: vascular, nourishes outer retina, Bruch membrane". Right column in green: title "INNER COAT Nervous" with two boxes - "RETINA: 10 layers, rods and cones, neural tissue" and "RPE: vitamin A metabolism, absorbs light". Large bold title at top. Arrows pointing down within each column. Professional clean style.

Generating Image

Medical infographic showing cross section of corneal layers for ophthalmology students. Title "LAYERS OF THE CORNEA". Six horizontal colored bands stacked from top to bottom like a sandwich, each a different color with text on the right side. Top band pink labeled "1 EPITHELIUM - 5 to 6 cell layers, regenerates in 24 hours". Second band yellow "2 BOWMAN'S LAYER - acellular, does NOT regenerate, scar forms". Third band blue and thickest "3 STROMA - 90 percent thickness, regular collagen lamellae". Fourth band lavender "4 DUA'S LAYER - pre-Descemet, newly described, acellular". Fifth band peach "5 DESCEMET'S MEMBRANE - basement membrane of endothelium, regenerates". Bottom band green "6 ENDOTHELIUM - single cell layer, fluid pump, does NOT regenerate". Arrow on far left pointing downward labeled "Anterior to Posterior". Red warning symbol next to layers that do not regenerate. Clean white background, bold text.

Generating Image

Medical flowchart infographic titled "AQUEOUS HUMOR FLOW" for ophthalmology exam. Clean white background. Six large numbered rounded rectangular boxes arranged vertically connected by thick downward blue arrows. Box 1 dark blue at top "CILIARY PROCESSES produce aqueous by diffusion and active transport". Arrow down. Box 2 medium blue "POSTERIOR CHAMBER between iris zonule and lens". Arrow labeled through pupil. Box 3 sky blue "ANTERIOR CHAMBER between cornea and iris". Arrow down. Box 4 teal "TRABECULAR MESHWORK at iridocorneal angle". Arrow down. Box 5 green "CANAL OF SCHLEMM circumferential venous channel". Arrow down. Box 6 dark green "AQUEOUS VEINS to EPISCLERAL VEINS to SYSTEMIC CIRCULATION". Large red box at bottom "NORMAL IOP 12 to 20 mmHg. Blockage causes raised IOP and GLAUCOMA". Small side arrow from box 3 labeled "Uveoscleral route 10 to 15 percent". Bold clean fonts.

This is a shared conversation. Sign in to Orris to start your own chat.
