I now have comprehensive information from two authoritative neuroscience textbooks. Here is a complete explanation of phototransduction in rods in the dark.

Phototransduction of Rods - The Dark (Resting) State

Overview

In the absence of light, rod photoreceptors are maintained in a partially depolarized, tonically active state. This is the baseline from which light responses are measured. The whole mechanism centers on one second messenger: cGMP.

The Dark Current

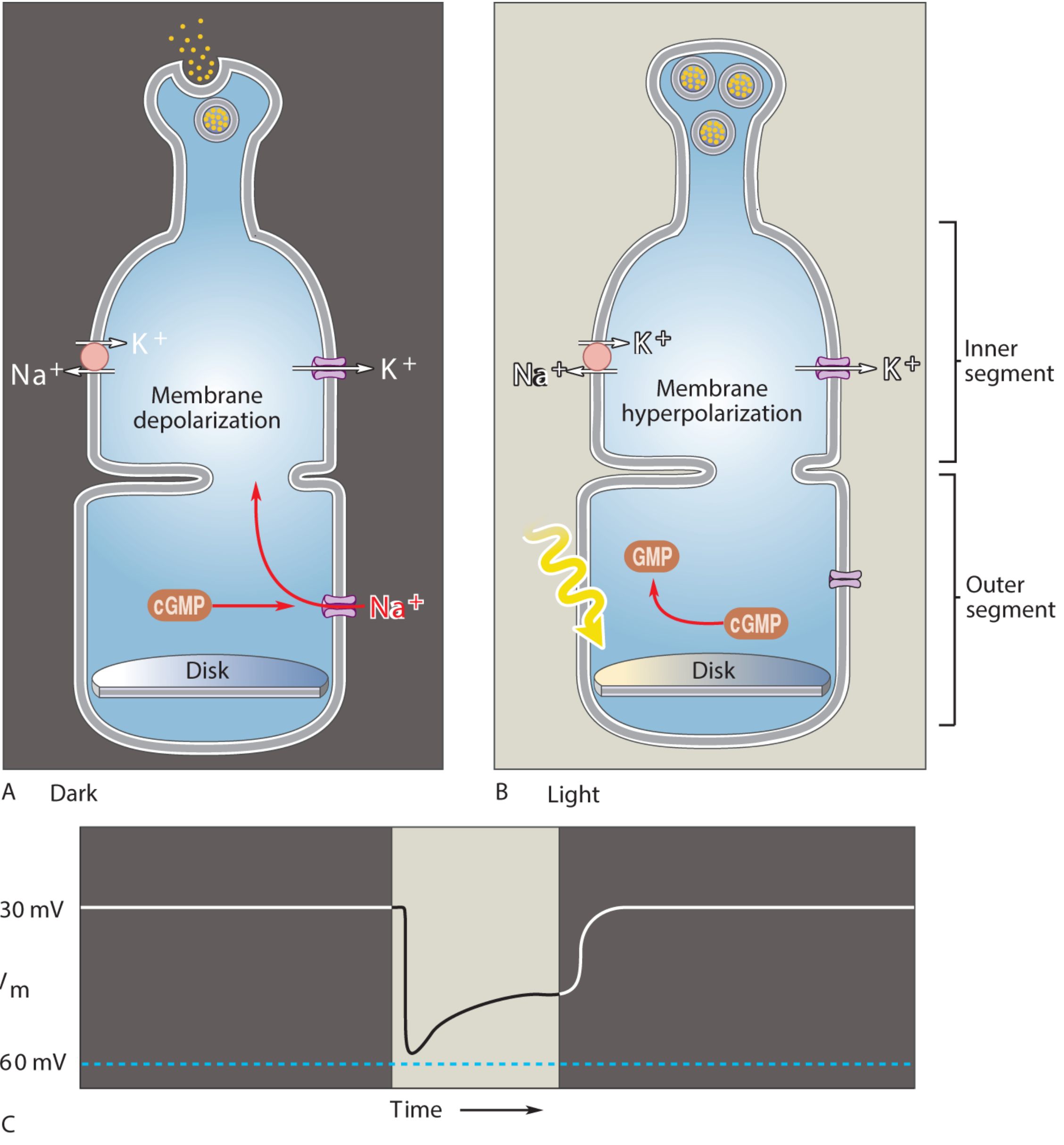

Dark vs. Light state of rod photoreceptors

In the dark:

The membrane potential of the rod outer segment is approximately -30 mV - significantly less negative than a typical neuron at rest (-65 mV).
This depolarization is caused by a steady inward flow of Na⁺ (and Ca²⁺) through special cation channels in the outer segment membrane - in addition to the usual outward K⁺ leak.
This continuous inward cation movement is called the "dark current".
The Na⁺/K⁺-ATPase in the inner segment actively pumps Na⁺ out and K⁺ in to maintain ionic balance, completing the circuit.

Role of cGMP - The Molecular Key

The cation channels responsible for the dark current are cGMP-gated channels (non-selective cation channels). Their behavior:

Condition	cGMP level	Channel state	Na⁺ influx	Membrane potential
Dark	High	Open	Yes (dark current)	~-30 mV (depolarized)
Light	Low	Closed	No	~-60 mV (hyperpolarized)

In the dark, the enzyme guanylyl cyclase (GC) continuously synthesizes cGMP from GTP, keeping intracellular cGMP concentration high. This keeps the cGMP-gated channels open and maintains the dark current.

Consequence: Continuous Glutamate Release

Because the rod is depolarized in the dark, voltage-gated Ca²⁺ channels at the synaptic terminal are open, leading to:

Continuous release of the neurotransmitter glutamate from the rod's synaptic terminal onto bipolar and horizontal cells.
This tonic glutamate release is the "dark signal" transmitted to downstream neurons.
When light arrives and the rod hyperpolarizes, glutamate release decreases - this change is what bipolar cells detect.

Ca²⁺ and Feedback Regulation in the Dark

Ca²⁺ also enters through the cGMP-gated channels in the dark. This intracellular Ca²⁺ plays a negative feedback role:

Ca²⁺ inhibits guanylyl cyclase (via guanylyl cyclase-activating proteins, GCAPs), slightly limiting cGMP synthesis.
Ca²⁺ also modulates the sensitivity of the cGMP-gated channels themselves.
This Ca²⁺ feedback is what enables light adaptation: when light closes channels and Ca²⁺ levels drop, the inhibition on GC is relieved, cGMP rises again, and sensitivity is restored.

Summary: Dark State Cascade

Guanylyl cyclase active
        ↓
High [cGMP] in cytoplasm
        ↓
cGMP binds to and keeps cation channels OPEN (outer segment)
        ↓
Steady Na⁺ and Ca²⁺ influx = "Dark Current"
        ↓
Membrane potential = -30 mV (depolarized)
        ↓
Ca²⁺ channels open at synaptic terminal
        ↓
Continuous glutamate release → tonic signal to bipolar cells

Why This Design Matters

The depolarized dark state with continuous glutamate release is a somewhat counterintuitive design: the rod is most active in the dark, not the light. Light turns it off (hyperpolarizes it). This allows the visual system to detect even a single photon as a small reduction in an otherwise large, constant signal - providing high sensitivity.

Sources:

Neuroscience: Exploring the Brain, 5th Edition, pp. 867-869
Principles of Neural Science (Kandel), 6th Edition, pp. 573-575

What do you mean by tonic signal to bipolar cells

Finding Sources

Reading File

Good - I have enough context. Here is a clear explanation:

What "Tonic Signal to Bipolar Cells" Means

What "Tonic" Means

Tonic = continuous, sustained, non-stop. The opposite is phasic = brief burst that stops.

A tonic signal here means the rod is releasing glutamate without interruption, all the time, for as long as it stays in the dark.

Why the Rod Releases Glutamate Continuously in the Dark

The chain of events is:

Dark → cGMP high → cation channels OPEN → Na⁺/Ca²⁺ flows in
→ Rod stays depolarized at -30 mV
→ Voltage-gated Ca²⁺ channels at synaptic terminal stay OPEN
→ Ca²⁺ triggers continuous vesicle fusion
→ Glutamate is released non-stop onto bipolar cells

This is unlike most neurons, which release neurotransmitter only when they fire an action potential. Rods do not fire action potentials - they use graded potentials instead. Their synaptic terminal is simply "on" all the time in the dark.

How Bipolar Cells Respond to This Tonic Glutamate

This is where it gets interesting. There are two types of bipolar cells, and they respond to glutamate in opposite ways:

Bipolar Cell Type	Glutamate Receptor	Response in Dark (high glutamate)	Response in Light (low glutamate)
OFF-bipolar	Ionotropic (AMPA/kainate)	Depolarized (excited)	Hyperpolarized (inhibited)
ON-bipolar	Metabotropic (mGluR6)	Hyperpolarized (inhibited)	Depolarized (excited)

So the tonic glutamate in the dark:

Keeps OFF-bipolar cells active - these signal "it's dark here."
Suppresses ON-bipolar cells - these are silenced in the dark and only activated when glutamate drops (i.e., when light hits the rod).

The Key Insight

The visual system does not simply detect light - it detects changes in light. The rod's tonic glutamate release in the dark establishes a steady baseline. When light hits:

The rod hyperpolarizes
Glutamate release drops (the tonic signal is interrupted)
ON-bipolar cells suddenly become active (they were suppressed by glutamate; now that suppression is removed)
This "disinhibition" signals to the brain: "Light just arrived here."

This is why the visual system is exquisitely sensitive to contrast and edges rather than uniform illumination - it is fundamentally a change-detection system built on top of that tonic baseline.

Neuroscience: Exploring the Brain, 5th Edition, pp. 867-872
Principles of Neural Science (Kandel), 6th Edition, p. 574

Light adaptation of rods and cones

Finding Sources

Reading File

Loading Image

I now have everything needed for a thorough answer.

Light Adaptation of Rods and Cones

What is Light Adaptation?

Light adaptation is the automatic gain control mechanism by which photoreceptors (and the broader retinal circuitry) reduce their sensitivity as ambient illumination increases. Its purpose is to:

Discard information about absolute light level (which varies by ~10⁹ across a day)
Preserve information about object reflectance (the property that actually identifies objects - varies by only ~10-fold in a typical scene)
Match the retina's limited firing-rate dynamic range (~100-fold) to the enormous range of real-world light intensities

The Scale of the Problem

Condition	Approx. intensity
Starlight	10⁻⁹ (reference)
Moonlight/dusk	~10⁻⁴
Indoor lighting	~10⁻²
Bright sunlight (noon)	~10⁰

The visual system must operate across 10 orders of magnitude of intensity. No single photoreceptor can handle this alone - adaptation occurs at multiple levels.

Molecular Mechanism: The Ca²⁺ Feedback Loop

The core mechanism of photoreceptor light adaptation is a Ca²⁺-dependent negative feedback on the phototransduction cascade:

In the dark (baseline):

cGMP-gated channels are open → Ca²⁺ enters steadily
High Ca²⁺ inhibits guanylyl cyclase (GC) via GCAPs (guanylyl cyclase-activating proteins)
This keeps cGMP synthesis in check

When sustained light arrives:

Light → PDE activated → cGMP falls → cGMP-gated channels CLOSE
         ↓
   Ca²⁺ entry STOPS (but Na⁺/Ca²⁺-K⁺ exchanger keeps pumping Ca²⁺ out)
         ↓
   Intracellular [Ca²⁺] DROPS
         ↓
   Ca²⁺ inhibition of GC is RELIEVED → GC now synthesizes MORE cGMP
         ↓
   cGMP partially recovers → Some channels REOPEN
         ↓
   Cell partially DEPOLARIZES back toward resting level
         ↓
   = REDUCED SENSITIVITY (gain lowered), FASTER response kinetics

This Ca²⁺ feedback simultaneously:

Lowers gain (the response to a given light increment is smaller)
Speeds up the response - light-adapted photoreceptors respond to rapid flicker much better than dark-adapted ones (seen in panel C of the figure)

Rod Adaptation vs. Cone Adaptation

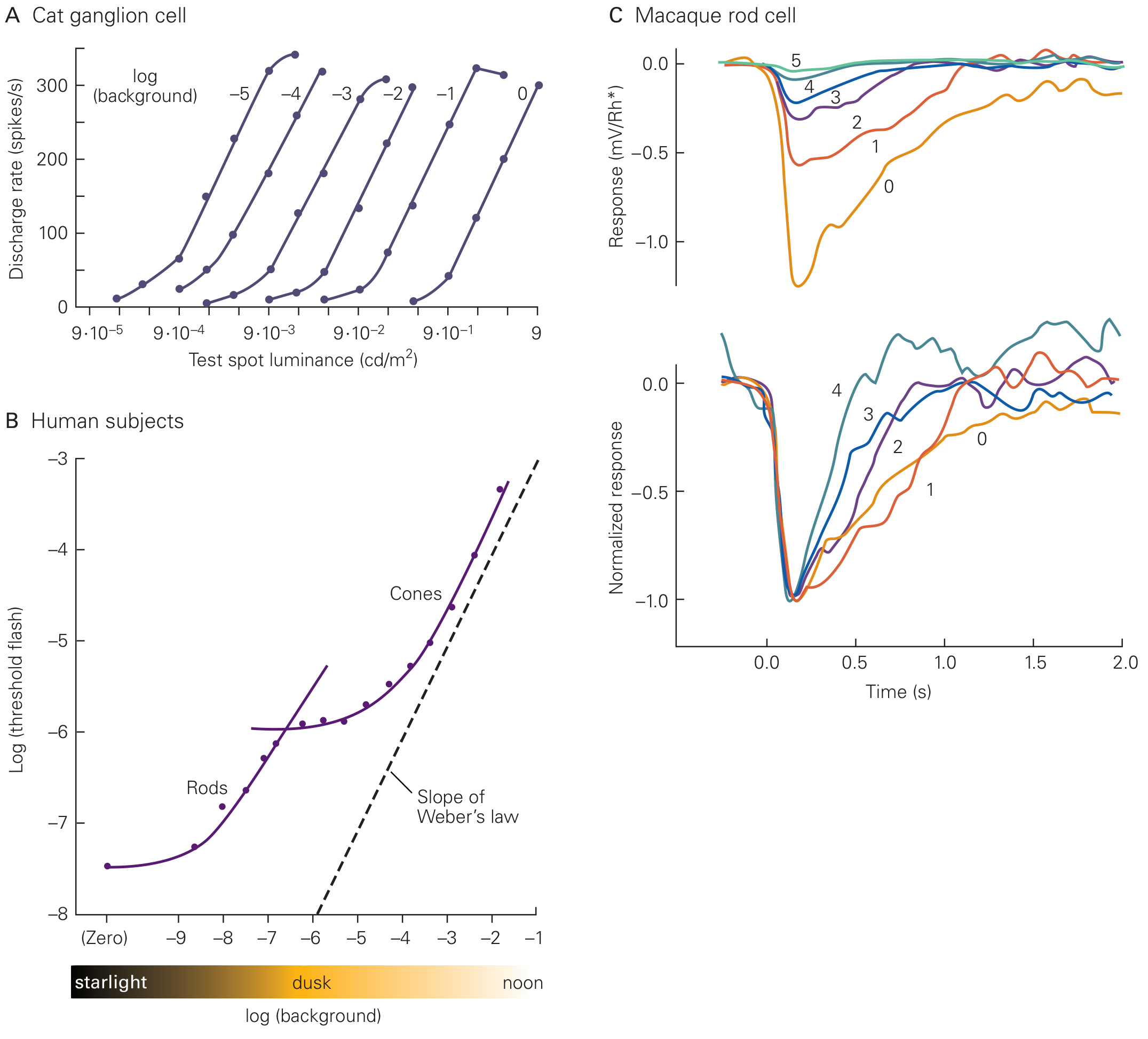

Light adaptation curves showing rod and cone thresholds, ganglion cell responses, and rod single-photon responses at varying backgrounds

As shown in panel B above (human psychophysics), there are two distinct phases of light adaptation:

Property	Rods	Cones
Operates in	Starlight to dim indoor light (~scotopic range)	Dusk to bright sunlight (~photopic range)
Sensitivity	Very high (respond to a single photon)	~1000x lower than rods
Saturation	Saturate in bright light (all cGMP channels closed, no further response)	Do NOT saturate; continue adapting at high intensities
Speed of adaptation	Slow	Fast
Pigment	Rhodopsin (one type)	Three cone opsins (S, M, L)
Bleaching recovery	Slow (~30-40 min for full dark adaptation)	Fast (~5-10 min)

At around dawn/dusk intensities, rods saturate - all their cGMP-gated channels are closed and the membrane can no longer respond to further increments of light. At this point, the cones take over and continue adapting as light increases toward noon.

Multiple Sites of Gain Control

Adaptation does not occur only in the photoreceptors. It is a cascade of gain controls at increasing light levels:

Ganglion cell level - at starlight, individual rods are too rarely stimulated; the ganglion cell pools many rod signals and is the first site to show a light-dependent gain change
Rod bipolar cell level - at slightly higher intensity, bipolar cells begin adapting
Rod photoreceptor level - at moderate intensity, the Ca²⁺ feedback mechanism reduces gain within individual rods
Rod saturation - rods become non-responsive; cones take over
Cone photoreceptor level - at bright light, Ca²⁺ feedback within cones continues adaptation toward noon

Weber's Law and Adaptation

The retina approximately follows Weber's Law: the minimum detectable intensity change (ΔI) is proportional to the background intensity (I), so the ratio ΔI/I is roughly constant. This means:

On a bright background, you need a brighter flash to detect it
The retina essentially computes contrast rather than absolute intensity
This explains why a candle looks bright in a dark room but invisible in sunlight

Spatial Consequences of Light Adaptation

Light adaptation also reshapes spatial processing:

In bright light: ganglion cells have sharp center-surround receptive fields → good edge detection, fine spatial resolution
In dim light: the antagonistic surround weakens and disappears → the retina switches to a "photon collector" mode, summing signals over larger areas to maximize sensitivity at the cost of spatial resolution
This is mediated by dopamine released by amacrine cells in a light-dependent manner

Summary Table

Feature	Dark-adapted (scotopic)	Light-adapted (photopic)
Active photoreceptors	Rods	Cones
Sensitivity	Very high	Lower
Gain	High	Low
Response speed	Slow	Fast
Spatial resolution	Poor	Fine
Receptive field surround	Weak/absent	Strong
cGMP	High	Partially reduced (steady state)
Intracellular Ca²⁺	High (channels open)	Low (channels partly closed)

Sources:

Principles of Neural Science (Kandel), 6th Edition, pp. 588-590
Neuroscience: Exploring the Brain, 5th Edition, pp. 868-869
