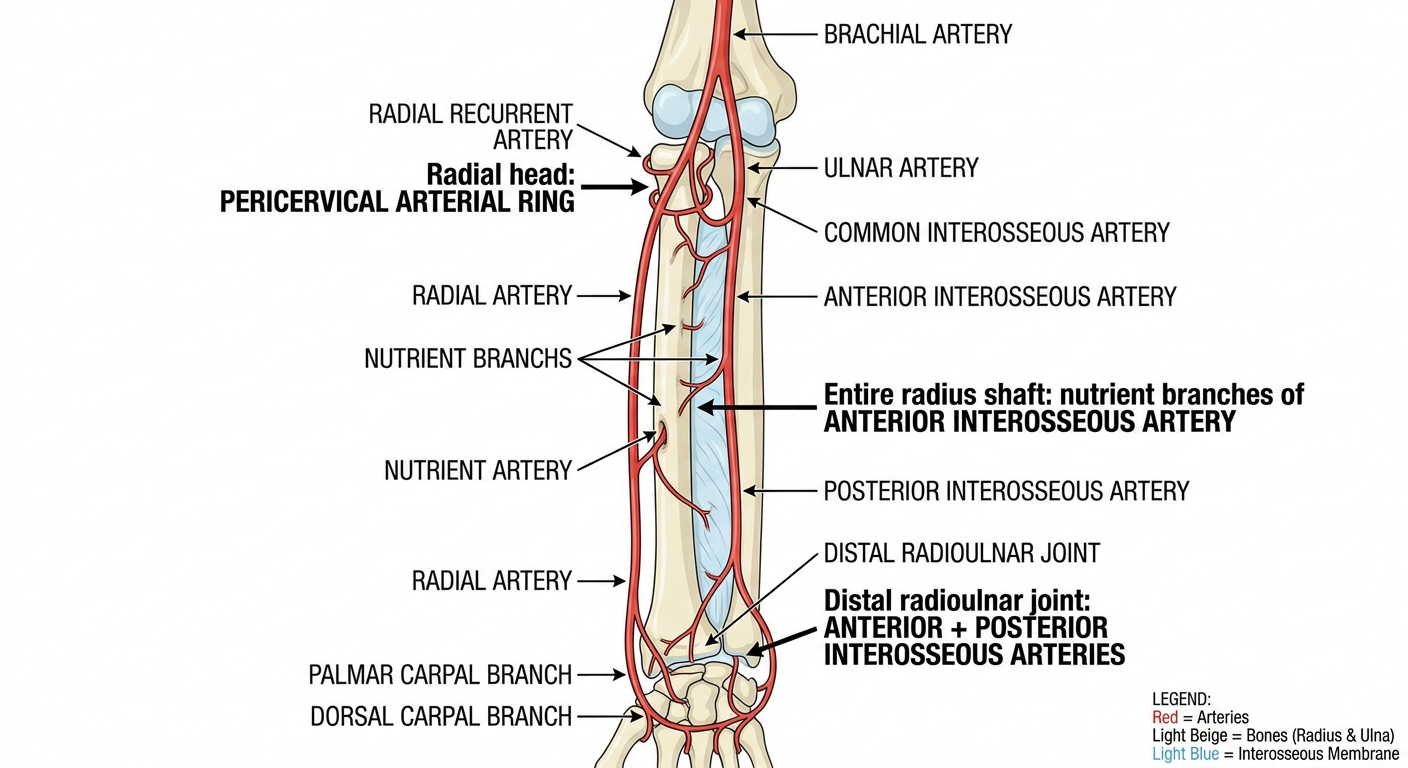

Here is the diagram for the arterial supply of the radius:

Arterial Supply of the Radius - Key Points

1. Radial Head & Neck

The radial head is supplied by a pericervical arterial ring formed by:
- Branches of the radial recurrent artery (from the radial artery)
- A branch of the ulnar artery
- A branch of the interosseous artery
A separate branch of the interosseous artery supports the neck
The nutrient artery provides intraosseous blood supply

2. Entire Radius Shaft

Supplied by nutrient branches of the anterior interosseous artery
The anterior interosseous artery is a branch of the common interosseous artery, which arises from the ulnar artery

3. Distal Radioulnar Joint

Supplied by both the anterior interosseous artery and the posterior interosseous artery
Both arise from the common interosseous artery (ulnar artery branch)

Hierarchy Summary

Brachial Artery
├── Radial Artery → Radial Recurrent Artery → Pericervical ring (radial head)
└── Ulnar Artery
    └── Common Interosseous Artery
        ├── Anterior Interosseous Artery → Nutrient branches (entire radius shaft)
        └── Posterior Interosseous Artery → Distal radioulnar joint

Clinical relevance: In distal radius fractures, the anterior interosseous artery's integrity is essential for bone healing. The distal radioulnar joint repair depends on intact anterior and posterior interosseous arteries. - Gray's Anatomy for Students, p. 967; Rockwood & Green's Fractures in Adults, 10th ed., p. 1660
