X-Ray Views of the Paranasal Sinuses (PNS)
- Waters' View
- Caldwell's View
- Lateral View
- Submentovertex (SMV) / Base View
1. Waters' View (Occipitomental View)
- Positioning: Patient's chin is elevated so the orbitomeatal line makes a 37-45° angle with the film. Nose and chin touch the plate.
- Central ray: Directed horizontally to emerge at the acanthion (junction of nose and upper lip)
- Best shows: Maxillary sinuses (most important view for maxillary sinusitis), anterior ethmoid air cells, orbital floors, and infraorbital rims
- Clinical use: First and most important view for suspected sinusitis; detects fluid levels in maxillary sinuses; also used for orbital blow-out fractures
2. Caldwell's View (Posteroanterior / PA View)
- Positioning: Forehead and nose touch the plate; orbitomeatal line perpendicular to film. Central ray tilted 15° caudally (or alternatively, the neck is slightly extended)
- Central ray: Directed through the nasion
- Best shows: Frontal sinuses and anterior ethmoid cells; the petrous ridges project below the floor of the orbits
- Clinical use: Best view for frontal sinusitis; ethmoid cells
3. Lateral View
- Positioning: True lateral; sagittal plane parallel to film
- Central ray: Horizontal to the midpoint between the outer canthus and the external auditory meatus

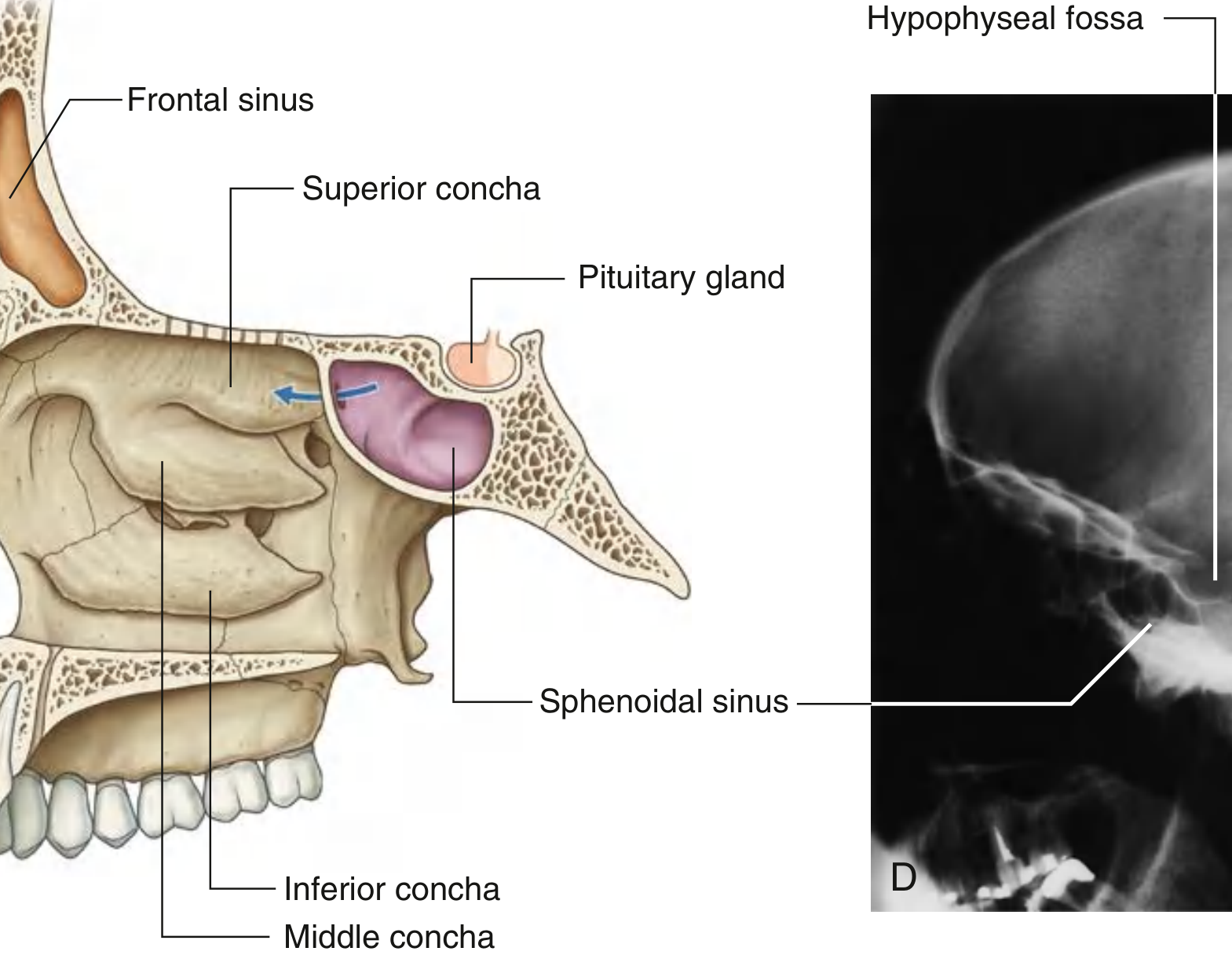

- Best shows: Anterior and posterior walls of frontal sinuses; anterior and posterior walls of maxillary sinuses; sphenoid sinus (best lateral view - it sits posterior to the nasal cavity); also shows the sella turcica / hypophyseal fossa
- Clinical use: Sphenoid sinusitis, posterior wall fractures, adenoid size assessment
4. Submentovertex (SMV) / Base View
- Positioning: Head extended maximally so the vertex rests on the table or film; the orbitomeatal line is parallel to the film
- Central ray: Directed through the sella turcica, perpendicular to the orbitomeatal line
- Best shows: Sphenoid sinus walls (anterior and posterior), ethmoid sinuses, axial view of maxillary sinuses, skull base, zygomatic arches
- Clinical use: Sphenoid sinus disease; suspected zygomatic arch fractures; used less commonly due to high radiation dose to the lens
Summary Table
| View | Also Called | Best Sinus Visualized | Key Use |
|---|---|---|---|
| Waters' | Occipitomental (OM) | Maxillary | Sinusitis, fluid levels |
| Caldwell's | PA view | Frontal + Ethmoid | Frontal sinusitis |
| Lateral | True lateral | Sphenoid | Sphenoid disease, adenoids |
| SMV/Base | Submentovertex | Sphenoid + Ethmoid | Skull base, zygomatic arch |
Quick Memory Aid
- Waters' = Maxillary (most commonly ordered; "Water fills the maxillary sinus")
- Caldwell = Frontal ("Cold forehead" - frontal bone hits the plate)
- Lateral = Sphenoid (posterior sinus, best seen from the side)
- SMV = Base (axial/base projection, good for floor sinuses)

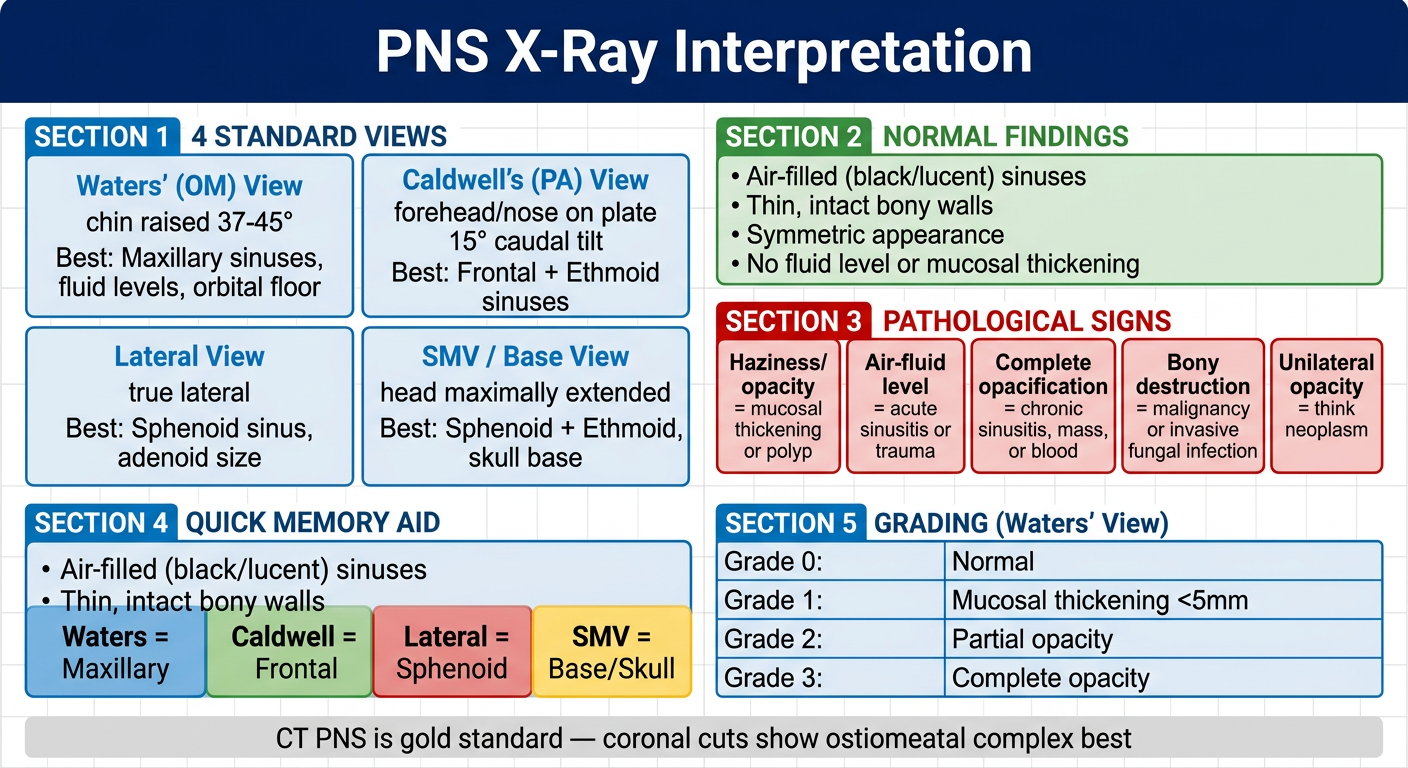

Create a clinical reference card for PNS X-ray interpretation
A clean, professional clinical reference card titled "PNS X-Ray Interpretation" for medical students and clinicians. Dark navy blue header with white title text. The card is organized into clearly labeled sections: SECTION 1 - "4 STANDARD VIEWS" with a 2x2 grid layout: - Waters' (OM) View: chin raised 37-45°, Best: Maxillary sinuses, fluid levels, orbital floor - Caldwell's (PA) View: forehead/nose on plate, 15° caudal tilt, Best: Frontal + Ethmoid sinuses - Lateral View: true lateral, Best: Sphenoid sinus, adenoid size - SMV / Base View: head maximally extended, Best: Sphenoid + Ethmoid, skull base SECTION 2 - "NORMAL FINDINGS" bullet points: • Air-filled (black/lucent) sinuses • Thin, intact bony walls • Symmetric appearance • No fluid level or mucosal thickening SECTION 3 - "PATHOLOGICAL SIGNS" in red-highlighted boxes: • Haziness/opacity = mucosal thickening or polyp • Air-fluid level = acute sinusitis or trauma • Complete opacification = chronic sinusitis, mass, or blood • Bony destruction = malignancy or invasive fungal infection • Unilateral opacity = think neoplasm SECTION 4 - "QUICK MEMORY AID" colored boxes: Waters = Maxillary | Caldwell = Frontal | Lateral = Sphenoid | SMV = Base/Skull SECTION 5 - "GRADING (Waters' View)" small table: Grade 0: Normal | Grade 1: Mucosal thickening <5mm | Grade 2: Partial opacity | Grade 3: Complete opacity Footer: "CT PNS is gold standard — coronal cuts show ostiomeatal complex best" Use a clean medical textbook aesthetic with subtle grid lines, color coding (blue for views, red for pathology, green for normal), and clear sans-serif font hierarchy.
- 4 standard views with positioning tips and which sinus each best visualizes
- Normal vs. pathological findings with red flags that should raise concern
- Quick memory aid for the views-to-sinus mapping
- Opacity grading on the Waters' view
- A reminder that CT PNS (coronal cuts) remains the gold standard for detailed evaluation
