ECG Analysis & Clinical Diagnosis

Patient Summary

• Age/Sex: 68-year-old female
• Complaints: Shortness of breath, palpitations
• Vitals: BP 121/86 mmHg, HR 184 bpm
• Relevant finding: Right lower limb elephantiasis (lymphedema)
• Current medications (visible on pill box): Tab. Carvedilol 3.125 mg, Tab. Nikardia Retard (Nifedipine) 10 mg

ECG Interpretation

Systematic ECG Analysis:

Primary ECG Diagnosis:

Atrial Flutter with Rapid Ventricular Response (likely 1:1 or near-1:1 conduction)

• Rate of 184 bpm is very characteristic. Classic atrial flutter has an atrial rate of ~300 bpm. With a 2:1 conduction ratio, the ventricular rate is typically ~150 bpm. With near 1:1 conduction (possible in this patient given she is on Carvedilol at a very low dose of 3.125 mg - a beta-blocker that may not be sufficiently rate-controlling), rates of 180-200 bpm are seen.
• The regular narrow-complex tachycardia is the hallmark of atrial flutter. Compare the textbook example below:

(Tintinalli's Emergency Medicine: Atrial flutter. A = regular narrow-complex tachycardia at 155 bpm, B = flutter waves visible in II, III, aVF, C = flutter waves unmasked by carotid massage)

• AF → irregularly irregular rhythm, no distinct P waves, chaotic baseline
• Atrial Flutter → regular rhythm, saw-tooth flutter waves, predictable AV conduction ratio

Differential Diagnosis

1. Atrial Flutter with Rapid Ventricular Response (Most Likely)

• Regular narrow-complex tachycardia at ~184 bpm
• Sawtooth flutter waves (best seen in II, III, aVF, V1)
• Atrial rate ~300-370 bpm with variable conduction
• Supported by: regular rhythm, rate in typical flutter range
• Tintinalli's EM: "A regular narrow-complex tachycardia at an approximate rate of 150 beats/min (+/- 5 beats/min) strongly suggests atrial flutter with 2:1 conduction." At 184 bpm, this may represent atrial flutter with near-1:1 or between 1:1 and 2:1 conduction.

2. Atrial Fibrillation with Rapid Ventricular Response (AF with RVR)

• Most common supraventricular tachycardia in the ED (after sinus tachycardia)
• No distinct P waves, irregularly irregular rhythm
• Ventricular rate typically 120-170 bpm in uncontrolled AF; rates >200 bpm may suggest an accessory pathway
• Rate of 184 bpm is slightly high for typical AF with RVR but possible
• The distinction is clinically important: both require similar acute management but long-term management differs

3. AV Nodal Reentrant Tachycardia (AVNRT)

• Most common regular narrow-complex tachycardia in adults
• Rates typically 150-250 bpm
• P waves are either absent or retrograde (buried in or just after QRS complex)
• Usually paroxysmal; less commonly sustained at 184 bpm in elderly
• Often triggered by a premature atrial beat

4. Atrioventricular Reentrant Tachycardia (AVRT) / WPW Syndrome

• Uses an accessory pathway (Bundle of Kent)
• Can present as orthodromic AVRT (narrow complex) at 150-250 bpm
• Less likely at age 68 without prior history, but must be considered
• Important: Do NOT give AV nodal blockers (adenosine, diltiazem, digoxin) if pre-excitation is suspected - can precipitate VF

5. Focal Atrial Tachycardia

• Abnormal automaticity from a single atrial focus
• Rates 100-250 bpm, narrow complex
• P wave morphology differs from sinus P waves
• Less common than flutter/AF

6. Sinus Tachycardia with Underlying Cause

• Less likely at 184 bpm - sinus tachycardia rarely exceeds 160-170 bpm even with severe physiological stress
• Would require an underlying cause: PE, sepsis, severe anemia, thyrotoxicosis

7. Pulmonary Embolism-Induced Tachycardia (Important to Exclude)

• The right lower limb elephantiasis/lymphedema is a key clinical clue
• Chronic lymphedema causes venous stasis, which is a major risk factor for DVT/PE
• PE can precipitate both AF and sinus tachycardia
• Classic ECG findings of PE: sinus tachycardia, S1Q3T3, right heart strain, RBBB
• This patient's ECG does not clearly show S1Q3T3, but PE should remain on the differential given the clinical history

Clinical Significance of Right Lower Limb Elephantiasis

• Chronic lymphedema causes venous stasis - a core component of Virchow's triad for DVT
• DVT + tachycardia + shortness of breath = must rule out Pulmonary Embolism
• PE can itself trigger atrial flutter/AF and cause right heart strain
• Also, lymphedema may indicate underlying lymphatic obstruction from a pelvic/abdominal malignancy, which increases thrombotic risk further

Immediate Management

Step 1 - Hemodynamic Assessment

• BP of 121/86 mmHg is borderline - not severely hypotensive but HR of 184 is concerning
• Assess for signs of hemodynamic instability: altered consciousness, chest pain, severe dyspnea, hypotension
• If hemodynamically unstable → Urgent synchronized DC cardioversion (50-200 J)

Step 2 - Rate Control (if stable)

• IV Metoprolol or IV Diltiazem (first-line AV nodal blocking agents)
• IV Amiodarone (if LV dysfunction is suspected or beta-blockers contraindicated)
• Digoxin (slower onset, less preferred acutely)
• Note: She is already on Carvedilol 3.125 mg - a very low dose, clearly not providing adequate rate control

Step 3 - Anticoagulation

• CHA2DS2-VASc score for this patient:
  • Congestive Heart Failure: unknown (possibly 1)
  • Hypertension: unknown (possibly 1 - she's on Nifedipine)
  • Age 65-74: +1 (she is 68)
  • Female sex: +1
  • Minimum score = 2 → anticoagulation indicated
• Start DOAC (e.g., Rivaroxaban, Apixaban) or LMWH pending evaluation

Step 4 - Workup to Perform

Step 5 - Long-Term Management (if Atrial Flutter confirmed)

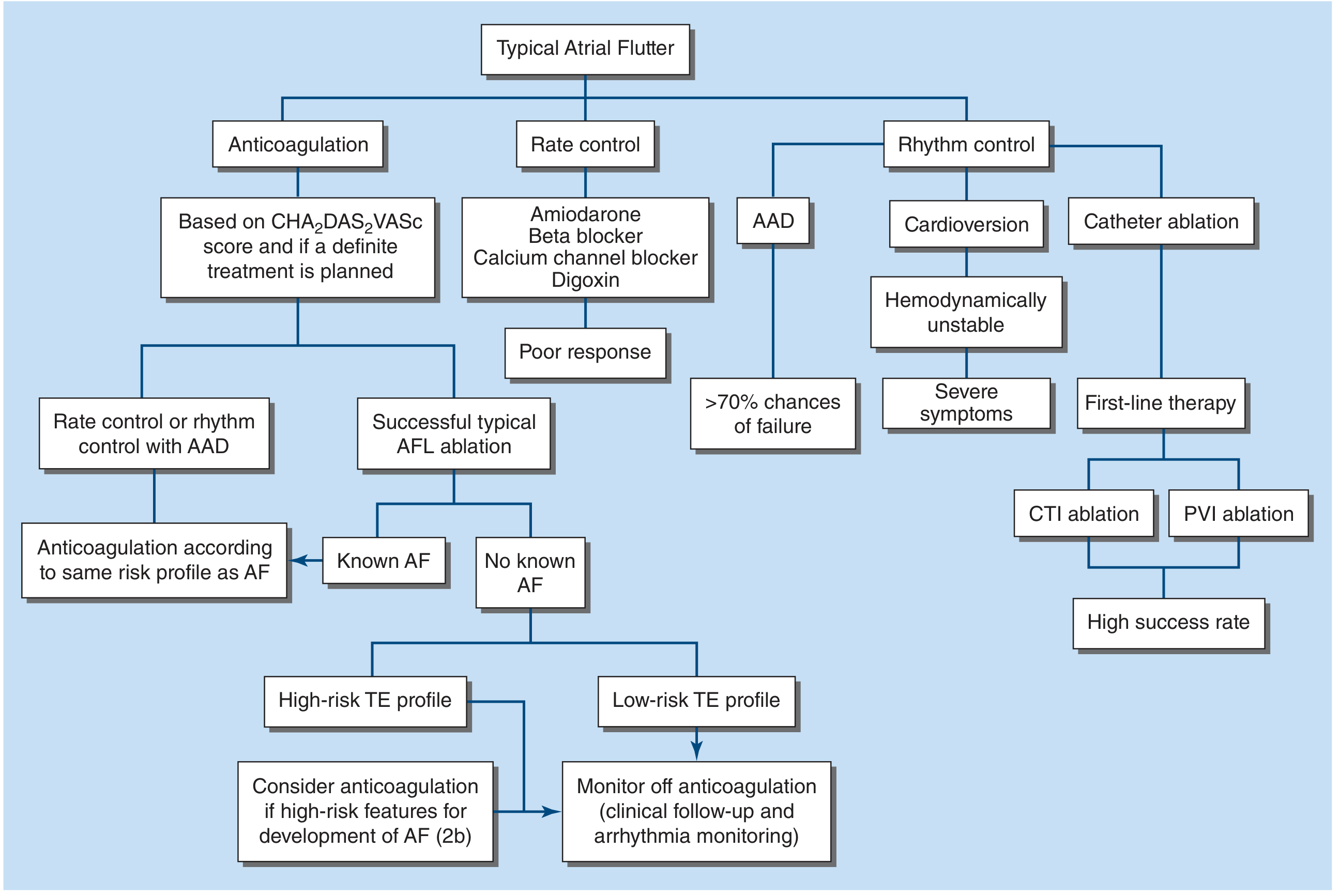

• Rate and rhythm control as outlined in the Harrison's flowchart above
• Catheter ablation (CTI ablation) - first-line definitive therapy for atrial flutter, >95% success rate
• Anticoagulation guided by CHA2DS2-VASc score
• Address right leg lymphedema and its underlying cause

Key Diagnosis Summary

• Regular narrow-complex tachycardia at 184 bpm
• ECG labeled "Markedly Abnormal" by the machine
• Consistent with typical (CTI-dependent) atrial flutter
